CONECTA

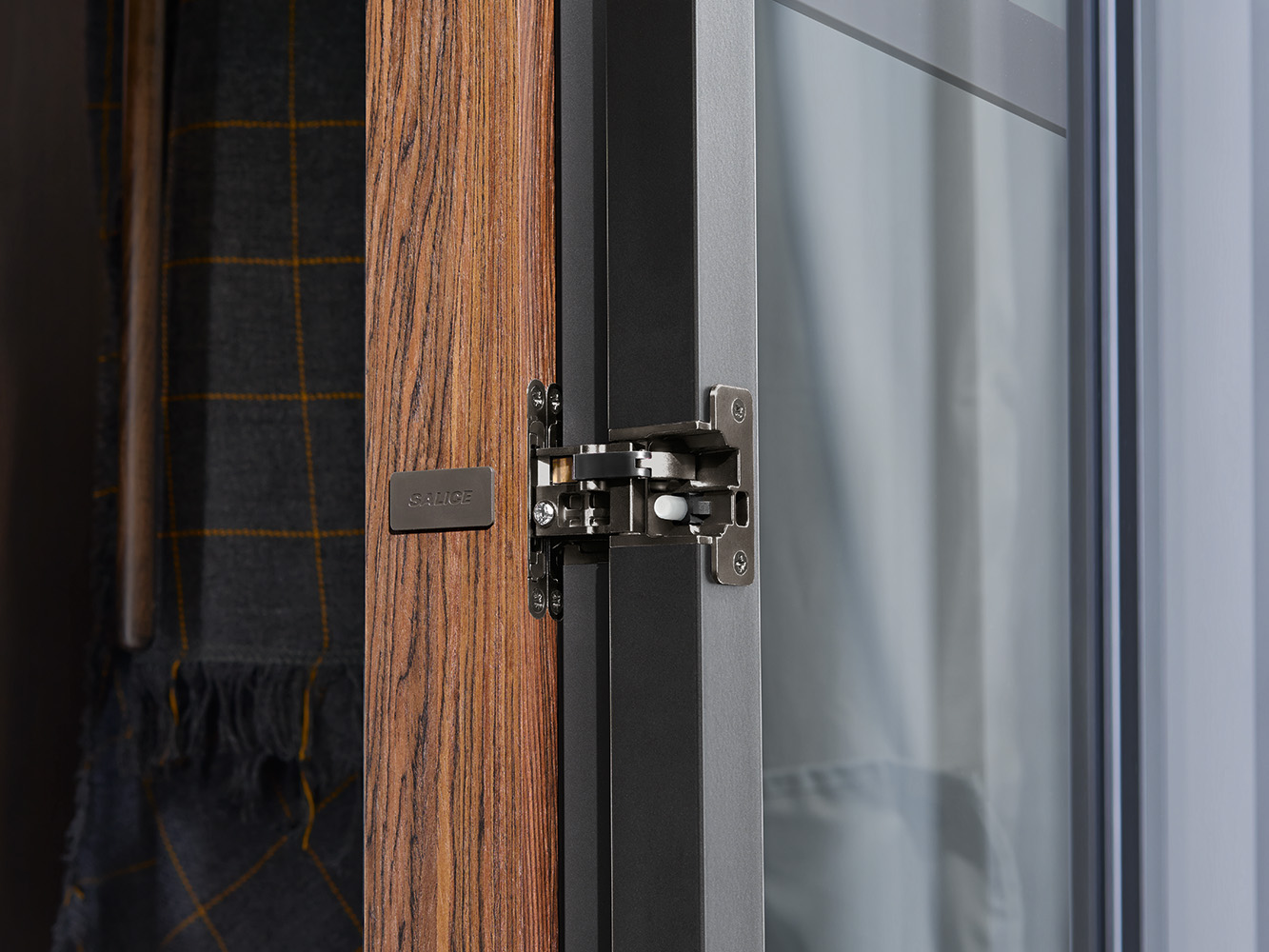

Concealed hinge for aluminium-framed doors
Hinge with recessed insertion in the door and in the side
- Inserted into the cabinet and the door
- For aluminium-framed doors
- 94° and 180° opening
- Thickness of doors from 22 to 30 mm
- Thickness of sides from 16 mm
Every detail is designed to provide a comfortable, precise and reliable user experience.
The movement is smooth and silent, even with large or particularly heavy doors. Gentle and controlled deceleration is guaranteed by the soft closing with silicone-oil dampers, which protect both the door and the cabinet structure from impacts and vibrations. A detail that translates into greater durability of materials and everyday comfort.
Conecta is available in nickel-plated and titanium finishes with cover caps in various colours, applicable both on the side panel and on the door. A detail that ensures the hinge harmonises perfectly with the style and personality of the cabinet.
Perfection hides in the details
Conecta is the totally innovative Salice hinge that stands out for being completely hidden inside the door and the side of the cabinet, offering a concealed solution that enhances the aesthetics of the design.
This versatile hinge is engineered for a wide range of furniture styles and applications. It is compatible with both wooden doors and aluminium profiles, making it the ideal choice for those seeking flexibility without compromising on high performance.
Installation is simple and intuitive thanks to direct three-way calibrated adjustment, which always ensures perfect door alignment. This allows for easy intervention during assembly, saving time and providing maximum precision.
The system’s solidity is further guaranteed by the minimum thickness requirements: it can be used with side panels of at least 16 mm thickness and doors of at least 22 mm thickness.
Technical features
- 94° opening with stop, to avoid door-drawer impact when opening
- 180° opening with reduced return, allowing the extraction of drawers or pull-out elements without spacers
- Concealed hinge with recessed insertion in the door and in the side
- Adjustments:
- Sideways adjustment: -2 mm +0.5 mm for hinge 94°
- Sideways adjustment: -1 mm +2 mm for hinge 180°
- Height adjustment: -2.5 mm +2.5 mm
- Depth adjustment: 0 mm +3 mm - Rapid fixing of the door to the cabinet side
- Concealed CQY3JE and CQZ3JE hinges - 94° opening:
- Door overlay on the side 10 mm with holder DQG5
- Door overlay on the side 12,5 mm with holder DQG3
- Depth of the metal cup:
- CQY3JE: 21 mm
- CQZ3JE: 24 mm - Concealed CQY3KE and CQZ3KE hinges - 94° opening:
- Door overlay on the side 14 mm with holder DQG5
- Door overlay on the side 16,5 mm with holder DQG3
- Depth of the metal cup:
- CQY3KE: 21 mm
- CQZ3KE: 24 mm - Concealed CQAIJE hinge - 180° opening:
- Door overlay on the side 10 mm with holder DQG5
- Door overlay on the side 12,5 mm with holder DQG3
- Depth of the metal cup: 19 mm
Catalogue
Technical pamphlet
CQY3JE9XXV
94° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Nickel-plated finish.
Fixing screws and flange cover cap included.
CQY3JE6XXV
94° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Titanium finish.
Fixing screws and flange cover cap included.
CQY3KE9XXV
94° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 14 mm with holder DQG5B.
Door overlay on the side 16,5 mm with holder DQG3B.
Nickel-plated finish.
Fixing screws and flange cover cap included.
CQY3KE6XXV
94° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 14 mm with holder DQG5B.
Door overlay on the side 16,5 mm with holder DQG3B.
Titanium finish.
Fixing screws and flange cover cap included.
CQZ3JE9XXV
94° OPENING - FOR DOORS THICKNESS FROM 25 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Nickel-plated finish.
Fixing screws and flange cover cap included.
CQZ3JE6XXV
94° OPENING - FOR DOORS THICKNESS FROM 25 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Titanium finish.
Fixing screws and flange cover cap included.
CQZ3KE9XXV
94° OPENING - FOR DOORS THICKNESS FROM 25 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 14 mm with holder DQG5B.
Door overlay on the side 16,5 mm with holder DQG3B.
Nickel-plated finish.
Fixing screws and flange cover cap included.
CQZ3KE6XXV
94° OPENING - FOR DOORS THICKNESS FROM 25 MM
Concealed hinge for aluminium-framed doors with recessed insertion in the door and in the side.
Door overlay on the side 14 mm with holder DQG5B.
Door overlay on the side 16,5 mm with holder DQG3B.
Titanium finish.
Fixing screws and flange cover cap included.
CQAIJE9BXV
180° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for wooden doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Nickel-plated finish.
Fixing screws and flange cover cap included.
CQAIJE6BXV
180° OPENING - FOR DOORS THICKNESS FROM 22 MM
Concealed hinge for wooden doors with recessed insertion in the door and in the side.
Door overlay on the side 10 mm with holder DQG5B.
Door overlay on the side 12,5 mm with holder DQG3B.
Titanium finish.
Fixing screws and flange cover cap included.
DQG5BX9XS
Holder DQG5B to be screw-fixed to the cabinet side.
Nickel-plated finish.
Fixing screws and screw cover cap included.
DQG5BX6XS
Holder DQG5B to be screw-fixed to the cabinet side.
Titanium finish.
Fixing screws and screw cover cap included.
DQG3BX9XS
Holder DQG3B to be screw-fixed to the cabinet side.
Nickel-plated finish.
Fixing screws and screw cover cap included.
DQG3BX6XS
Holder DQG3B to be screw-fixed to the cabinet side.
Titanium finish.
Fixing screws and screw cover cap included.
Screw cover cap PQFXAA1SN
WHITE
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG3B.
Screw cover cap PQFXAA3SN
BLACK
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG3B.
Screw cover cap PQFXAA6SN
TITANIUM
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG3B.
Screw cover cap PQFXAA9SN
SATIN CHROME
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG3B.
Screw cover cap PQFXAAWSN
SATIN GOLD
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG3B.
Screw cover cap PQFXAA1
WHITE
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG3B.
Screw cover cap PQFXAA3
BLACK
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG3B.
Screw cover cap PQFXAA6
TITANIUM
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG3B.
Screw cover cap PQFXAA9
SATIN CHROME
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG3B.
Screw cover cap PQFXAAW
SATIN GOLD
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG3B.
Screw cover cap PQF5AA1SN
WHITE
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA3SN
BLACK
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA6SN
TITANIUM
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA9SN
SATIN CHROME
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AAWSN
SATIN GOLD
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA1
WHITE
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA3
BLACK
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA6
TITANIUM
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA9
SATIN CHROME
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AAW
SATIN GOLD
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Flange cover cap PQSZAA1
WHITE
Plastic flange cover cap.
For hinge for aluminium-framed doors.
Flange cover cap PQSZAA3
BLACK
Plastic flange cover cap.
For hinge for aluminium-framed doors.
Flange cover cap PQSZAA6
TITANIUM
Plastic flange cover cap.
For hinge for aluminium-framed doors.
Flange cover cap PQSZAA9
SATIN CHROME
Plastic flange cover cap.
For hinge for aluminium-framed doors.
Flange cover cap PQSZAAW
SATIN GOLD
Plastic flange cover cap.
For hinge for aluminium-framed doors.
DQZ3HS5V04
Steel corner connectors for the assembly of the aluminium door profile.
DEL6BSFV02
Die-cast corner connectors for the assembly of the aluminium door profile.
DQZ6AG3000T
Gasket for glass.
3 metre-gaskets.
DQZ6LP300_
Aluminium door profile for glass insertion (4 mm).
DQZ6LP300P: profiles in Anodised Aluminium (3 metres)
DQZ6LP300T: profiles in Titanium finish (3 metres)
DQZ6LF300_
Aluminium door profile for glass insertion (4 mm).
DQZ6LF300P: profiles in Anodised Aluminium with handle (3 metres)
DQZ6LF300T: profiles in Titanium finish with handle (3 metres)
DQY9LP300_
Aluminium door profile for glass to be glued (4 mm).
DQY9LP300P: profiles in Anodised Aluminium (3 metres)
DQY9LP300T: profiles in Titanium finish (3 metres)

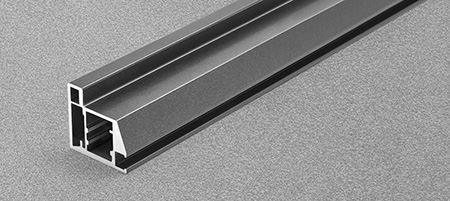

DQAPLP301_
Aluminium door profile for glass insertion (4 mm) and for wooden doors.
DQAPLP301P: 8 vertical profiles in Anodised Aluminium (3.1 metres)
DQAPLP301T: 8 vertical profiles in Titanium finish (3.1 metres)
32 end elements.

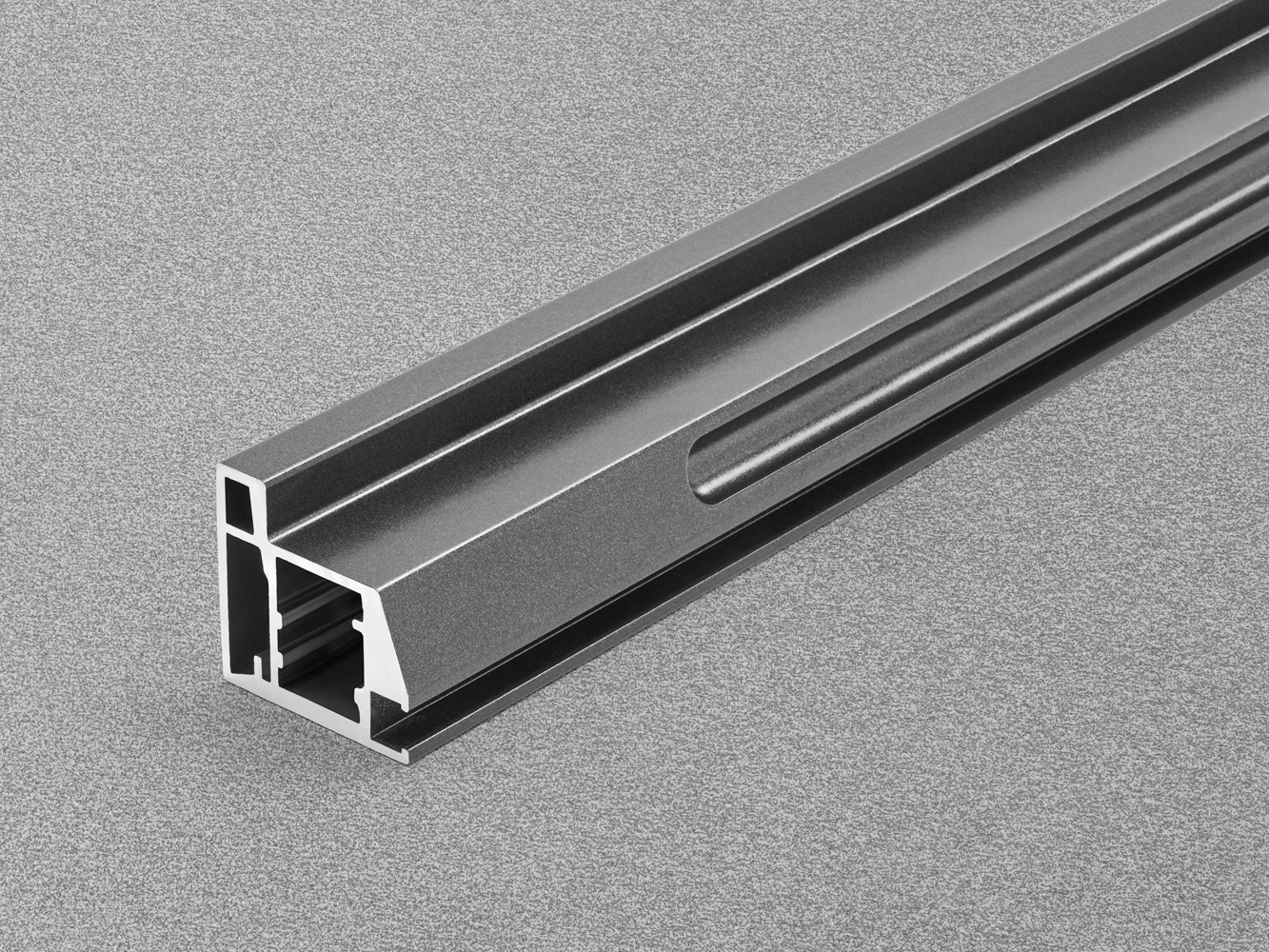

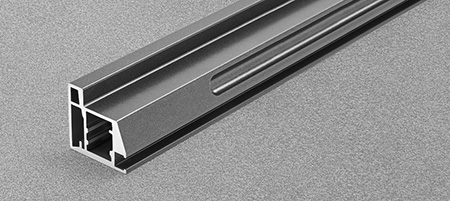

DQAPLF301_
Aluminium door profile for glass insertion (4 mm) and for wooden doors.
DQAPLF301P: 8 vertical profiles in Anodised Aluminium with handle (3.1 metres)
DQAPLF301T: 8 vertical profiles in Titanium finish with handle (3.1 metres)
16 end elements.

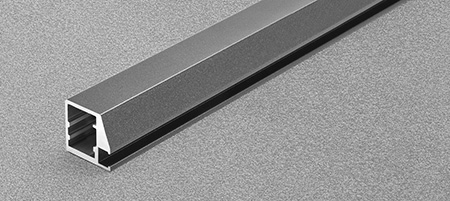

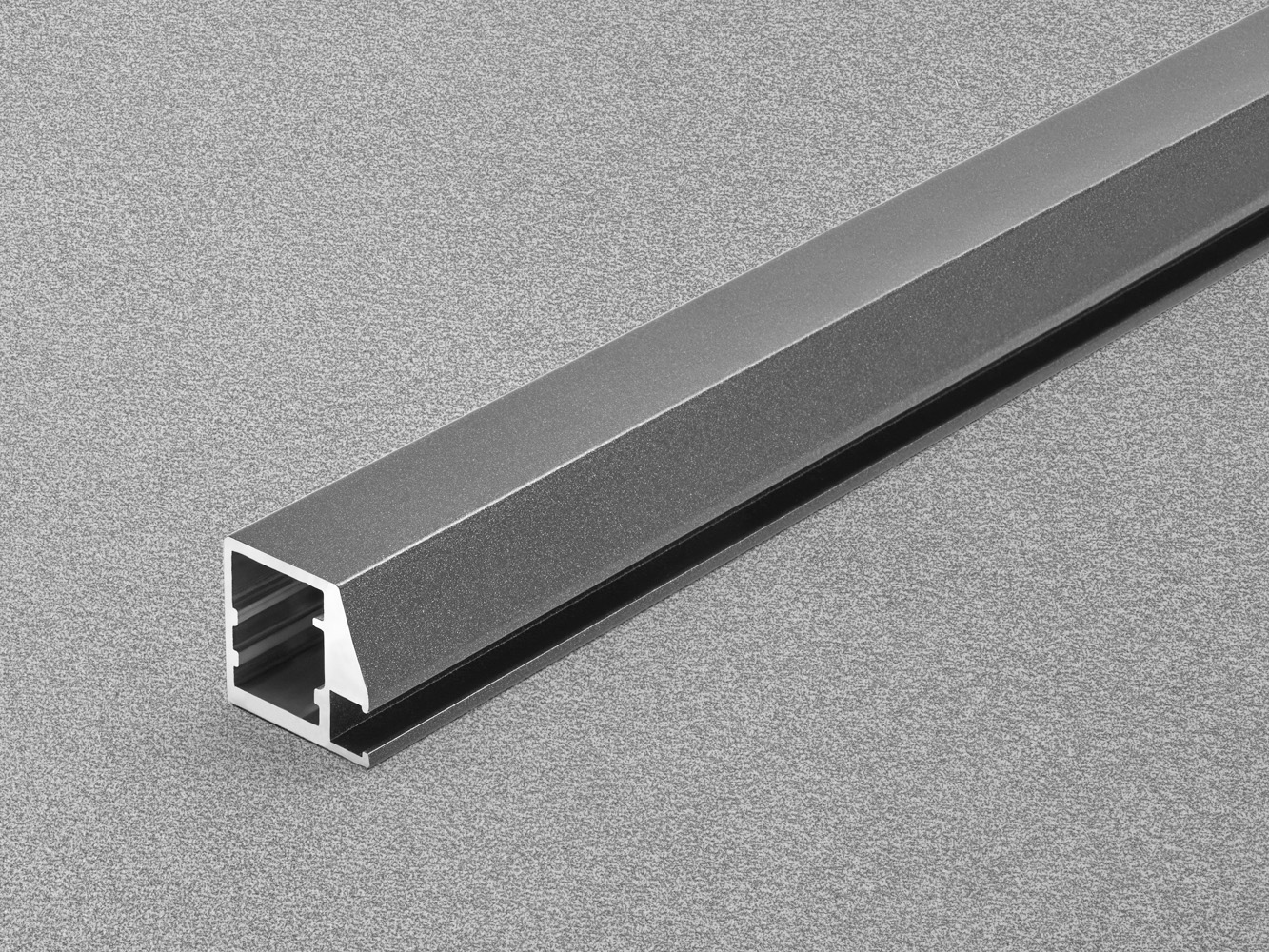

DQATLP301_
Aluminium door profile for glass insertion (4 mm) and for wooden doors.
DQATLP301P: 8 horizontal profiles in Anodised Aluminium (3.1 metres)
DQATLP301T: 8 horizontal profiles in Titanium finish (3.1 metres)
8 end elements.

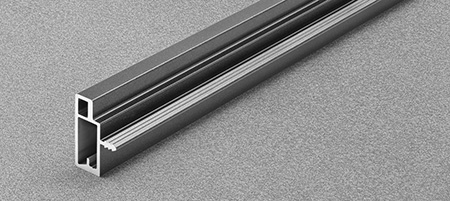

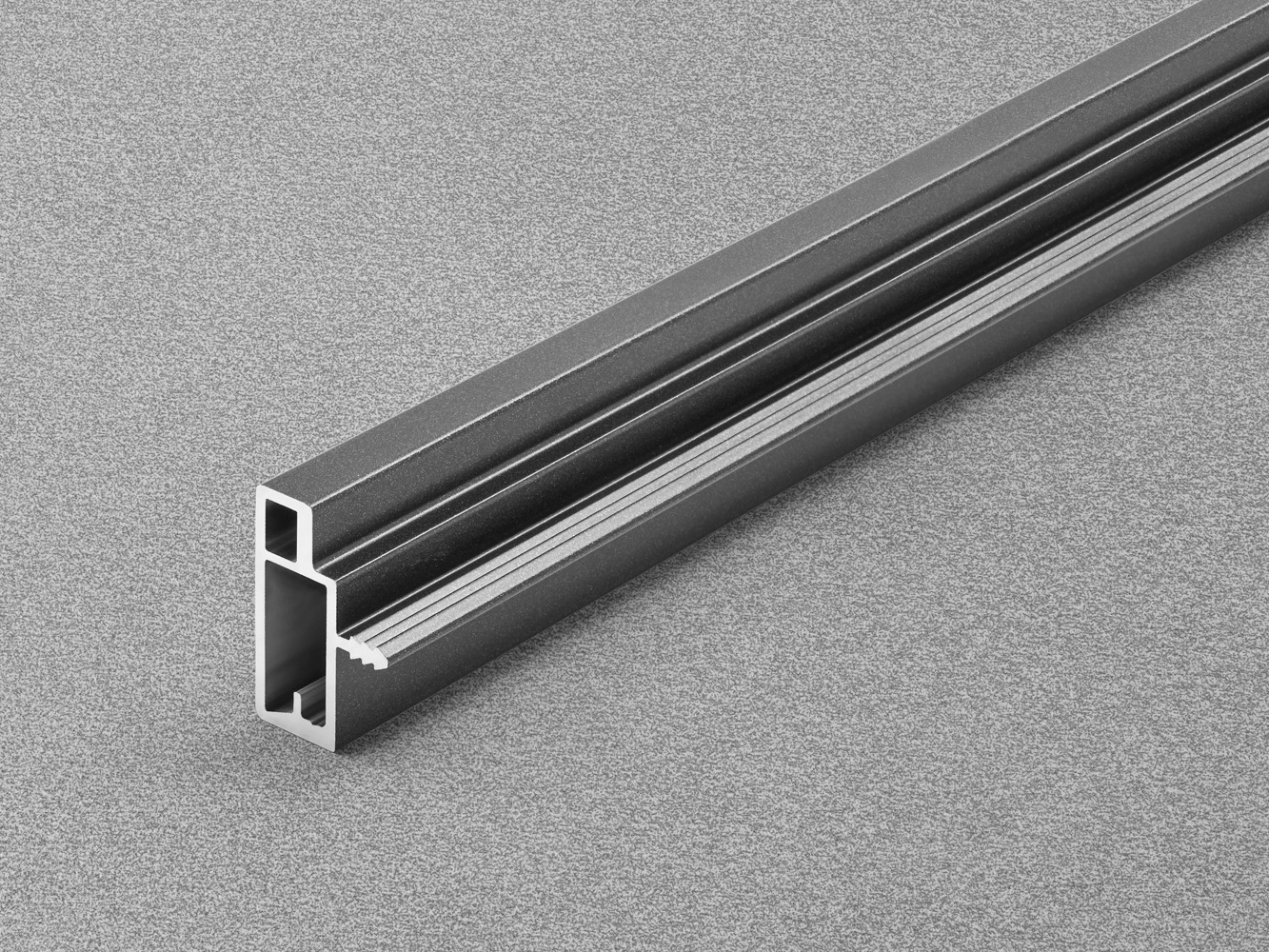

DQALLP301_
Aluminium door profile for glass insertion (4 mm) and for wooden doors.
DQALLP301P: 8 profiles in Anodised Aluminium for wooden doors (3.1 metres)
DQALLP301T: 8 profiles in Titanium finish for wooden doors (3.1 metres)
32 end elements.
Documentation
Feel the design according to your favourite product
Learn about the other products
Learn about the other products
AIR
The truly concealed hinge
Inserted into the top and bottom of the cabinet and in the door. With integrated decelerating system
- Inserted into the cabinet and the door
- Small and compact size
- Wooden and aluminium-framed doors
- 105° opening
CONECTA
Concealed hinge for wooden doors
Hinge with recessed insertion in the door and in the side
- Inserted into the cabinet and the door
- Wooden doors
- 94° and 180° opening
- Thickness of doors from 22 to 30 mm
- Thickness of sides from 16 mm
SILENTIA+
Series 700 - 110° opening - Negative angled application
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For doors of medium weight and thickness (16-26 mm)
- Wooden doors
- 110° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Series 700 - 110° opening - Crampon hinge
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For doors of medium weight and thickness (16-26 mm)
- Wooden doors
- 110° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Series 200 - 94° opening - Standard application
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For thicker doors (19-35 mm)
- Wooden doors
- 94° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Series 200 - 94° opening - Positive angled application
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For thicker doors (19-35 mm)
- Wooden doors
- 94° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Series 200 - 94° opening - Crampon hinge
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For thicker doors (19-35 mm)
- Wooden doors
- 94° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Series 300 - 94° opening - Hinges with a small operating profile
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For thicker doors (19-35 mm)
- Wooden doors
- 94° opening
- Screw fixing with traditional Series 300 mounting plates
LAPIS
Series 700 - 110° opening - With covers
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For doors of medium weight and thickness (16-26 mm)
- Wooden doors
- 110° opening
- Snap-on fixing only with Domi longitudinal mounting plates
LAPIS
Series 200 - 94° opening - With covers
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For thicker doors (19-35 mm)
- Wooden doors
- 94° opening
- Snap-on fixing only with Domi longitudinal mounting plates
SILENTIA+
Metal profiles - 105° opening - Standard application
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For 20 mm-thick doors
- Aluminium-frame doors
- 105° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Metal profiles - 105° opening - Positive angled application
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For 20 mm-thick doors
- Aluminium-frame doors
- 105° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
SILENTIA+
Metal profiles - 105° opening - Crampon hinge
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
- For 20 mm-thick doors
- Aluminium-frame doors
- 105° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
UNIVERSAL HINGES
Universal hinges - 110° opening - Standard application
Hinge with integrated soft-close
- Glass doors
- No drilling of the glass is required
- 110° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
UNIVERSAL HINGES
Universal hinges - 110° opening - Standard application
Hinge with integrated soft-close
- For doors made with special materials
- 110° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
UNIVERSAL HINGES
Universal hinges - 110° opening - Standard application / half-inset doors / doors with moulded profiles
Hinge with integrated soft-close
- Wooden doors
- For doors of small weight and thickness (12-20 mm)
- 110° opening
- Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
