Smove D0S_SNG - SALICE-1

SMOVE

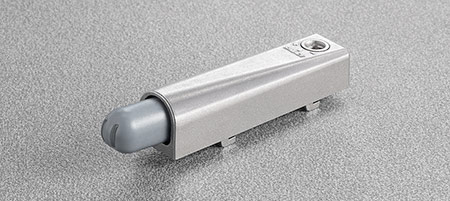

Smove D0S_SNG

System used to soften the closing action of any door; to be used with cruciform mounting plates

  • Adjustable decelerating system
  • For light doors with two or more hinges

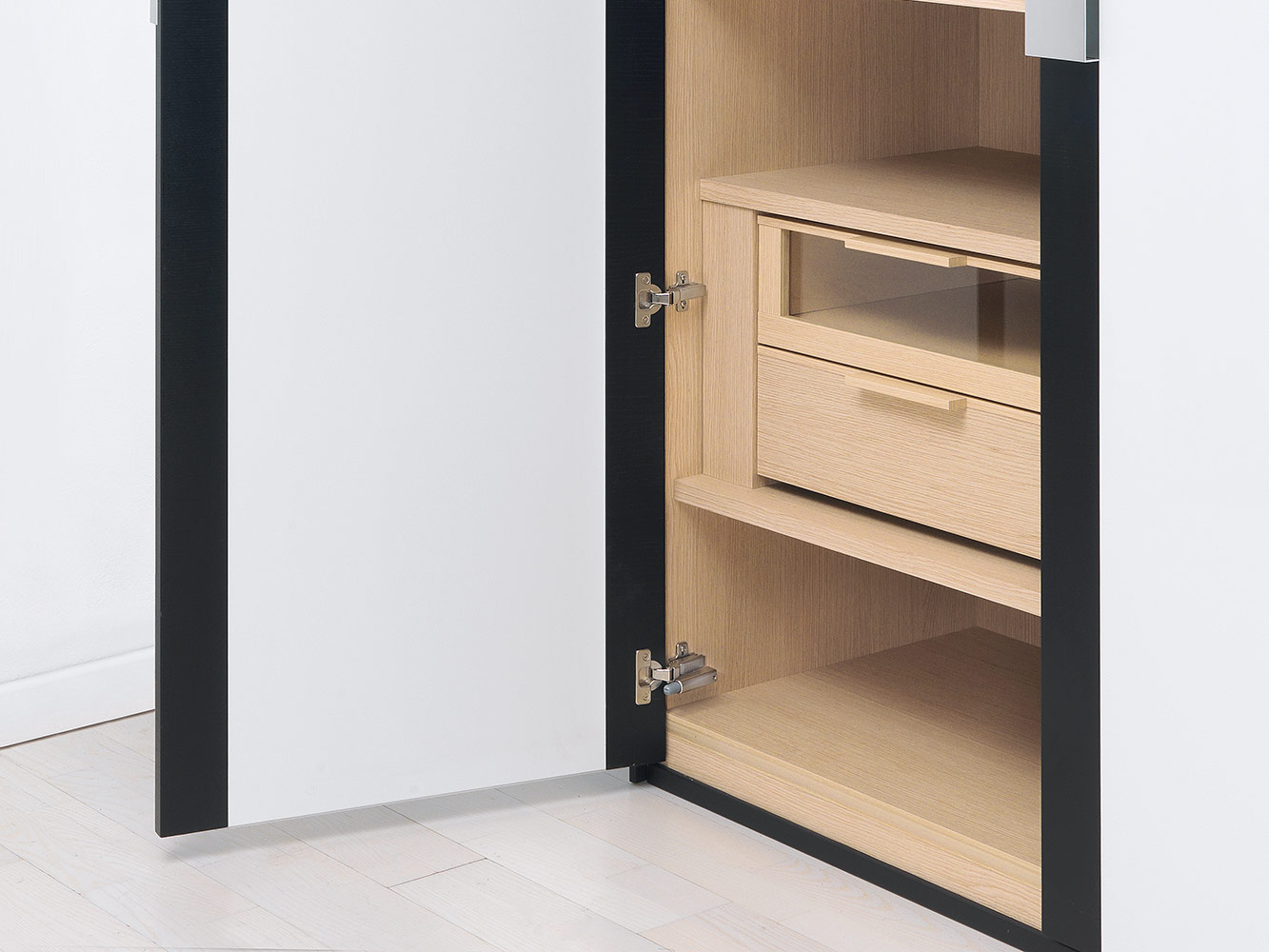

Introduced for the first time by Salice in 1998, Smove is the special device used to soften the closing action of any furniture door, thus decreasing the noise produced by its closing.

  • It can be installed to all cabinet applications and offers optimal performance.

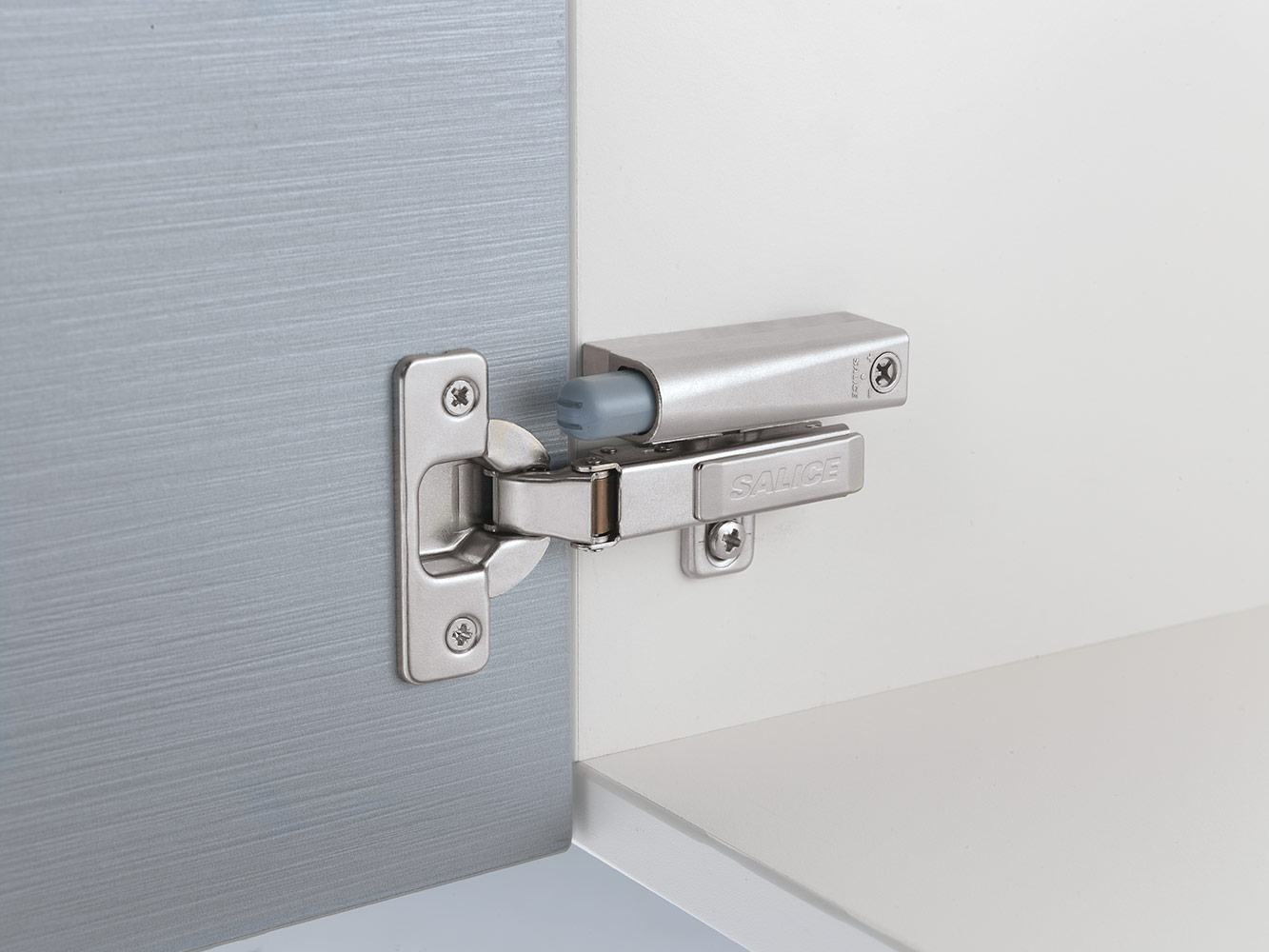

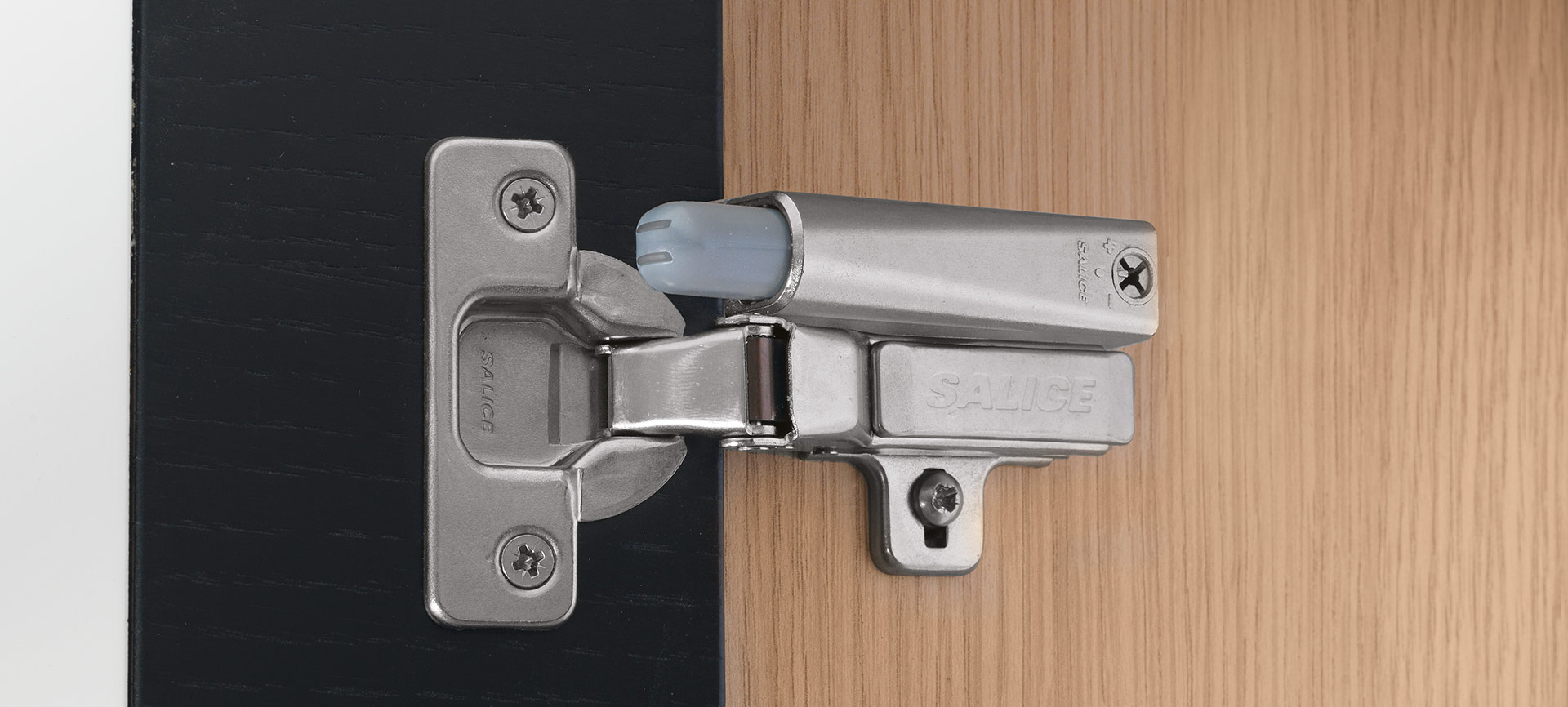

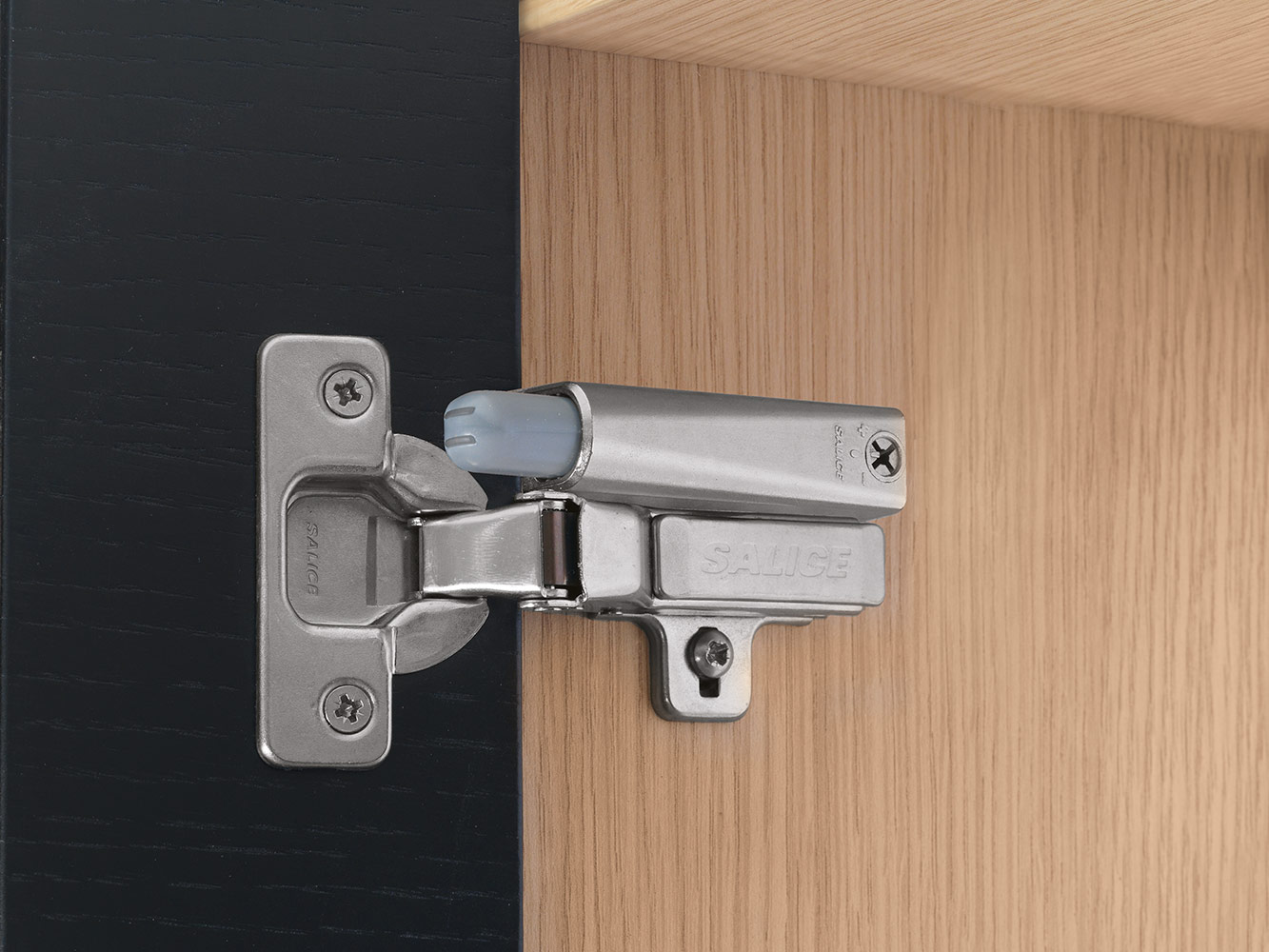

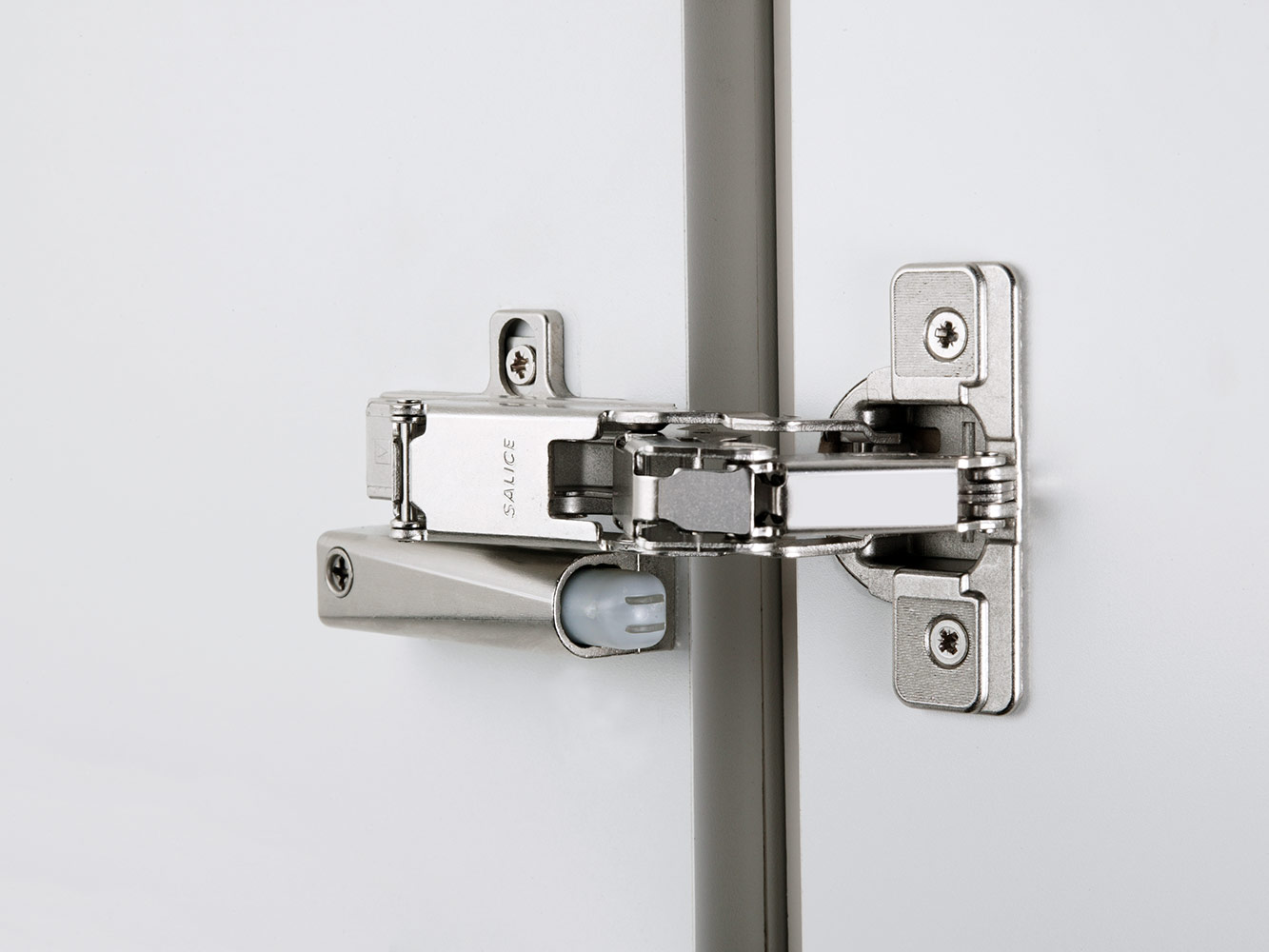

  • Smove works by bearing against the flange of the hinge cup and for this reason it is necessary to choose the appropriate adapter. By reducing the door overlay, it is necessary consequently to increase the height of the adapter.
  • It is possible to adjust the Smove to increase or reduce the decelerating effect.
  • Rotating the screw towards the + sign, the decelerating effect increases.
  • Rotating the screw towards the - sign, the decelerating effect reduces.

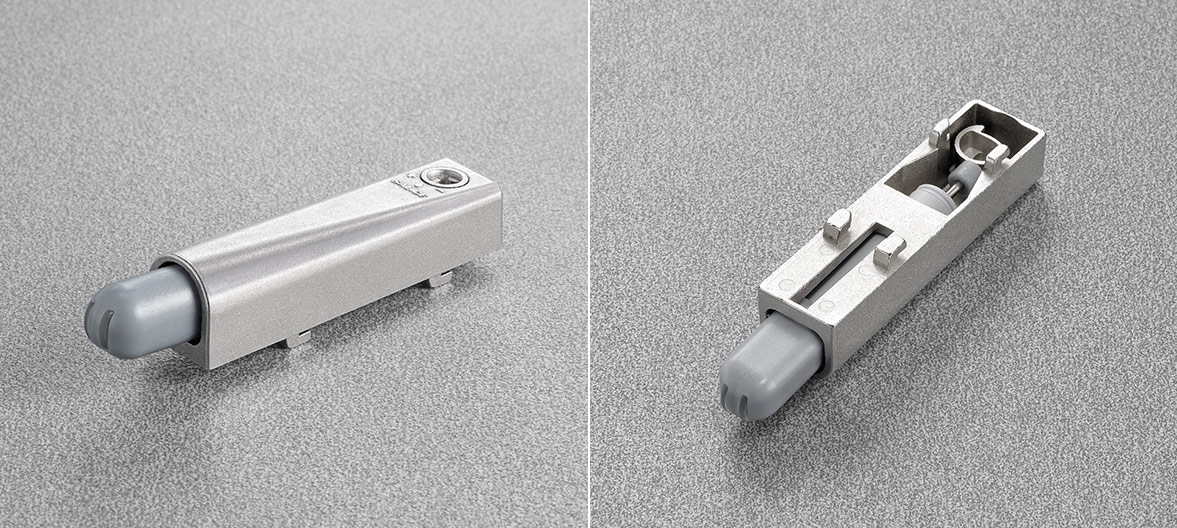

D0S7SNG - Smoveholder
To be used with doors made with particularly light materials.
We suggest that one Smoveholder only is used for each door

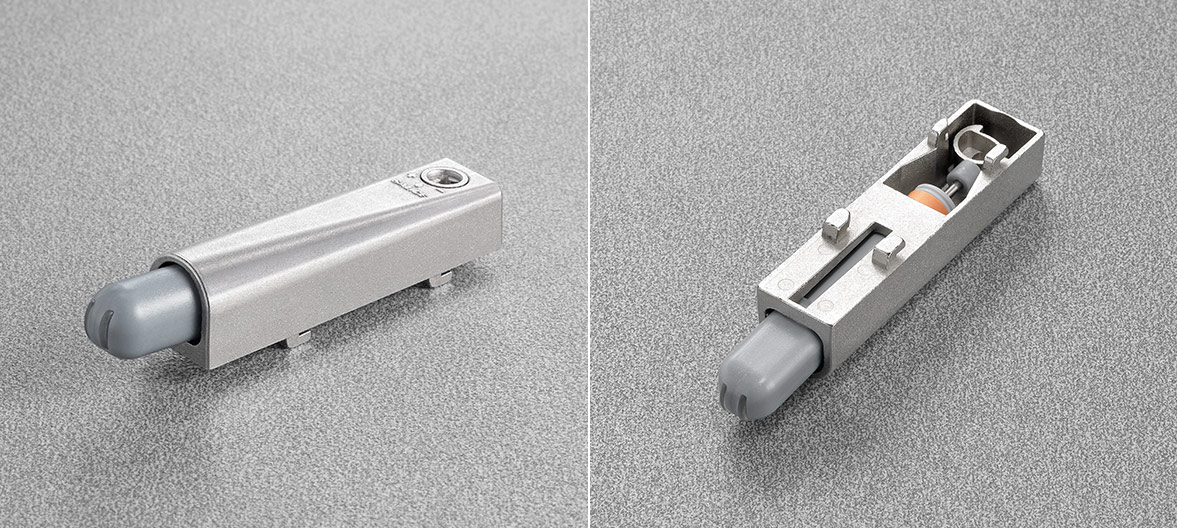

D0S8SNG - Smoveholder
To be used with doors with two hinges.
We suggest that one Smoveholder only is used for each door
D0S9SNG - Smoveholder
To be used with doors with more than two hinges.
We suggest that one Smoveholder only is used for each door

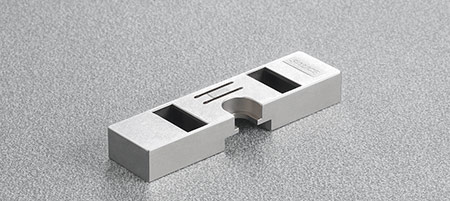

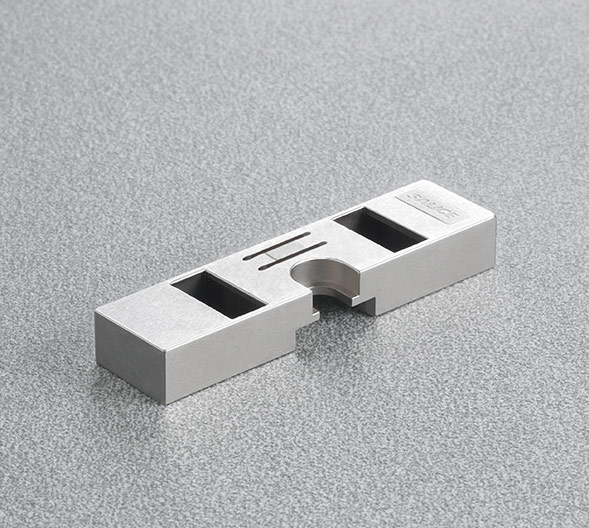

Adapter for hinges with arm 0

To be used only with cruciform mounting plates 37x 32 mm.

D2VX09 - for steel mounting plates
DARX09 - for die-cast mounting plates

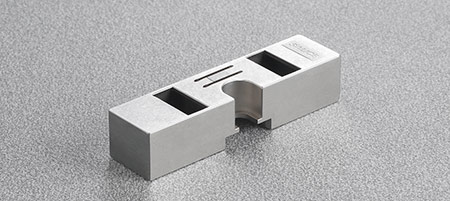

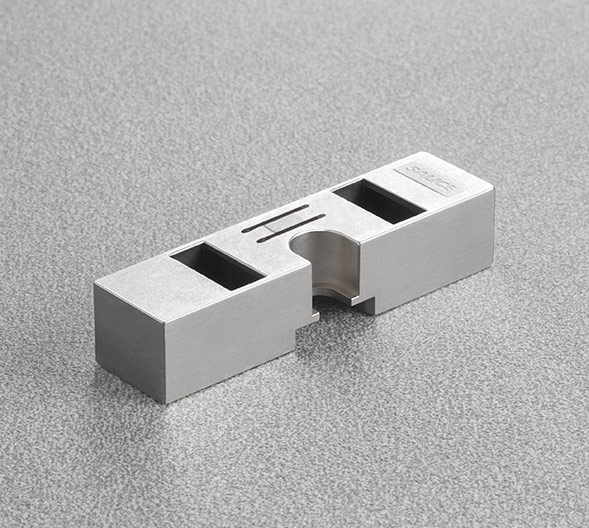

Adapter for hinges with arm 5

To be used only with cruciform mounting plates 37x 32 mm.

D2VX59 - for steel mounting plates
DARX59 - for die-cast mounting plates

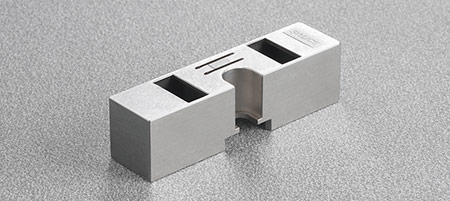

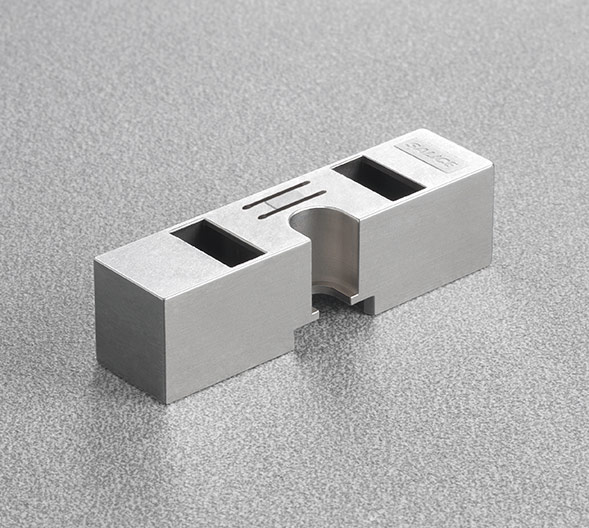

Adapter for hinges with arm 9

To be used only with cruciform mounting plates 37x 32 mm.

D2VX99 - for steel mounting plates
DARX99 - for die-cast mounting plates

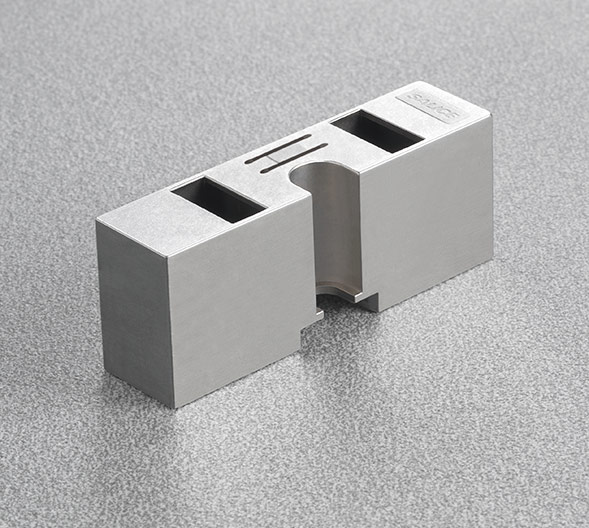

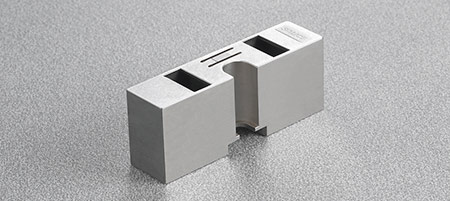

Adapter for hinges with arm 17

To be used only with cruciform mounting plates 37x 32 mm.

D2VXP9 - for steel mounting plates
DARXP9 - for die-cast mounting plates
