SMOVE Smove D010SN-1

SMOVE

Smove D010SN

Device to be recessed used to soften the closing action of any furniture door

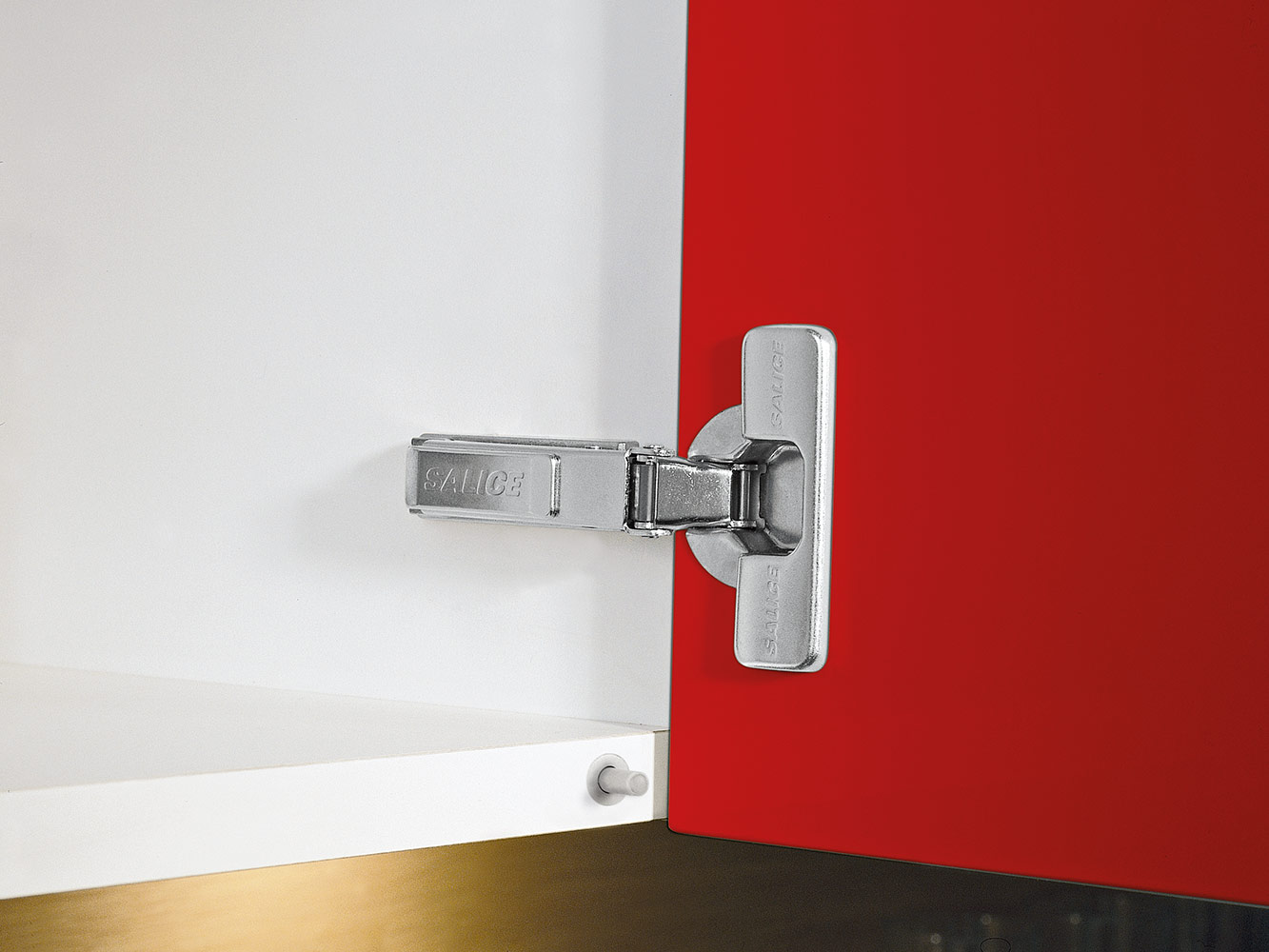

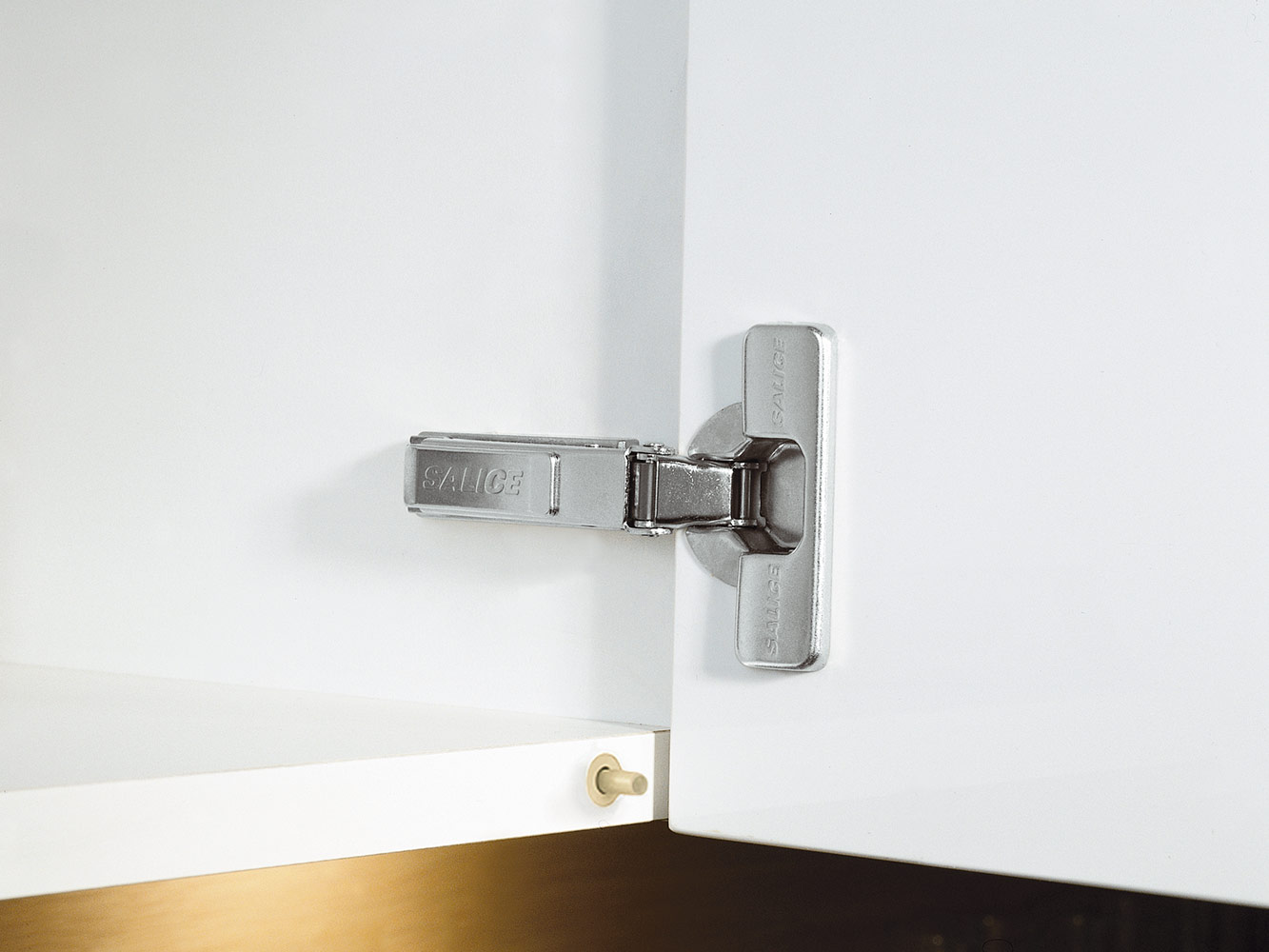

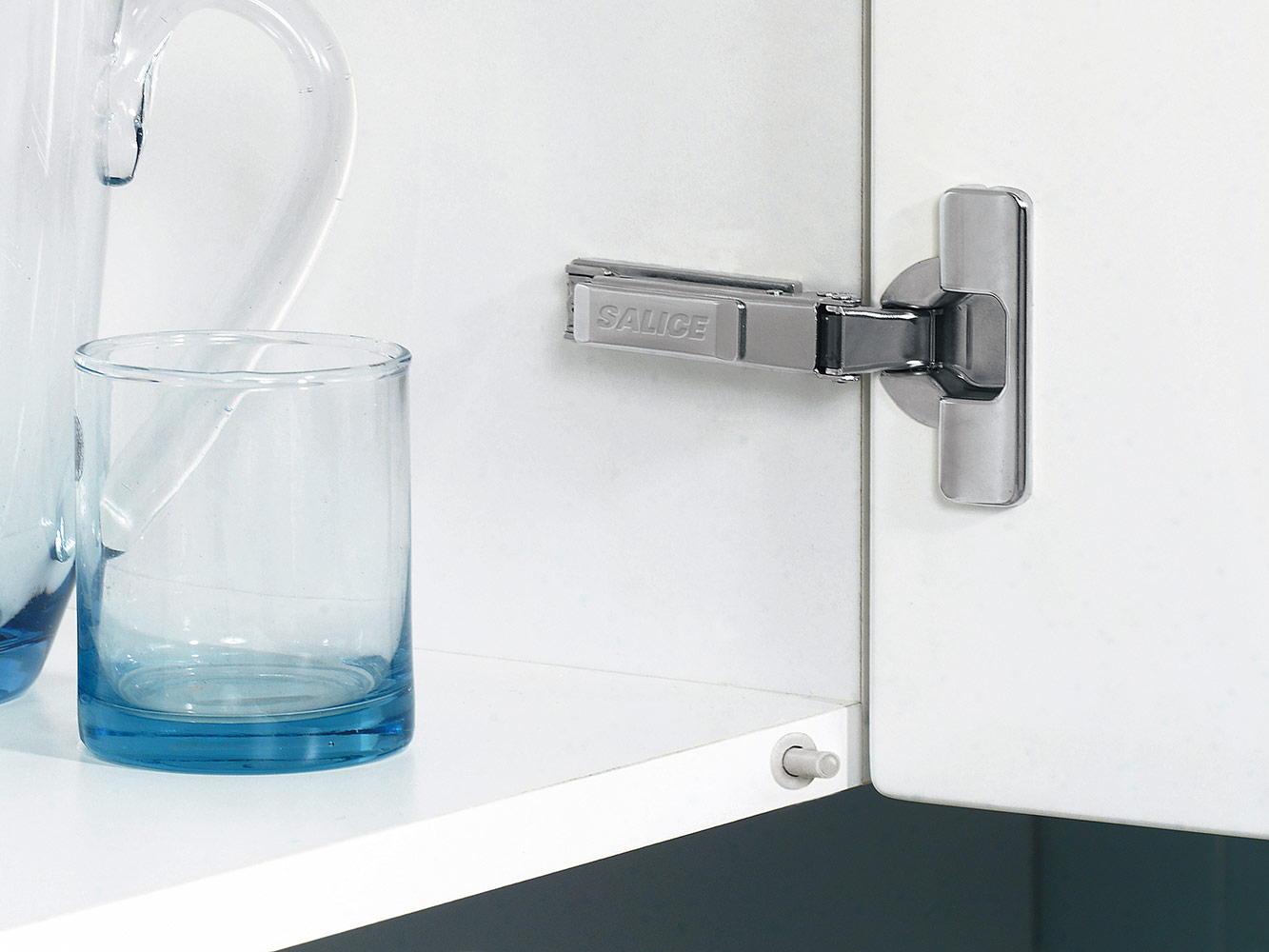

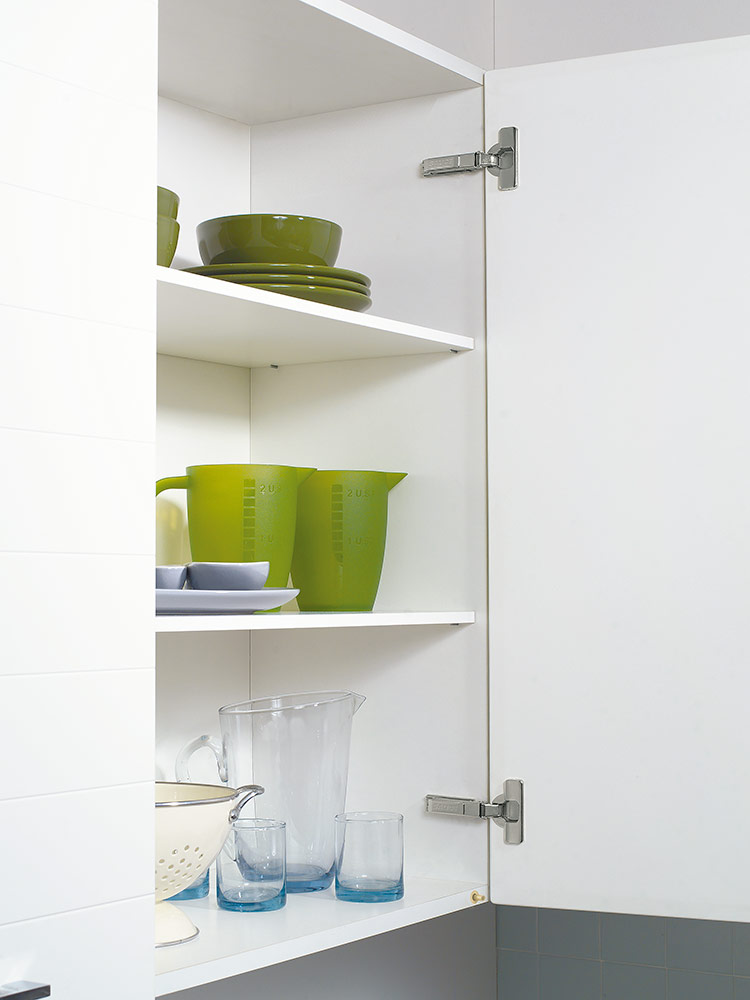

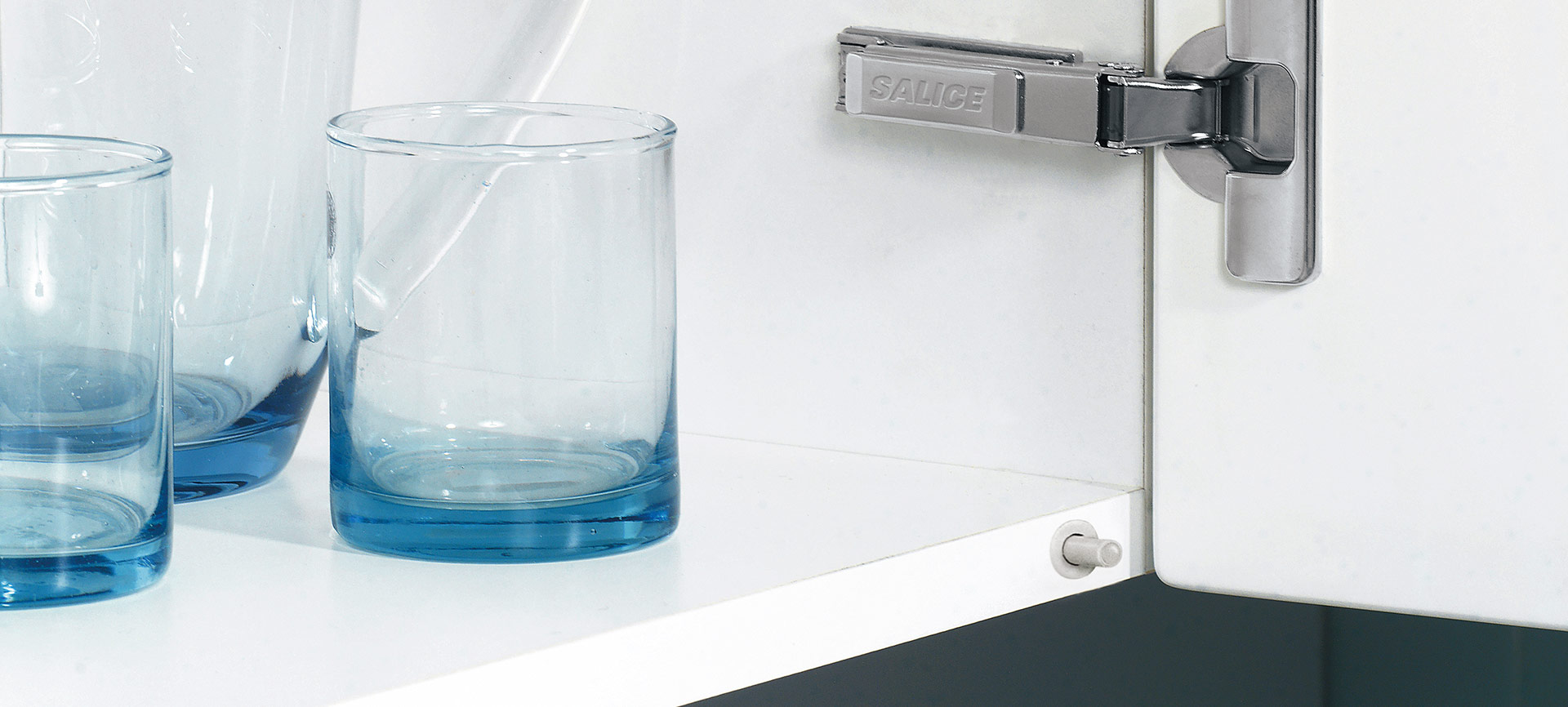

  • Damper to be inserted in the top or the base panel of the cabinet on the hinged side

Introduced for the first time by Salice in 1998, Smove is the special device used to soften the closing action of any furniture door, thus decreasing the noise produced by its closing.

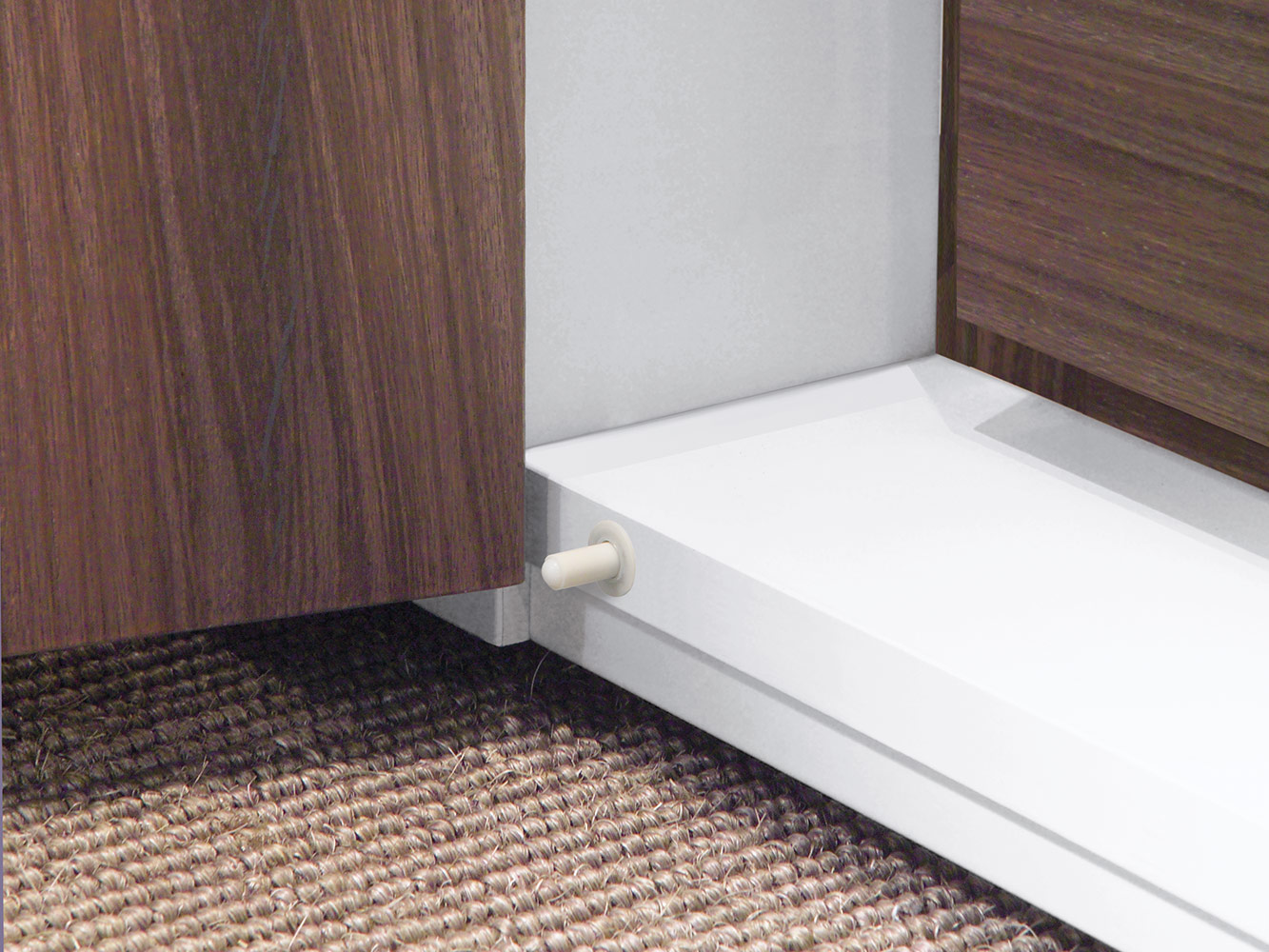

  • Insert Smove D010 into the base panel of the cabinet on the hinged side.
  • Smove D010 is used for doors over 1600 mm high.
  • Drilling distance from the cabinet side:
     - for hinges with arm 0 mm the drilling distance equals 15 mm plus the base height.
     - for hinges with arm 5 mm the drilling distance equals 20 mm plus the base height.
     - for hinges with arm 9 mm the drilling distance equals 24 mm plus the base height.

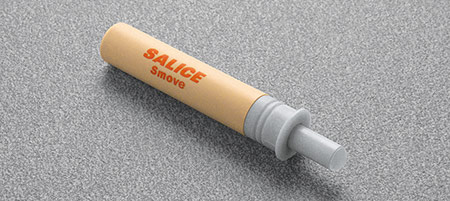

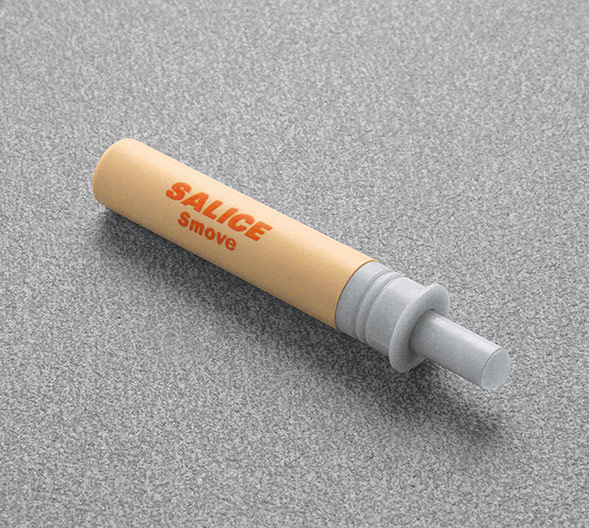

D010SNG
Grey

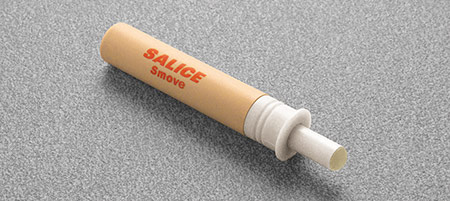

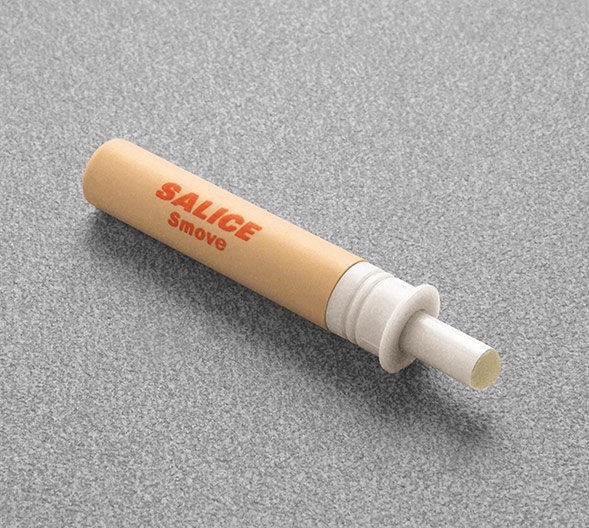

D010SNB
Beige
