SMOVE Adapters to be screw fixed to the cabinet-1

SMOVE

Adapters to be screw fixed to the cabinet

Made of plastic or die-cast

  • Adapters with different types of fixing
  • With assembly stop device
  • Without assembly stop device
  • Single adapters
  • Double adapters

Single or double adapters with different types of fixing.

  • It is suggested for doors from 450 mm to 600 mm width.

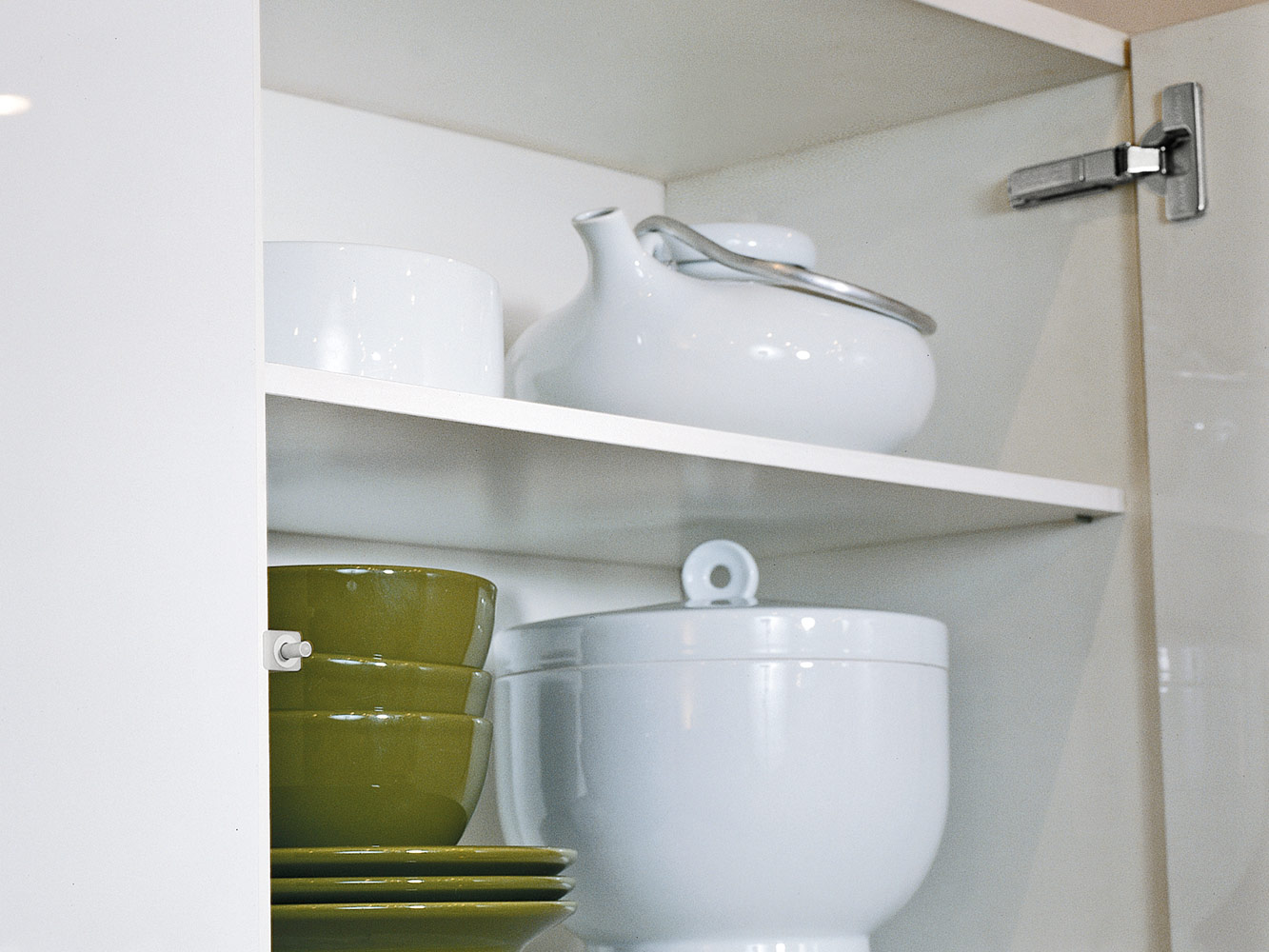

  • For wood-based and alu-framed doors over 1600 mm height, it may be necessary to use two Smove, one to be inserted into the upper part and the second into the lower part of the cabinet side opposite the hinges.

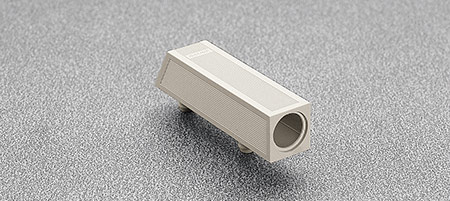

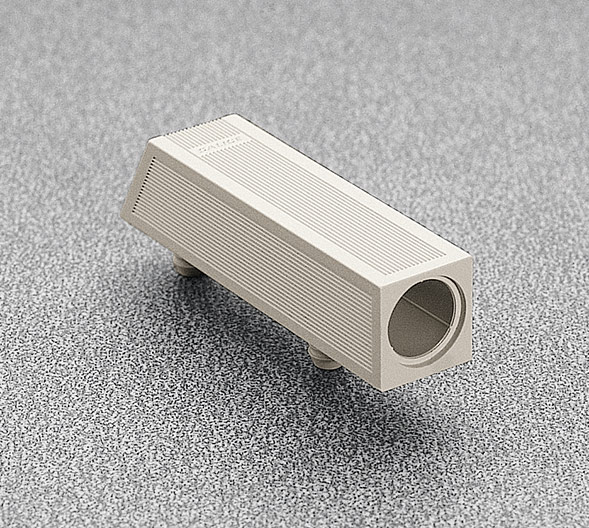

D063SNXR

Longitudinal plastic adapter. To be fixed with dowels. Without assembly stop device

D063SNGR = grey
D063SNBR = beige

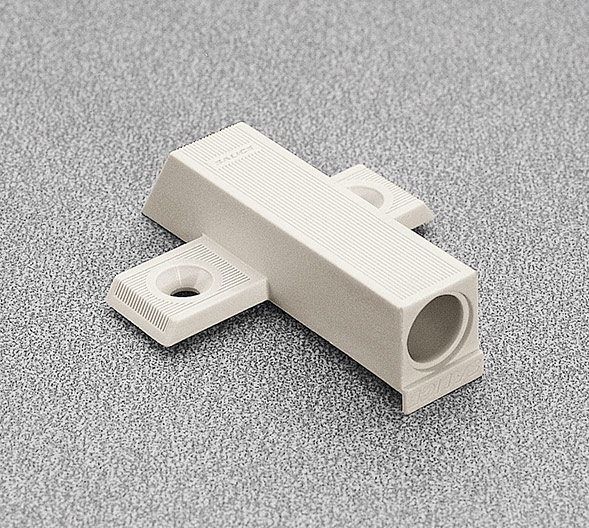

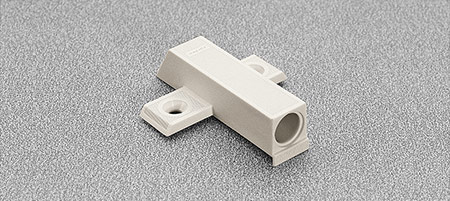

D064SNXN

Cruciform plastic adapter. To be fixed with wood screws. 37x32 mm drilling. With assembly stop device

D064SNGN = grey
D064SNBN = beige

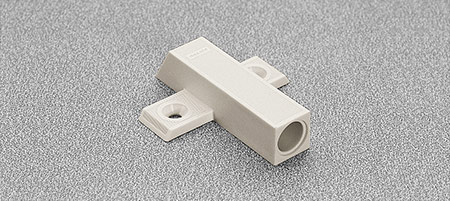

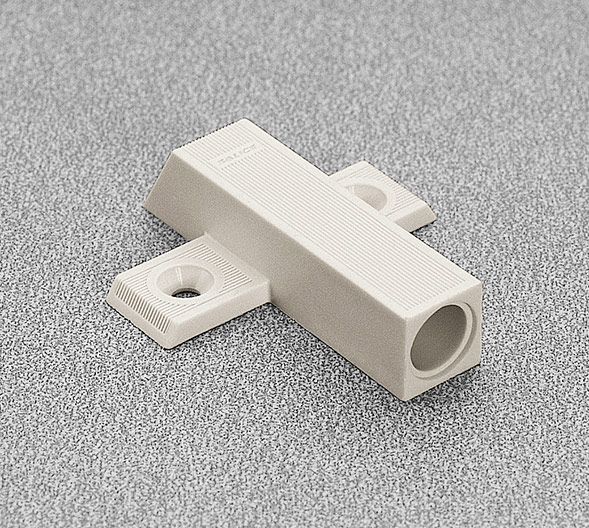

D064SNXR

Cruciform plastic adapter. To be fixed with wood screws. 37x32 mm drilling. Without assembly stop device

D064SNGR = grey
D064SNBR = beige
D065SNGR = grey - to be fixed with Euroscrews
D065SNBR = beige - to be fixed with Euroscrews

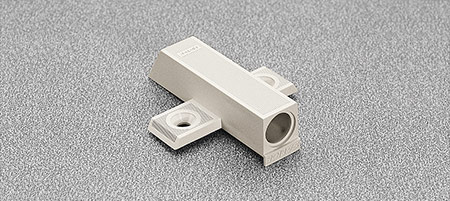

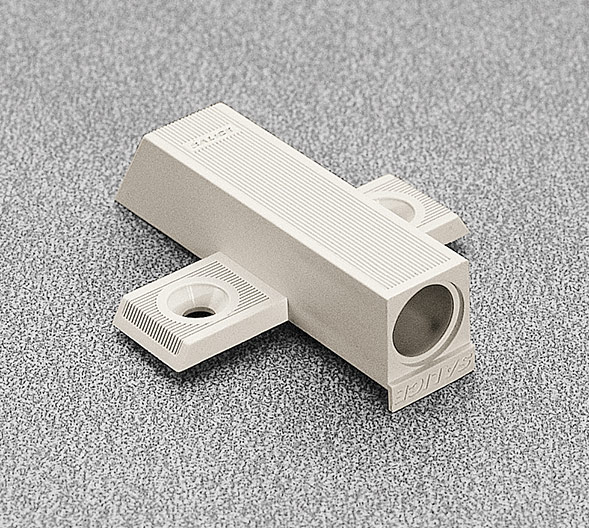

D060SNXN

Cruciform plastic adapter. To be fixed with wood screws. 28x32 mm drilling. With assembly stop device

D060SNGN = grey
D060SNBN = beige

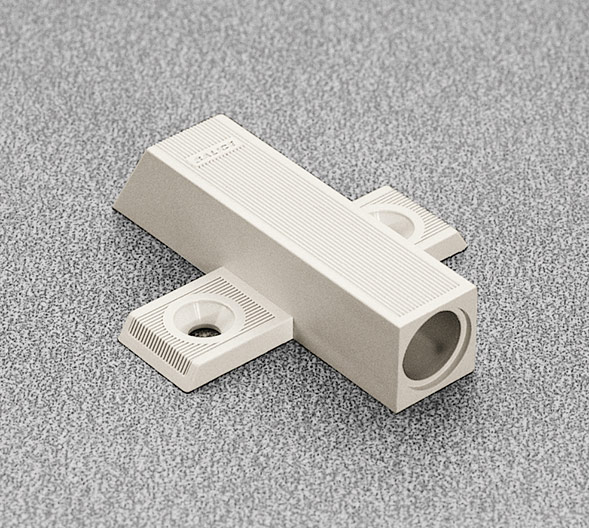

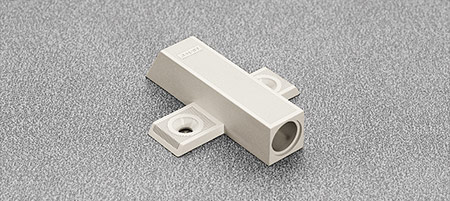

D060SNXR

Cruciform plastic adapter. To be fixed with wood screws. 28x32 mm drilling. Without assembly stop device

D060SNGR = grey
D060SNBR = beige

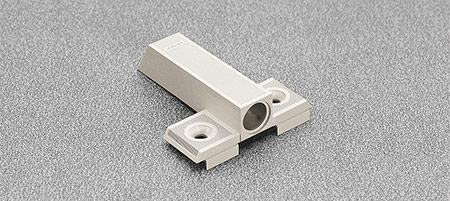

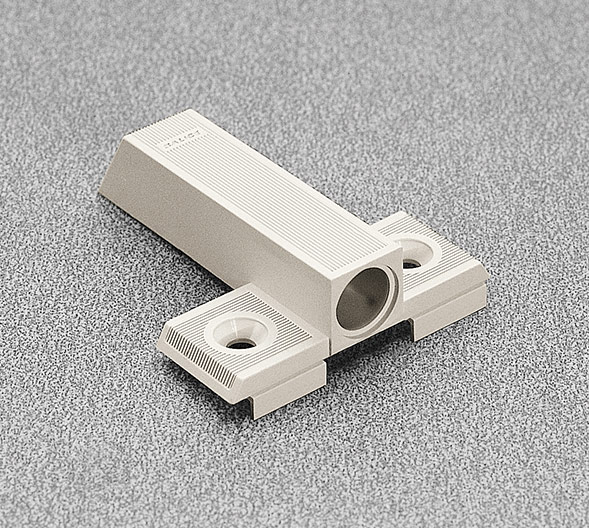

D066SNXN

Cruciform plastic adapter. To be fixed with wood screws. 10x32 mm drilling. With assembly stop device

D066SNGN = grey
D066SNBN = beige

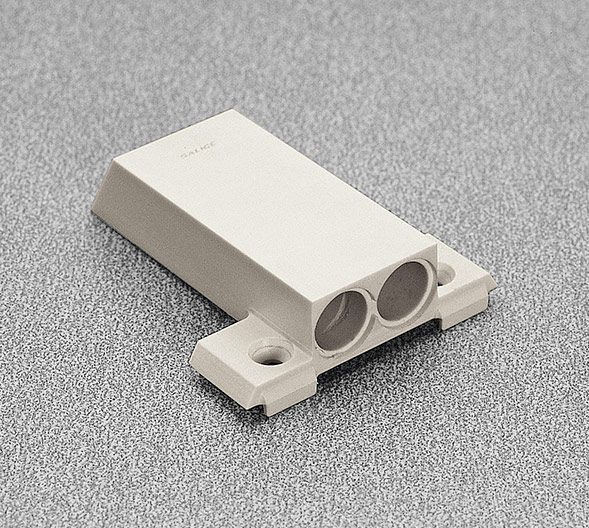

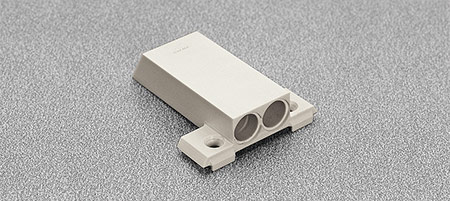

D070SNXN

Double cruciform plastic. To be fixed with wood screws. 5.5x32 mm drilling. With assembly stop device

D070SNGN = grey
D070SNBN = beige

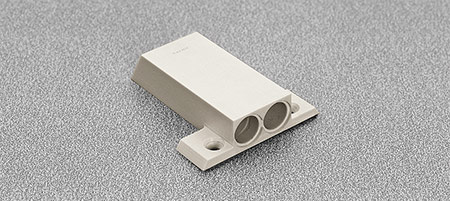

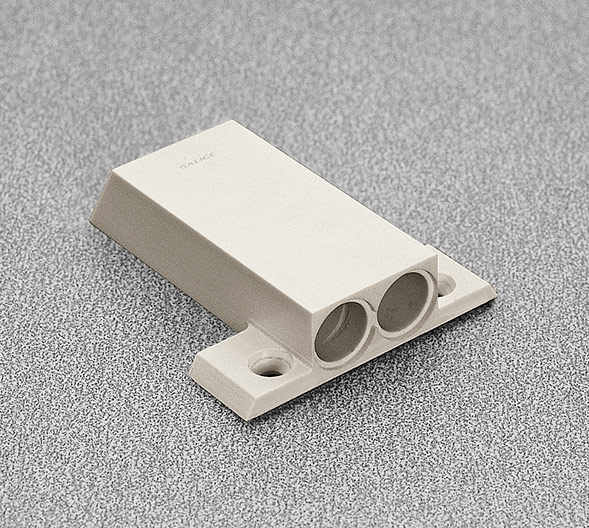

D070SNXR

Double cruciform plastic. To be fixed with wood screws. 5.5x32 mm drilling. Without assembly stop device

D070SNGR = grey
D070SNBR = beige

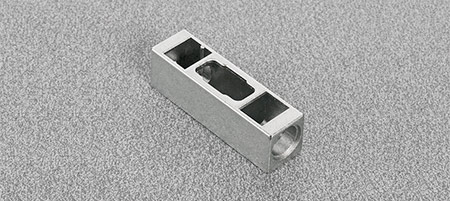

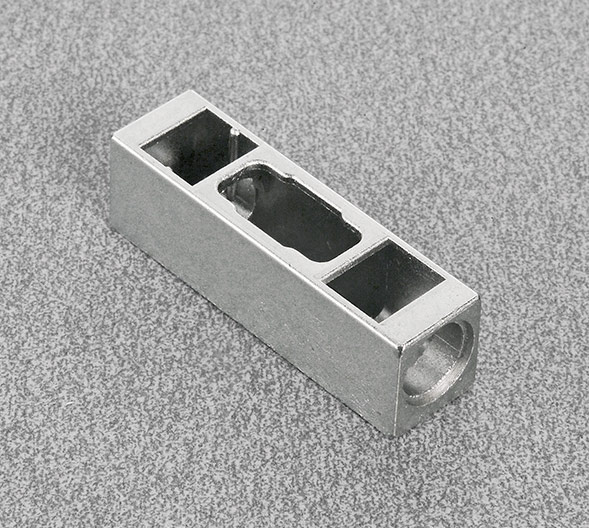

D076XX9R

Longitudinal die-cast adapter. To be fixed with wood screws. Without assembly stop device. Cover caps to be ordered separately

D077XX9R - to be fixed with Euroscrews

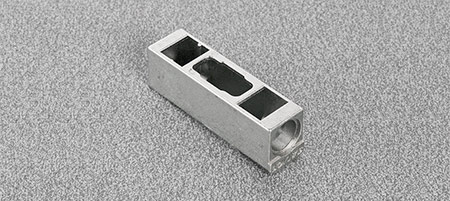

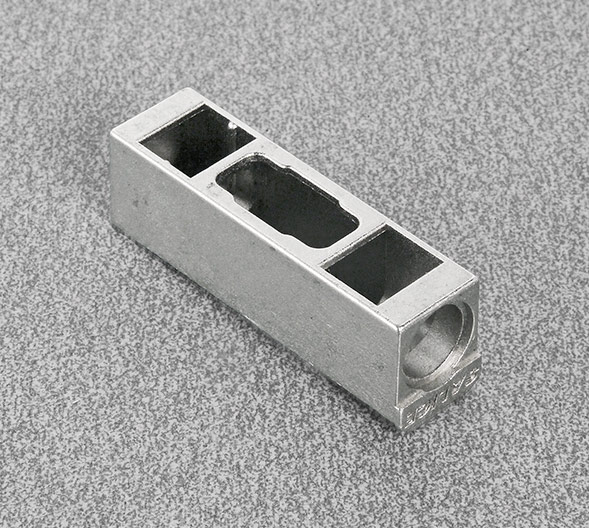

D076SN9

Longitudinal die-cast adapter. To be fixed with wood screws. With assembly stop device. Cover caps to be ordered separately

D077SN9 - to be fixed with Euroscrews
