CONCERTINA DOORS SYSTEM
Folder 90
The combination of a hinged system with a sliding system to optimise the space and its use
- Max opening 94°
- Door thickness from 19 to 25 mm
- Door width from 350 to 750 mm
- Door height from 600 to 3000 mm
- Max. weight for two doors 40 Kg
Folder 90, for compartments up to 1200 mm. It is ideal for furniture placed where a 90° opening is required.
With a gentle pull of the hand, a smooth and silent opening and closing movement is achieved, thanks to assisted control.
Versatile and suitable for any room, with a system height of 35 mm, Folder is the ideal solution to apply to any type of furniture.
Versatility, fluidity and reduction of any obstruction
It can be installed either under the base or on the top of units giving you the versatility to use this system on many types of furniture. From standard wardrobes to multiple kitchen units. Folder can create a transition between rooms with effortless style, as well as suitable to be used on bathroom cabinets creating easy access.
Dampers, springs and magnetic systems are the ingredients that Salice skilfully combines to make Folder a system unique, with a truly smooth and soundless operation.
Technical features
- Max opening 94°
- Automatic opening and closing action controlled by silicon oil dampers and by a magnetic damper for a smooth and gently decelerated movement
- Fixing of the doors to the cabinet side with external SILENTIA+ hinges or with recessed CONECTA 94° hinges
- The track can be assembled under the bottom panel or on the top of the cabinet for column units, wardrobes, base units and wall units.
- Adjustment of the closing speed of the doors
- Fully adjustable in three directions
- Door height: min. 600 mm - max. 3000 mm
- SILENTIA+ Series 200 94° version
Cabinet depth: ≥ 350 mm
Thickness of wooden door: from 19 mm to 25 mm (K=4, K=5)
Width of each single wooden door: from 350 mm to 600 mm
Side thickness: ≥ 16 mm - CONECTA 94° version
Cabinet depth: ≥ 330 mm
Thickness of wooden door: 25 mm
Width of each single wooden door: from 350 mm to 600 mm
Width of each single aluminium-framed door: from 350 mm to 600 mm
Side thickness with recessed hinges DQG3B ≥ 19 mm
Side thickness with recessed hinges DQG5B ≥ 16 mm
Catalogue
Technical pamphlet
BASE version
Assembly of the track under the bottom panel of the cabinet
TOP version
Assembly of the track on the top of the cabinet

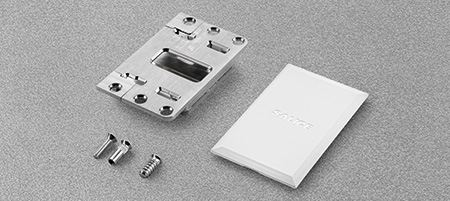

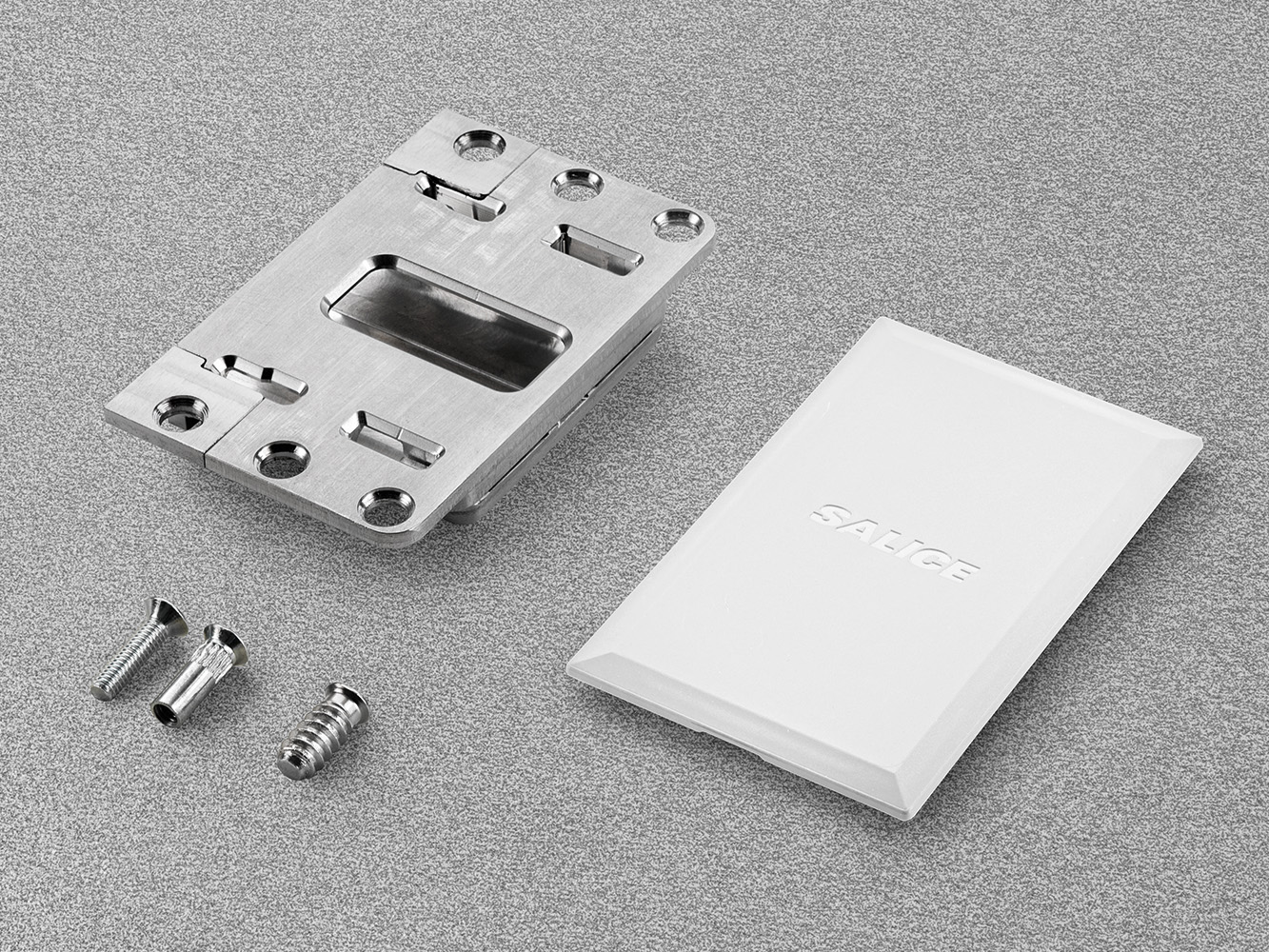

Holder DQG5B
For single door
For double doors and side thickness 25 mm
To be screw-fixed on the cabinet side:
- For single door with Euro screws, drilling ø5 x 12.5 mm
- For double doors with ø5 mm interscrews
- Fixing screws and cover caps included in the single packing
- Fixing screws included in the industrial packing
Door overlay on side hinged side:
- with CQA3JE and CQZ3JE hinges D1 = 10 mm
- with CQA3KE and CQZ3KE hinges D1 = 14 mm
Holder DQG3B
For single door
For double doors and side thickness 30 mm
To be screw-fixed on the cabinet side:
- For single door and double doors with ø4 x 25 mm screws
- Fixing screws and cover caps included in the single packing
- Fixing screws included in the industrial packing
