PROGRESSA+ SHELF PUSH

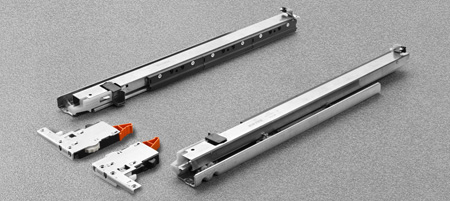

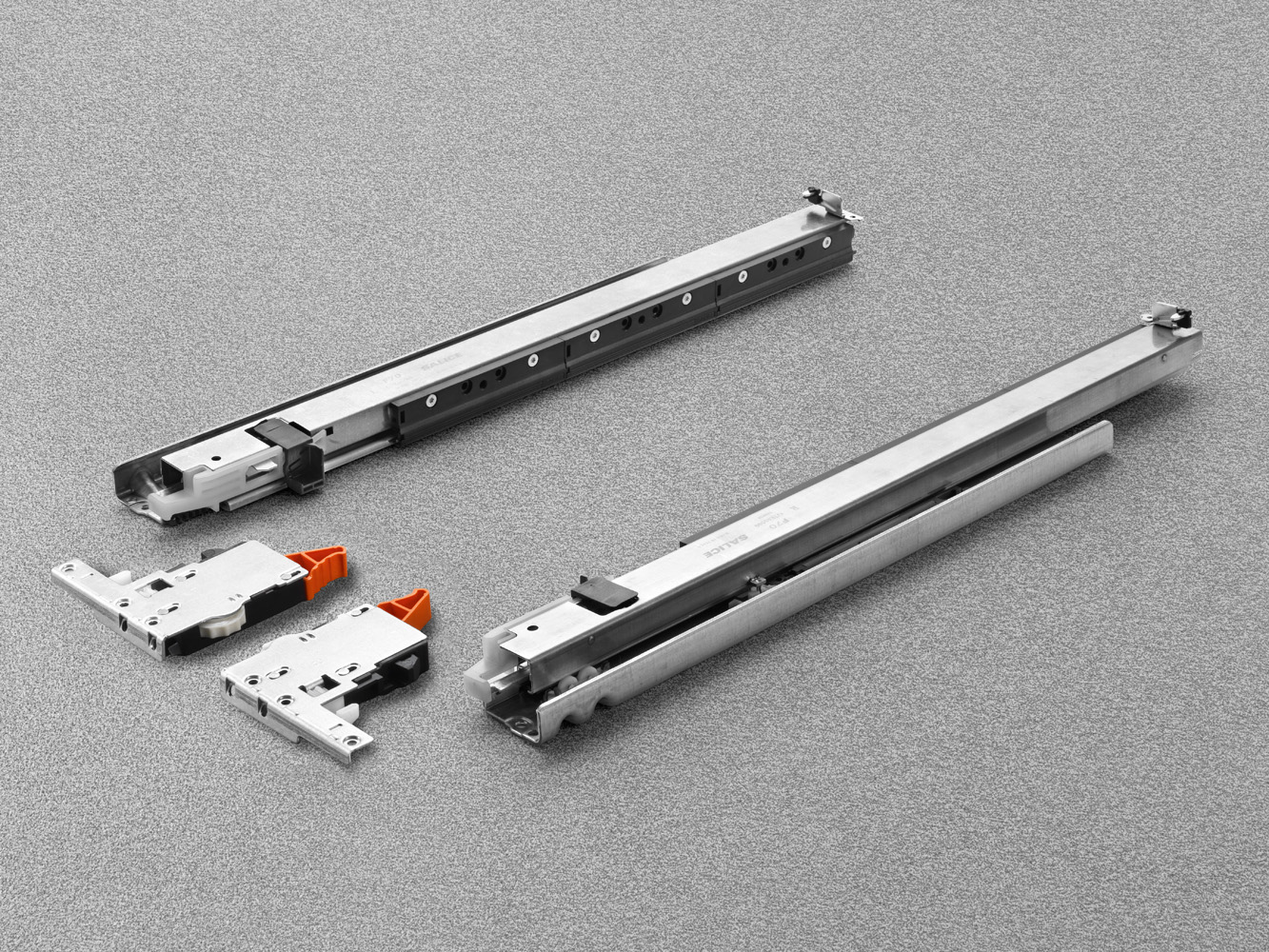

PUSH G7E6Q - Concealed runner

Full-extension runner fixed to the shelf by clip

Runner length from 350 to 500 mm
Dynamic load capacity 50 kg
Integrated Push opening system
Full-extension

Fluid, silent and progressive sliding movement

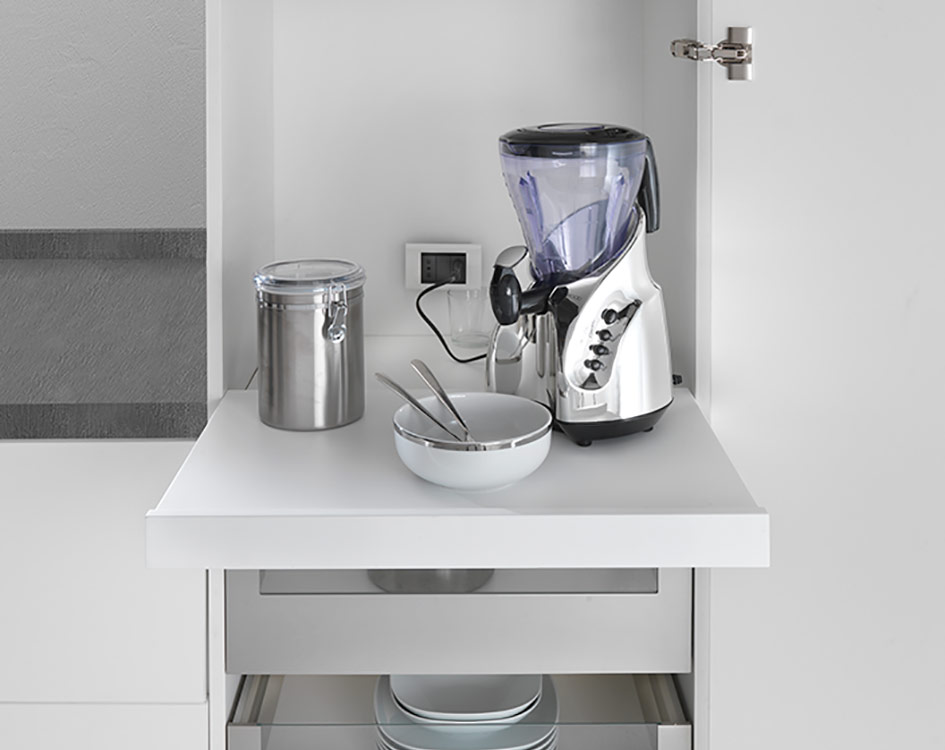

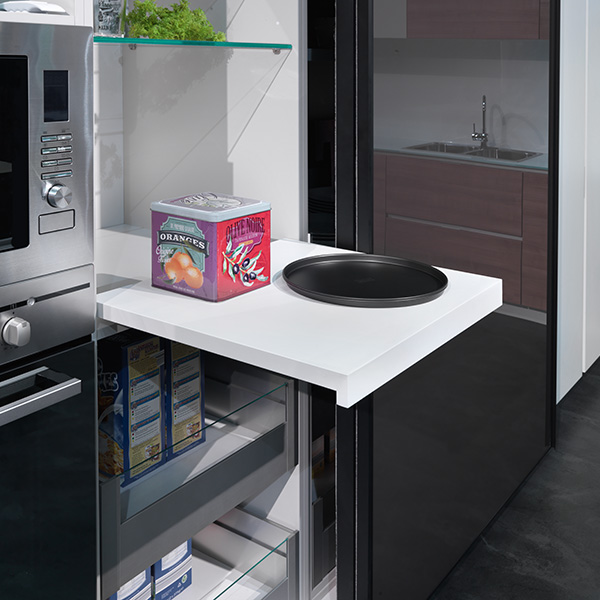

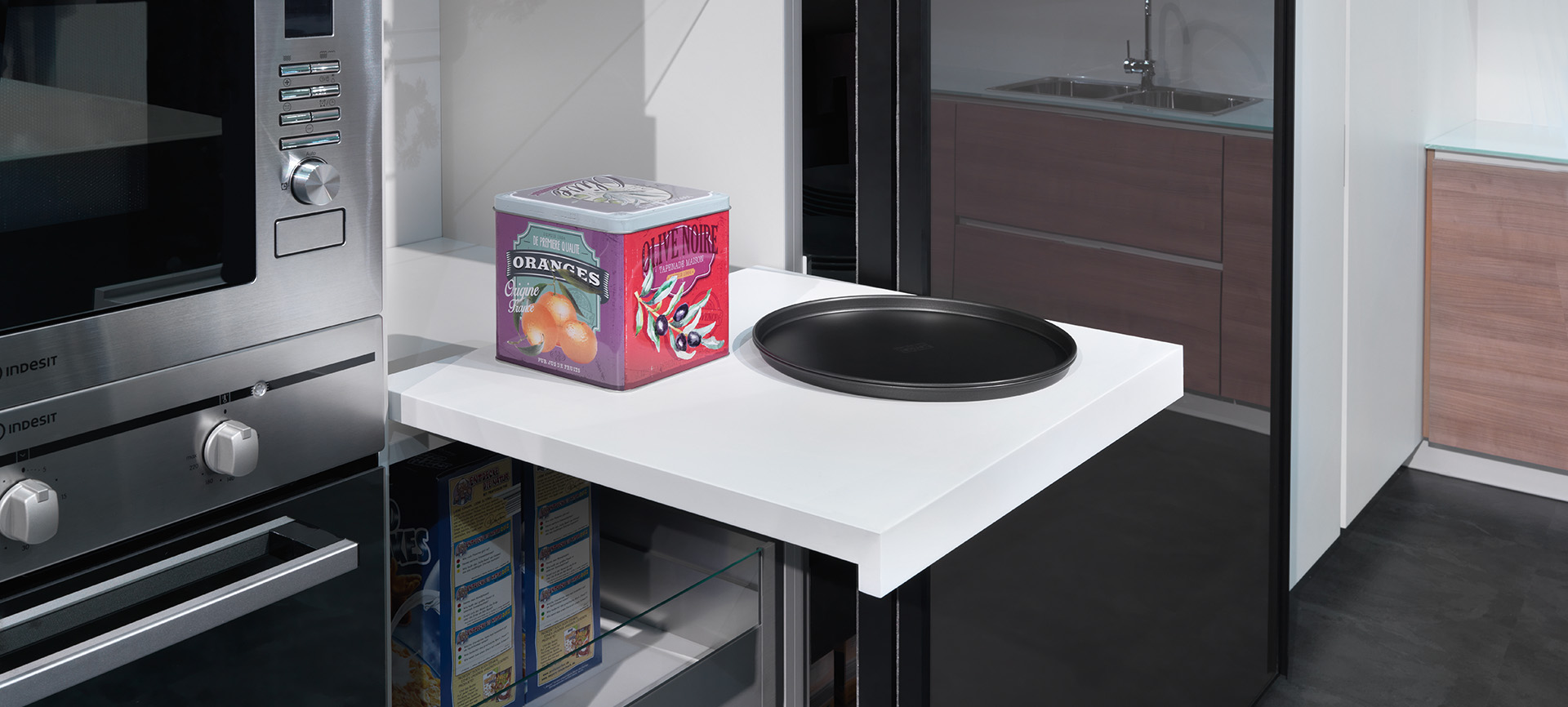

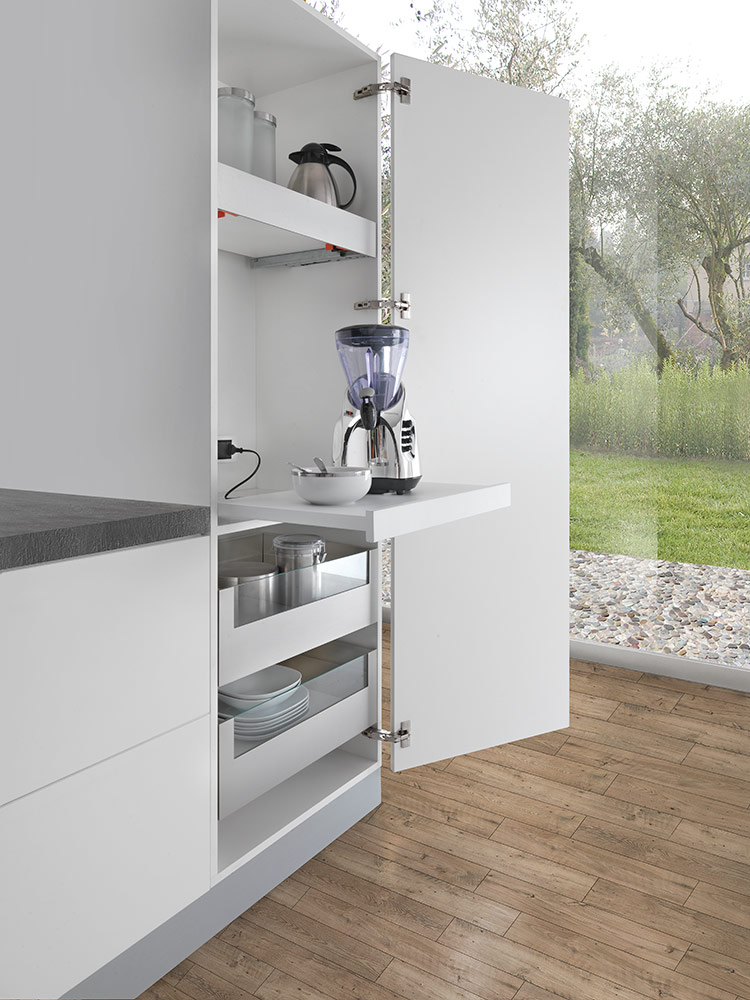

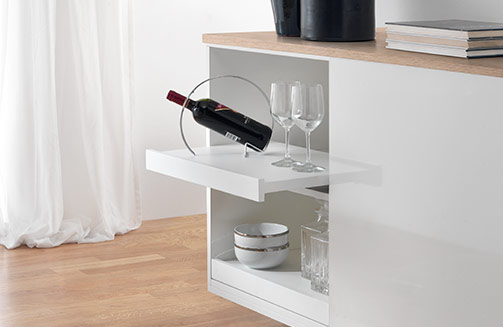

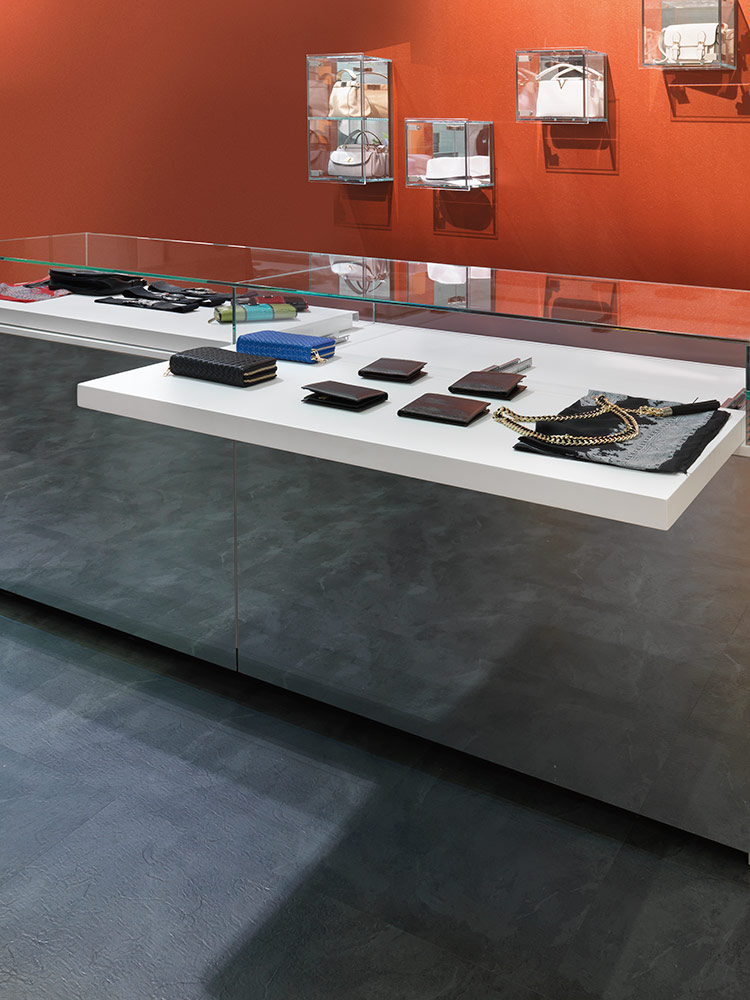

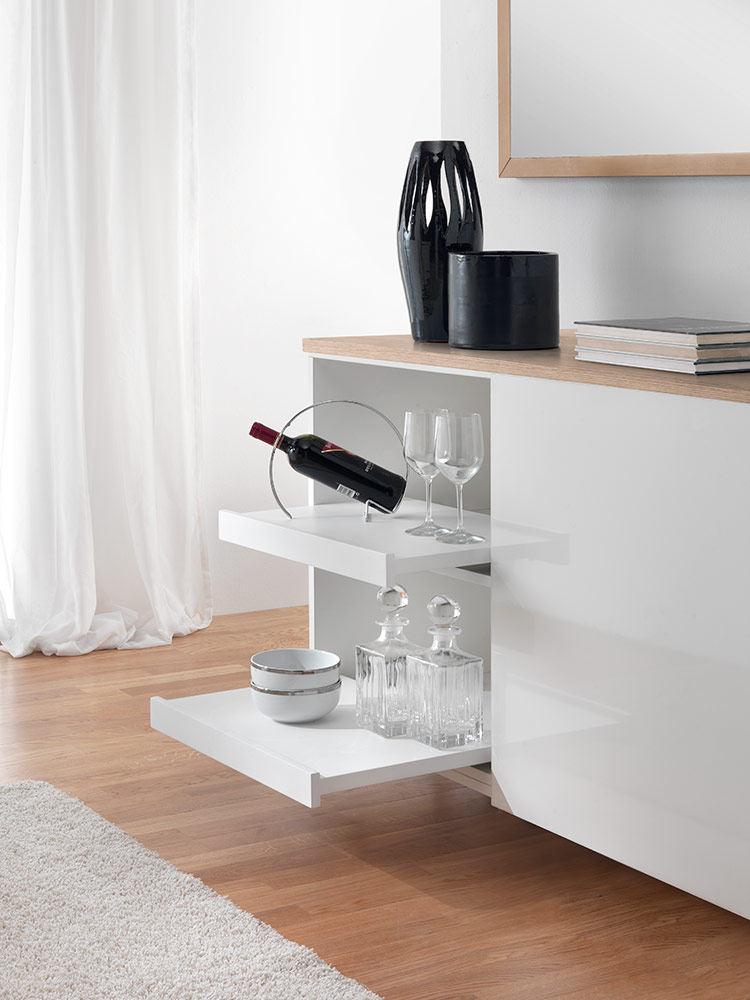

The Shelf runner for pull-out shelves with fixing on the bottom can be used in various contexts as kitchens, display stands for shops, living room and office furniture. This runner enables shelves to slide forward for easy access.

Need more info about the product?

PROGRESSA+ SHELF PUSH PUSH G7E6Q - Concealed runner-2

It is available with full-extension, all lengths, with Push opening for handle-less furniture and with Smove decelerated closing.

Find out more

50 kg Dynamic load capacity
Full extension with a synchronized mechanism
Available in lengths ranging from 350 mm to 500 mm in 50 mm increments
Integrated Push opening system
Safety system that prevents the shelves from turning over
Tool free height adjustments +2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments +/- 1.5 mm
The shelf is held in the closed position
Finish: bright zinc-plated
100% Made in Italy

Versions

Components

Accessories

G7E6Q350XXF6

Full-extension runner fixed to the shelf by clips

Runner length (LN): 350 mm

Min. depth of the cabinet (PM): 360 mm

G7E6Q400XXF6

Full-extension runner fixed to the shelf by clip

Runner length (LN): 400 mm

Min. depth of the cabinet (PM): 410 mm

G7E6Q450XXF6

Full-extension runner fixed to the shelf by clip

Runner length (LN): 450 mm

Min. depth of the cabinet (PM): 460 mm

G7E6Q500XXF6

Full-extension runner fixed to the shelf by clip

Runner length (LN): 500 mm

Min. depth of the cabinet (PM): 510 mm

AFCGXX3B

Right and left clip with integrated adjustments

- For all Progressa, Progressa+ and Progressa+ Shelf runners
- Dual steel/fiber glass-nylon construction
- Compatible with all Progressa runners
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm

ASGD704U3XA

Drawers drilling templates

Template for the hole for the rear hook and the pre-drilling for the clips.

V234X164

Wood screw

ø 4 x 16 mm

V136X114

Euroscrews

Drilling ø 6 x 11 mm

V136X154

Euroscrews

Drilling ø 6 x 14,5 mm

APKF7X51150

Progressa Push Synchronizer bar

The synchronization system for Push-to-Open Progressa runners has been developed to ensure that wider drawers can be opened with minimum effort, regardless of where pressure is applied.
The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
