KITCHEN SPACE ORGANIZERS Smart corner-1

KITCHEN SPACE ORGANIZERS

Smart corner

Aesthetically attractive and extremely effective solutions for the kitchen

  • Easy assembly
  • Full extension soft close
  • Open in one movement
  • For frameless cabinets

Easy assembly, full extension and soft closing system. It opens in one movement and automatically allows free access to the rear baskets.

  • Smart Corner unit requires a minimum door opening of 17". Easy assembly, full extension and soft closing system, open in one movement, automatically allows free access to the rear baskets, non slip surface, for frameless cabinets, load  capacity: back shelves 44 lbs (20 kg) - front shelves 22 lbs (10 kg ). Inside height min. 22-3/8". Non reversible.
  • Kit contents: base corner unit system, set of 4 baskets (2 front and 2 rear), full extension soft close slides (400 mm), adjustable door mounting bracket, handle kit, assembly instructions. The door opening angle can be adjusted in three different positions.
  • Additional handle available in the kit for hinged door.
  • Available in:
    - VCH = Champagne wire/American maple melamine bottom
    - C = Chrome wire/White melamine bottom
    - GC = Chrome wire/Gray melamine bottom (Canada only)

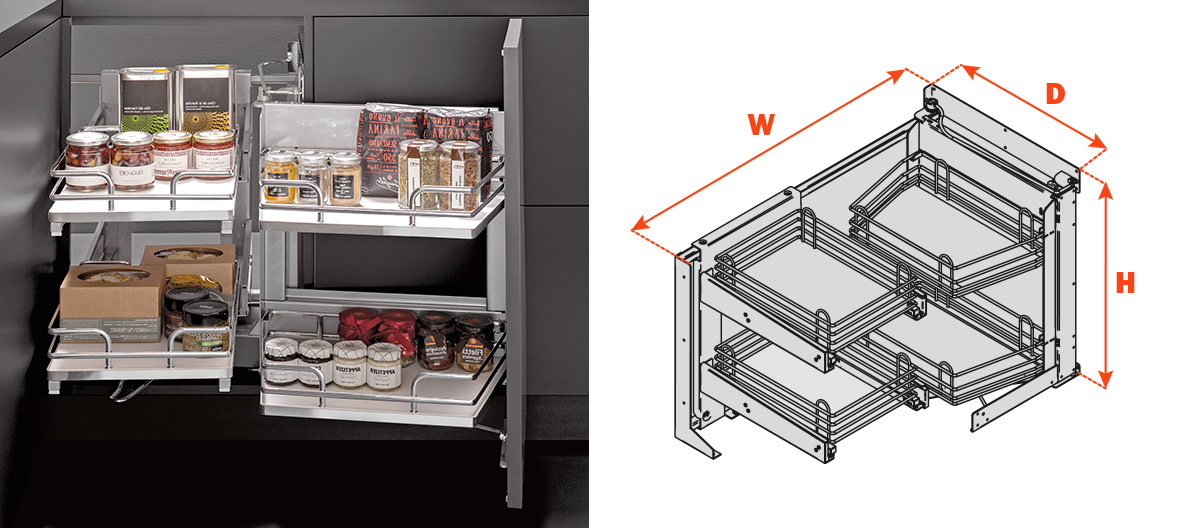

QSMC45DXFMOM
Version = Right
Depth = 19-1/4"
Width = 33-5/16"
Height = 22-3/8"

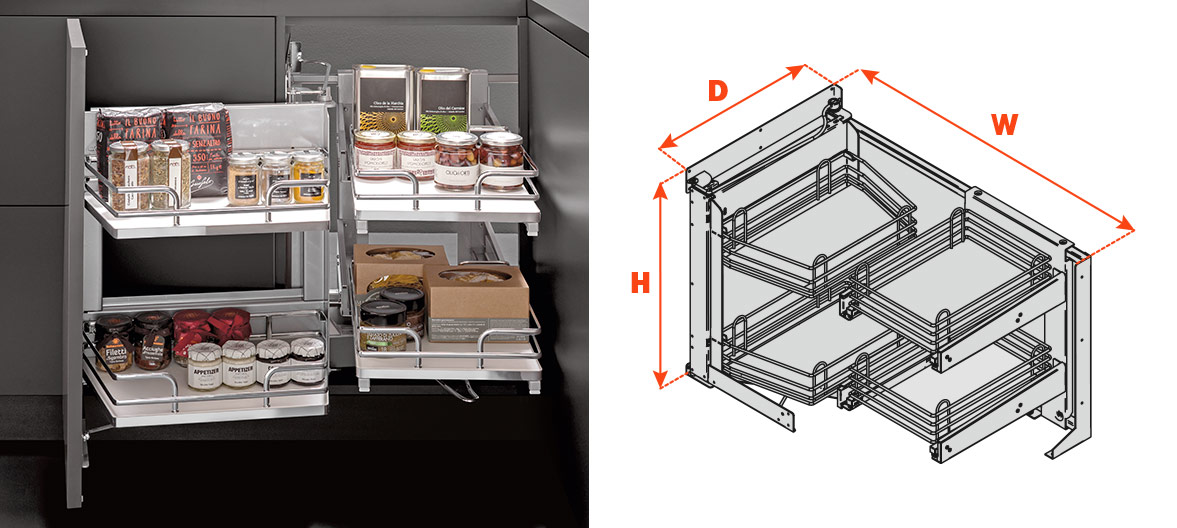

QSMC45SXFMOM
Version = Left
Depth = 19-1/4"
Width = 33-5/16"
Height = 22-3/8"
