Maxi-pantry unit-1

KITCHEN SPACE ORGANIZERS

Maxi-pantry unit

Aesthetically attractive and extremely effective solutions for the kitchen

  • Easy fit system
  • Load capacity 175 lbs (80 kg)
  • Requires 165° opening hinges

Functionality and space optimization. Integrated system allowing the pullouts to move forward as the door is opened. Easy and full access.

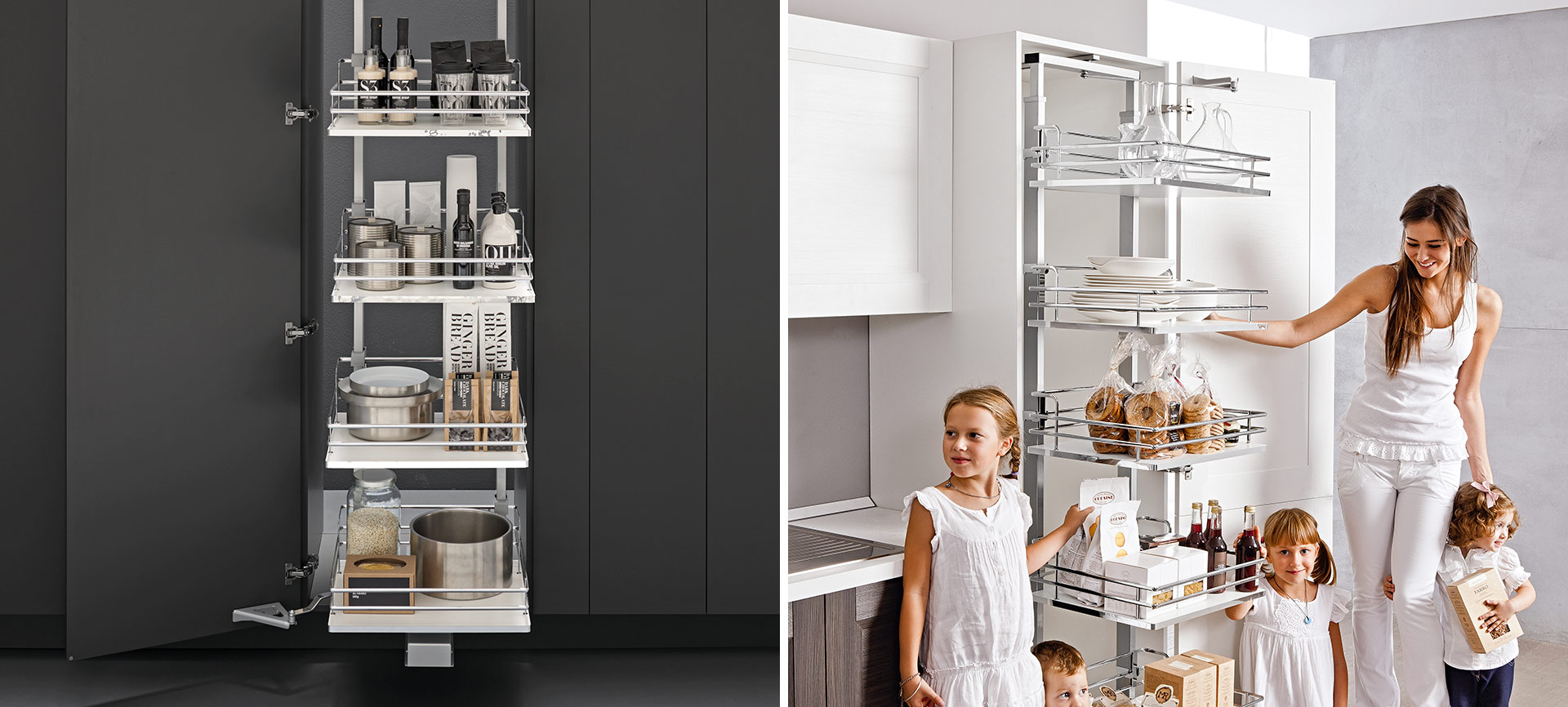

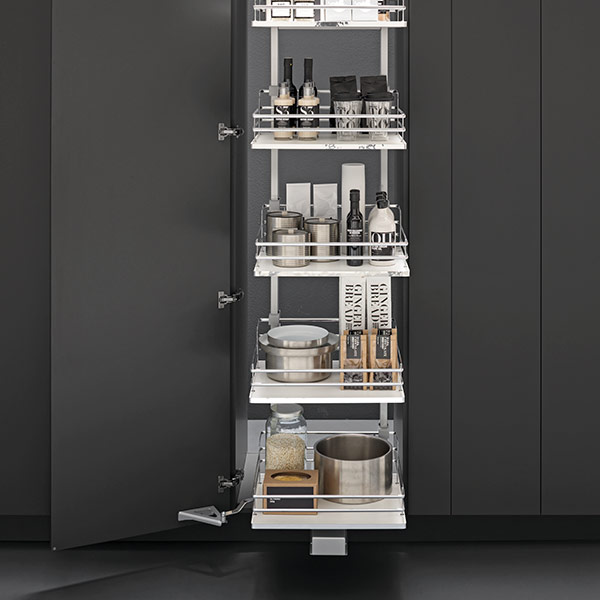

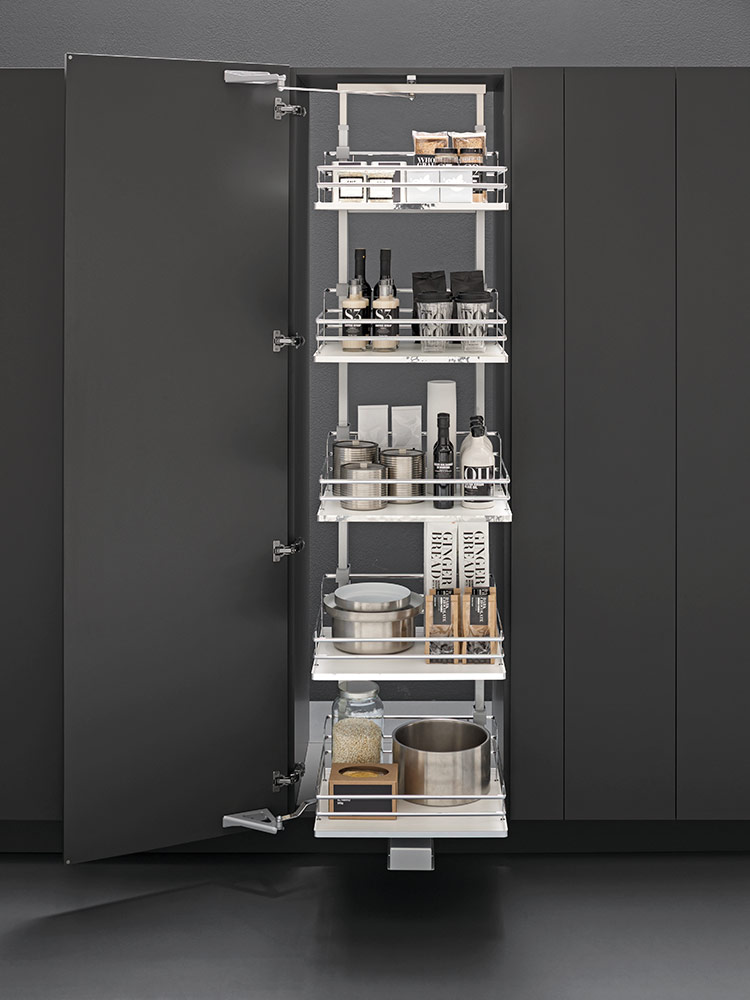

  • Tall pantry system that allows easy and full access to contents.
  • Requires 165° opening hinges.
  • For a 16-5/16" or 22-3/16" minimum opening.
  • Load capacity 175 lbs (80 kg).
  • Reversible, for left or right hand doors.
  • Easy fit system.
  • Available in:
    - VCH = Champagne finish/American maple melamine bottom
    - VG = Gray finish
    - CG = Chrome wire/Gray melamine bottom (Canada only)

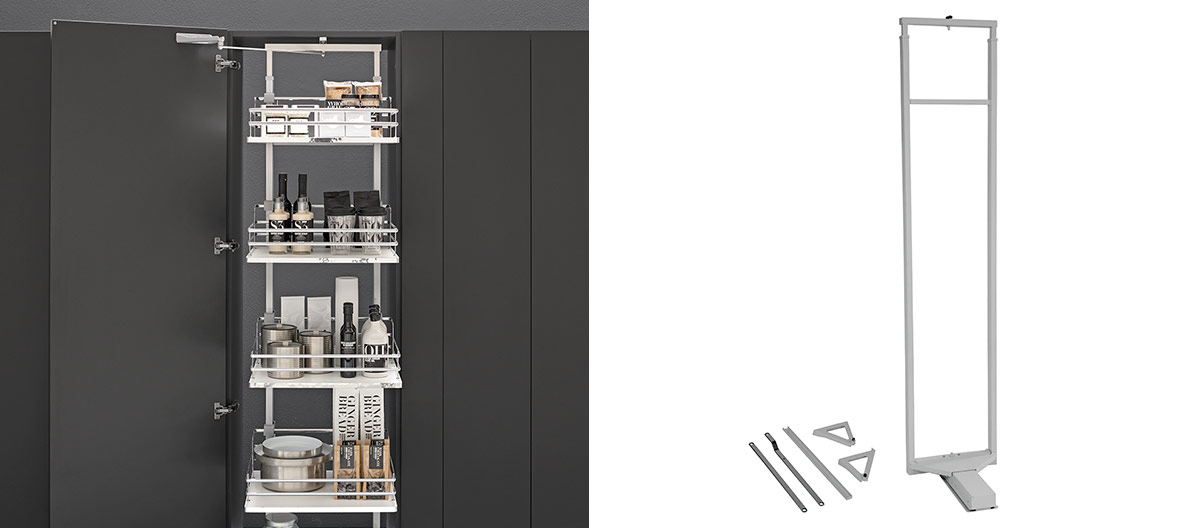

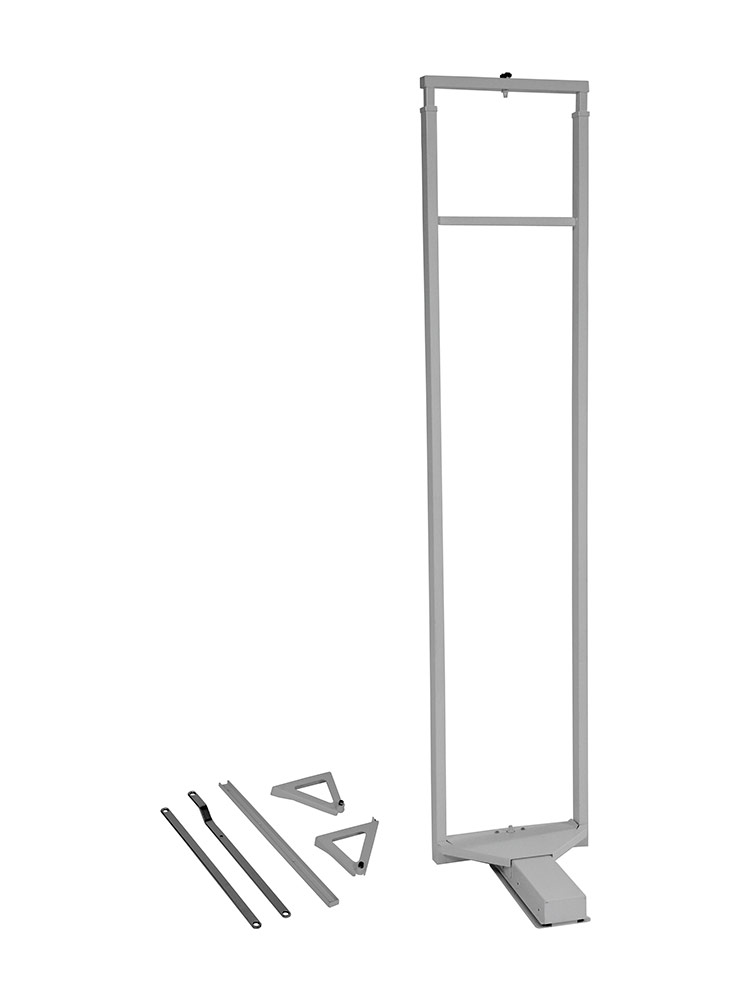

Frame QCEM45B
Min. opening = 16-5/16"
Depth = 18-3/4"
Width = 12-7/8"
Height = 48-1/32" - 61-13/16"
Recommended # of baskets = 3
Frame QCEM60B
Min. opening = 22-3/16"
Depth = 18-3/4"
Width = 18-3/4"
Height = 48-1/32" - 61-13/16"
Recommended # of baskets = 3
Frame QCEM45M
Min. opening = 16-5/16"
Depth = 18-3/4"
Width = 12-7/8"
Height = 61-13/16" - 75-5/8"
Recommended # of baskets = 4
Frame QCEM60M
Min. opening = 22-3/16"
Depth = 18-3/4"
Width = 18-3/4"
Height = 61-13/16" - 75-5/8"
Recommended # of baskets = 4
Frame QCEM45S
Min. opening = 16-5/16"
Depth = 18-3/4"
Width = 12-7/8"
Height = 75-5/8" - 85-7/8"
Recommended # of baskets = 5
Frame QCEM60S
Min. opening = 22-3/16"
Depth = 18-3/4"
Width = 18-3/4"
Height = 75-5/8" - 85-7/8"
Recommended # of baskets = 5

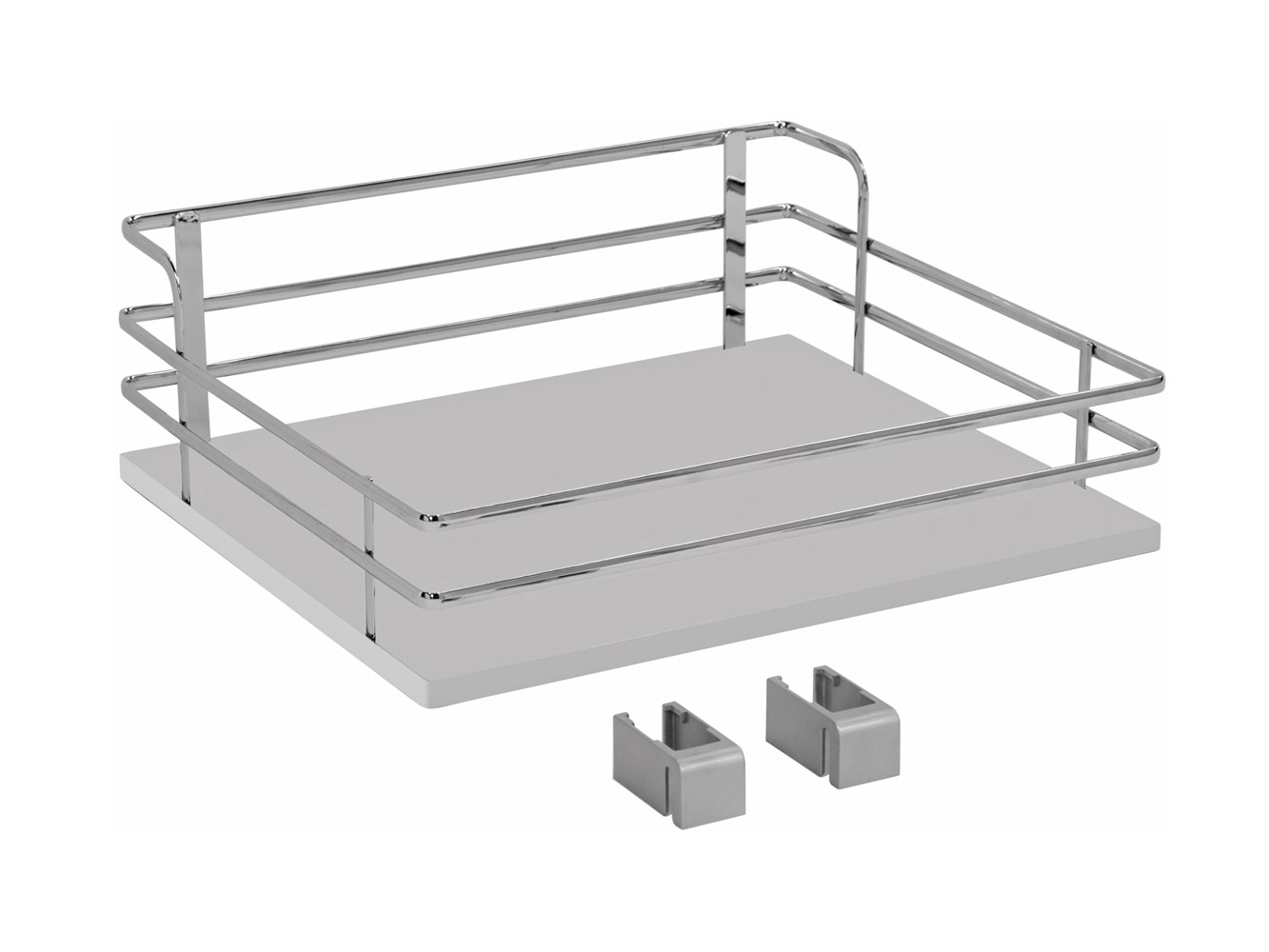

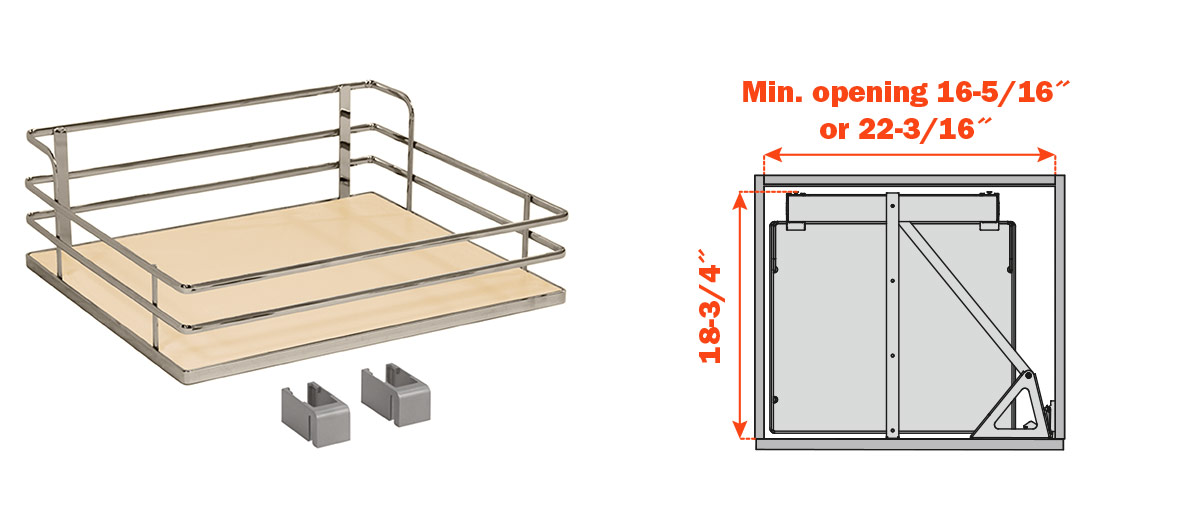

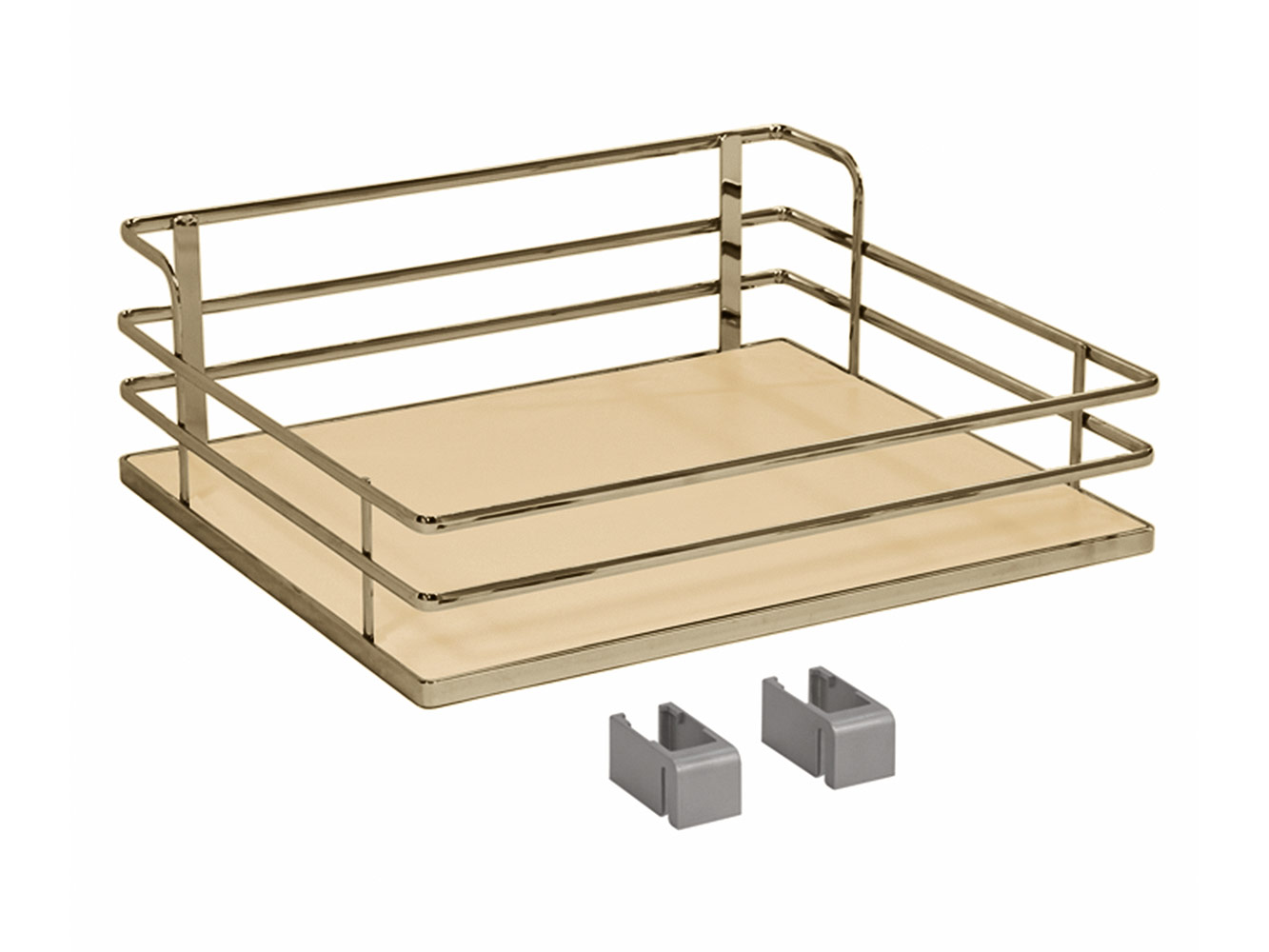

Basket QCEM45ACMOM
Min. opening = 16-5/16"
Depth = 16-3/16"
Width = 12-5/8"
Height = 6-1/4"
Basket QCEM60ACMOM
Min. opening = 22-3/16"
Depth = 16-3/16"
Width = 18-1/2"
Height = 6-1/4"
