KITCHEN SPACE ORGANIZERS

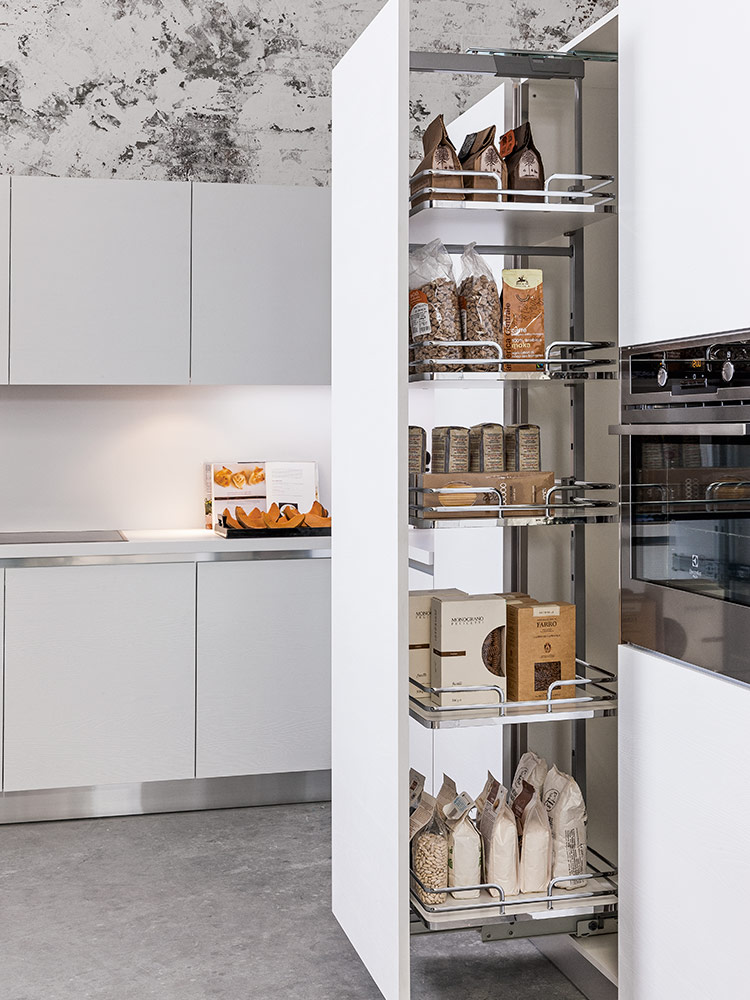

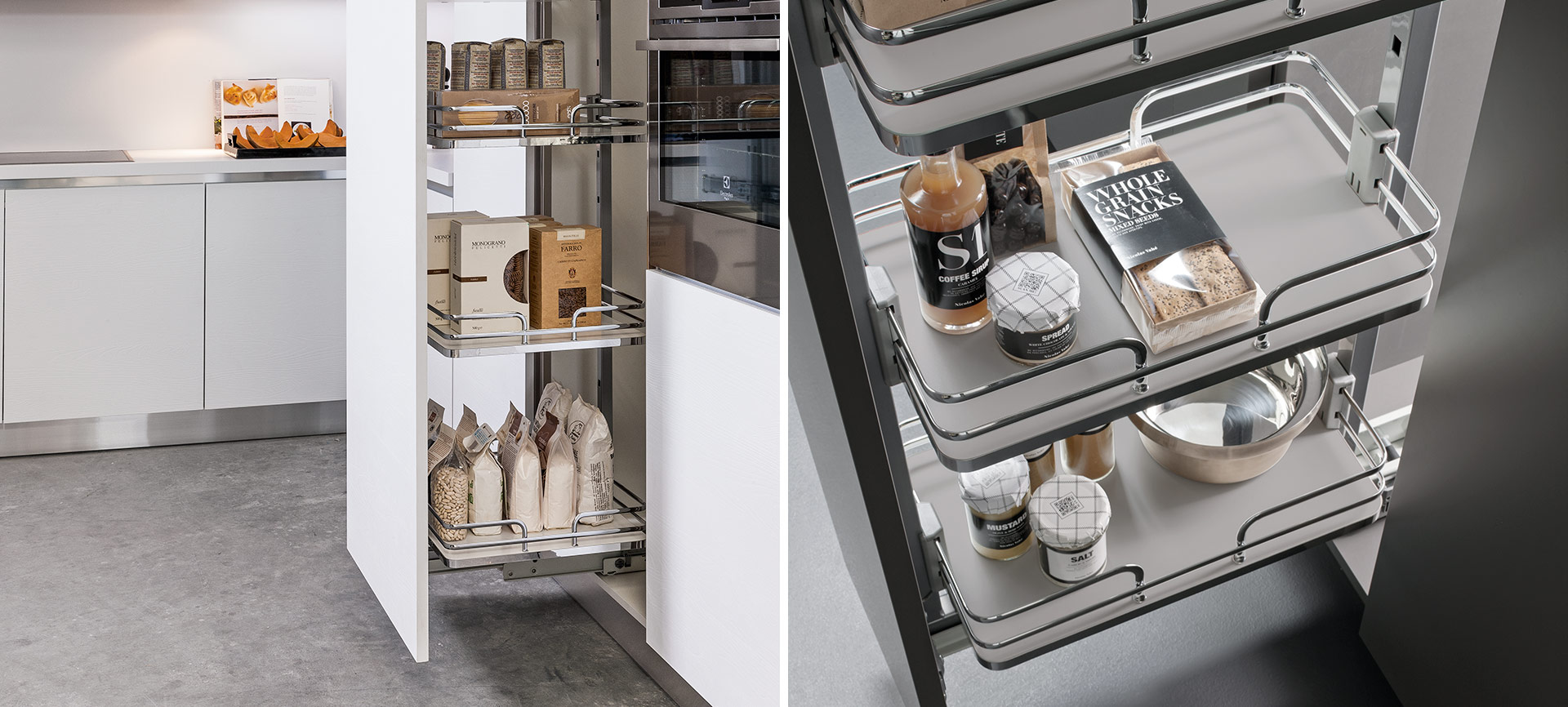

Straight pantry unit

Aesthetically attractive and extremely effective solutions for the kitchen

  • Soft close return
  • Load capacity 265 lbs (120 kg)

Functionality and space optimization.

  • Slide: Full extension slide with soft close return. Load capacity 265 lbs (120 kg).
  • Brackets: Adjustable door-mounting bracket, fast application to frame internal holes. For doors over 7’ tall we suggest to use 3 door-mounting brackets.
    Available in:
    - VCH = Champagne finish
    - VG = Gray finish
  • Frame: Height-adjustable frame, for overlay and inset doors.
    Available in:
    - VCH = Champagne finish
    - VG = Gray finish

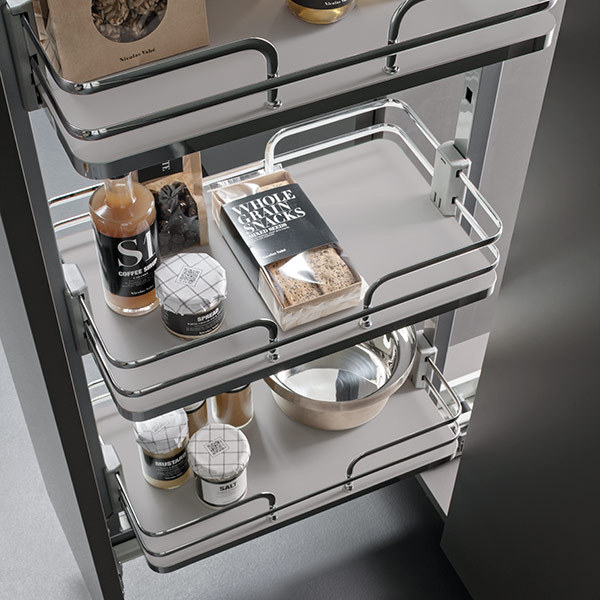

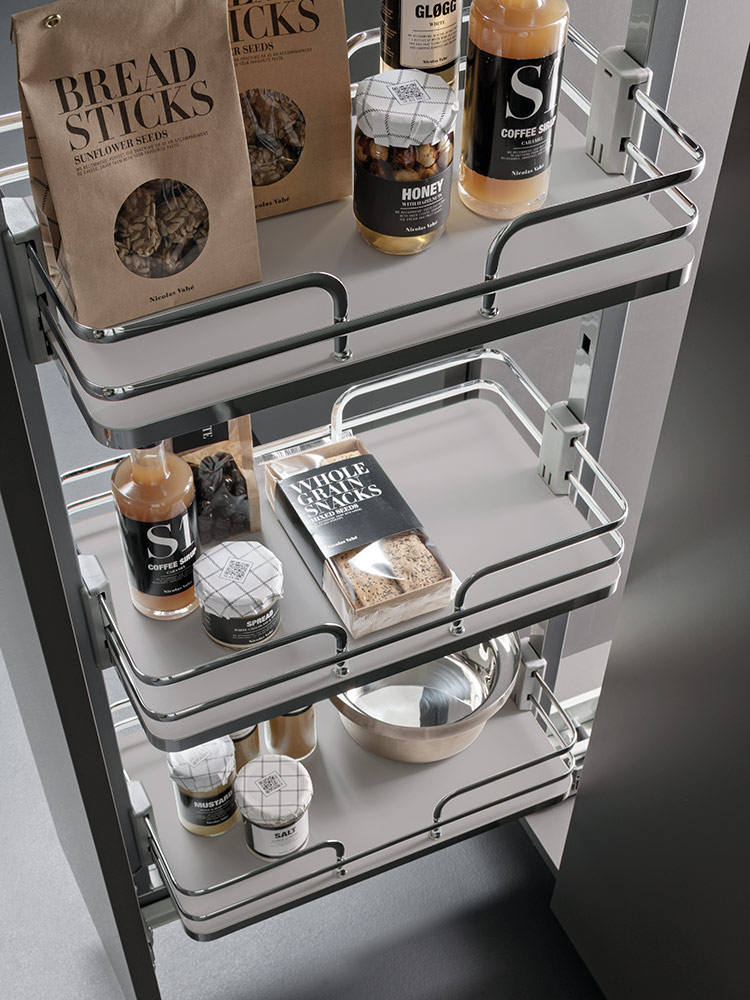

  • Basket: Easy insertion and removal, non slip melamine surface, height adjustable basket assembly.
    Available in:
    - VCH = Champagne finish/American maple melamine bottom
    - C = Chrome wire/White melamine bottom
    - CG = Chrome wire/Gray melamine bottom (Canada only)

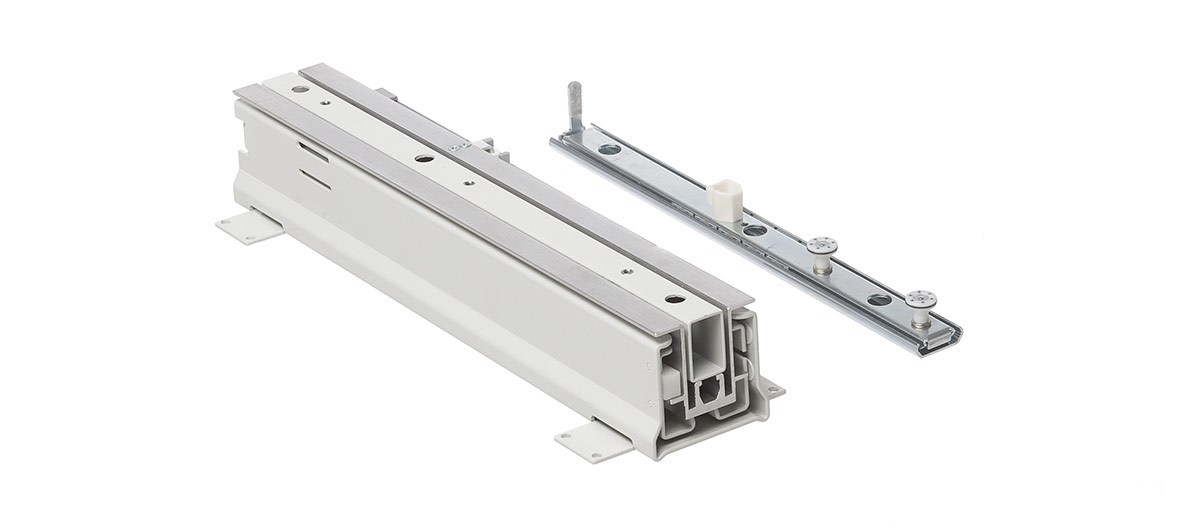

Slide QGCFTM/13
Depth = 18-7/8"
Height = 5-1/2"
Bracket QCK130N
Depth = 1-5/8"
Width = 9-7/8"
Height = 1-3/16"
Bracket QCK140N
Depth = 1-5/8"
Width = 13-13/16"
Height = 1-3/16"
Bracket QCK145N
Depth = 1-5/8"
Width = 15-3/4"
Height = 1-3/16"
Bracket QCK160N
Depth = 1-5/8"
Width = 21-5/8"
Height = 1-3/16"

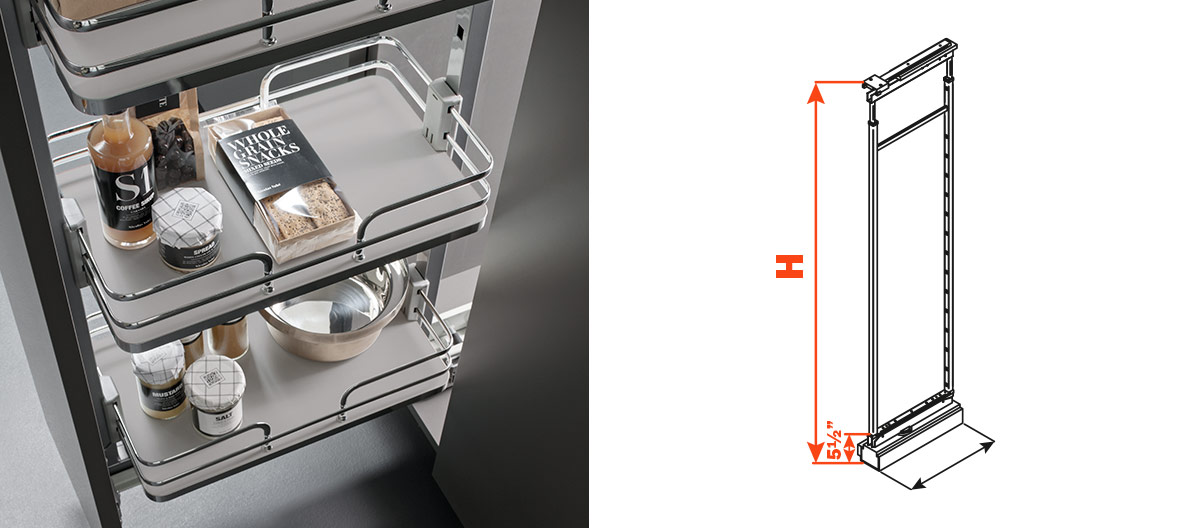

Frame QCE1205
Depth = 19-9/16"
Width = 1-3/16"
Full set height: slide + frame = 41-23/32"- 59-1/16"
Recommended # of Baskets = 3
Frame QCE1605
Depth = 19-9/16"
Width = 1-3/16"
Full set height: slide + frame = 57-15/32"- 74-13/16"
Recommended # of Baskets = 4
Frame QCE1905
Depth = 19-9/16"
Width = 1-3/16"
Full set height: slide + frame = 69-9/32"- 86-5/8"
Recommended # of Baskets = 5
Basket QCC30ASAOM
Depth = 16-3/16"
Width = 9-11/16"
Height = 3-11/16"
Basket QCC40ASAOM
Depth = 16-3/16"
Width = 13-5/8"
Height = 3-11/16"
Basket QCC45ASAOM
Depth = 16-3/16"
Width = 15-5/8"
Height = 3-11/16"
Basket QCC60ASAOM
Depth = 16-3/16"
Width = 21-1/2"
Height = 3-11/16"
