KITCHEN SPACE ORGANIZERS Fly moon-1

KITCHEN SPACE ORGANIZERS

Fly moon

Aesthetically attractive and extremely effective solutions for the kitchen

  • Height adjustable shaft
  • Easy to install
  • Load capacity 44 lbs (20kg) per shelf

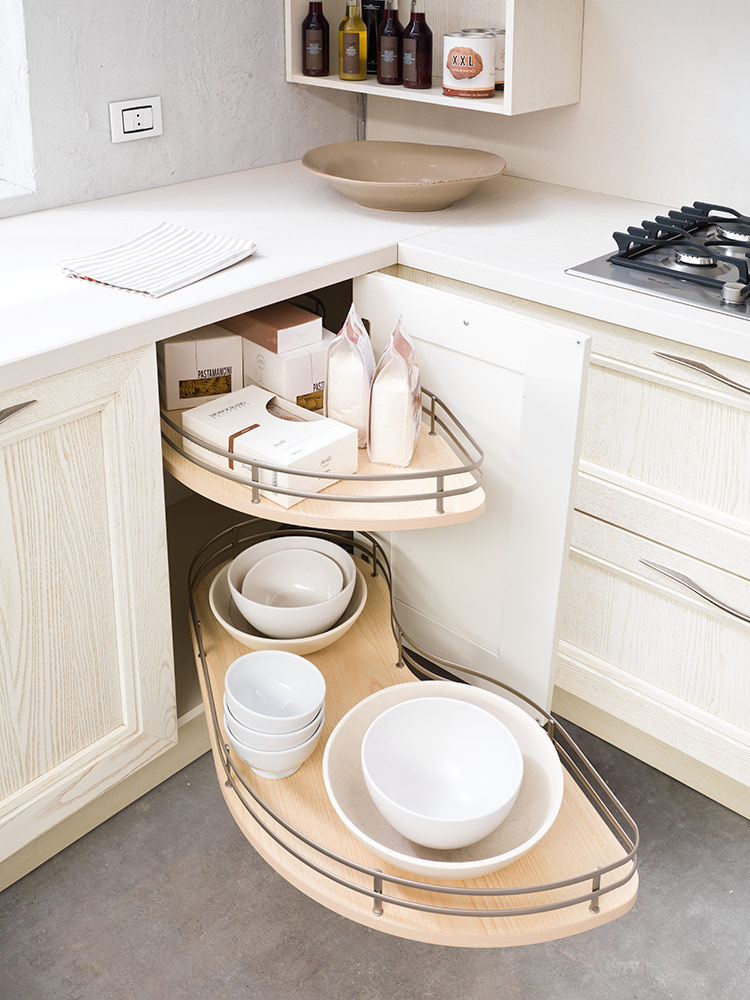

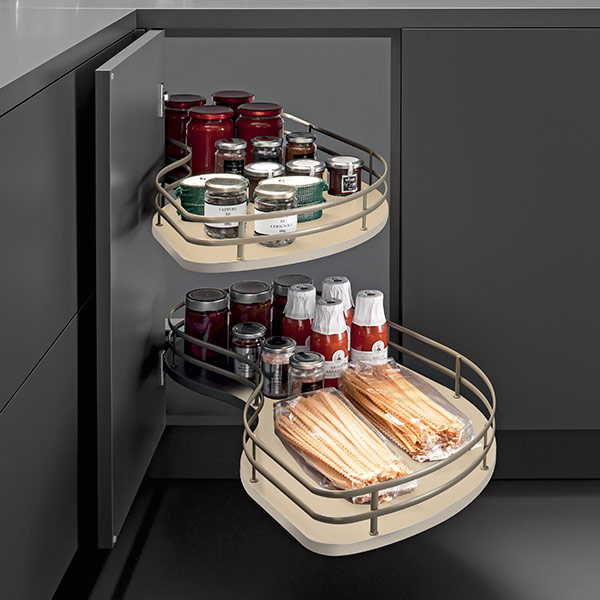

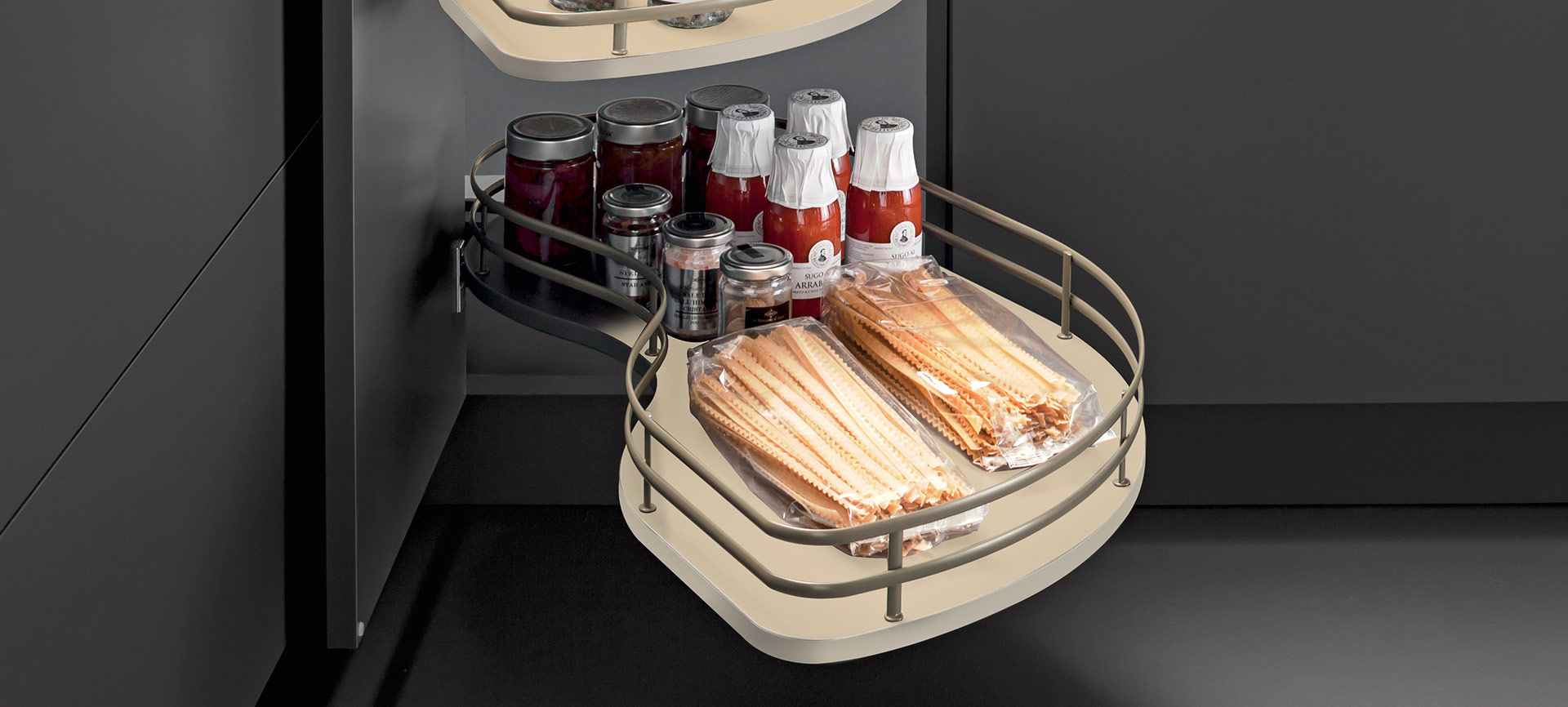

Innovative and unique space saving corner unit. The shelves can be pulled-out independently. The trays are designed to increase storage surface. Easy installation.

  • The shelves can be pulled-out independently, trays are designed to increase storage surface, height adjustable shaft, easy to install. The mechanism is a patented system and can be easily fixed in on one side of the cabinet, non slip melamine surface, for frame and frameless cabinets, load capacity 44 lbs (20kg) per shelf, minimum door opening 85°, height of the shelf rail 70 mm (2-3/4").

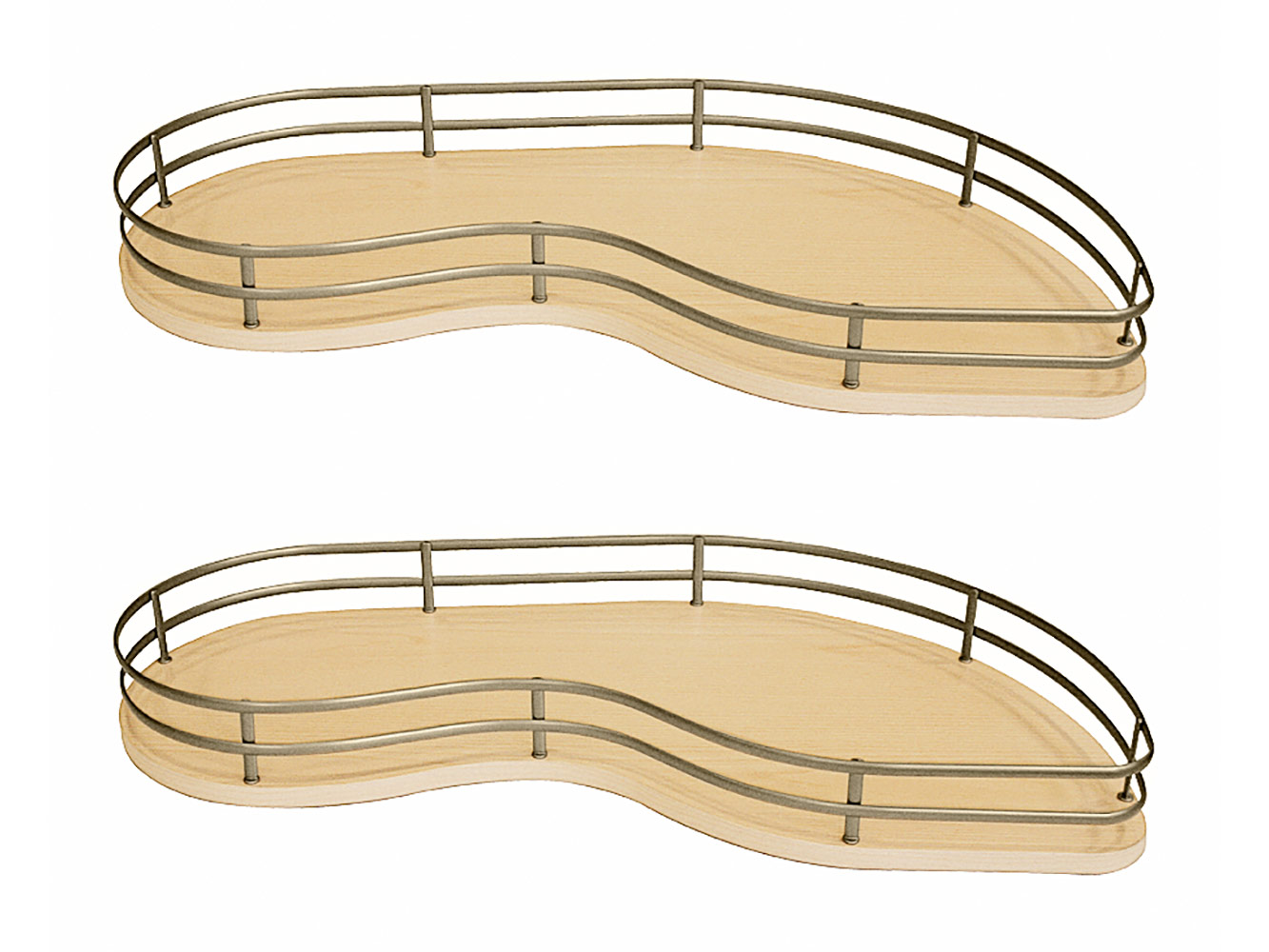

  • Shelf kit contents: 2 pull-out pivoting shelves; metal plates for connection; assembly instruction. Mechanism kit contents: mechanism with height adjustable shaft; brackets and extension pipe; assembly instruction.
  • Soft close version available.
  • Shelf is available in:
    - VCH = Champagne wire/American maple melamine bottom
    - C = Chrome wire/White melamine bottom
    - MC = Chrome wire/White woven cotton melamine bottom (USA only)

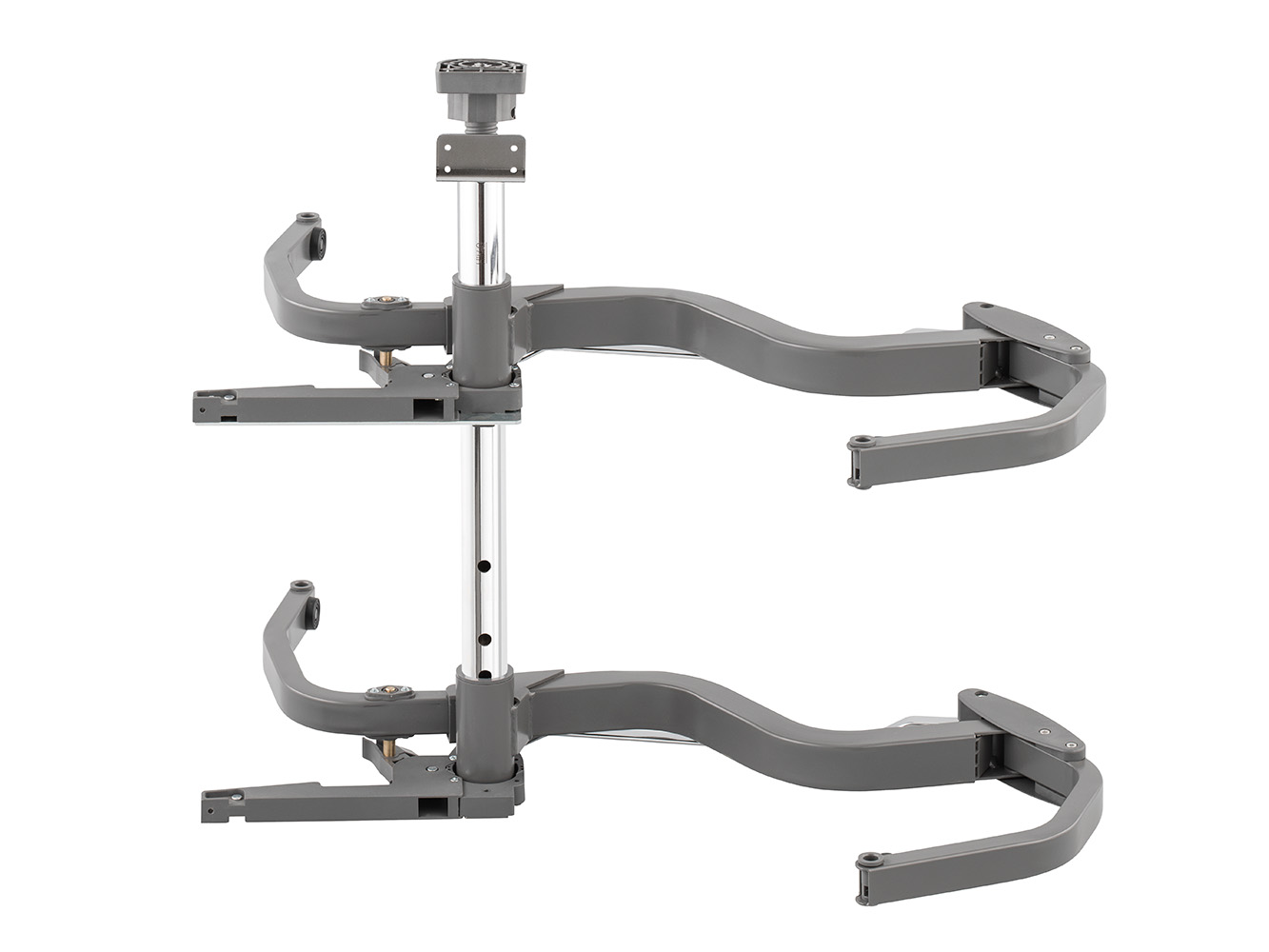

  • Mechanism is available in:
    - GF = Dark gray (USA only)
    - VCH = Champagne finish (Canada only)
    - VG = Gray finish (Canada only)
    - CG = Chrome wire/Gray melamine bottom (Canada only)

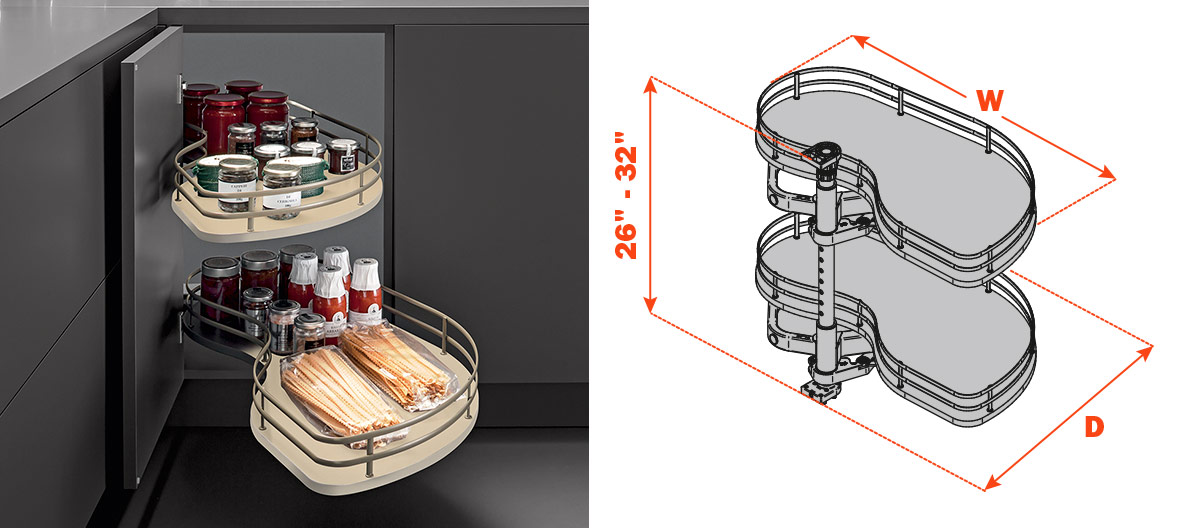

QFLY40DXG20M
Version = Right
Min. opening = 13-5/8"
Depth = 16-1/32"
Width = 29"
Height = 3-3/8"

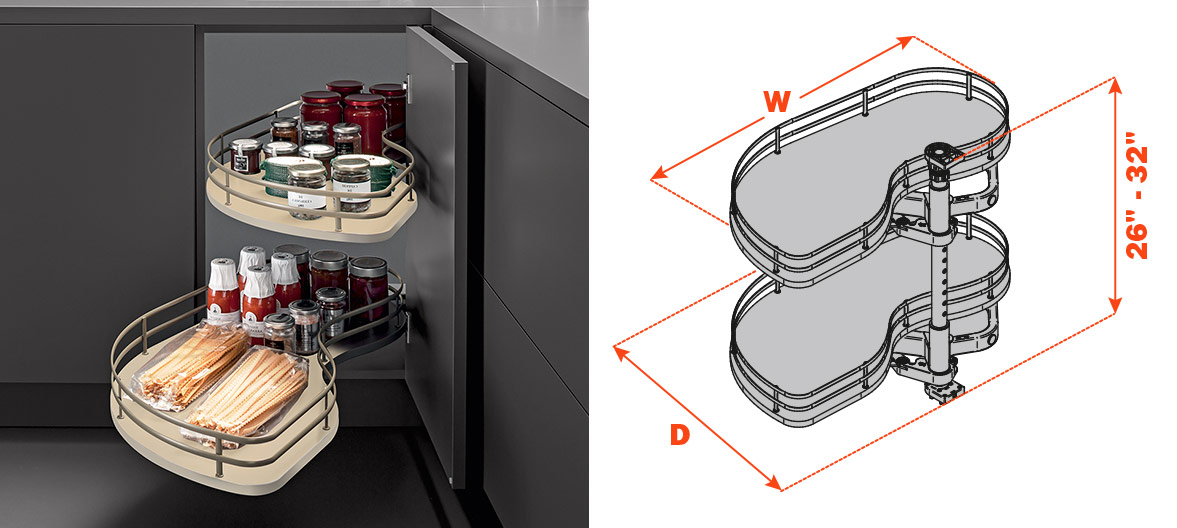

QFLY40SXG20M
Version = Left
Min. opening = 13-5/8"
Depth = 16-1/32"
Width = 29"
Height = 3-3/8"
QFLY45DXG20M
Version = Right
Min. opening = 16"
Depth = 17-3/8"
Width = 32-3/16"
Height = 3-3/8"
QFLY45SXM20M
Version = Left
Min. opening = 16"
Depth = 17-3/8"
Width = 32-3/16"
Height = 3-3/8"
QFLY60DXG20M
Version = Right
Min. opening = 21"
Depth = 18-3/4"
Width = 38-7/16"
Height = 3-3/8"
QFLY60SXM20M
Version = Left
Min. opening = 21"
Depth = 18-3/4"
Width = 38-7/16"
Height = 3-3/8"

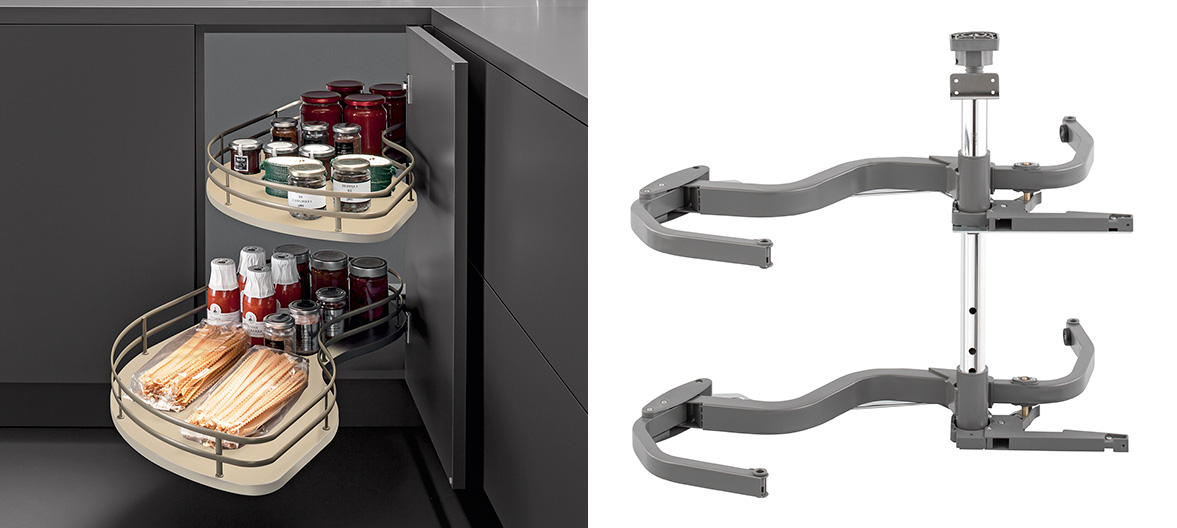

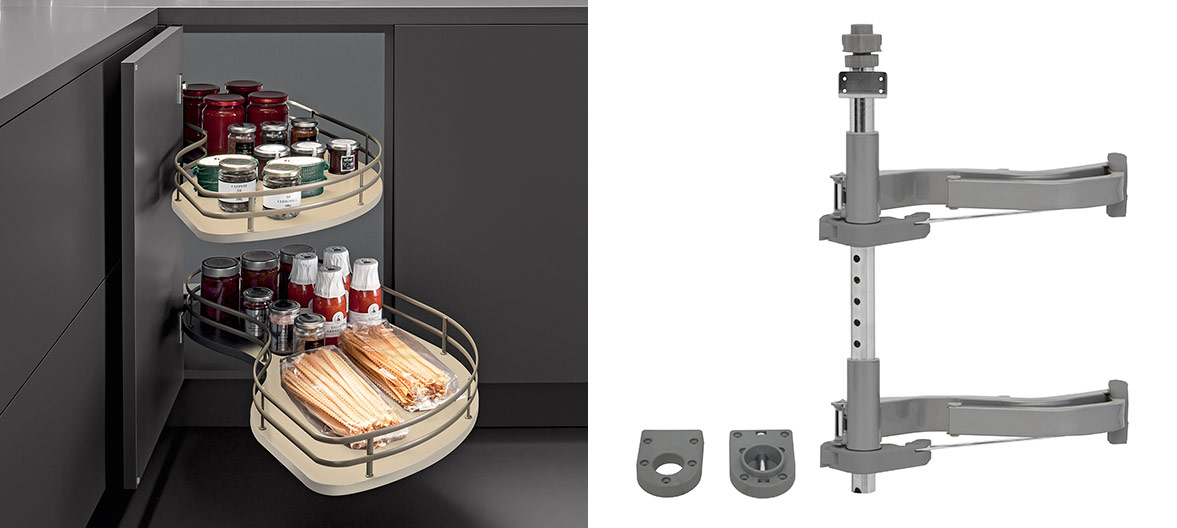

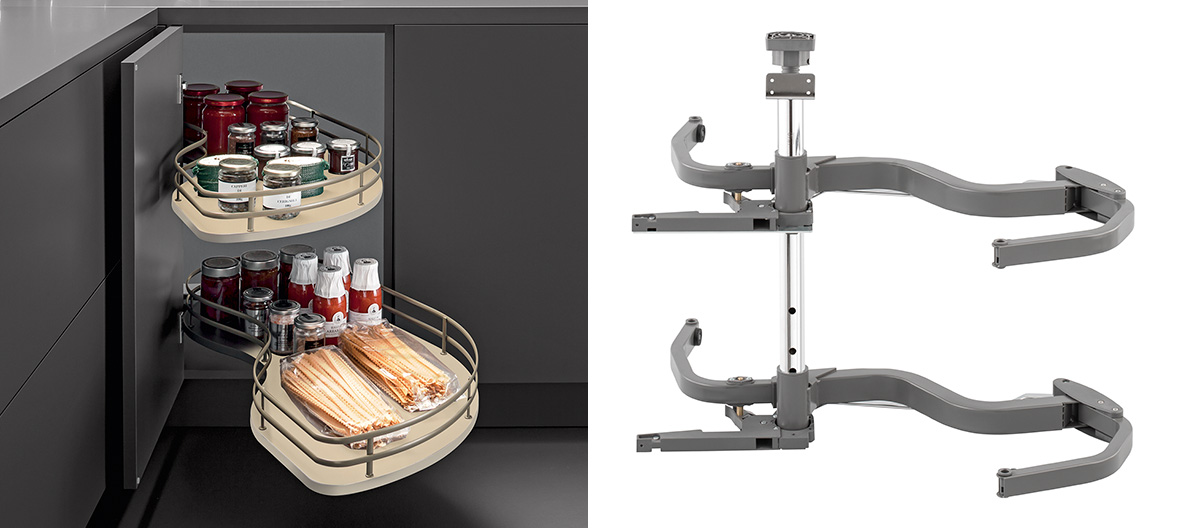

QFLYASTM2DX - QFLYAST2DX
Soft close part # = QFLYASTM2DX
Standard part # = QFLYAST2DX
Version = Right
Min. opening = 13-5/8"
Height = 26" - 32"

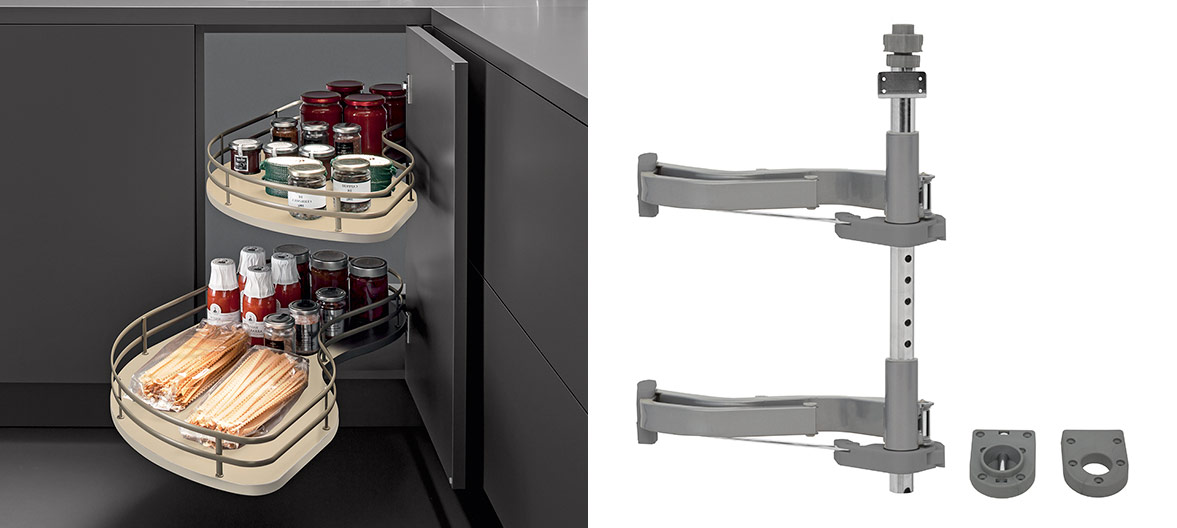

QFLYASTM2SX - QFLYAST2SX
Soft close part # = QFLYASTM2SX
Standard part # = QFLYAST2SX
Version = Left
Min. opening = 13-5/8"
Height = 26" - 32"
QFLYASTM2DX - QFLYAST2DX
Soft close part # = QFLYASTM2DX
Standard part # = QFLYAST2DX
Version = Right
Min. opening = 16"
Height = 26" - 32"
QFLYASTM2SX - QFLYAST2SX
Soft close part # = QFLYASTM2SX
Standard part # = QFLYAST2SX
Version = Left
Min. opening = 16"
Height = 26" - 32"
QFLYASTM602DX - QFLYAST602DX
Soft close part # = QFLYASTM602DX
Standard part # = QFLYAST602DX
Version = Right
Min. opening = 21"
Height = 26" - 32"
QFLYASTM602DX - QFLYAST602DX
Soft close part # = QFLYASTM602SX
Standard part # = QFLYAST602SX
Version = Left
Min. opening = 21"
Height = 26" - 32"
