CONECTA Concealed hinge-1

CONECTA

Concealed hinge

Hinge with recessed insertion in the side panel

  • Inserted into the cabinet and the door
  • Wood doors
  • 94° opening
A perfect synthesis of compactness and adaptability

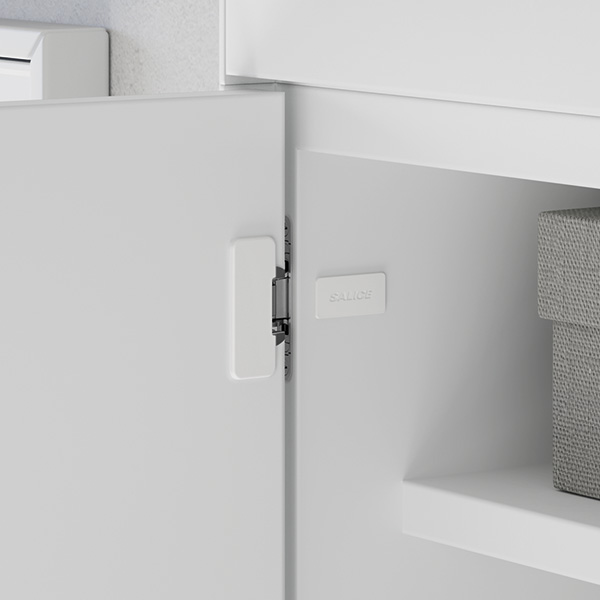

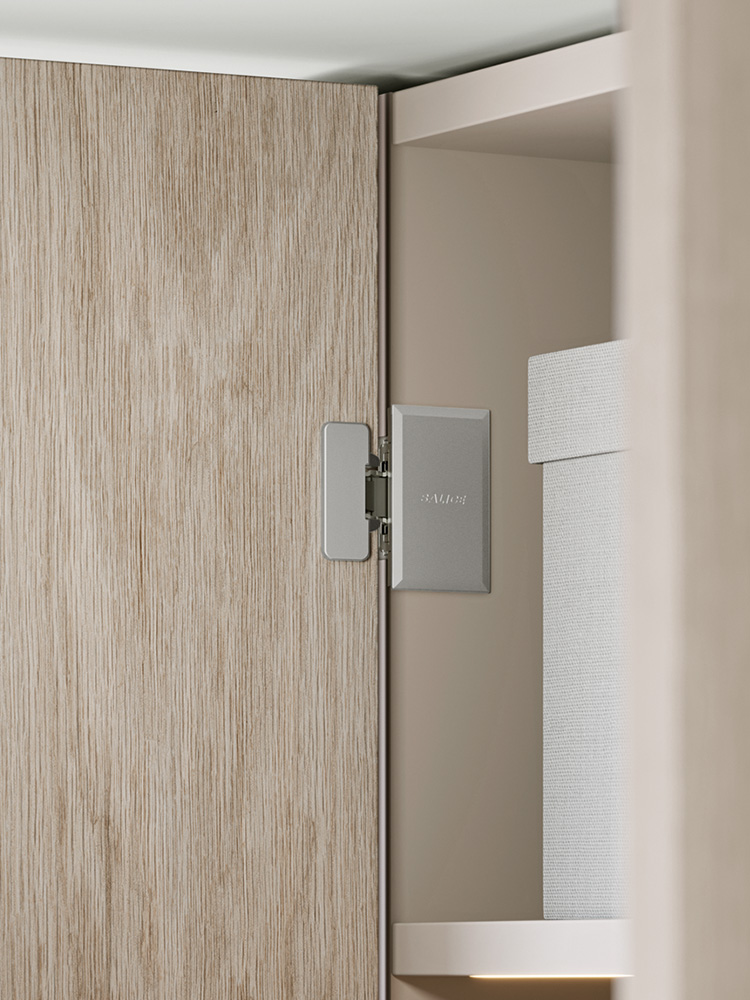

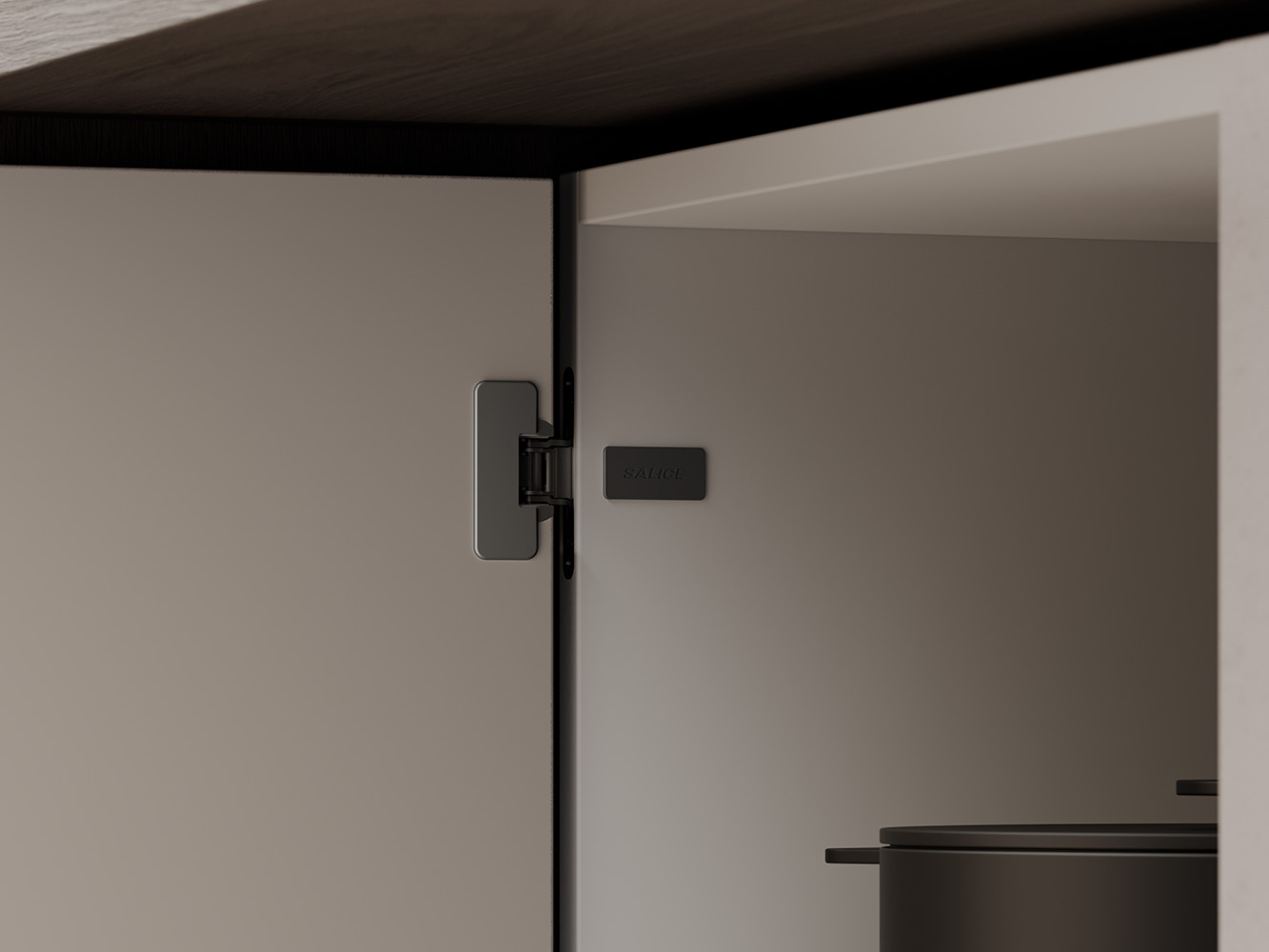

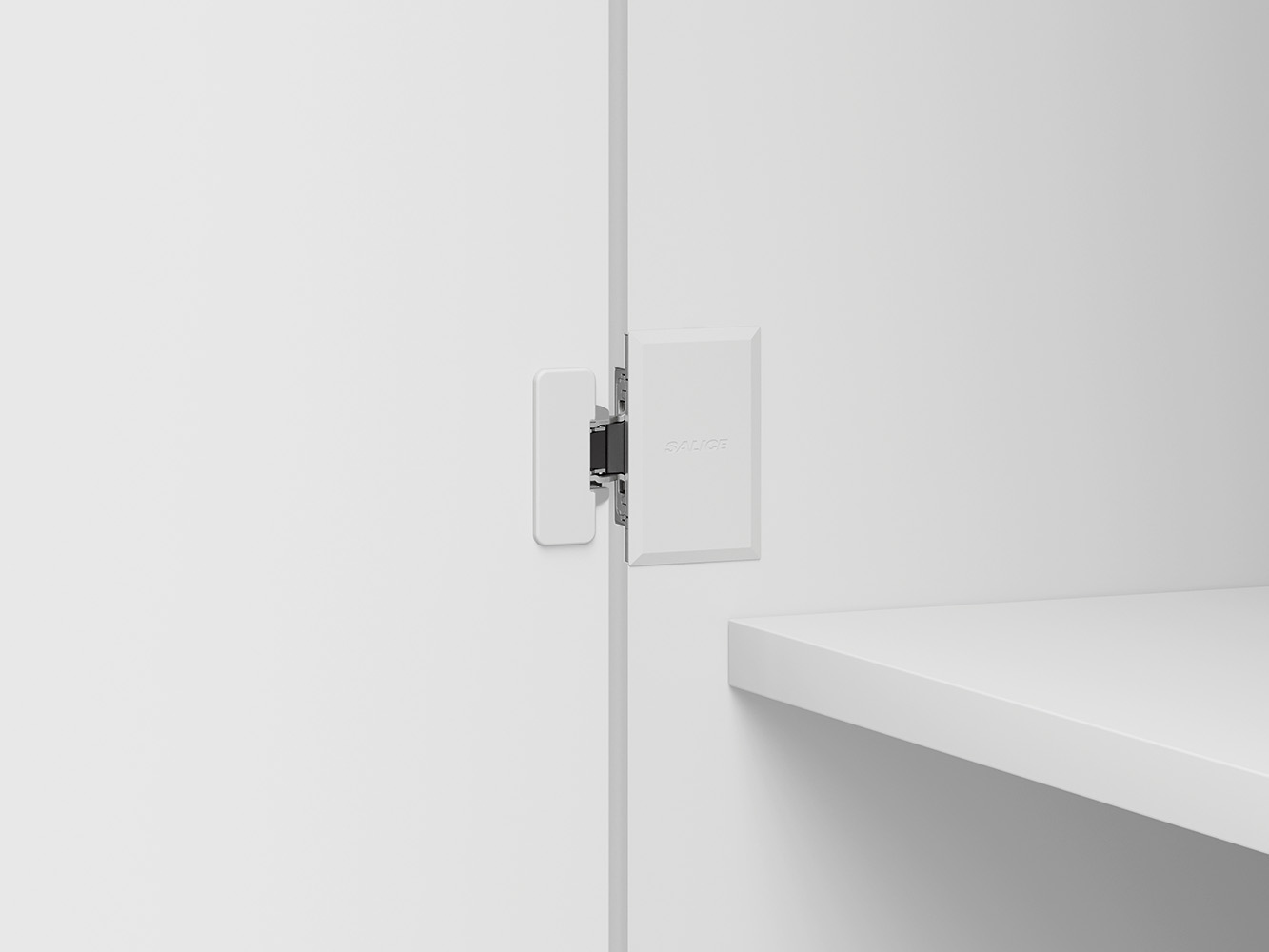

Conecta is the totally innovative Salice hinge that mounts recessed completely in the side panel.

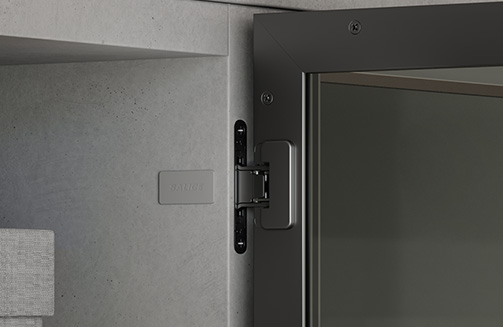

Its technical features allow any wood or aluminum doors, even tall and heavy ones, to open and close smoothly.

CONECTA Concealed hinge-2

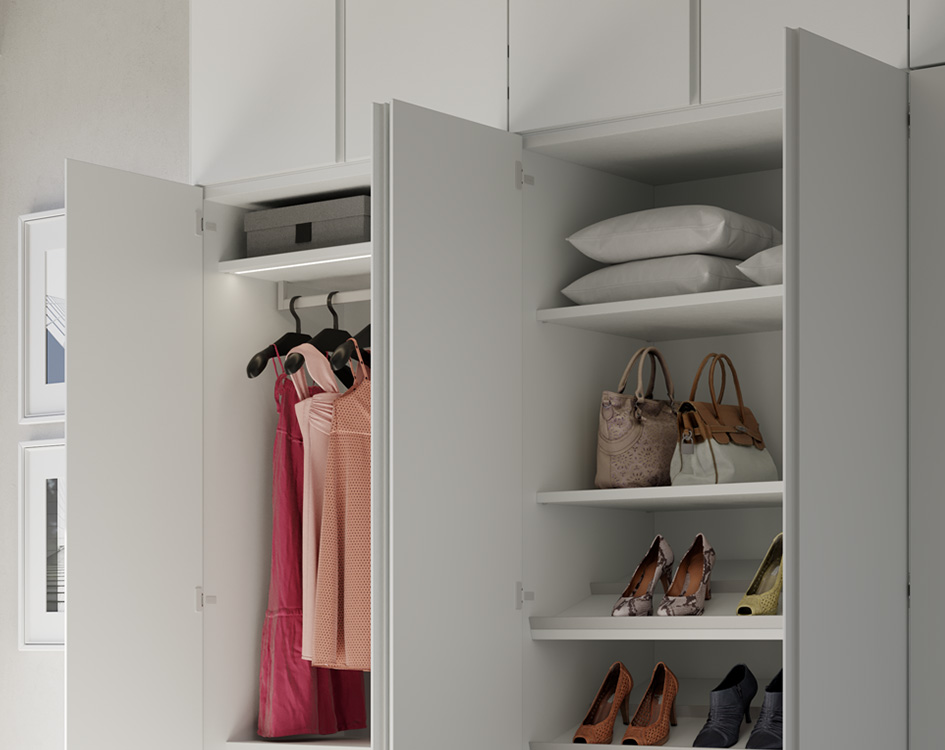

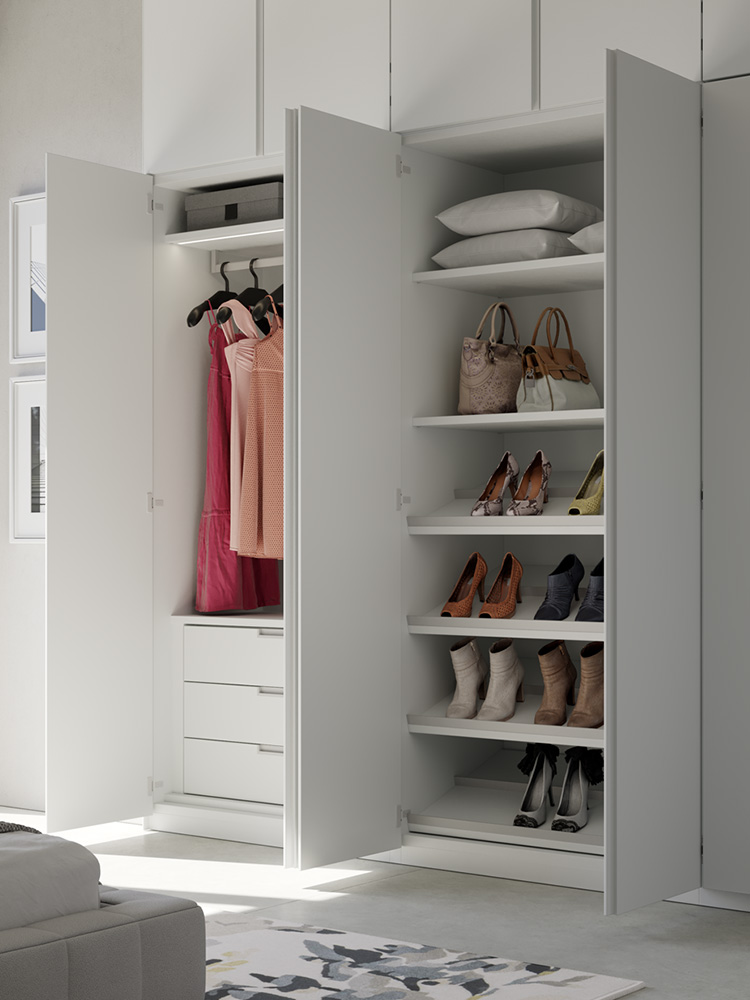

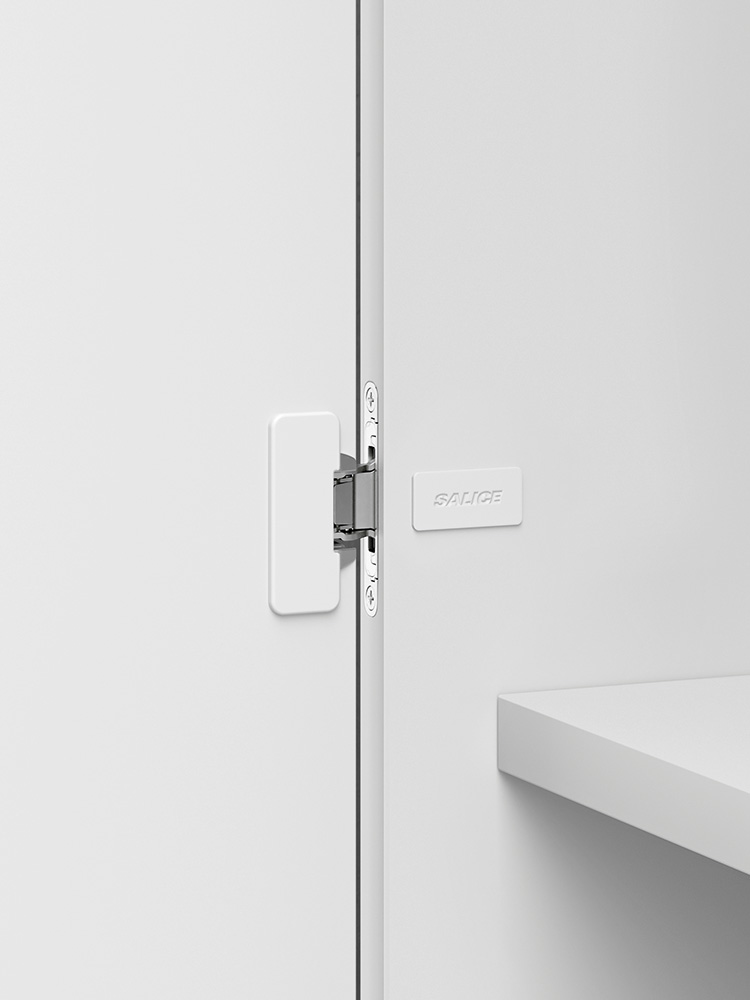

Thanks to its aesthetics, elegance and functionality, Conecta is suitable for different applications.

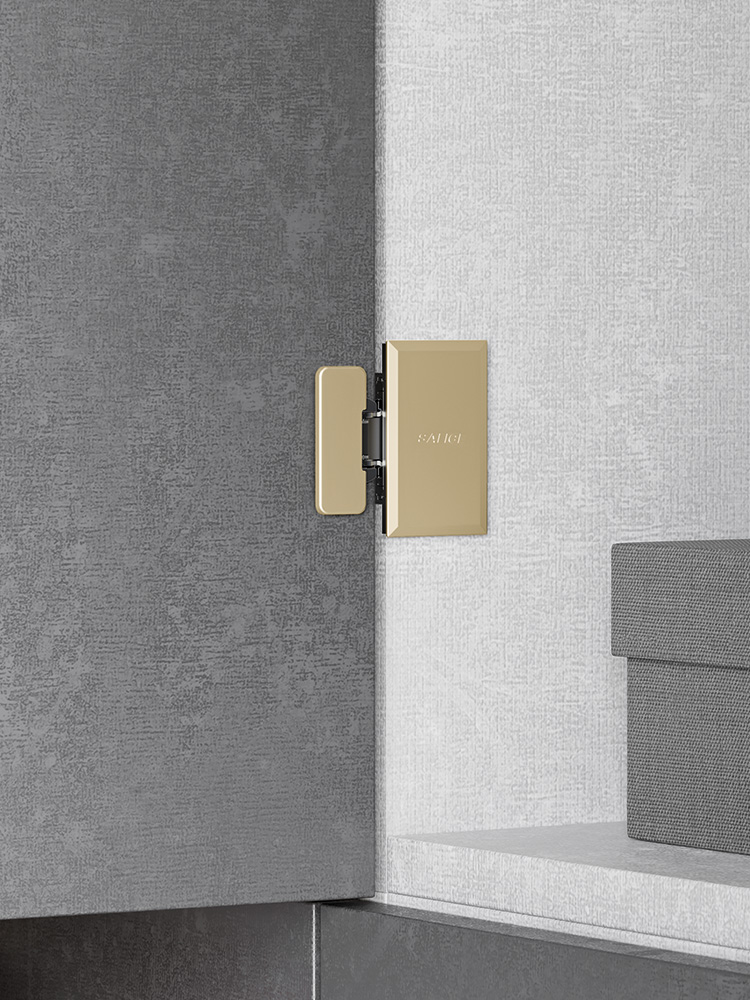

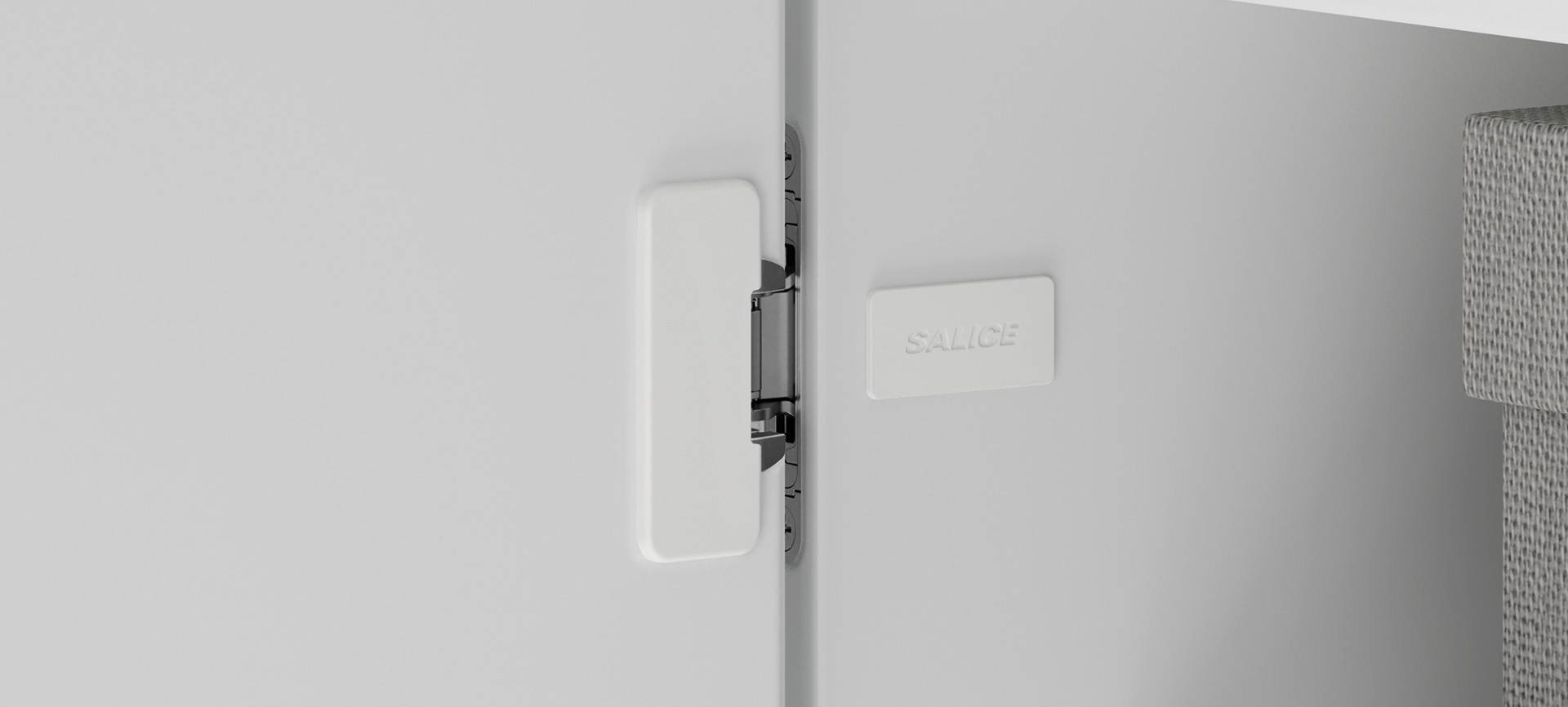

It is available in nickel-plated or titanium finishes and can come with customizable cover caps for both the cabinet door and side.

  • Rapid fastening of the door to the cabinet side
  • 22 mm deep metal cup
  • Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole
  • Diameter 35 mm
  • 94° opening
  • 6-way adjustable
  • Sideways adjustment -1 +2 mm
  • Height adjustment -2,5 +2,5 mm
  • Depth adjustment 0 +3 mm
  • Concealed CQA3JE hinge with recessed insertion in the side panel
    - Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B
  • Concealed CQA3KE hinge with recessed insertion in the side panel
    - Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B

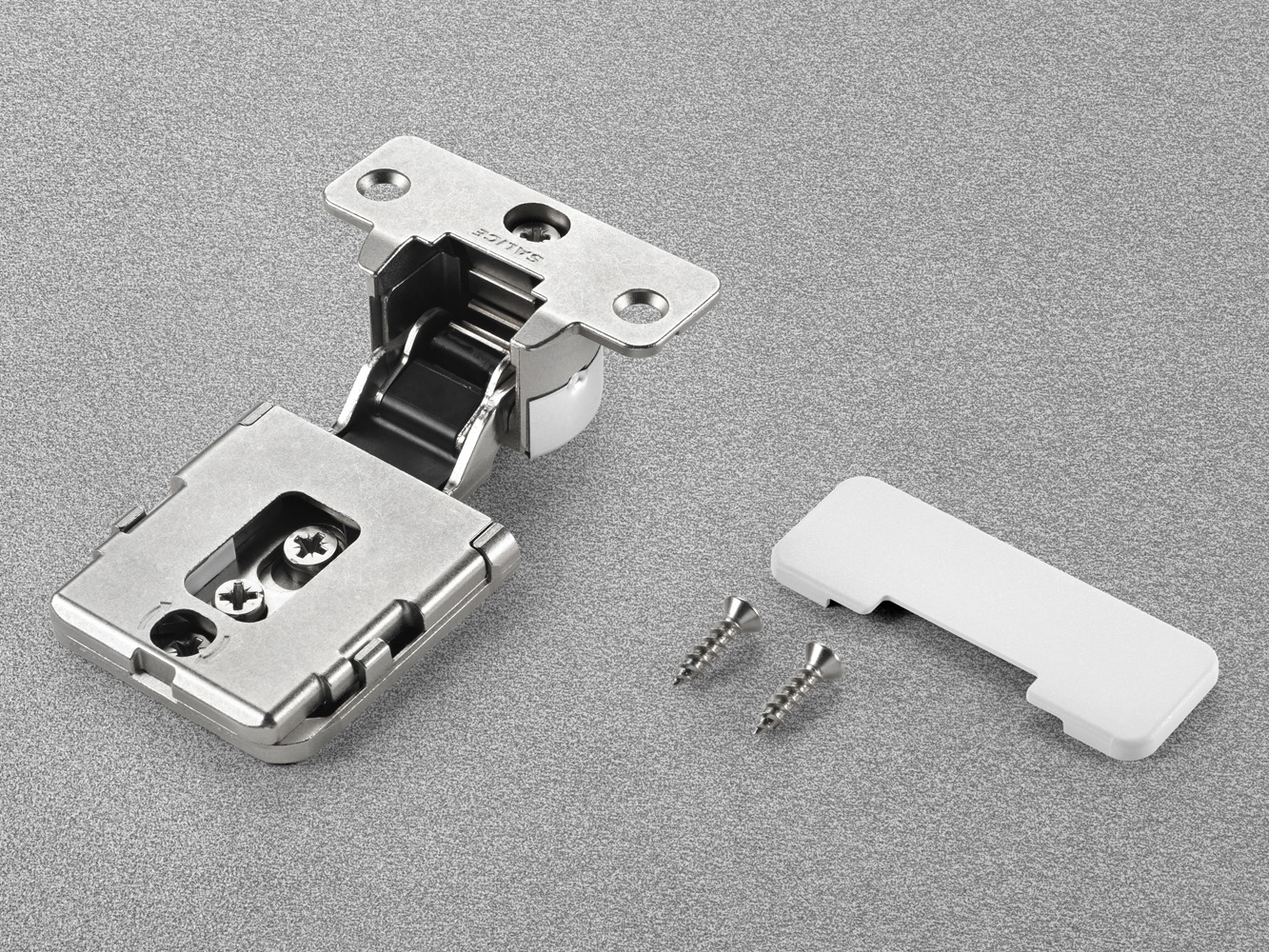

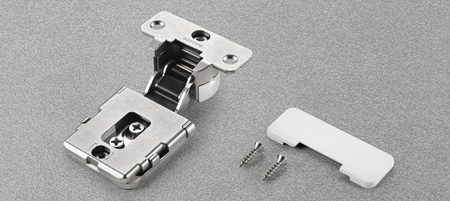

CQA3JE9XXV

Hinge for wood doors.

Concealed CQA3JE hinge with recessed insertion in the side panel.
Nickel-plated finish.
Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B.

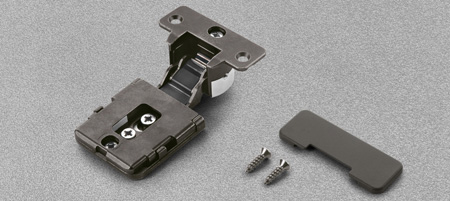

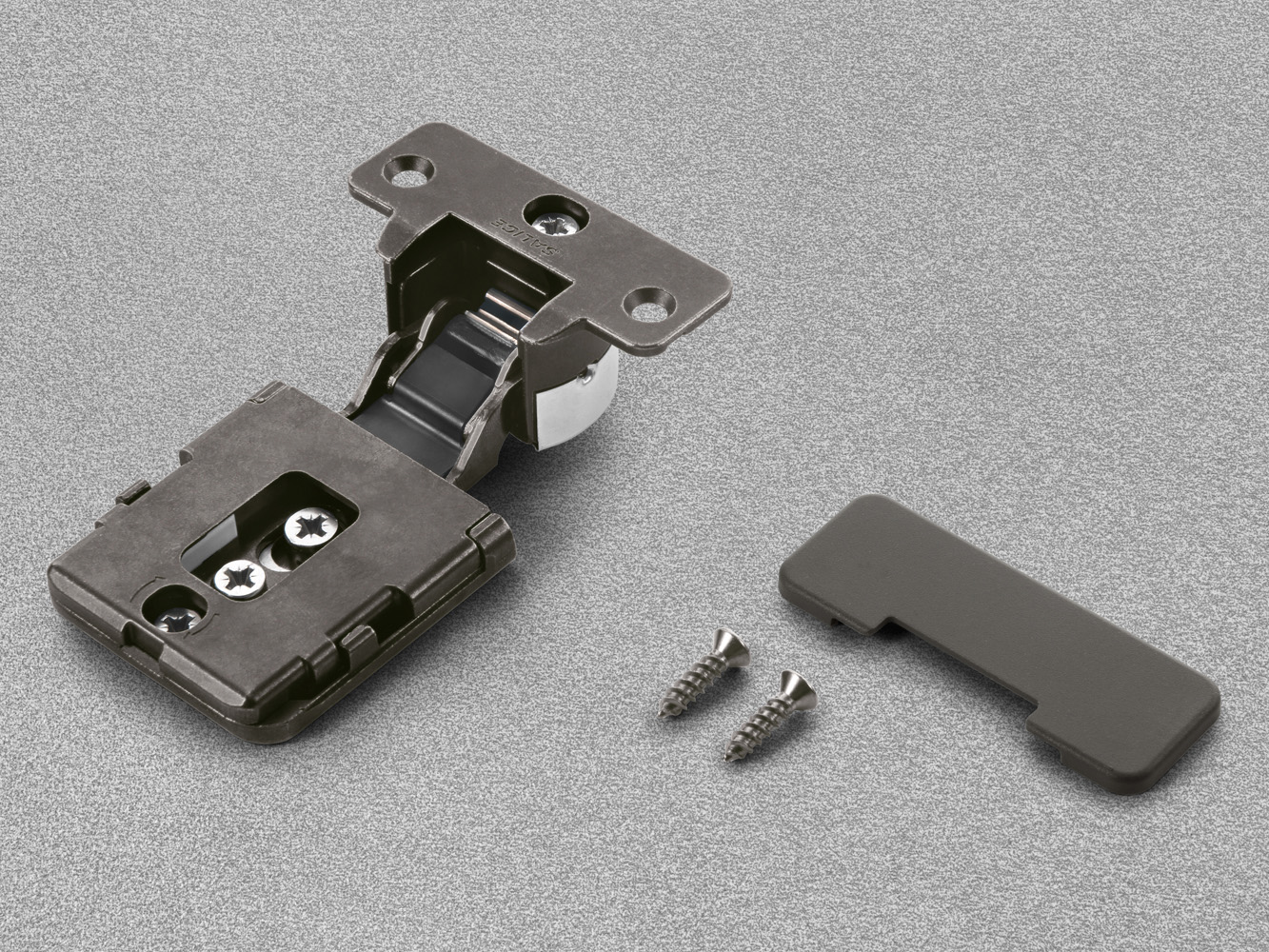

CQA3JE6XXV

Hinge for wood doors.

Concealed CQA3JE hinge with recessed insertion in the side panel.
Titanium finish.
Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B.

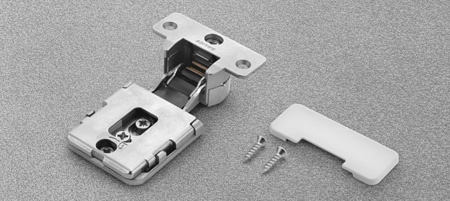

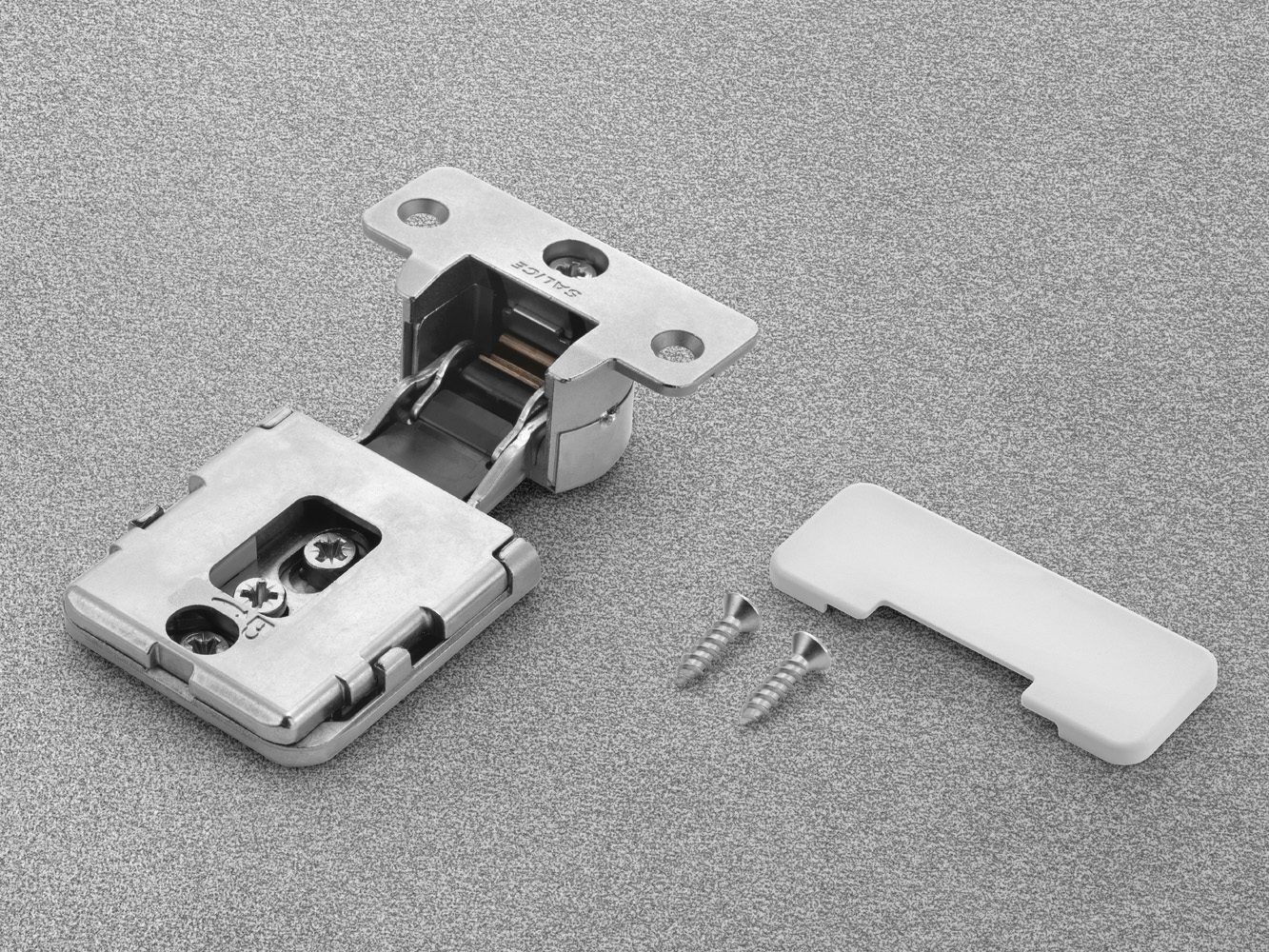

CQA3KE9XXV

Hinge for wood doors.

Concealed CQA3KE hinge with recessed insertion in the side panel.
Nickel-plated finish.
Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B.

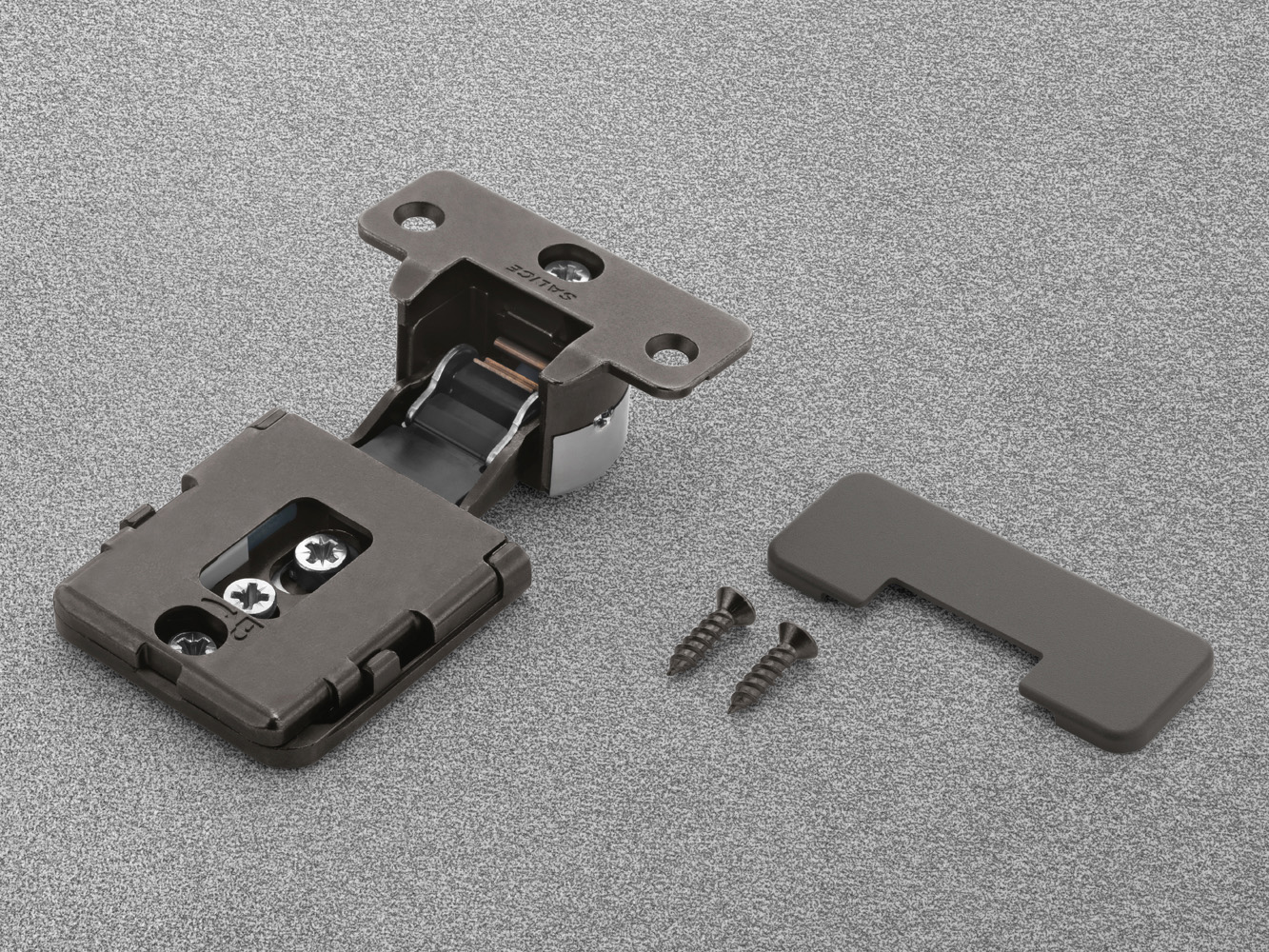

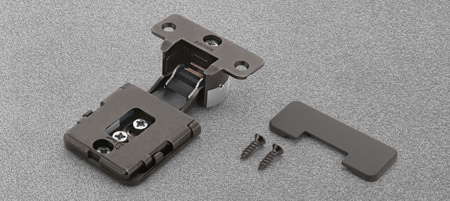

CQA3KE6XXV

Hinge for wood doors.

Concealed CQA3KE hinge with recessed insertion in the side panel.
Titanium finish.
Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B.

DQG3BX9XS

Holder DQG3B to be screw-fixed to the cabinet side.
Nickel-plated finish.

DQG3BX6XS

Holder DQG3B to be screw-fixed to the cabinet side.
Titanium finish.

Screw cover cap PQFXAA1SN

WHITE
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA3SN

BLACK
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA6SN

TITANIUM
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA9SN

SATIN CHROME
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAAWSN

SATIN GOLD
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA1

WHITE
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA3

BLACK
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA6

TITANIUM
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAA9

SATIN CHROME
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.

Screw cover cap PQFXAAW

SATIN GOLD
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.

Flange cover cap PQSAAA1

WHITE
Plastic flange cover cap.
For hinge for wood doors.

Flange cover cap PQSAAA3

BLACK
Plastic flange cover cap.
For hinge for wood doors.

Flange cover cap PQSAAA6

TITANIUM
Plastic flange cover cap.
For hinge for wood doors.

Flange cover cap PQSAAA9

SATIN CHROME
Plastic flange cover cap.
For hinge for wood doors.

Flange cover cap PQSAAAW

SATIN GOLD
Plastic flange cover cap.
For hinge for wood doors.
