AIR The truly concealed hinge-1

AIR

The truly concealed hinge

Inserted into the top and bottom of the cabinet and in the door. With integrated decelerating system

  • Inserted into the cabinet and the door
  • Small and compact size
  • Wooden and aluminium-framed doors
  • 105° opening
A masterpiece of compactness in design, imperceptible and unseen just like air: Air is the new fusion of technology and aesthetics.
The innovative and revolutionary hinge

Despites its compactness and small size, Air delivers full functionality to furniture manufacturers.

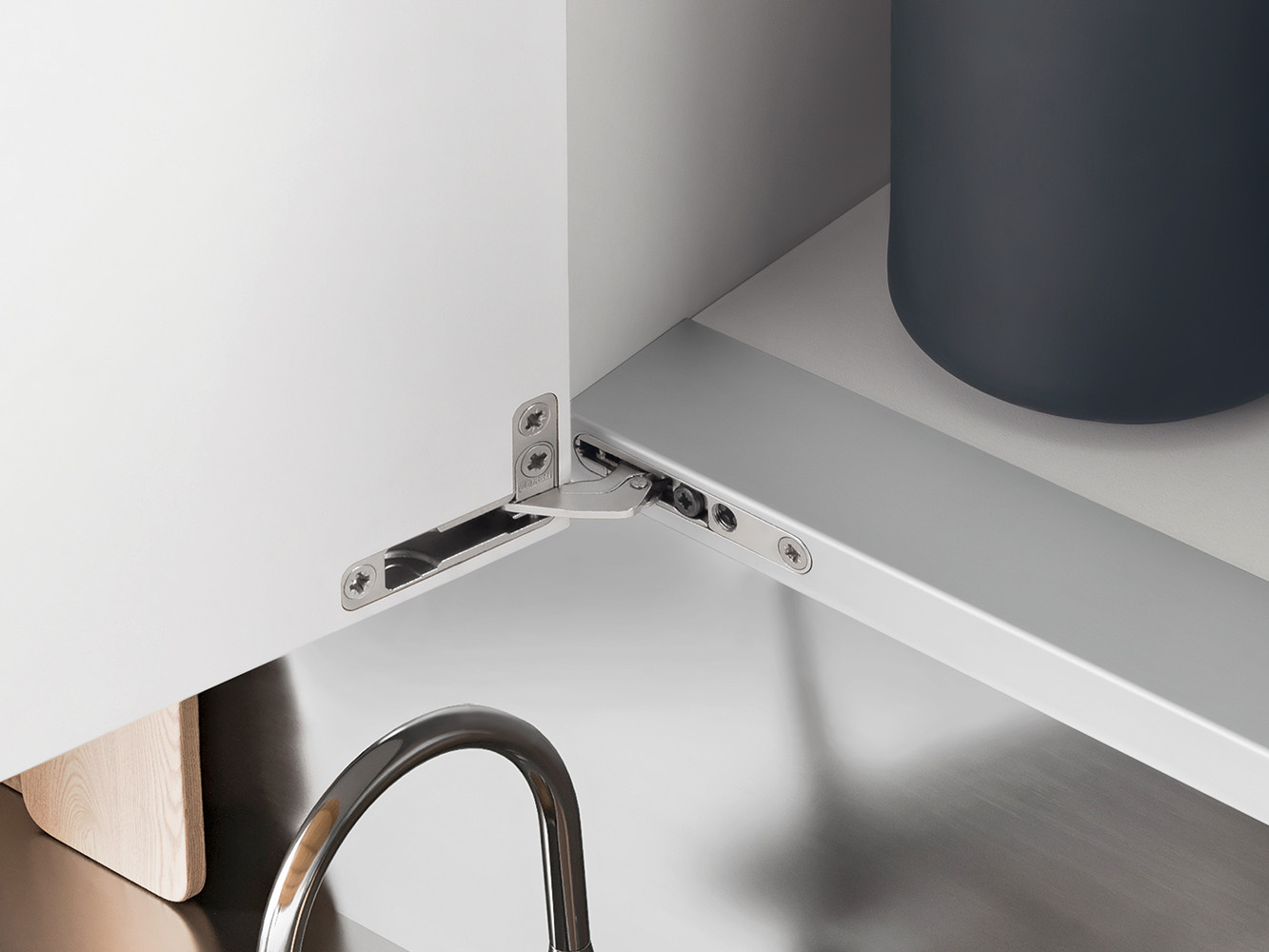

It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets.

AIR The truly concealed hinge-2
Features
  • For min. 18 mm (3/4") thick wood doors and for aluminum-framed doors.
  • Max. door weight 25 Kg (55 lbs).
  • Max. door dimensions: height 2700 mm (106"), width 610 mm (24").
  • 16.5 mm deep metal cup.
  • L = 2.5 mm
  • 105° opening.
  • Possible drilling distance on the door (K): from 3 mm (1/8") to 6 mm (1/4") for wood doors.
  • Fixed K = 4 mm for aluminum-framed doors (DEL6LP300_).
CEL6XE9XXV
Air hinge
Nickel-plated finish
CEL6XE6XXV
Air hinge
Titanium finish

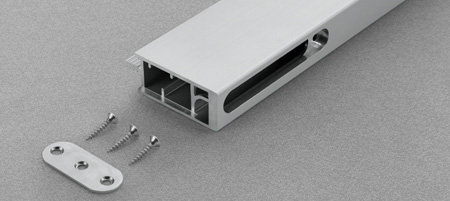

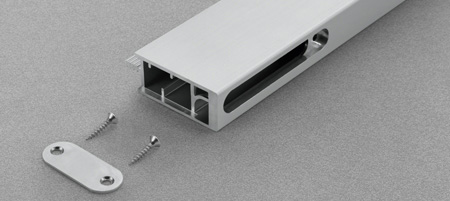

DEN6LK__7_

Support profile for hinges • thickness 16 mm

DEN6LK417P: 2 Pairs of bars in anodised aluminiu  - Length: 417 mm
DEN6LK417T: 2 Pairs of bars in titanium finish - Length: 417 mm
DEN6LK567P: 2 Pairs of bars in anodised aluminiu - Length: 567 mm
DEN6LK567T: 2 Pairs of bars in titanium finish - Length: 567 mm

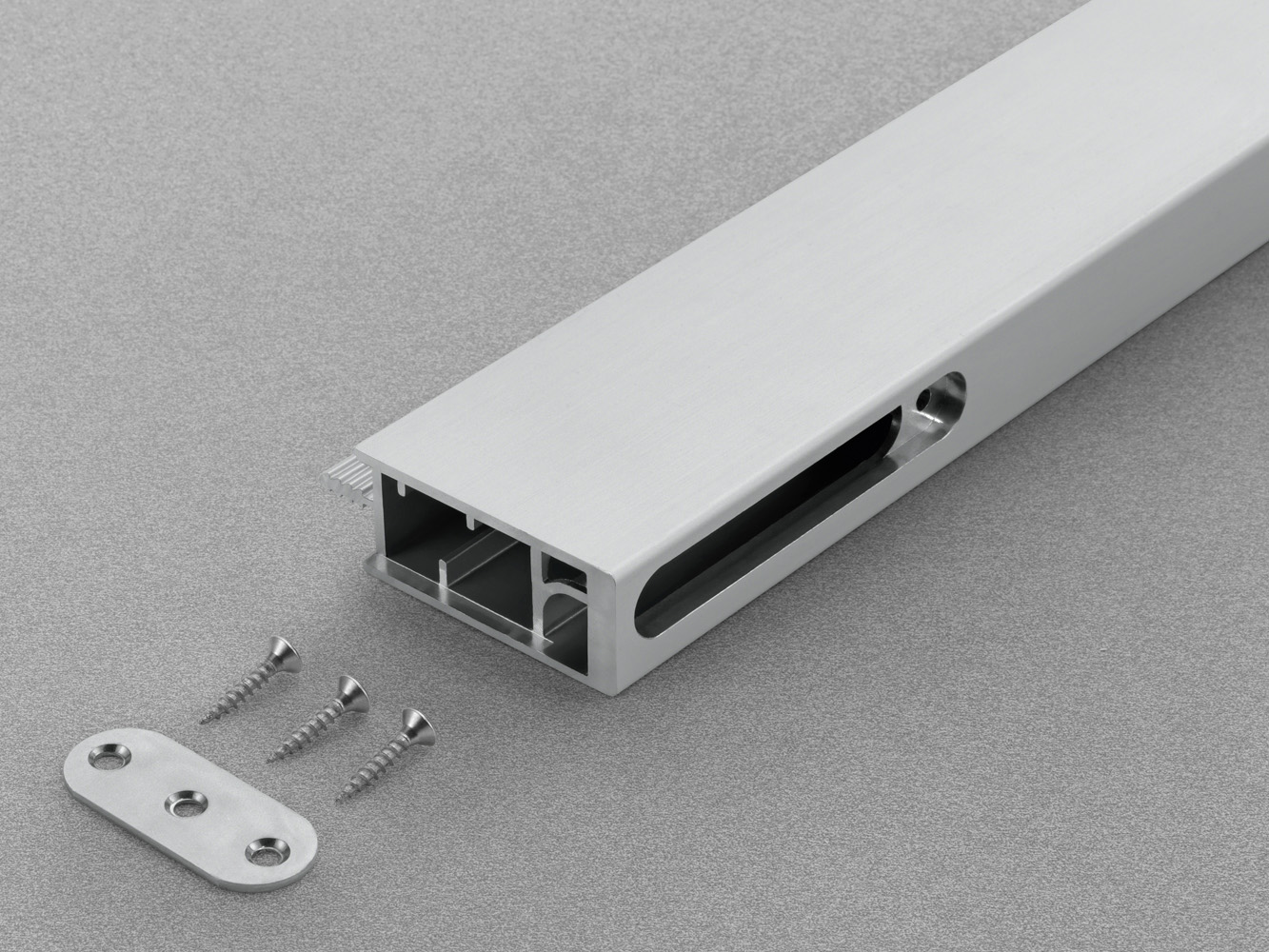

DEN8LK__3_

Support profile for hinges • thickness 18 mm

DEN8LK413P: 2 Pairs of bars in anodised aluminiu  - Length: 413 mm
DEN8LK413T: 2 Pairs of bars in titanium finish - Length: 413 mm
DEN8LK563P: 2 Pairs of bars in anodised aluminiu - Length: 563 mm
DEN8LK563T: 2 Pairs of bars in titanium finish - Length: 563 mm

DEL6BSFV02

Corner connectors for the frame assembly of the doors and the fixing of the hinge.

DEL6BSFV02: For doors with minimum overlay on the top of 16.5 mm
DEL5BSFV02: For doors with minimum overlay on the top of 15 mm

DEL6LP300_

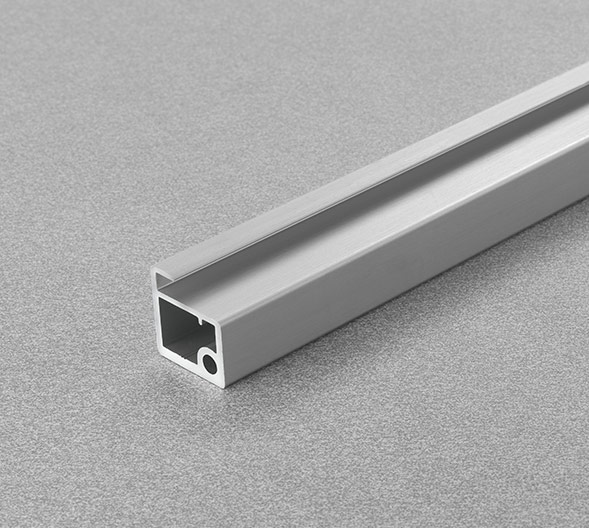

Aluminium door profile, width 26 mm, for glass insertion (4 mm).

DEL6LP300P: lengths in anodised aluminium (3 metres)
DEL6LP300T: lengths in Titanium finish (3 metres)

DEL9LP300_

Aluminium door profile, width 19 mm, for glass insertion (4 mm).

DEL9LP300P: lengths in anodised aluminium (3 metres, 9-10")
DEL9LP300T: lengths in Titanium finish (3 metres, 9-10")

D206AG3000
Gasket for glass
3 metre-gaskets (9-10")
SEL637X3
Angle reduction clip to reduce the opening to 92°
SELX86X6X_

Sleeves for cup, to be inserted into the door. They allow an easier insertion of the hinge as well as hiding any surface imperfections caused by the machining of the door.

SELX86X6XD: right
SELX86X6XS: left

SELX77X_

Sleeves for arm, to be inserted and attached into the top or bottom panel of the cabinet to provide additional support for Air when it is used in thinner materials as well as hiding any surface imperfections caused by the machining of the cabinet.

SELX77X9: nickel-plated finish
SELX77X6: titanium finish
