SILENTIA+

Series 700 - 110° opening - Positive angled application

Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup

  • For doors of medium weight and thickness (16-26 mm)
  • Wooden doors
  • 110° opening
  • Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
The state of the soft-close art

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

SILENTIA+ Series 700 - 110° opening - Positive angled application-2
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
  • Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
  • The decelerating effect is adjusted by using a simple switch.
  • For wooden doors with positive angled assembly.
  • Dimensions of the Ø 35 mm cup.
  • Hinges for min. 16 mm thick doors.
  • 13.5 mm deep cup.
  • 110° opening.
  • Possible drilling distance on the door (K): from 3 to 6 mm.
  • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

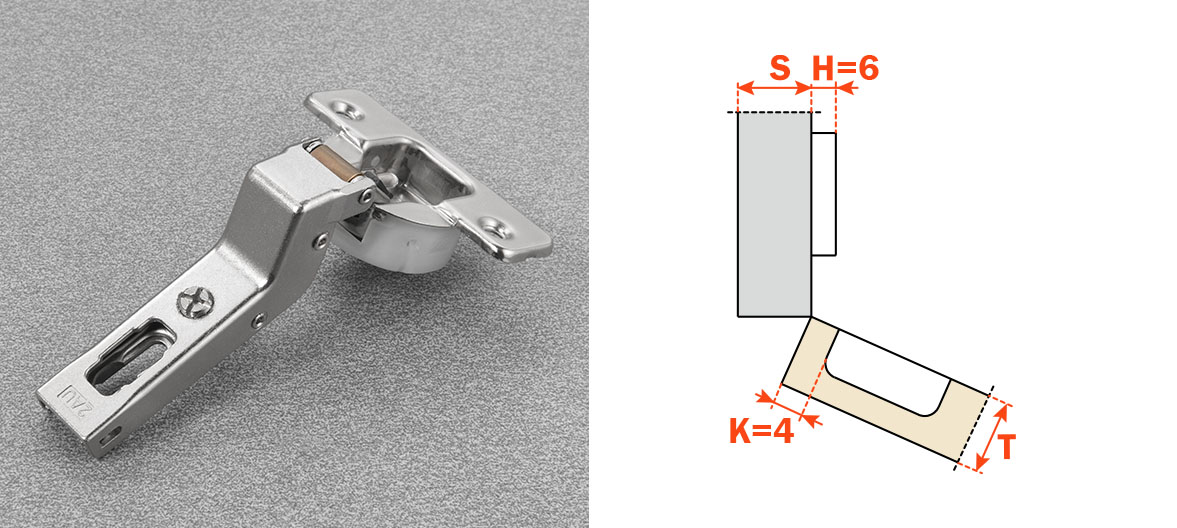

C7R6UE9
Arm 24°

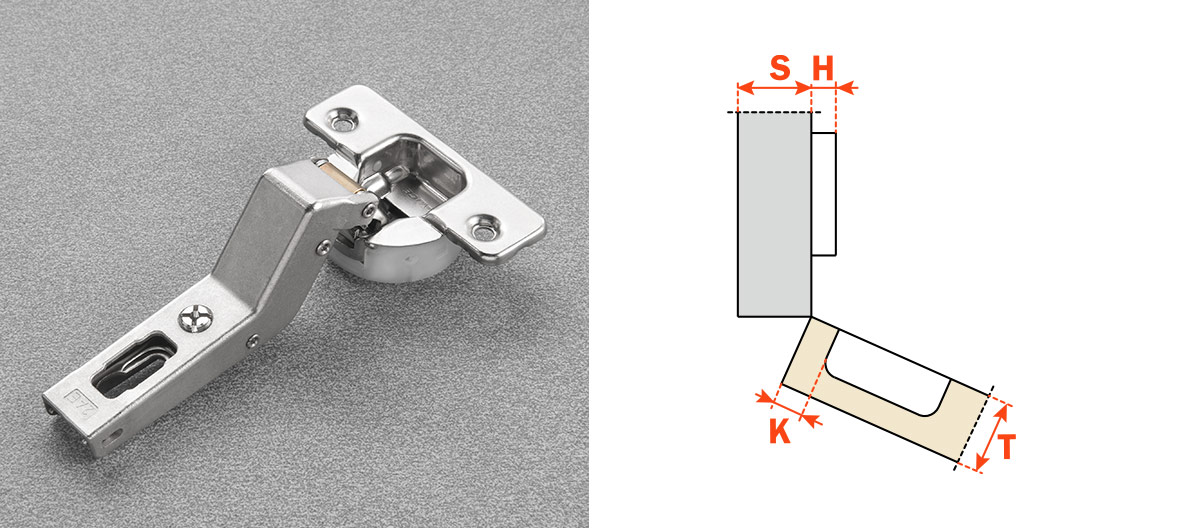

C7R6EE_

Arm 30°

C7R6EE9 = Dowel, Nickel finish
C7R6EE6 = Dowel, Titanium finish

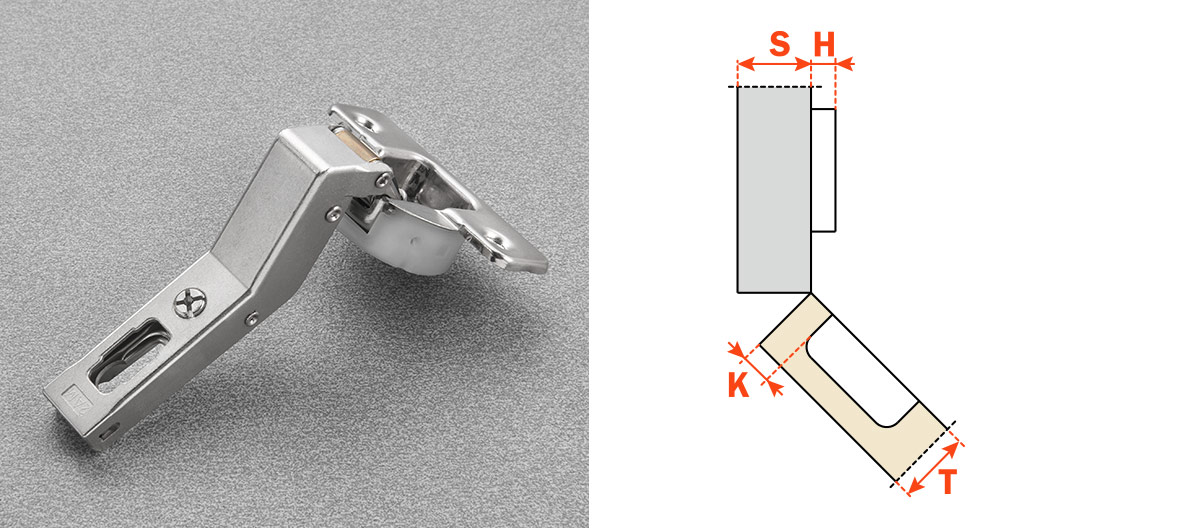

C7R6ME_

Arm 45°

C7R6ME9 = Dowel, Nickel finish
C7R6ME6 = Dowel, Titanium finish

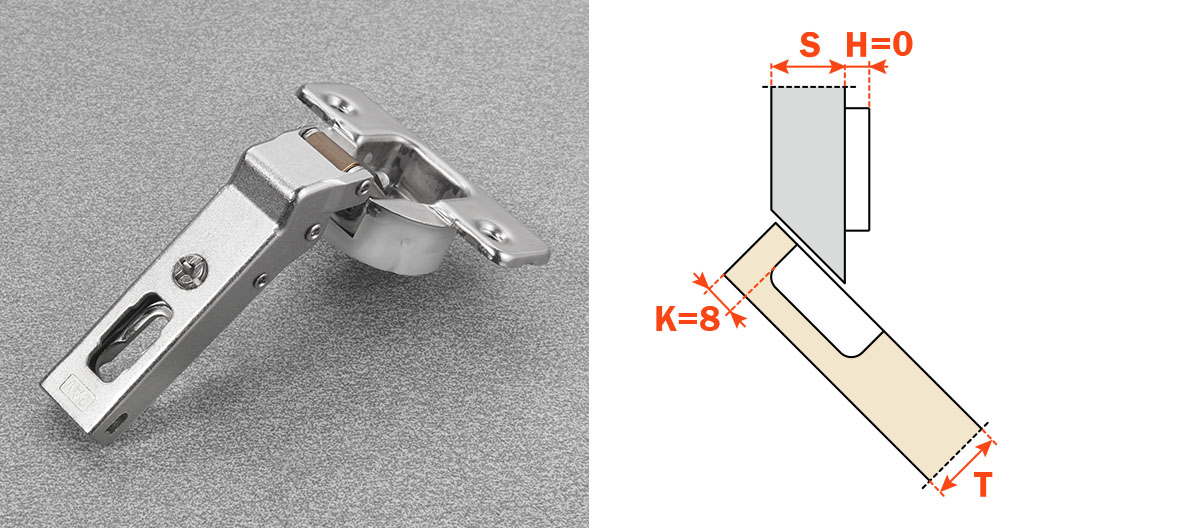

C7R6VE9
Arm 45°
Screw cover cap S2BX83H___

Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2BX83H9__ = Nickel
S2BX83H6__ = Titanium

Screw cover cap S2MX83H___

Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2MX83H9__ = Nickel
S2MX83H6__ = Titanium

Flange cover cap S2XX85H_
Steel flange cover cap, it can be personalised on request.
For all Series 100, 200, 300, 700, 800 and 900

S2XX85H9 = Nickel
S2XX85H6 = Titanium

Flange cover cap S2CX85H_
Steel flange cover cap with embossed logo.
For all Series 100, 200, 300, 700, 800 and 900

S2CX85H9 = Nickel
S2CX85H6 = Titanium

Spacer S2XX86
Spacer to reduce the drilling depth for 94°, 105° and 110° hinges.
S2XX86BT = 0.6 mm
S2XX86AT = 1.2 mm
S2XX86KT = 1.8 mm
Gauge D_A_AC_SN
Gauge to check the diameter and the depth of the drilling.
D1A6AC3SN = 12 mm
D2ABACGSN = 15.5 mm
D7A6ACYSN = 13.5 mm
Stop device S1E637XY
It limits opening at about 86°
Pozi screwdriver D2A7XCXCP

Pozi screwdriver
