A perfect synthesis of compactness and adaptability

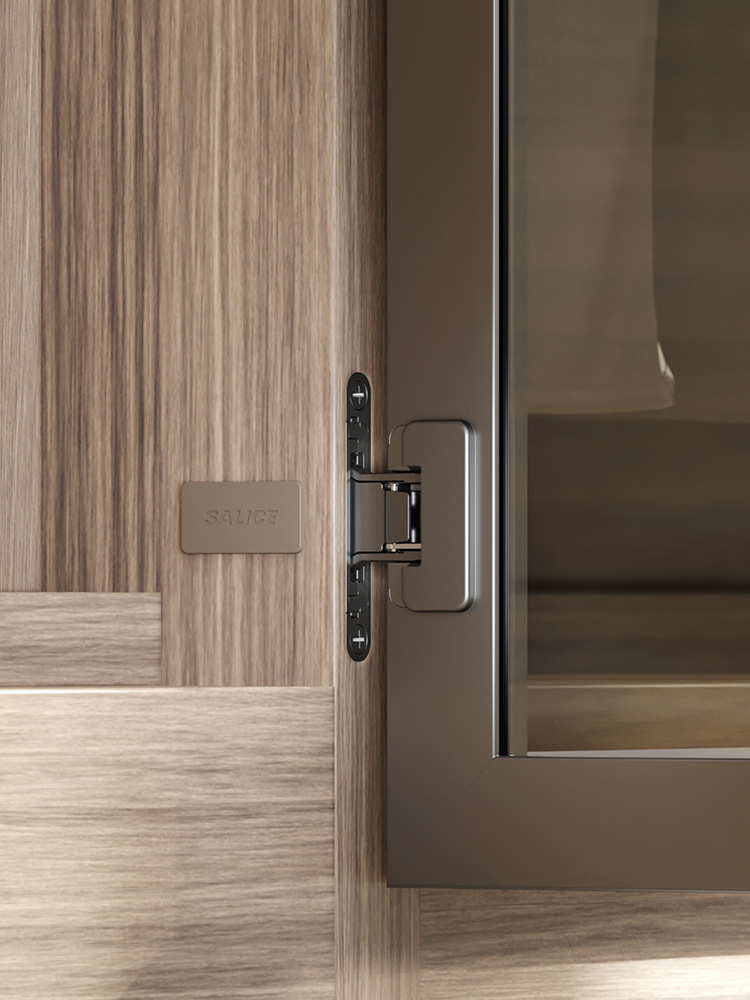

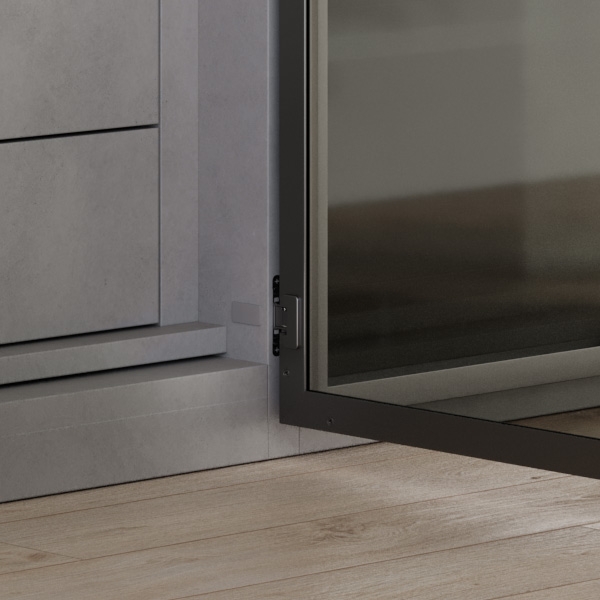

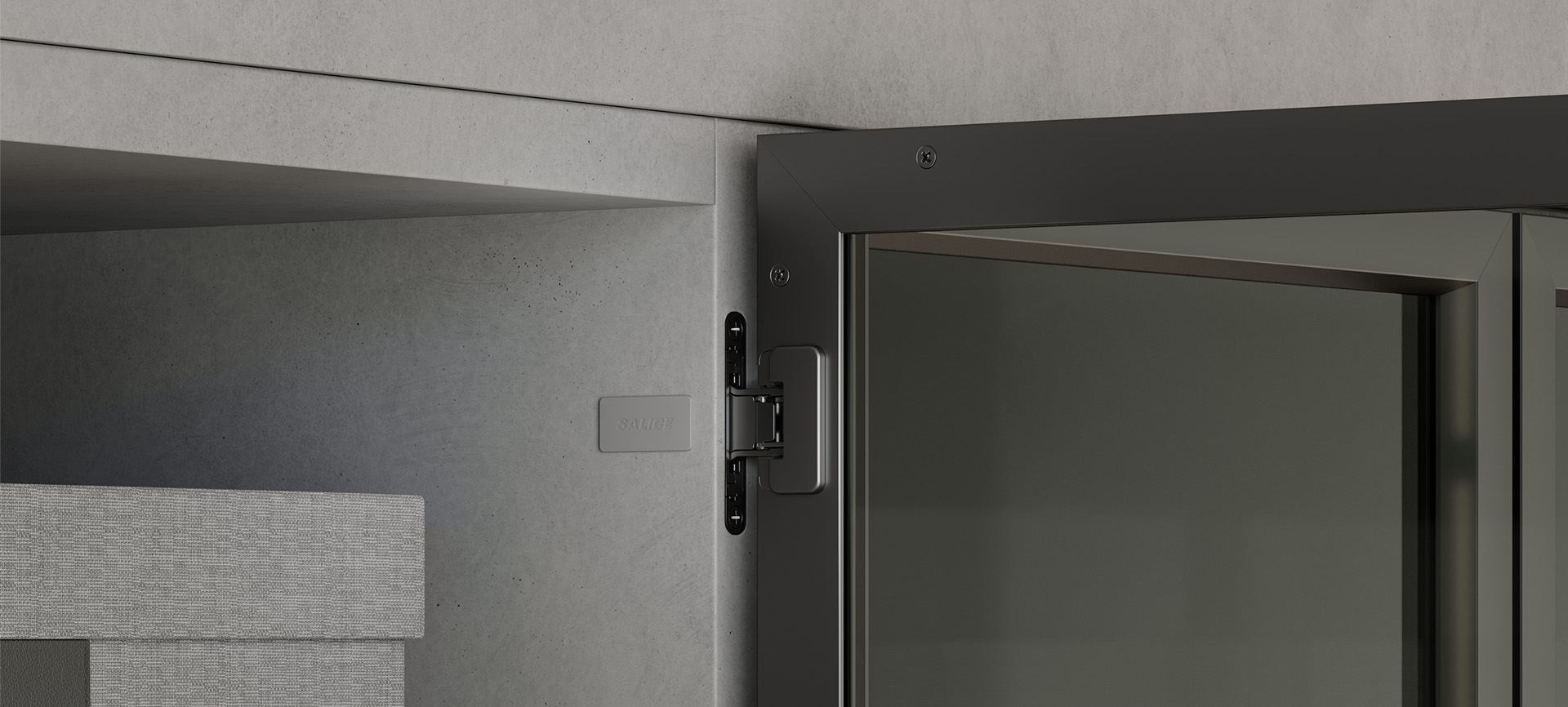

Conecta is the totally innovative Salice hinge that mounts recessed completely in the side panel.

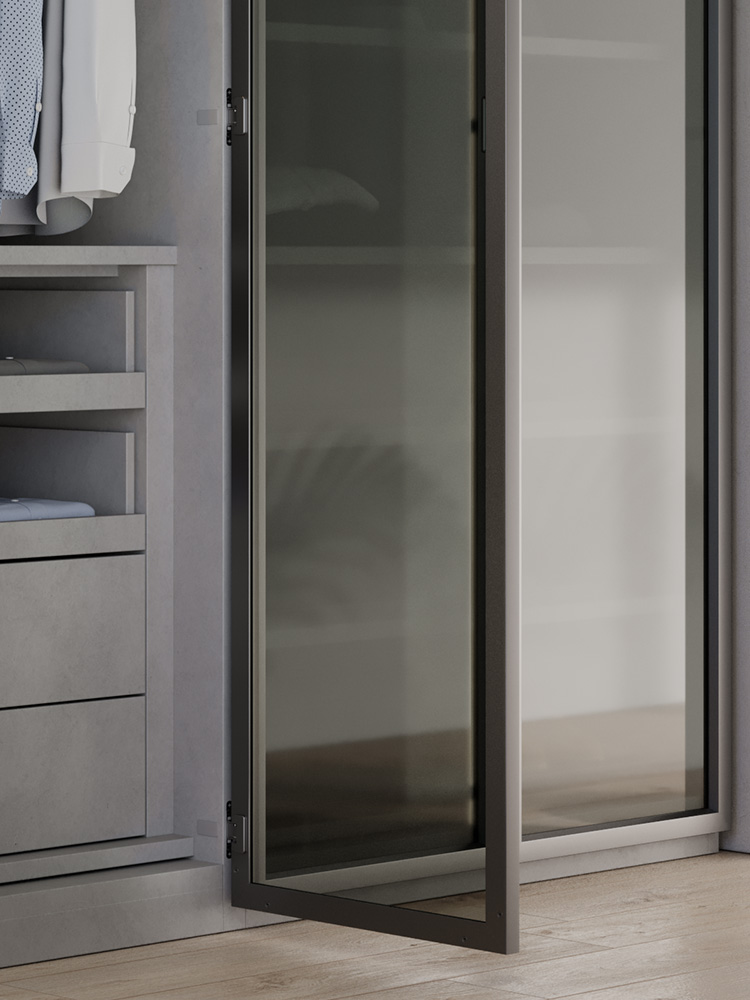

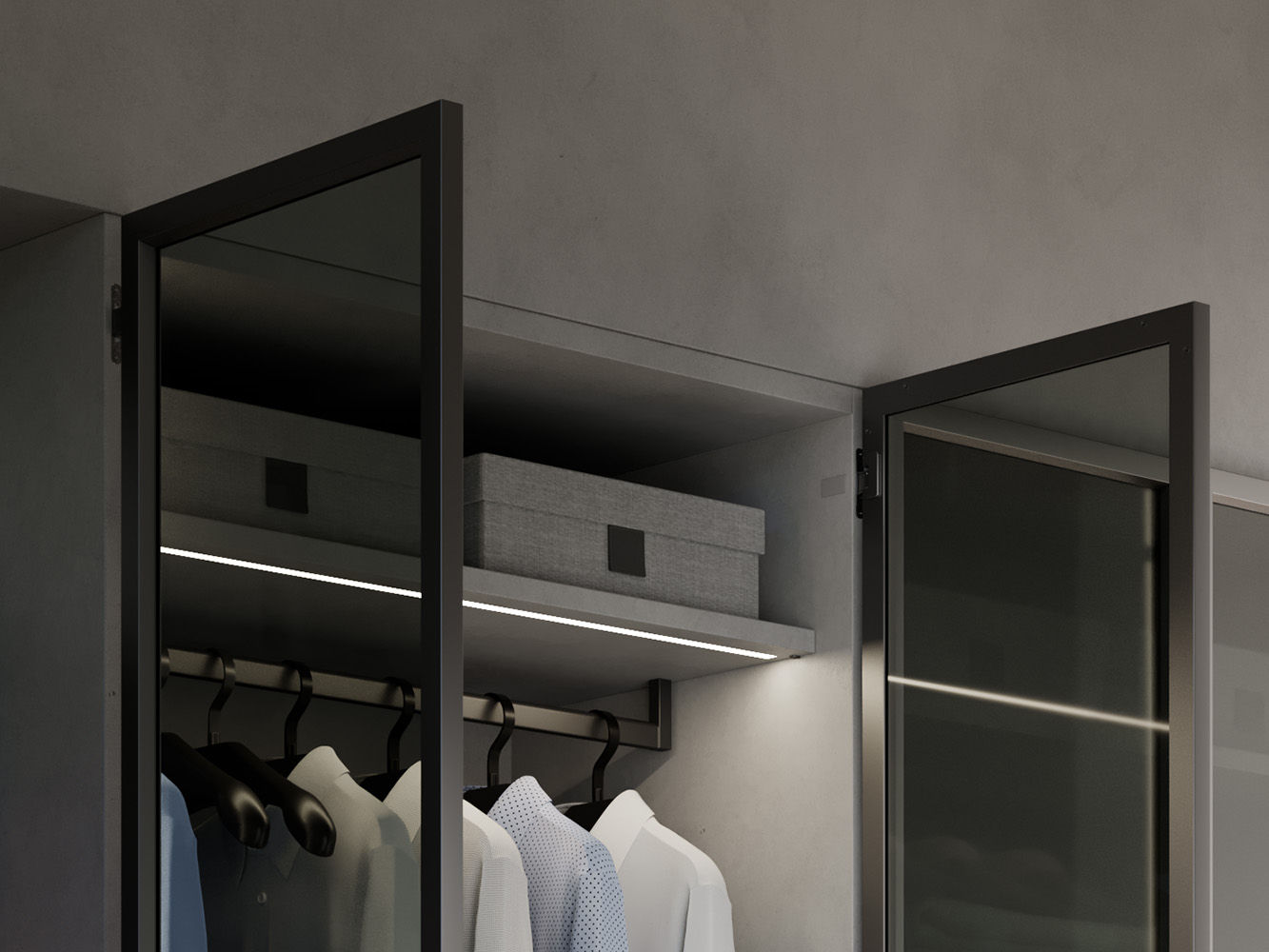

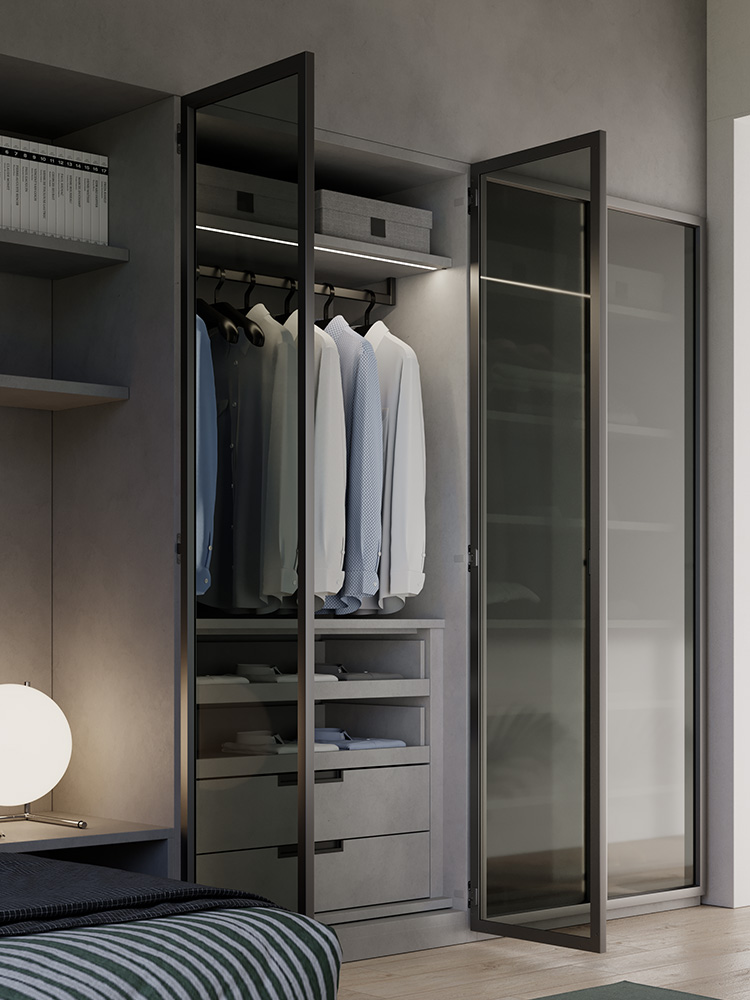

Its technical features allow any wood or aluminum doors, even tall and heavy ones, to open and close smoothly.
Thanks to its aesthetics, elegance and functionality, Conecta is suitable for different applications.

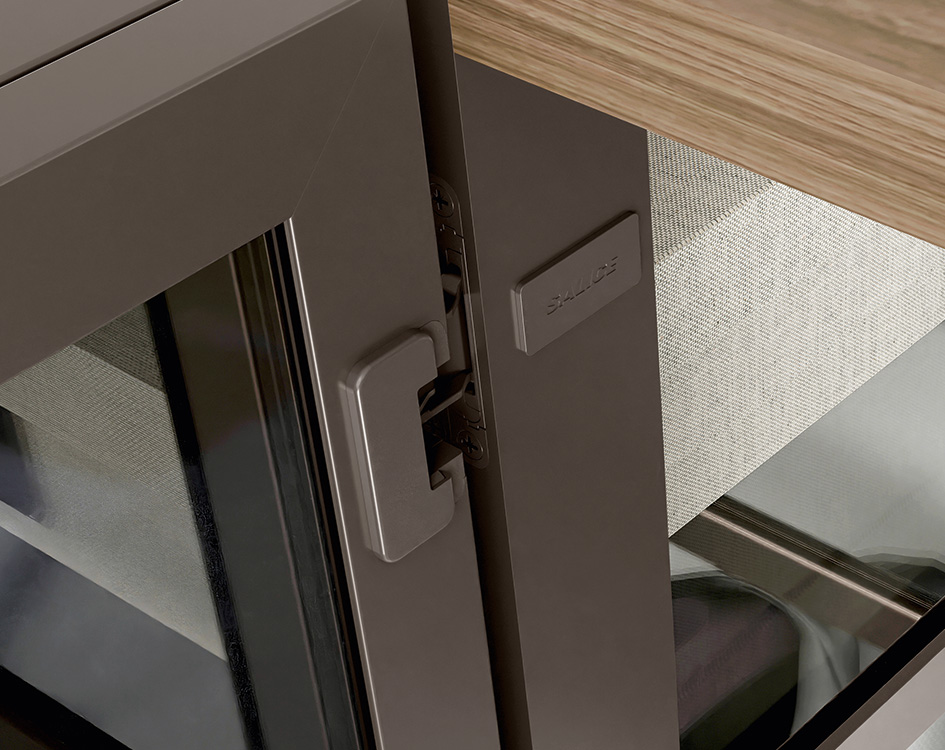

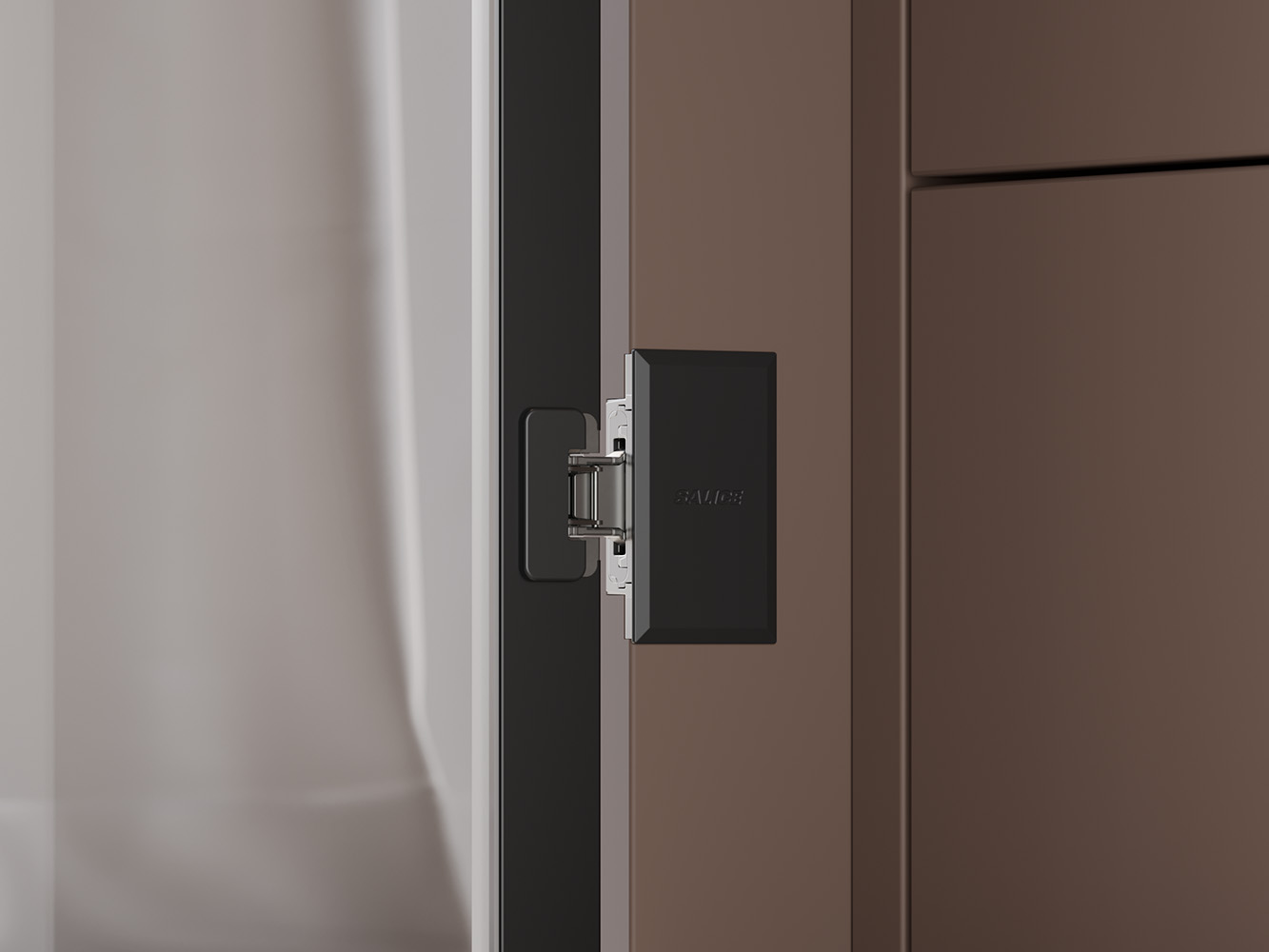

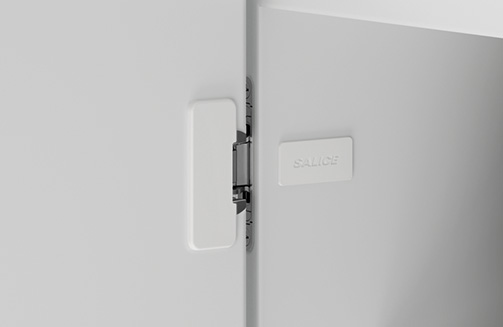

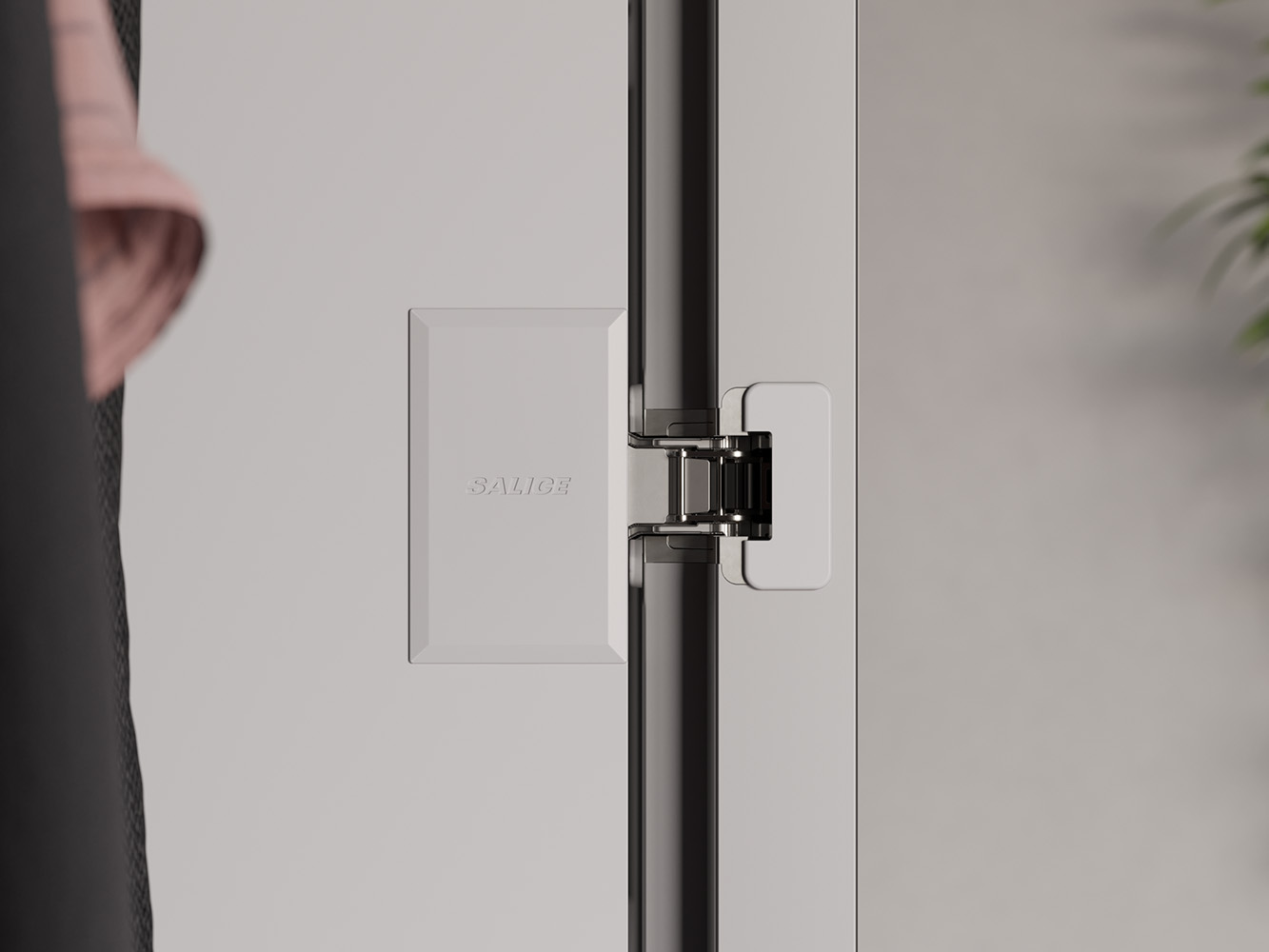

It is available in nickel-plated or titanium finishes and can come with customizable cover caps for both the cabinet door and side.
- Rapid fastening of the door to the cabinet side
- For aluminium-framed doors
- 24 mm deep metal cup
- 94° opening
- 6-way adjustable
- Sideways adjustment -2 +0,5 mm
- Height adjustment -2,5 +2,5 mm
- Depth adjustment 0 +3 mm
- Concealed CQZ3JE hinge with recessed insertion in the side panel
- Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B - Concealed CQZ3KE hinge with recessed insertion in the side panel
- Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B

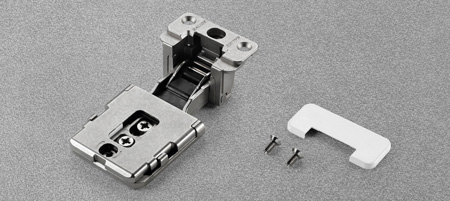

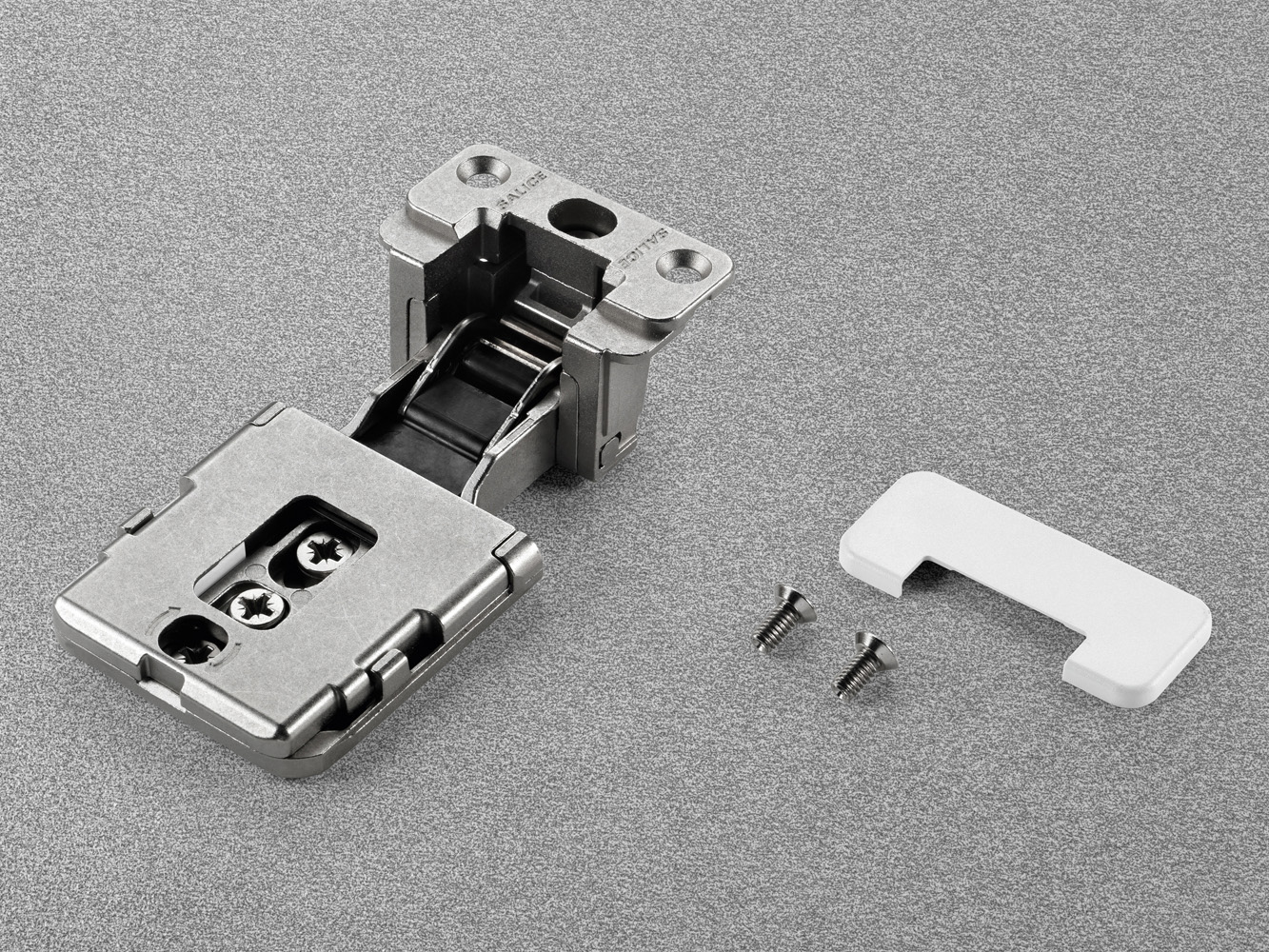

CQZ3JE9XXV
Hinge for aluminum-framed doors.
Concealed CQZ3JE hinge with recessed insertion in the side panel.
Nickel-plated finish.
Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B.
CQZ3JE6XXV
Hinge for aluminum-framed doors.
Concealed CQZ3JE hinge with recessed insertion in the side panel.
Titanium finish.
Door overlay 12,5 mm (1/2'') using holder-sleeve DQG3B.
CQZ3KE9XXV
Hinge for aluminum-framed doors.
Concealed CQZ3KE hinge with recessed insertion in the side panel.
Nickel-plated finish.
Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B.

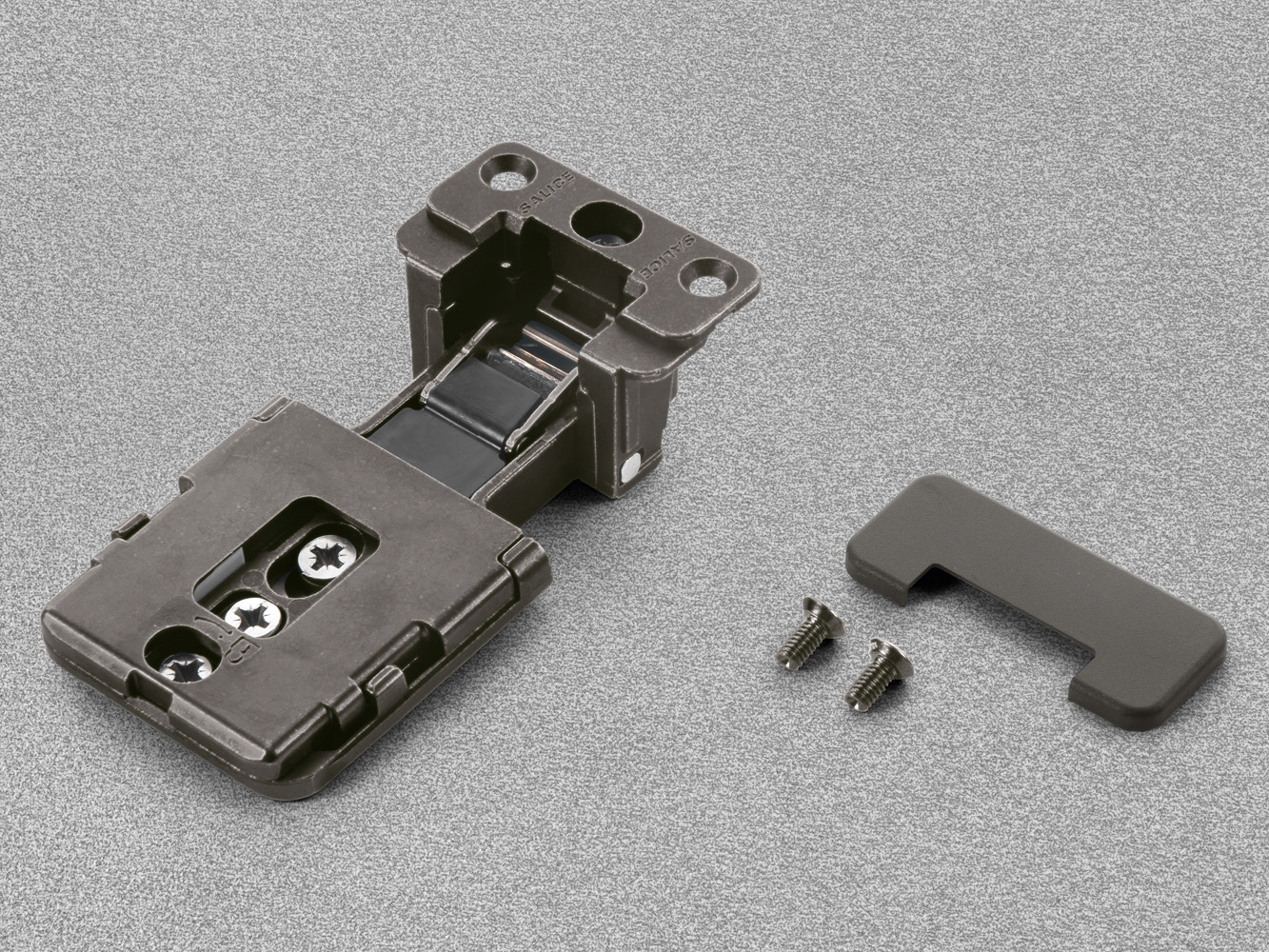

CQZ3KE6XXV
Hinge for aluminum-framed doors.
Concealed CQZ3KE hinge with recessed insertion in the side panel.
Titanium finish.
Door overlay 16,5 mm (5/8'') using holder-sleeve DQG3B.
DQG3BX9XS
Holder DQG3B to be screw-fixed to the cabinet side.
Nickel-plated finish.
Fixing screws and screw cover cap included.
DQG3BX6XS
Holder DQG3B to be screw-fixed to the cabinet side.
Titanium finish.
Fixing screws and screw cover cap included.
DQG5BX9XS
Holder DQG5B to be screw-fixed to the cabinet side.
Nickel-plated finish.
Fixing screws and screw cover cap included.
DQG5BX6XS
Holder DQG5B to be screw-fixed to the cabinet side.
Titanium finish.
Fixing screws and screw cover cap included.
Flange cover cap PQSZAA1
WHITE
Plastic flange cover cap.
For hinge for aluminum-framed doors.
Flange cover cap PQSZAA3
BLACK
Plastic flange cover cap.
For hinge for aluminum-framed doors.
Flange cover cap PQSZAA6
TITANIUM
Plastic flange cover cap.
For hinge for aluminum-framed doors.
Flange cover cap PQSZAA9
SATIN CHROME
Plastic flange cover cap.
For hinge for aluminum-framed doors.
Flange cover cap PQSZAAW
SATIN GOLD
Plastic flange cover cap.
For hinge for aluminum-framed doors.
DQZ3HS5V04
Steel corner connectors for the aluminum door profile assembly.
DEL6BSFV02
Die-cast corner connectors for the aluminum door profile assembly.
DQZ6AG3000T
Gasket for glass.
3 metre-gaskets (9-10").
DQZ6LP300_
Aluminum door profile for glass insertion (4 mm).
DQZ6LP300P: profiles in anodized aluminum (3 metres, 9-10")
DQZ6LP300T: profiles in titanium finish (3 metres, 9-10")
DQZ6LF300_
Aluminum door profile for glass insertion (4 mm).
DQZ6LF300P: profiles in anodized aluminum with handle (3 metres, 9-10")
DQZ6LF300T: profiles in titanium finish with handle (3 metres, 9-10")
Screw cover cap PQFXAA1SN
WHITE
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA3SN
BLACK
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA6SN
TITANIUM
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA9SN
SATIN CHROME
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAAWSN
SATIN GOLD
Symmetrical plastic screw cover caps with Salice printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA1
WHITE
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA3
BLACK
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA6
TITANIUM
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAA9
SATIN CHROME
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQFXAAW
SATIN GOLD
Symmetrical plastic screw cover caps.
It can be personalised on request with silk-screen printed logo.
For holder-sleeve DQG3B.
Screw cover cap PQF5AA1SN
WHITE
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA3SN
BLACK
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA6SN
TITANIUM
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA9SN
SATIN CHROME
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AAWSN
SATIN GOLD
Symmetrical plastic screw cover caps with Salice printed logo.
For holder DQG5B.
Screw cover cap PQF5AA1
WHITE
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA3
BLACK
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA6
TITANIUM
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AA9
SATIN CHROME
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
Screw cover cap PQF5AAW
SATIN GOLD
Symmetrical plastic screw cover cap.
It can be personalised on request with silk-screen printed logo.
For holder DQG5B.
