SILENTIA+ Series 200 - 155° opening - Standard application-1

SILENTIA+

Series 200 - 155° opening - Standard application

Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup

  • For doors of medium weight and thickness (16-26 mm)
  • Wooden doors
  • 155° opening
  • Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
The state of the soft-close art

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

SILENTIA+ Series 200 - 155° opening - Standard application-2
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
  • Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
  • Hinges for thick doors 16 mm min.
  • Hinge with greater opening angle and reduced operating profile.
  • Dimensions of the Ø 35 mm cup.
  • 13,5 mm deep cup.
  • 155° opening.
  • Possible drilling distance on the door (K): from 3 to 9 mm.
  • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

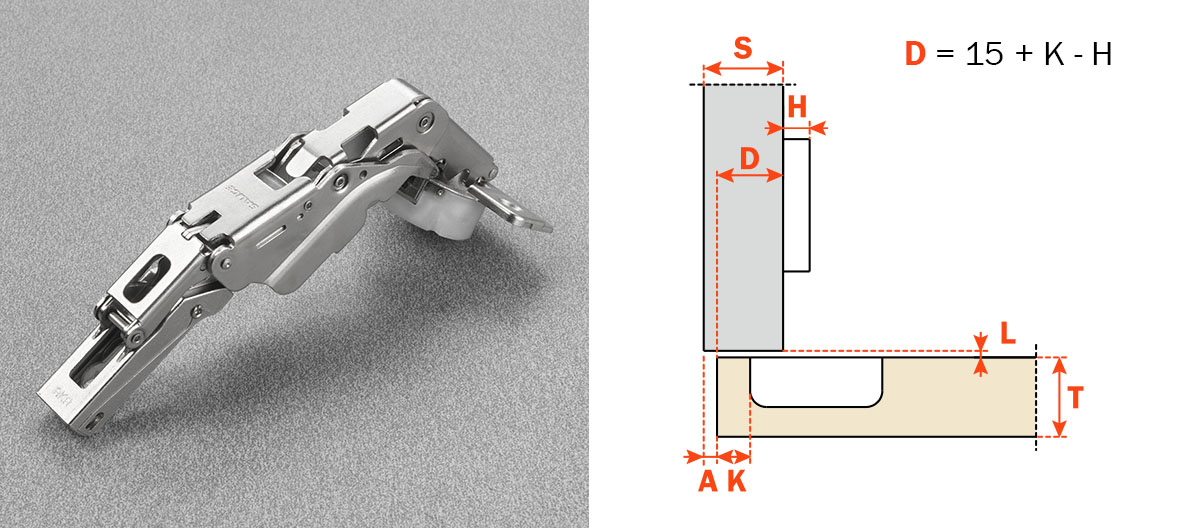

C2_KAE_

Full overlay / A crank - 0 mm

C2PKAE9 = Wood screw, Nickel finish
C2PKAE6 = Wood screw, Titanium finish
C2RKAE9 = Dowel, Nickel finish
C2RKAE6 = Dowel, Titanium finish
C27KAE9 = Rapido, Nickel finish
C2JKAE9 = Logica, Nickel finish
C2JKAE6 = Logica, Titanium finish

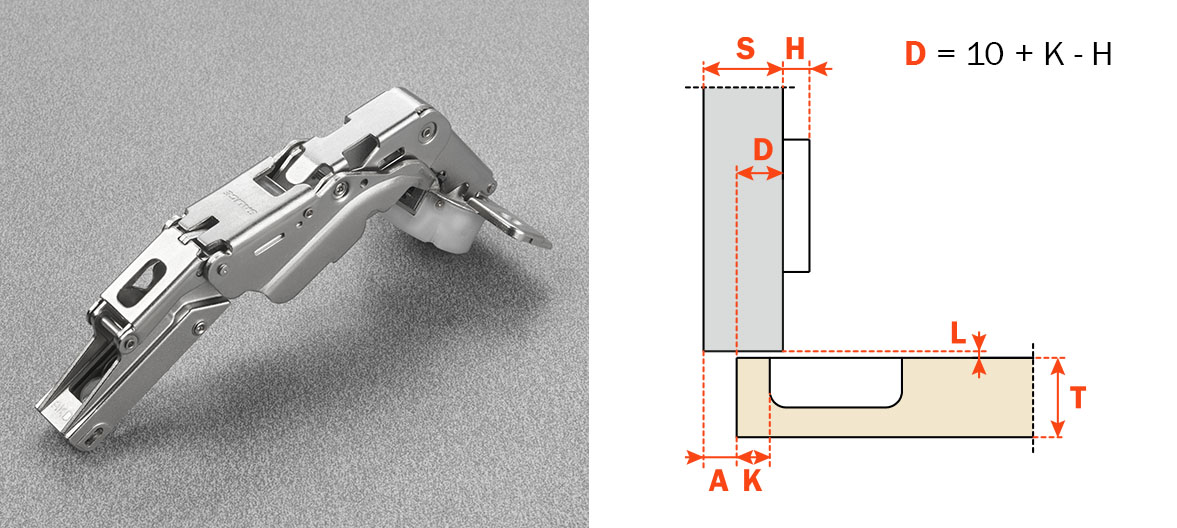

C2_KDE9

1/2" overlay / D crank - 5 mm

C2PKDE9 = Wood screw, Nickel finish
C2RKDE9 = Dowel, Nickel finish

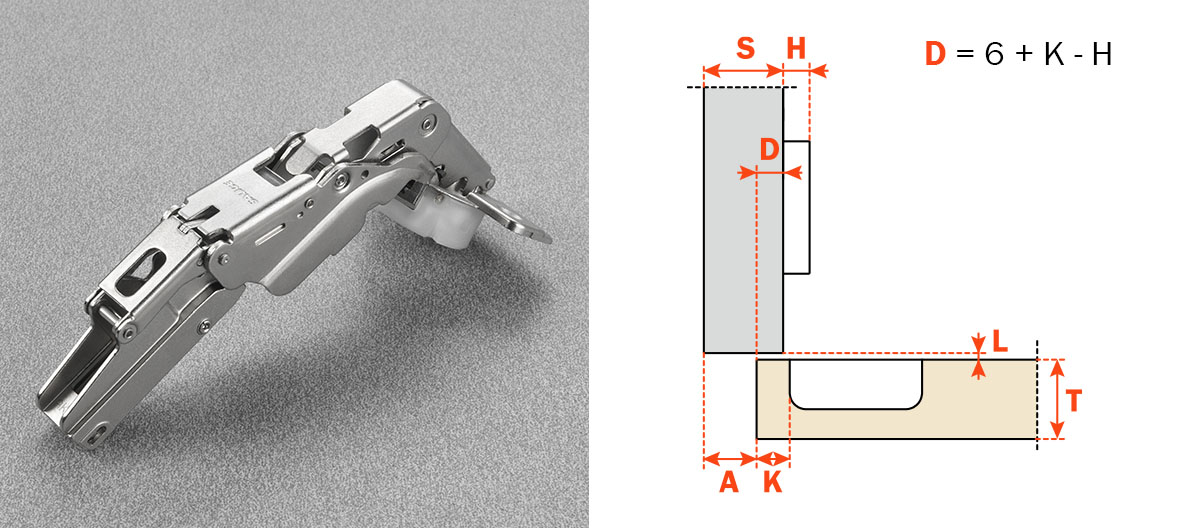

C2_KGE_

Half overlay / G crank - 9 mm

C2PKGE9 = Wood screw, Nickel finish
C2PKGE6 = Wood screw, Titanium finish
C2RKGE9 = Dowel, Nickel finish
C2RKGE6 = Dowel, Titanium finish
C2JKGE9 = Logica, Nickel finish
C2JKGE6 = Logica, Titanium finish

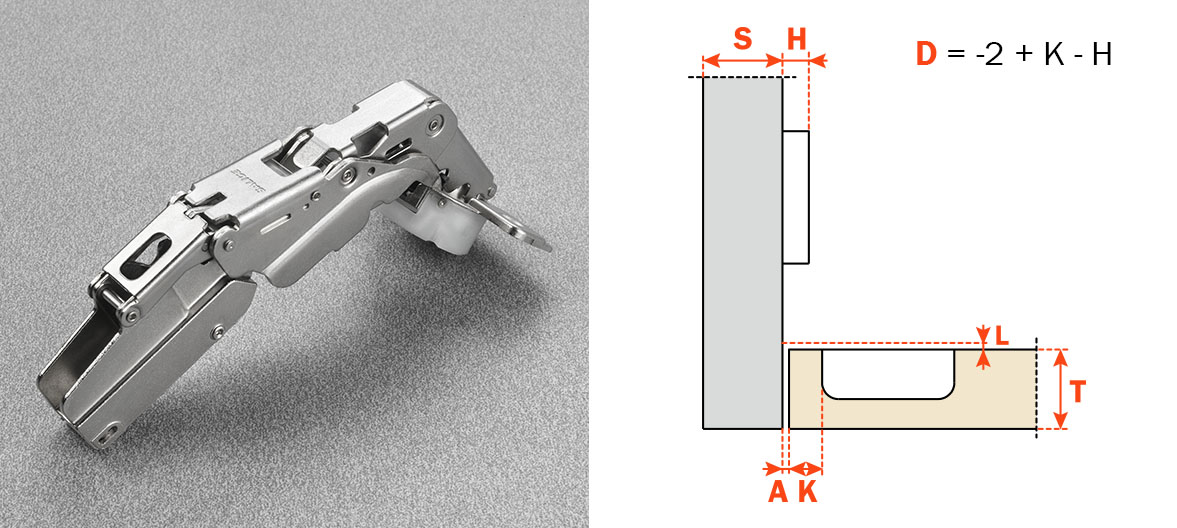

C2_KPE_

Inset / P crank - 17 mm

C2PKPE9 = Wood screw, Nickel finish
C2PKPE6 = Wood screw, Titanium finish
C2RKPE9 = Dowel, Nickel finish
C2RKPE6 = Dowel, Titanium finish
C2JKPE9 = Logica, Nickel finish
C2JKPE6 = Logica, Titanium finish

Flange cover cap S2KX85A_

Plastic flange cover cap

Available colours:
S2KX85A6 = Titanium
S2KX85A9 = Nichel-plated

Stop device S2AF37X3
It limits opening at about 140°
Stop device S2BF37XY
It limits opening at about 135°
Stop device S2AM37XG
It limits opening at about 125°
Stop device S2BM37XG
It limits opening at about 95°
Gauge D_A_AC_SN
Gauge to check the diameter and the depth of the drilling.
D1A6AC3SN = 12 mm
D2ABACGSN = 15.5 mm
D7A6ACYSN = 13.5 mm
Pozi screwdriver D2A7XCXCP

Pozi screwdriver
