AIR PUSH The truly concealed hinge-1

AIR PUSH

The truly concealed hinge

Hinges equipped with a special spring for the opening of handle-less doors

  • Integrated Push system
  • Inserted into the cabinet and the door
  • Small and compact size
  • Wooden and aluminium-framed doors
  • 105° opening
The innovative and revolutionary hinge

Despites its compactness and small size, Air delivers full functionality to furniture manufacturers.

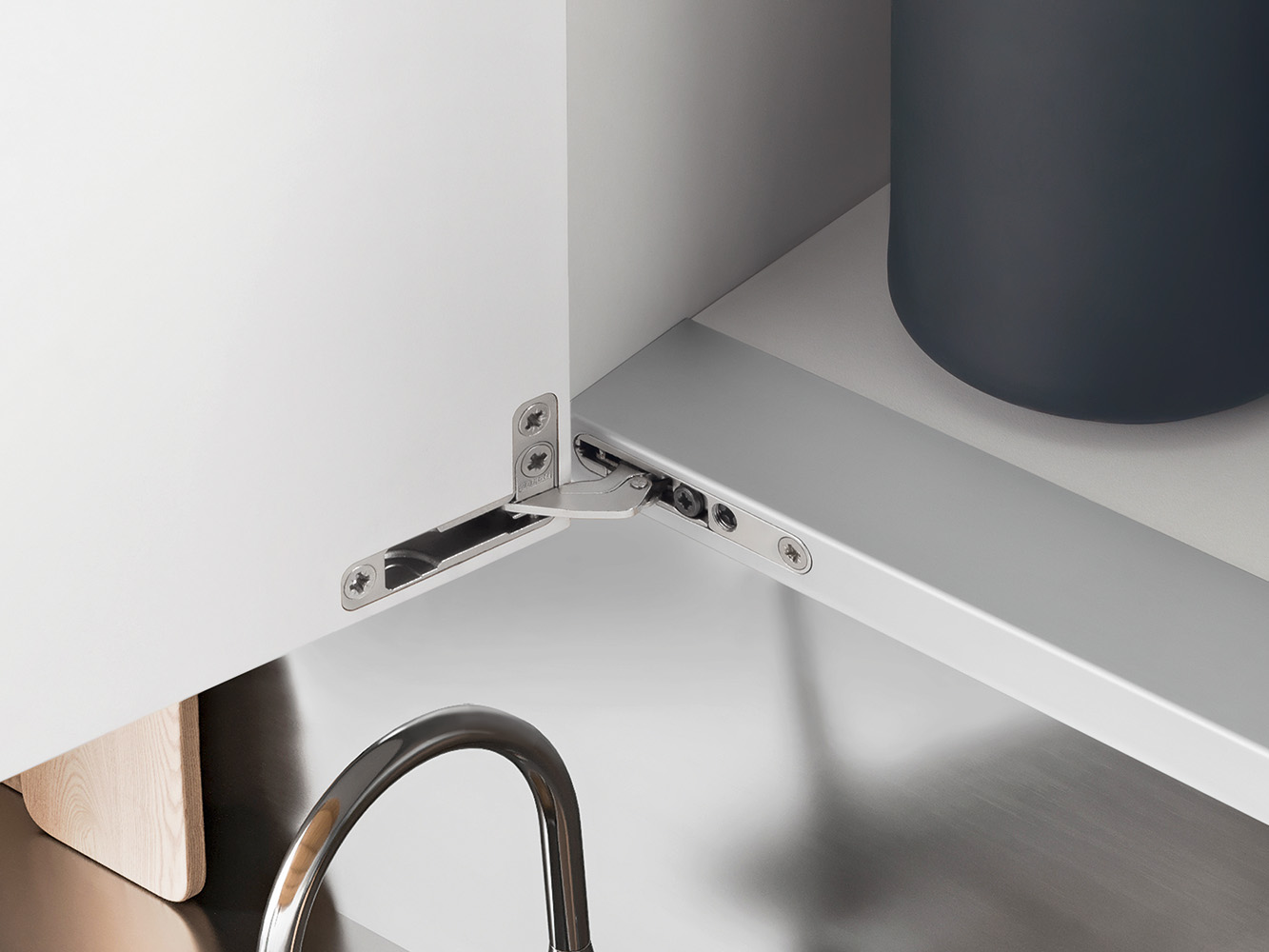

It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets.

The Push-System is a self-opening system for the doors of all types of handleless furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.

AIR PUSH The truly concealed hinge-2
A masterpiece of compactness in design, imperceptible and unseen just like air: Air is the new fusion of technology and aesthetics.
  • For min. 18 mm (3/4") thick wood doors and for aluminum-framed doors.
  • Max. door weight 25 Kg (55 lbs).
  • Max. door dimensions: height 2700 mm (106"), width 610 mm (24").
  • 16.5 mm deep metal cup.
  • L = 2.5 mm
  • 105° opening.
  • Possible drilling distance on the door (K): from 3 mm (1/8") to 6 mm (1/4") for wood doors.
  • Fixed K = 4 mm for aluminum-framed doors (DEL6LP300_).
CELPX99XXV

Air hinge
Nickel-plated finish

CELPX66XXV

Air hinge
Titanium finish

DEL6BSFV02
Corner connectors for the frame assembly of the doors and the fixing of the hinge.
DEL6LP300_

Aluminium door profile, width 26 mm, for glass insertion (4 mm).

DEL6LP300P: lengths in anodised aluminium (3 metres, 9-10")
DEL6LP300T: lengths in Titanium finish (3 metres, 9-10")

DEL9LP300_

Aluminium door profile, width 19 mm, for glass insertion (4 mm).

DEL9LP300P: lengths in anodised aluminium (3 metres, 9-10")
DEL9LP300T: lengths in Titanium finish (3 metres, 9-10")

D206AG3000
Gasket for glass
3 metre-gaskets (9-10")
DPMSNB
Release device. ø 10 mm, 40 mm length.
Beige
DPASNB
Release device to be used to increase the magnetic holding strength. It must always be used together with the DPM. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door.
ø 10 mm, 40 mm length.
Beige
DP39XXG
Adjustable magnetic catch. Inserted into the door.
ø16.6 mm
DP28SN9
Retaining catch to be inserted with pin.
ø 11.5 mm
DP38XX91
Retaining catch with adhesive.
20x14 mm surface.
For use with aluminum doors or smooth surfaces.
SEL637X3
Angle reduction clip to reduce the opening to 92°
SELX86X6X_

Sleeves for cup, to be inserted into the door. They allow an easier insertion of the hinge as well as hiding any surface imperfections caused by the machining of the door.

SELX86X6XD: right
SELX86X6XS: left

SELX77X_

Sleeves for arm, to be inserted and attached into the top or bottom panel of the cabinet to provide additional support for Air when it is used in thinner materials as well as hiding any surface imperfections caused by the machining of the cabinet.

SELX77X9: nickel-plated finish
SELX77X6: titanium finish
