Series 100 - 105° opening - Positive angled application-1

SILENTIA+

Series 100 - 105° opening - Positive angled application

Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup

  • For doors of small weight and thickness (15-20 mm)
  • Wooden doors
  • 105° opening
  • Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
The state of the soft-close art

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics
of the hinges of the first generation.

Series 100 - 105° opening - Positive angled application-2
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
  • Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
  • The decelerating effect is adjusted by using a simple switch.
  • For wooden doors with positive angled assembly.
  • Hinges for doors of small weight and thickness.
  • Dimensions of the Ø 35 mm cup.
  • 12 mm deep cup.
  • 105° opening.
  • Possible drilling distance on the door (K): from 3 to 6 mm.
  • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
C1R6ZE9
Arm 15°
C1R6EE9
Arm 30°

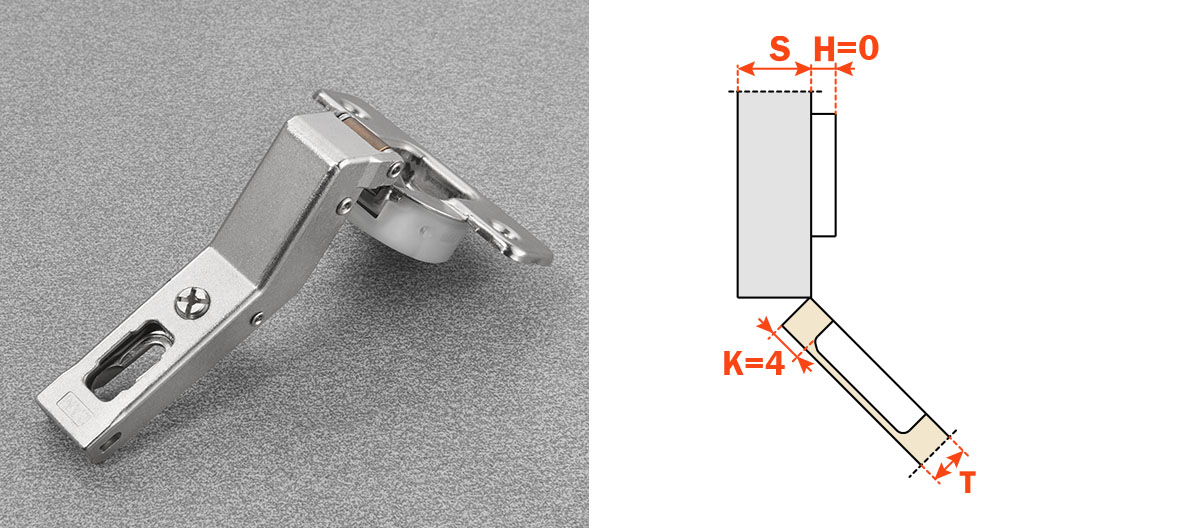

C1_6ME9

Arm 45°

C1P6ME9 = Wood screw
C1R6ME9 = Rapido
C176ME9 = Dowel

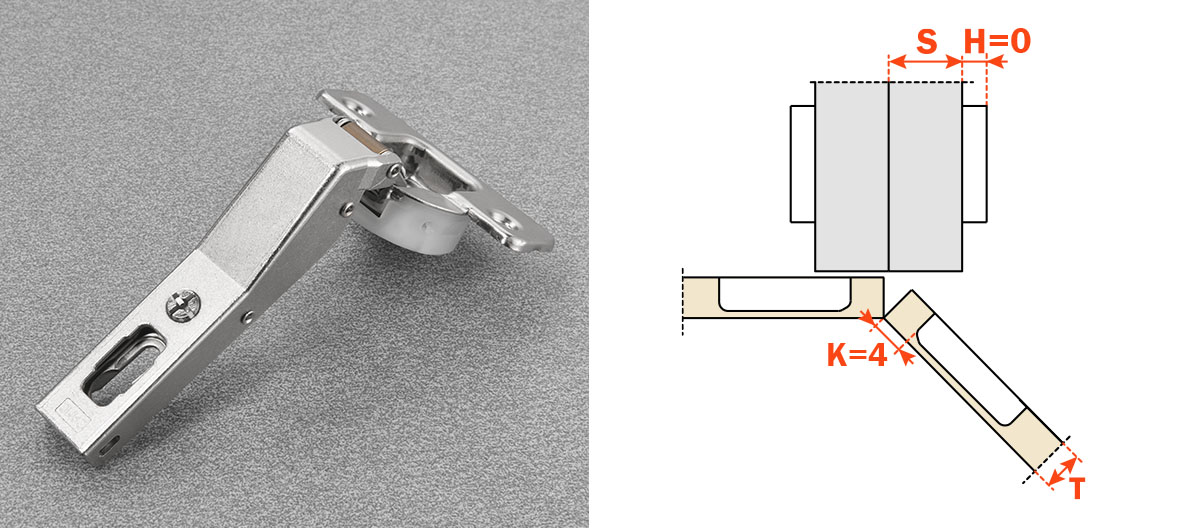

C1_6ME9AC

Arm 45°

C1P6ME9AC = Wood screw
C1R6ME9AC = Dowel
C176ME9AC = Rapido
C1J6ME9AC = Logica

Screw cover cap S2BX83H_

Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2BX83H9 = Nickel
S2BX83H6 = Titanium

Screw cover cap S2MX83H_

Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2MX83H9 = Nickel
S2MX83H6 = Titanium

Flange cover cap S2XX85H9
Steel flange cover cap, it can be personalised on request.
For all Series 100, 200, 300, 700, 800 and 900
Flange cover cap S2CX85H9
Steel flange cover cap with embossed logo.
For all Series 100, 200, 300, 700, 800 and 900
Spacer S2XX86
Spacer to reduce the drilling depth for 94°, 105° and 110° hinges.
S2XX86BT = 0.6 mm
S2XX86AT = 1.2 mm
S2XX86KT = 1.8 mm
Gauge D_A_AC_SN
Gauge to check the diameter and the depth of the drilling.
D1A6AC3SN = 12 mm
D2ABACGSN = 15.5 mm
D7A6ACYSN = 13.5 mm
Stop device S2A637XF
It limits opening at about 86°
Stop device S1E637XY
It limits opening at about 86°
New pozi screwdriver D2A7XCXCP

Pozi screwdriver
