Series 200 mounting plates with traditional assembly

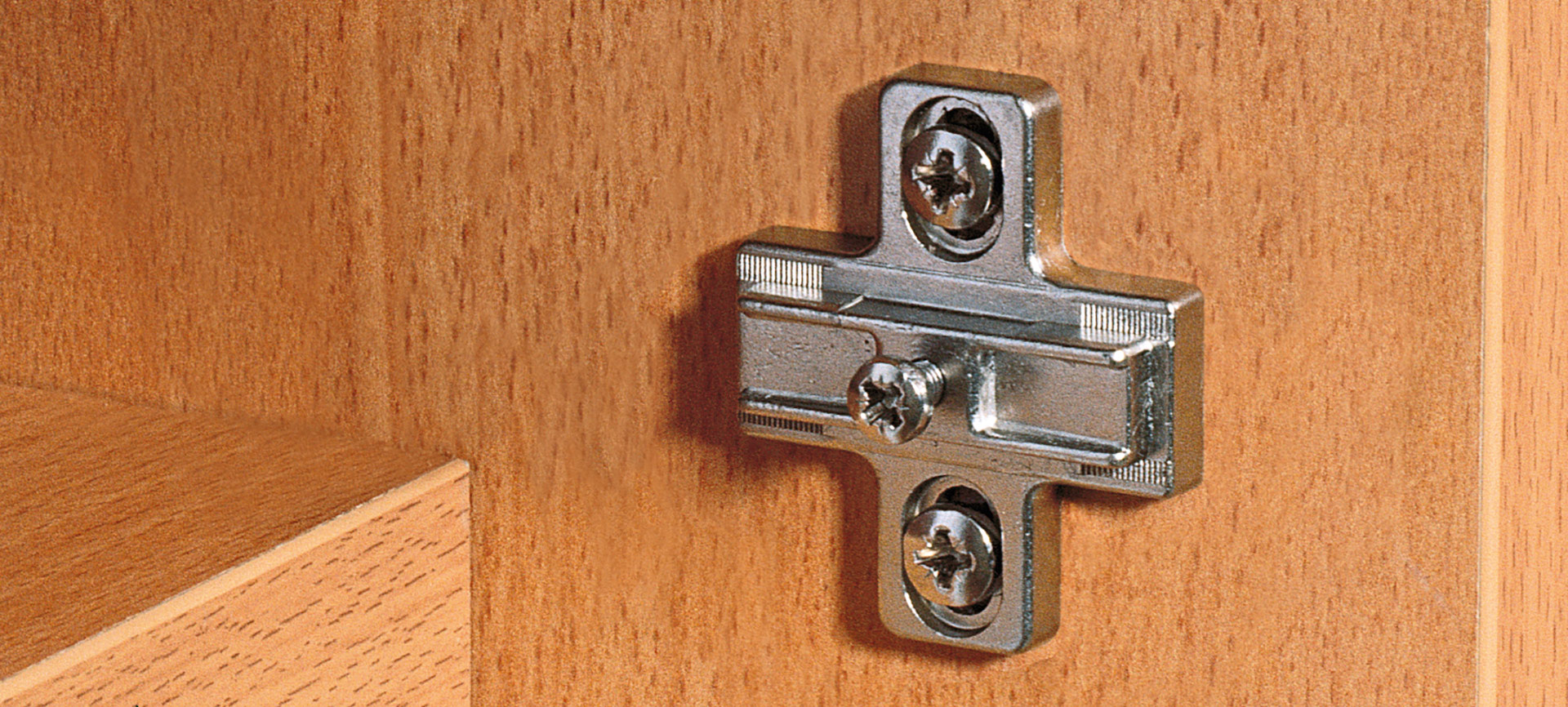

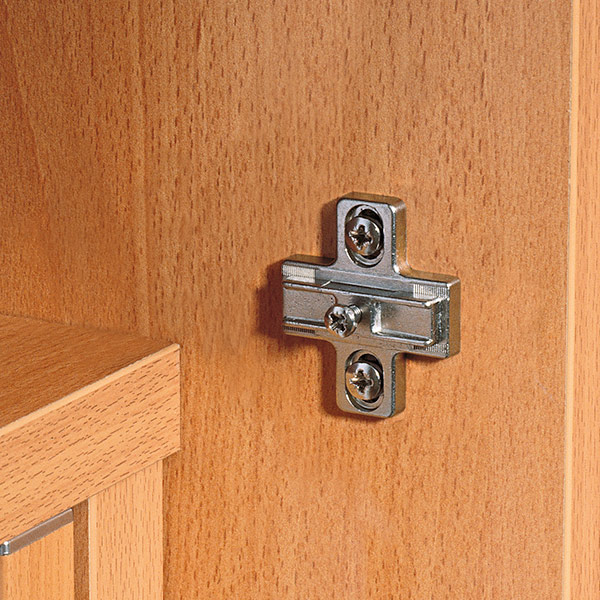

- Cruciform mounting plates. For hinges Series 100, 200, 400, 600, 800, 900, N, M, Universal Hinges and Silentia+.
- 37x32 mm drilling.
- Height adjustment by cam ±2 mm.
- 37x32 mm drilling.
- Height adjustment by cam ±2 mm.
B2V3V
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6
B2VGV
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 0 2 3 4 6
B2V4V
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3 4 6
B2V7V
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3 4 6
- Asymmetrical cruciform mounting plates. For hinges Series 100, 200, 400, 600, 900, N, M, Universal Hinges and Silentia+.
- For hinges Series 800 use steel mounting plates only.
- 28x32 mm drilling.
- Height adjustment ± 2 mm.
- For hinges Series 800 use steel mounting plates only.
- 28x32 mm drilling.
- Height adjustment ± 2 mm.
B2S3H
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3
B2SGH
Steel mounting plates.
Fixing: Euroscrew. (ø5x11 mm).
H = 0 2 3
B2S4H
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3
B2S7H
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3
- Symmetrical cruciform mounting plates. For hinges Series 100, 200, 400, 600, 800, 900, N, M, Universal Hinges and Silentia+.
- For hinges Series 800 use steel mounting plates only.
- 37x32 mm drilling.
- Height adjustment ± 2 mm.
ATTENTION! Mounting plates with negative value cannot be used on straight arm hinges.
- For hinges Series 800 use steel mounting plates only.
- 37x32 mm drilling.
- Height adjustment ± 2 mm.
ATTENTION! Mounting plates with negative value cannot be used on straight arm hinges.
B2V3H
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = -2 0 2 3 4 6 9
B2VGH
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = -2 0 2 3 4 6 9
B2V4H
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3 4 6 9
B2V7H
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3 4 6 9
- Asymmetrical cruciform mounting plates. For hinges Series 800.
- 9.5x32 mm drilling.
- Height adjustment ±2 mm.
- 9.5x32 mm drilling.
- Height adjustment ±2 mm.
B2L3H
Steel mounting plates.
Fixing: wood screw.
Screw: B 4.2 DIN 7983.
H = 1 4 6
