Series 200 mounting plates with traditional assembly
- Cruciform mounting plates. For hinges Series 100, 200, 400, 600, 800, 900, N, M, Universal Hinges and Silentia+.
- 37x32 mm drilling.
- Height adjustment by cam ±2 mm.
- 37x32 mm drilling.
- Height adjustment by cam ±2 mm.
B2V3V
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6
B2VGV
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 0 2 3 4 6
B2V4V
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3 4 6

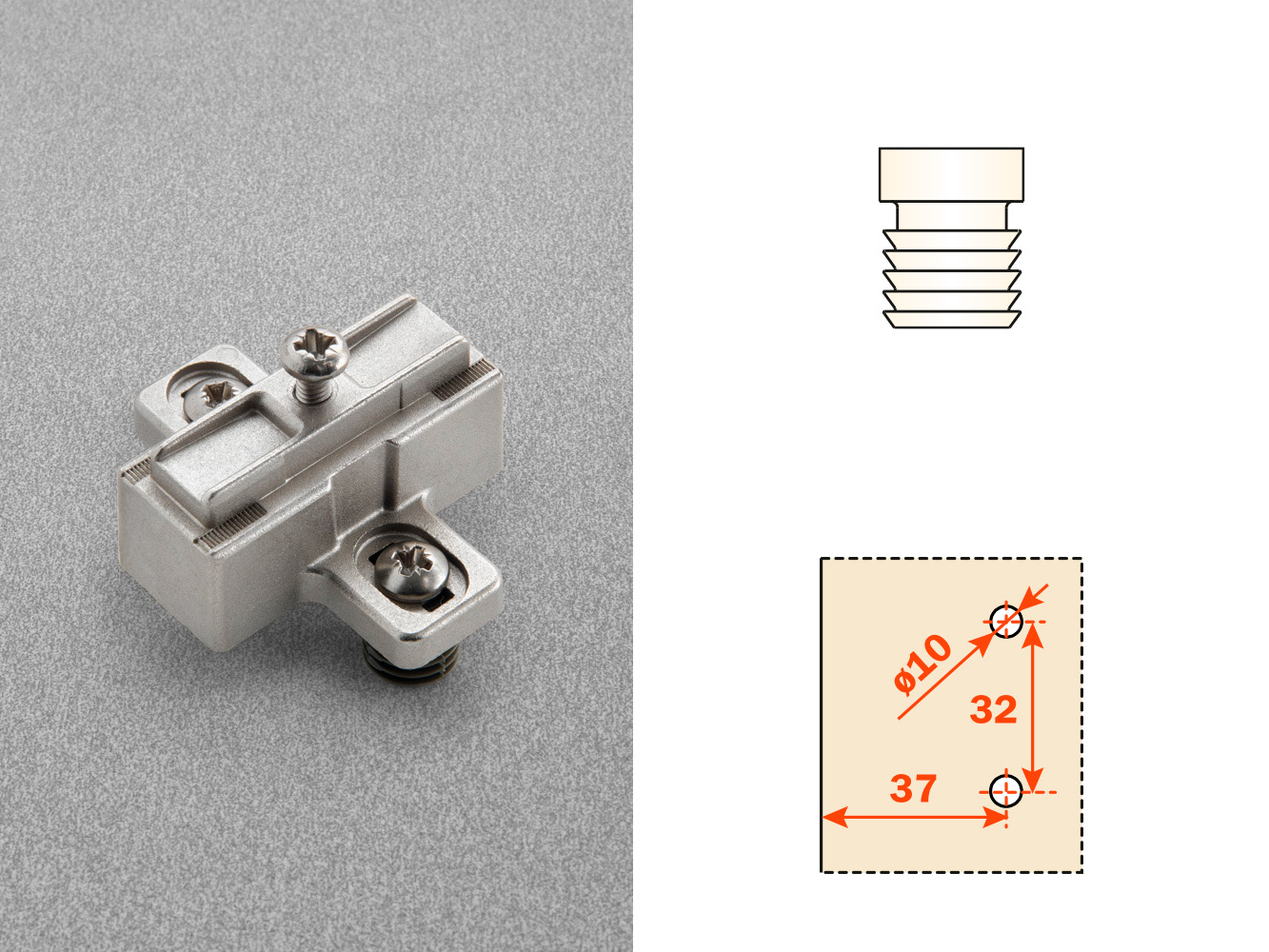

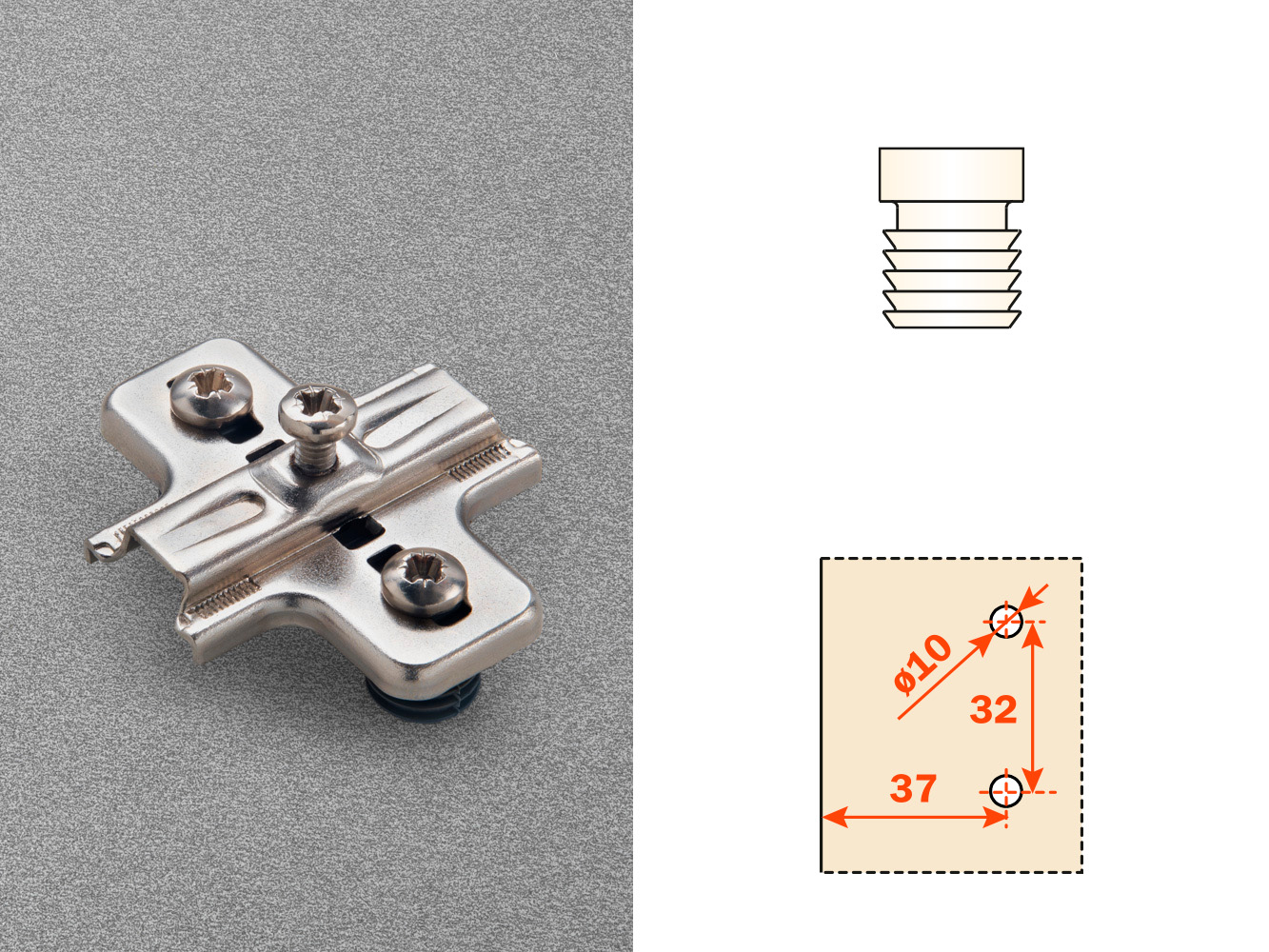

B2V7V
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3 4 6
- Asymmetrical cruciform mounting plates. For hinges Series 100, 200, 400, 600, 900, N, M, Universal Hinges and Silentia+.
- For hinges Series 800 use steel mounting plates only.
- 28x32 mm drilling.
- Height adjustment ± 2 mm.
- For hinges Series 800 use steel mounting plates only.
- 28x32 mm drilling.
- Height adjustment ± 2 mm.

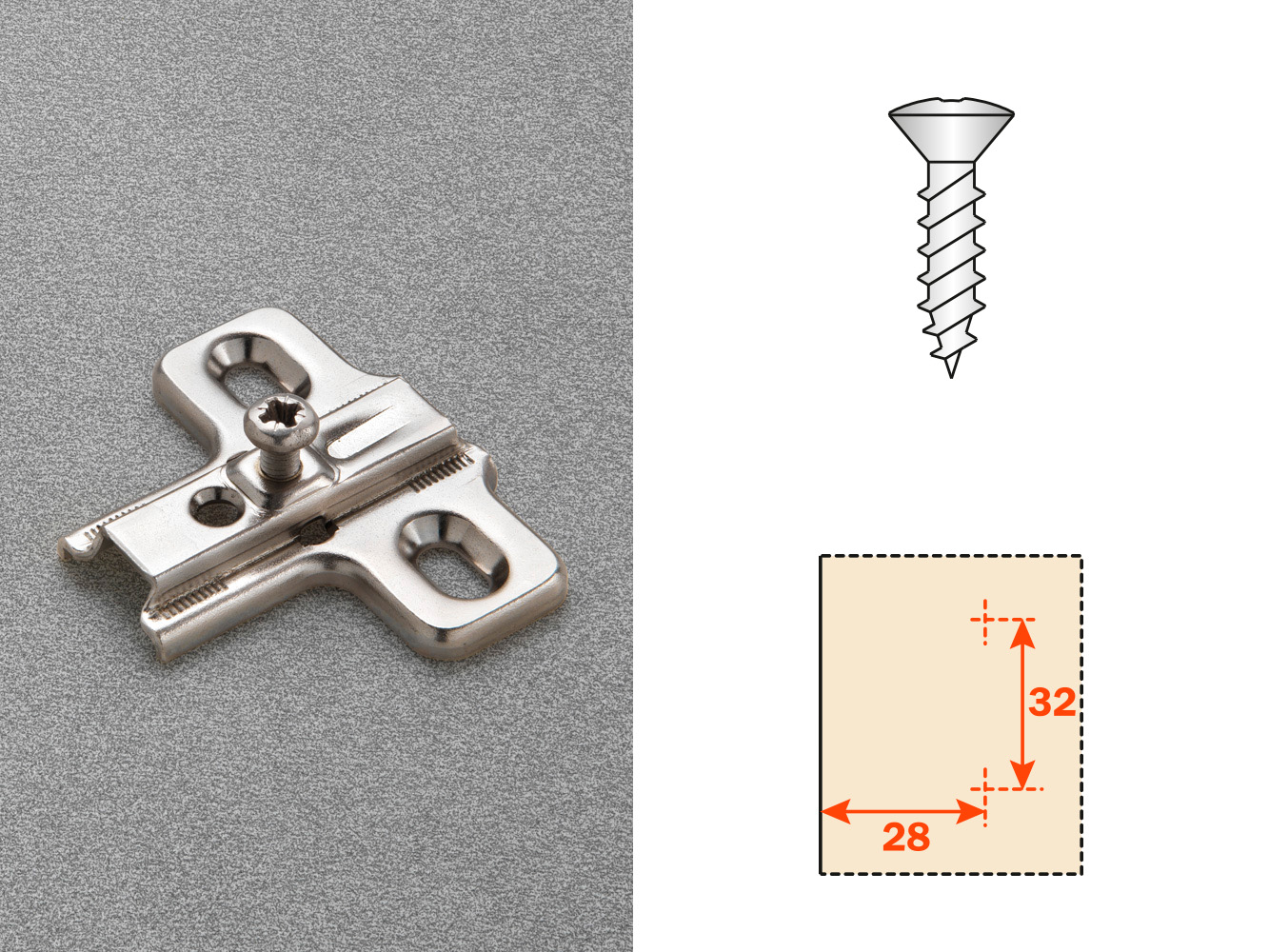

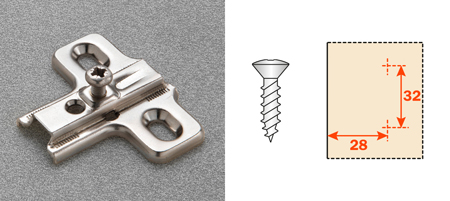

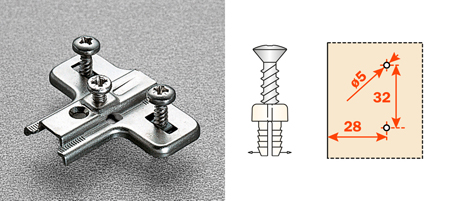

B2S3H
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3

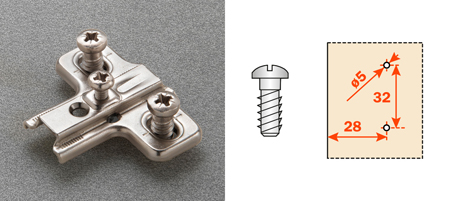

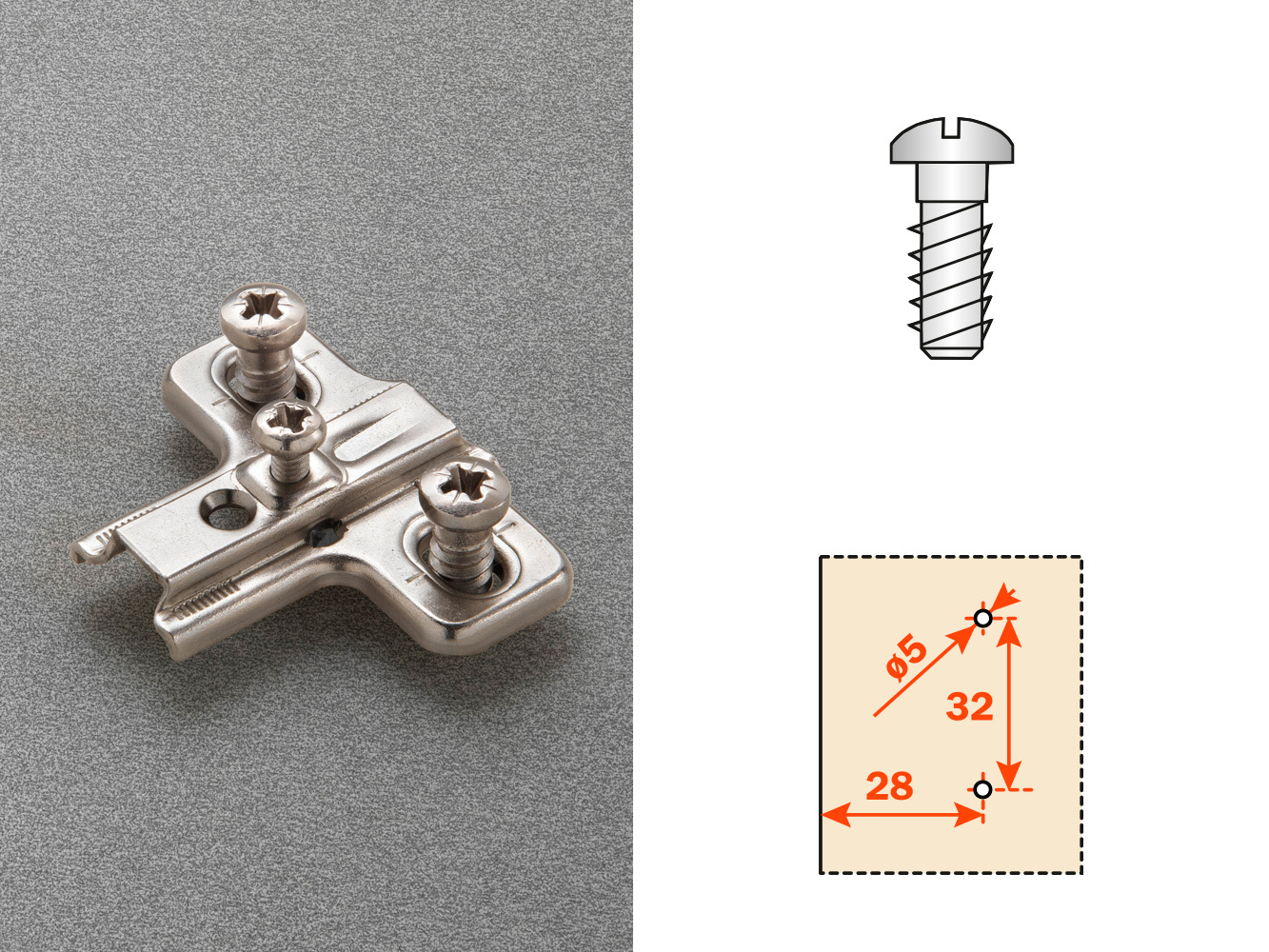

B2SGH
Steel mounting plates.
Fixing: Euroscrew. (ø5x11 mm).
H = 0 2 3

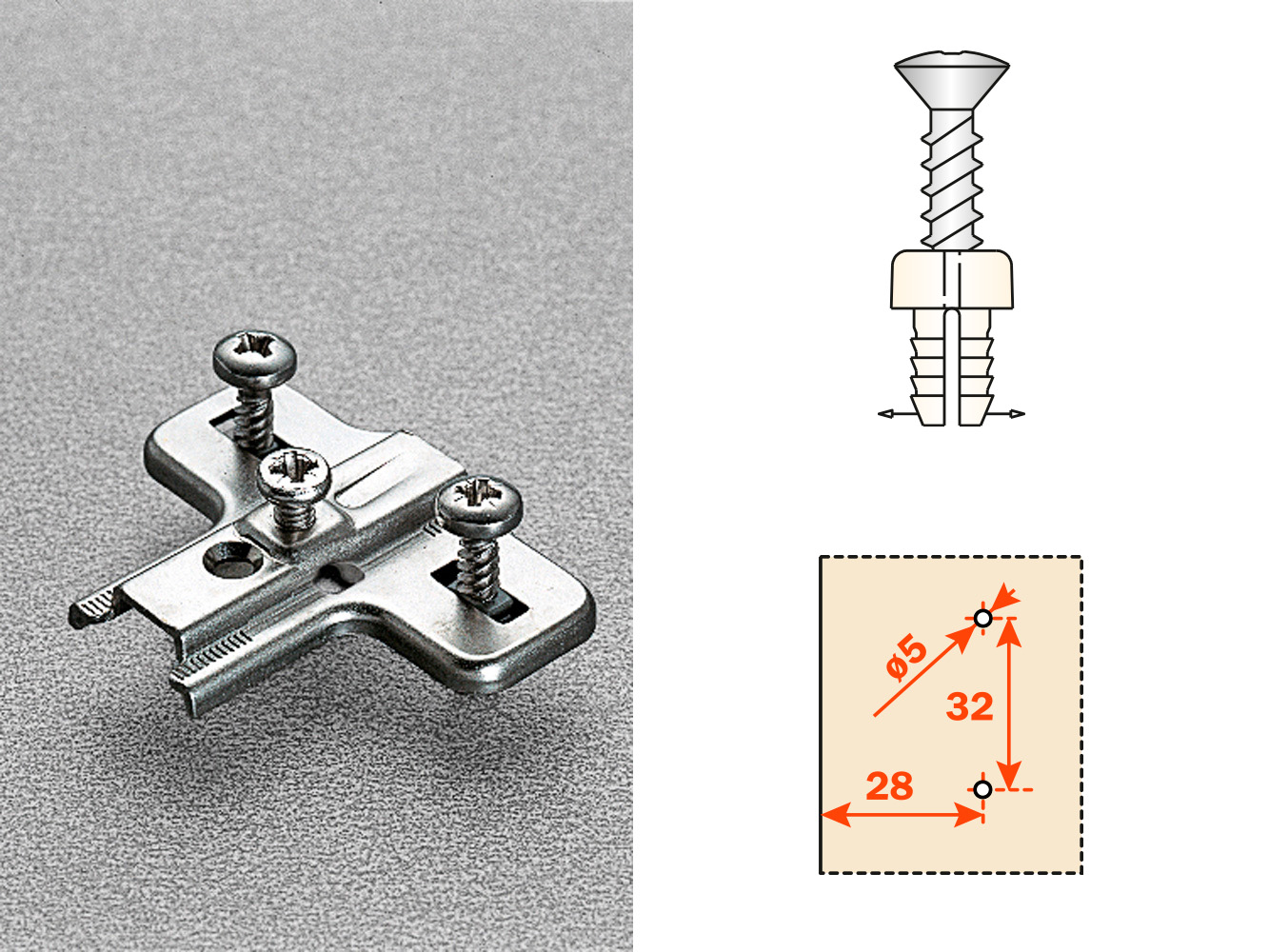

B2S4H
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3

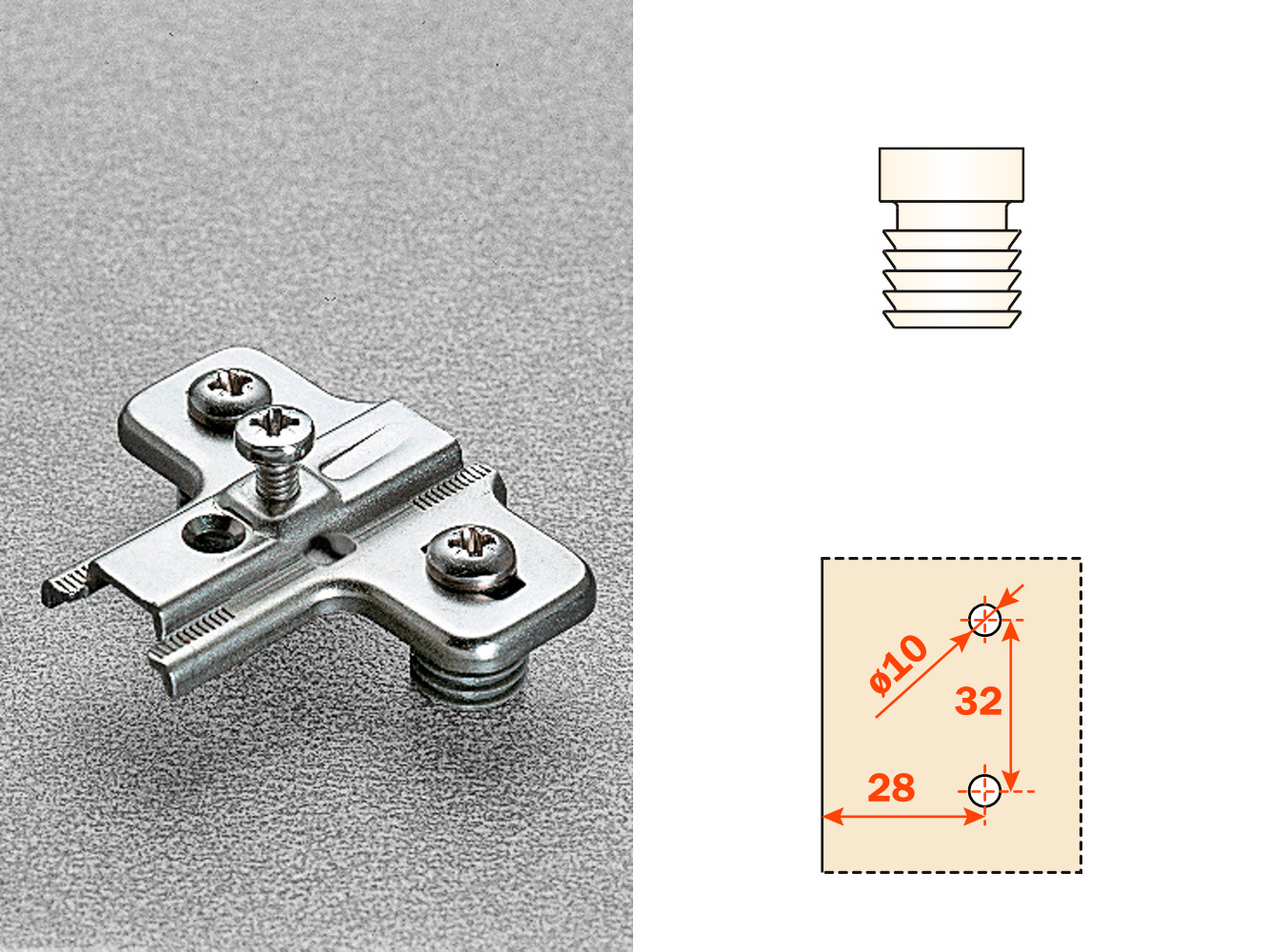

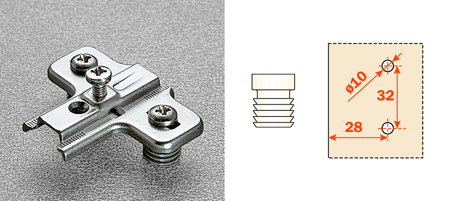

B2S7H
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3

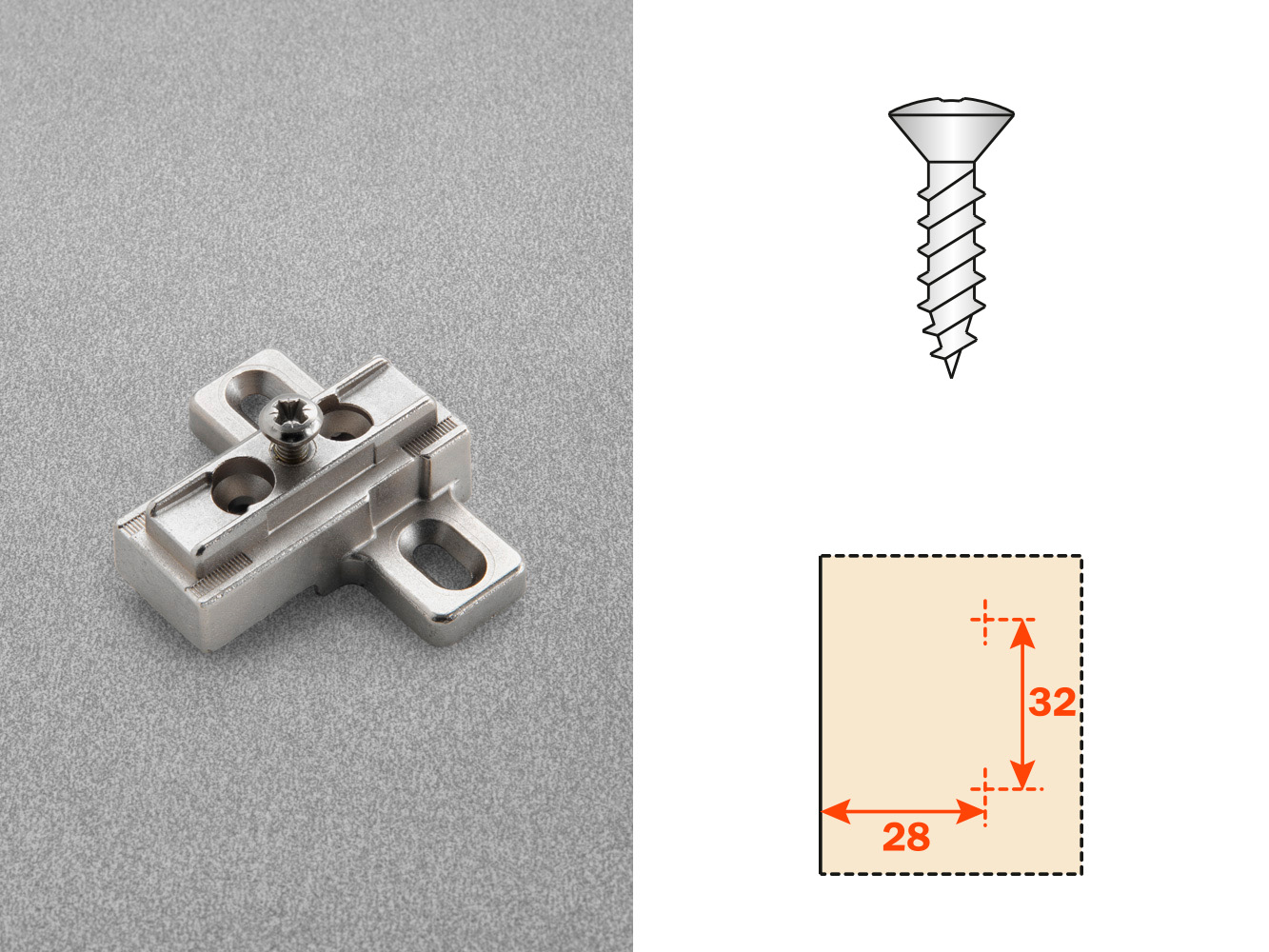

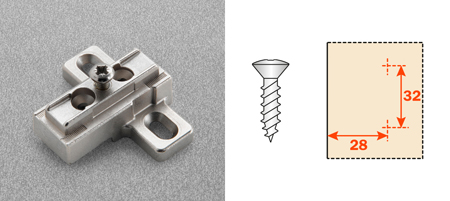

B2S3B
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 6 9 12

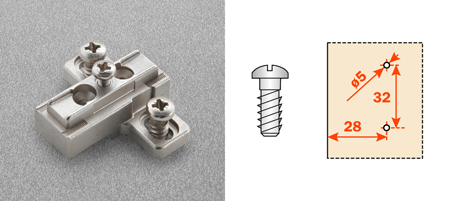

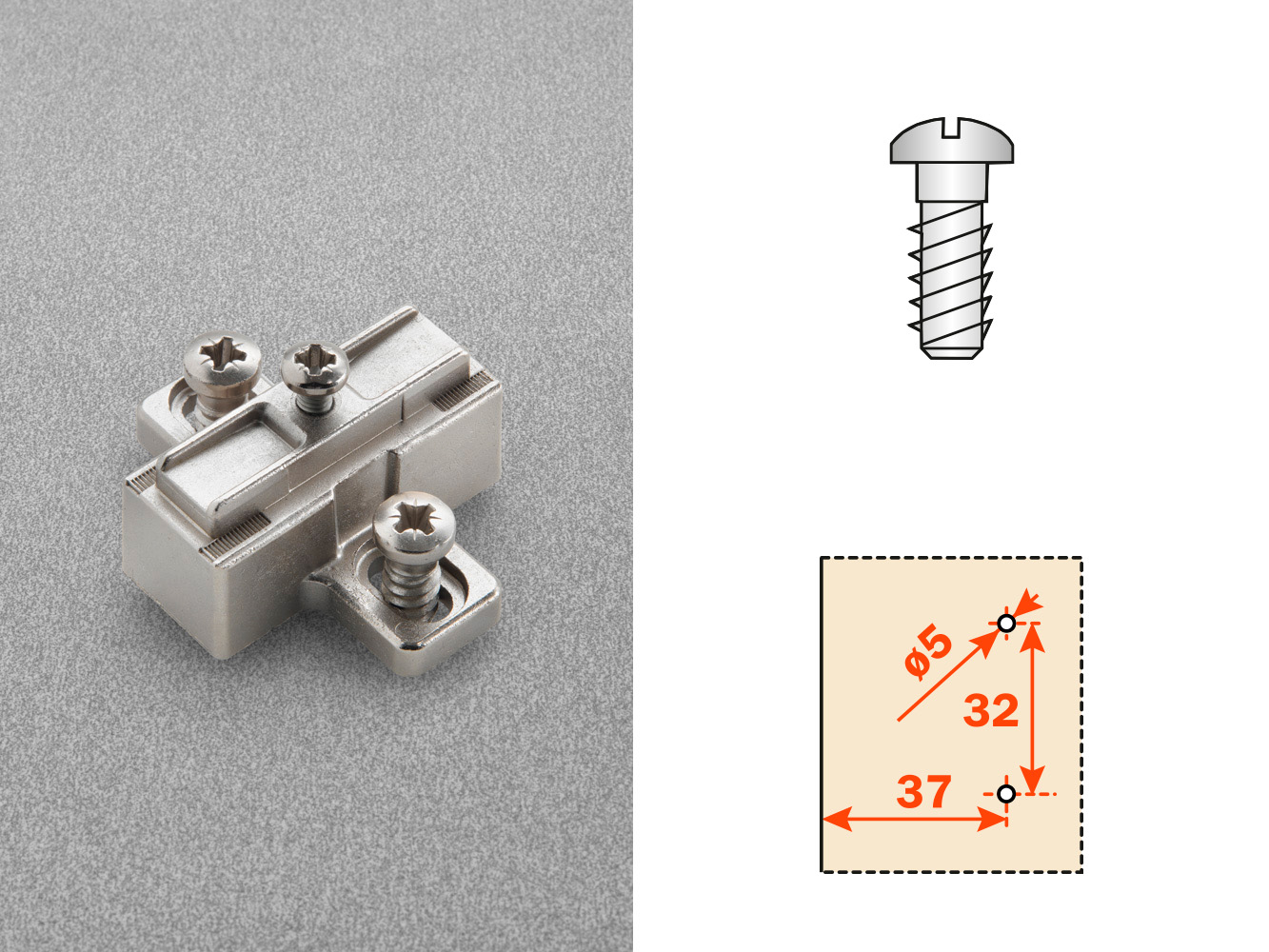

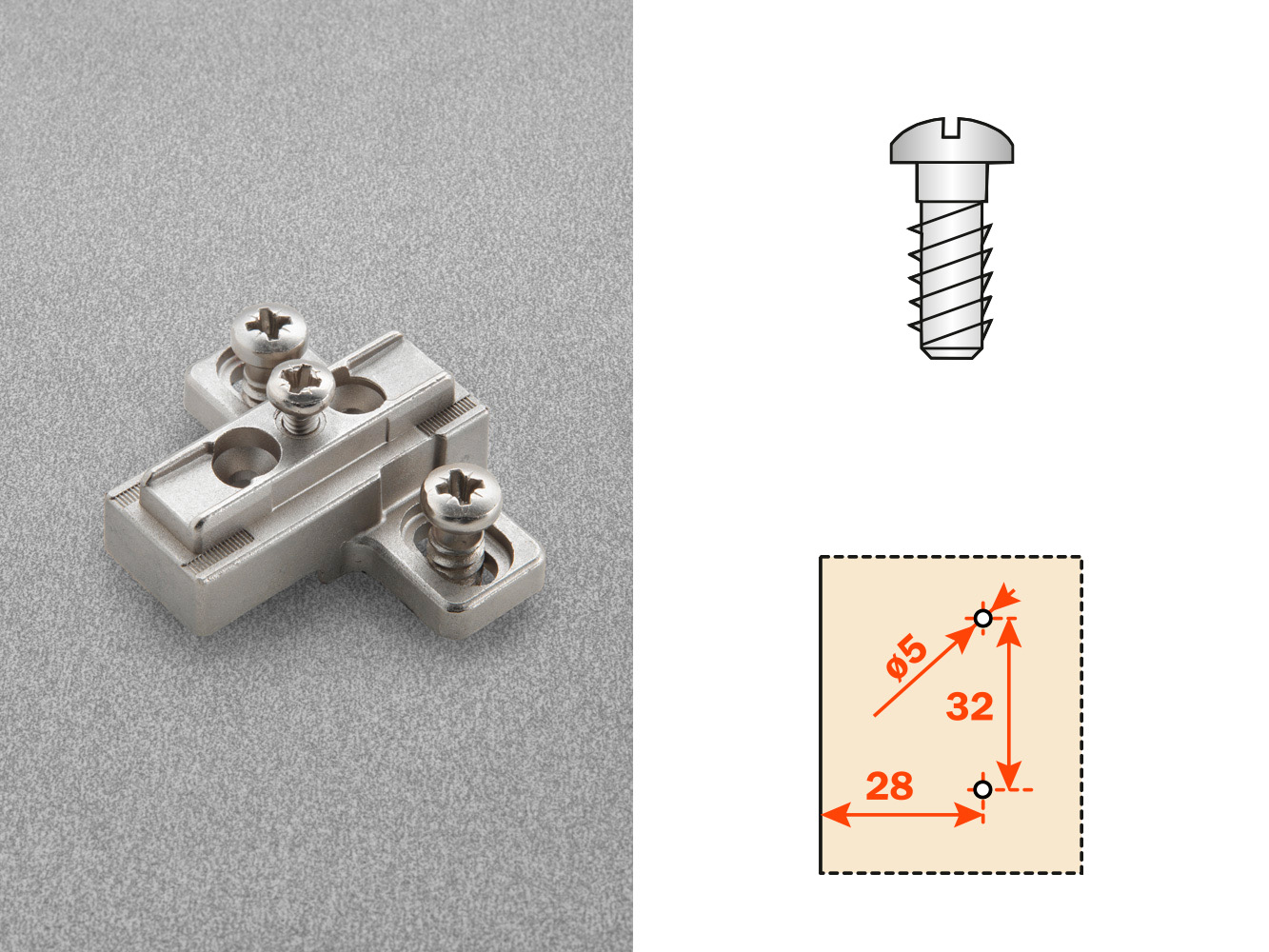

B2SGB
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 6 9 12
- Symmetrical cruciform mounting plates. For hinges Series 100, 200, 400, 600, 800, 900, N, M, Universal Hinges and Silentia+.
- For hinges Series 800 use steel mounting plates only.
- 37x32 mm drilling.
- Height adjustment ± 2 mm.
ATTENTION! Mounting plates with negative value cannot be used on straight arm hinges.
- For hinges Series 800 use steel mounting plates only.
- 37x32 mm drilling.
- Height adjustment ± 2 mm.
ATTENTION! Mounting plates with negative value cannot be used on straight arm hinges.

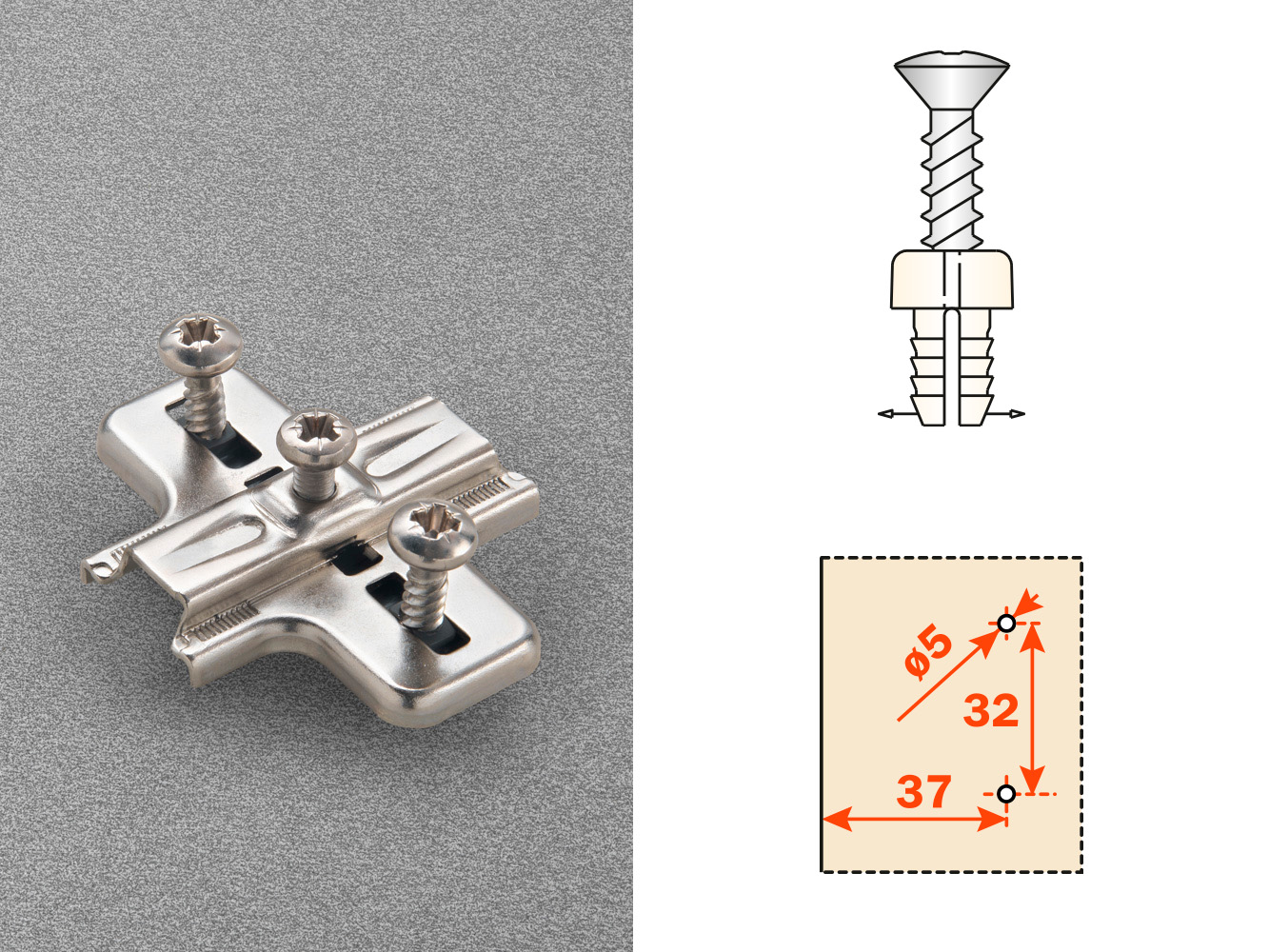

B2V3H
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = -2 0 2 3 4 6 9
B2VGH
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = -2 0 2 3 4 6 9

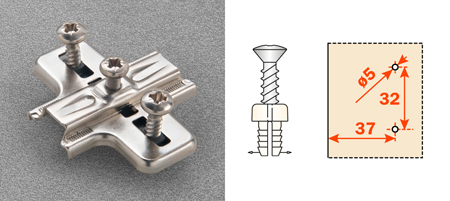

B2V4H
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3 4 6 9

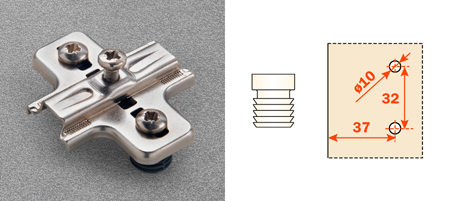

B2V7H
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3 4 6 9

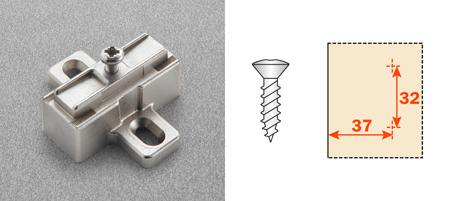

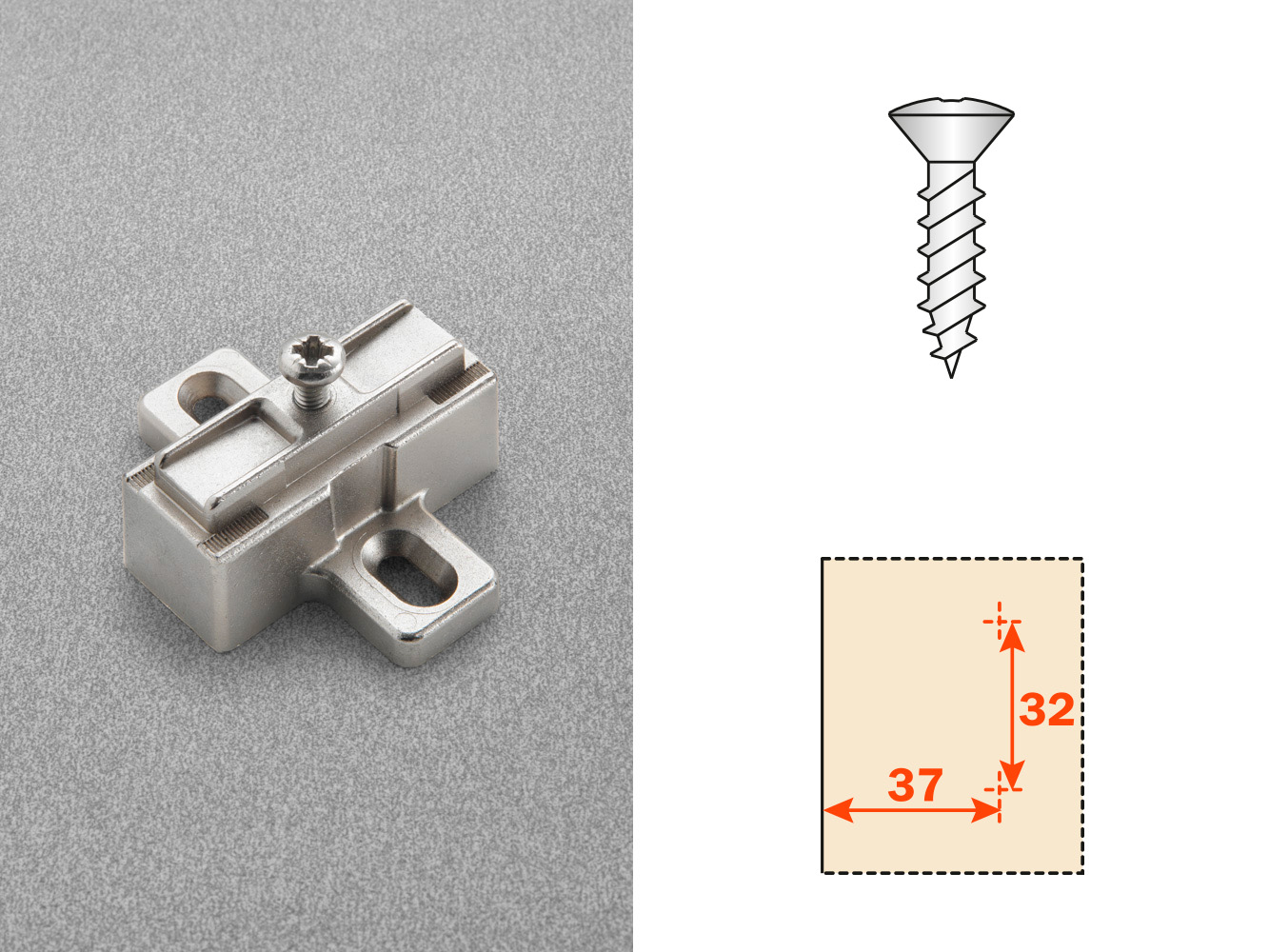

B2V3B
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 12 18 21 31

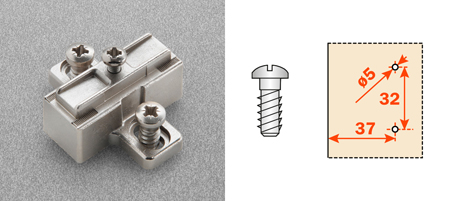

B2VGB
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 12 18 21 31

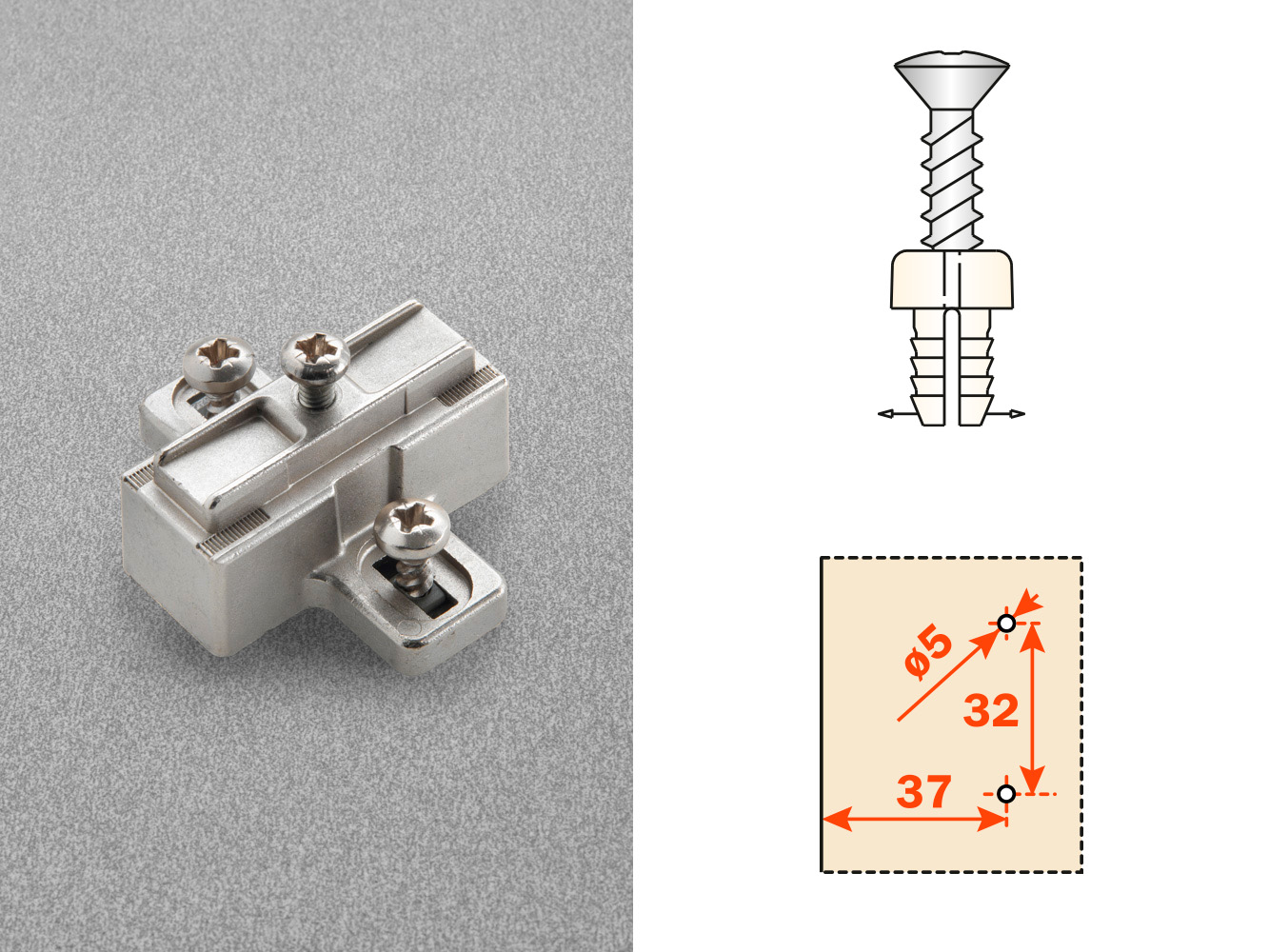

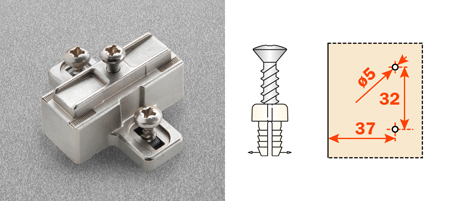

B2V4B
Die-cast mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 12 18

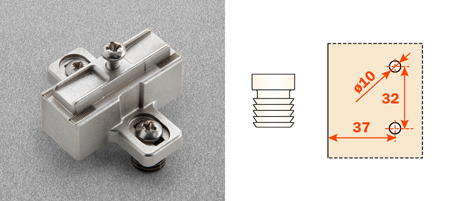

B2V7B
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 12 18
- Cruciform and straight mounting plates. For hinges Series 100, 200, 400, 600, 900, N, M, Universal Hinges and Silentia+.
- 37x32 mm drilling, cruciform mounting plates.
- 21+32 mm drilling, straight mounting plate.
- Height adjustment by cam ±2 mm.
- 37x32 mm drilling, cruciform mounting plates.
- 21+32 mm drilling, straight mounting plate.
- Height adjustment by cam ±2 mm.

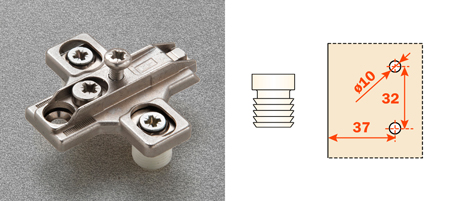

B2R3E
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6 9
B2RGE
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 0 2 3 4 6 9

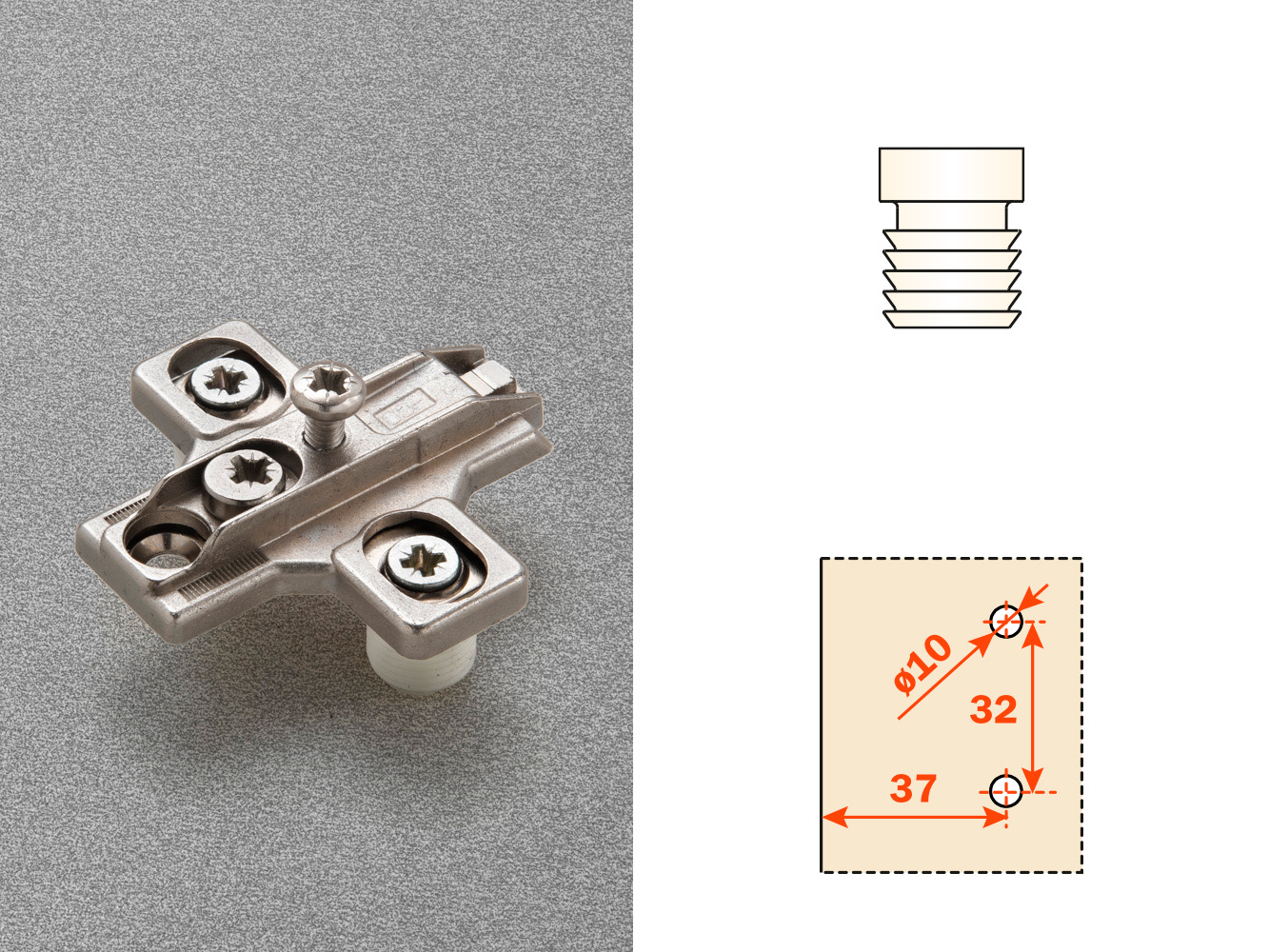

B2R7E
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3 4 6 9

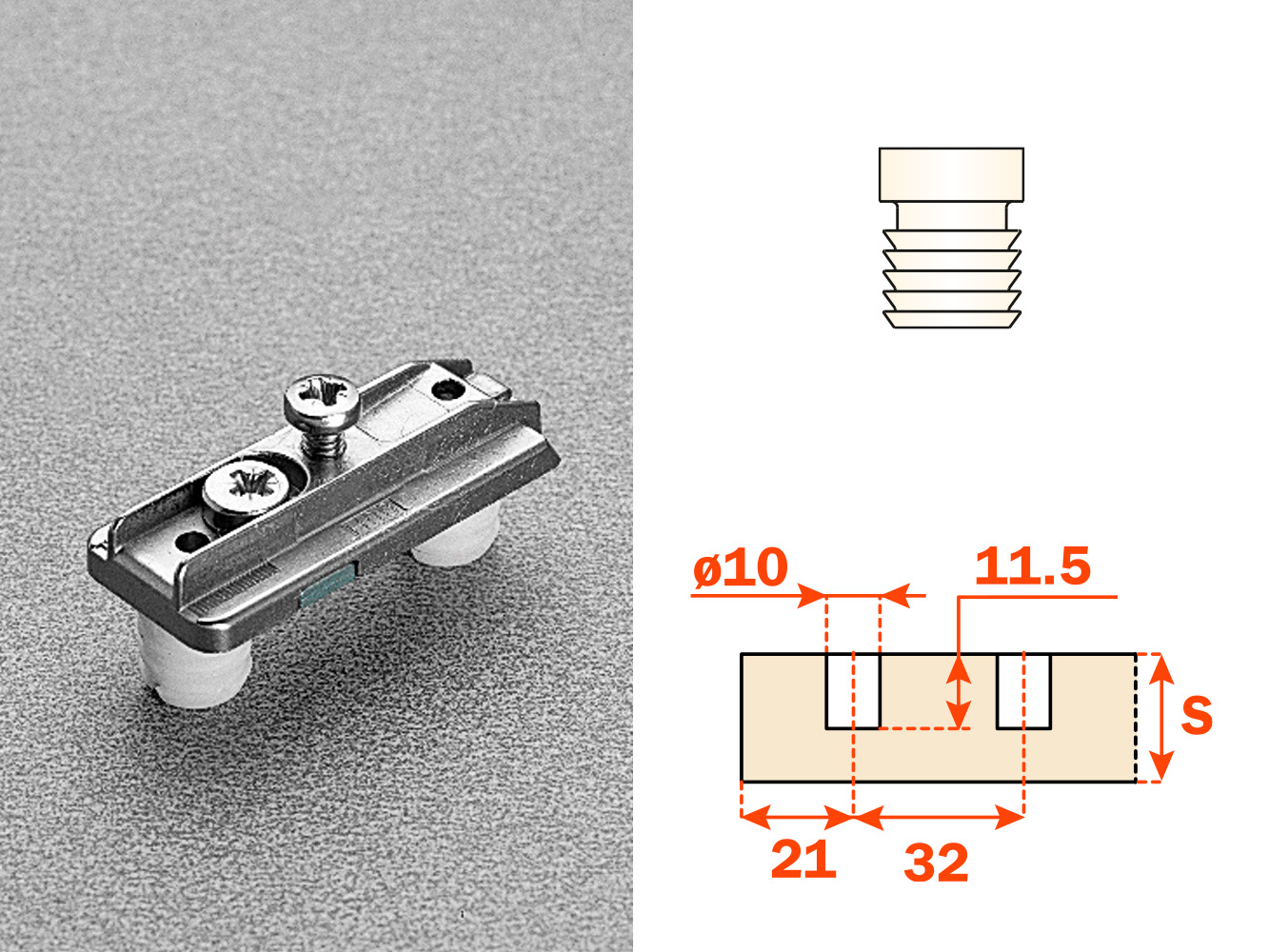

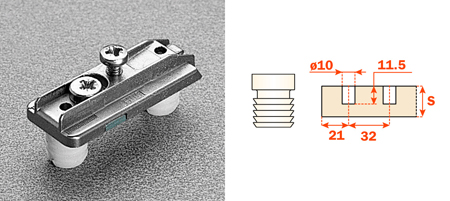

B2P7E
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3
- For hinges Series 100, 200, 400, 600, 900, N, Universal Hinges and Silentia+.
- An almost infinite variety of angle door applications is possible using variable-angle mounting plates in conjunction with one of Salice’s range of angled-arm hinges.
- Height adjustment ±2 mm.
- An almost infinite variety of angle door applications is possible using variable-angle mounting plates in conjunction with one of Salice’s range of angled-arm hinges.
- Height adjustment ±2 mm.
B2V3BW_R
Variable Die-cast mounting plates for angled assembly from -7.5° to +7.5° and intermediate degrees, for special assemblies.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.

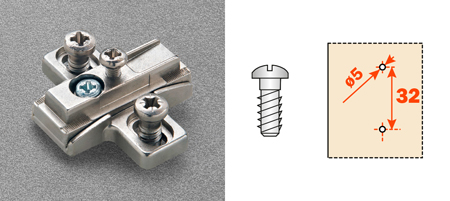

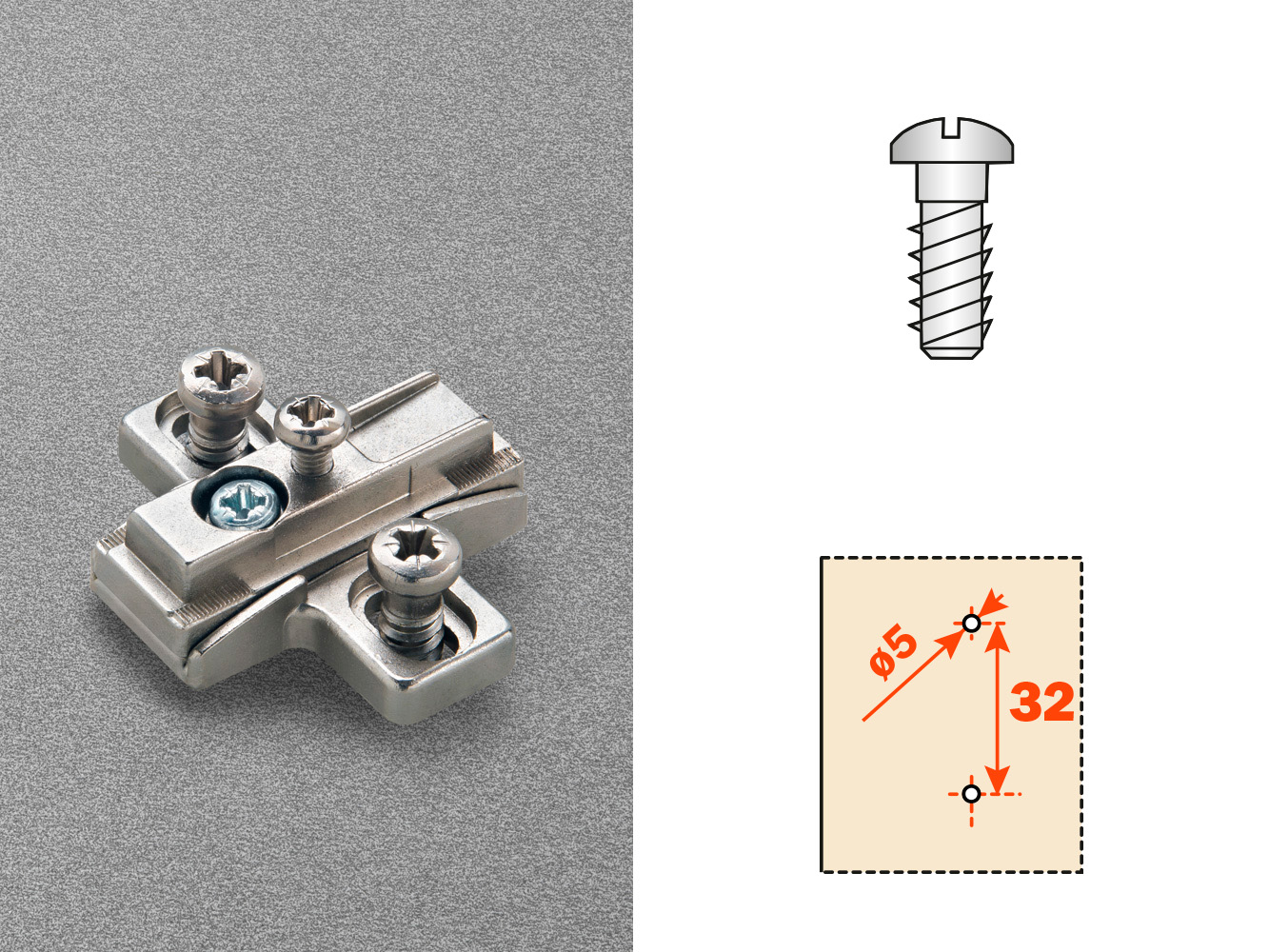

B2VGBW_R
Variable die-cast mounting plates for angled assembly from -7.5° to +7.5° and intermediate degrees, for special assemblies.
Fixing: Euroscrew (ø5x11 mm).
B2V3BW_S
Variable die-cast mounting plates for angled assembly from +10° to +30° and intermediate degrees, for special assemblies.
Fixing: wood screw.
B 3.5 DIN 7983.

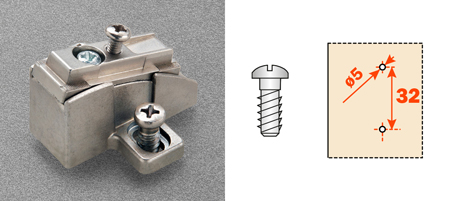

B2VGBW_S
Variable die-cast mounting plates for angled assembly from +10° to +30° and intermediate degrees, for special assemblies.
Fixing: Euroscrew (ø5x11 mm).
B2V3BW
Die-cast angled mounting plates for assembly at 15°.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.

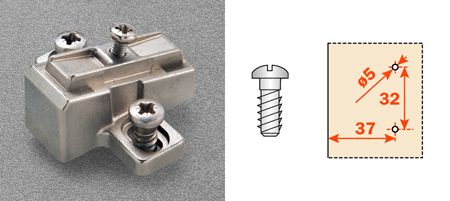

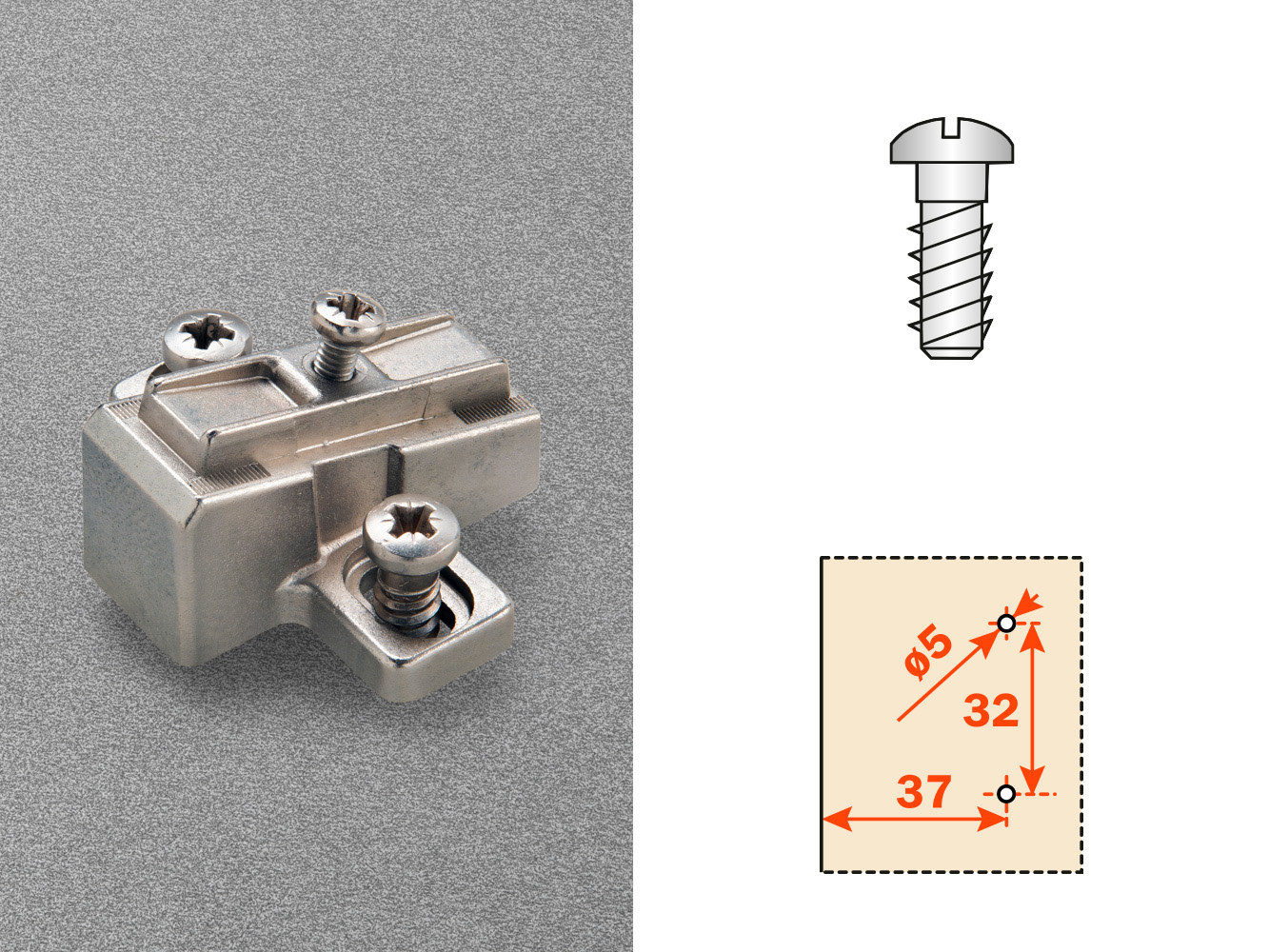

B2VGBW
Die-cast angled mounting plates for assembly at 15°.
Fixing: Euroscrew (ø5x11 mm).
SAV354X_R
Die-cast adapter +5°.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
SAV354X_S
Die-cast adapter +10°.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
