SELF-CLOSING Series N - 94° opening - Standard application-1

SELF-CLOSING

Series N - 94° opening - Standard application

Self-close hinge

For profile and thicker doors (20-40 mm)
Wooden doors
94° opening
Snap-on fixing with Domi mounting plates, screw fixing with traditional ones

For profile and thicker doors (max. 40 mm).

Find out more

12 mm deep cup.
40 mm cup diameter.
94° opening.
Possible drilling distance on the door (K): from 3 to 14 mm.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Versions

Accessories

CN_7A__

Full overlay / A crank - 0 mm

CNA7A99 = Wood screw, Nickel finish
CNA7A66 = Wood screw, Titanium finish
CNB7A99 = Dowel, Nickel finish
CNB7A66 = Dowel, Titanium finish

CN_7G__

Half overlay / G crank - 9 mm

CNA7G99 = Wood screw, Nickel finish
CNA7G66 = Wood screw, Titanium finish
CNB7G99 = Dowel, Nickel finish
CNB7G66 = Dowel, Titanium finish

CN_7P__

Inset / P crank - 17 mm

CNA7P99 = Wood screw, Nickel finish
CNA7P66 = Wood screw, Titanium finish
CNB7P99 = Dowel, Nickel finish
CNB7P66 = Dowel, Titanium finish

Screw cover cap S2BX83H___

Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2BX83H9__ = Nickel
S2BX83H6__ = Titanium

Screw cover cap S2MX83H___

Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2MX83H9__ = Nickel
S2MX83H6__ = Titanium

Flange cover cap SNXX85A_

Plastic flange cover cap, it can be personalised on request.
For Series N hinges only.

Available colours:
SNXX85A6 = Titanium
SNXX85A9 = Nickel-pl.

Technical information

Documentation

Video

See all Close

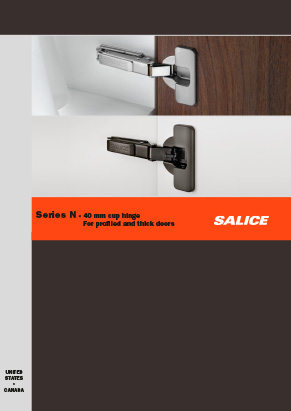

Technical pamphlet

PDF 2.25MB
