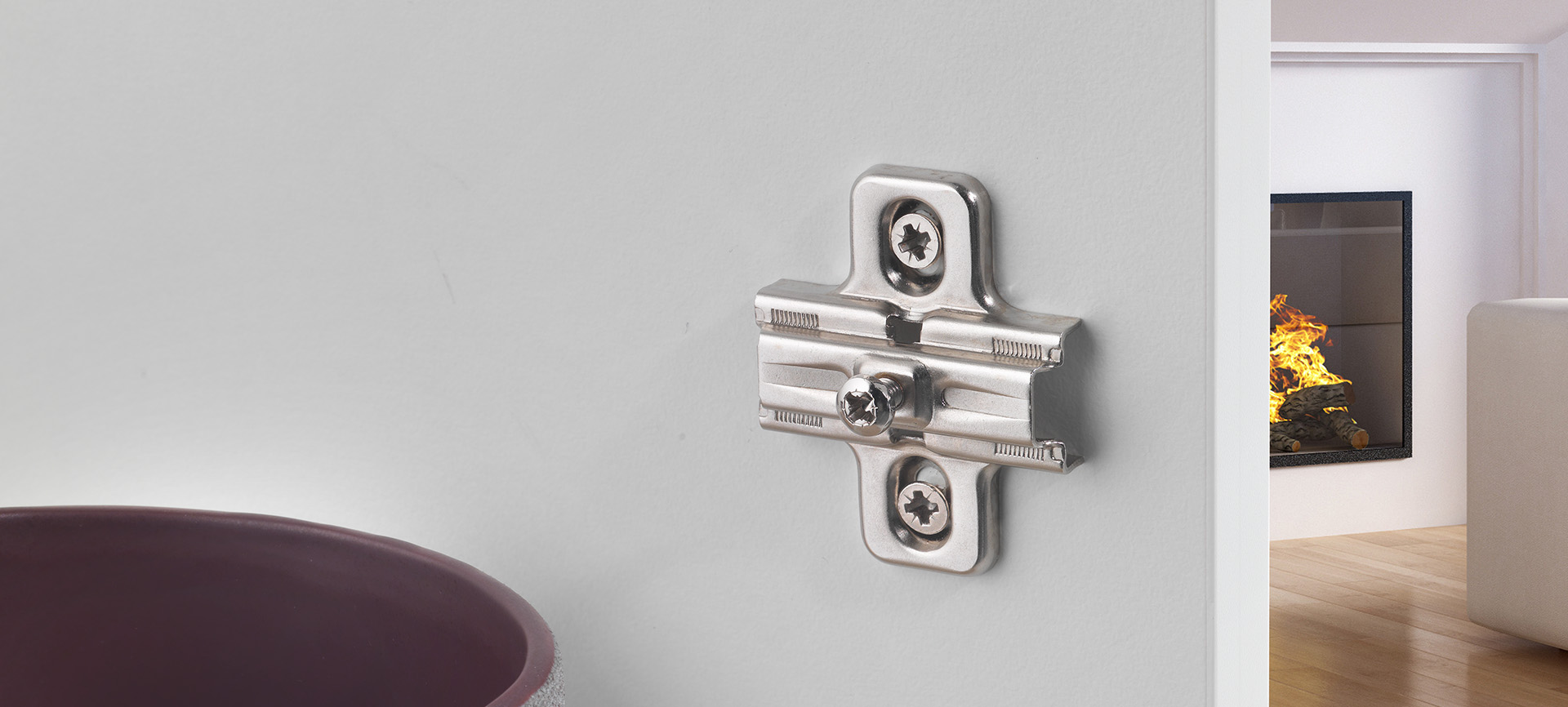

Series 200 mounting plates with traditional assembly-1

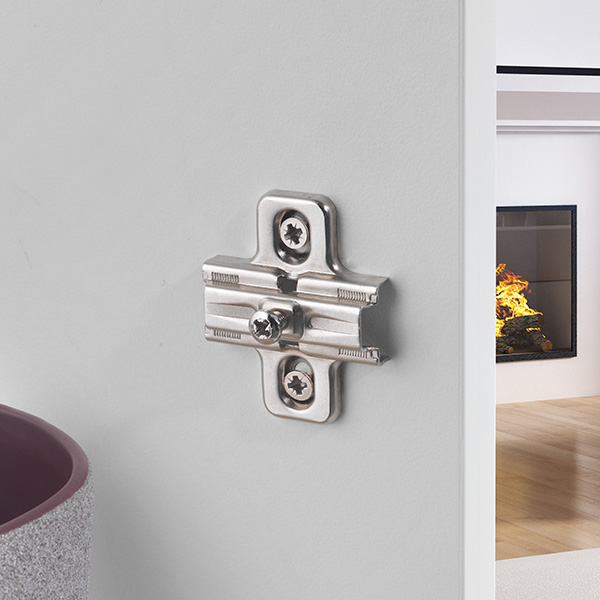

Series 200 mounting plates with traditional assembly

- For hinges Series 100, 200, 400, 600, 900, F, B, M, Silentia and Silentia+.
- Straight and cruciform mounting plates.
- Height adjustment ±2 mm by cam.
B2R3E

Die-cast mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = 0 2 3 4 6 9

B2RGE

Die-cast mounting plates.
Fixing: Euroscrew.
Drilling ø5x11.

H = 0 2 3 4 6 9

- Symmetrical cruciform mounting plates. For hinges Series 100, 200, 400, 600, 800, 900, F, B, M, Silentia and Silentia+.
- For hinges series 800 use steel mounting plates only.
- 37x32 mm drilling.
- Height adjustment ± 2 mm.

- ATTENTION! Mounting plates with negative value can be used on D-G-P arms only.
B2V3H

Steel mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = -2 0 2 3 4 6 9

B2VGH

Steel mounting plates.
Fixing: Euroscrew.
Drilling ø5x11 mm.

H = -2 0 2 3 4 6 9

- Angled and variable die-cast mounting plates, for special assemblies.
- For hinges Series 100, 200, 400, 600, 900, F, B, Silentia and Silentia+.
- An almost infinite variety of angle door applications is possible using variable-angle mounting plates in conjunction with one of Salice’s range of angled-arm hinges.
B2V3BW9R

Variable die-cast mounting plates for angled assembly from -7.5° to +7.5° and intermediate degrees, for special assemblies.
Fixing: wood screw.

B 3.5 DIN 7983.

B2V3BW9S

Variable die-cast mounting plates for angled assembly from +10° to +30° and intermediate degrees, for special assemblies.
Fixing: wood screw.

B 3.5 DIN 7983.

B2V3BW9

Die-cast angled mounting plates for assembly at 15°.
Fixing: wood screw.

B 3.5 DIN 7983.

BARGRW9M

Die-cast angled mounting plates for assembly at 135°.
Fixing: Euroscrew.
Drilling ø5x11.

Die-cast variable-angle adapters for all mounting plates.
SAV354X9R

Die-cast adapter +5°.
Fixing: wood screw.

B 3.5 DIN 7983.

SAV354X9S

Die-cast adapter +10°.
Fixing: wood screw.

B 3.5 DIN 7983.
