The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.

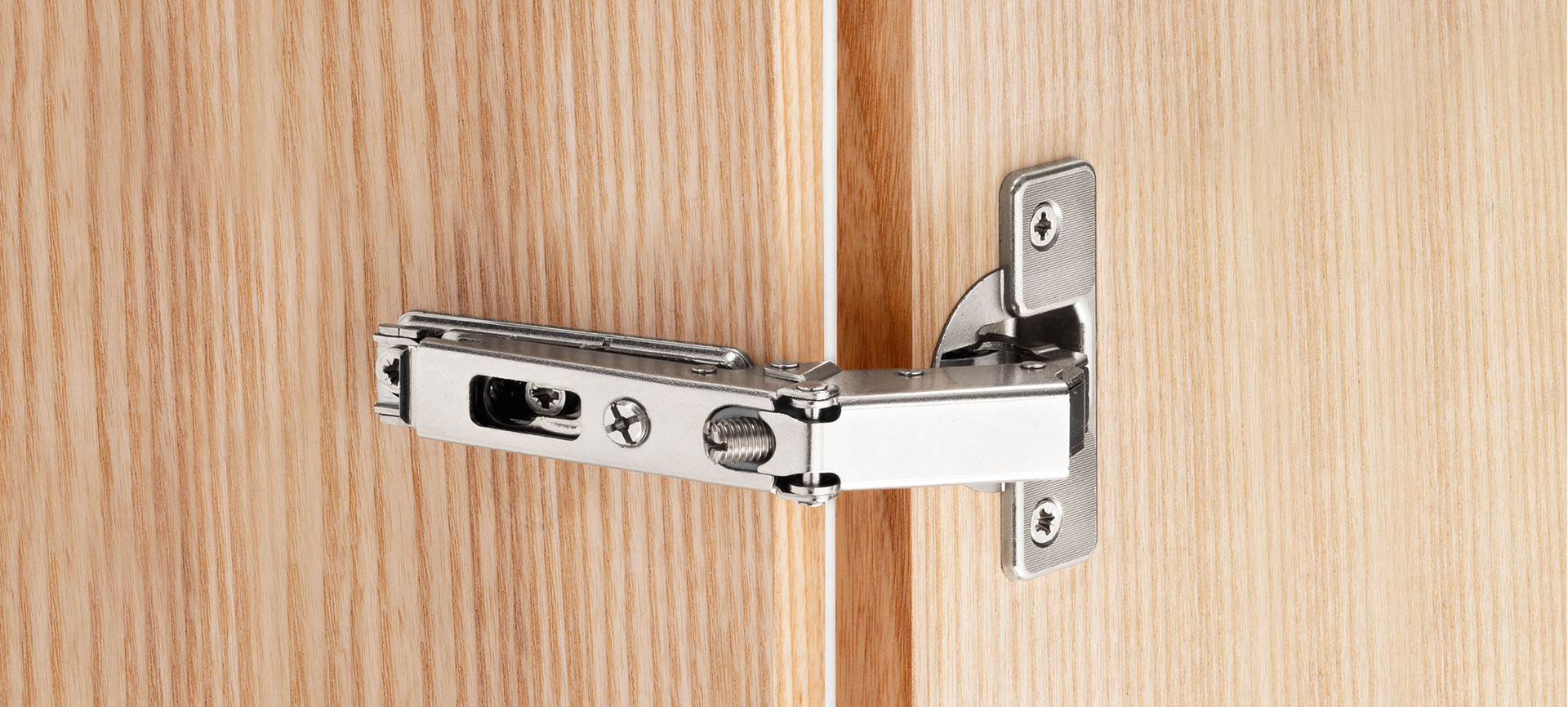

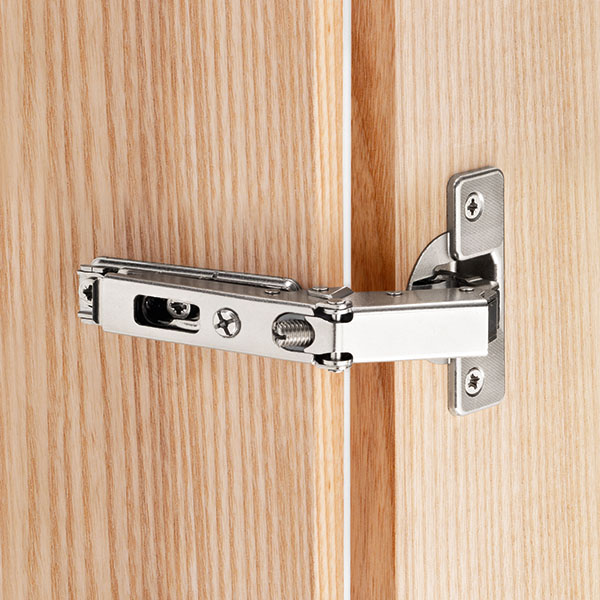

- Adjustable hinge for corner cabinets.
- 11 mm (7/16'') deep cup.
- 35 mm cup diameter.
- Opening angle of the swing door 65°.
- Possible drilling distance on the door (K) : from 3 to 5 mm.
- For doors close to 1'' (25.4 mm), K max: 4 mm.
- Maximum thickness of the door with square edges: 1'' (25.4 mm).

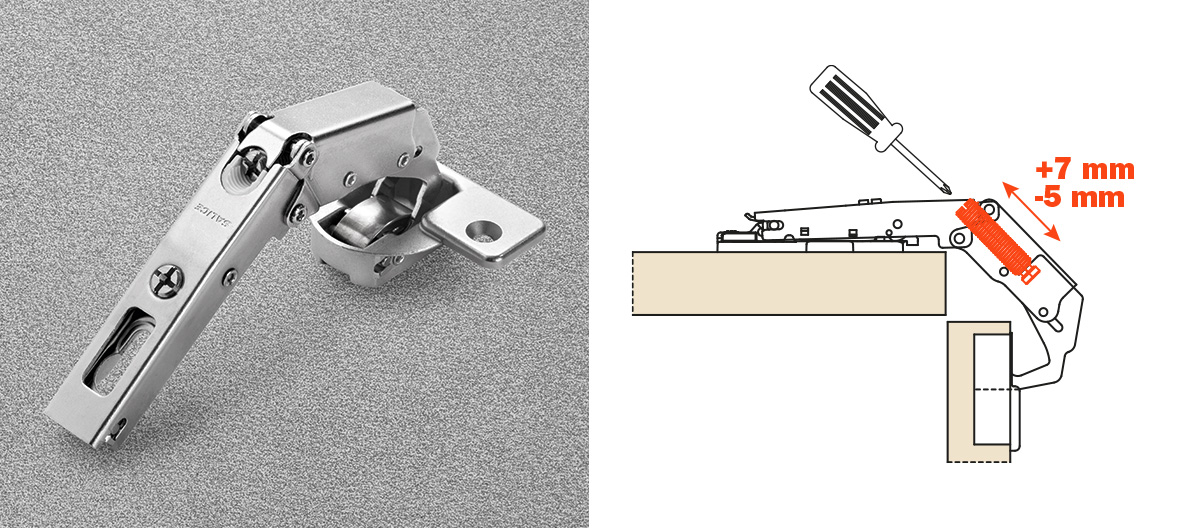

- Extended adjustment range +7 / -5 mm.
- Compatible with all mounting plates, including face frame adapters.
C2_YA99R
Pie corner hinge
C2PYA99R = Wood screw, Nickel finish
C2RYA99R = Dowel, Nickel finish
Screw cover cap S2BX83H___
Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges
S2BX83H9__ = Nickel
S2BX83H6__ = Titanium
Screw cover cap S2MX83H___
Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges
S2MX83H9__ = Nickel
S2MX83H6__ = Titanium
Screw cover cap S2XX83A1__
Symmetrical plastic screw cover cap, it can be personalised on request.For Series 100, 200, 700, F, M, 400 and universal hinges. Excluded: 155° opening hinges
Technical information
Documentation
Video
- Automatic closing
- Traditional assembly with Series 200 mounting plates
- Assembly with Domi snap-on mounting plates
- Traditional height adjustment
- Height adjustment by cam
- Depth adjustment with Domi snap-on mounting plates - Model BAV
- Depth adjustment with Domi snap-on mounting plates - Models BAPXR BARXR
- Traditional depth adjustment
- Sideways adjustment
- Fixing: wood screw
- Fixing: Rapido system
- Fixing: knock-in dowel
- Fixing: Logica system
Technical pamphlet
