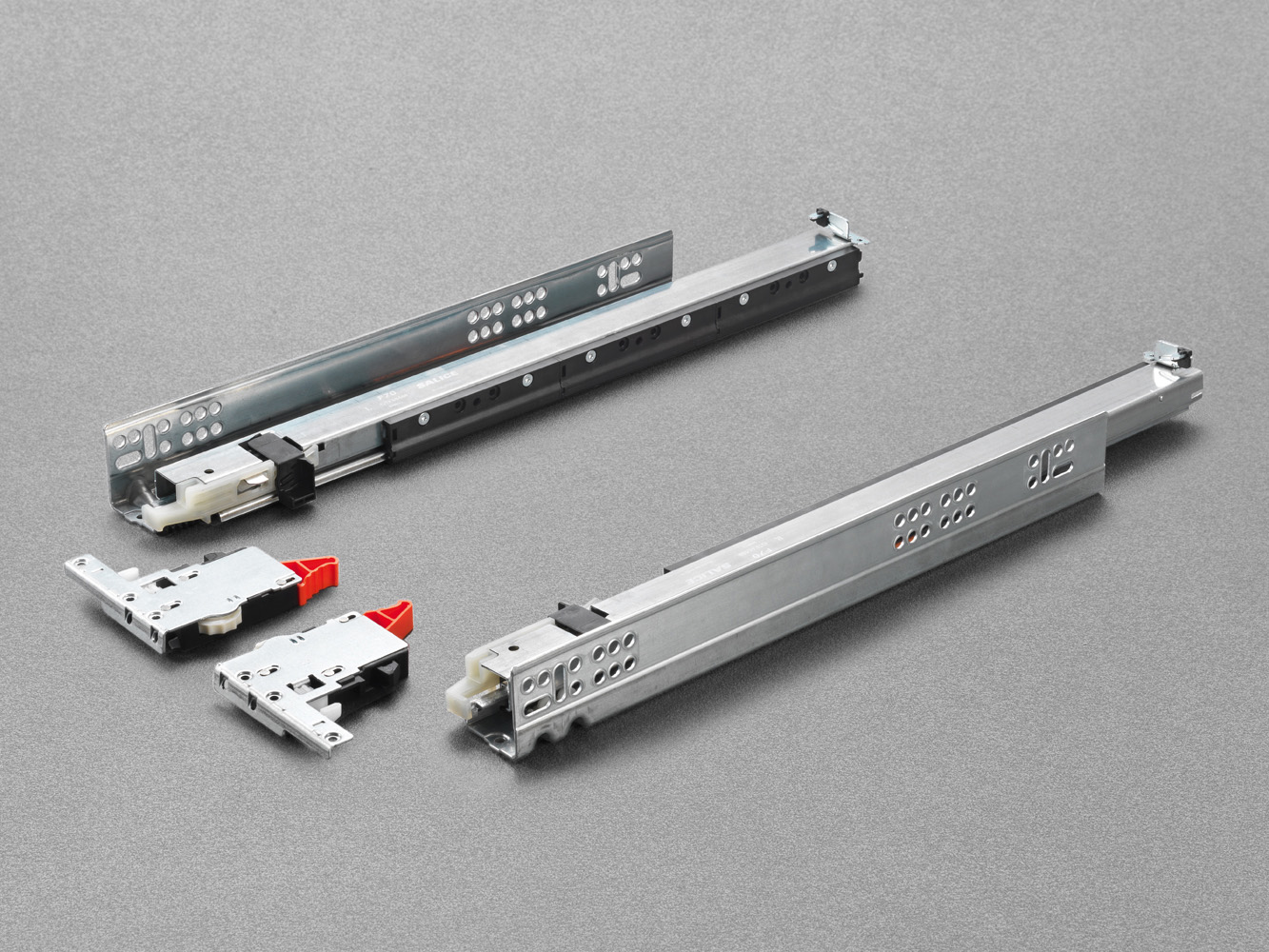

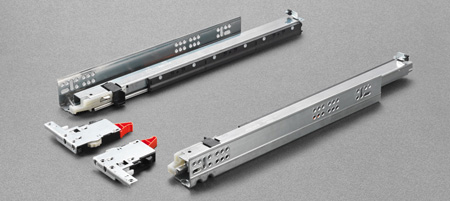

PROGRESSA+ PUSH

Full-extension

High-performance, under-mount drawer runners that redefine precision and durability

  • 70 kg Dynamic load capacity
  • Full-extension
  • Compatible with Lineabox Easy drawers
  • Finish: bright zinc-plated
A cutting-edge generation of high-performance, full extension undermount slides

Crafted using state-of-the-art technology, Progressa slides feature our “S Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.

Full-extension-2

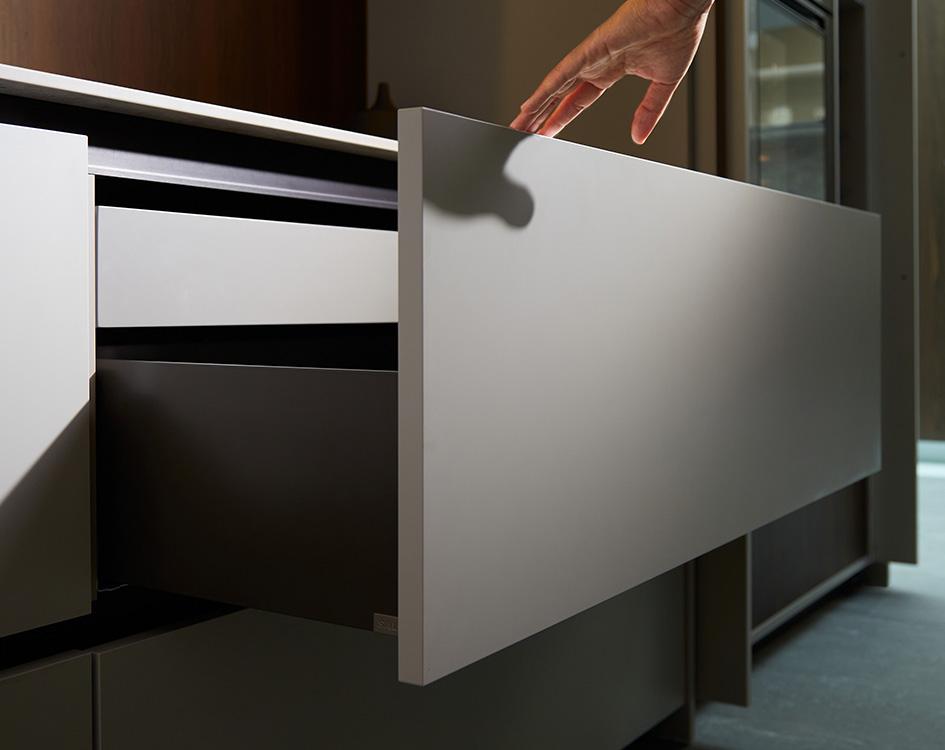

The synchronization system for Push-to-Open Progressa+ slides has been developed to ensure that wider drawers can be opened with minimum effort. The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
The synchronization can be used with any drawer width; its functionality is at its best with drawers wider than 762 mm (30”).

  • 70 kg Dynamic load capacity
  • Available in the full range of lengths from 350 mm to 750 mm in 50 mm increments
  • Full extension with a synchronized mechanism
  • Integrated Push opening system
  • Elongated holes for depth and height adjustment
  • Adjustable clips allow for easy drawer insertion and removal
  • The drawer is latched when closed
  • Frameless or blocked out face frame applications
  • Tool free height adjustments + 2.5 mm
  • Tool free depth adjustments +/- 3 mm
  • Tool free side adjustments +/- 1.5 mm
  • Optional:
     - tool free tilt adjustment +3 mm
     - Push Synchronizer
  • 13 mm to 16 mm drawer material thickness
  • Compatible with Lineabox Easy drawers
  • Finish: bright zinc-plated
  • 100% Made in Italy
G7E6P350XXF6

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 350 mm

Min. depth of the cabinet (PM): 360 mm

G7E6P400XXF6

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 400 mm

Min. depth of the cabinet (PM): 410 mm

G7E6P450XXF6

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 450 mm

Min. depth of the cabinet (PM): 460 mm

G7E6P500XXF6

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 500 mm

Min. depth of the cabinet (PM): 510 mm

G7E6P550XXF2

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 550 mm

Min. depth of the cabinet (PM): 560 mm

G7E6P600XXF2

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 600 mm

Min. depth of the cabinet (PM): 610 mm

G7E6P650XXF2

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 650 mm

Min. depth of the cabinet (PM): 660 mm

G7E6P700XXF2

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 700 mm

Min. depth of the cabinet (PM): 710 mm

G7E6P750XXF2

Full extension runner for 13 mm to 16 mm drawer material thickness

Runner length (LN): 750 mm

Min. depth of the cabinet (PM): 760 mm

G7E9P350XXF6

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 350 mm

Min. depth of the cabinet (PM): 360 mm

G7E9P400XXF6

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 400 mm

Min. depth of the cabinet (PM): 410 mm

G7E9P450XXF6

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 450 mm

Min. depth of the cabinet (PM): 460 mm

G7E9P500XXF6

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 500 mm

Min. depth of the cabinet (PM): 510 mm

G7E9P550XXF2

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 550 mm

Min. depth of the cabinet (PM): 560 mm

G7E9P600XXF2

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 600 mm

Min. depth of the cabinet (PM): 610 mm

G7E9P650XXF2

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 650 mm

Min. depth of the cabinet (PM): 660 mm

G7E9P700XXF2

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 700 mm

Min. depth of the cabinet (PM): 710 mm

G7E9P750XXF2

Full extension runner for 18-19 mm drawer material thickness

Runner length (LN): 750 mm

Min. depth of the cabinet (PM): 760 mm

AFCGXX3B

Right and left clip with integrated adjustments

- For all Progressa, Progressa+ and Progressa+ Shelf runners
- Dual steel/fiber glass-nylon construction
- Compatible with all Progressa runners
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm

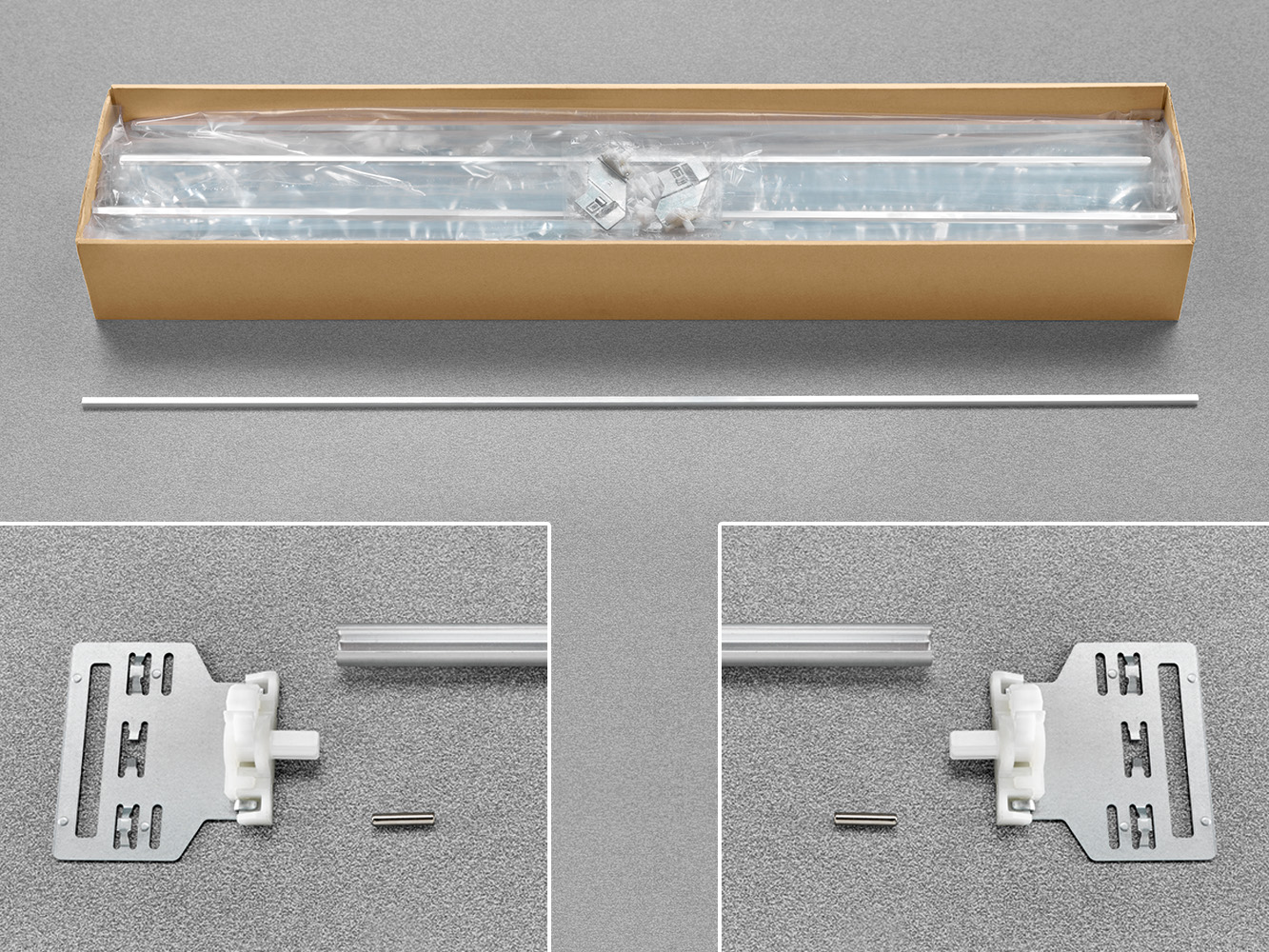

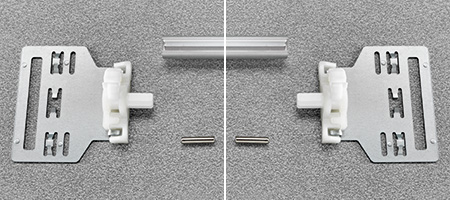

APKF7X51150

Progressa Push Synchronizer bar

The synchronization system for Push-to-Open Progressa runners has been developed to ensure that wider drawers can be opened with minimum effort, regardless of where pressure is applied.
The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.

ASGD704U3XA

Drawers drilling templates

Template for the hole for the rear hook and the pre-drilling for the clips.

AFSFXXB

Spacer for 12 and 13 mm drawer sub-fronts.

To be used with AFCGXX3B front locking device (right and left).

AGLRXX3F
Lever for the tilt adjustment
V234X164

Wood screw

ø 4 x 16 mm

V136X154

Euroscrews

Drilling ø 6 x 14,5 mm

V136X114

Parafusos Euro

Furo ø 6 x 11 mm
