Series 300 mounting plates - SALICE-1

Series 300 mounting plates

- Asymmetrical cruciform mounting plates. For hinges Series 300.
- 20x32 mm drilling.
- Height adjustment ±1,5 mm by cam.

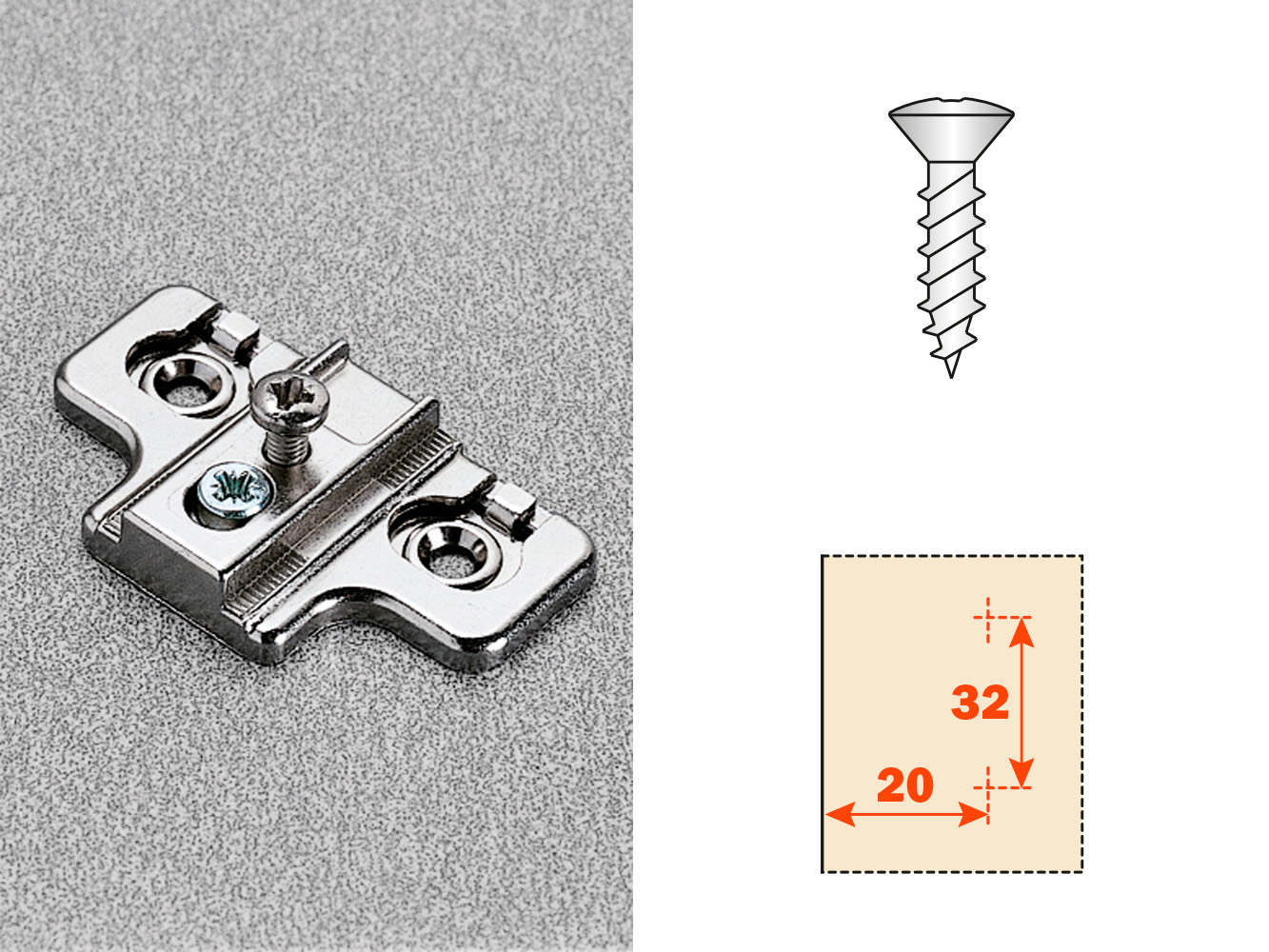

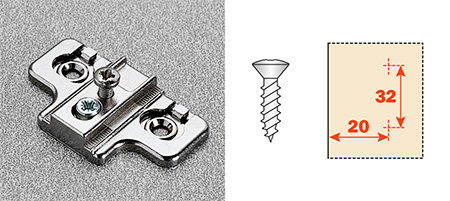

B383E09

Steel mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = 0

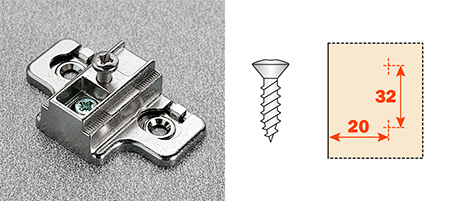

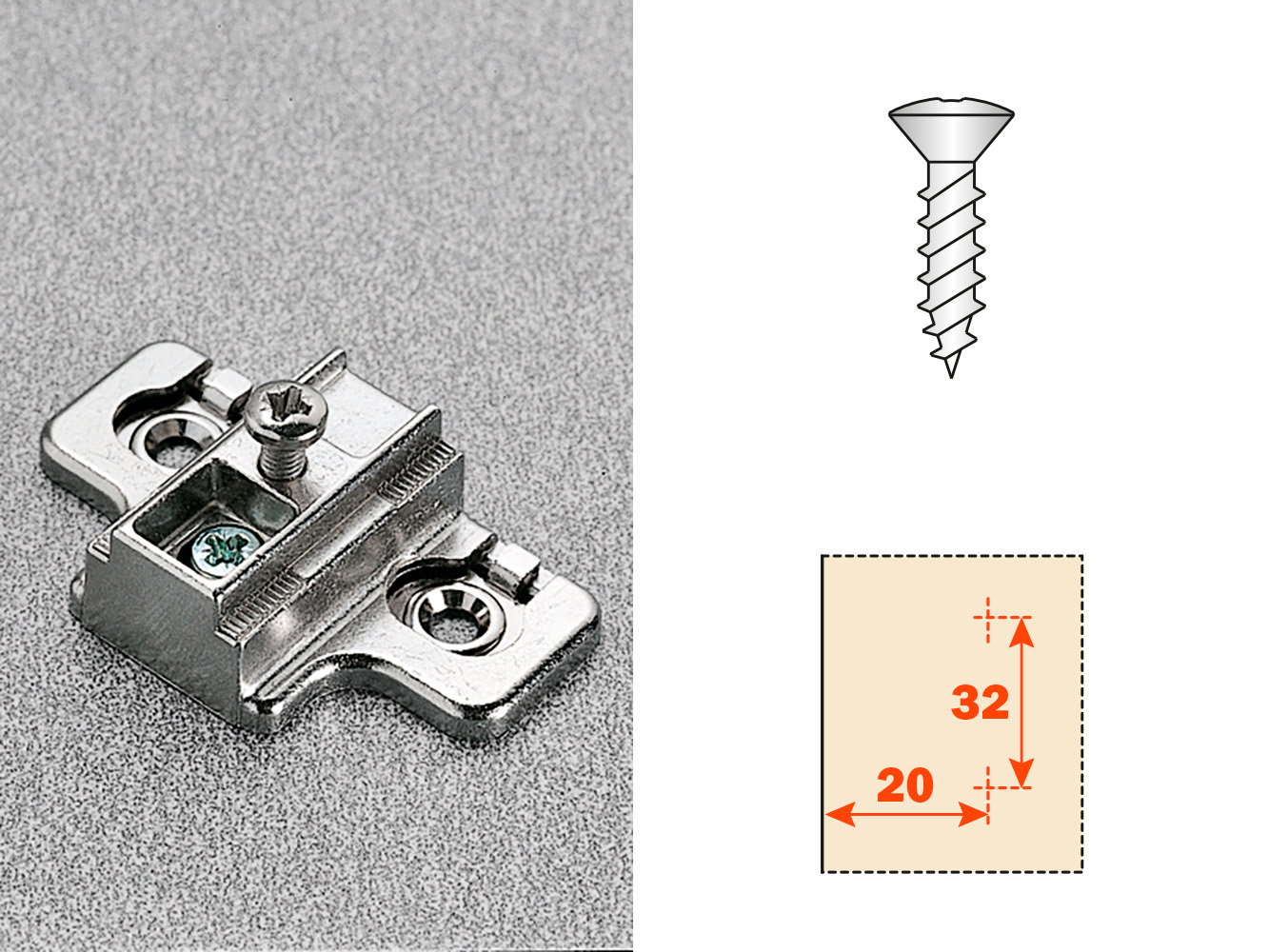

B383E69

Steel mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = 6

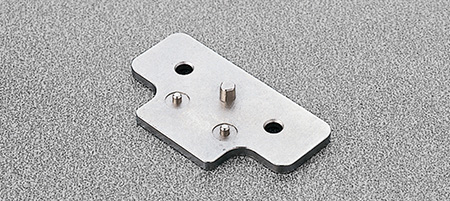

S38X8639

3 mm spacer for special applications.

S38X86D9

13 mm spacer for special applications.
