Domi snap-on mounting plates
- Straight Domi snap-on mounting plates. For hinges Series 100, 200, 400, N, M, Universal Hinges and Silentia+.
- 21+32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment by cam ±2 mm.
- 21+32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment by cam ±2 mm.
BAP3M
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4
BAPGM
Steel mounting plates.
Fixing: Euroscrew (ø5x11).
H = 0 2 3 4
BAP7M
Steel mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3 4
BAP3R
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6 9 12
BAPGR
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11).
H = 0 2 3 4 6 9 12
BAP7R
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3 4 6 9 12
BAPMR
Die-cast mounting plates.
Fixing: expanding dowel (ø10x11.5 mm).
H = 0 2 3 4 6 9 12
- Cruciform Domi snap-on mounting plates. For hinges Series 100, 200, 400, N, M, Universal Hinges and Silentia+.
- 37x32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment by cam ±2 mm.
- 37x32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment by cam ±2 mm.

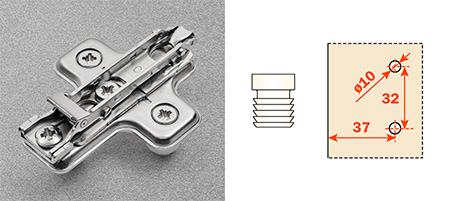

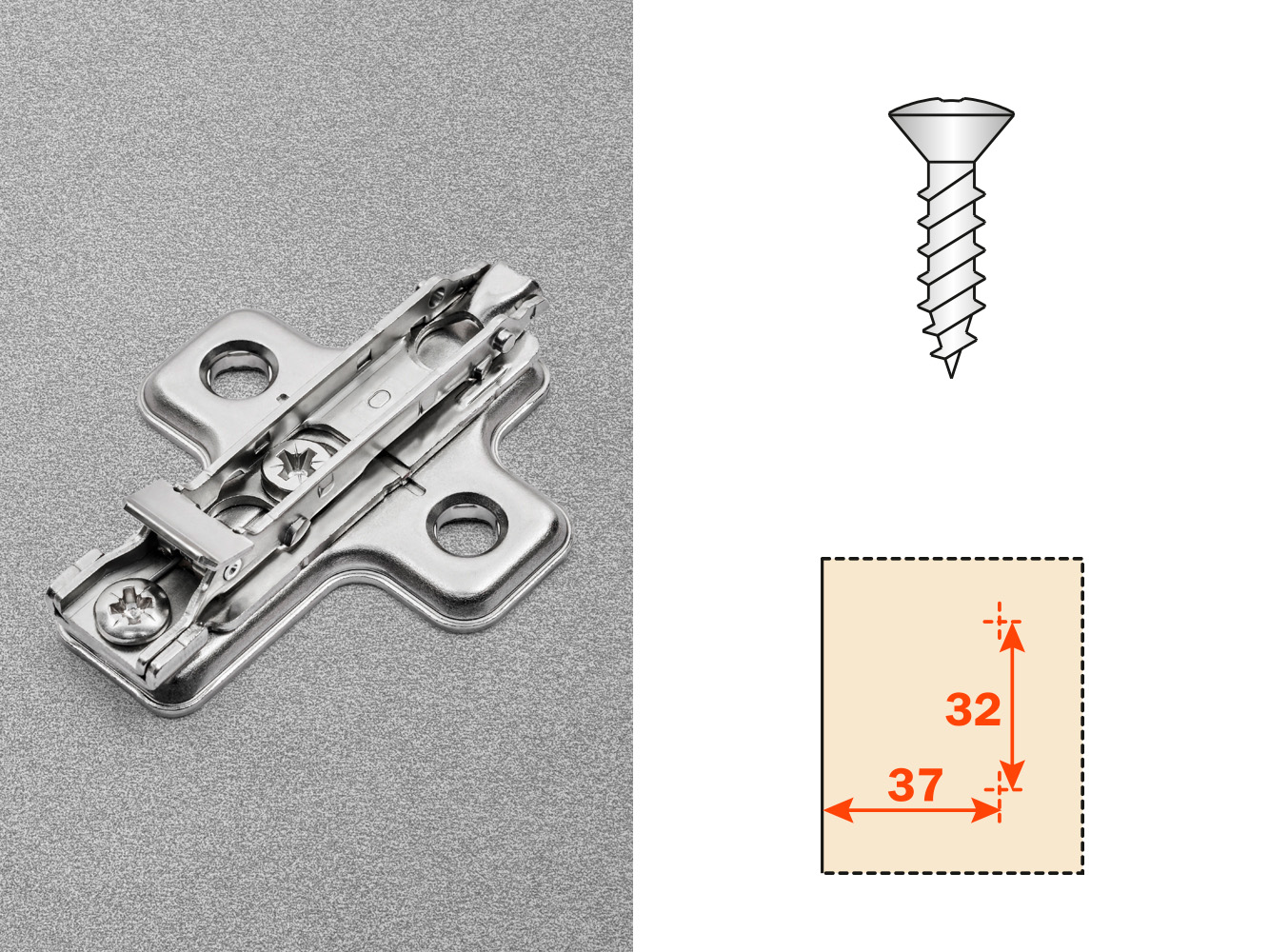

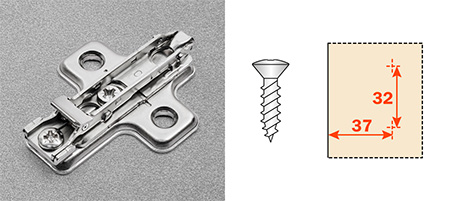

BAR3L__F
Steel mounting plates.
Fixing: wood screw.
Screw: B 4.2 DIN 7983.
H = 0 2 3 4 6

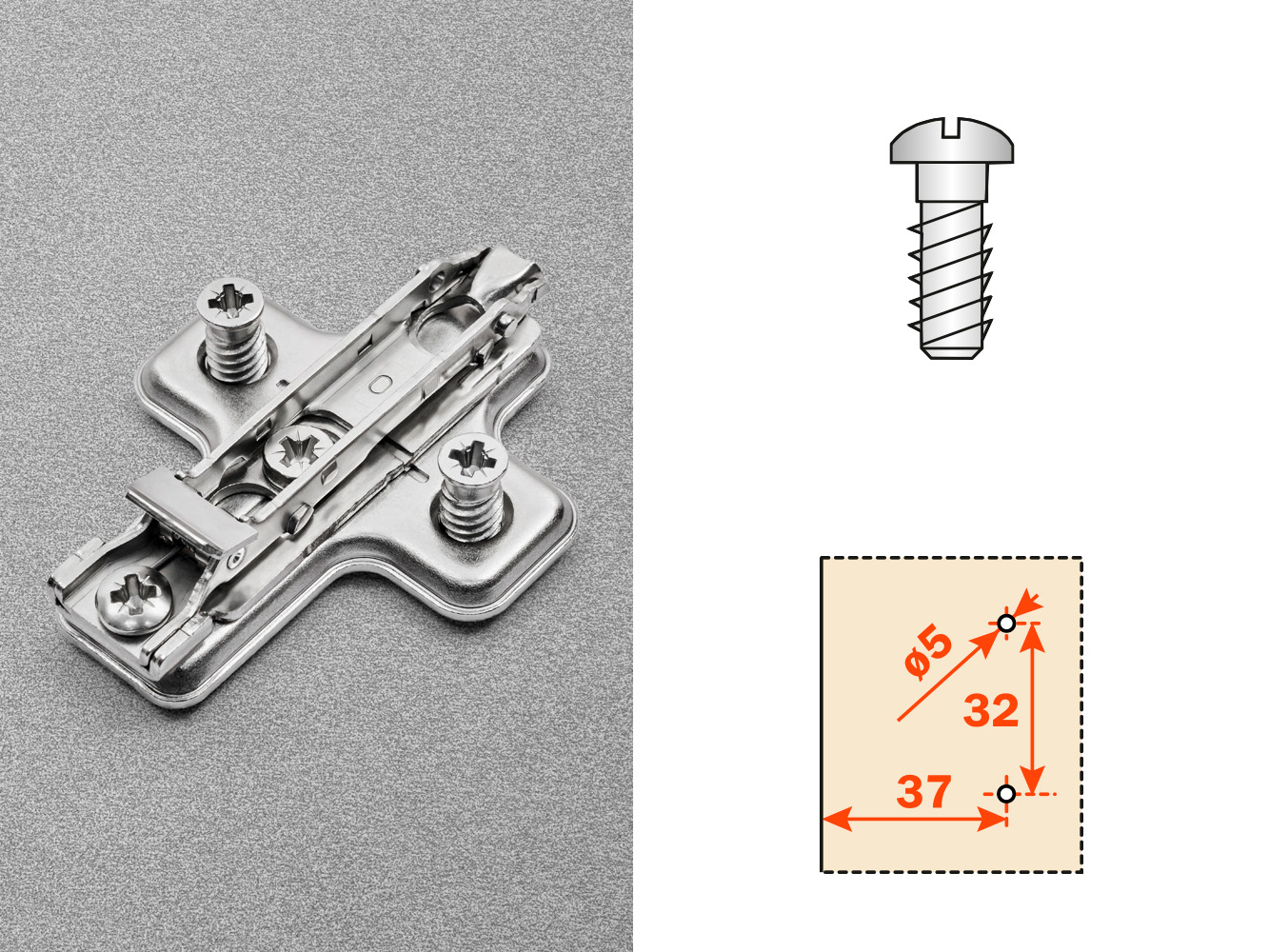

BARGL__F
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 0 2 3 4 6
BAR7L__F
Steel mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3 4 6

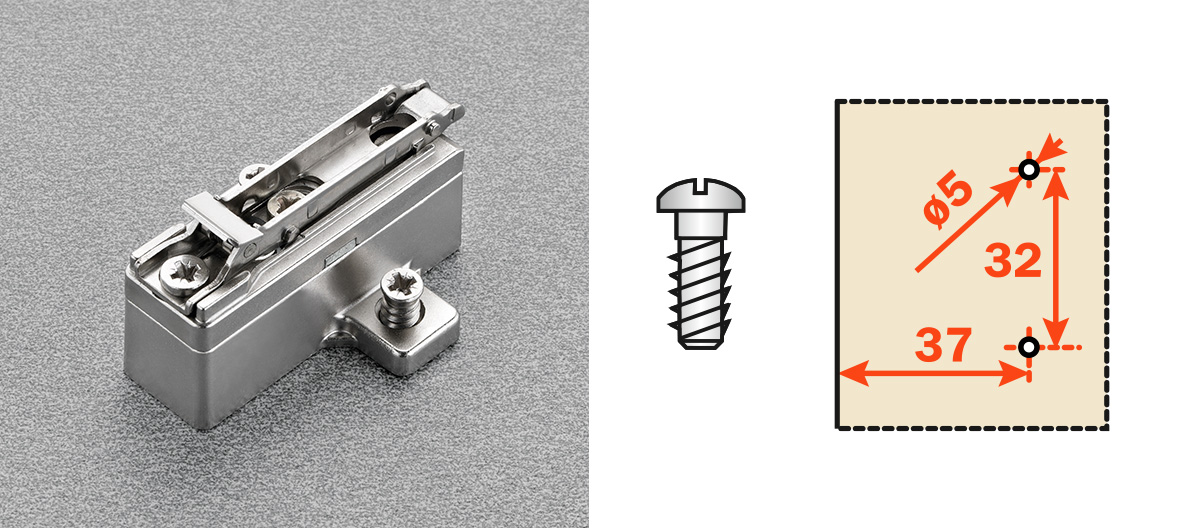

BAR3R
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6 9 12
H = 18 21 22 24 27 31
BARGR
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11).
H = 0 2 3 4 6 9 12
H = 18 21 22 24 27 31
BAR4R
Die-cast mounting plates.
Fixing: expanding dowel (ø5x11 mm).
H = 0 2 3 4 6 9 12
BAR7R
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x11.5 mm).
H = 0 2 3 4 6 9 12
BARMR
Die-cast mounting plates.
Fixing: expanding dowel (ø10x11.5 mm).
H = 0 2 3 4 6 9 12
- Cruciform Domi snap-on mounting plates. For hinges Series 100, 200, 400, N, M, Universal Hinges and Silentia+.
- 37x32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment ±2 mm.
- 37x32 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- Height adjustment ±2 mm.
BAV3M__F
Steel mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 0 2 3 4 6
BAVGM__F
Steel mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 0 2 3 4 6

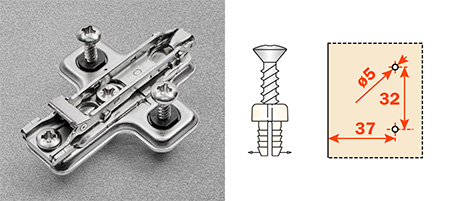

BAV4M__F
Steel mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 0 2 3 4 6
BAV7M__F
Steel mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 0 2 3 4 6
BAV3E__F
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 9 12 18
BAVGE__F
Die-cast mounting plates.
Fixing: Euroscrew (ø5x11 mm).
H = 9 12 18
BAV4E__F
Die-cast mounting plates.
Fixing: expanding dowel (ø5x7.5 mm).
H = 9 12 18
BAV7E__F
Die-cast mounting plates.
Fixing: knock-in dowel (ø10x10 mm).
H = 9 12 18
- For hinges Series 100, 200, 400, N, M, Universal Hinges and Silentia+.
- 9.5x48 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
- 9.5x48 mm drilling.
- Depth adjustment by cam -0.5 mm +2.8 mm.
BAU3L
Cruciform Domi snap-on mounting plates.
Height adjustment ±2 mm.
Steel mounting plates.
Fixing: wood screw.
Screw: B 4.2 DIN 7983.
H = 1 4
BAU3R
Cruciform Domi snap-on mounting plates with two adjustments.
Height adjustment by cam ±2 mm.
Die-cast mounting plates.
Fixing: wood screw.
Screw: B 3.5 DIN 7983.
H = 1 4 6
