PROGRESSA+ SHELF SMOVE SMOVE G7E6R-1

PROGRESSA+ SHELF SMOVE

SMOVE G7E6R

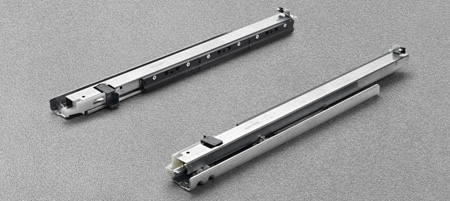

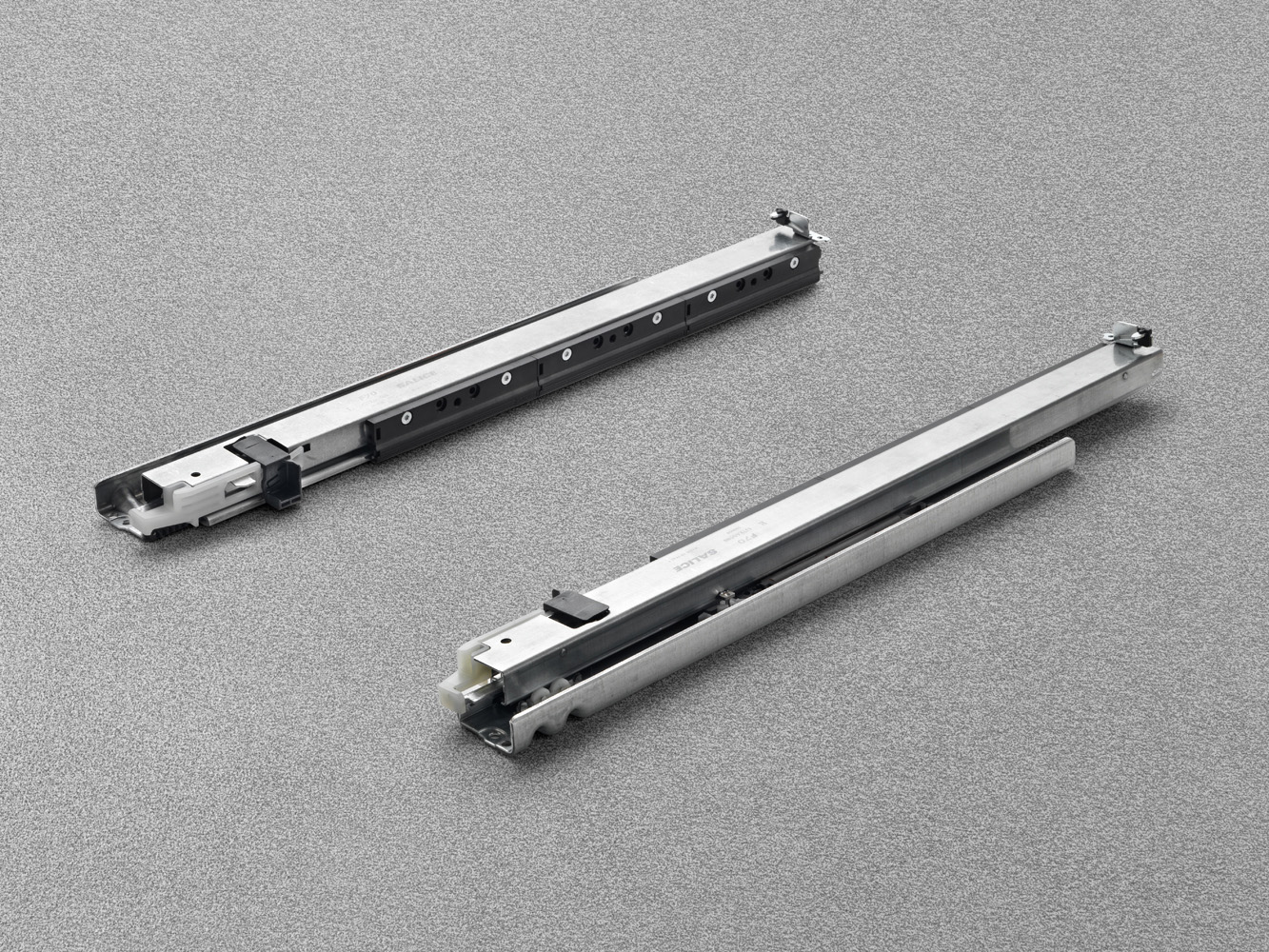

Full-extension runner with a synchronized mechanism

  • 170 Lbs (78 kg) Static Load Capacity
  • 154 Lbs (70 kg) Dynamic Load Capacity
  • Available in 14” to 20” length (from 350 mm to 500 mm)
  • Integrated Smove system
Slides assemble on bottom, can be used in any quantities to improve action.

With larger shelves, it is possible to increase the number of runners in order to improve the load capacity and the stability.

PROGRESSA+ SHELF SMOVE SMOVE G7E6R-2

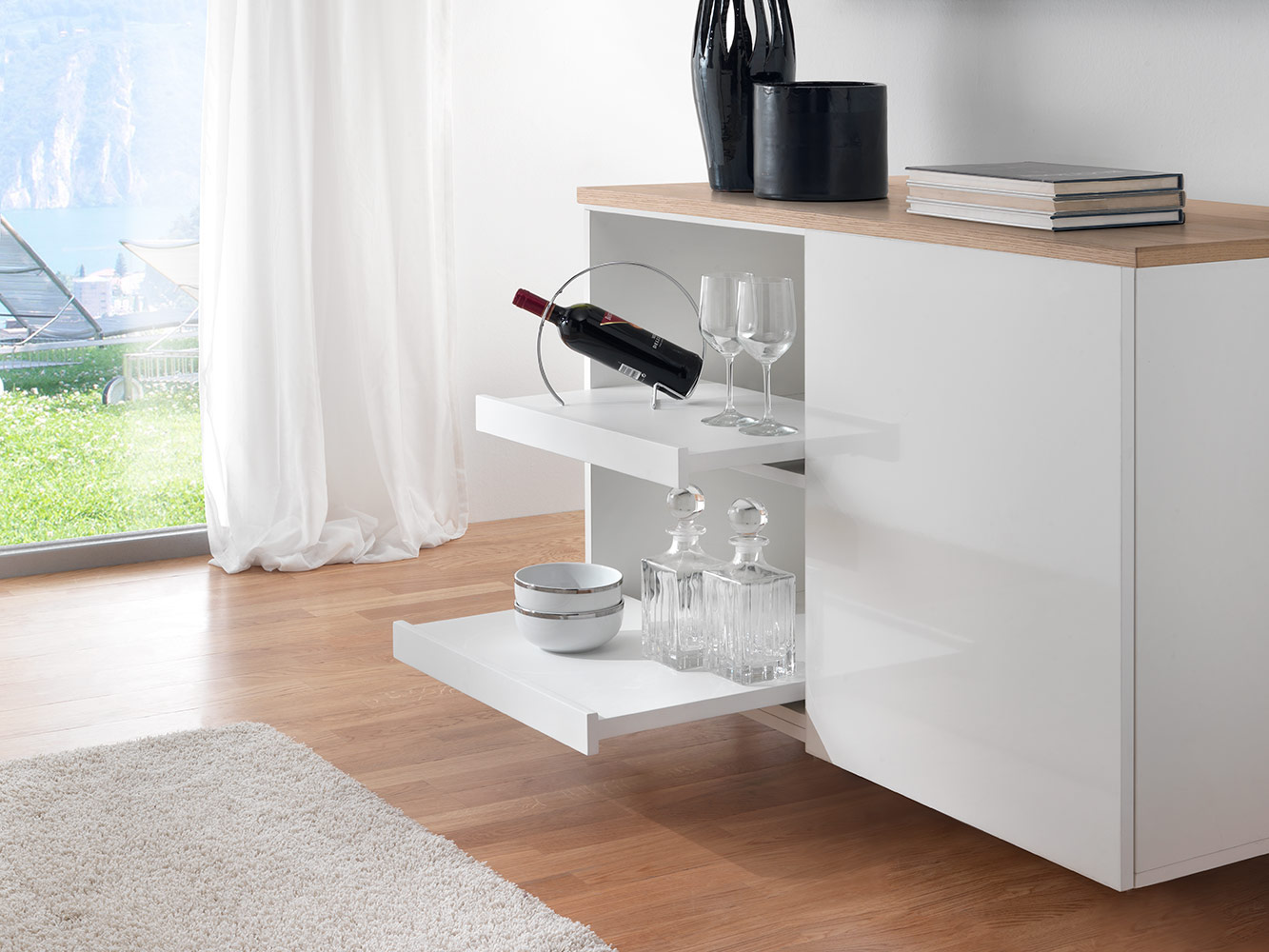

A cutting-edge generation of high-performance, full extension slides.

Crafted using state-of-the-art technology, Progressa+ Shelf slides feature our “S Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.

  • 170 Lbs (78 kg) Static Load capacity, 154 Lbs (70 kg) Dynamic Load capacity
  • Full extension with a synchronized mechanism
  • Enhanced smooth soft closing action
  • Available in 14” to 20” length (from 350 mm to 500 mm)
  • Tool free height adjustments +2.5 mm
  • Tool free depth adjustments +/- 3 mm
  • Tool free side adjustments + / - 1.5 mm
  • Safety system that prevents the shelves from turning over
  • Maximum reliability at an everyday price
  • 100% Made in Italy
G7E6R350XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 350 mm
Min. cabinet depth (PM): 360 mm

G7E6R400XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 400 mm
Min. cabinet depth (PM): 410 mm

G7E6R450XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 450 mm
Min. cabinet depth (PM): 460 mm

G7E6R500XXF6

Full-extension runner attached to the shelf by clips.

Runner length (LN): 500 mm
Min. cabinet depth (PM): 510 mm

AFCGXX3B

Front locking devices - Standard mount - Side and depth adjustments

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).

AFCEX56B

Front locking devices - Standard mount - Front and side fixing

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Engineered thermoplastics.
Compatible with all Progressa slides.
Side fixing option.
Pre-drilling recommended ø 2.5 mm (3/32”).
Minimum inside drawer width 130 mm.
Minimum inside cabinet width 172 mm.

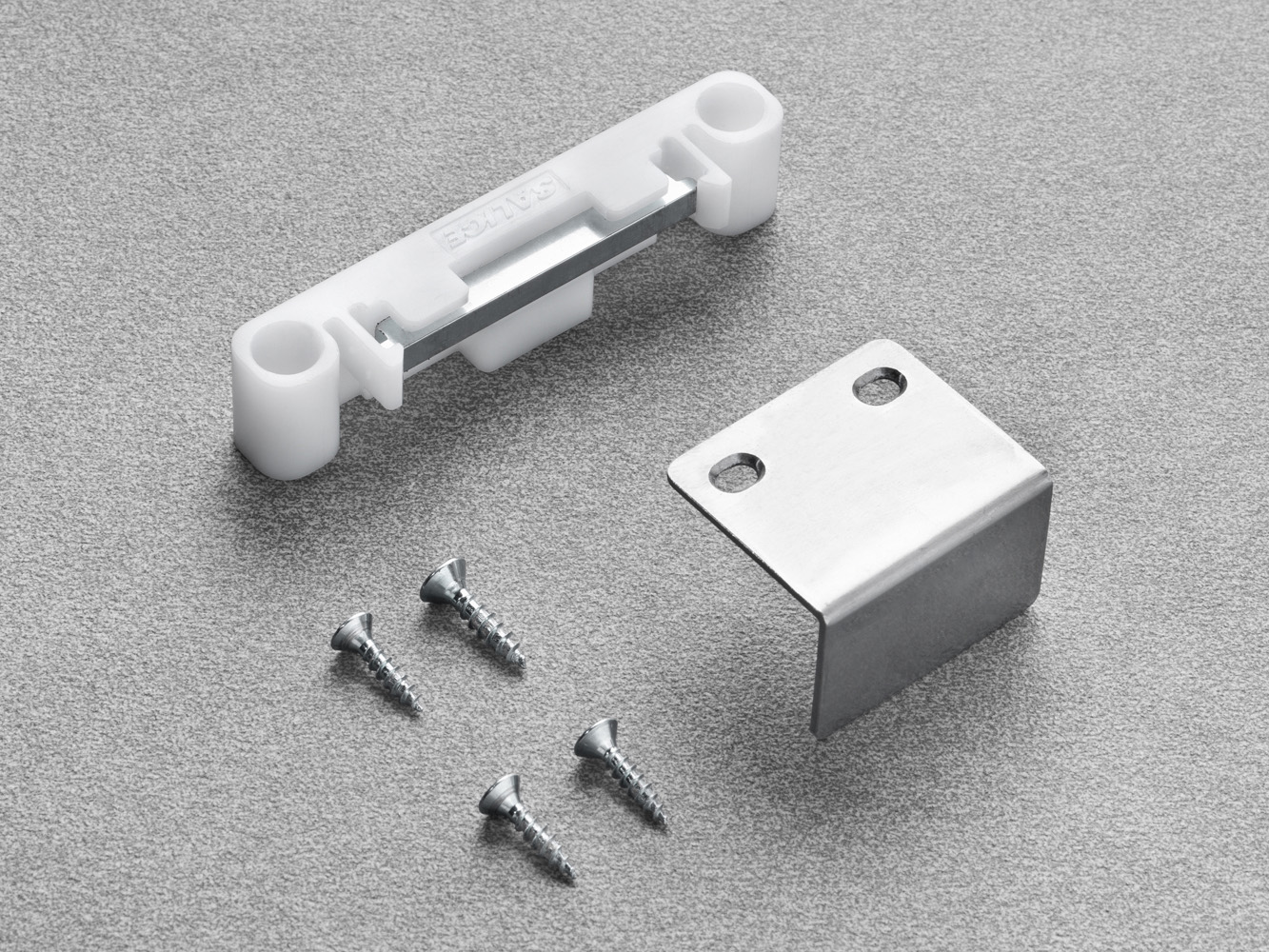

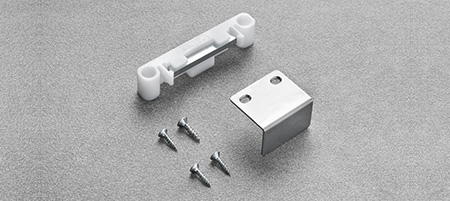

AROSXXY

Rear-fixed bracket and magnet

Lock-open function for runners and drawers The shelf is held at the maximum opening position by means of a rear-fixed bracket and a magnet.
1 box = 20 magnets, 20 brackets.
Screws included.

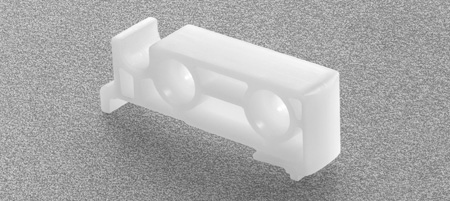

AGAPXXYI

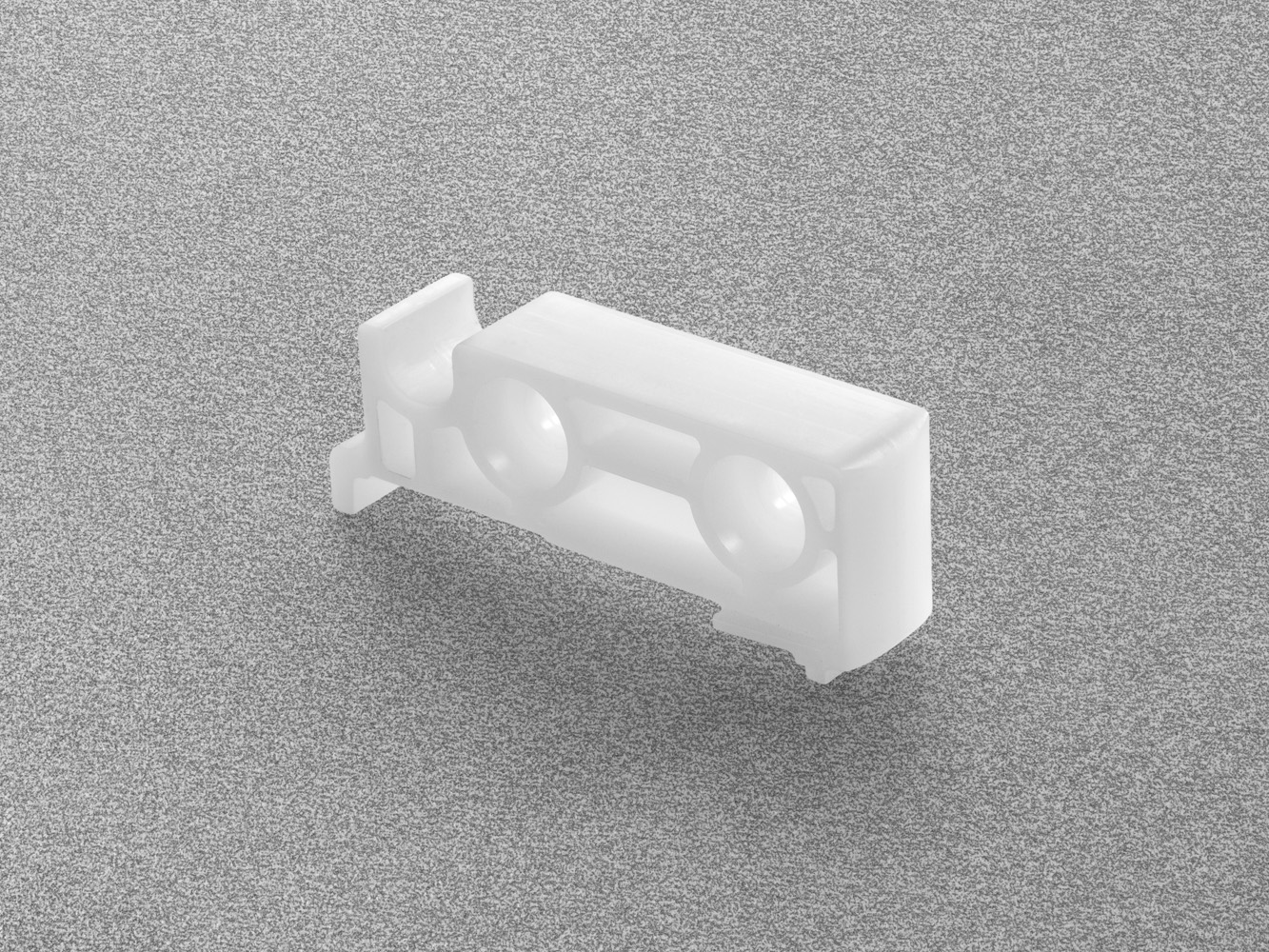

Rear hook bracket

For shelves that are less than 12 mm thick, the runner can be used together with the rear hook bracket, thus eliminating the need for the rear hole in the shelf.
1 box = 100 pcs.

ASGD704U3XA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

ASGD504U6XA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

V136X114

Euro screws

Euro screws # 6 x 11 mm (7/16").
1 box = 100 pcs.

V136X154

Euro screws

Euro screws # 6 x 14.5 mm (9/16").
1 box = 100 pcs.

D2A7XCXCP

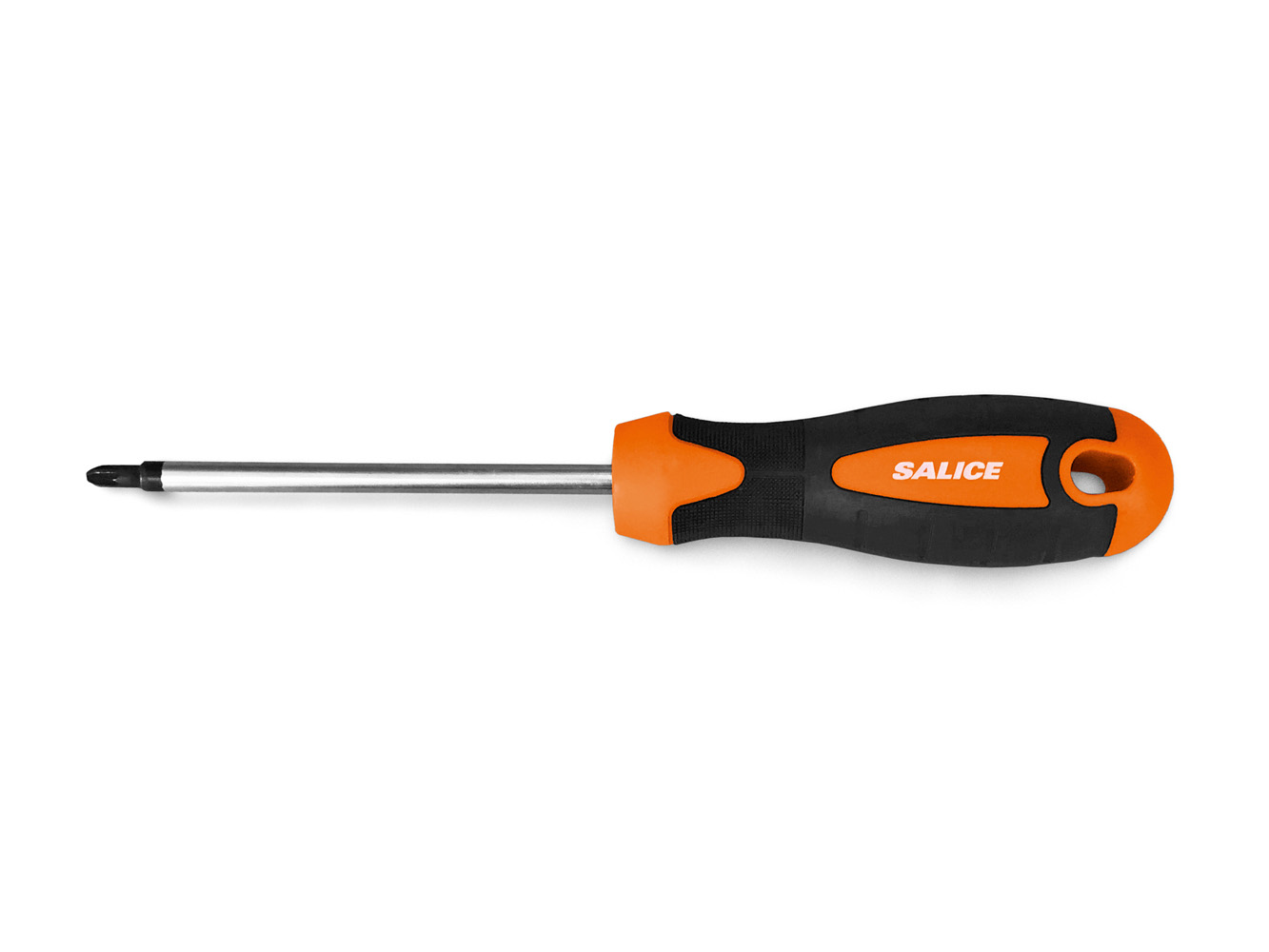

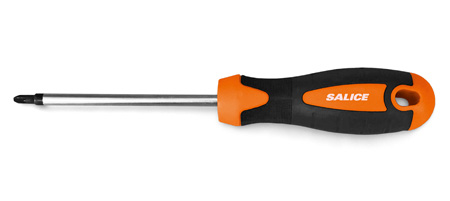

Pozi driver

1 box = 100 pcs.

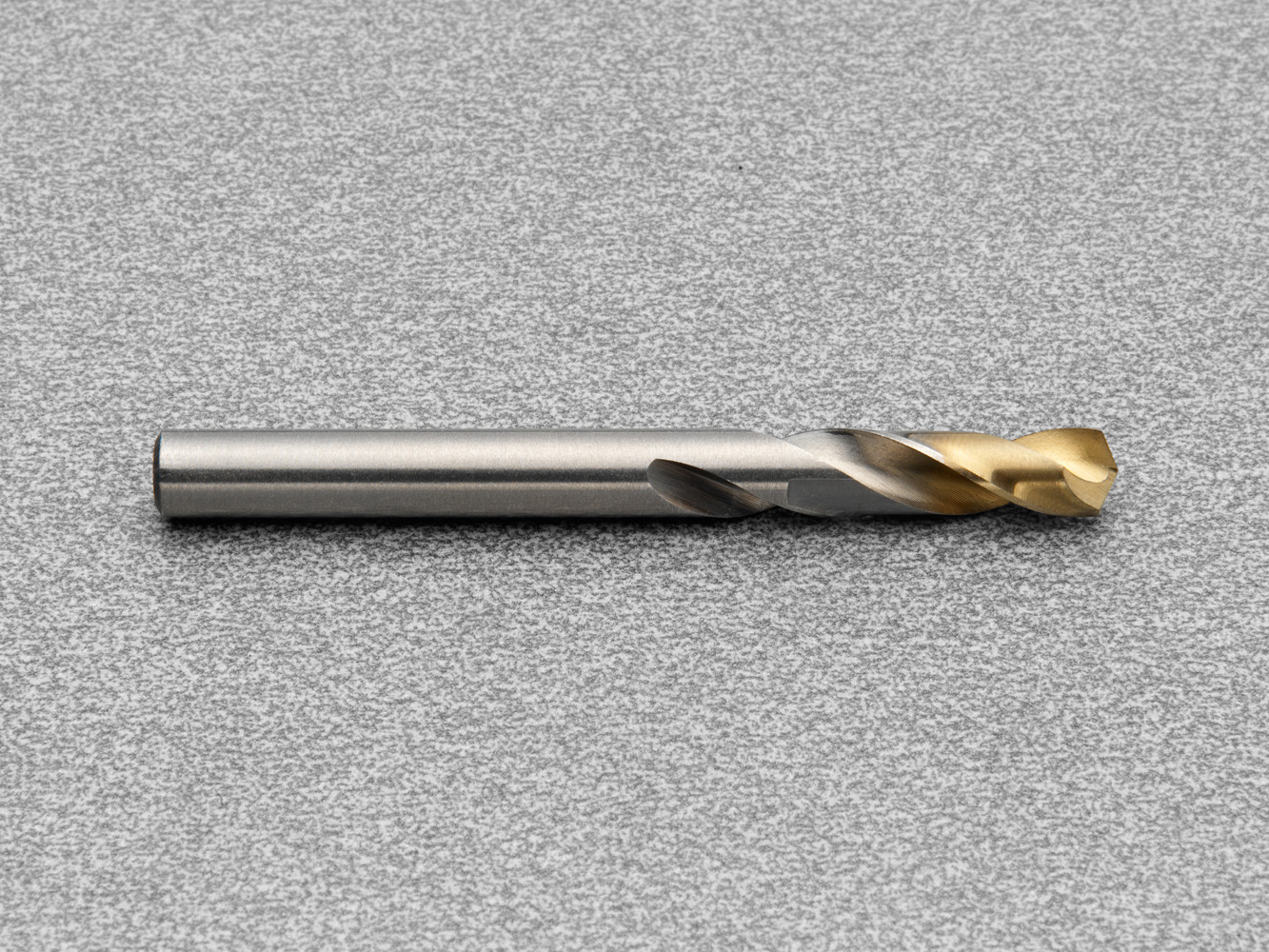

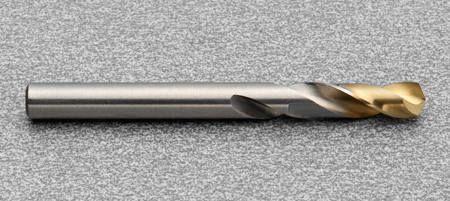

TDB7406R

ø 6 mm drill bit for rear hook

1 box = 1 pc.

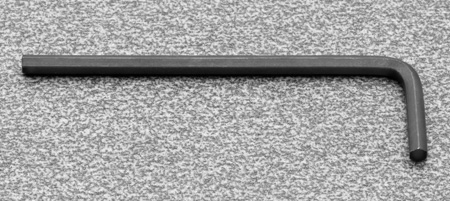

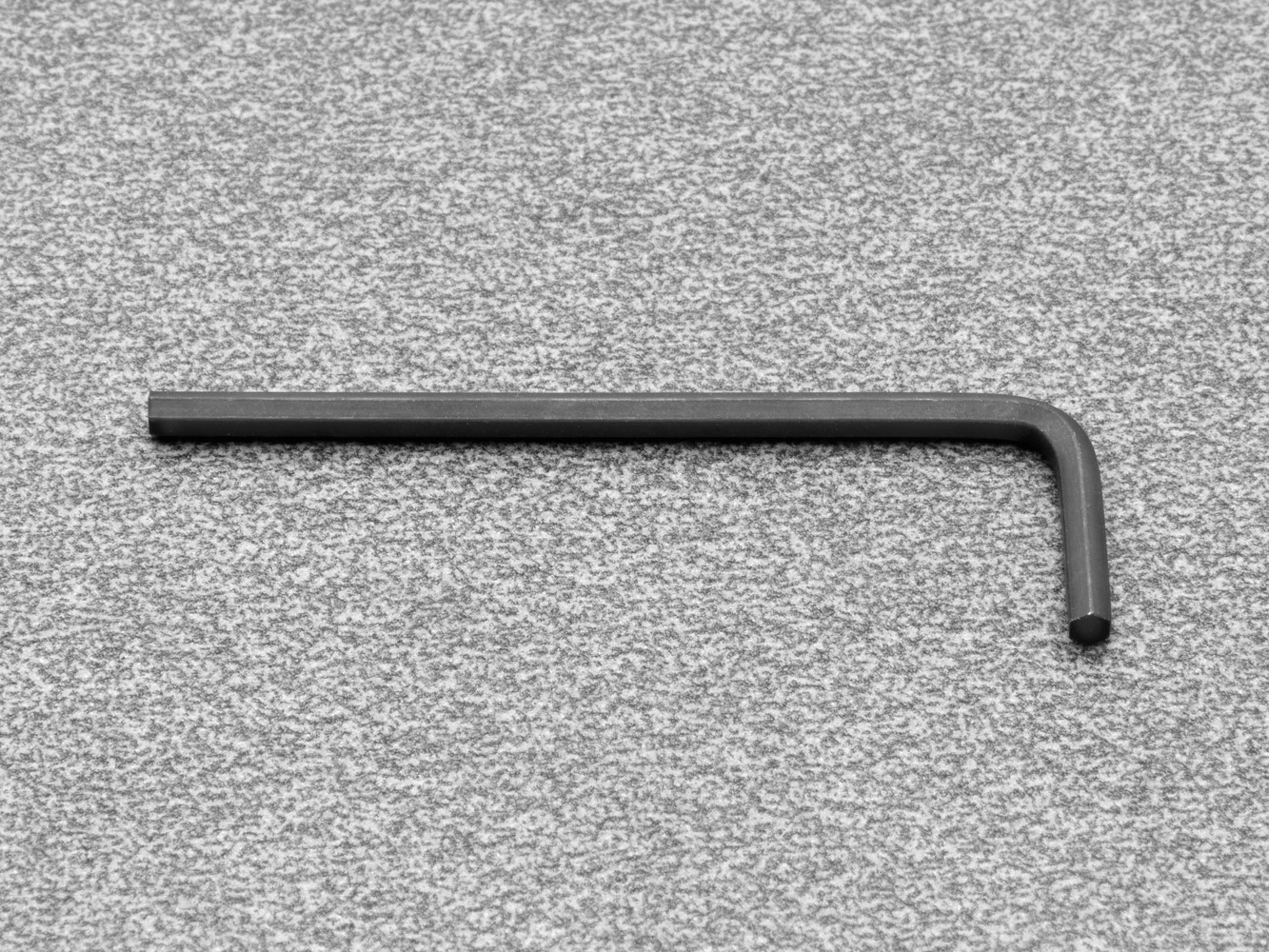

TLKEY332

Hex key to lock the stop collar set screw onto the 6 mm drill bit

1 box = 1 pc.

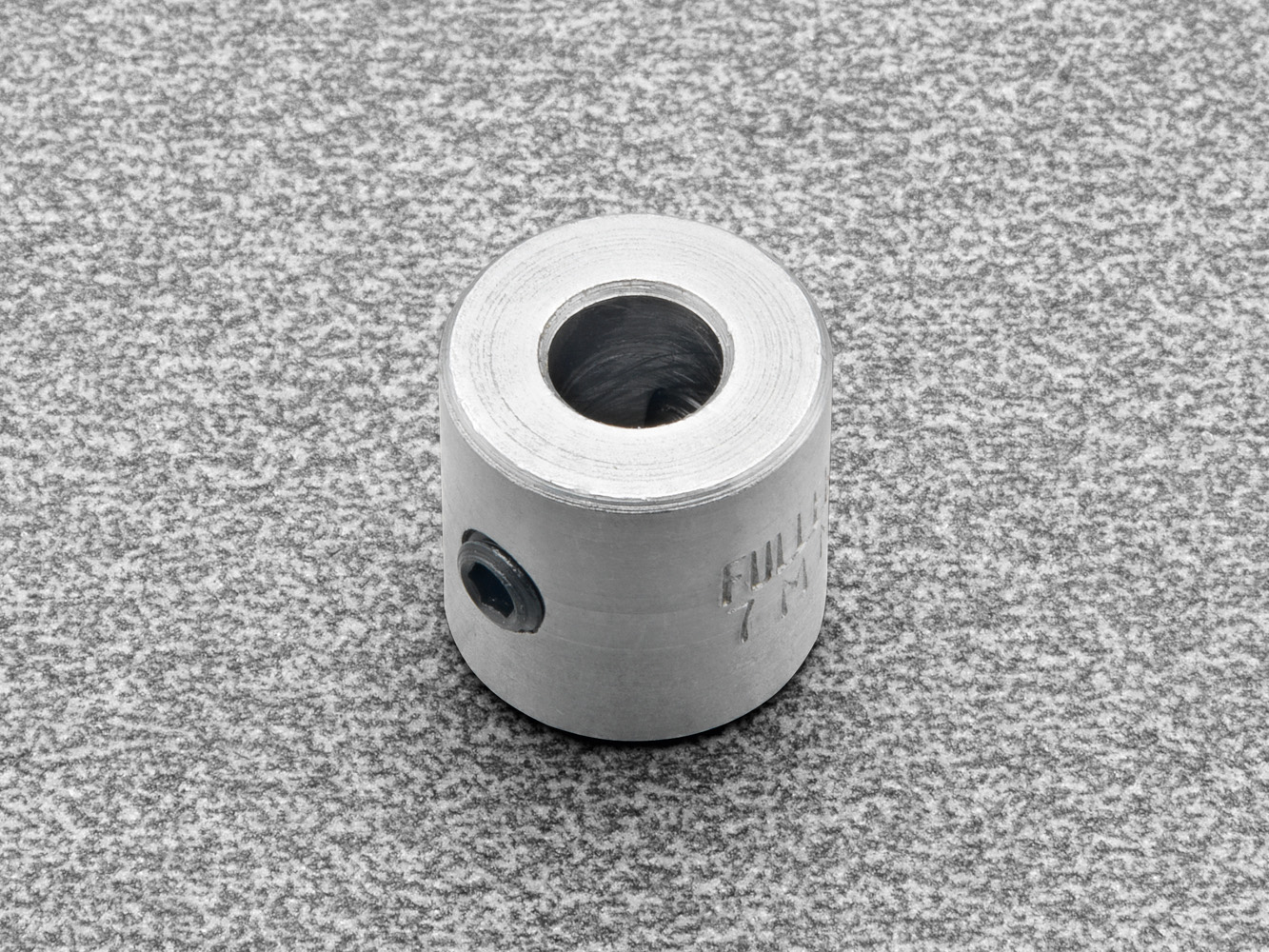

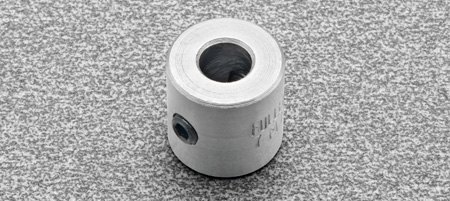

TSC06MM

Drill bit stop collar for 6 mm bit

1 box = 1 pc.
