PUSH Metal profiles (20 mm) - Positive angled application-1

PUSH

Metal profiles (20 mm) - Positive angled application

Hinges equipped with a special spring for the opening of handle-less doors

  • Integrated Push system
  • For 20 mm-thick doors
  • Aluminium-frame doors
  • 105° opening
  • Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
The PUSH-System

It is a self-opening system for the doors of all types of handleless furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.

The retaining catches can be pressure-fixed or screw-fixed.

PUSH Metal profiles (20 mm) - Positive angled application-2
Push hinges are equipped with a special spring that acts to open the door independently of the release device.
  • Hinges for doors with positive angled assembly.
  • Hinges specially developed for use with metal profiles.
  • 105° opening.
  • We recommend the use of self-threading screws B 3.5 x 9.5 DIN 7982 to fix C2ZP hinges.
  • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
C2ZPE99
Arm 30°
C2ZPM99
Arm 45°
DPMSNB
Release device. ø 10 mm, 40 mm length.
Beige
DPASNB
Release device to be used to increase the magnetic holding strength. It must always be used together with the DPM. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door.
ø 10 mm, 40 mm length.
Beige
DP28SN9
Retaining catch to be inserted with pin.
ø 11.5 mm
DP38XX91
Retaining catch with adhesive.
20x14 mm surface.
For use with aluminum doors or smooth surfaces.
DP39XXG
Adjustable magnetic catch. Inserted into the door.
ø16.6 mm
DP82XXBR
Adjustable longitudinal plastic adapter for release device. To be fixed with wood screws. 8+16 mm drilling. Without assembly stop devices.
Caps to be ordered separately
Beige
DP83XXBR
Adjustable double plastic adapter for release device. To be fixed with wood screws. 8+32 mm drilling. Without assembly stop devices.
Cover caps to be ordered separately
Beige
DP84SNBR
Adjustable plastic adapter for release device. To be fixed with wood screws. 8x32 mm drilling. Without assembly stop devices
Beige
SP44XX_
Spacer for inset door to be used together with DP82XX_R.
SP44XXG = grey
SP44XXB = beige
DP3SNB
With assembly stop device
Beige
DP3SNG
With assembly stop device
Grey

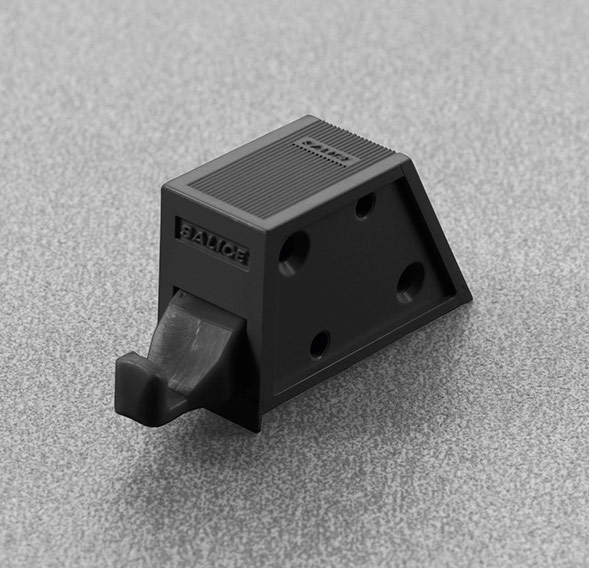

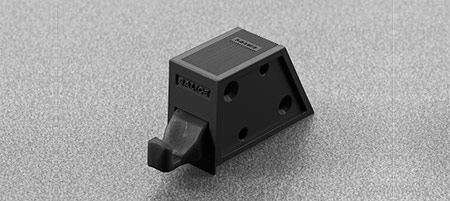

DP3SN3
With assembly stop device
Black
DP4SNB
Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Beige
DP4SNG
Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Grey

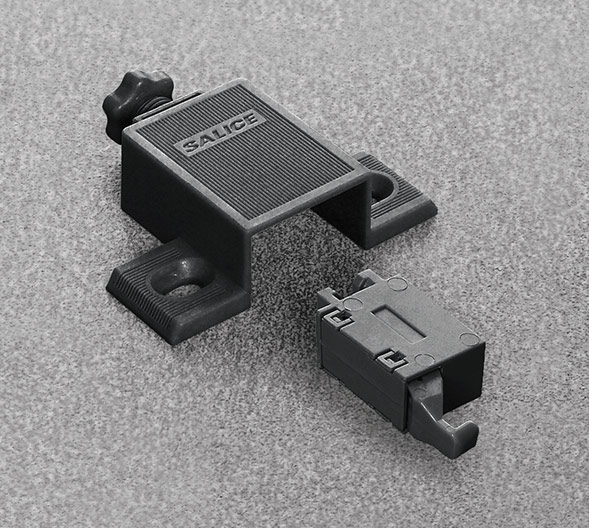

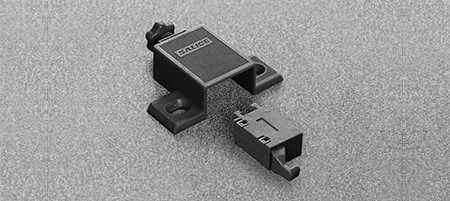

DP4SN3
Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Black
DP5SNB
Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Beige
DP5SNG
Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Grey

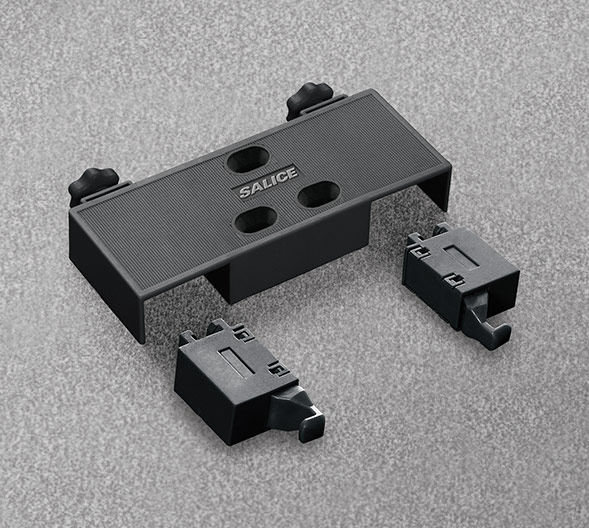

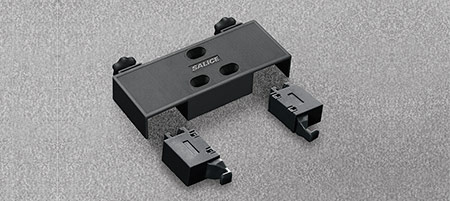

DP5SN3
Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Black
DP50SN0
Orange insertion tool for retaining catch DP29SN_
Screw cover cap S2BX83H___

Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2BX83H9__ = Nickel
S2BX83H6__ = Titanium

Screw cover cap S2MX83H___

Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2MX83H9__ = Nickel
S2MX83H6__ = Titanium
