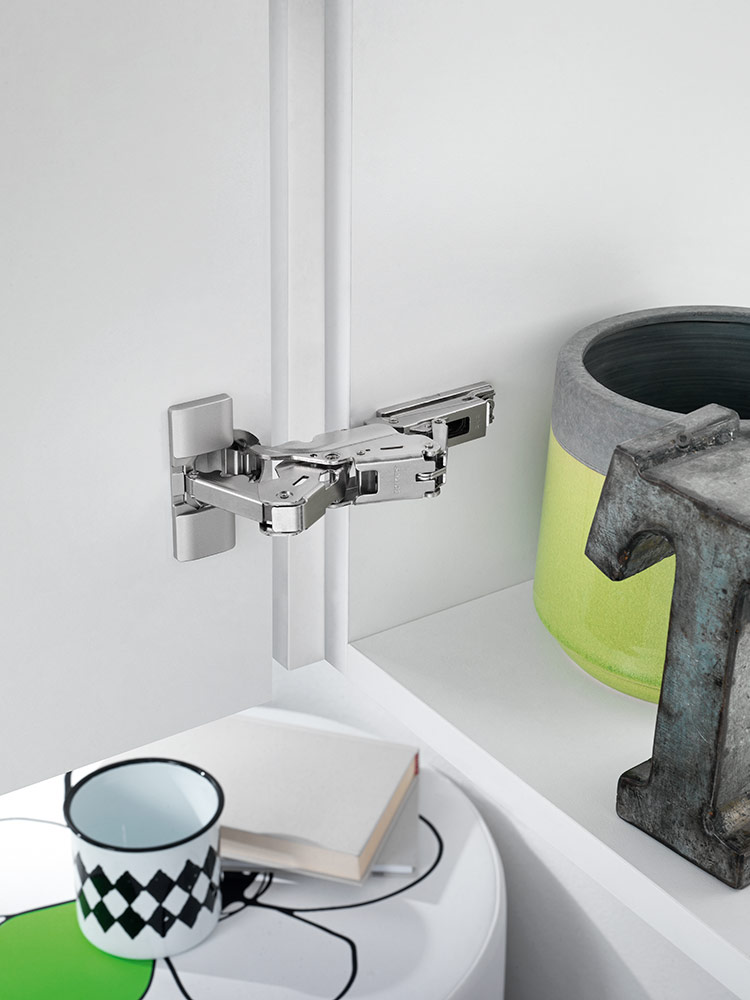

PUSH Series 200 - 155° opening - Standard application-1

PUSH

Series 200 - 155° opening - Standard application

Hinges equipped with a special spring for the opening of handle-less doors

Integrated Push system
For thicker doors (max. 28 mm)
Wooden doors
155° opening
Snap-on fixing with Domi mounting plates, screw fixing with traditional ones

The PUSH-System

It is a self-opening system for the doors of all types of handleless furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.

The retaining catches can be pressure-fixed or screw-fixed.

Need more info about the product?

PUSH Series 200 - 155° opening - Standard application-2

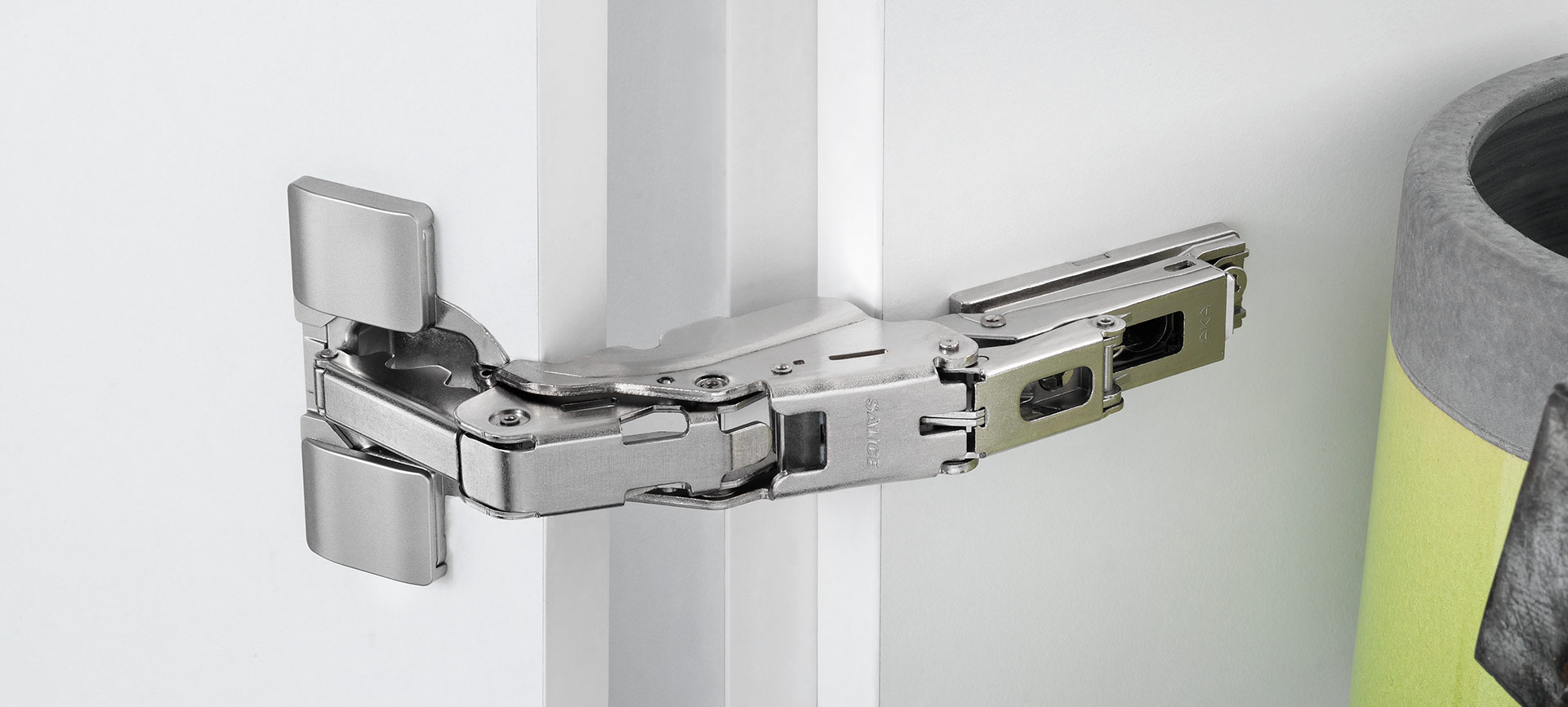

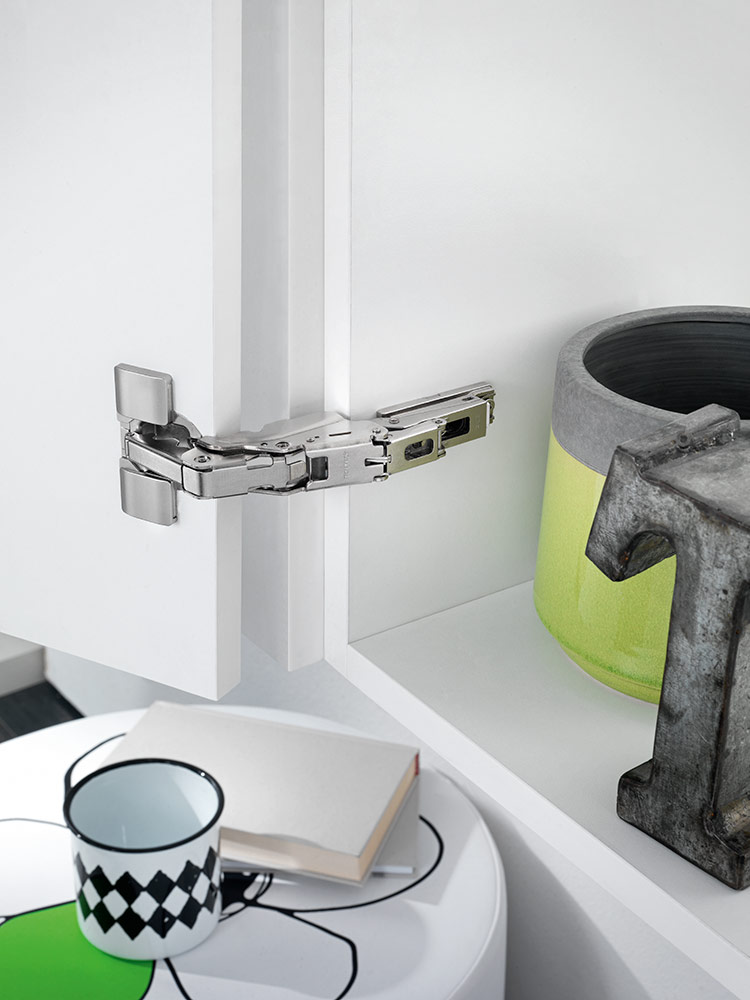

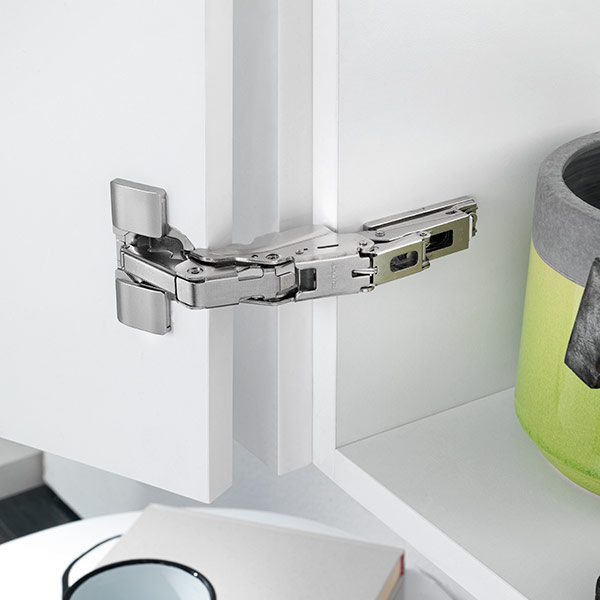

Push hinges are equipped with a special spring that acts to open the door independently of the release device.

Find out more

For thick doors up to 28 mm.
Hinge with greater opening angle and reduced operating profile.
Dimensions of the 35 mm cup.
8,5 mm deep die-cast cup.
155° opening.
Possible drilling distance on the door (K): from 3 to 9 mm.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.

Versions

Components

Accessories

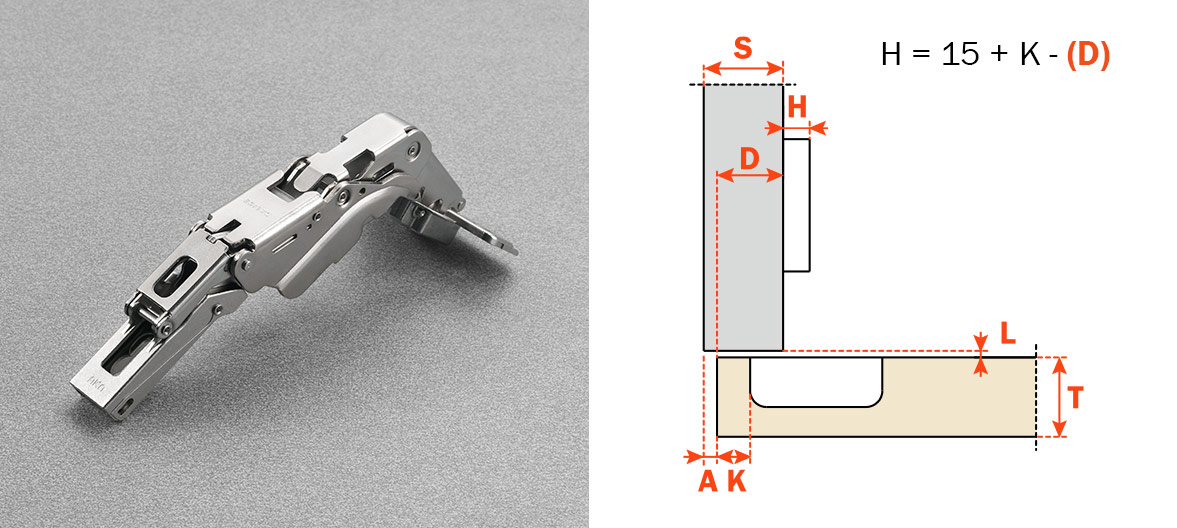

C2_RA99

Arm 0

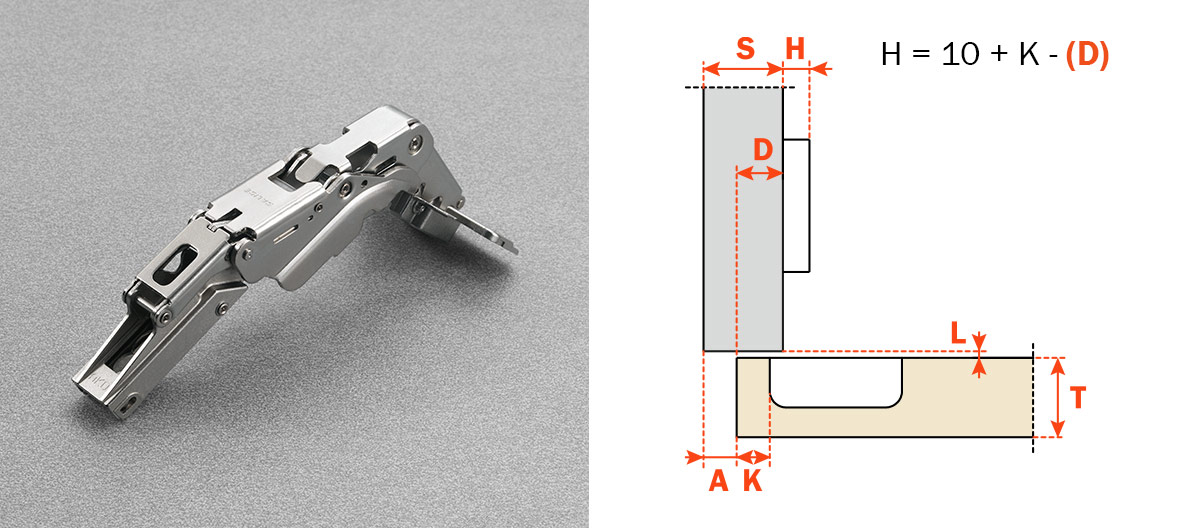

C2_RD99

Arm 5

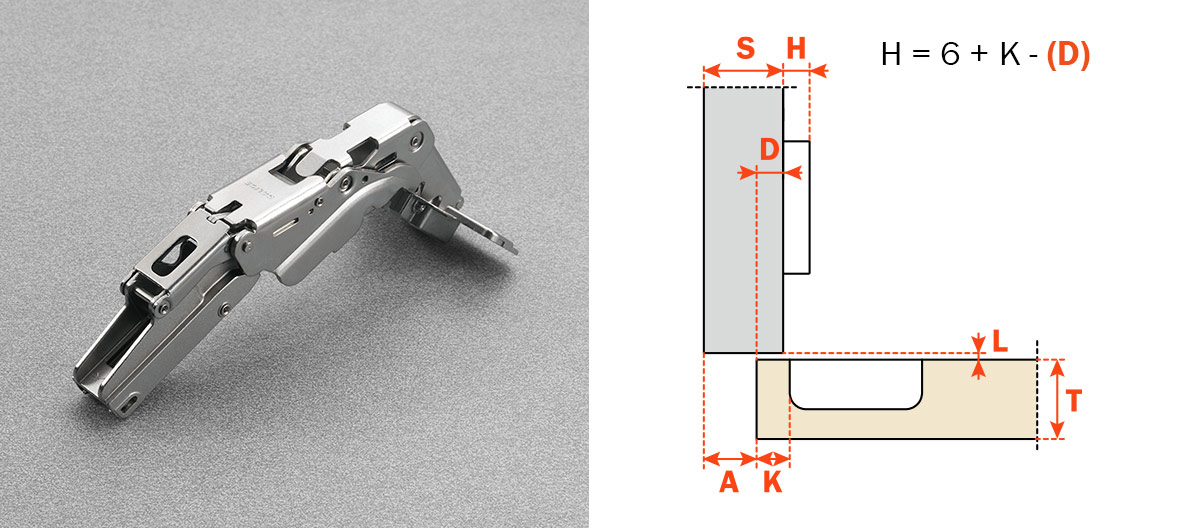

C2_RG99

Arm 9

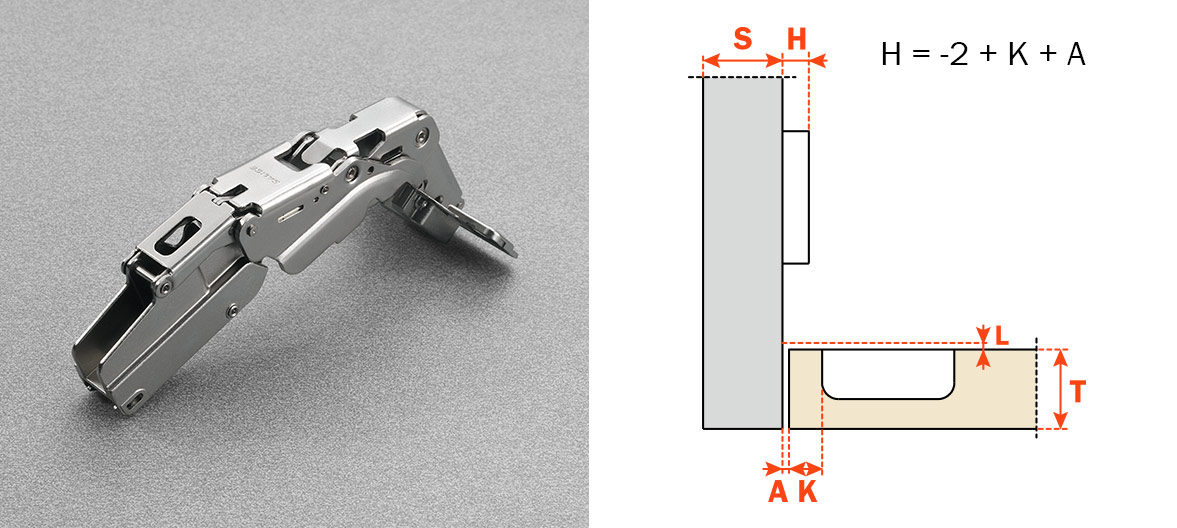

C2_RP99

Arm 17

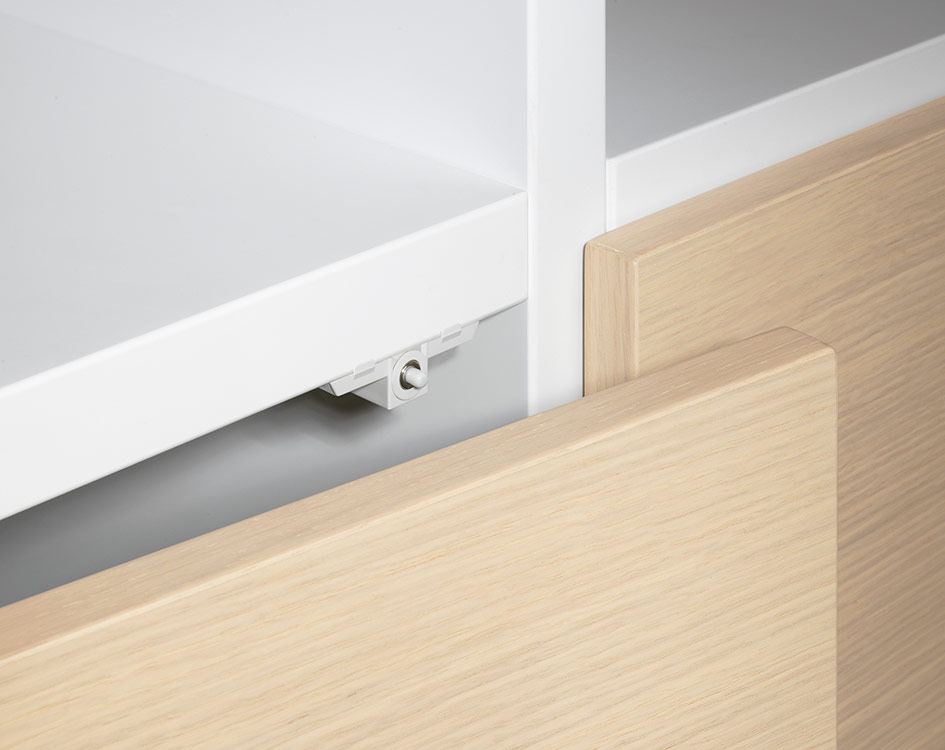

DPMSNB

Release device. ø 10 mm, 40 mm length.
Beige

DPASNB

Release device to be used to increase the magnetic holding strength. It must always be used together with the DPM. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door.
ø 10 mm, 40 mm length.
Beige

DP28SN9

Retaining catch to be inserted with pin.
ø 11.5 mm

DP38XX91

Retaining catch with adhesive.
20x14 mm surface.
For use with aluminum doors or smooth surfaces.

DP39XXG

Adjustable magnetic catch. Inserted into the door.
ø16.6 mm

DP82XXBR

Adjustable longitudinal plastic adapter for release device. To be fixed with wood screws. 8+16 mm drilling. Without assembly stop devices.
Caps to be ordered separately
Beige

DP83XXBR

Adjustable double plastic adapter for release device. To be fixed with wood screws. 8+32 mm drilling. Without assembly stop devices.
Cover caps to be ordered separately
Beige

DP84SNBR

Adjustable plastic adapter for release device. To be fixed with wood screws. 8x32 mm drilling. Without assembly stop devices
Beige

SP44XX_

Spacer for inset door to be used together with DP82XX_R.
SP44XXG = grey
SP44XXB = beige

DP3SNB

With assembly stop device
Beige

DP3SNG

With assembly stop device
Grey

DP3SN3

With assembly stop device
Black

DP4SNB

Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Beige

DP4SNG

Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Grey

DP4SN3

Single adapter with depth and sideways adjustment and release device. Without assembly stop device
Black

DP5SNB

Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Beige

DP5SNG

Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Grey

DP5SN3

Double adapter with depth and sideways adjustment and release devices. Without assembly stop device
Black

DP29SNB

Retaining catch for wooden door. Knock-in
Beige

DP29SNG

Retaining catch for wooden door. Knock-in
Grey

DP29SN3

Retaining catch for wooden door. Knock-in
Black

DP29SNBR

Retaining catch for wooden door. Without assembly stop device. Screw-on
Beige

DP29SNGR

Retaining catch for wooden door. Without assembly stop device. Screw-on
Grey

DP29SN3R

Retaining catch for wooden door. Without assembly stop device. Screw-on
Black

DP50SN0

Orange insertion tool for retaining catch DP29SN_

Flange cover cap S2KX85A_

Plastic flange cover cap

Available colours:
S2KX85A6 = Titanium
S2KX85A9 = Nichel-plated

Stop device S2AF37X3

It limits opening at about 140°

Stop device S2BF37XY

It limits opening at about 135°

Stop device S2AM37XG

It limits opening at about 125°

Stop device S2BM37XG

It limits opening at about 95°
