The PUSH-System
It is a self-opening system for the doors of all types of handleless furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.
The retaining catches can be pressure-fixed or screw-fixed.
Push hinges are equipped with a special spring that acts to open the door independently of the release device.

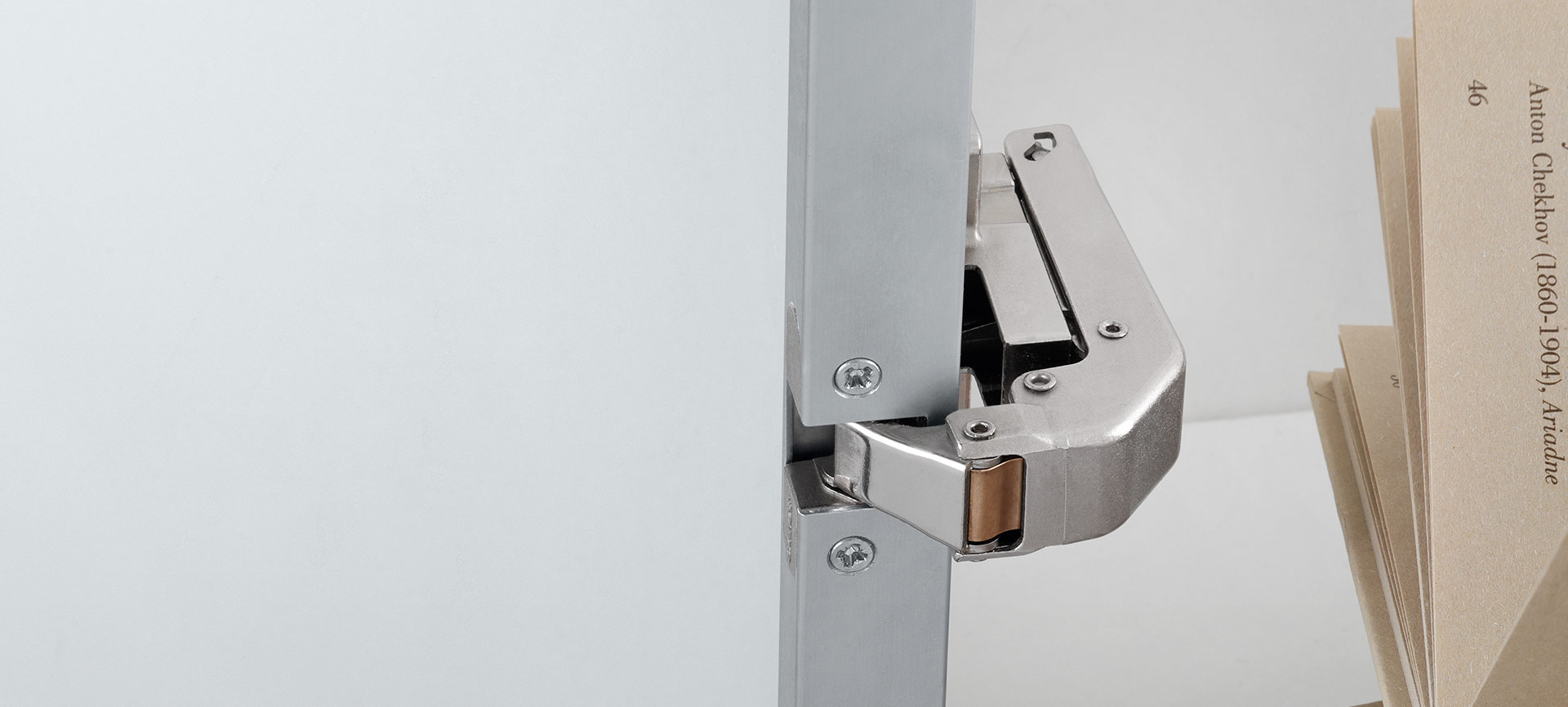

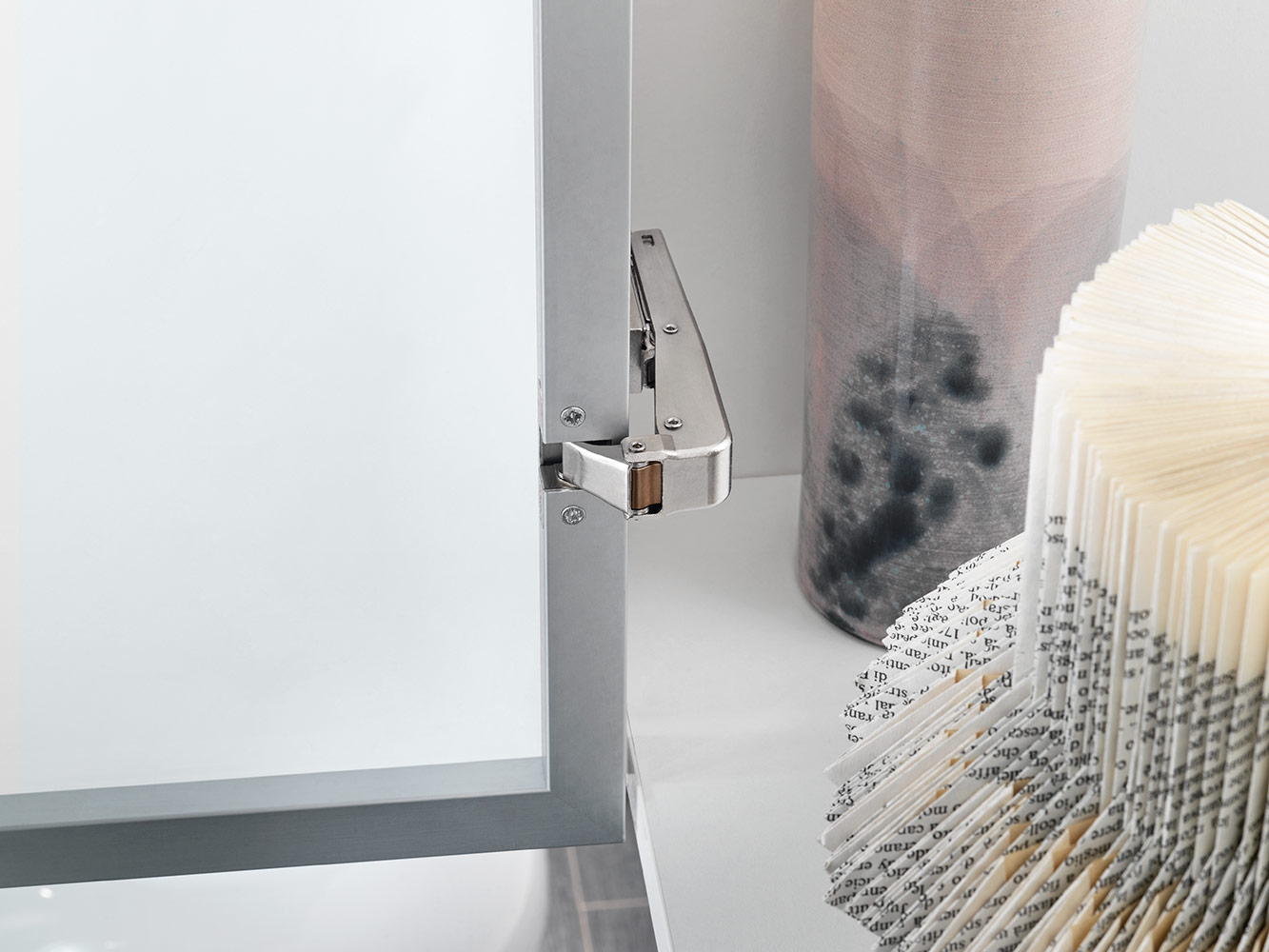

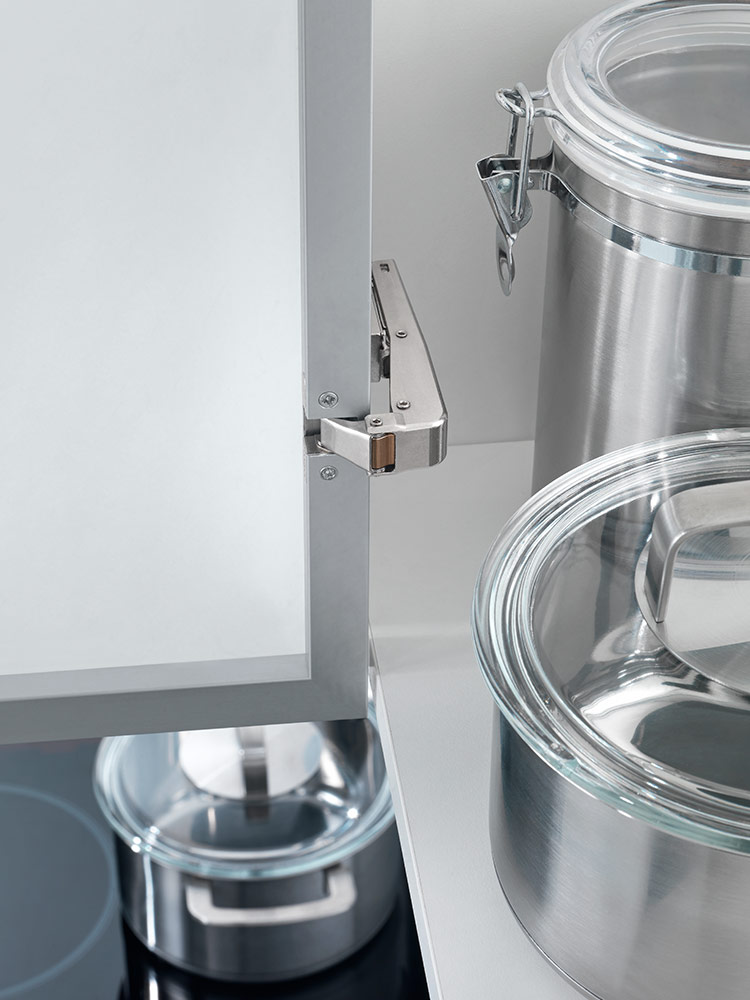

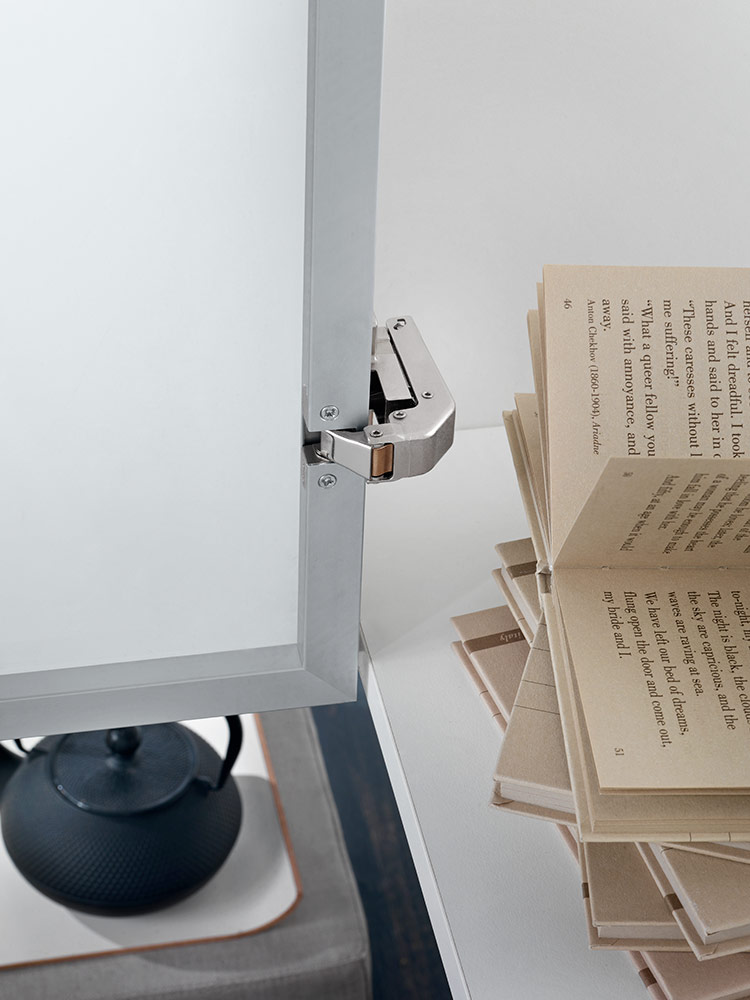

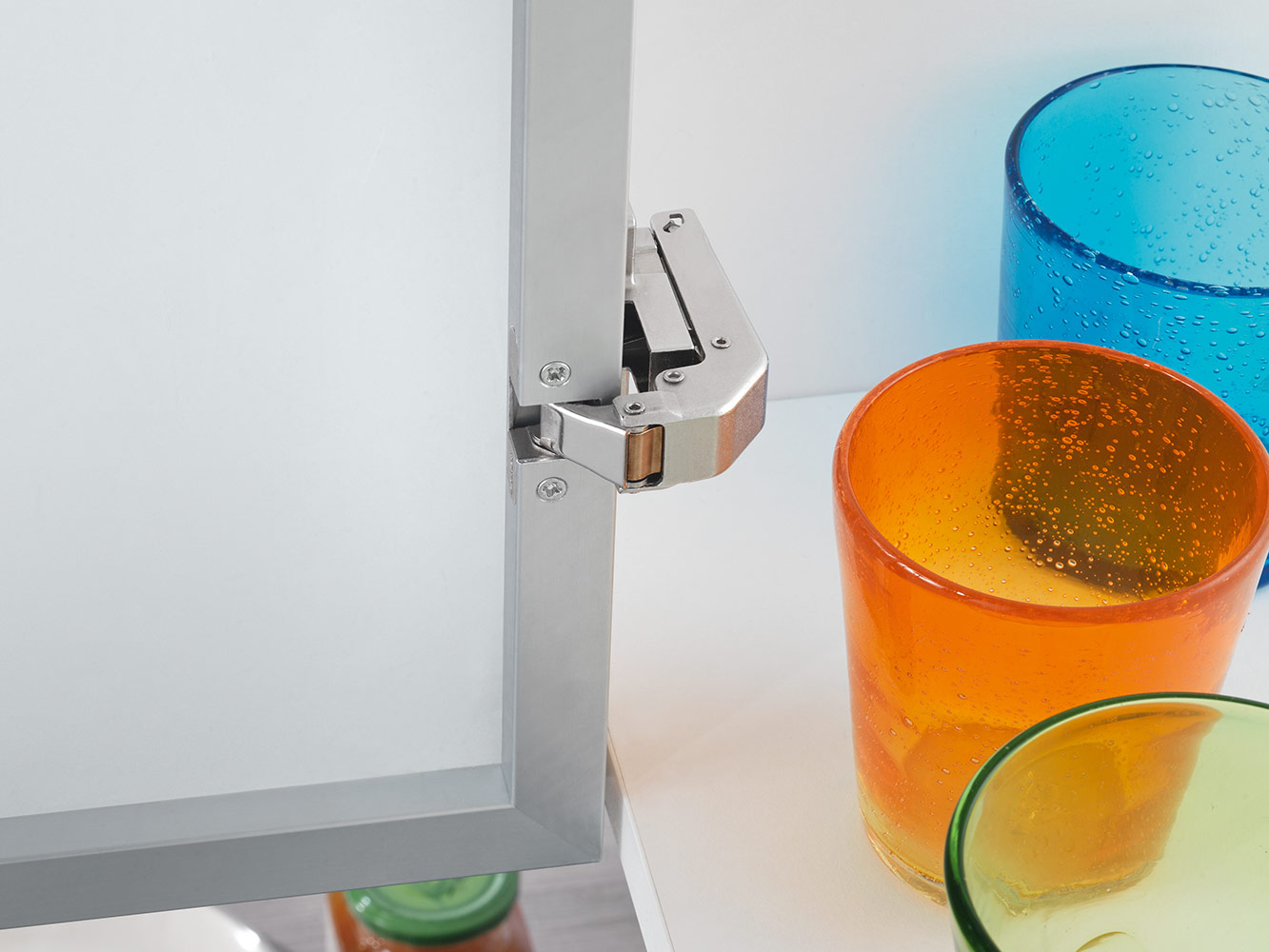

- Hinges specially developed for use with metal profiles.
- 105° opening.
- We recommed the use of self-threading screws B 3.5 x 9.5 DIN 7982 to fix C2ZP hinges.

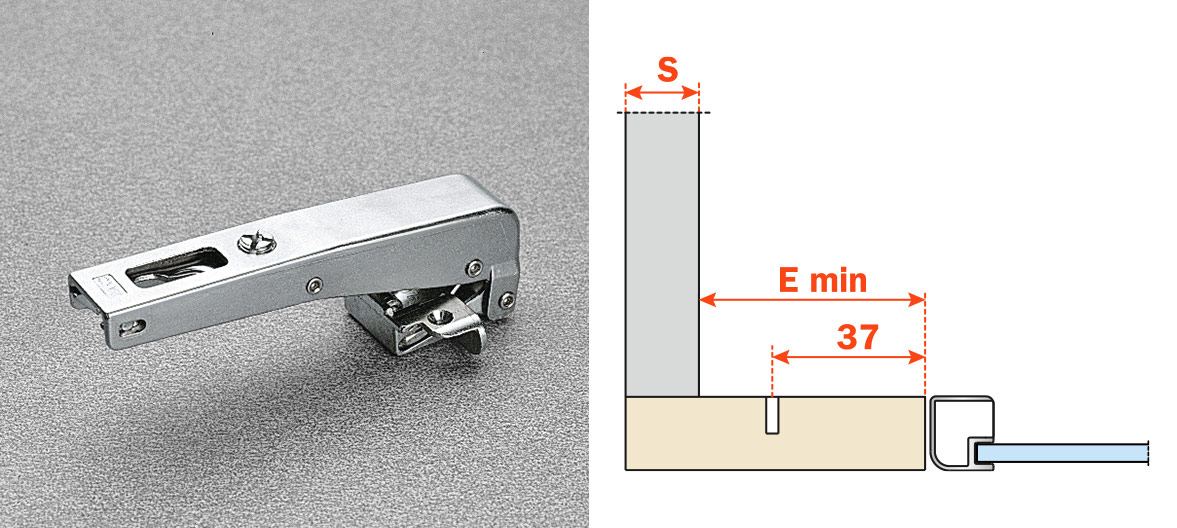

C2ZPN99AC
Crampon hinge.For cabinet sides with 37x32 mm standard drilling.
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
E min:
- 61 mm for Series 200 mounting plates.
- 70 mm for Domi snap-on mounting plates.
- 74 mm for Domi snap-on mounting plates with back cam.

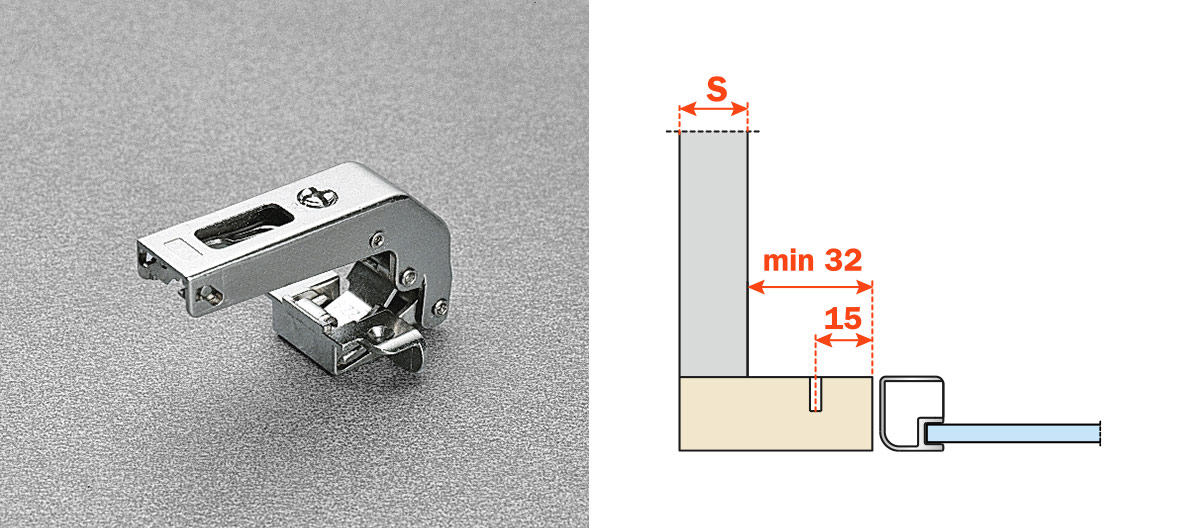

C2ZPN99
Crampon hinges for smaller spaces.
With 15x32 mm drilling.
Compatible with all traditional Series 200 mounting plates, drilling 28x32 mm.
NOT COMPATIBLE with Domi snap-on mounting plates

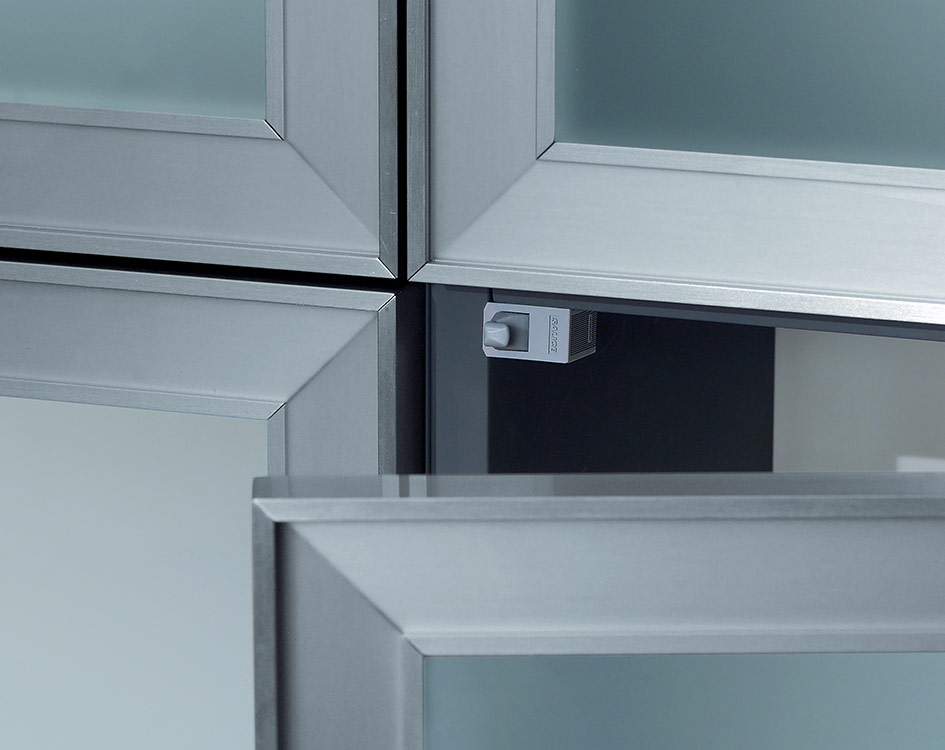

DPMSNB
Release device. ø 10 mm, 40 mm length.Beige
DPASNB
Release device to be used to increase the magnetic holding strength. It must always be used together with the DPM. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door.ø 10 mm, 40 mm length.
Beige
DP28SN9
Retaining catch to be inserted with pin.ø 11.5 mm
DP38XX91
Retaining catch with adhesive.20x14 mm surface.
For use with aluminum doors or smooth surfaces.
DP39XXG
Adjustable magnetic catch. Inserted into the door.ø16.6 mm
DP82XXBR
Adjustable longitudinal plastic adapter for release device. To be fixed with wood screws. 8+16 mm drilling. Without assembly stop devices.Caps to be ordered separately
Beige
DP83XXBR
Adjustable double plastic adapter for release device. To be fixed with wood screws. 8+32 mm drilling. Without assembly stop devices.Cover caps to be ordered separately
Beige
DP84SNBR
Adjustable plastic adapter for release device. To be fixed with wood screws. 8x32 mm drilling. Without assembly stop devicesBeige
SP44XX_
Spacer for inset door to be used together with DP82XX_R.SP44XXG = grey
SP44XXB = beige
DP3SNB
With assembly stop deviceBeige
DP3SNG
With assembly stop deviceGrey
DP3SN3
With assembly stop deviceBlack
DP4SNB
Single adapter with depth and sideways adjustment and release device. Without assembly stop deviceBeige
DP4SNG
Single adapter with depth and sideways adjustment and release device. Without assembly stop deviceGrey
DP4SN3
Single adapter with depth and sideways adjustment and release device. Without assembly stop deviceBlack
DP5SNB
Double adapter with depth and sideways adjustment and release devices. Without assembly stop deviceBeige
DP5SNG
Double adapter with depth and sideways adjustment and release devices. Without assembly stop deviceGrey
DP5SN3
Double adapter with depth and sideways adjustment and release devices. Without assembly stop deviceBlack
DP50SN0
Orange insertion tool for retaining catch DP29SN_
Screw cover cap S2BX83H___
Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges
S2BX83H9__ = Nickel
S2BX83H6__ = Titanium
Screw cover cap S2MX83H___
Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges
S2MX83H9__ = Nickel
S2MX83H6__ = Titanium
Technical information
Documentation
Video
- Push opening
- Traditional assembly with Series 200 mounting plates
- Assembly with Domi snap-on mounting plates
- Traditional height adjustment
- Height adjustment by cam
- Depth adjustment with Domi snap-on mounting plates - Model BAV
- Depth adjustment with Domi snap-on mounting plates - Models BAPXR BARXR
- Traditional depth adjustment
- Sideways adjustment
Technical pamphlet
