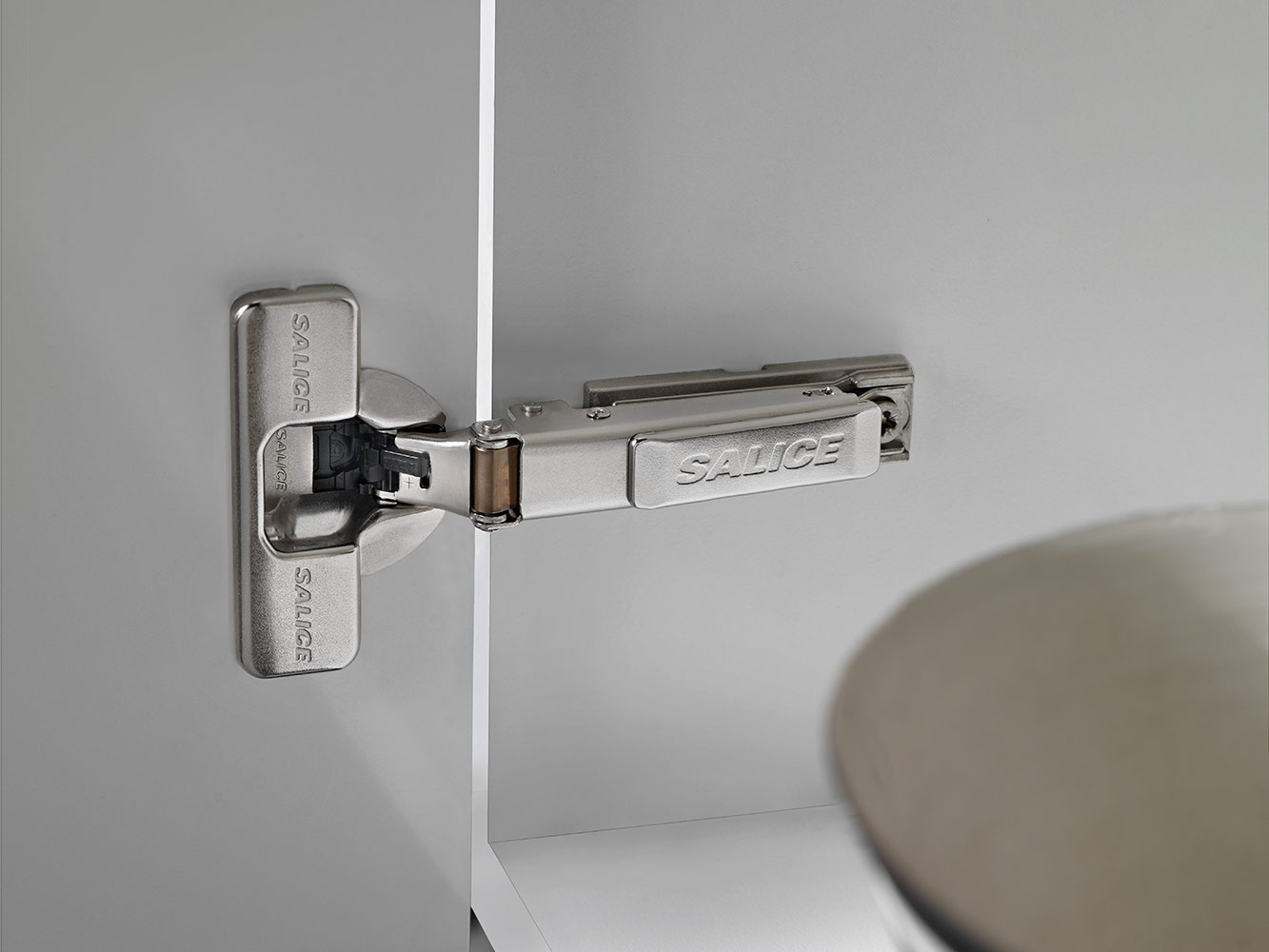

SILENTIA+ Series N - 94° opening - Standard application-1

SILENTIA+

Series N - 94° opening - Standard application

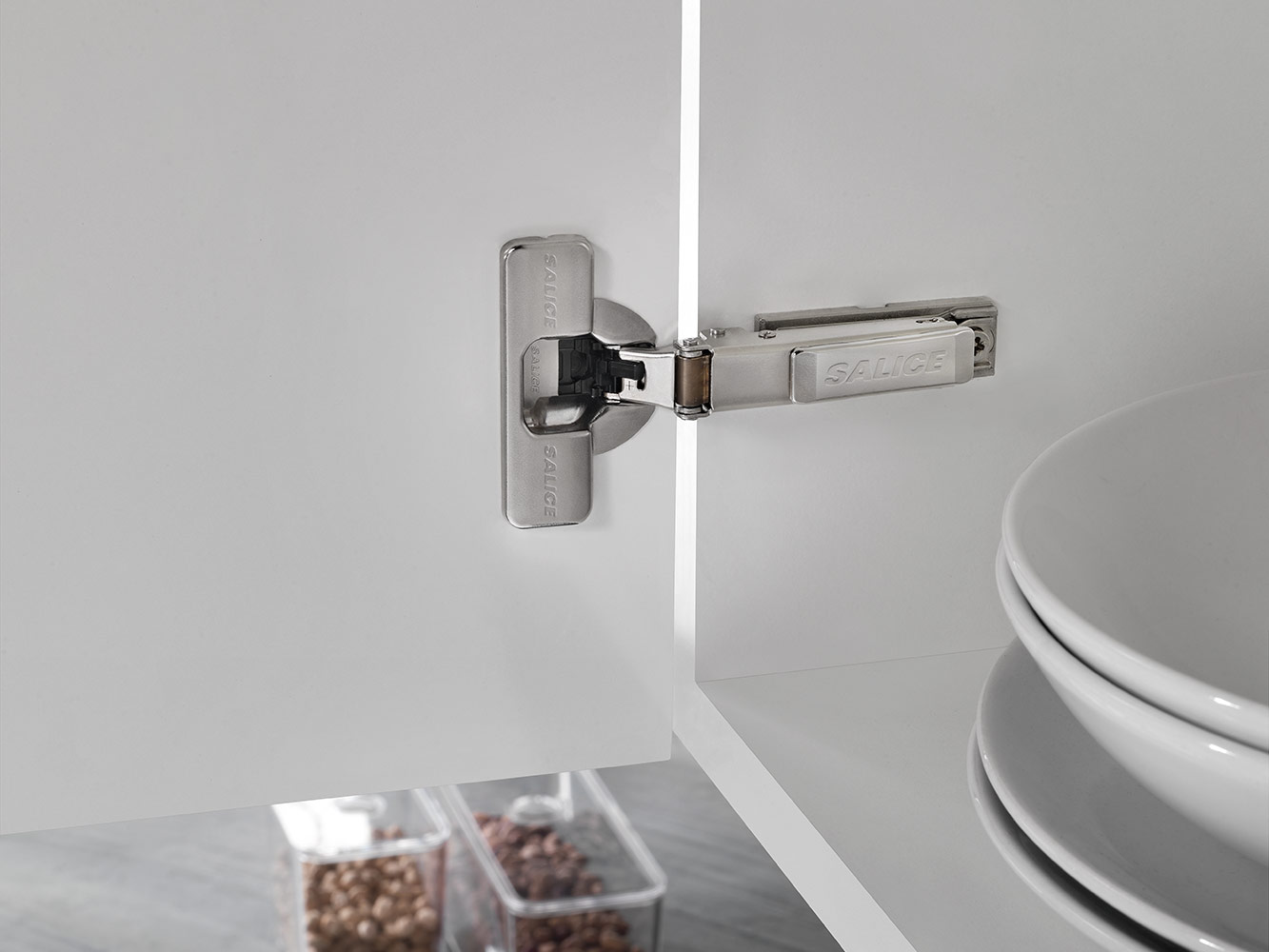

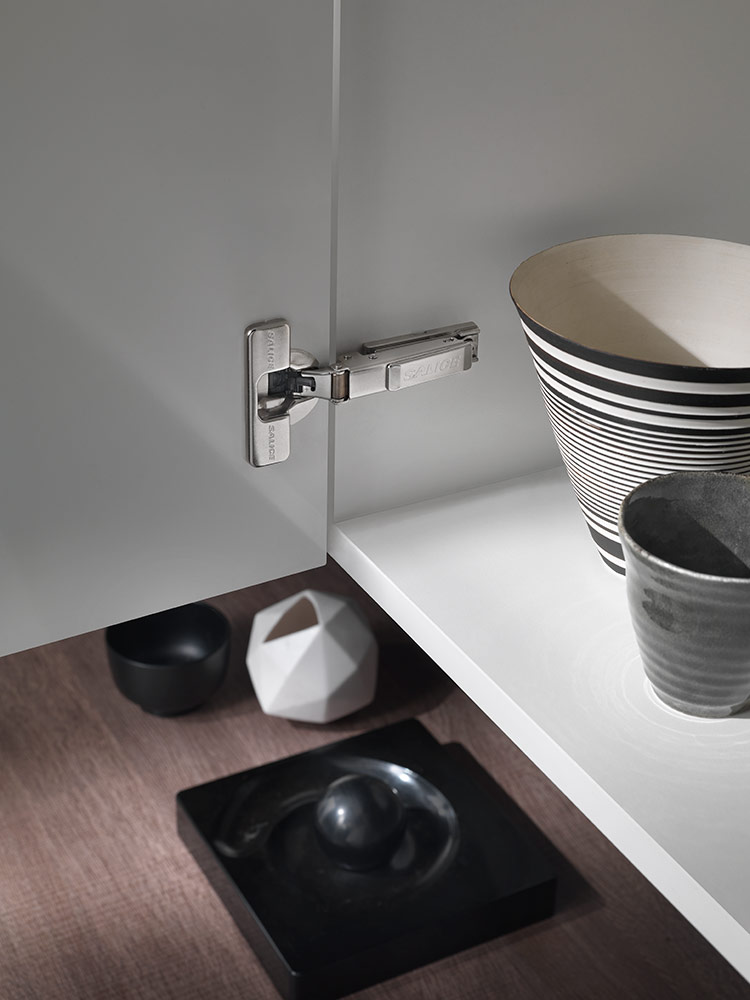

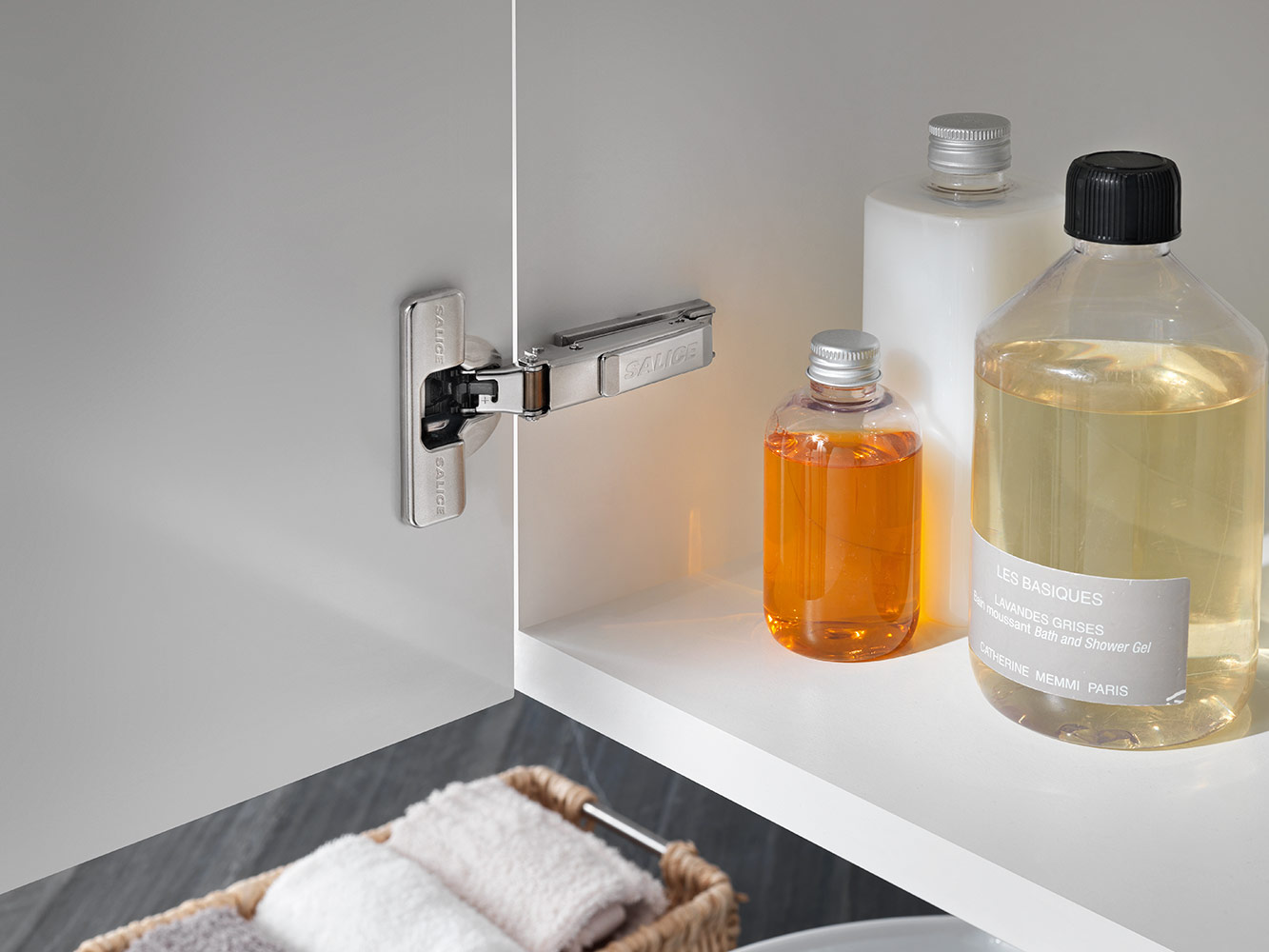

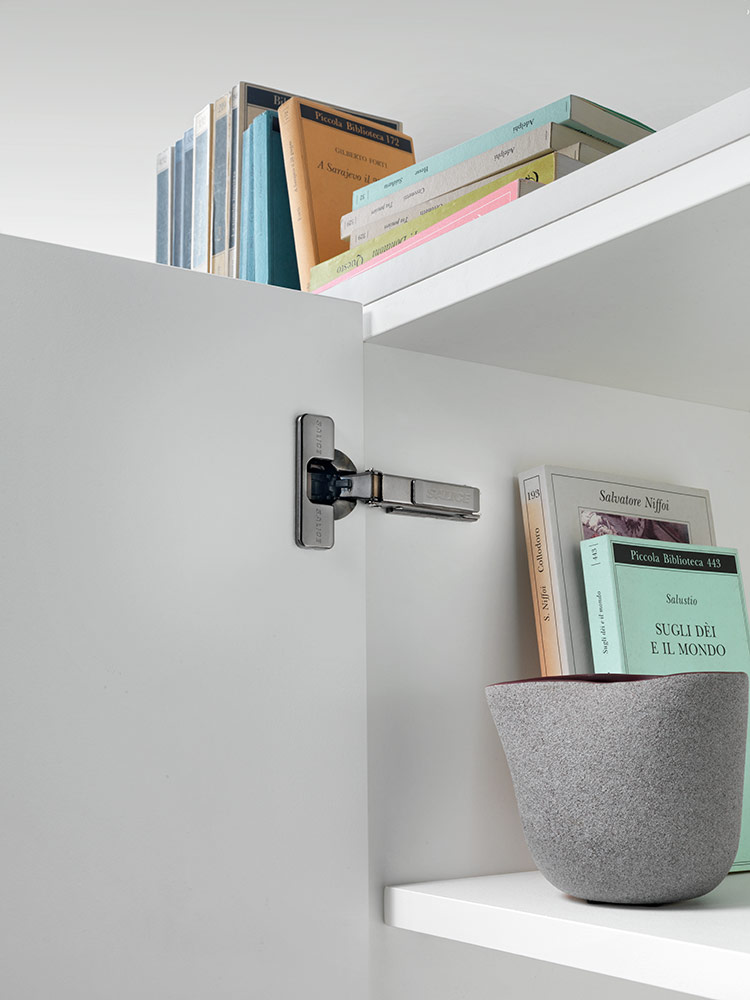

Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup

  • For profiled and thick doors (max 40 mm)
  • Wooden doors
  • 94° opening
  • Snap-on fixing with Domi mounting plates, screw fixing with traditional ones
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
The state of the soft-close art

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

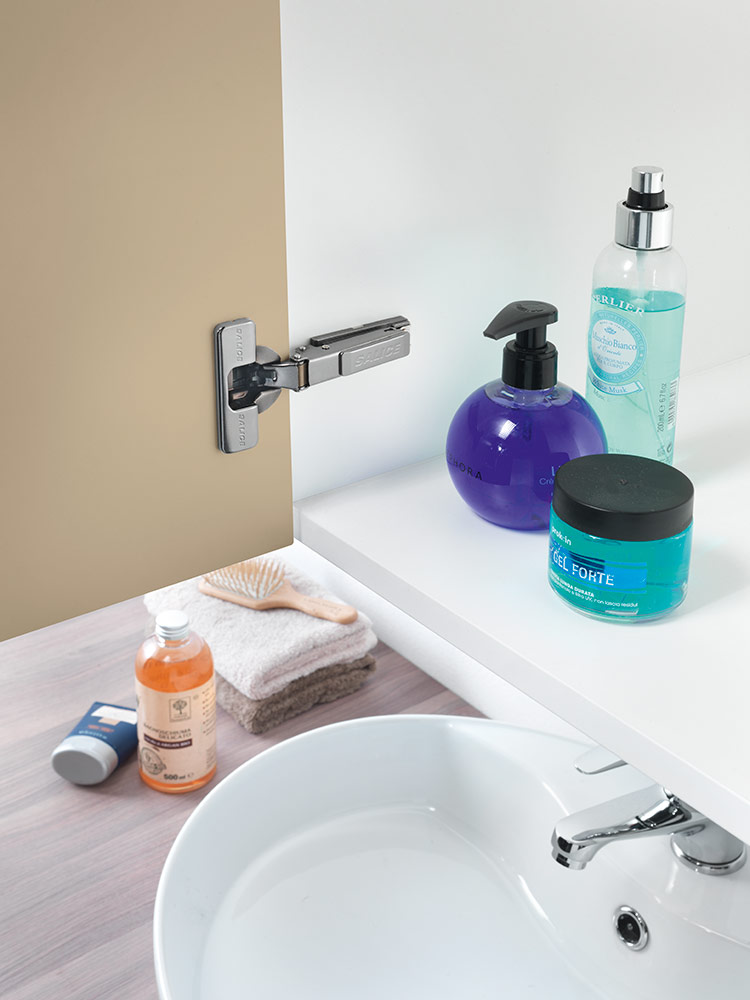

SILENTIA+ Series N - 94° opening - Standard application-2
Technical features
  • Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
  • The decelerating effect is adjusted by using a simple switch.
  • For profiled and thick doors, max. 40 mm.
  • 15.5 mm deep cup.
  • 94° opening.
  • Possible drilling distance on the door (K): from 3 to 14 mm.
  • Compatible with all mounting plates.
  • Available in titanium finish.

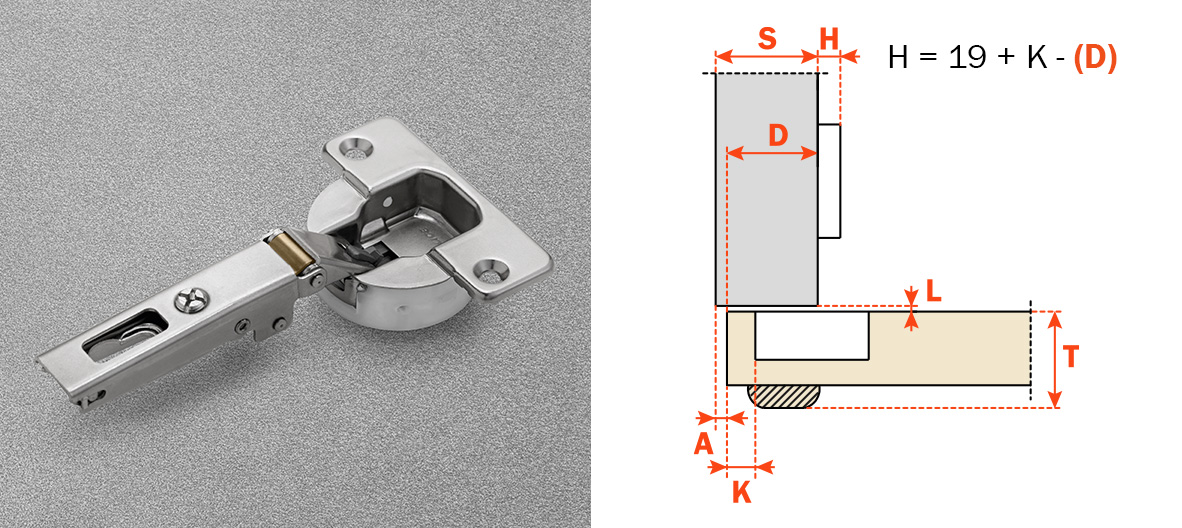

CN_7AE_

Full overlay / A crank - 0 mm

CNA7AE9 = Wood screw, Nickel finish
CNA7AE6 = Wood screw, Titanium finish
CNB7AE9 = Dowel, Nickel finish
CNB7AE6 = Dowel, Titanium finish

CN_7GE_

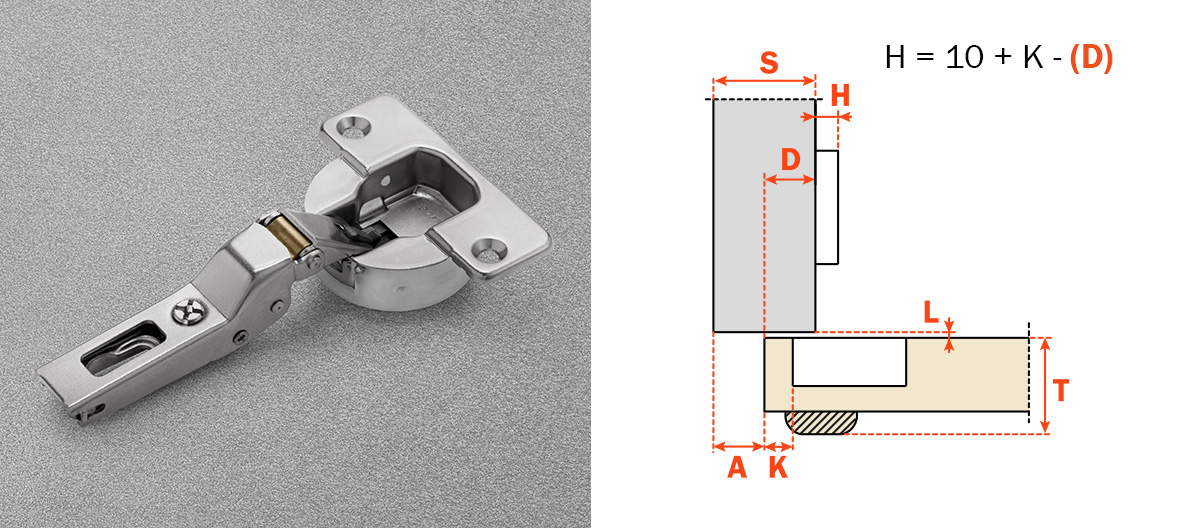

Half overlay / G crank - 9 mm

CNA7GE9 = Wood screw, Nickel finish
CNA7GE6 = Wood screw, Titanium finish
CNB7GE9 = Dowel, Nickel finish
CNB7GE6 = Dowel, Titanium finish

CN_7PE_

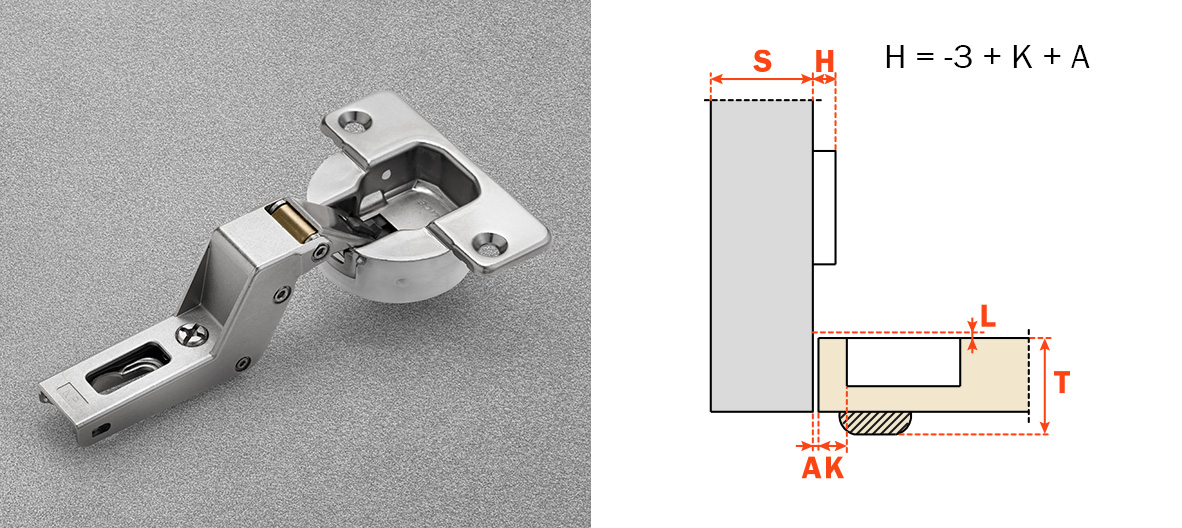

Inset / P crank - 17 mm

CNA7PE9 = Wood screw, Nickel finish
CNA7PE6 = Wood screw, Titanium finish
CNB7PE9 = Dowel, Nickel finish
CNB7PE6 = Dowel, Titanium finish

Screw cover cap S2BX83H___

Symmetrical steel screw cover cap, it can be personalised on request.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2BX83H9__ = Nickel
S2BX83H6__ = Titanium

Screw cover cap S2MX83H___

Symmetrical steel screw cover cap with embossed logo.
For Series 100, 200, 700, F, M, 400 and universal hinges

S2MX83H9__ = Nickel
S2MX83H6__ = Titanium

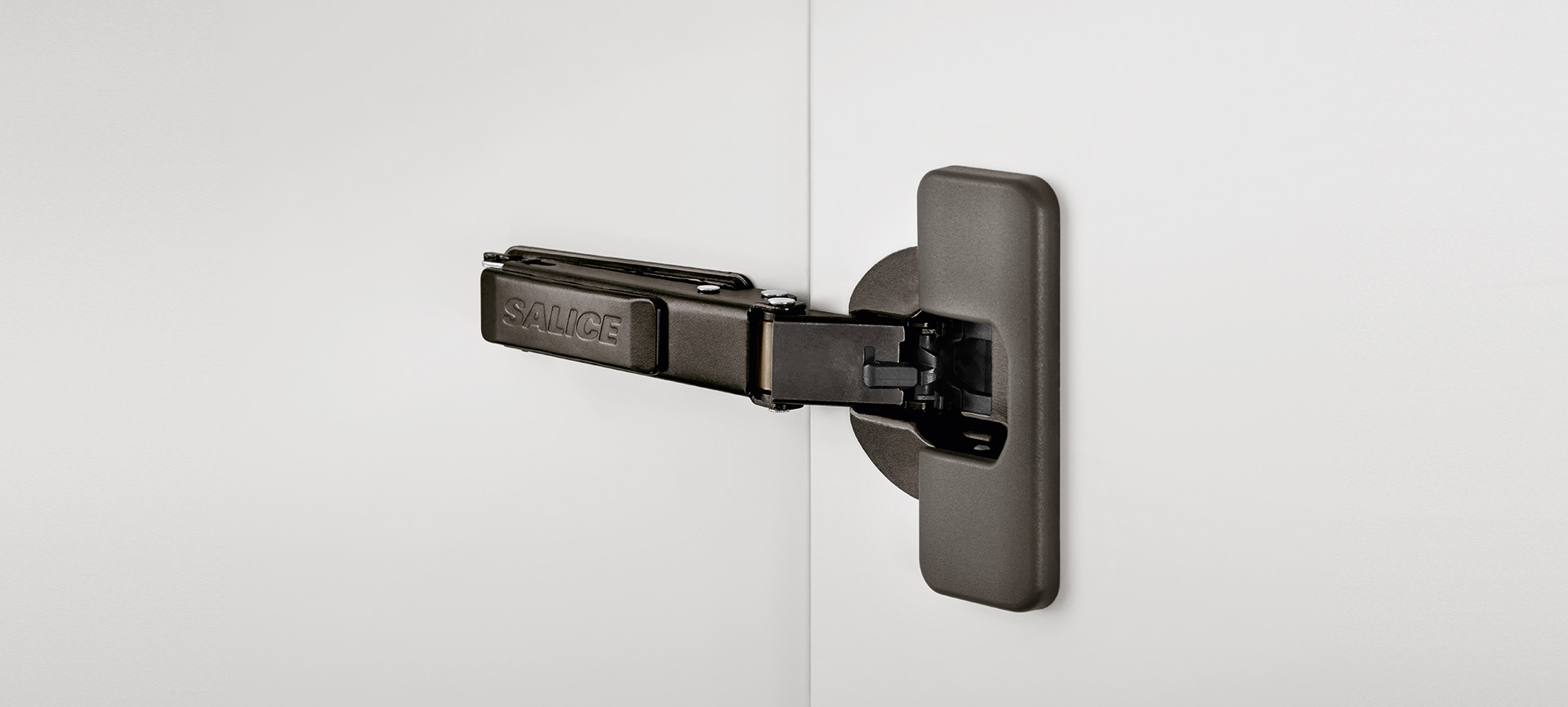

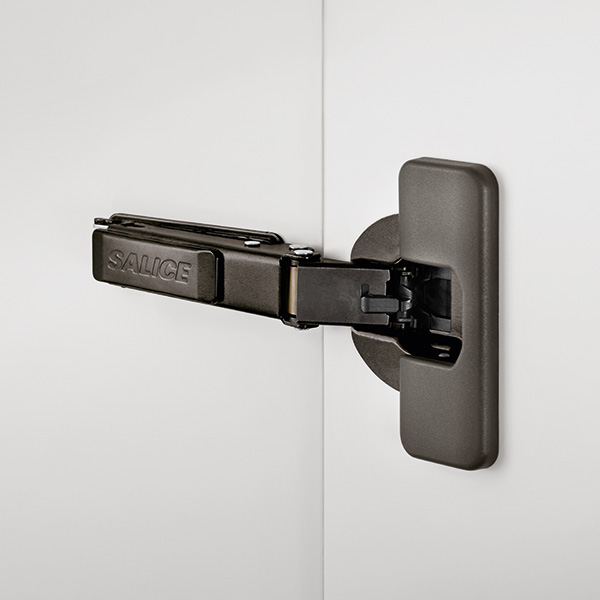

Flange cover cap SNXX85A_

Plastic flange cover cap, it can be personalised on request.
For Series N hinges only.


Available colours:
SNXX85A6 = Titanium
SNXX85A9 = Nickel-pl.
