PENISOLA
Sestante
Sliding and revolving table top
- Finishing Runners: Anodised aluminium
- Finishing Iron leg: RAL 9005 Matt black
- Load Capacity: 80 kg evenly distributed
- Sliding: Ball-bearing slide system
Fluid spaces, new connections.
The Penisola collection reimagines the kitchen as a place for gathering and sharing. Transformable solutions designed to extend, rotate or integrate snack surfaces and worktops, adapting with versatility to the diverse needs of modern living.
A balance between conviviality and practicality, where design and technology come together to create dynamic and welcoming spaces.
The Penisola collection reimagines the kitchen as a place for gathering and sharing. Transformable solutions designed to extend, rotate or integrate snack surfaces and worktops, adapting with versatility to the diverse needs of modern living.
A balance between conviviality and practicality, where design and technology come together to create dynamic and welcoming spaces.
Sestante

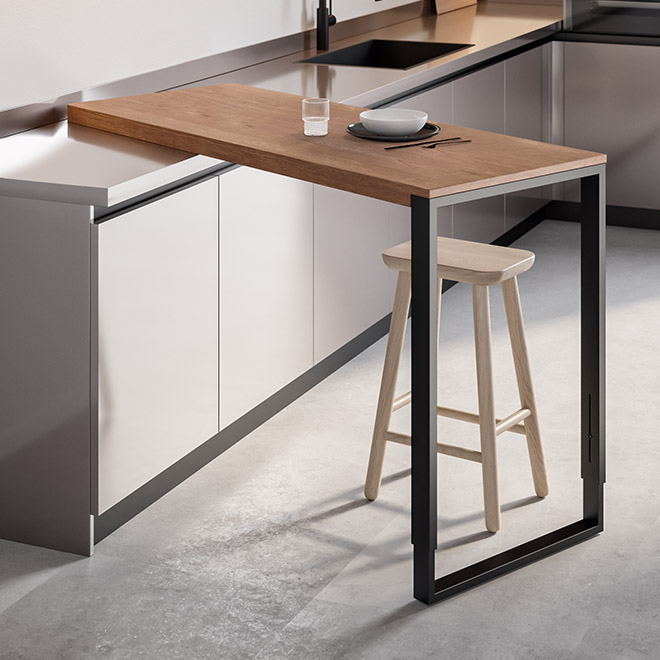

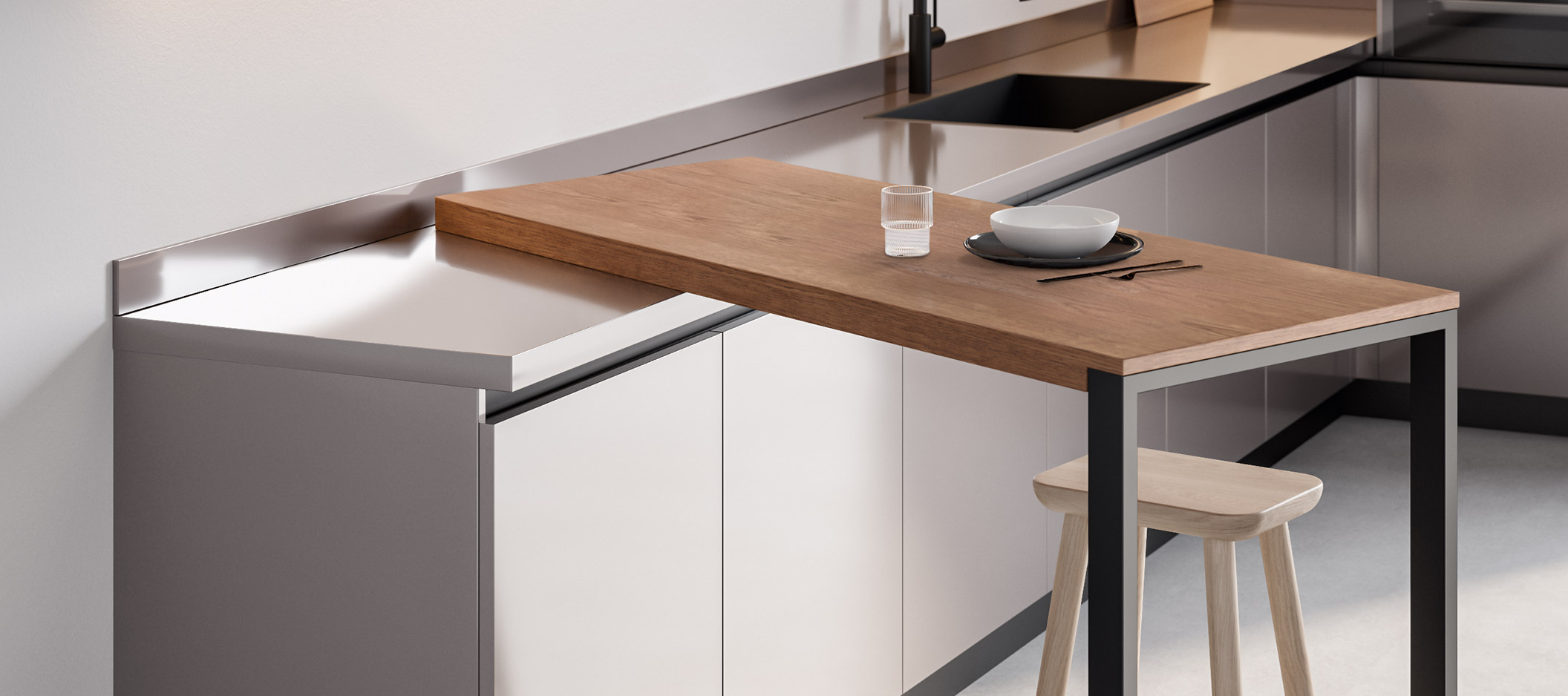

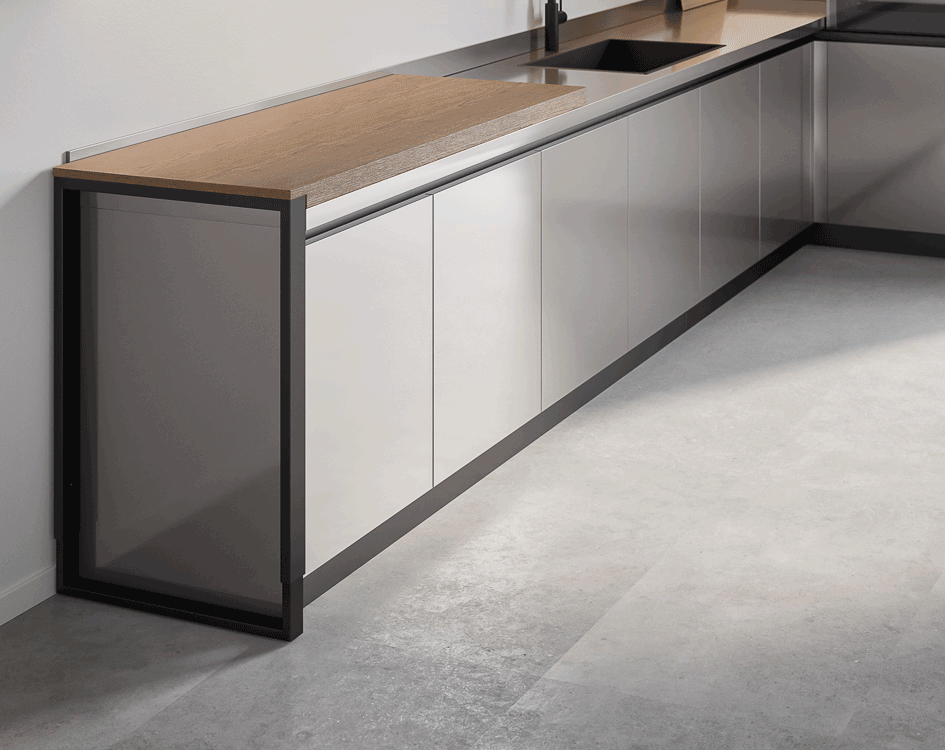

Sestante is a sliding and swivel top that can be applied to an island or a linear kitchen and, when closed, integrates completely inside the cabinet.
When opened, it creates the perfect support for meal preparation and convivial moments.
The dimensions and operation of Sestante make it a versatile, multifunctional solution.
Available in the version without legs or with a height-adjustable bridge leg, it guarantees stability and a high load capacity of up to 80 kg.
Technical features
- Finishing:
- Runners: Anodised aluminium
- Iron leg: RAL 9005 Matt black - Load Capacity: 80 kg evenly distributed
- Sliding: Ball-bearing slide system
- Design: Arch. Giulio Manzoni, ATIM R&D
- Packaging (3):
- Runners 7x130 cm 2,5 kg 0,006 m3
- Mechanism 50×60×25 cm 10 kg 0,25 m³
- Leg 600 85×65×20 cm 10,5 kg 0,11 m3
- Leg 700 85×75×20 cm 11,5 kg 0,13 m3
- Leg 800 85×85×20 cm 12,5 kg 0,14 m3
- Leg 900 85×95×20 cm 13,5 kg 0,16 m3 - Ν.Β.: The item does not include the supply of wooden parts. 411/78.129X.22: supplied without leg.
411/78.129X.22
P - Depth: - mm
L - Mechanism width: 1500 mm
T - Top thickness: - mm
H - Height: 55 mm
E - Top opening: 900 mm
E1 - Top opening 1: 300 mm
Z - Top width: - mm
S - Top thickness: min 18 mm
411/78.1290.22R
P - Depth: 600 mm
L - Mechanism width: 1500 mm
T - Top thickness: 800/960 mm
H - Height: 55 mm
E - Top opening: 900 mm
E1 - Top opening 1: 300 mm
Z - Top width: 600 mm
S - Top thickness: min 18 mm
411/78.1291.22R
P - Depth: 700 mm
L - Mechanism width: 1500 mm
T - Top thickness: 800/960 mm
H - Height: 55 mm
E - Top opening: 900 mm
E1 - Top opening 1: 300 mm
Z - Top width: 700 mm
S - Top thickness: min 18 mm
411/78.1292.22R
P - Depth: 800 mm
L - Mechanism width: 1500 mm
T - Top thickness: 800/960 mm
H - Height: 55 mm
E - Top opening: 900 mm
E1 - Top opening 1: 300 mm
Z - Top width: 800 mm
S - Top thickness: min 18 mm
411/78.1293.22R
P - Depth: 900 mm
L - Mechanism width: 1500 mm
T - Top thickness: 800/960 mm
H - Height: 55 mm
E - Top opening: 900 mm
E1 - Top opening 1: 300 mm
Z - Top width: 900 mm
S - Top thickness: min 18 mm
Documentation
