LINEABOX

Under-sink drawer - 2-sided - H 104 mm

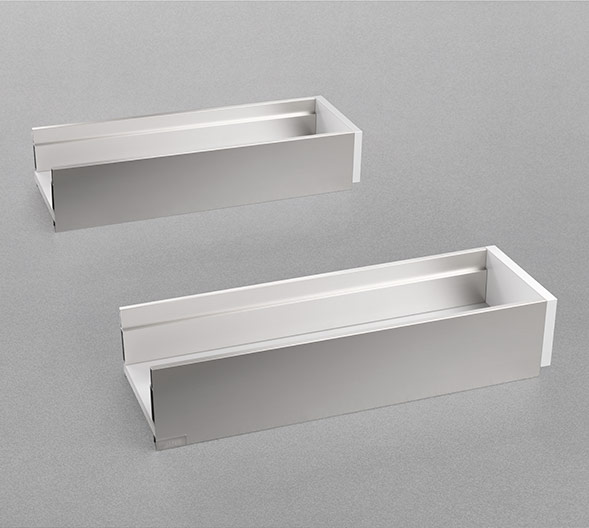

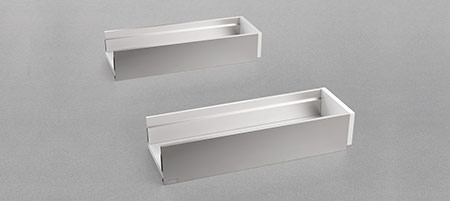

Metal side with wooden frontal and back panel

  • Height of the metal side 104 mm
  • Internal height 72 mm
  • Bottom thickness 15-16 mm
  • Aluminium
  • 90° cut end
Clean, simple lines with minimal wall thickness to maximize internal space

Streamlined aesthetics uncluttered with holes or assembly components. Lineabox is very versatile and highly customisable. Assembly is rapid without the need for machines or templates.

LINEABOX Under-sink drawer - 2-sided - H 104 mm-2

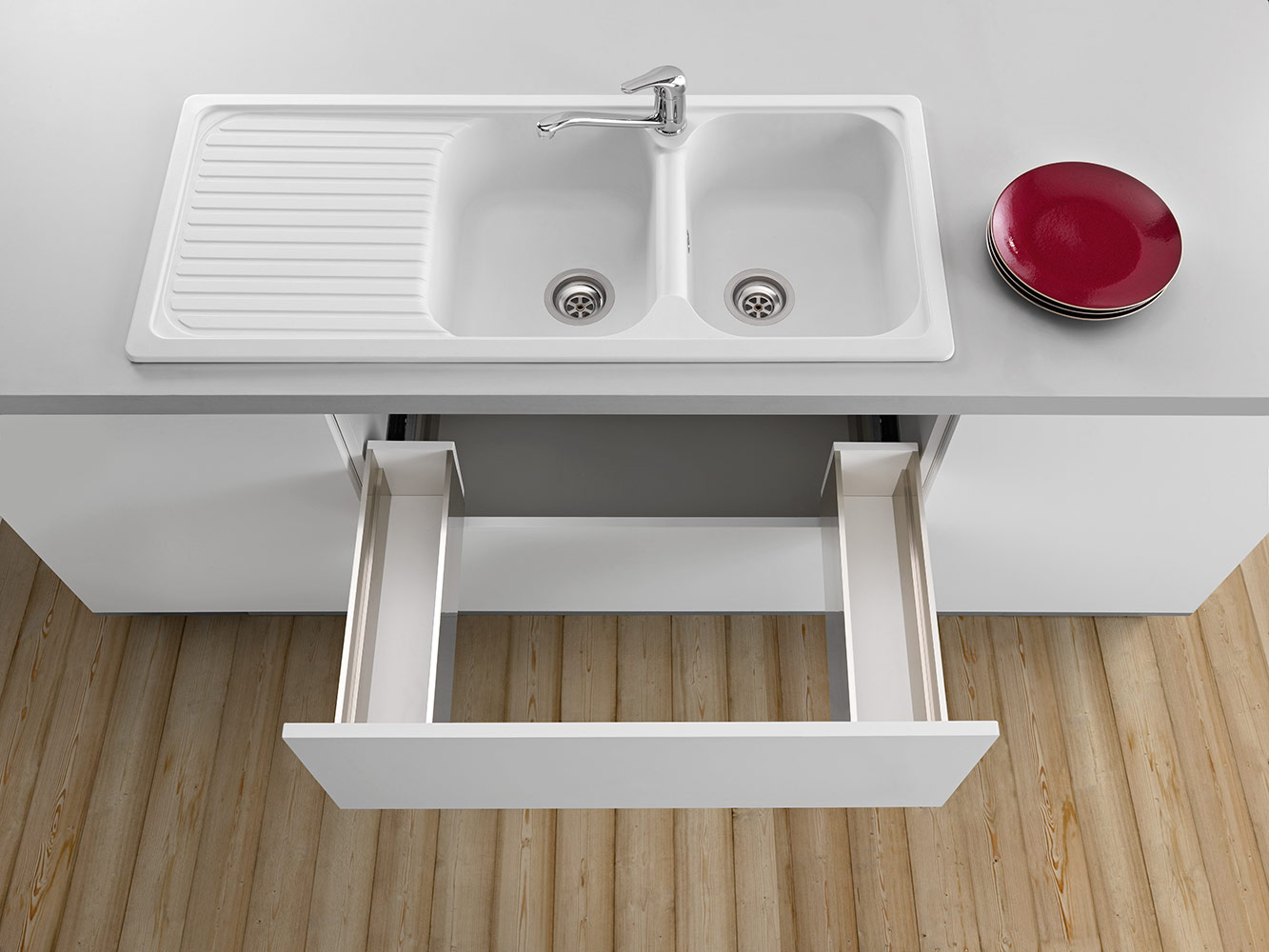

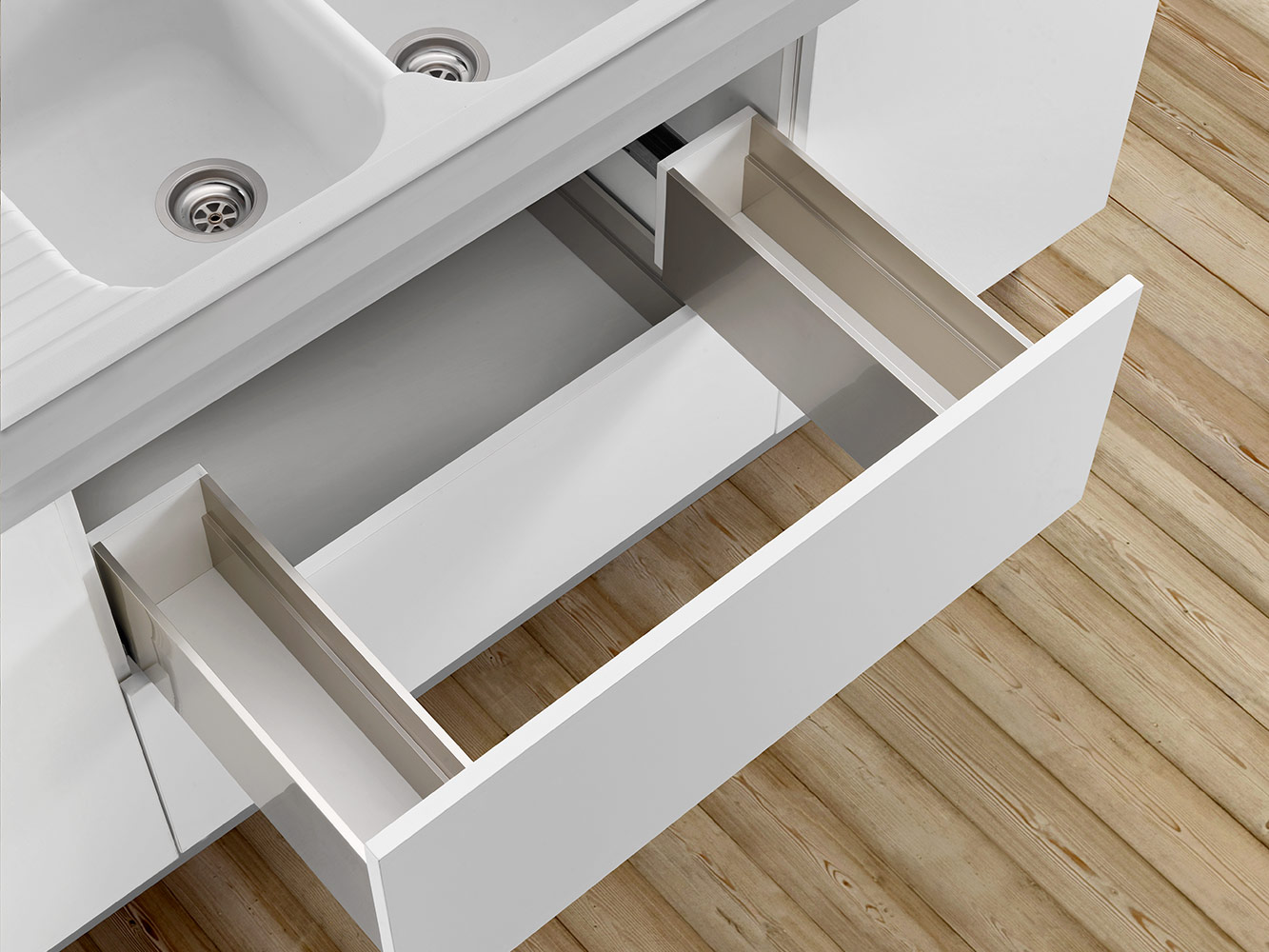

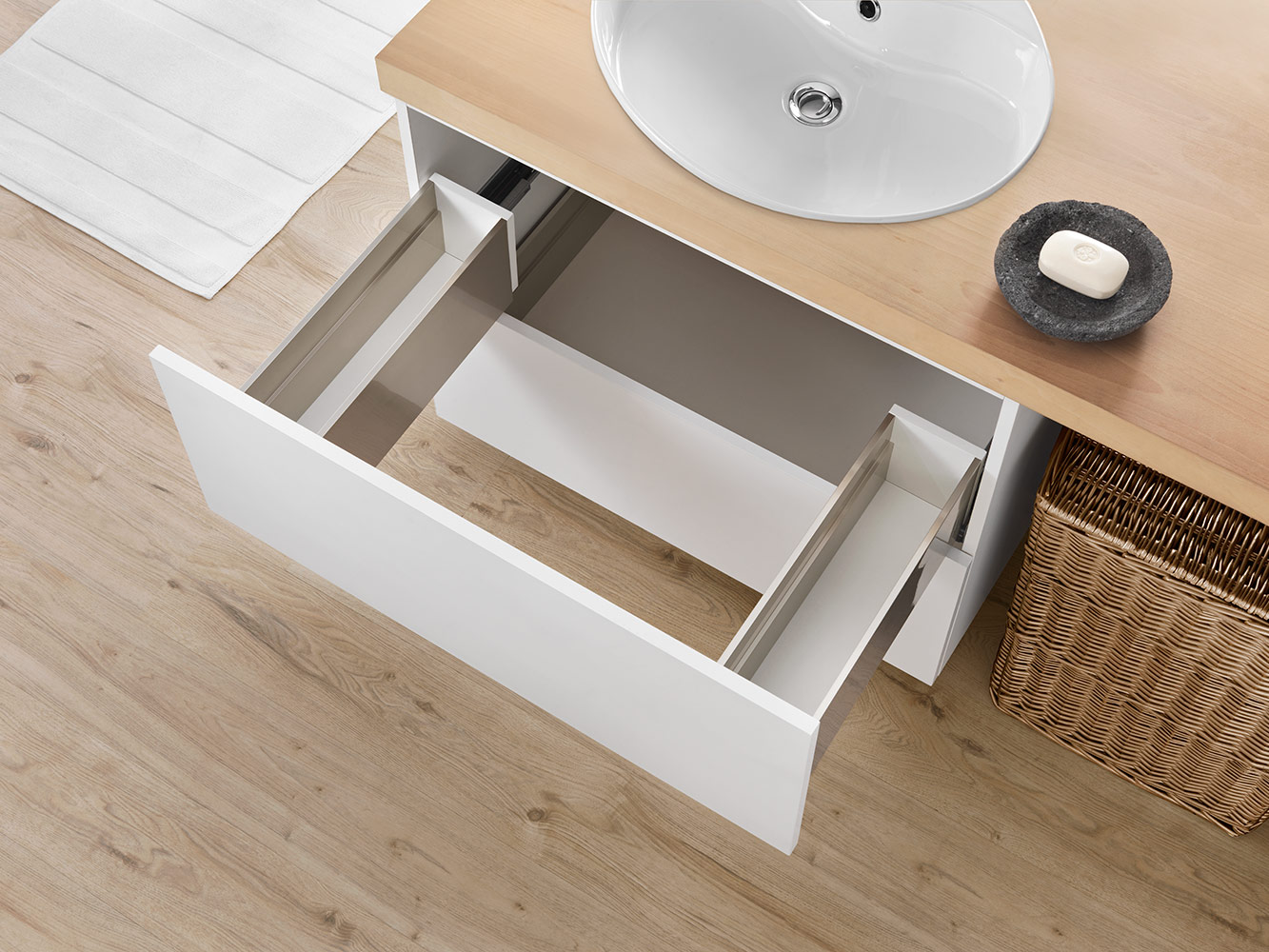

A light and thin drawer, suitable for all applications including: kitchens, living rooms, bathrooms and office furniture. Fluid, silent and progressive sliding movement, thanks to Futura full-extension runners.

  • Lineabox metal sides, wooden frontal and back panel.
  • Height of the side 104 mm - Internal height 72 mm.
  • For use with Futura full-extension runners: 655 - 6557 - 6555.
  • Rapid assembly system, with no machinery or templates needed.
  • Rapid mounting and removal of drawer frontal.
  • Height, sideways and depth adjustment of the drawer incorporated in the runner fixing clips.
  • Bottom thickness:
     - 16 mm
     - 15 mm with insert SMGP15X4XA
  • Material: Aluminium.
  • Sides: 90° cut end.

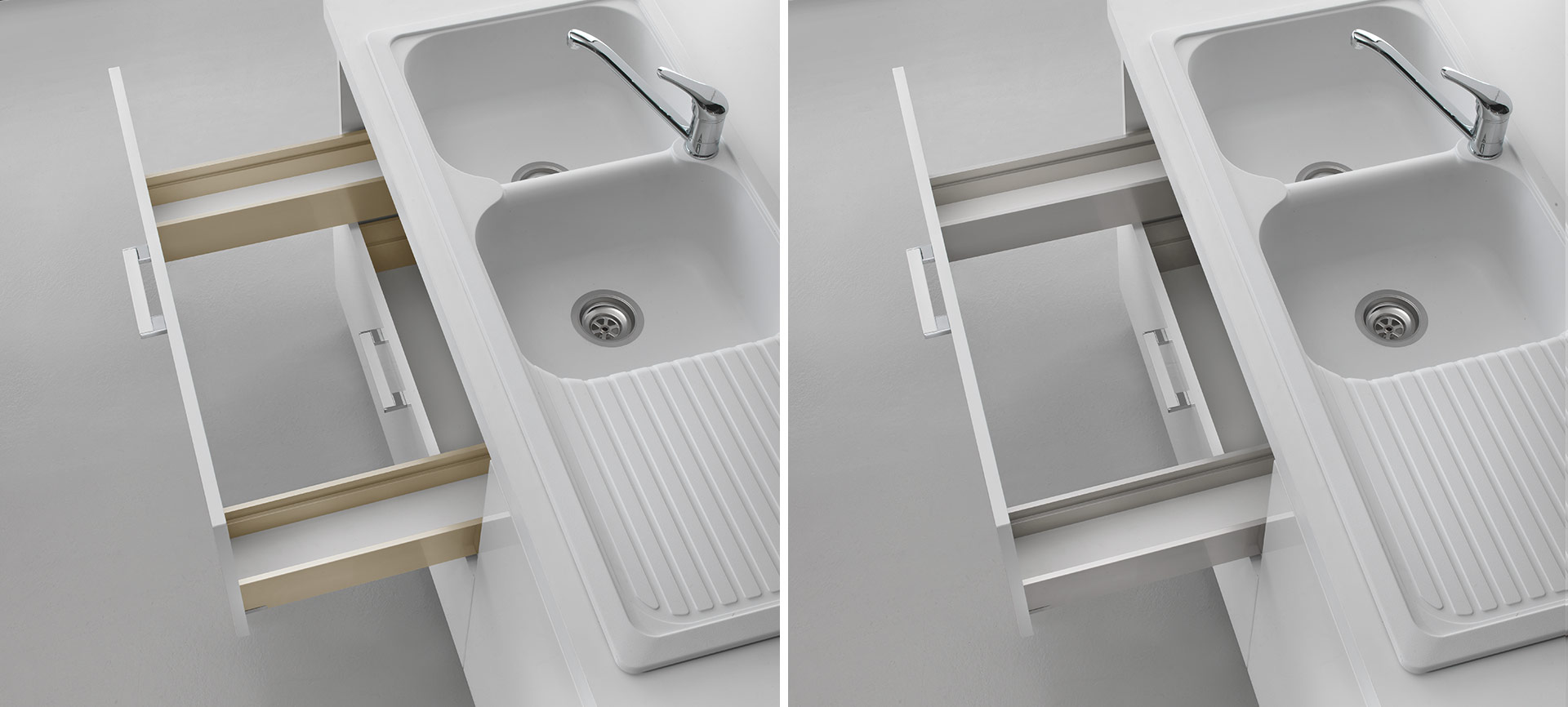

  • Finishes: Stainless steel, Champagne, Titanium, White.
Under-sink drawer - 2-sided - H 104 mm
AMGPXA3
Frontal connecting fitting
SMGP12A3XA
Frontal fixing, srews for wooden frontal included
SCCX83H9
Cover cap with embossed logo
SCXX83H9
Cover cap with silk-screen printed logo
SMGP21X4XA
Stabilizer pin for 2-sided drawers ø 6 mm
Frontal drilling ø 5 mm
SMGP15X4XA
Insert for 15 mm bottom thickness ø 5 mm
AMDGXAO
Template for frontal connecting fitting
