PROGRESSA+ SMOVE - CANADA

True progressive action

High-performance, undermount drawer runner that redefines precision and durability

  • 78 kg Static Load Capacity
  • 70 kg Dynamic Load Capacity
  • Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard
  • Compatible with drawers sides thickness between 13 mm (1/2”) and 16 mm (5/8”)

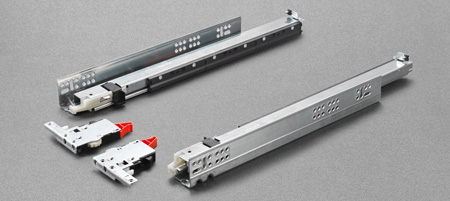

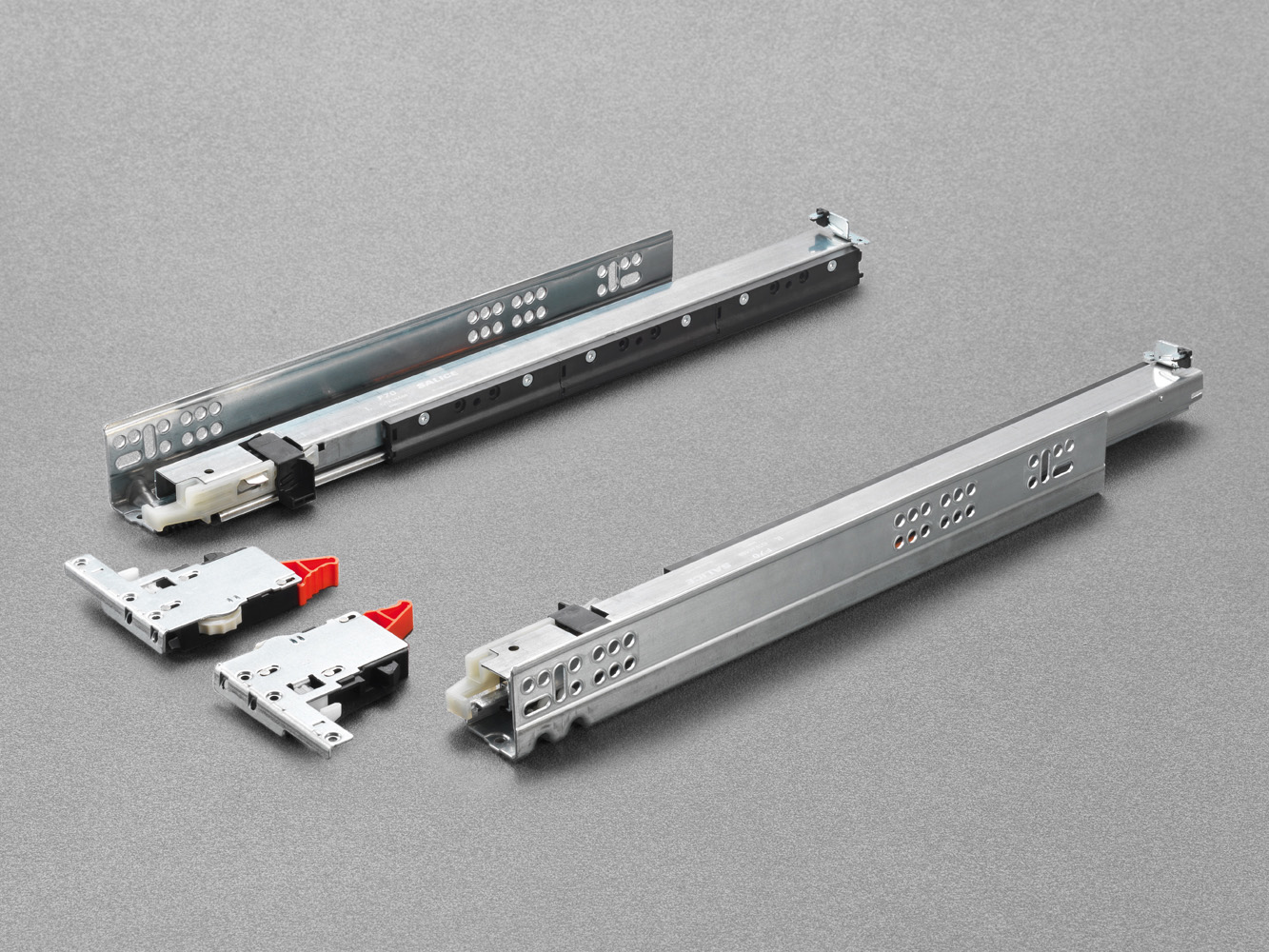

A cutting-edge generation of high-performance, full extension undermount slides

Crafted using state-of-the-art technology, Progressa slides feature our “S Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.

PROGRESSA+ SMOVE - CANADA True progressive action-2

A full range of fixing clip options, ranging from stamped steel 6-way adjustable clips with intuitive side, depth and height adjustments to 2-way adjustable locking devices for more competitive markets.

Progressa slides are available in Soft Close version for an enhanced smooth closing action.

  • True progressive action
  • 78 kg Static Load Capacity, 70 kg Dynamic Load capacity
  • Full extension with a synchronized mechanism
  • Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard
  • Available in lengths ranging from 350 mm to 750 mm in 50 increments
  • Enhanced smooth soft closing action
  • No additional stabilizer bar needed
  • Elongated holes for depth and height adjustments
  • Adjustable clips allow for easy drawer insertion and removal
  • Tool free height adjustments +2.5 mm
  • Tool free depth adjustments +/- 3 mm
  • Tool free side adjustments + / - 1.5 mm
  • Optional tool free tilt adjustment +3 mm
  • Compatible with drawers sides thickness between 13 mm (1/2”) and 16 mm (5/8”)
  • Maximum reliability at an everyday price
  • 100% Made in Italy
G7E6S350XXF6

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 350 mm
Min. depth of the cabinet (PM): 360 mm

G7E6S400XXF6

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 400 mm
Min. depth of the cabinet (PM): 410 mm

G7E6S450XXF6

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 450 mm
Min. depth of the cabinet (PM): 460 mm

G7E6S500XXF6

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 500 mm
Min. depth of the cabinet (PM): 510 mm

G7E6S600XXF2

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 600 mm
Min. depth of the cabinet (PM): 610 mm

G7E6S650XXF2

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 650 mm
Min. depth of the cabinet (PM): 660 mm

G7E6S700XXF2

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 700 mm
Min. depth of the cabinet (PM): 710 mm

G7E6S750XXF2

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 750 mm
Min. depth of the cabinet (PM): 760 mm

AFCGXX3B

Front locking devices - Standard mount - Side and depth adjustments

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).

AFCEX56B

Front locking devices - Standard mount - Front and side fixing

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Engineered thermoplastics.
Compatible with all Progressa slides.
Side fixing option.
Pre-drilling recommended ø 2.5 mm (3/32”).
Minimum inside drawer width 130 mm.
Minimum inside cabinet width 172 mm.

ASGD704U3XA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

ASGD504U6XA

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

AGLRXX3F

Optional tilt adjustment levers

Maximum 3 mm (1/8”) rise of drawer back (tool free).
1 box = 12 pcs right / 12 pcs left.

ASPACERFUT

Side spacer

For spacing out Progressa runners for clearance on interior roll-outs.
1 box = 100 pcs.

AFSFXXB

Spacer for 1/2" drawer sub-fronts

For drawer sides with sub-fronts between 12 and 13 mm (1/2"), we recommend the use of the build-up spacer.
To be used with AFCGXX3B and AFCEX56B front locking device (right and left).
Spacer can be fit to any size by breaking tabs.
1 box = 100 pcs.

V234X164

Wood screw

Wood screw # 6 x 16 mm (5/8").
1 box = 100 pcs.

V136X114

Euro screws

Euro screws # 6 x 11 mm (7/16").
1 box = 100 pcs.

V136X154

Euro screws

Euro screws # 6 x 14.5 mm (9/16").
1 box = 100 pcs.

D2A7XCXCP

Pozi driver

1 box = 100 pcs.

TDB7406R

ø 6 mm drill bit for rear hook

1 box = 1 pc.

TLKEY332

Hex key to lock the stop collar set screw onto the 6 mm drill bit

1 box = 1 pc.

TSC06MM

Drill bit stop collar for 6 mm bit

1 box = 1 pc.
