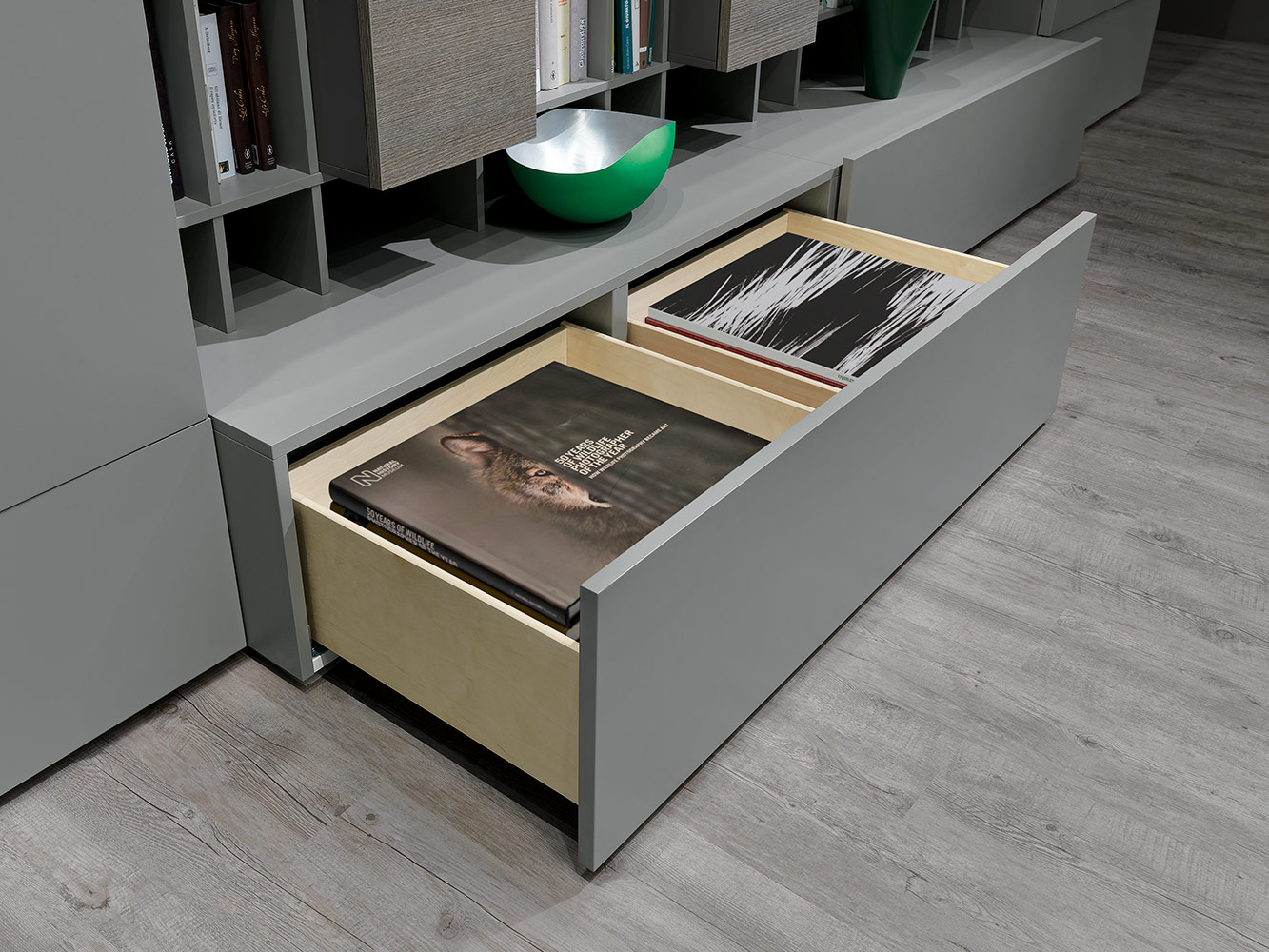

Fluid, silent and progressive sliding movement
It is available in three versions: with traditional Self-closing, with Push opening in handle-less furniture and with Smove decelerated closing.
Futura is suitable for all drawer opening applications, both with partial and full-extension.
- Load capacity: 75 LBS (34 Kg) dynamic/100 LBS (45 Kg) static - ANSI GRADE 1.
- Smove decelerated closing.
- Drawer height adjustment +2.5 mm with clip A710.610.
- Drawer height adjustment +2.5 mm, side adjustment ±1.5 mm, depth adjustment ±2 mm with clip A750.010.
- Finish: bright zinc-plated.
A6555/25 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 10" (250 mm)
Min. depth of the cabinet: 260 mm
A6555/27 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 11" (270 mm)
Min. depth of the cabinet: 280 mm
A6555/30 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 12" (300 mm)
Min. depth of the cabinet: 310 mm
A6555/35 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 14" (350 mm)
Min. depth of the cabinet: 360 mm
A6555/40 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 16" (400 mm)
Min. depth of the cabinet: 410 mm
A6555/45 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 18" (450 mm)
Min. depth of the cabinet: 460 mm
A6555/50 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 20" (500 mm)
Min. depth of the cabinet: 510 mm
A6555/55 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 22" (550 mm)
Min. depth of the cabinet: 555 mm
A6555/60 CP6
Full-extension runner fixed to the drawer by clip
Runner length: 24" (600 mm)
Min. depth of the cabinet: 605 mm
A710.610
Height adjustable clip
A750.010
6-way adjustable clip
A199800755009
Template for drawer drilling and 1-way adjustable clip fixing
A199800755010
Template for drawer drilling and 6-way adjustable clip fixing
A825104145
Spacer, thickness 4.5 mm.
To be used to compensate for different assembly widths or the projection of the door.
A825104160
Spacer, thickness 6 mm.
To be used to compensate for different assembly widths or the projection of the door.
A6869400000202
Stabilizer for drawers.
To be fitted on both right and left sides of the drawer.
Cam adjustment to allow a perfect bearing of the rollers on the cabinet side.
It improves the overall stability of the drawer.
V234X164I
Wood screw
ø 4 x 16 mm
Pre-drilling ø 2 x 2 mm
V136X114I
Euroscrews
Drilling ø 5 x 10 mm
V136X154I
Euroscrews
Drilling ø 5 x 14 mm
Pozi screwdriver D2A7XCXCP
Pozi screwdriver
Technical information
Documentation
Video
- Opening-Closing Smove
- Drawer drilling (three-sided) and fixing of the runner - with 1 way adjustable clip
- Drawer drilling (four-sided) and fixing of the runner - with 1 way adjustable clip
- Drawer drilling (three-sided) and fixing of the runner - with 3 way adjustable clip
- Drawer drilling (four-sided) and fixing of the runner - with 3 way adjustable clip
- Height adjustment - with 1 way adjustable clip
- Height adjustment - with 3 way adjustable clip
- Depth adjustment - with 3 way adjustable clip
- Sideways adjustment - with 3 way adjustable clip
