FUTURA SMOVE - USA Full extension - A7955-1

FUTURA SMOVE - USA

Full extension - A7955

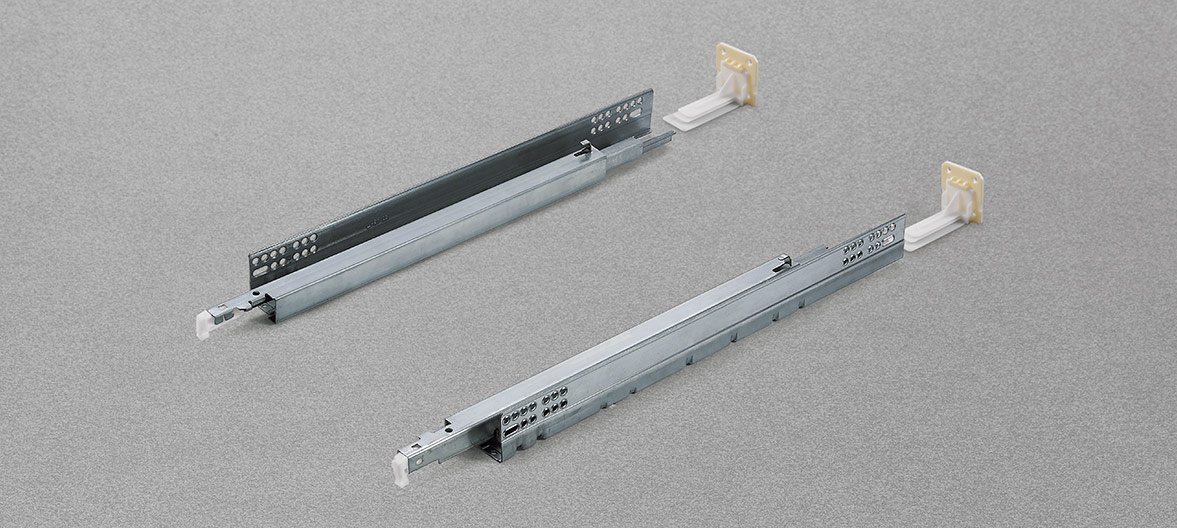

Full-extension runner fixed to the drawer by clip

  • Load capacity: 100 lbs static/75 lbs dynamic
  • Clip with height, side and depth adjustment
  • With Smove soft closing
  • Full-extension
Fluid, silent and progressive sliding movement

It is available in three versions: with traditional Self-closing, with Push opening in handle-less furniture and with Smove decelerated closing.

FUTURA SMOVE - USA Full extension - A7955-2
Smove: soft closing fully integrated into the drawer runner.
  • Product features: ANSI - Grade 1
  • Load capacity: 100 lbs static/75 lbs dynamic.
  • With Smove soft closing.
  • Adjustable clips allow for easy drawer insertion and removal.
  • Finish: bright zinc-plated.
  • For 15 mm (19/32”) to 19 mm (3/4”) drawer material.
A7955/305 CP6

Runner length: 315 mm

Minimum inside cabinet depth (metal socket): 326 mm (12-13/16'')

Minimum inside cabinet depth (plastic socket): 330 mm (13'')

A7955/381 CP6

Runner length: 391 mm

Minimum inside cabinet depth (metal socket): 403 mm (15-7/8'')

Minimum inside cabinet depth (plastic socket): 407 mm (16'')

A7955/457 CP6

Runner length: 467 mm

Minimum inside cabinet depth (metal socket): 479 mm (18-7/8'')

Minimum inside cabinet depth (plastic socket): 483 mm (19'')

A7955/533 CP6

Runner length: 543 mm

Minimum inside cabinet depth (metal socket): 555 mm (21-7/8'')

Minimum inside cabinet depth (plastic socket): 559 mm (22-3/4'')

A710.610
Height adjustable clip
A750.010
6-way adjustable clip
A720.610
Narrow drawer clip
A199800755009
Template for drawer drilling and 1-way adjustable clip fixing
A199800755010
Template for drawer drilling and 6-way adjustable clip fixing
A6869400000202
Stabilizer for drawers
ASO755AJYD

Plug in socket

Lateral self-alignment feature
Two pieces synthetic, natural color
Non-handed
Non-detachable 8 (5/16”) dowels

ASO755AJND

Screw on socket

Lateral self-alignment feature
Two pieces synthetic, natural color
Non-handed

ASO755NAND9

Screw on socket for 9” runner

For 9” Futura runner
One piece synthetic natural color
Lateral self-alignment feature
Non-handed
Use at least two fixing screws

AGSKXC5

Standard steel socket

Lateral self-alignment feature
One piece stamped steel, zinc-coated
Non-handed
Use at least two fixing screws

AGSKXR5

Narrow steel socket

Lateral self-alignment feature
One piece stamped steel, zinc-coated
Non-handed
Use at least two fixing screws

ASPACERFUT

Side spacer

For spacing out Futura runners for clearance on interior roll-outs

VU73X154

Wood screw

# 6x5/8”

V136X114
Euro screw # 6 x 11 mm (7/16")
V136X154
Euro screw # 6 x 14,5 mm (9/16")
Pozi screwdriver D2A7XCXCP

Pozi screwdriver
