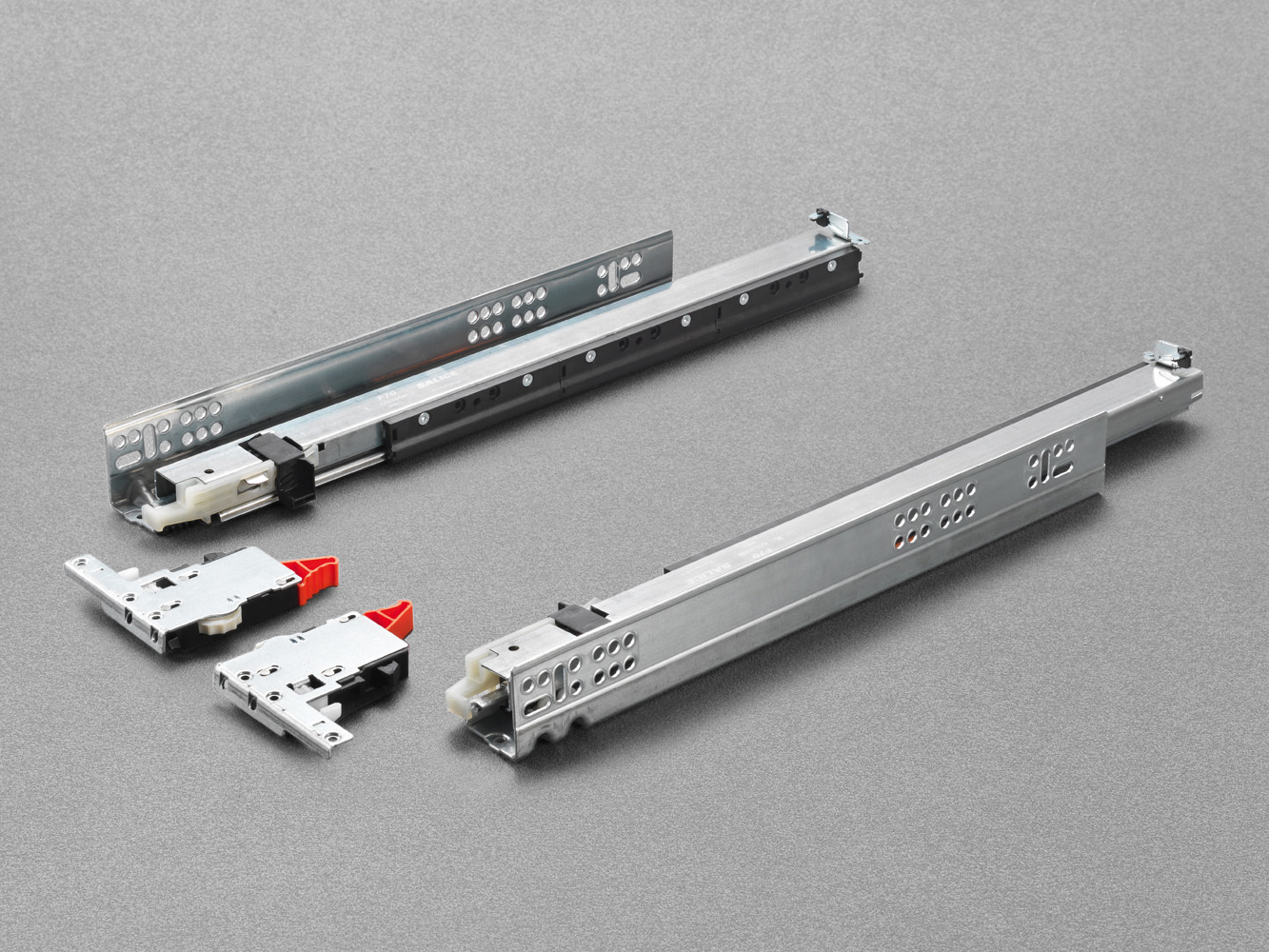

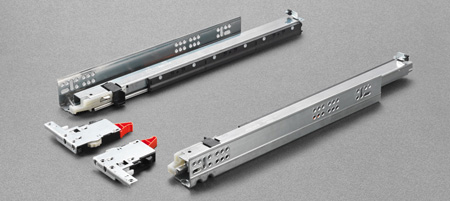

PROGRESSA+ PUSH - CANADA

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 350 mm
Min. depth of the cabinet (PM): 360 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 400 mm
Min. depth of the cabinet (PM): 410 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 450 mm
Min. depth of the cabinet (PM): 460 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 500 mm
Min. depth of the cabinet (PM): 510 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 550 mm
Min. depth of the cabinet (PM): 560 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 600 mm
Min. depth of the cabinet (PM): 610 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 650 mm
Min. depth of the cabinet (PM): 660 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 700 mm
Min. depth of the cabinet (PM): 710 mm

Full extension runner for 13 mm (1/2") to 16 mm (5/8”) drawer material thickness.

Runner length (LN): 750 mm
Min. depth of the cabinet (PM): 760 mm

Front locking devices - Standard mount - Side and depth adjustments

For all Progressa, Progressa+ and Progressa+ Shelf slides.
Dual steel/fiber glass-nylon construction.
Compatible with all Progressa slides.
Tool free lateral and depth adjustments.
Pre-drilling recommended ø 2.5 mm (3/32”).

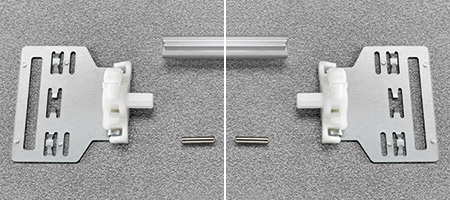

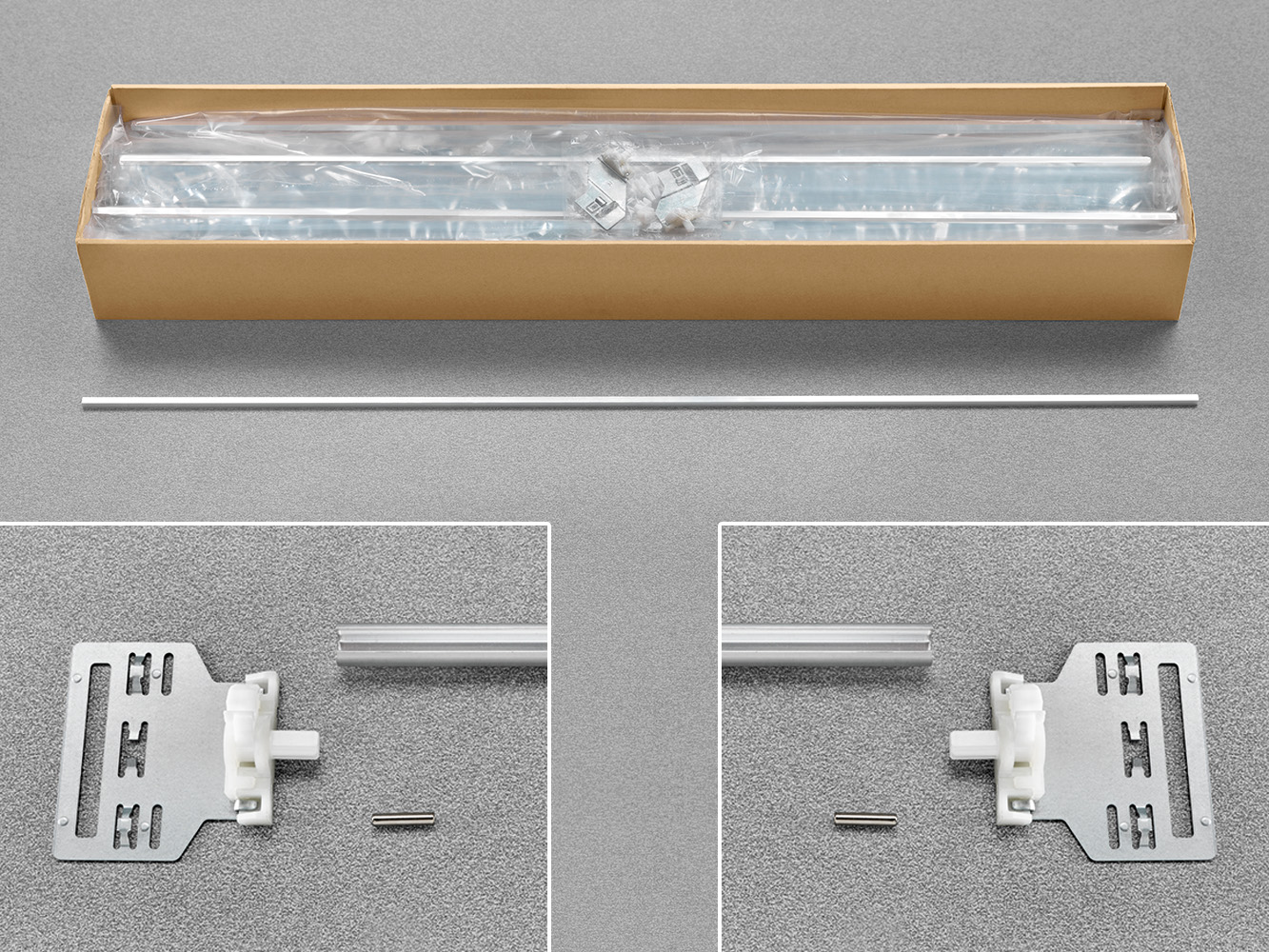

Push Synchronizer

The synchronization system for Push-to-Open Progressa+ slides has been developed to ensure that wider drawers can be opened with minimum effort.
The system links the two runners, which then become a single element; applying pressure on any part of the drawer front (even at the extremities), is sufficient for the Push devices to release and consequently for the drawer to open.
1 box = 20 single kits.

Drilling templates for drawers

Pre-drilling for the clips reduces the possibility of splitting the wood, thus assuring the correct and level installation of the clips.
The correct and level mounting assures a smooth assembly and operation of the drawer slide.
1 box = 100 pcs.

Optional tilt adjustment levers

Maximum 3 mm (1/8”) rise of drawer back (tool free).
1 box = 12 pcs right / 12 pcs left.

Side spacer

For spacing out Progressa runners for clearance on interior roll-outs.
1 box = 100 pcs.

Spacer for 1/2" drawer sub-fronts

For drawer sides with sub-fronts between 12 and 13 mm (1/2"), we recommend the use of the build-up spacer.
To be used with AFCGXX3B and AFCEX56B front locking device (right and left).
Spacer can be fit to any size by breaking tabs.
1 box = 100 pcs.

Wood screw

Wood screw # 6 x 16 mm (5/8").
1 box = 100 pcs.

Euro screws

Euro screws # 6 x 11 mm (7/16").
1 box = 100 pcs.

Euro screws

Euro screws # 6 x 14.5 mm (9/16").
1 box = 100 pcs.

Pozi driver

1 box = 100 pcs.

ø 6 mm drill bit for rear hook

1 box = 1 pc.

Hex key to lock the stop collar set screw onto the 6 mm drill bit

1 box = 1 pc.

Drill bit stop collar for 6 mm bit

1 box = 1 pc.
