The waste bin systems provide an aesthetically attractive and extremely effective handling of waste.
Both the Lineabox drawer and the waste bins are supplied in preassembled kits. Their assembly is easy, rapid and intuitive. This operation is tool free.
The sliding movement of the drawer is fluid and progressive, thanks to Shelf full-extension runners, premounted on a specially-designed frame.

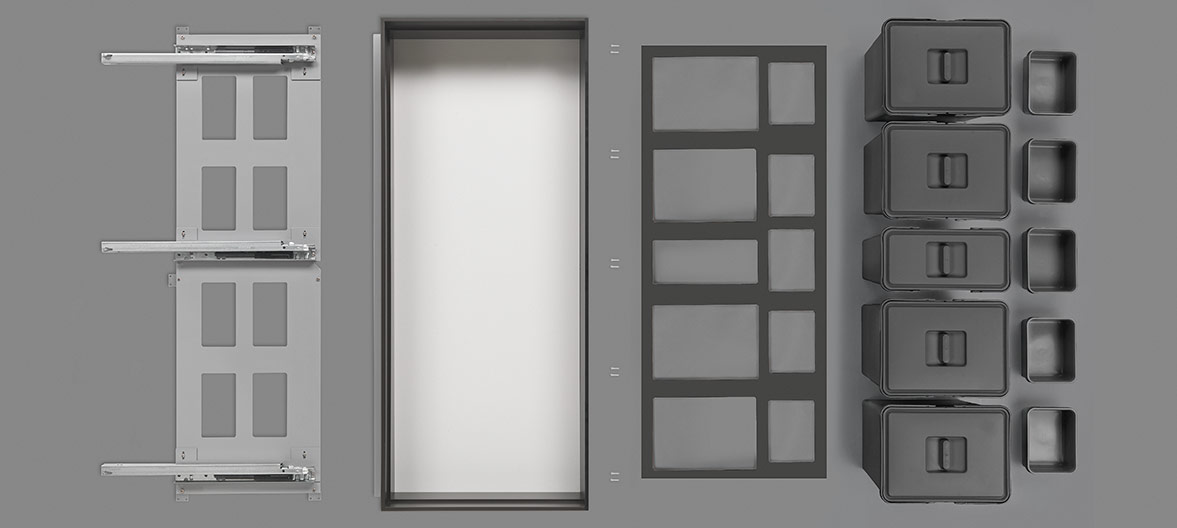

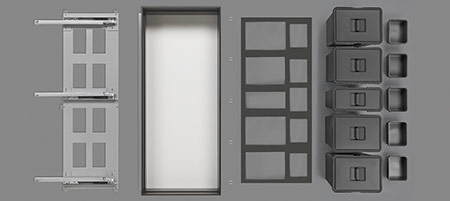

- Kit consists of:
- 3 Shelf runners 65559, 500 mm length, premounted on a steel support
- Screws for wooden frontal ø 4 x 35 mm
- Fully assembled Lineabox drawer
- Steel bin-holder frame
- 4 plastic waste bins - capacity 18 litres, 1 waste bin - capacity 12 litres
- 5 plastic glove boxes - Technical features:
- Depth adjustment with the runner fixing clips
- Sideways, vertical and tilt adjustment on the runners support - Finishes:
- Bin-holder frame: Titanium
- Waste bins: Charcoal
- Plastic glove boxes: Charcoal
- Runners support: Grey

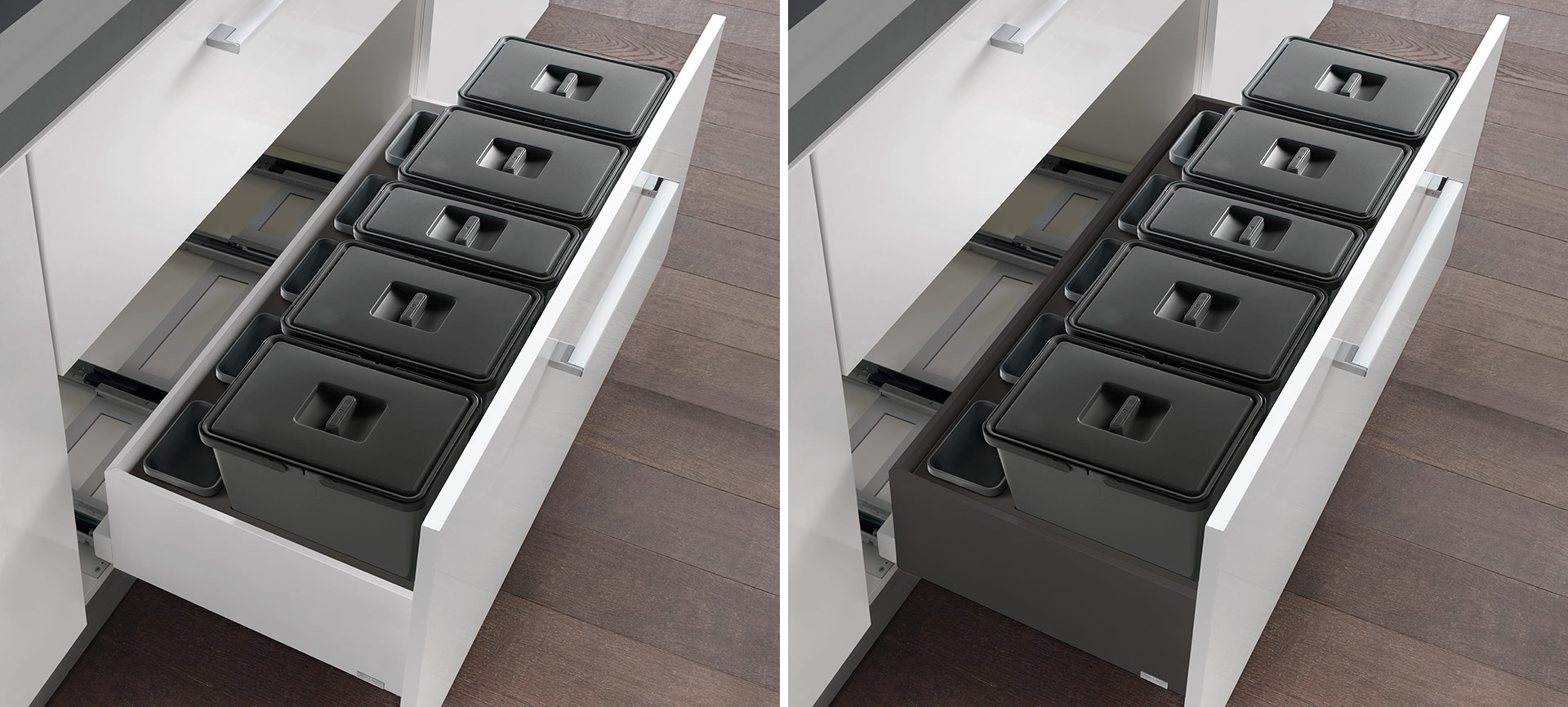

- Lineabox sides: Stainless steel, Champagne, Titanium, White

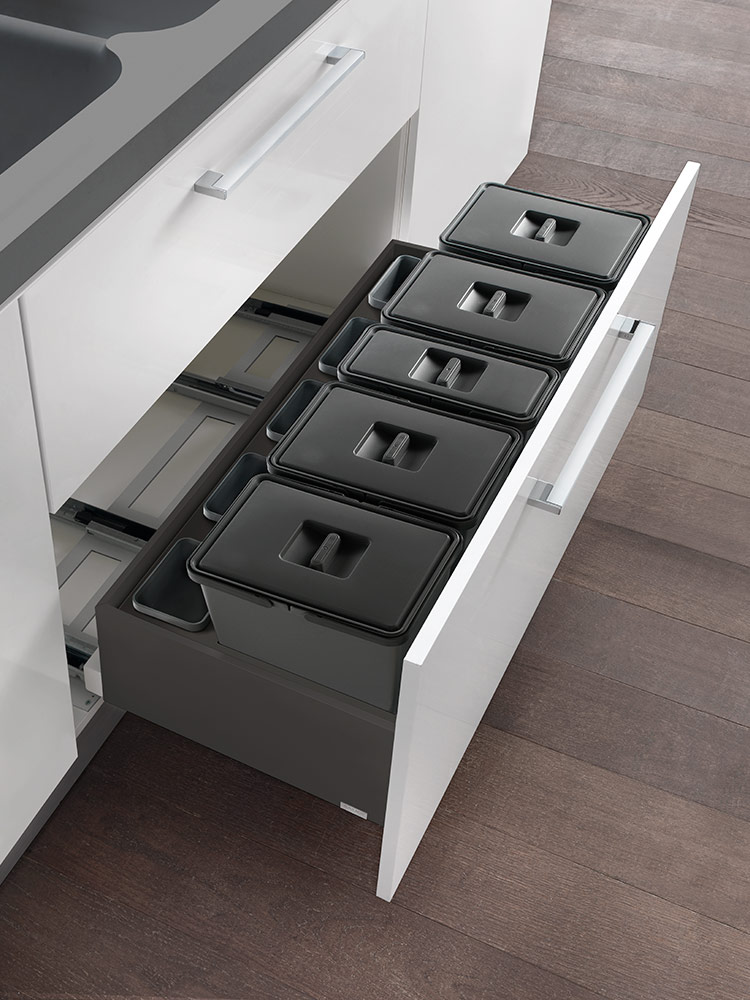

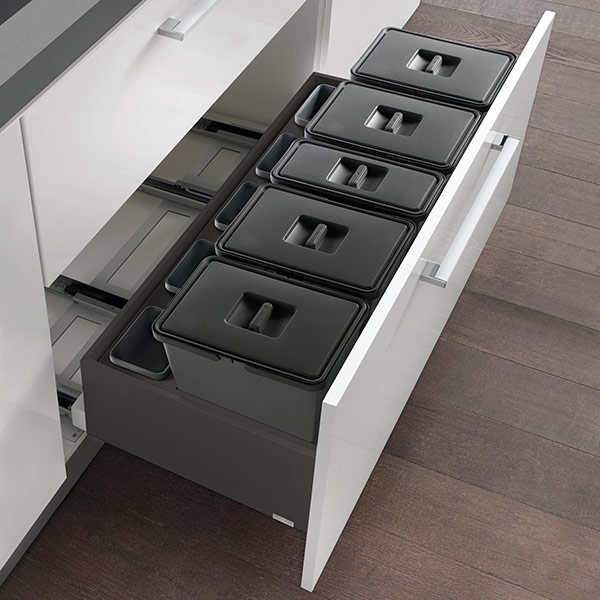

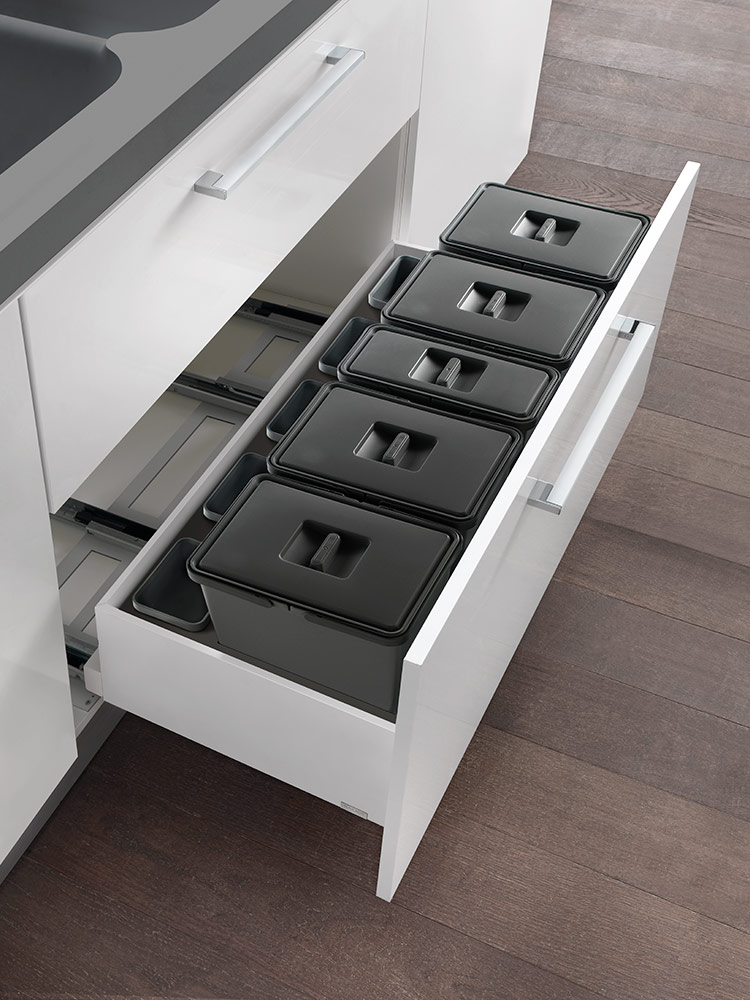

Storage unit width 1200 mm
Single kit
AKWBAX1050001200 = white
AKWBAX6050001200 = titanium
AKWBAXC050001200 = champagne
AKWBAXI050001200 = stainless steel
SCCX83H9
Cover cap with embossed logo
SCXX83H9
Cover cap with silk-screen printed logo
AMSRX33
Reinforcing supports for the bottom of the drawer
Technical information
Technical pamphlet
Feel the design according to your favourite product
Learn about the other products
Learn about the other products
WASTE BIN SYSTEMS
Storage unit width 450 mm
Kit composed by Shelf runners, premounted on a steel support, fully assembled Lineabox drawer, bin-holder frame and bins
- Lenght of the runners 500 mm
- Adjustable steel support
- Height of the Lineabox metal side 180 mm
WASTE BIN SYSTEMS
Storage unit width 600 mm
Kit composed by Shelf runners, premounted on a steel support, fully assembled Lineabox drawer, bin-holder frame and bins
- Lenght of the runners 500 mm
- Adjustable steel support
- Height of the Lineabox metal side 180 mm
WASTE BIN SYSTEMS
Storage unit width 900 mm
Kit composed by Shelf runners, premounted on a steel support, fully assembled Lineabox drawer, bin-holder frame and bins
- Lenght of the runners 500 mm
- Adjustable steel support
- Height of the Lineabox metal side 180 mm
PULL-OUT UNITS
Width 150 mm
Kit composed by two runners to be fixed to the right or to the left side of the cabinet and two fully assembled Lineabox drawers, premounted on a frame.
- Lenght of the runners 500 mm
- Runners fixed to the right or to the left side
- Integrated Smove system
PULL-OUT UNITS
Width 300 mm
Kit composed by two runners to be fixed to the right or to the left side of the cabinet and two fully assembled Lineabox drawers, premounted on a frame.
- Lenght of the runners 500 mm
- Runners fixed to the right or to the left side
- Integrated Smove system
