Clean, simple lines with minimal wall thickness to maximize internal space
Streamlined aesthetics uncluttered with holes or assembly components. Lineabox is very versatile and highly customisable. Assembly is rapid without the need for machines or templates.
A light and thin drawer, suitable for all applications. A fluid, silent and progressive sliding movement, thanks to Futura full-extension runners.
- Height of the side 77 mm - Internal height 45 mm.
- For use with Futura full-extension runners: 655 - 65577 - 6555.
- Rapid assembly system, with no machinery or templates needed.
- Rapid mounting and removal of drawer frontal.
- The back can be personalised according the width of the cabinet.
- Height, sideways and depth adjustment of the drawer incorporated in the runner fixing clips.
- Bottom thickness:
- 16 mm
- 15 mm with insert SMGP15X4XA - Material: Aluminium.
- Sides and back: 45° mitre cut end.
- Finishes: Stainless steel, Champagne, Titanium, White.

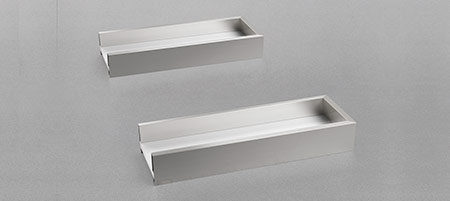

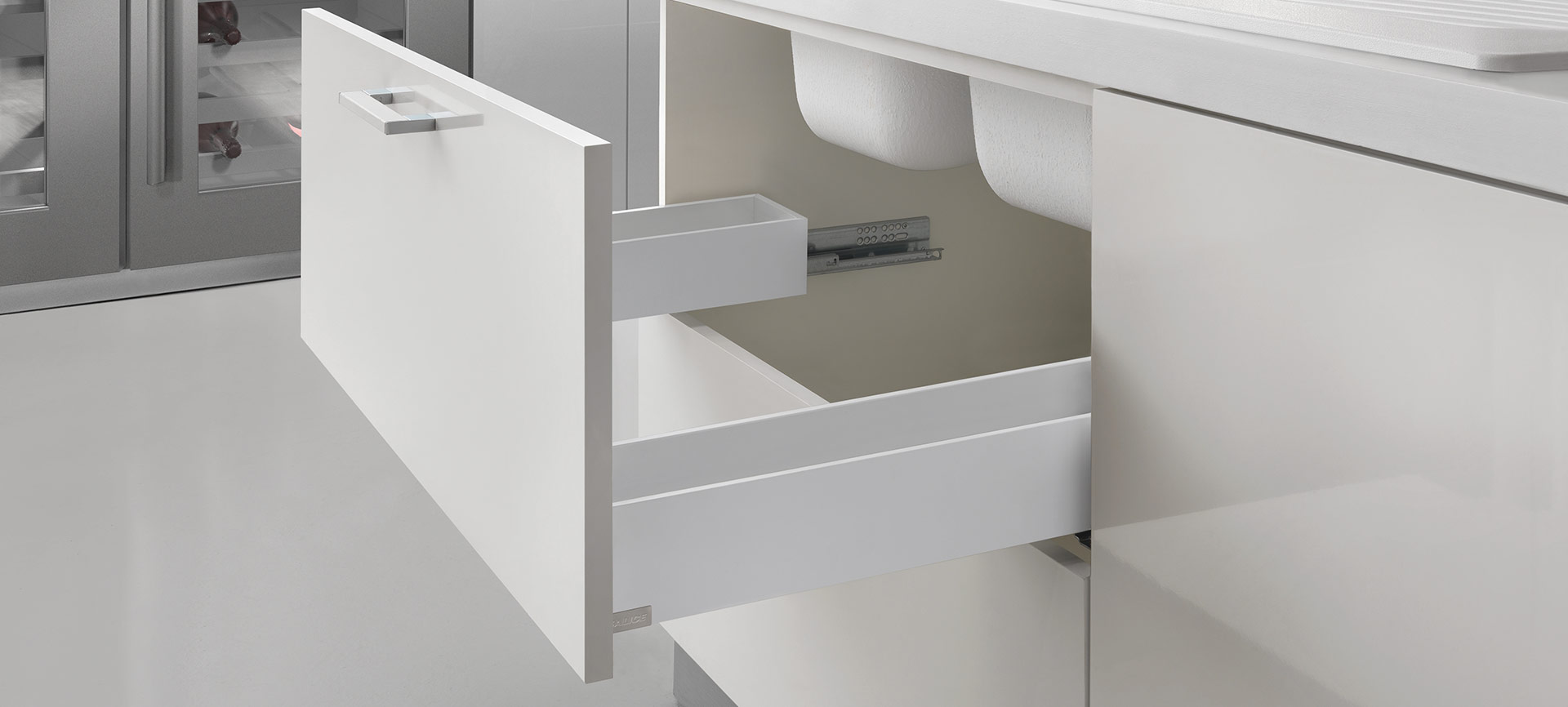

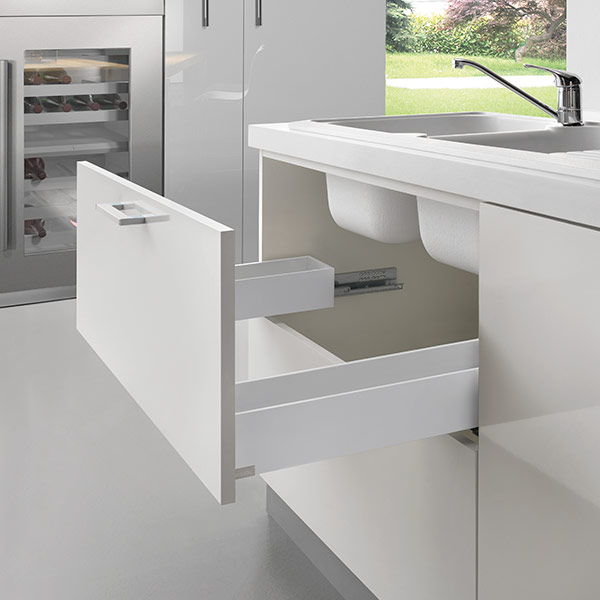

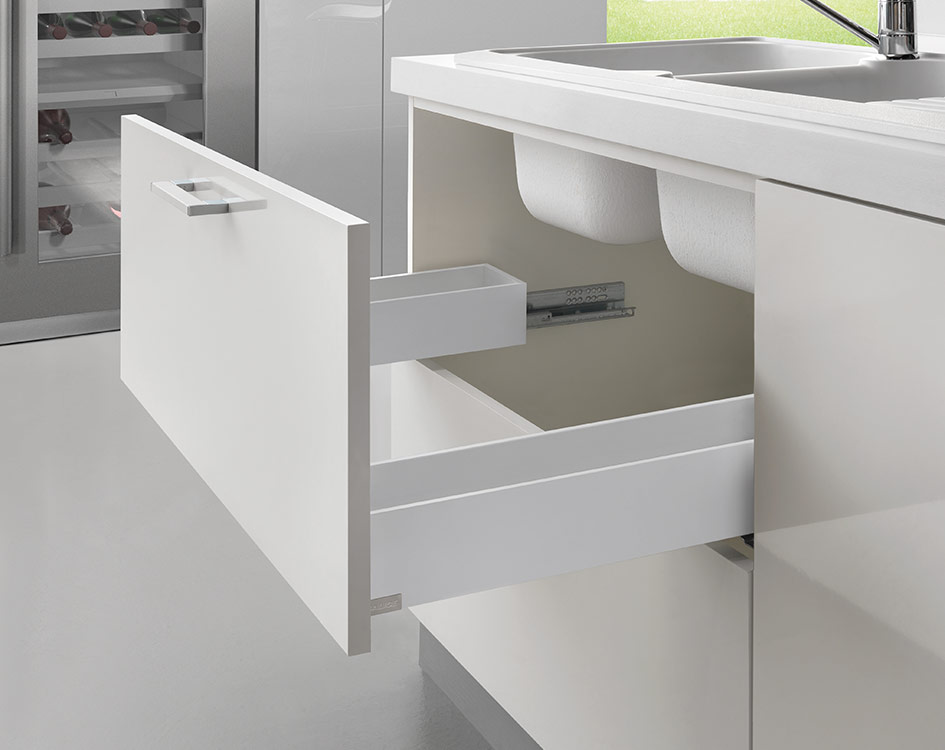

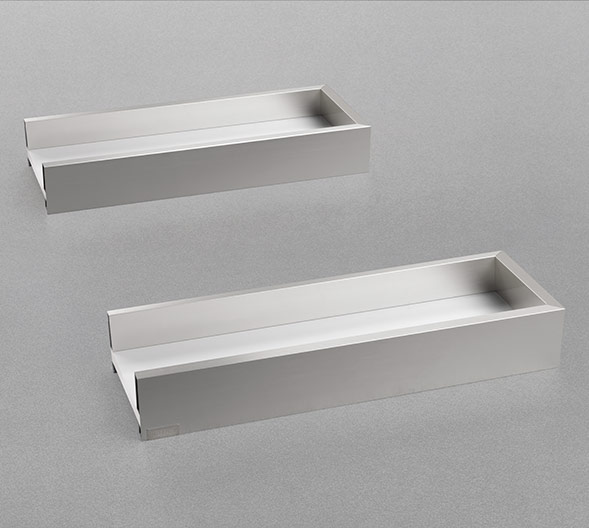

Under-sink drawer - 3-sided - H 77 mm
AMGPXA3
Frontal connecting fitting
SMGP12A3XA
Frontal fixing, screws for wooden frontal included
SCCX83H9
Cover cap with embossed logo
SCXX83H9
Cover cap with silk-screen printed logo
AMDGXAO
Template for frontal connecting fitting
SMGP15X4XA
Insert for 15 mm bottom thickness ø 5 mm
Technical information
Technical pamphlet
Presentation
Feel the design according to your favourite product
Learn about the other products
Learn about the other products
LINEABOX
3-sided drawer - H 77 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 77 mm
- Internal height 45 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
3-sided drawer - H 104 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 104 mm
- Internal height 72 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
3-sided drawer - H 180 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 180 mm
- Internal height 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
4-sided drawer - H 77 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 77 mm
- Internal height 45 mm
- Height of the frontal 94 mm
- Bottom thickness 15-16 mm
- Aluminium
LINEABOX
4-sided drawer - H 104 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 104 mm
- Internal height 72 mm
- Height of the frontal 120 mm
- Bottom thickness 15-16 mm
- Aluminium
LINEABOX
4-sided drawer - H 180 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 180 mm
- Internal height 148 mm
- Height of the frontal 197 mm
- Bottom thickness 15-16 mm
- Aluminium
LINEABOX
Sink waste cut-out drawer - 2-sided - H 77 mm
Metal side with wooden frontal and back panel
- Height of the metal side 77 mm
- Internal height 45 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Sink waste cut-out drawer - 2-sided - H 104 mm
Metal side with wooden frontal and back panel
- Height of the metal side 104 mm
- Internal height 72 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Sink waste cut-out drawer - 2-sided - H 180 mm
Metal side with wooden frontal and back panel
- Height of the metal side 180 mm
- Internal height 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Sink waste cut-out drawer - 3-sided - H 77 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 77 mm
- Internal height 45 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
Sink waste cut-out drawer - 3-sided - H 104 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 104 mm
- Internal height 72 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
Sink waste cut-out drawer - 3-sided - H 180 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 180 mm
- Internal height 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
Under-sink drawer - 2-sided - H 77 mm
Metal side with wooden frontal and back panel
- Height of the metal side 77 mm
- Internal height 45 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Under-sink drawer - 2-sided - H 104 mm
Metal side with wooden frontal and back panel
- Height of the metal side 104 mm
- Internal height 72 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Under-sink drawer - 2-sided - H 180 mm
Metal side with wooden frontal and back panel
- Height of the metal side 180 mm
- Internal height 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX

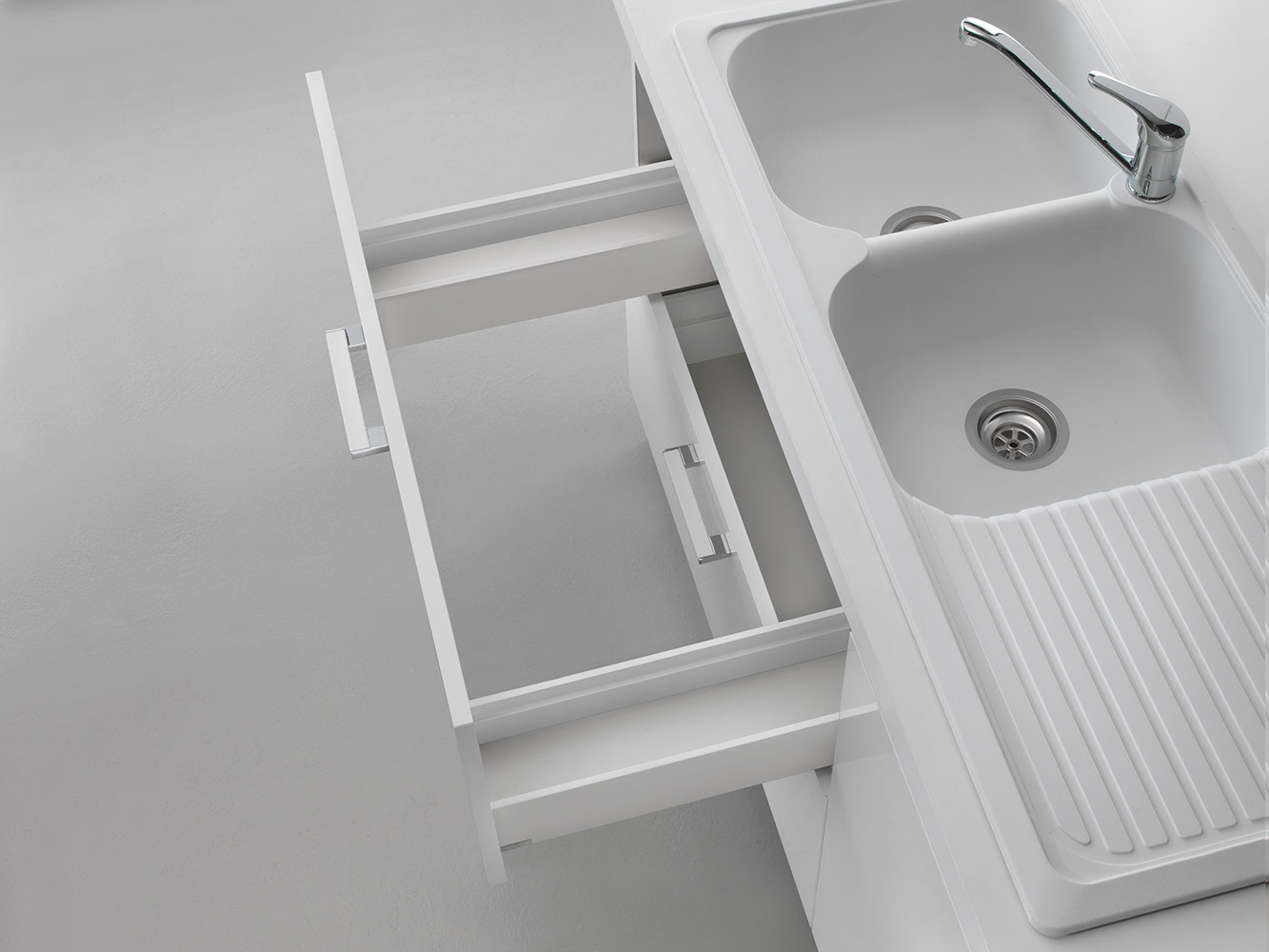

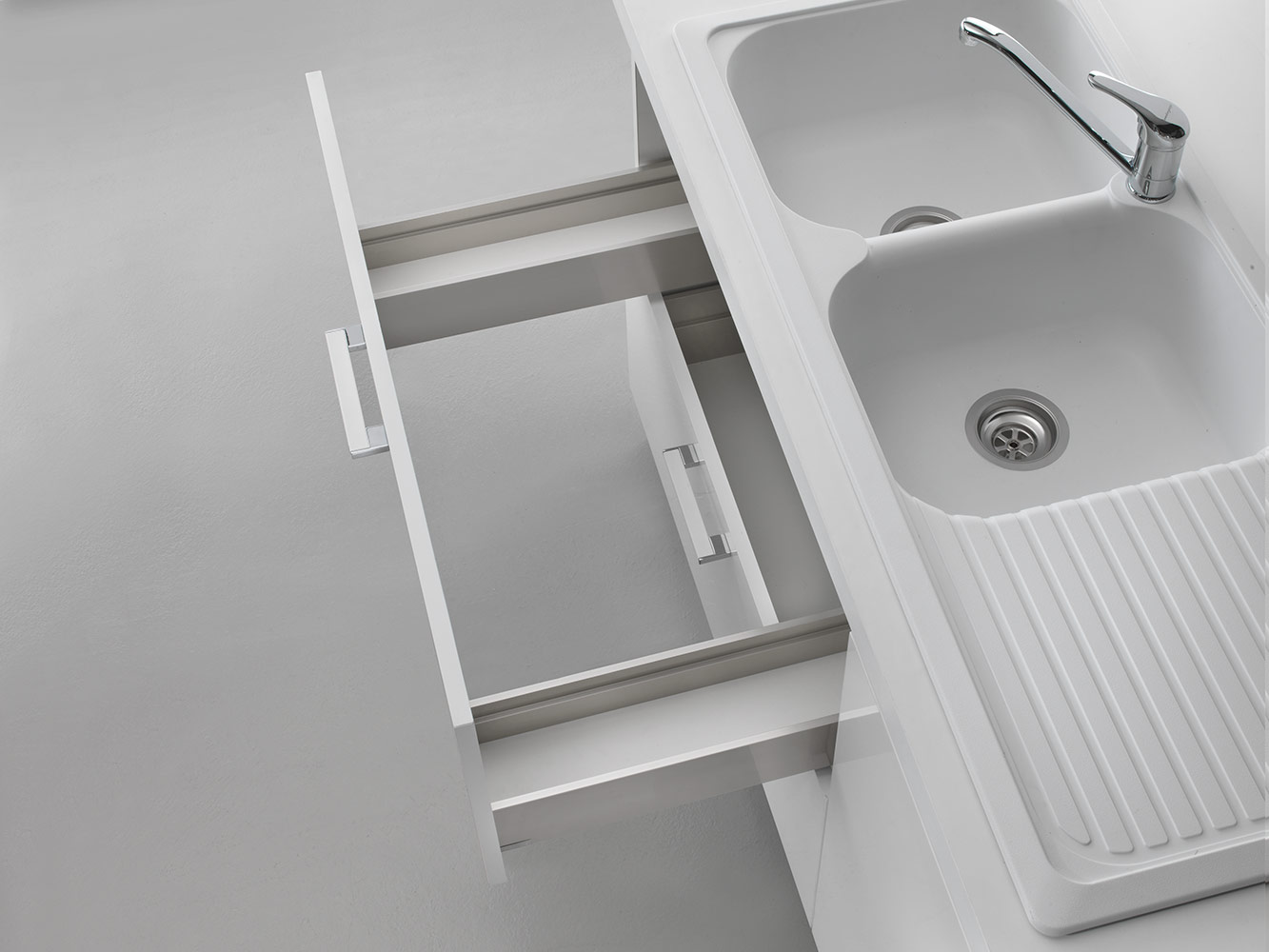

Under-sink drawer - 3-sided - H 104 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 104 mm
- Internal height 72 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
Under-sink drawer - 3-sided - H 180 mm
Metal drawer with a rapid assembly system, with no machinery or templates needed
- Height of the metal side 180 mm
- Internal height 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 45° cut end
LINEABOX
Pull-out column unit
With a rapid assembly system, with no machinery or templates needed
- Height of the metal side 77 - 104 - 180 mm
- Internal height 45 - 72 - 148 mm
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
LINEABOX
Pull-out high storage units
With a rapid assembly system, with no machinery or templates needed
- Bottom thickness 15-16 mm
- Aluminium
- 90° cut end
