Series CU - Silentia Excentra - 2 cam adjustment

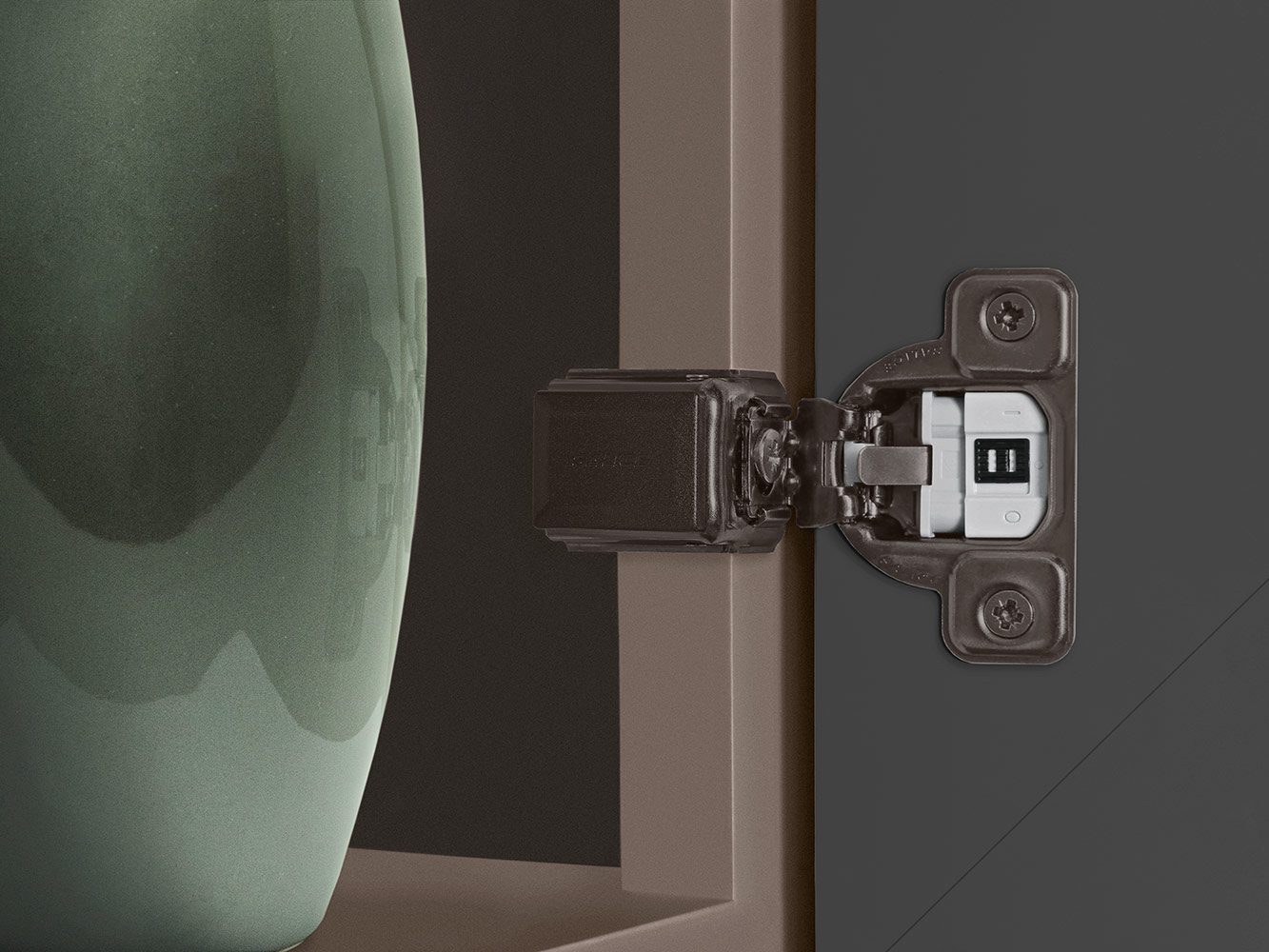

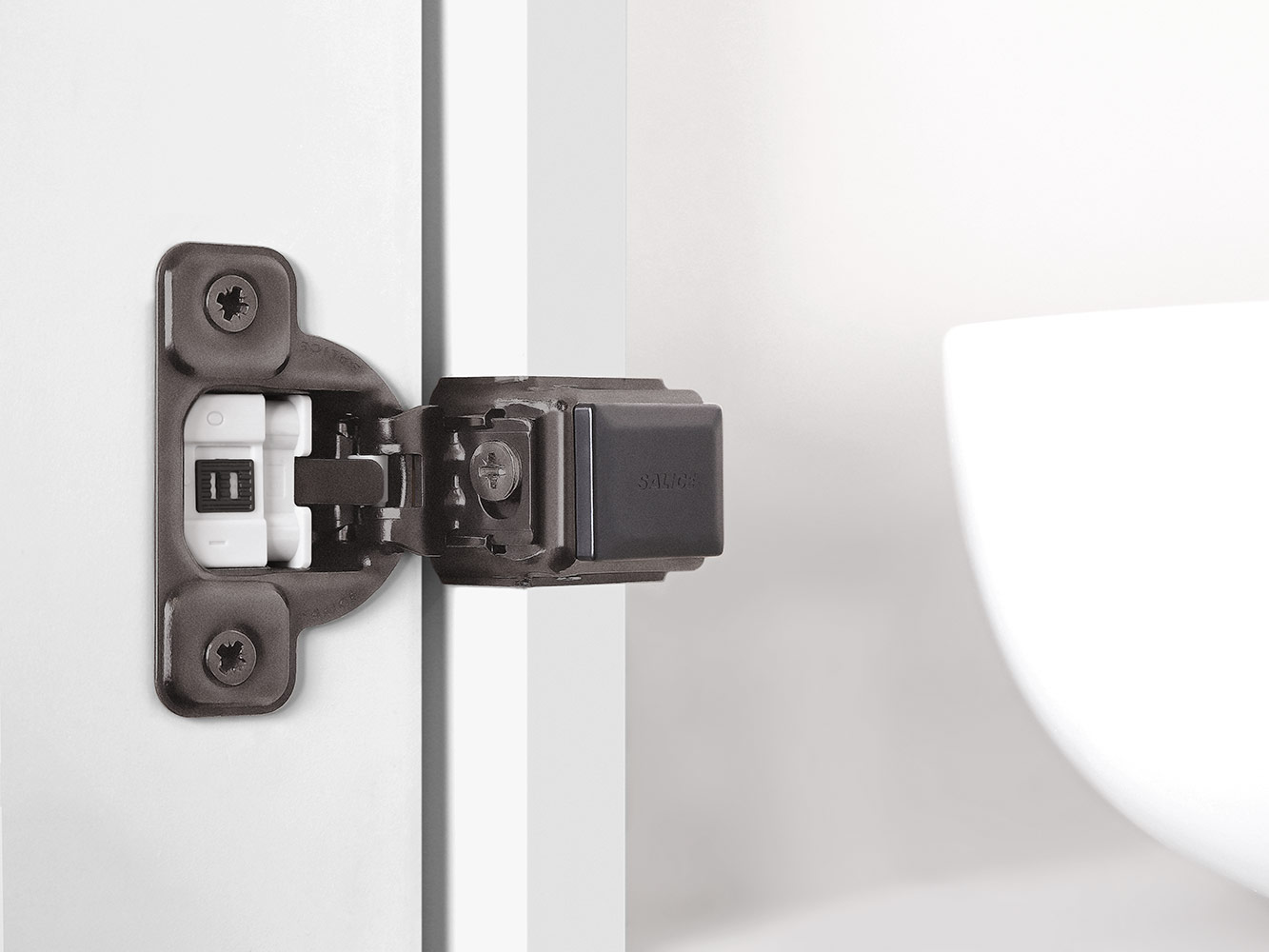

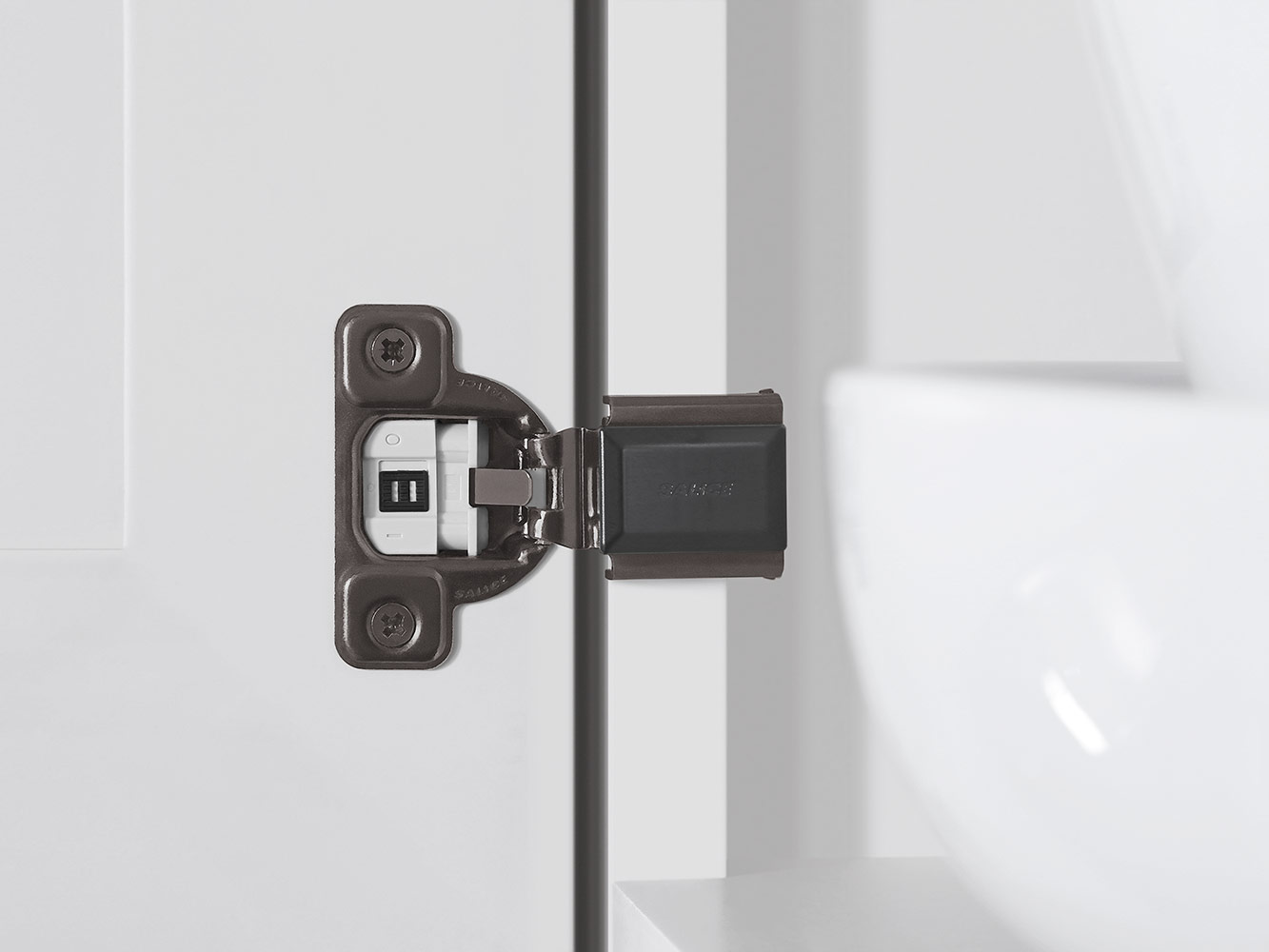

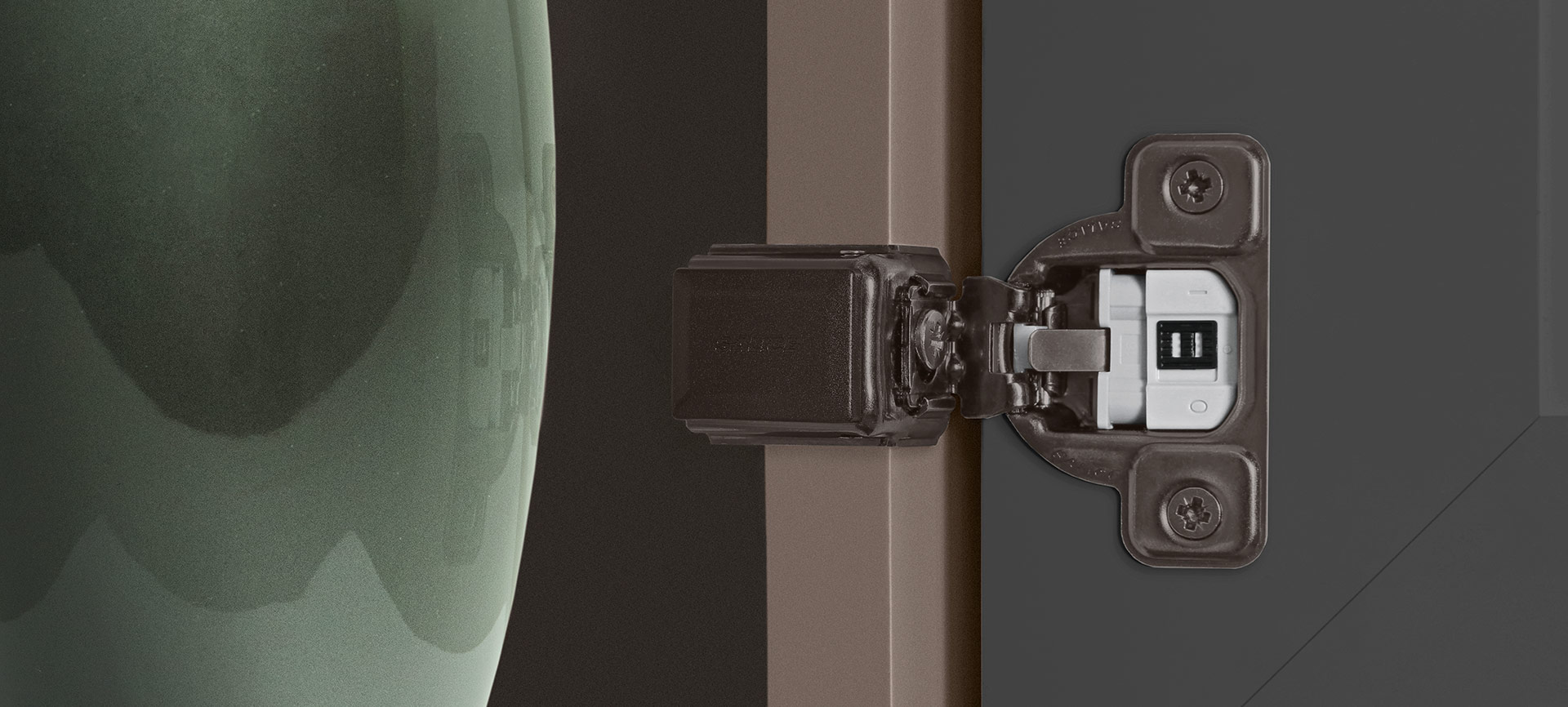

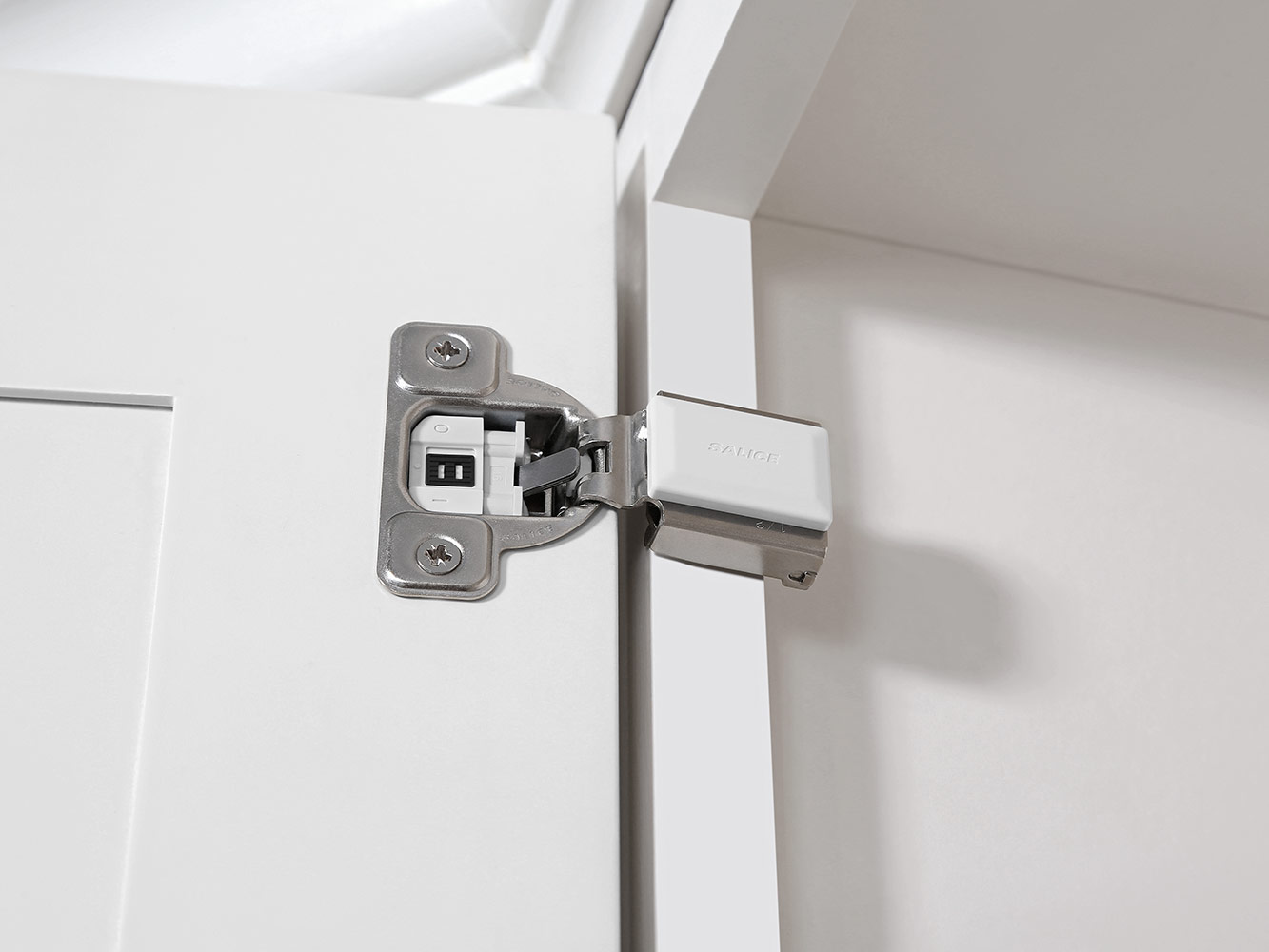

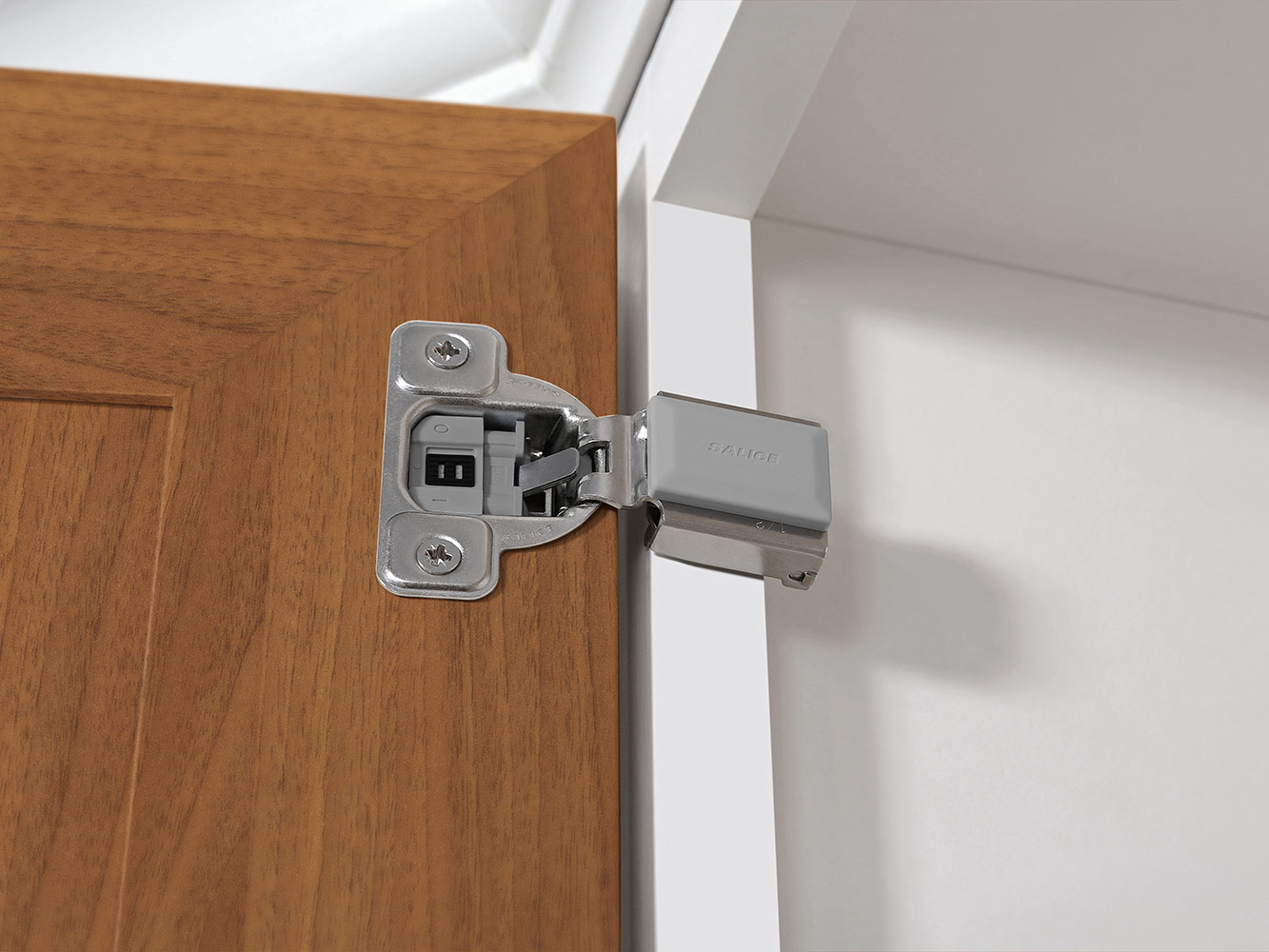

Hinges with integrated soft-closing system

  • Minimum door thickness 14mm (9/16")
  • Maximum door thickness 22mm (7/8")
  • Cup depth 11 mm
  • Opening 106°

When a different soft closing strength is desired, the decelerating mechanism on the hinge can be easily deactivated by using the activation switch clearly visible on the front of the unit.

Adjustments made easy through eccentric cams.

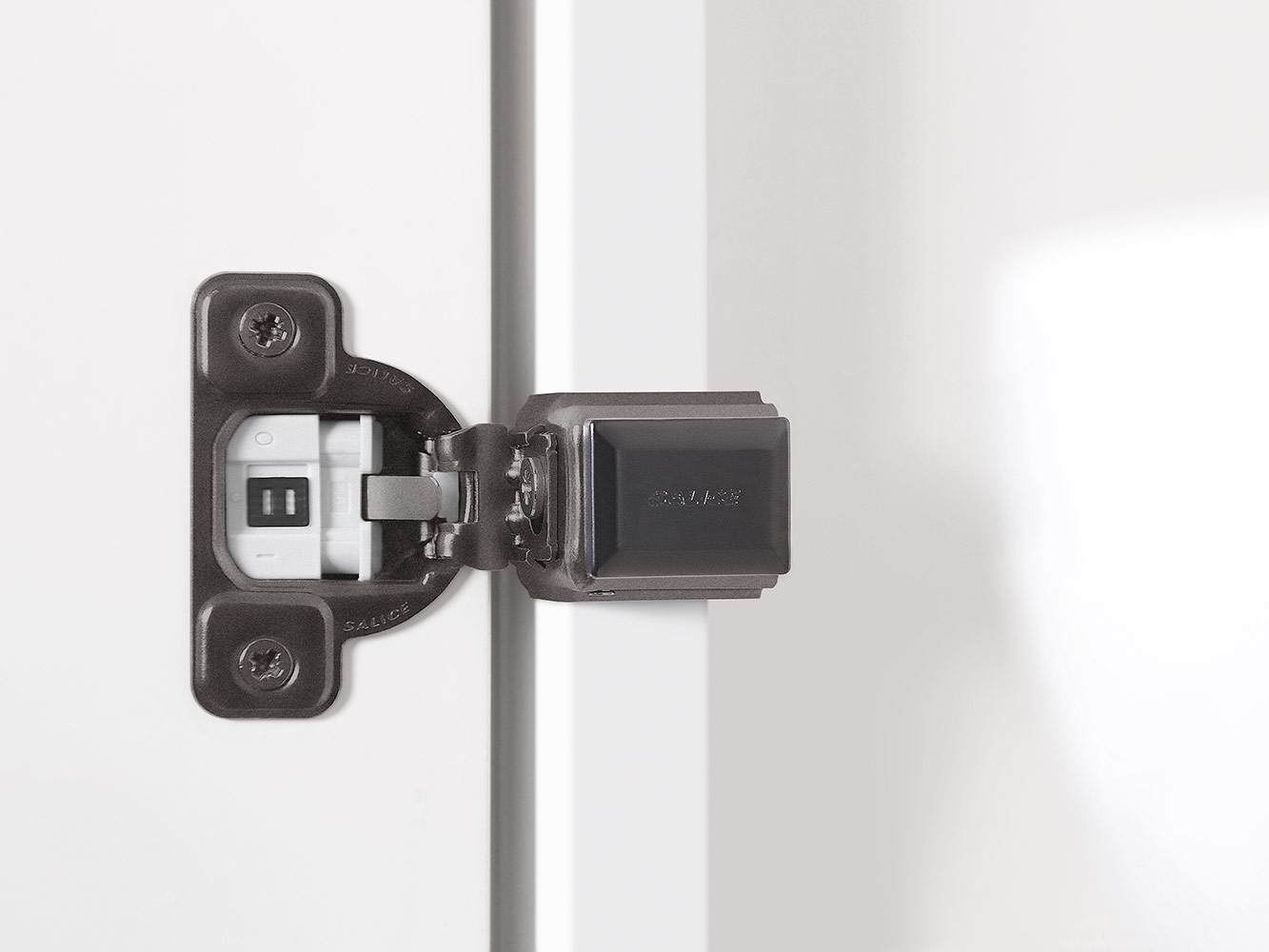

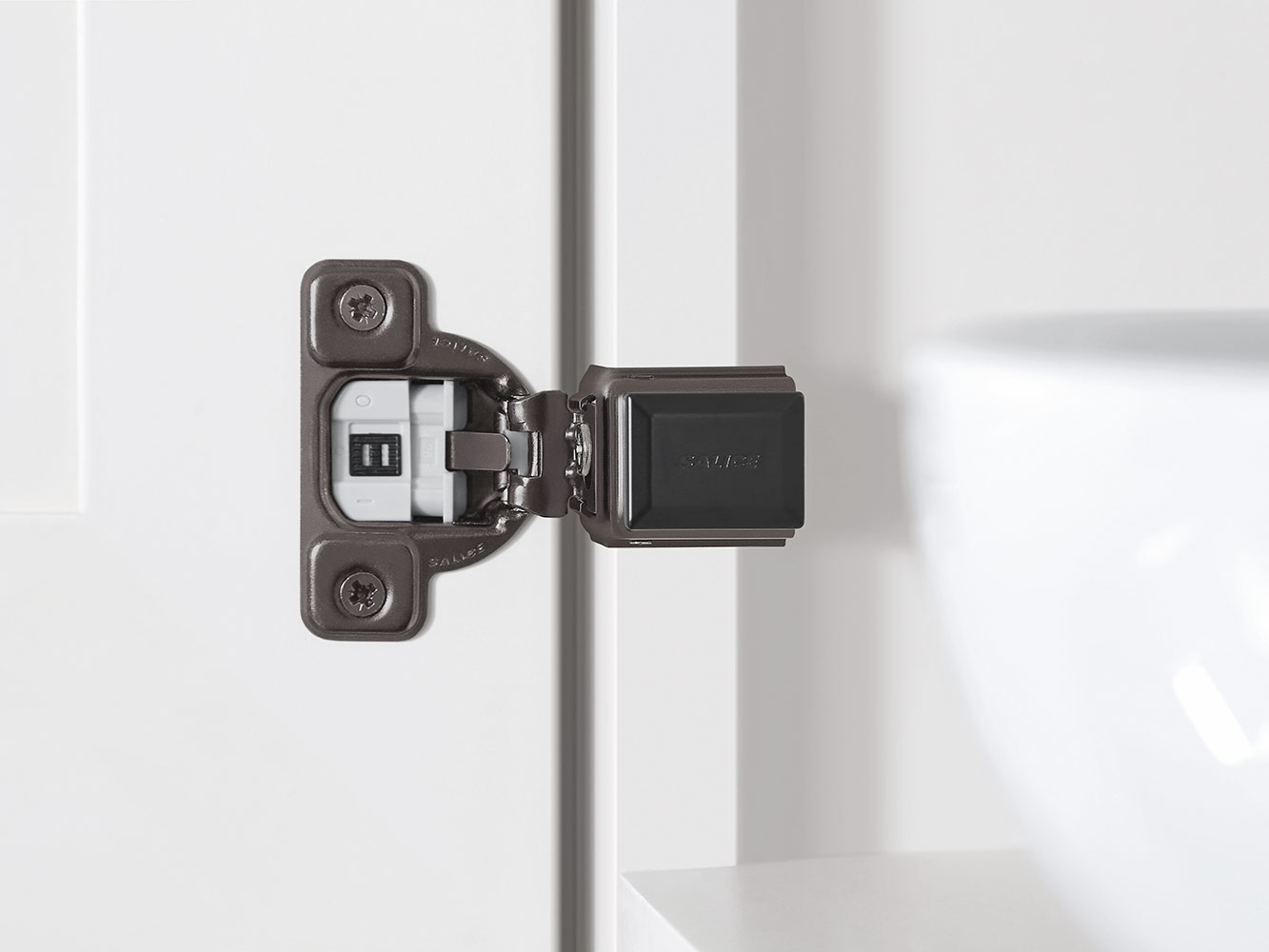

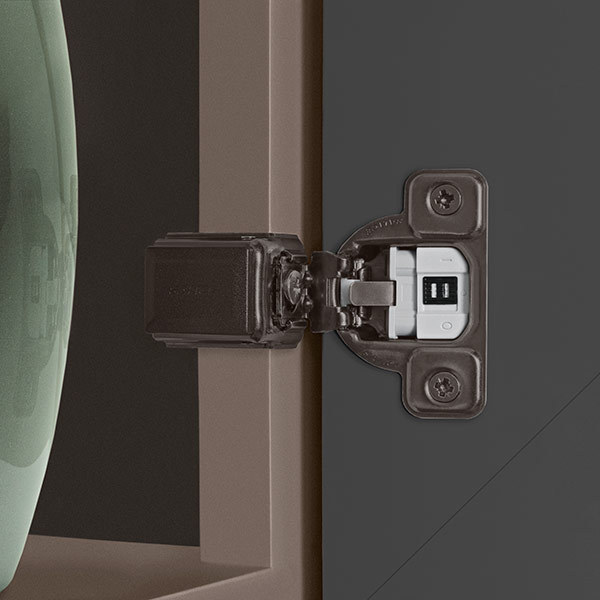

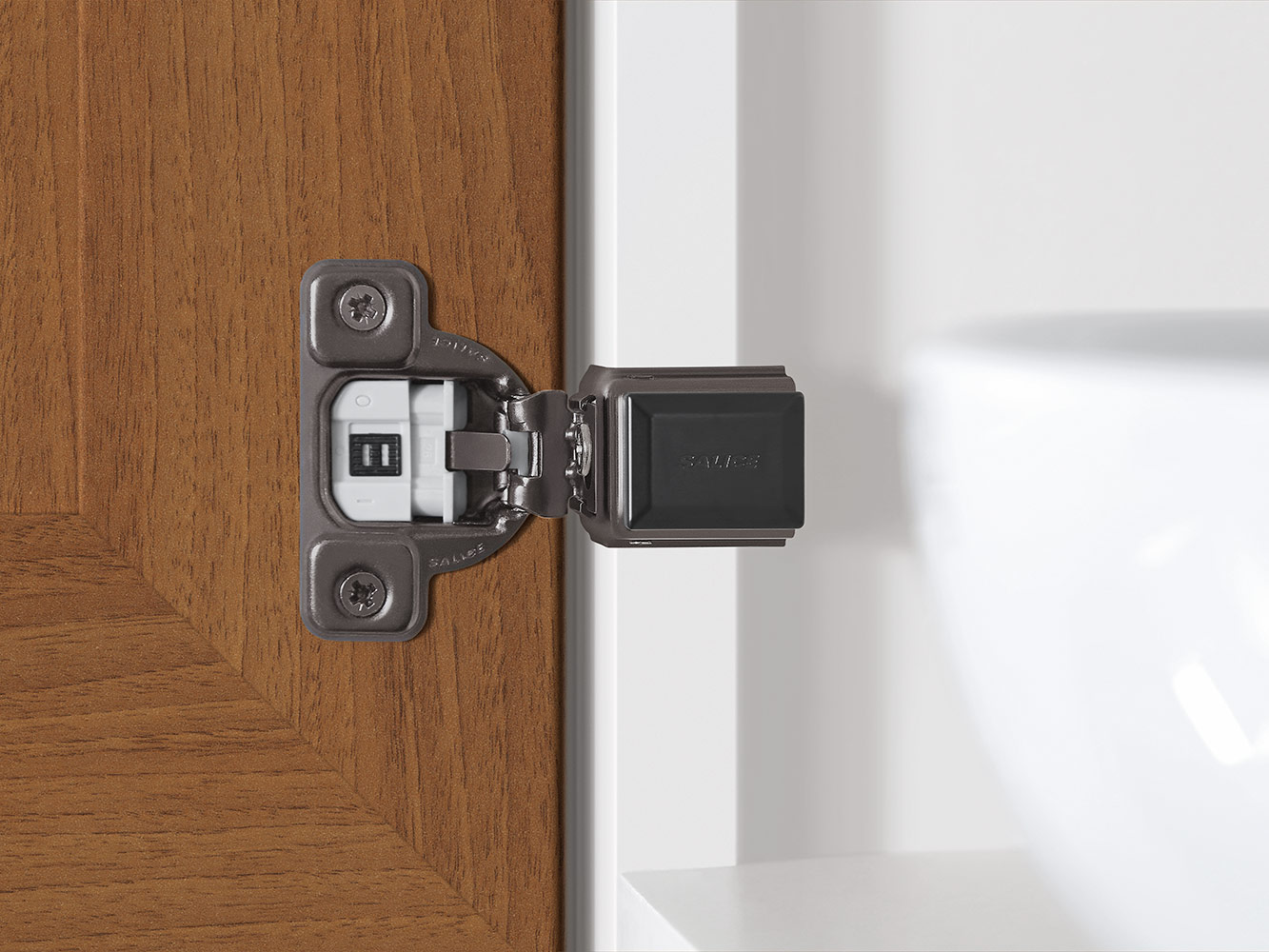

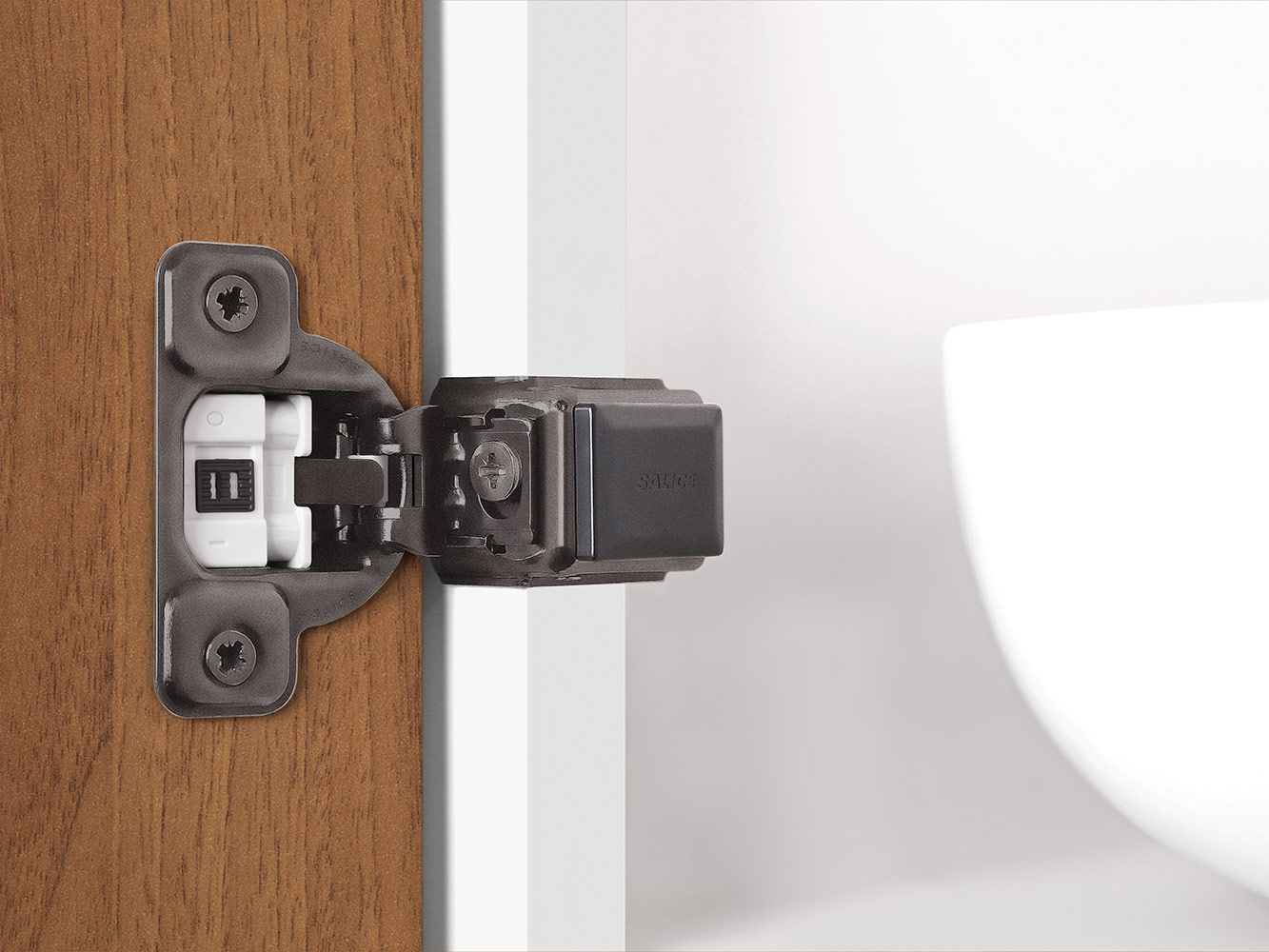

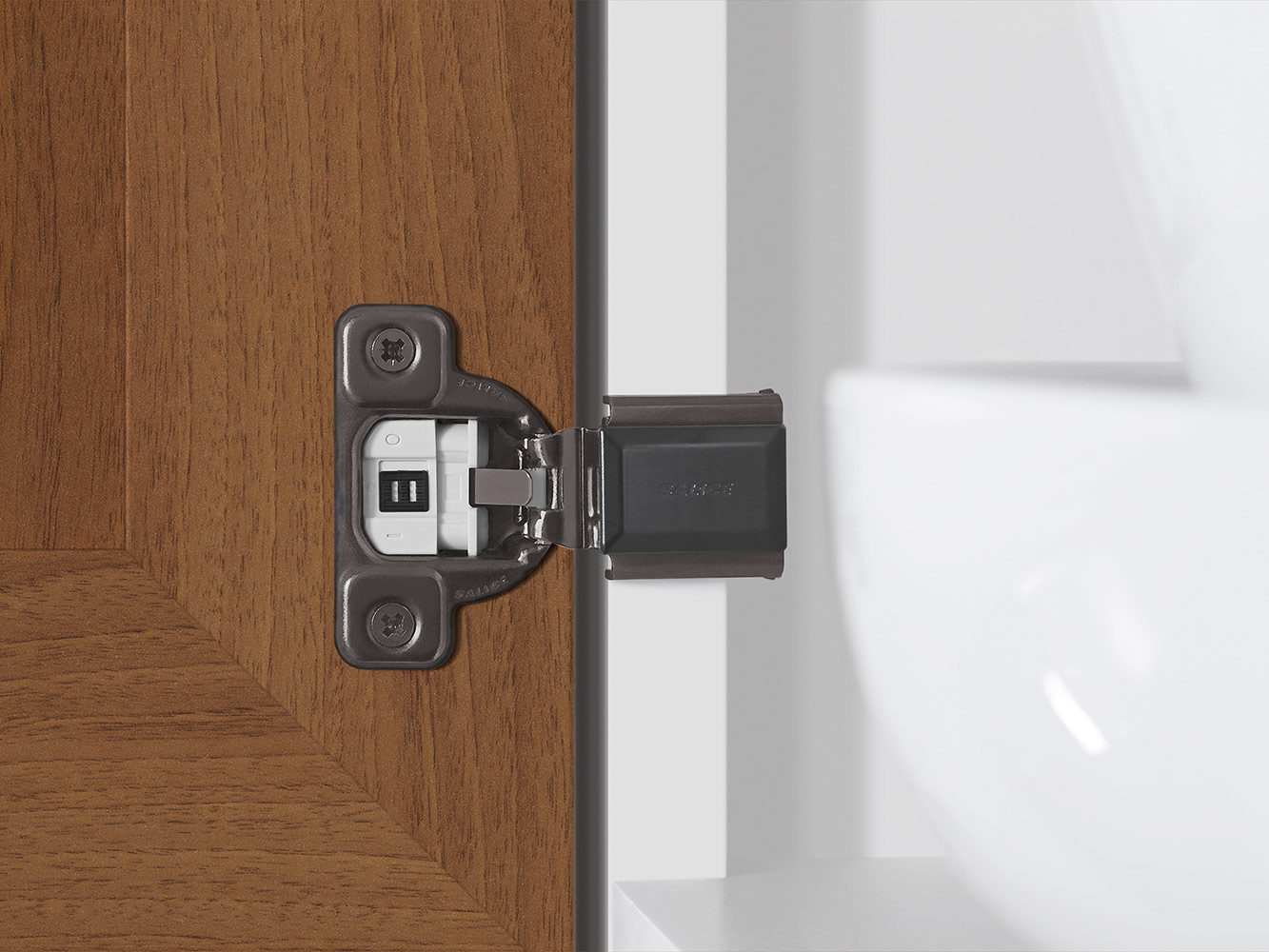

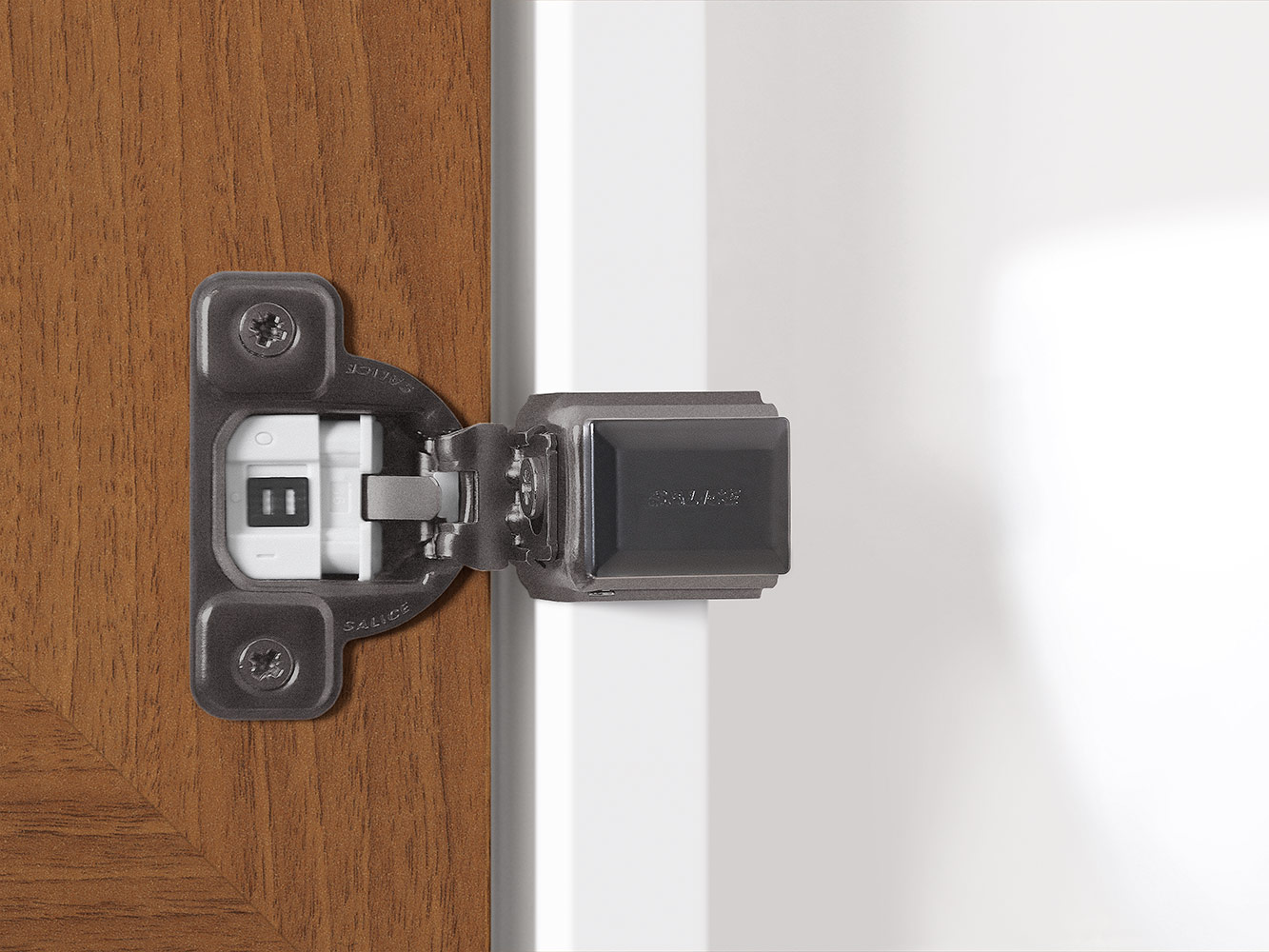

Also available in titanium finish, which perfectly integrates the hinge into the design of the cabinet conveying a sensation of warmth.

  • Stamped steel.
  • Minimum door thickness 14 mm (9/16").
  • Maximum door thickness 22 mm (7/8").
  • Cup depth 11 mm.
  • Opening 106°.
  • Wraparound (front & rear tabs).
  • All Silentia face frame hinges have a variable drilling distance (K) of 2.5 mm - 6.0 mm.
  • Available in Nickel and Titanium finish.
  • Suggested frame fixing screw #8 x 3/4˝ modified truss head - VU74X194.
  • Side, height and depth adjustments.

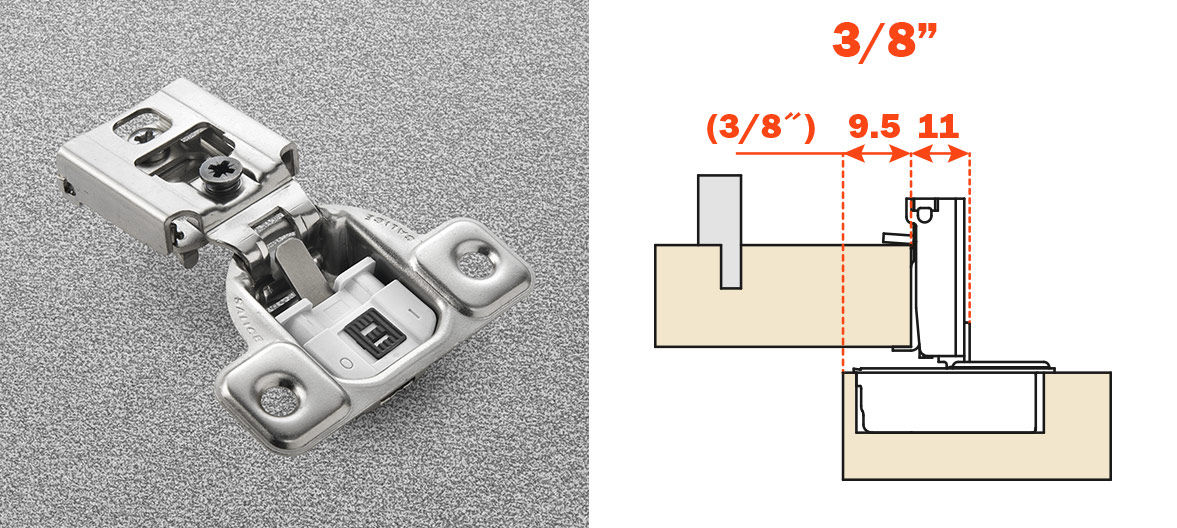

3/8" - CU_39D9
CUP39D9 = Wood screw, Nickel finish
CUR39D9 = Dowel, Nickel finish

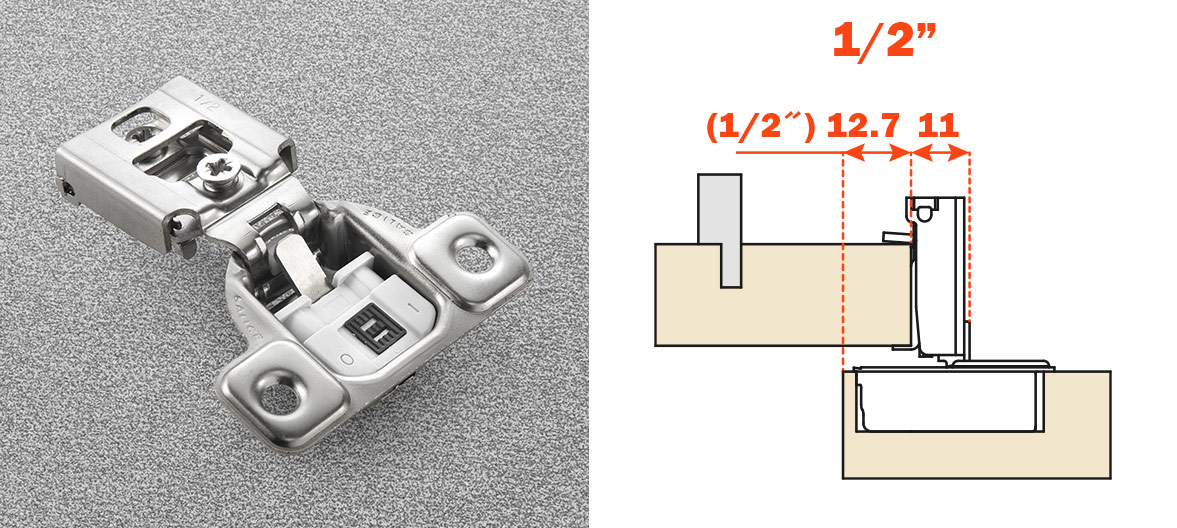

1/2" - CU_37D_
CUP37D9 = Wood screw, Nickel finish
CUP37D6 = Wood screw, Titanium finish
CUR37D9 = Dowel, Nickel finish
CUR37D6 = Dowel, Titanium finish

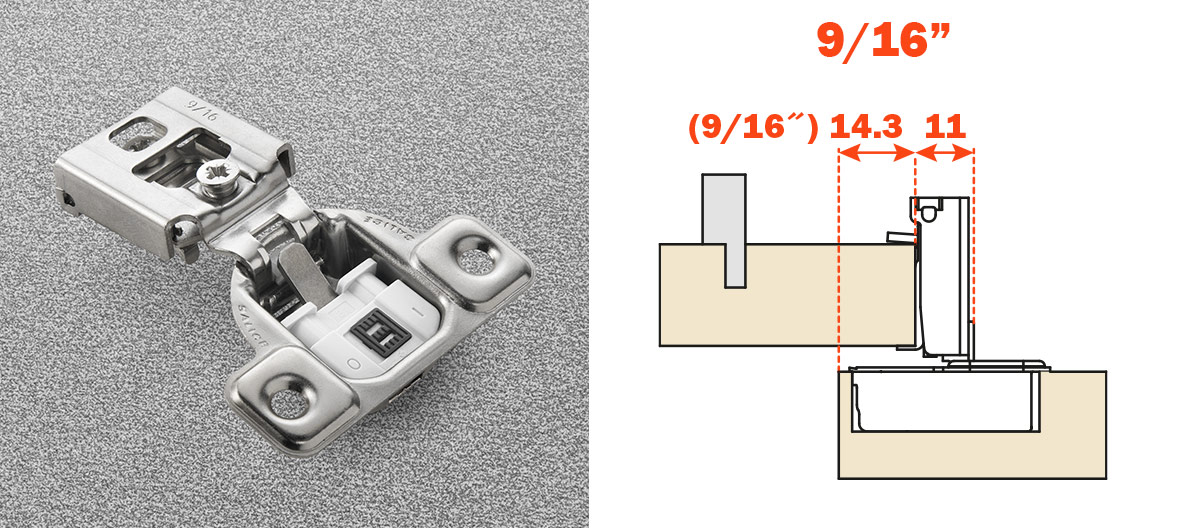

9/16" - CU_36D_
CUP36D9 = Wood screw, Nickel finish
CUP36D6 = Wood screw, Titanium finish
CUR36D9 = Dowel, Nickel finish
CUR36D6 = Dowel, Titanium finish

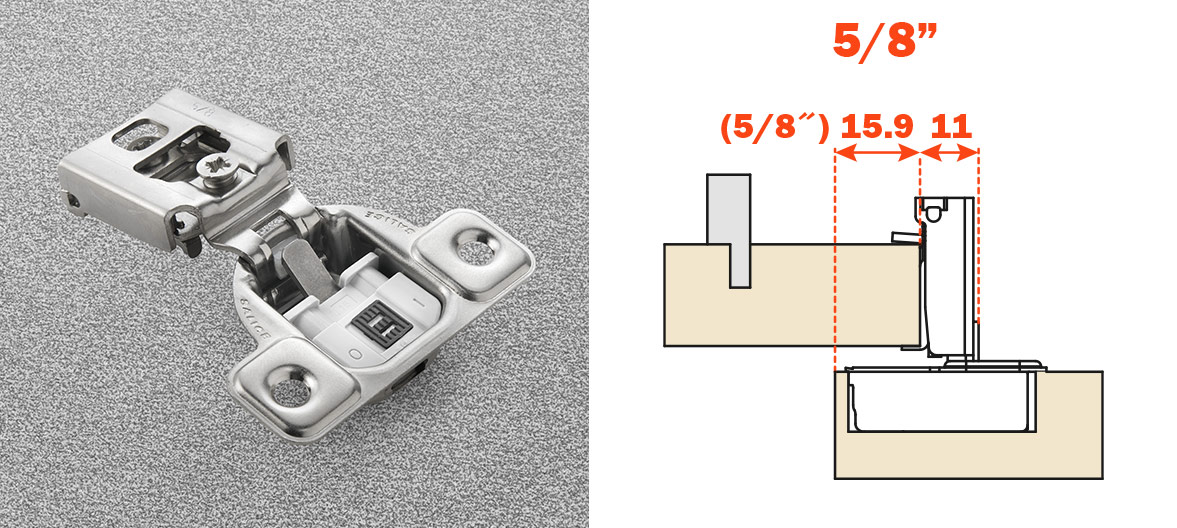

5/8" - CU_35D_
CUP35D9 = Wood screw, Nickel finish
CUP35D6 = Wood screw, Titanium finish
CUR35D9 = Dowel, Nickel finish
CUR35D6 = Dowel, Titanium finish

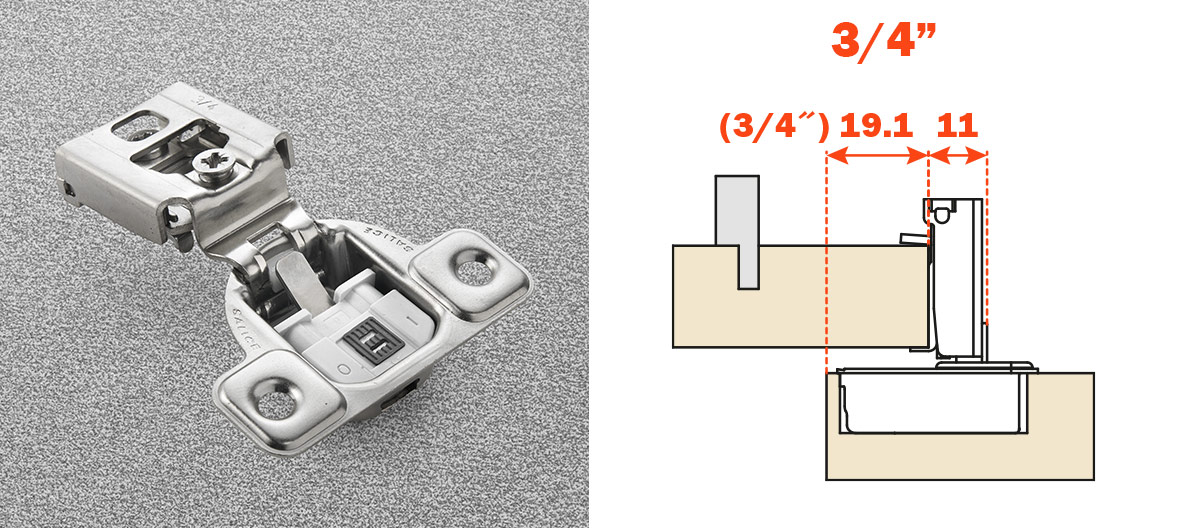

3/4" - CU_34D_
CUP34D9 = Wood screw, Nickel finish
CUP34D6 = Wood screw, Titanium finish
CUR34D9 = Dowel, Nickel finish
CUR34D6 = Dowel, Titanium finish

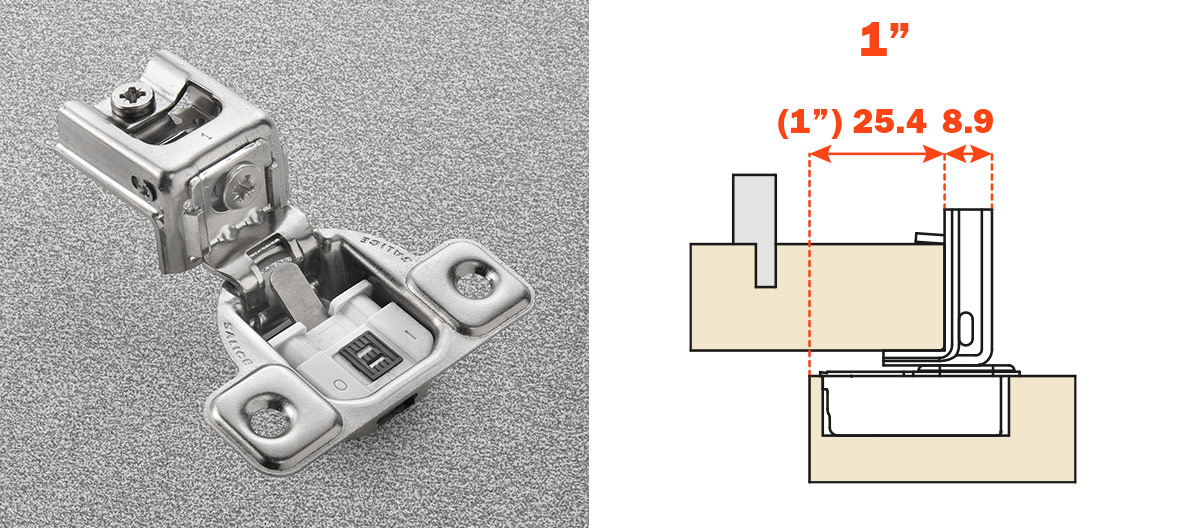

1" - CU_32D_
CUP32D9 = Wood screw, Nickel finish
CUP32D6 = Wood screw, Titanium finish
CUR32D9 = Dowel, Nickel finish
CUR32D6 = Dowel, Titanium finish

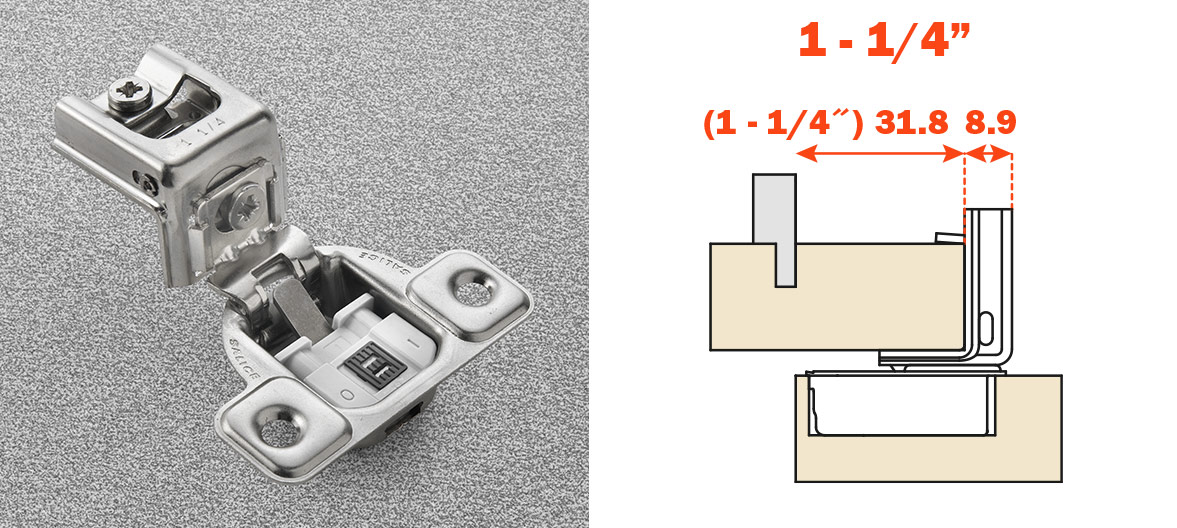

1 - 1/4" - CU_3AD_
CUP3AD9 = Wood screw, Nickel finish
CUP3AD6 = Wood screw, Titanium finish
CUR3AD9 = Dowel, Nickel finish
CUR3AD6 = Dowel, Titanium finish

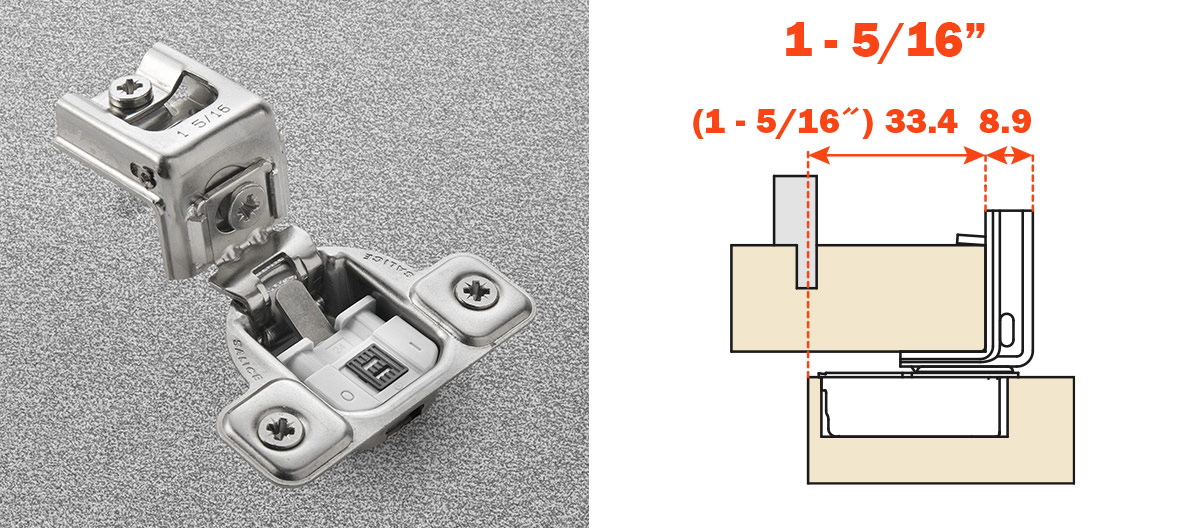

1 - 5/16" - CU_3BD_
CUP3BD9 = Wood screw, Nickel finish
CUP3BD6 = Wood screw, Titanium finish
CUR3BD9 = Dowel, Nickel finish
CUR3BD6 = Dowel, Titanium finish

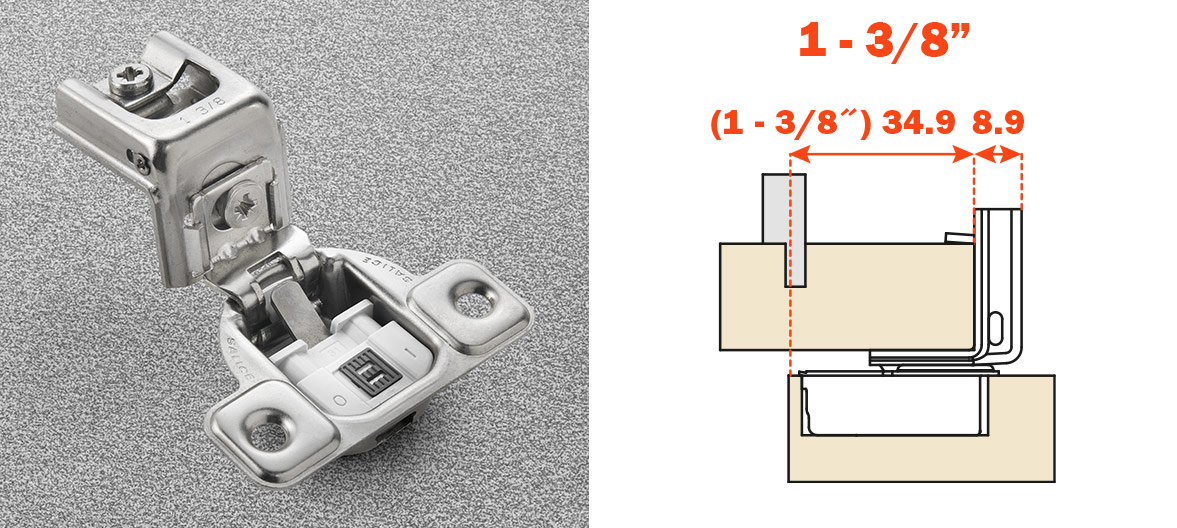

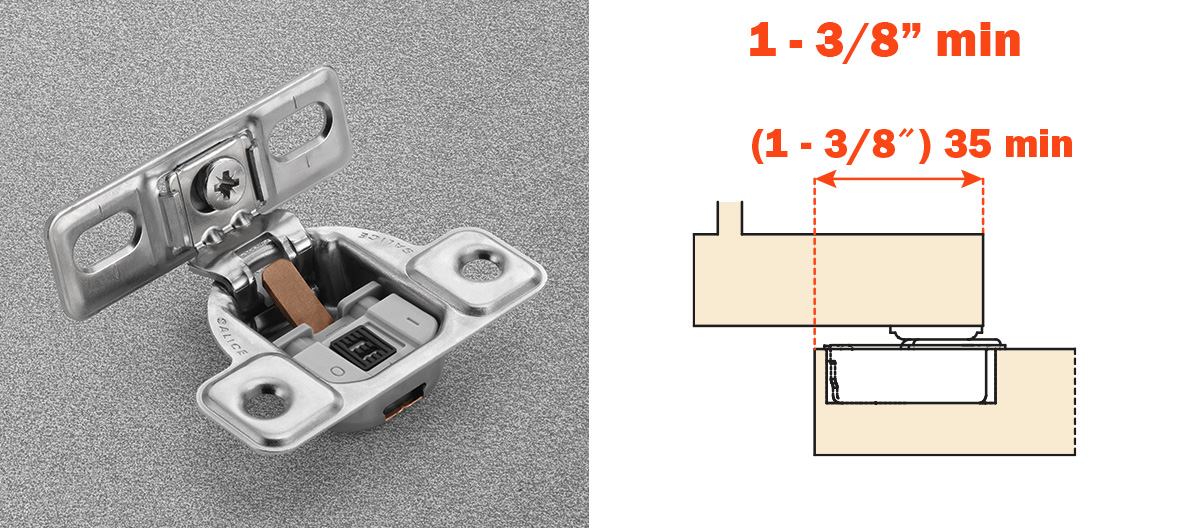

1 - 3/8" - CU_3CD_
CUP3CD9 = Wood screw, Nickel finish
CUP3CD6 = Wood screw, Titanium finish
CUR3CD9 = Dowel, Nickel finish
CUR3CD6 = Dowel, Titanium finish

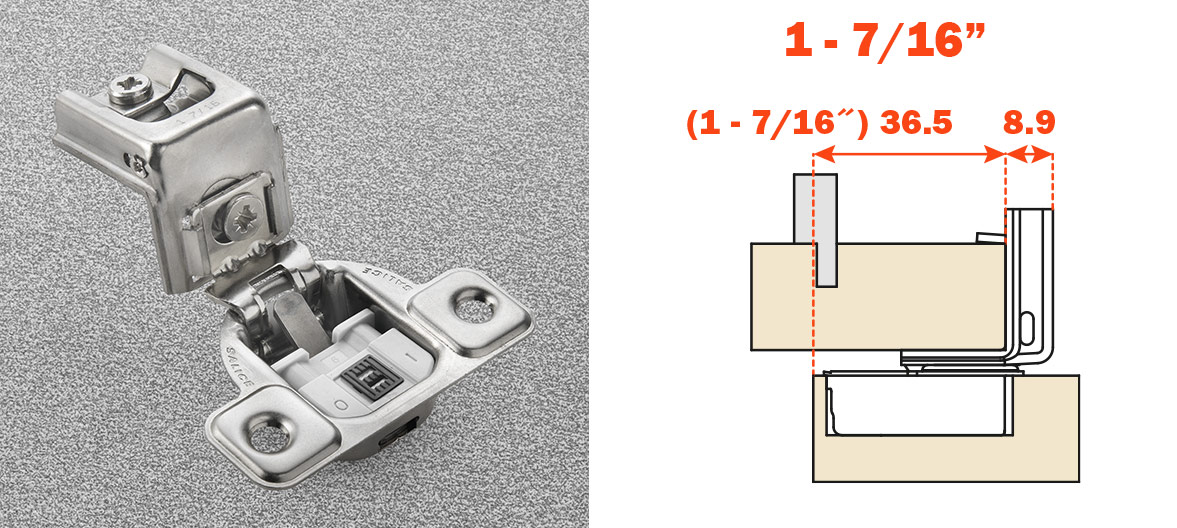

1 - 7/16" - CU_3DD_
CUP3DD9 = Wood screw, Nickel finish
CUP3DD6 = Wood screw, Titanium finish
CUR3DD9 = Dowel, Nickel finish
CUR3DD6 = Dowel, Titanium finish

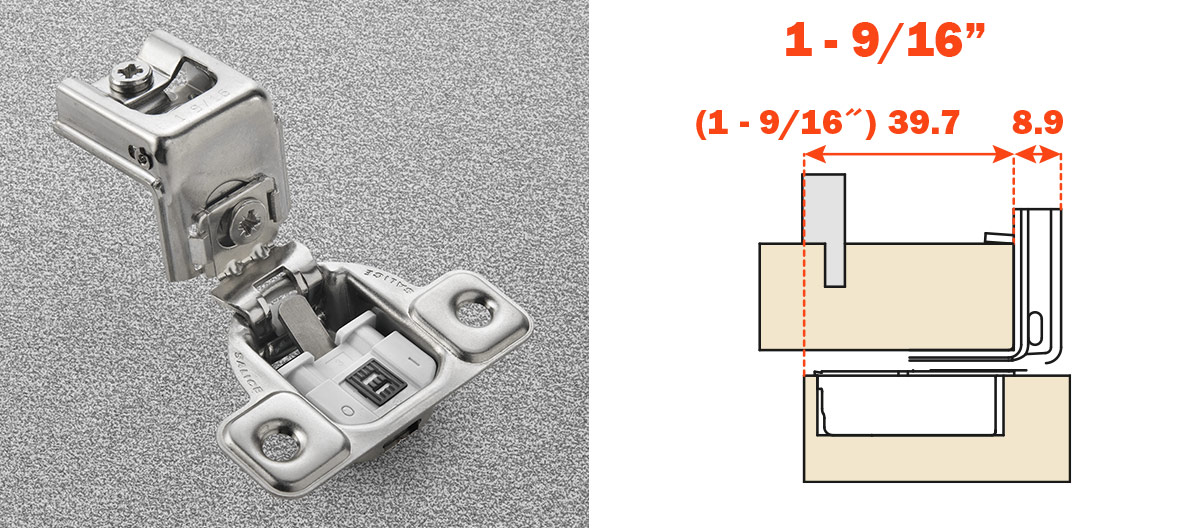

1 - 9/16" - CU_3ED_
CUP3ED9 = Wood screw, Nickel finish
CUP3ED6 = Wood screw, Titanium finish
CUR3ED9 = Dowel, Nickel finish
CUR3ED6 = Dowel, Titanium finish

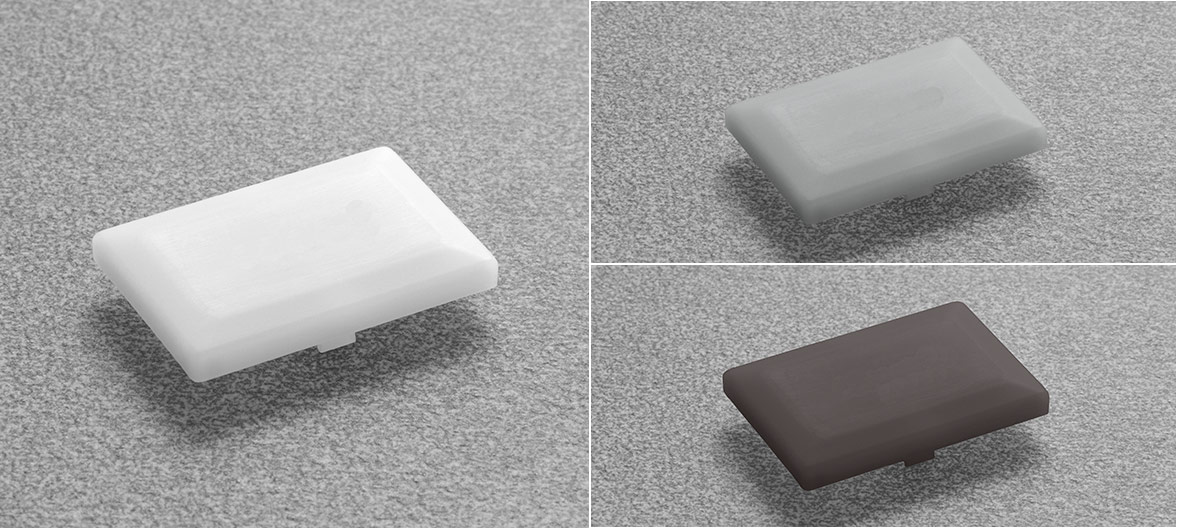

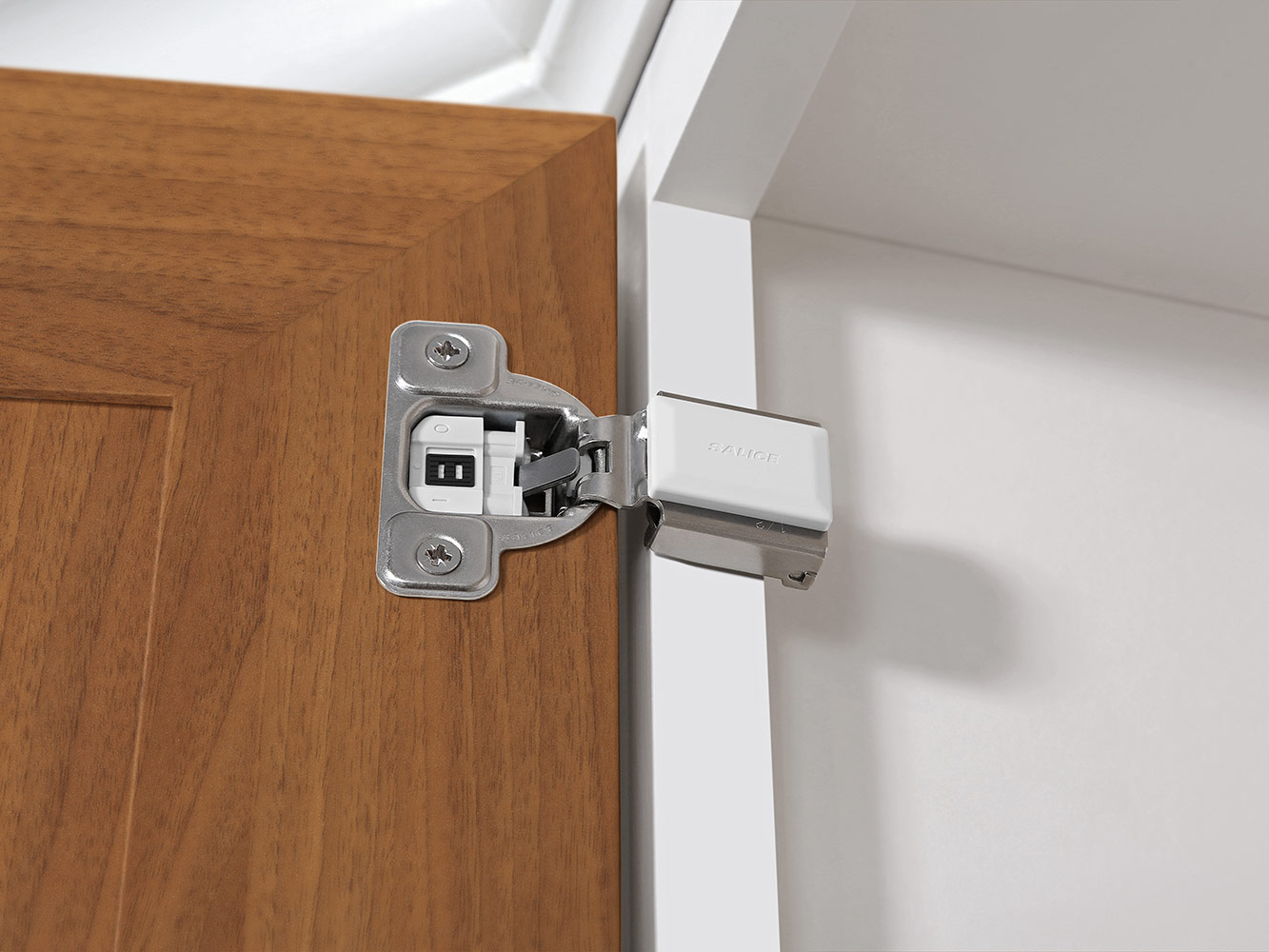

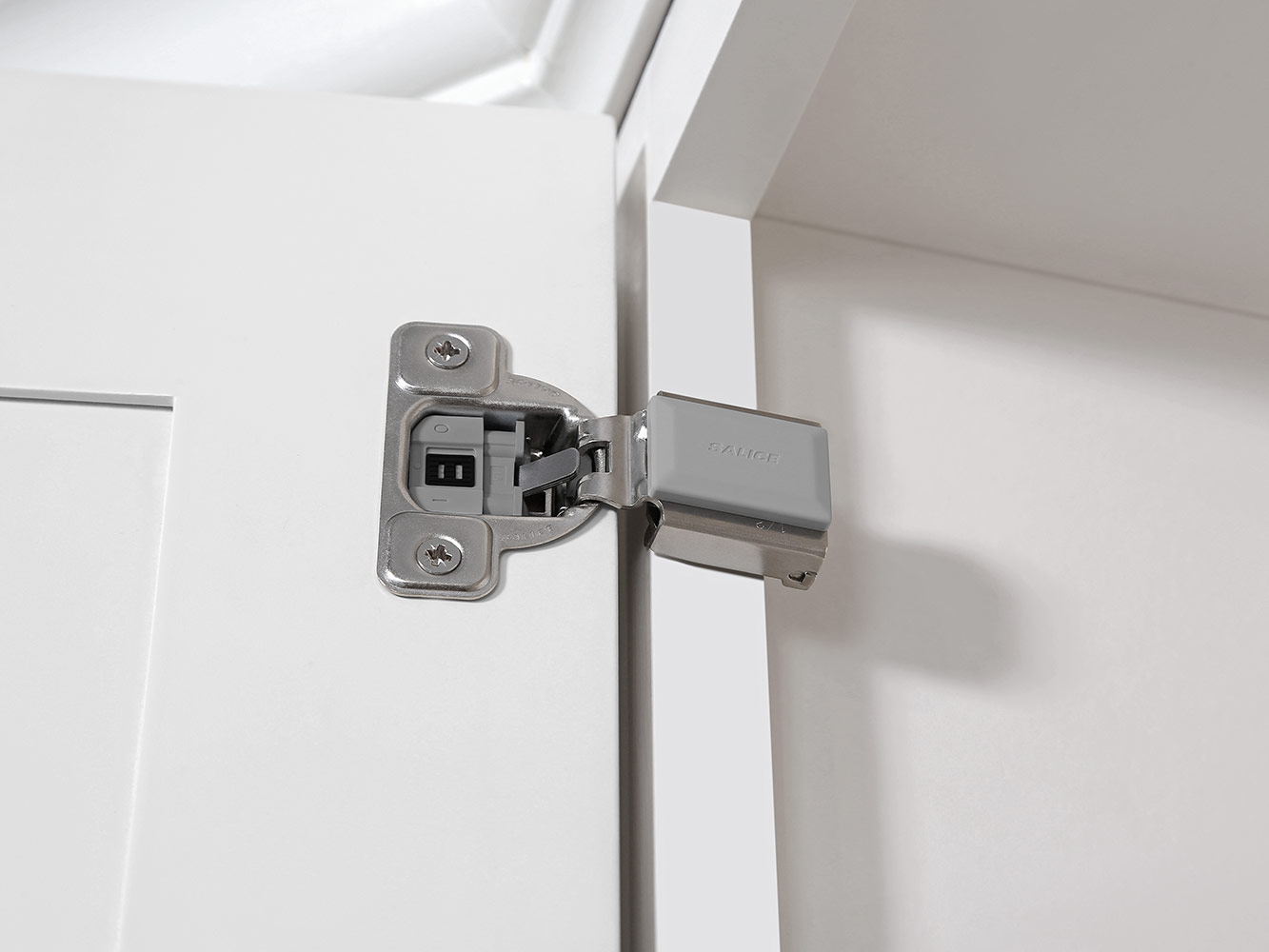

Cover cap SUXX83C_

- Cover cap for partial overlay Silentia+ face frame hinges.
- Compatible with overlays from 1/2" to 3/4".
- Nylon
- Available in multiple colors
- Cover caps can be personalized with customer logo upon request

SUXX83C1 = White
SUXX83CG = Grey
SUXX83C6 = Titanium

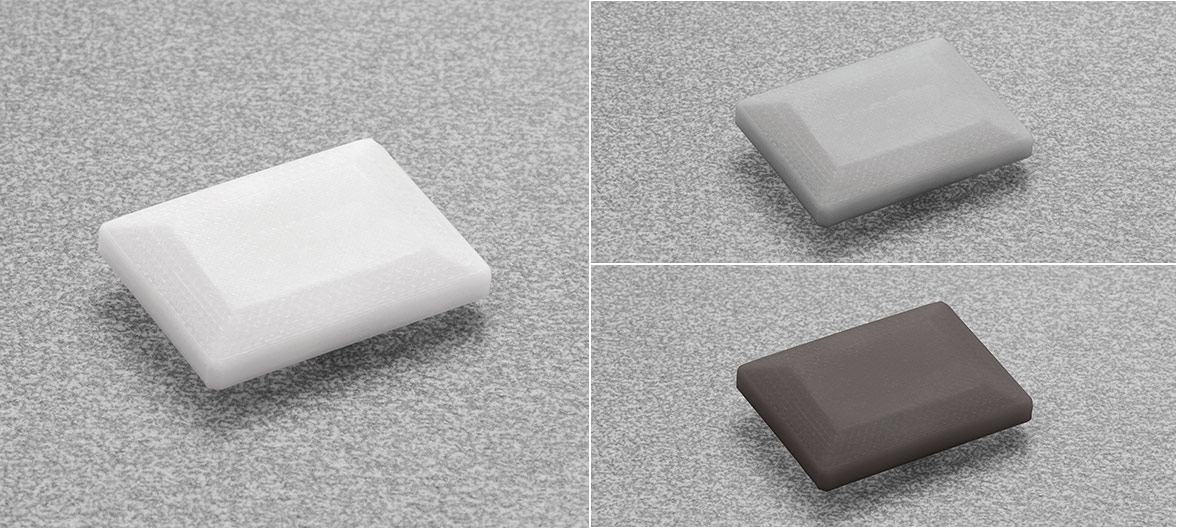

Cover cap SUXX83L_

- Cover cap for full overlay Silentia+ face frame hinges.
- Compatible with overlays from 1˝ to 1 - 3/8˝
- Nylon
- Available in multiple colors
- Cover caps can be personalized with customer logo upon request

SUXX83L1 = White
SUXX83LG = Grey
SUXX83L6 = Titanium

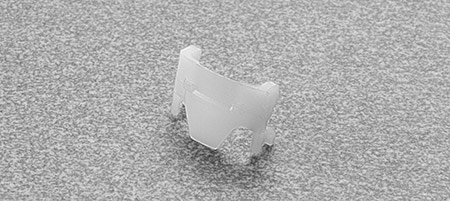

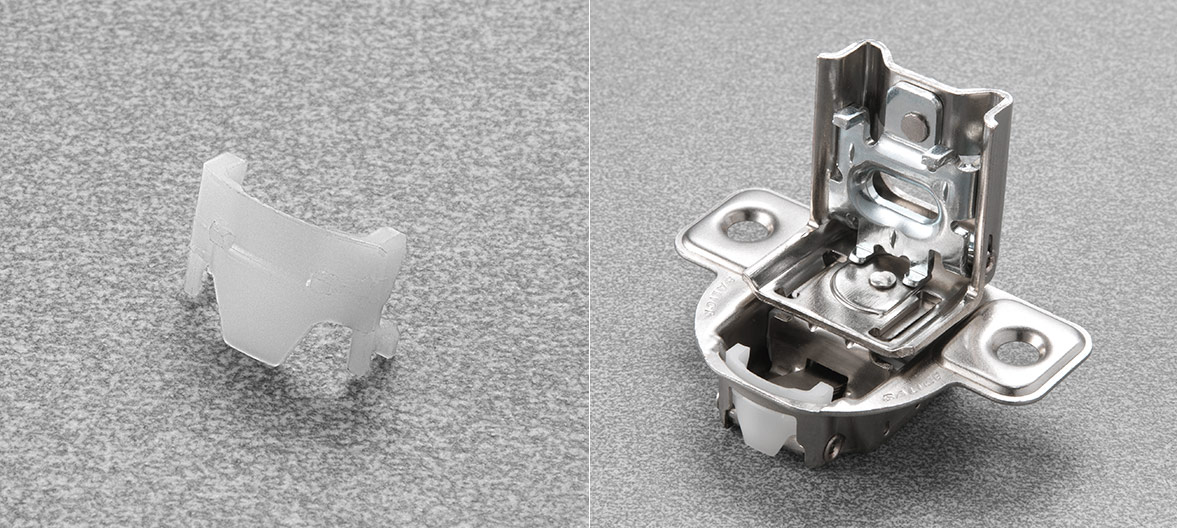

Angle reduction clip SUP337XG

Angle reduction clip for Silentia+ face frame hinges.
Compatible with all overlays, clips on easy.
Limits opening to 86°.

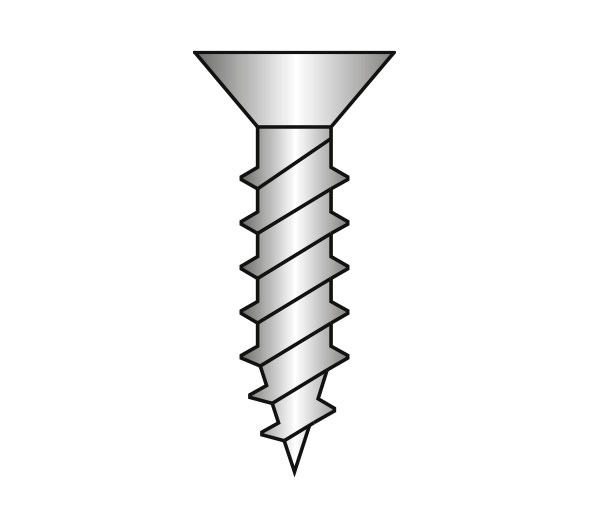

Wood screw VU73X154 and V234X166

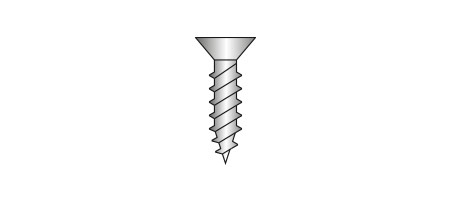

VU73X154 = # 6 x 5/8" FHP
V234X166 = # 6 x 5/8" wood screw in Titanium FHP

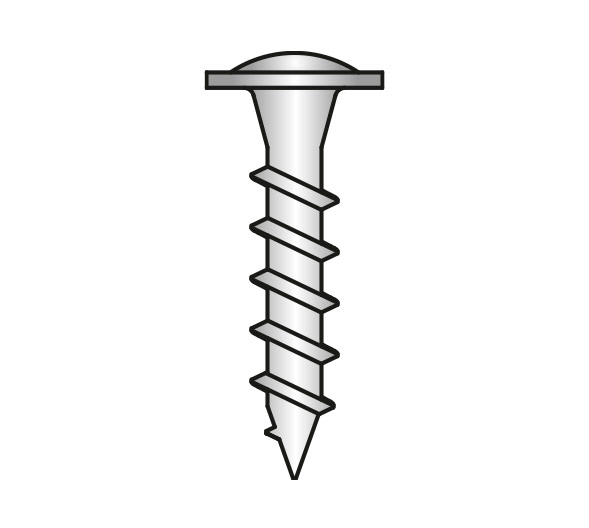

Wood screw VU74X194

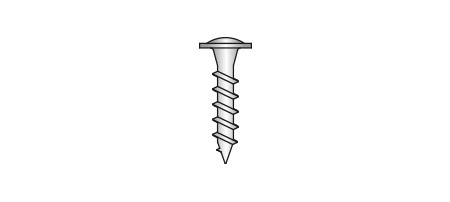

VU74X194 = # 8 x 3/4˝ modified truss head wood screw

Destornillador Pozidrive D2A7XCXCP
Destornillador
