Serie S - Excenthree - 3 regulaciones con excéntricas

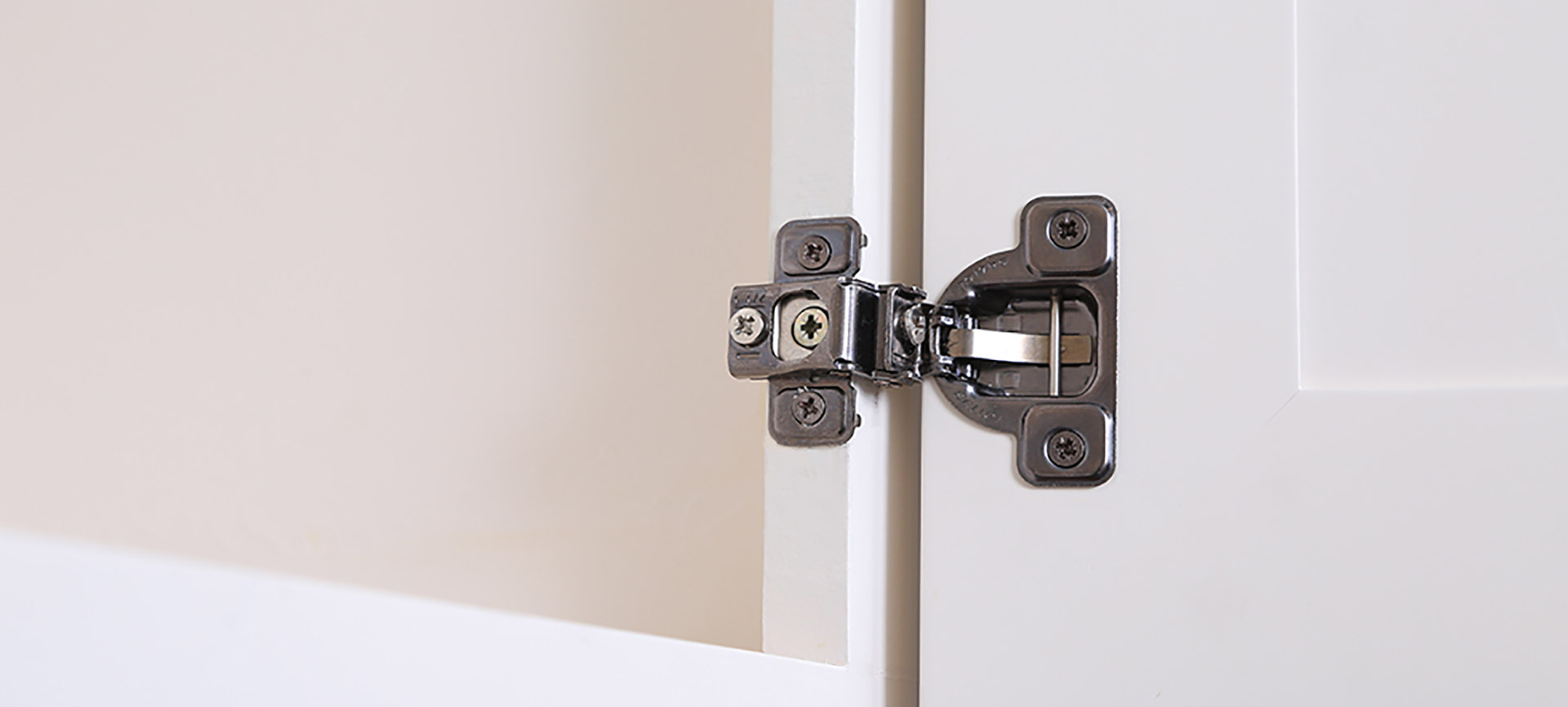

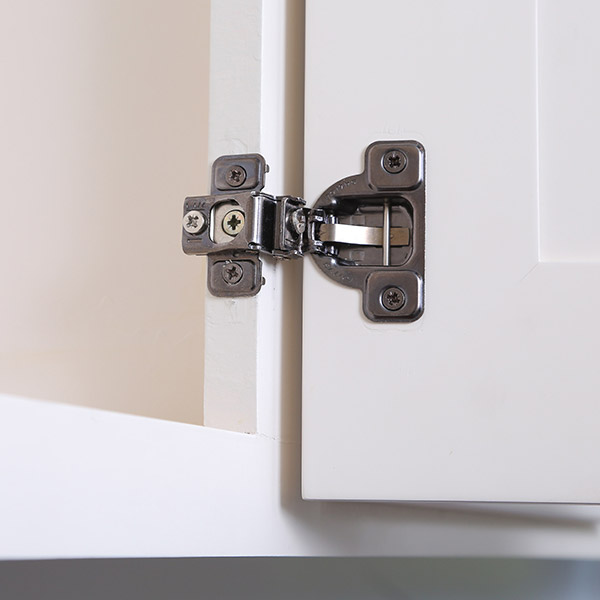

A perfect closing to any kind of door

  • Acero moldeado
  • Profundidad de la cazoleta 11 mm ( 7/16˝ )
  • Abertura 106°

Side, height and depth adjustments. The best side to side adjustment in the industry ensures butt door problems are easily resolved.

Also available in titanium finish, which perfectly integrates the hinge into the design of the cabinet conveying a sensation of warmth. This finish makes the hinge ideal in combination with darker interiors and also considerably increases the corrosion strength when compared to the classic finishes.

  • Acero moldeado
  • Profundidad de la cazoleta 11 mm ( 7/16")
  • Abertura 106°
  • K fijo a 2.5 mm ( 3/32")
  • L = 4.6 mm (3/16")
  • Para coberturas desde 1/4" hasta 3/4",el valor "A" = 8.3 mm 3/4" para puertas con esquina viva abertura 90°.
  • Para coberturas desde 1" hasta 1- 7/16" el valor "A" = 5.2 para puertas con equina viva abertura 90°.
  • Puerta sin retroceso - Tornillo de fijación aconsejado para marco # 6 x 5/8" FHP.

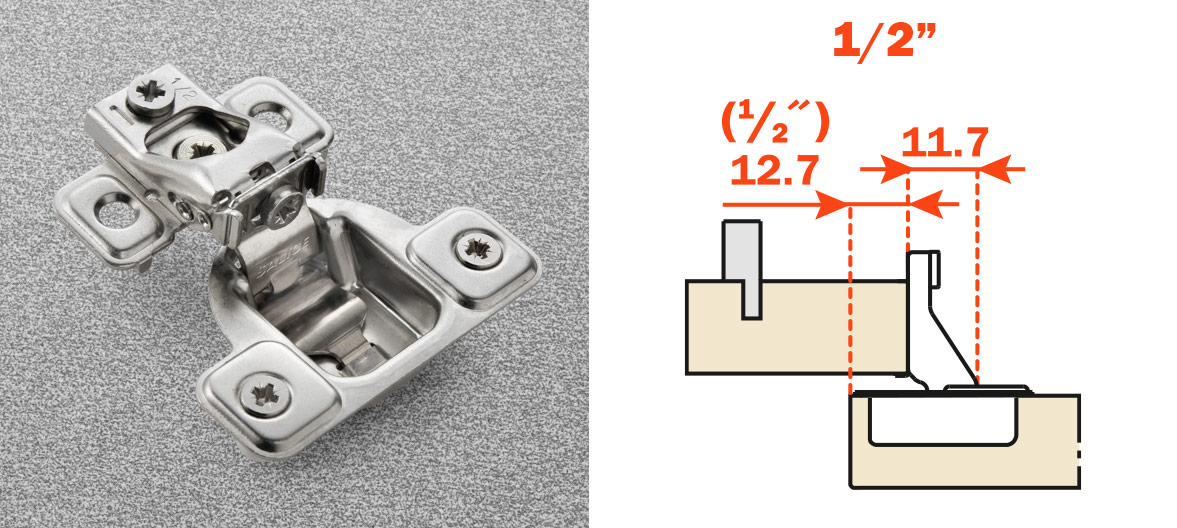

1/2" - CS_379_XR
CSP3799XR = Wood screw, Nickel finish
CSP3796XR = Wood screw, Titanium finish
CSR3799XR = Dowel, Nickel finish
CSR3796XR = Dowel, Titanium finish

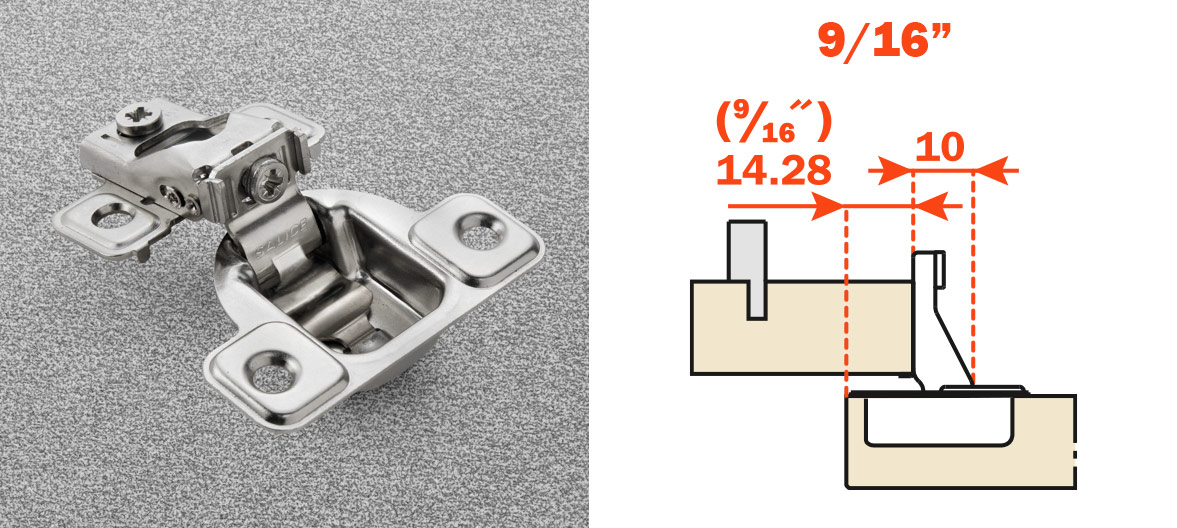

9/16" - CS_369_XR
CSP3699XR = Wood screw, Nickel finish
CSP3696XR = Wood screw, Titanium finish
CSR3699XR = Dowel, Nickel finish
CSR3696XR = Dowel, Titanium finish

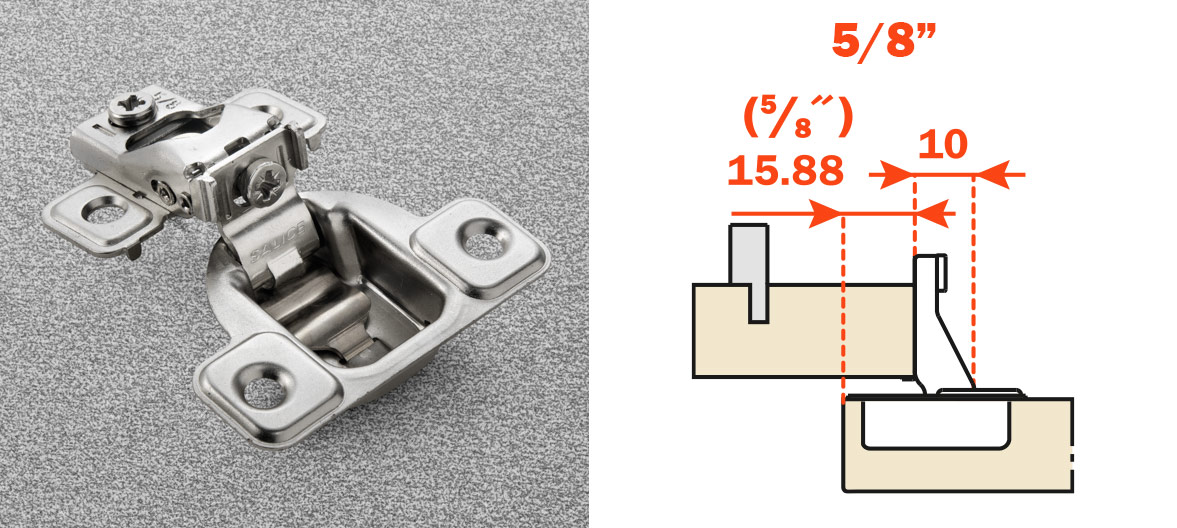

5/8" - CS_359_XR
CSP3599XR = Wood screw, Nickel finish
CSP3596XR = Wood screw, Titanium finish
CSR3599XR = Dowel, Nickel finish
CSR3596XR = Dowel, Titanium finish

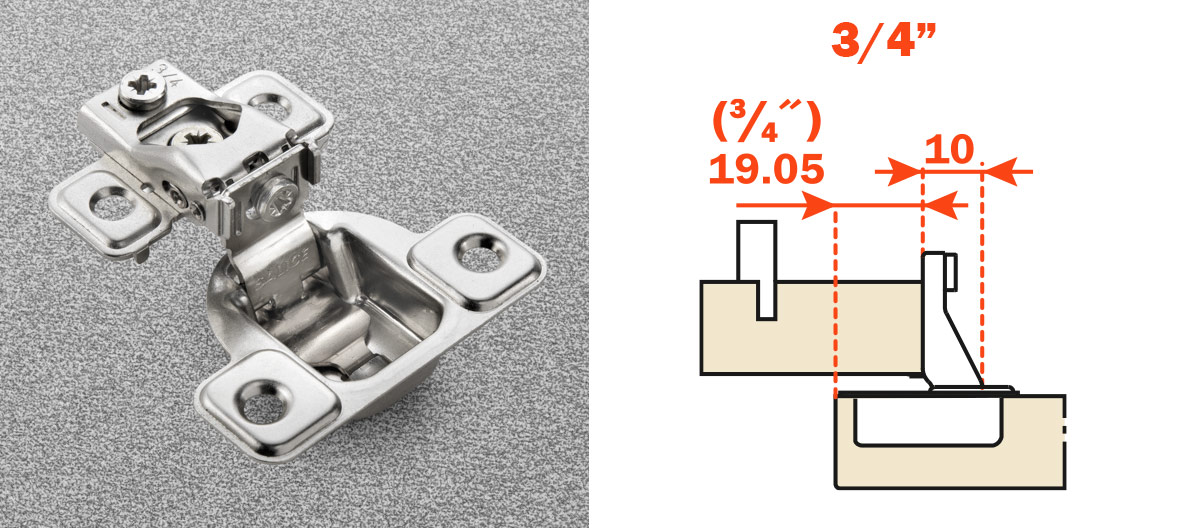

3/4" - CS_349_XR
CSP3499XR = Wood screw, Nickel finish
CSP3496XR = Wood screw, Titanium finish
CSR3499XR = Dowel, Nickel finish
CSR3496XR = Dowel, Titanium finish

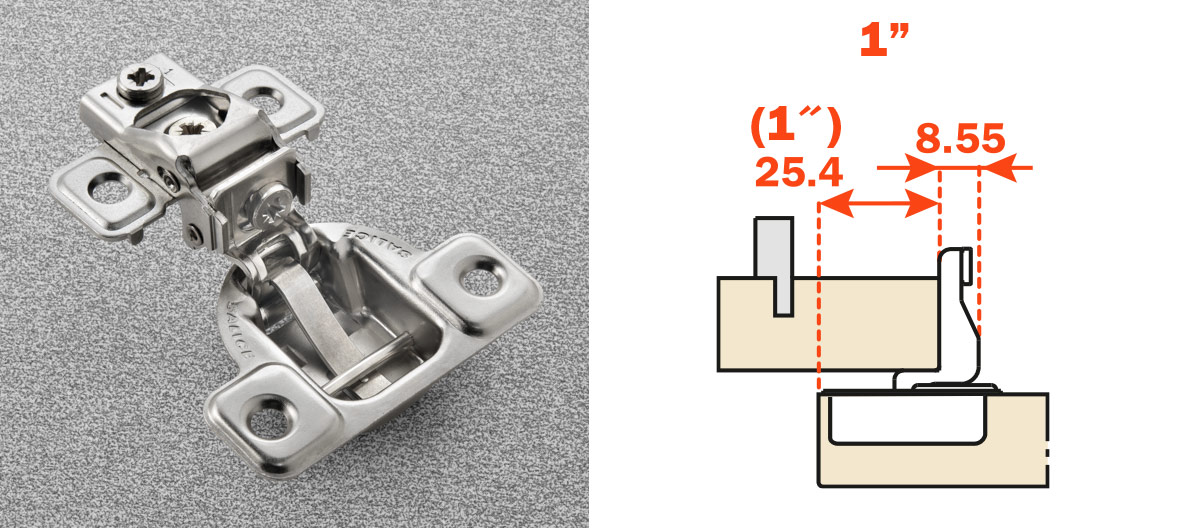

1" - CS_329_NR
CSP3299NR = Wood screw, Nickel finish
CSP3296NR = Wood screw, Titanium finish
CSR3299NR = Dowel, Nickel finish
CSR3296NR = Dowel, Titanium finish

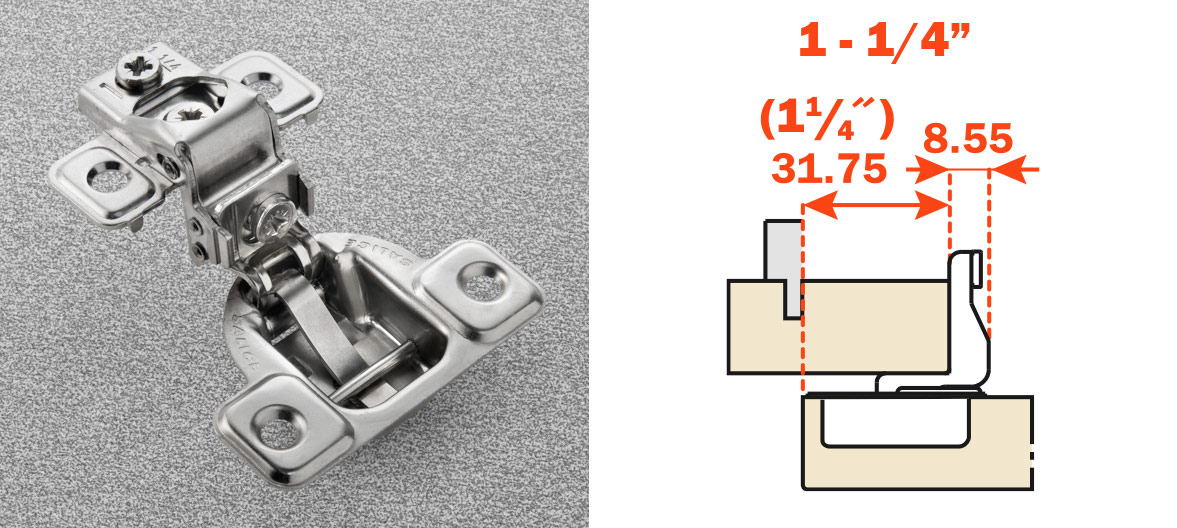

1 - 1/4" - CS_3A9_NR
CSP3A99NR = Wood screw, Nickel finish
CSP3A96NR = Wood screw, Titanium finish
CSR3A99NR = Dowel, Nickel finish
CSR3A96NR = Dowel, Titanium finish

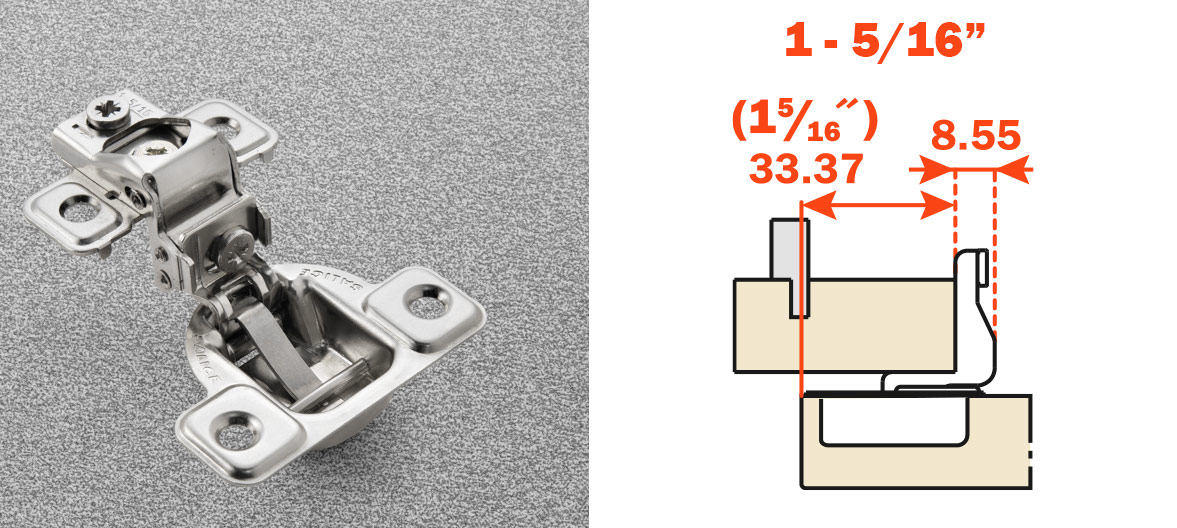

1 - 5/16" - CS_3B9_NR
CSP3B99NR = Wood screw, Nickel finish
CSP3B96NR = Wood screw, Titanium finish
CSR3B99NR = Dowel, Nickel finish
CSR3B96NR = Dowel, Titanium finish

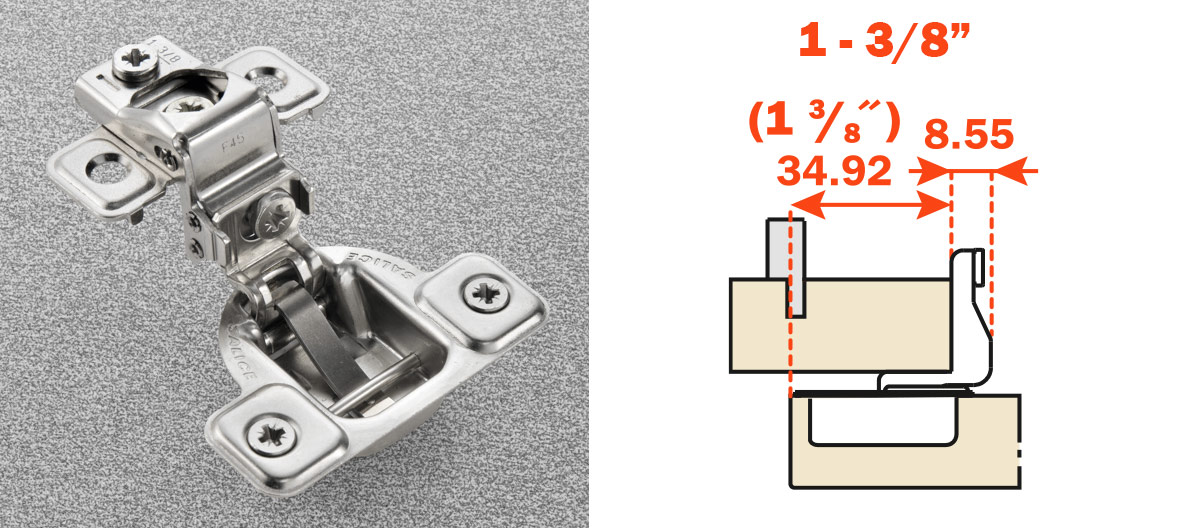

1 - 3/8" - CS_3C9_NR
CSP3C99NR = Wood screw, Nickel finish
CSP3C96NR = Wood screw, Titanium finish
CSR3C99NR = Dowel, Nickel finish
CSR3C96NR = Dowel, Titanium finish

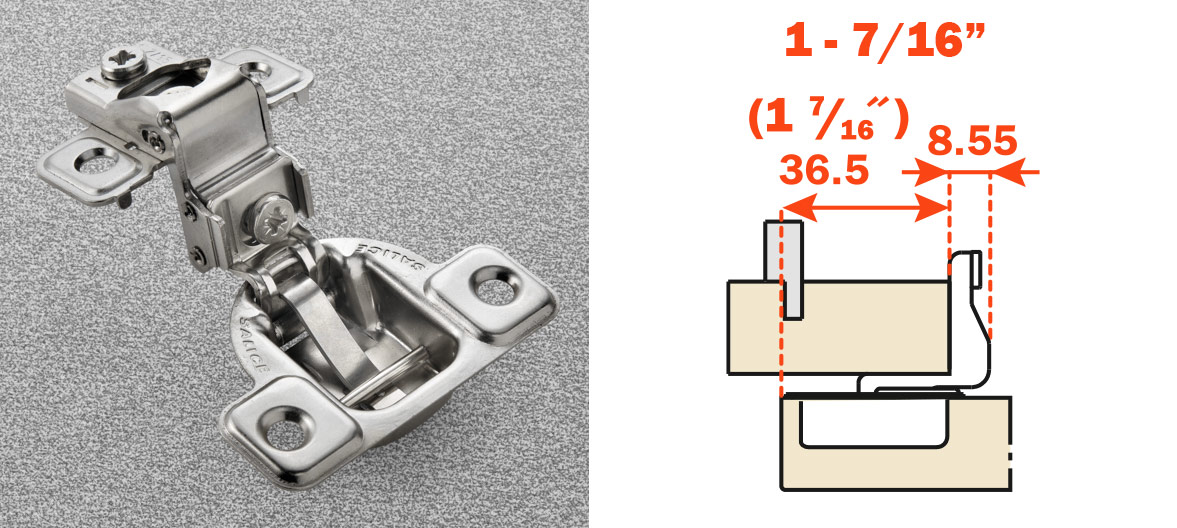

1 - 7/16" - CS_3D9_NR
CSP3D99NR = Wood screw, Nickel finish
CSP3D96NR = Wood screw, Titanium finish
CSR3D99NR = Dowel, Nickel finish
CSR3D96NR = Dowel, Titanium finish

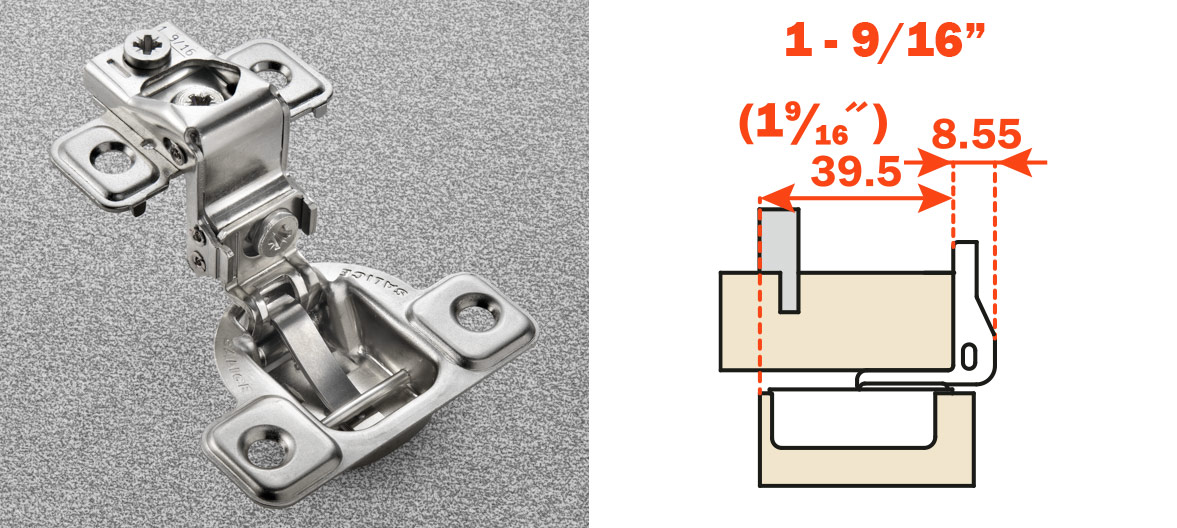

1 - 9/16" - CS_3E9_NR
CSP3E99NR = Wood screw, Nickel finish
CSP3E96NR = Wood screw, Titanium finish
CSR3E99NR = Dowel, Nickel finish
CSR3E96NR = Dowel, Titanium finish

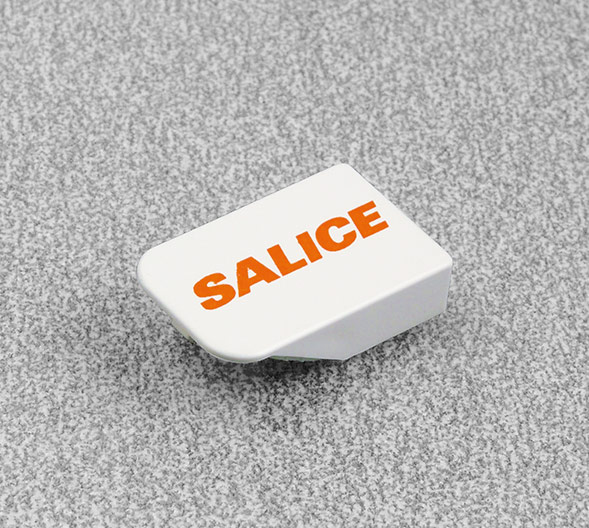

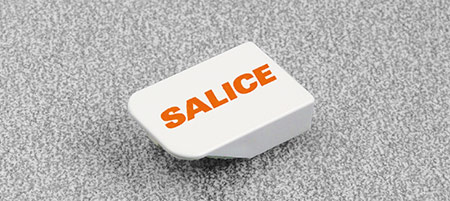

SSXX83

Cubretornillo asimétrico de nylon con o sin logo serigrafado.
Para todas las bisagras de la serie S. Disponible en beige y gris

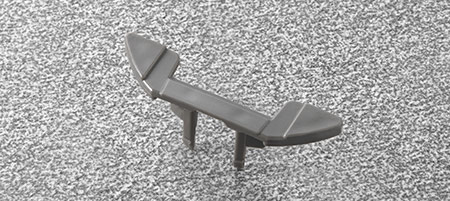

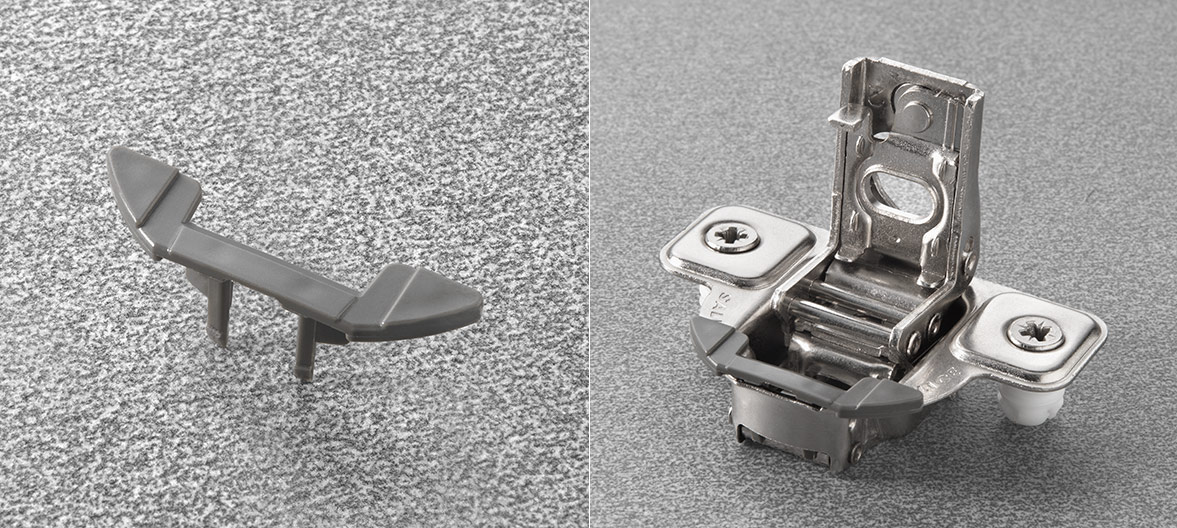

SSP3377G

Clip de reducción para cobertura parcial bisagras serie S desde 1/4" – 3/4".
Limita la abertura a 86°.

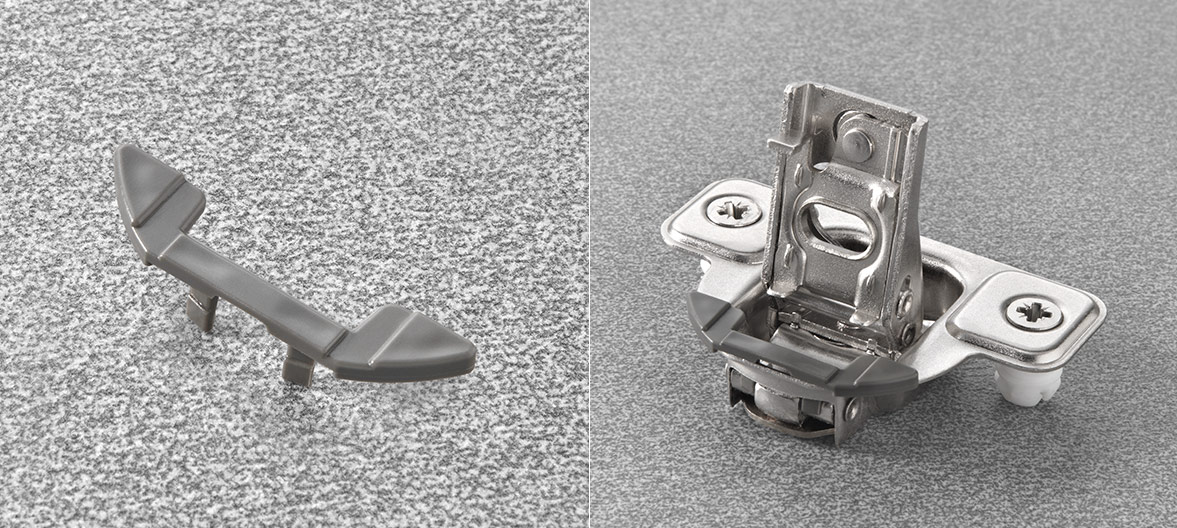

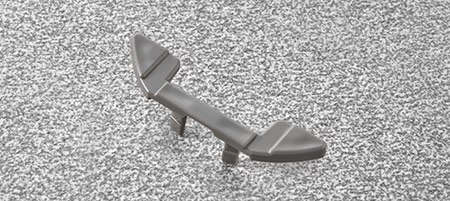

SSP337AG
Clip de reducción para cobertura total bisagras serie S desde 1- 1/8’’– 1-9/16’’.
Limita la abertura a 86°.
