POCKET DOOR SYSTEM
Exedra2 Smart
The evolution of the Exedra system, which enables the simultaneous movement of two linked doors. Exedra2 Smart is the version that requires less depth of the cabinet; the door edges are visible when they are folded into their compartment
- Maximum weight for single door: 25 Kg (55 lbs)
- Doors thickness: min 18 mm (3/4") - max 25 mm (1")
- Width of single door: min 550 mm (21-5/8") - max 850 mm (33-7/16")
- Doors height: min 1800 mm (70-7/8") - max 2600 mm (102-3/8")

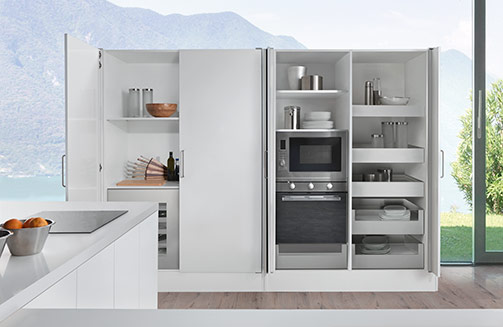

The system can be used in a host of applications to enable a significant functional optimisation of space, from walk-in wardrobes to larder units for kitchens, home office solutions and in storage applications.
The system does not necessarily have to be placed on the floor, therefore it is possible to create systems raised from the ground or placed on a cupboard or a chest of drawers.
Unique patented door opening system
The whole mechanism is self-supporting and fixed to the side of the cabinet; there are no load-bearing frontal profiles on either the top or bottom of the cabinet, thus eliminating any need for additional central supports. Thanks to the motion-control system, the handle can be fixed at the edges of the doors, allowing effortless opening and closing with one hand. Furthermore, with the aid of the electric Push kit, it is possible to use both versions on handle-less furniture.
Technical features
- DOUBLE pocket door system with cam-assisted door extraction and cushioned door insertion.
- Vertical adjustment: ± 5 mm
Horizontal adjustment: ± 3.5 mm
Upper front adjustment: ± 3 mm
Lower front adjustment: ± 2 mm - Maximum weight for single door: 25 Kg
- Doors thickness: min 18 mm - max 25 mm
- Width of single door - Exedra2 Smart: min 525 mm - max 860 mm
- Doors height: min 1800 mm - max 2700 mm
- The right mechanism and the left mechanism are independent of each other, therefore it is possible to order them individually.
If they are installed on the same cabinet, they must be configured as a pair.
Catalogues
Technical pamphlet
YE56KIT0001
Magnets kit to protect doors
YE56KIT0002
Smove kit for internal door
YE56EPP0012
Electric Push kit. Right cabinet side
YE56EPP0022
Electric Push kit. Left cabinet side
YE56KIT0003
Doors alignment kit
YE56KIT0200_7
YE56KIT0200A7 = Frame cover. It can be coated by the customerYE56KIT0200S7 = Frame cover. Metal grey
VE56KIT0020
Push kit right mobile side
VE56KIT0022
Electric Push kit. Left cabinet side
Motorised application
The movement can be activated with the following methods:- a touch-activated capacitive sensor discreetly mounted inside the door.
- remote control with receiver card to be connected to the general control unit.
Both control options can activate the doors synchronously or independently, and they can operate in conjunction.
Documentation
-
Technical featuresPDF 1.15MB
-
Assembly and examplesPDF 121.59KB
-
Assembly and adjustment manual - Right-hand opening doorPDF 12.50MB
-
Assembly and adjustment manual - Left-hand opening doorPDF 12.45MB
-
Assembly and adjustment manual - Right-hand motorised opening doorPDF 13.79MB
-
Assembly and adjustment manual - Left-hand motorised opening doorPDF 13.87MB
