POCKET DOOR SYSTEM
ExedraSystem with assisted sliding action enhanced by linear damping to gently control the movement of the door. Also available with Push opening.
- Max. weight 40 kg (88 lbs)
- Thickness from 19 mm (3/4") to 30 mm (1-3/16")
- Width from 370 mm (14-9/16”) to 900 mm (35-7/16”)
- Height from 1333 mm (52-1/2”) to 2800 mm (110-1/4”)
- Soft closing movement while sliding in and out
- Push opening available
Elegance, functionality and space optimisation
Exedra refines and improves the deceleration concept to give a smooth, fluent, uniform and noiseless movement, regardless of the speed of door insertion.
Functionality and aesthetics combine, creating a versatile product that can be fixed to both wooden doors and aluminium-framed doors.
Exedra can be supplied with hinges and Smove, for a decelerated closing, or Push to open hinges for handle-less doors.
Both versions are available in nickel-plated or titanium finishes.

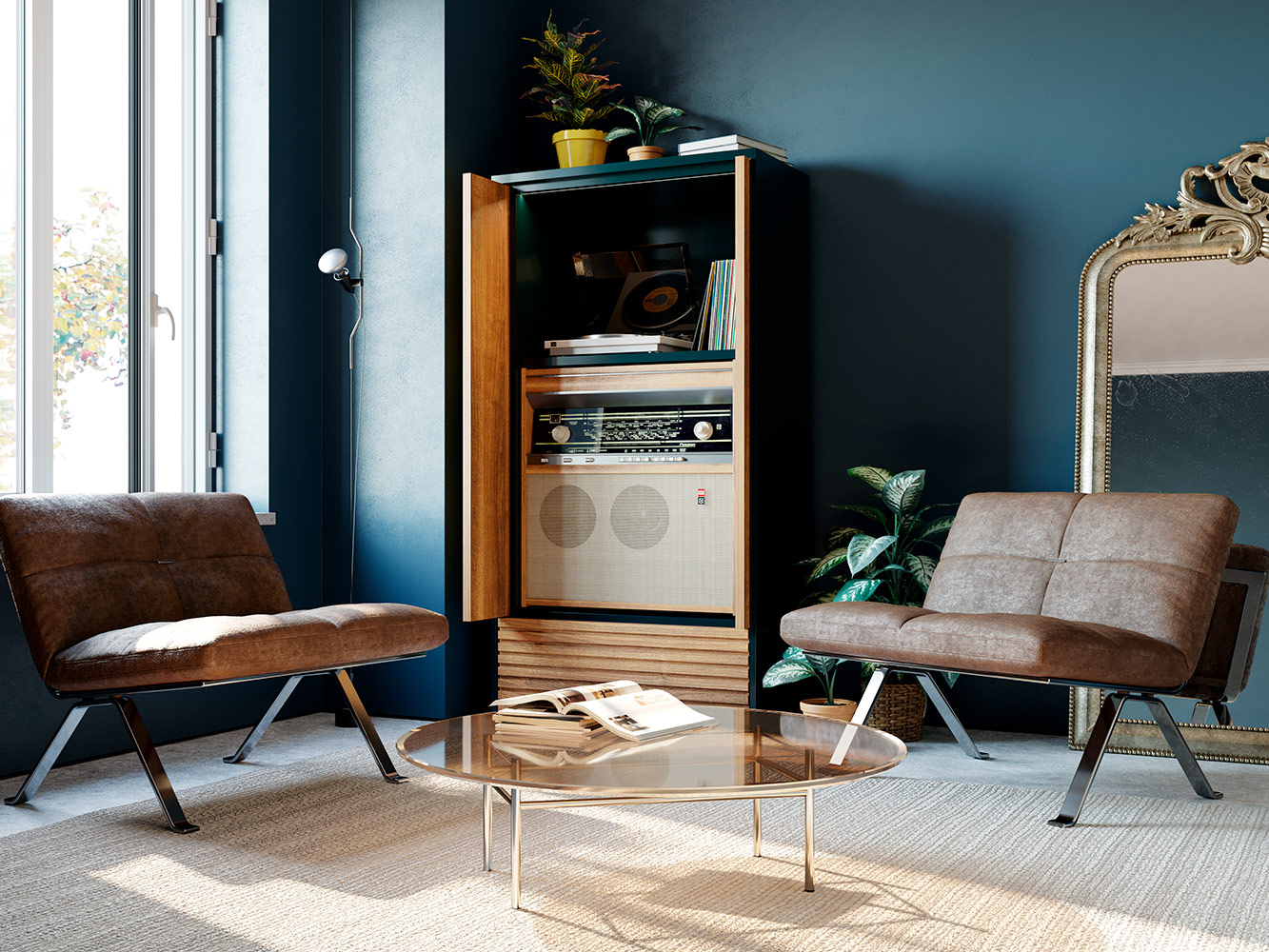

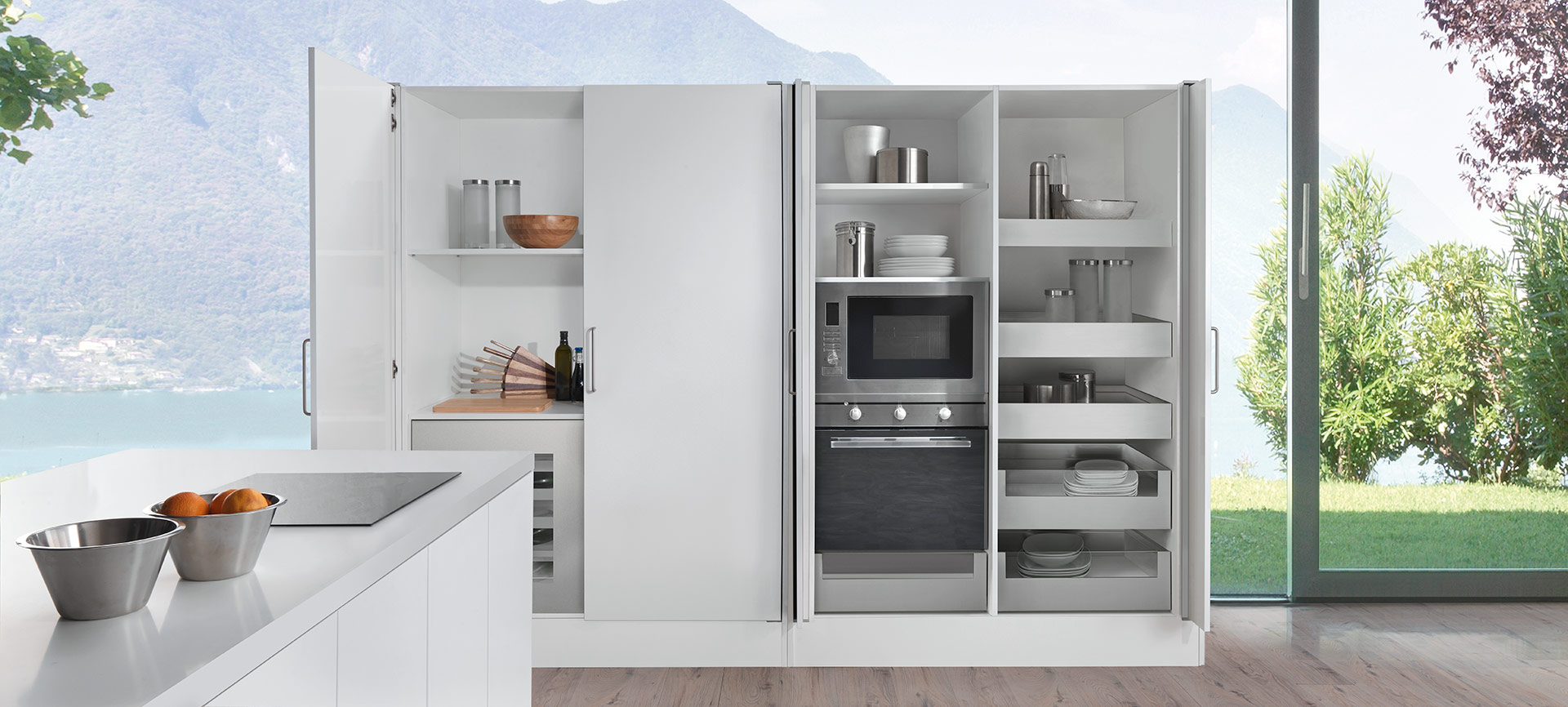

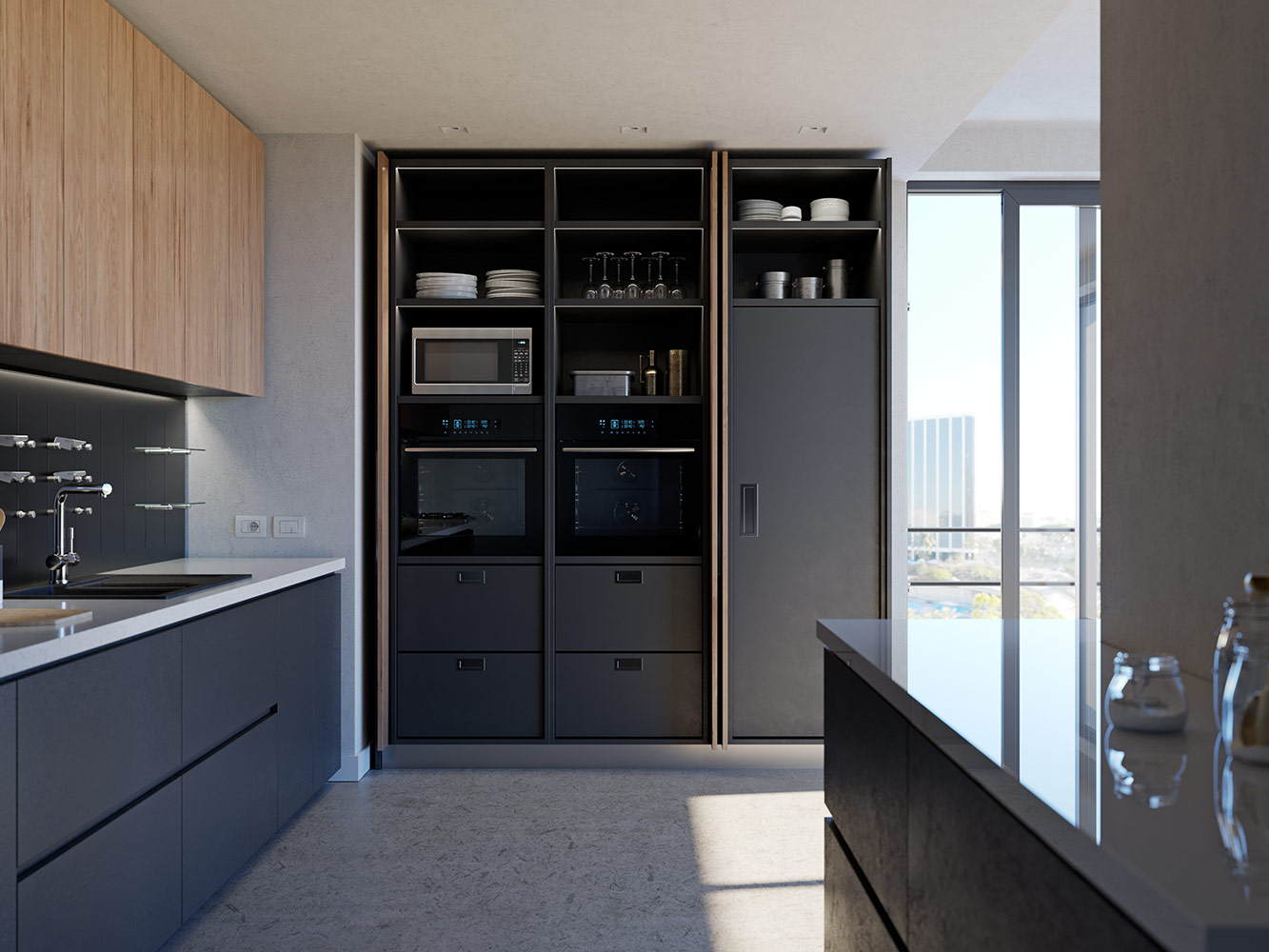

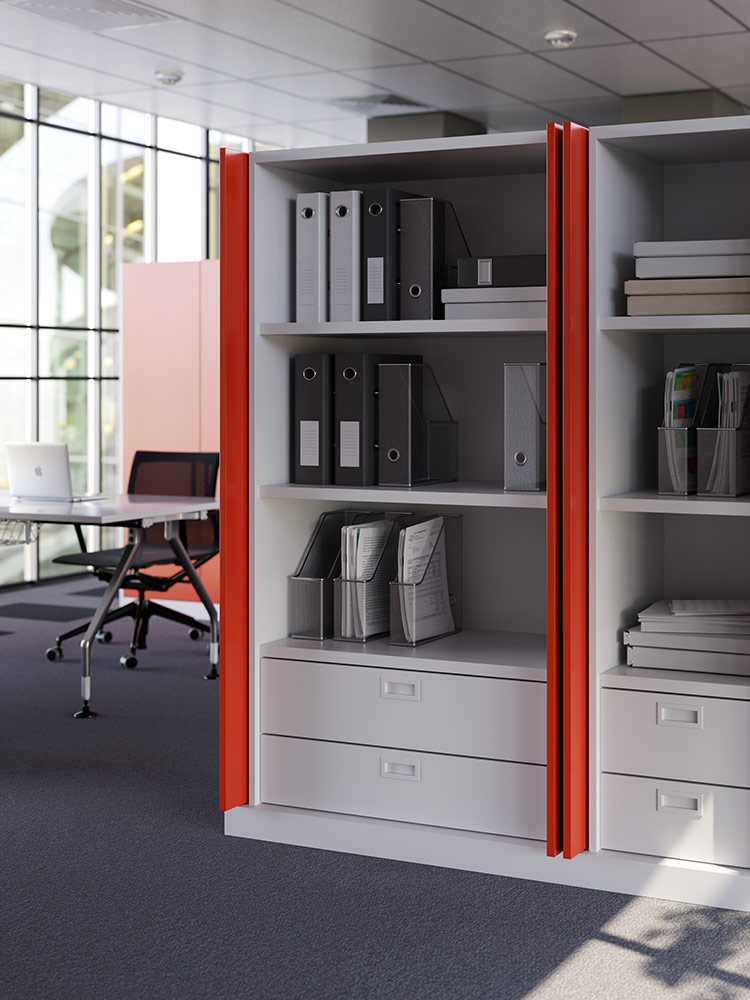

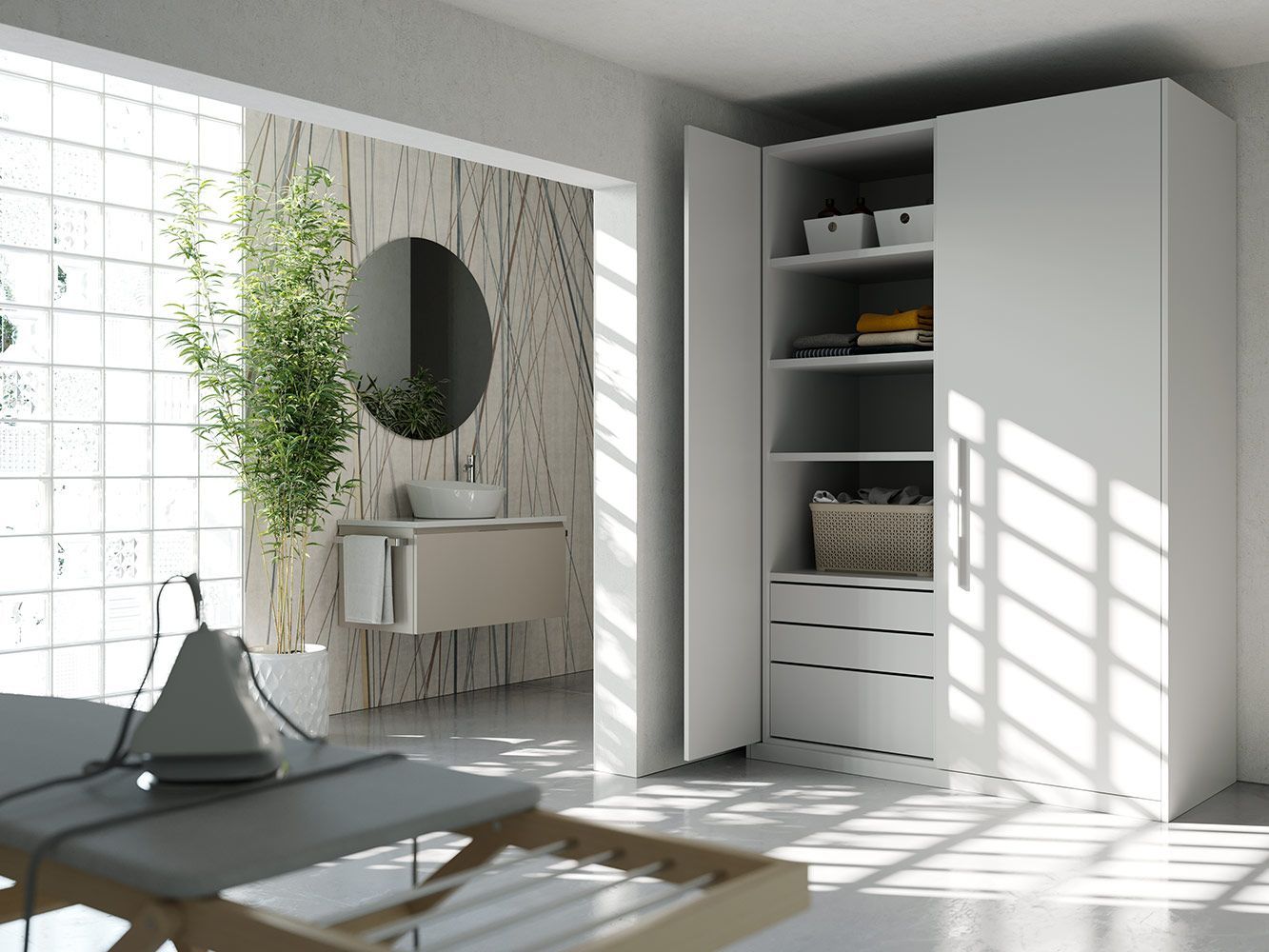

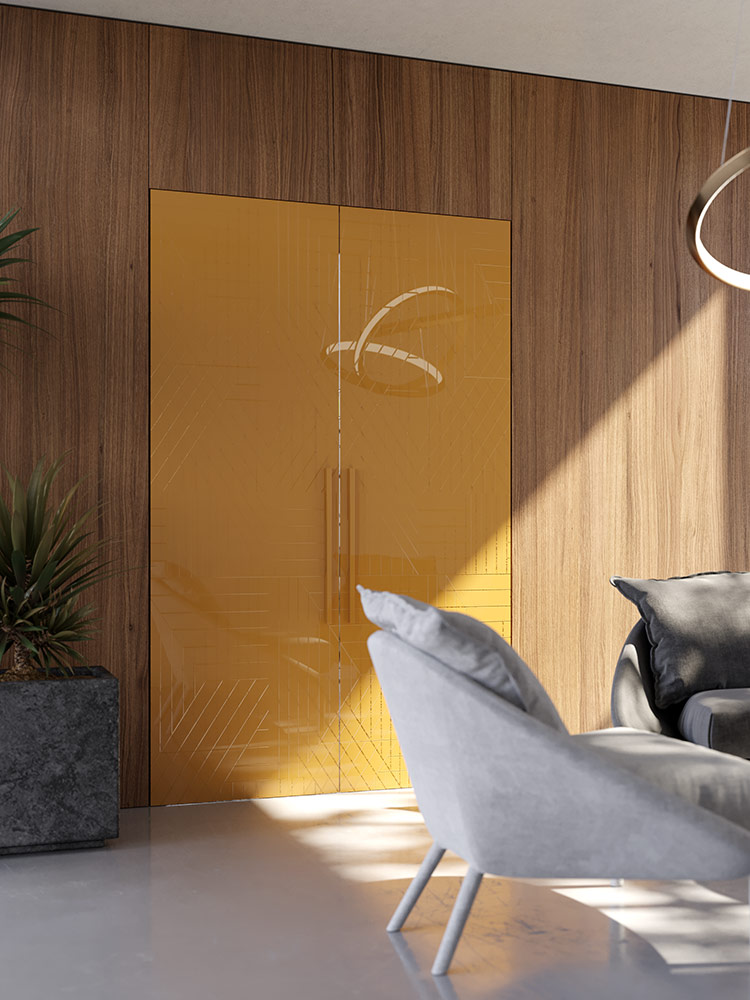

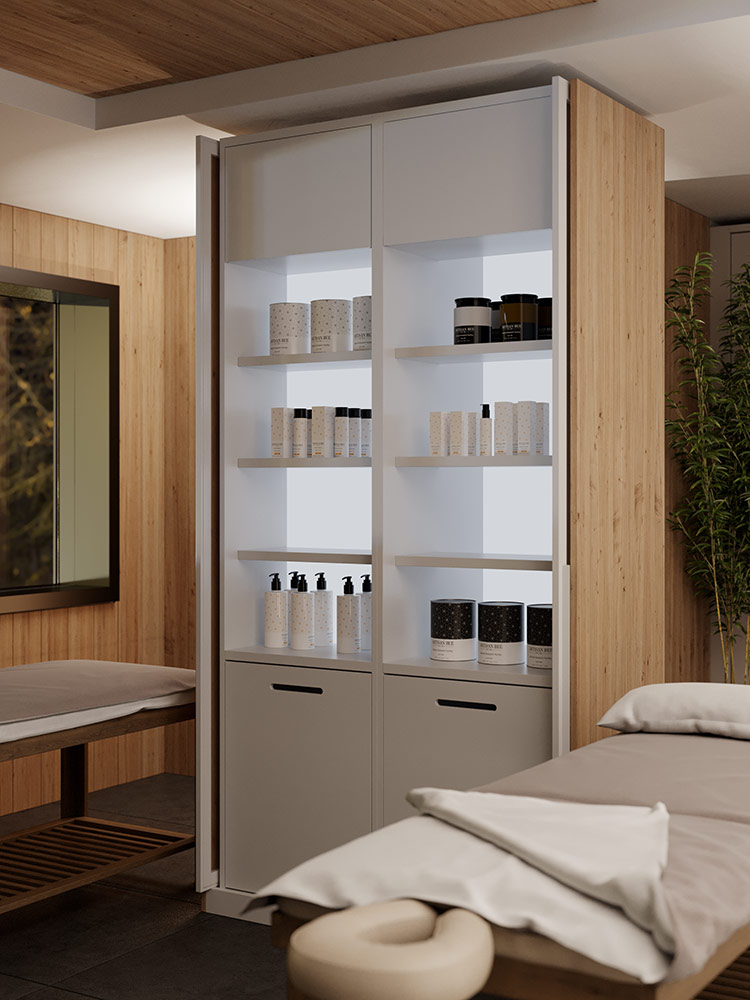

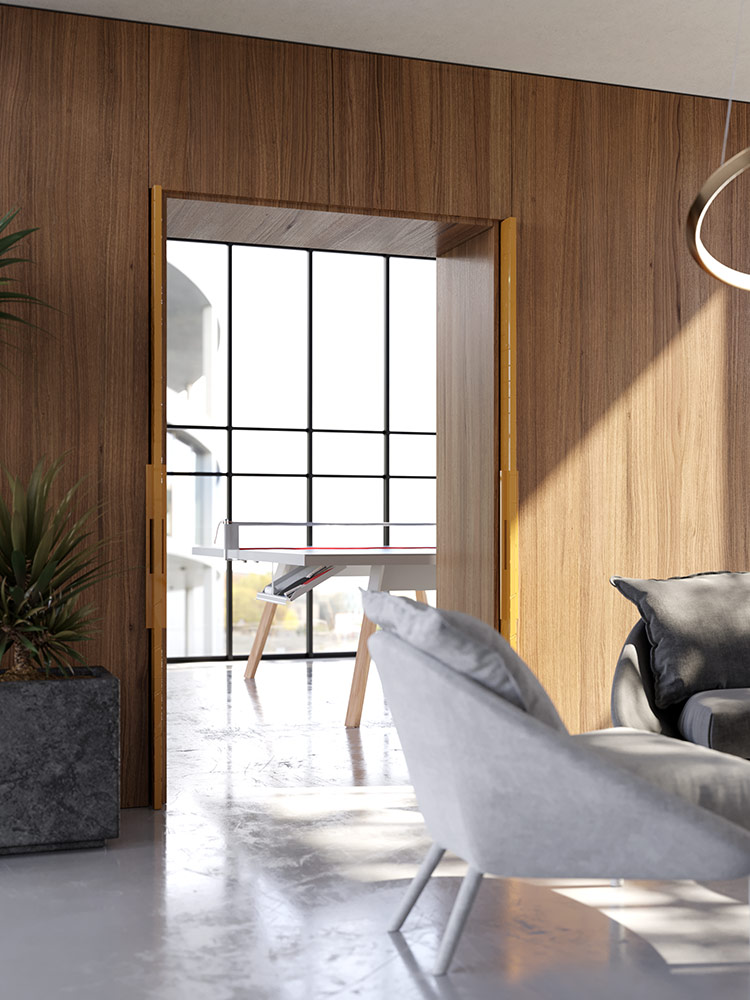

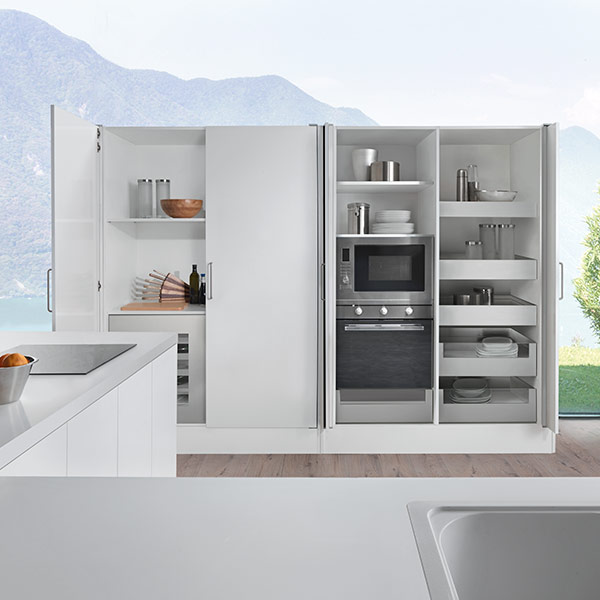

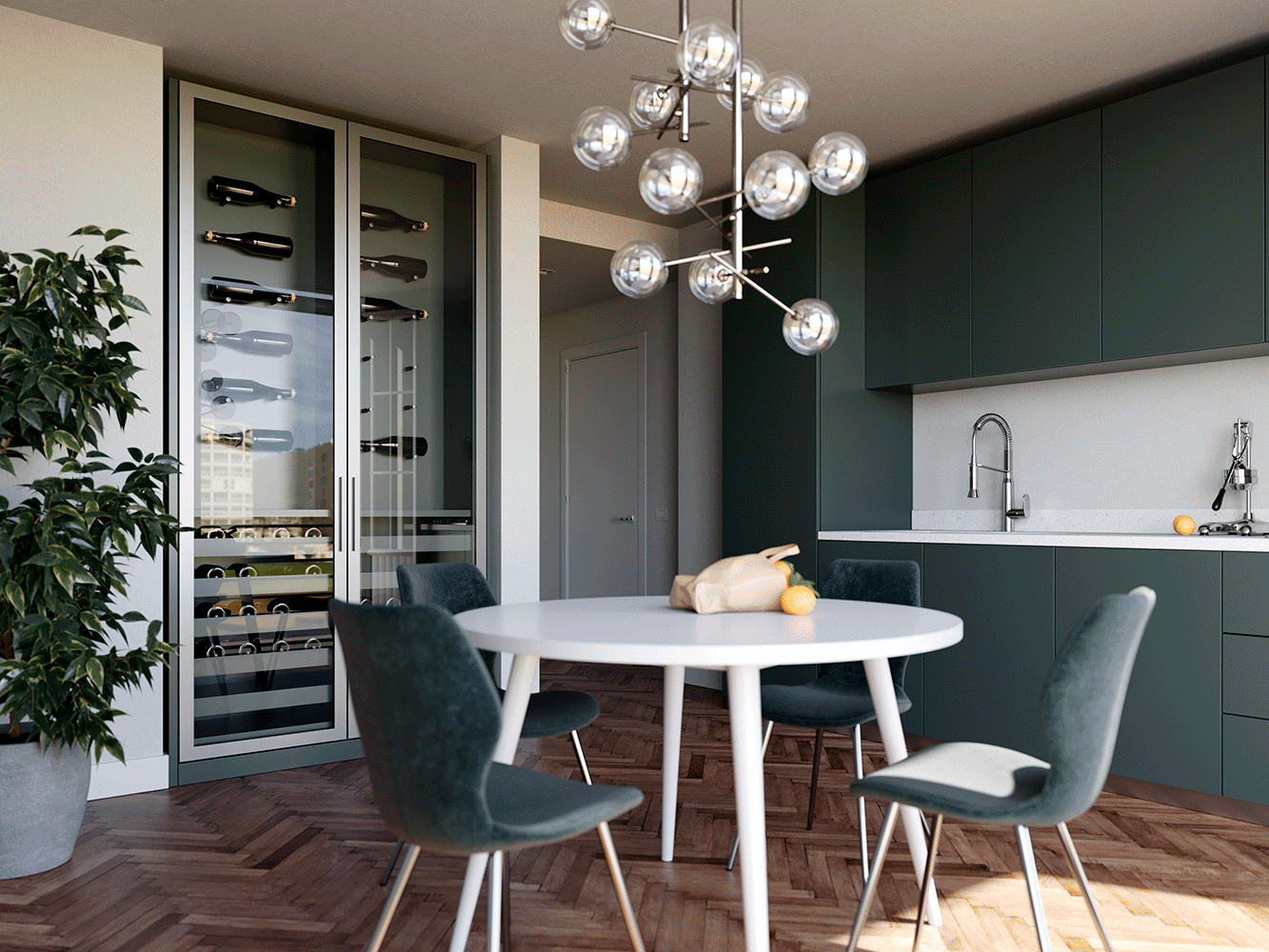

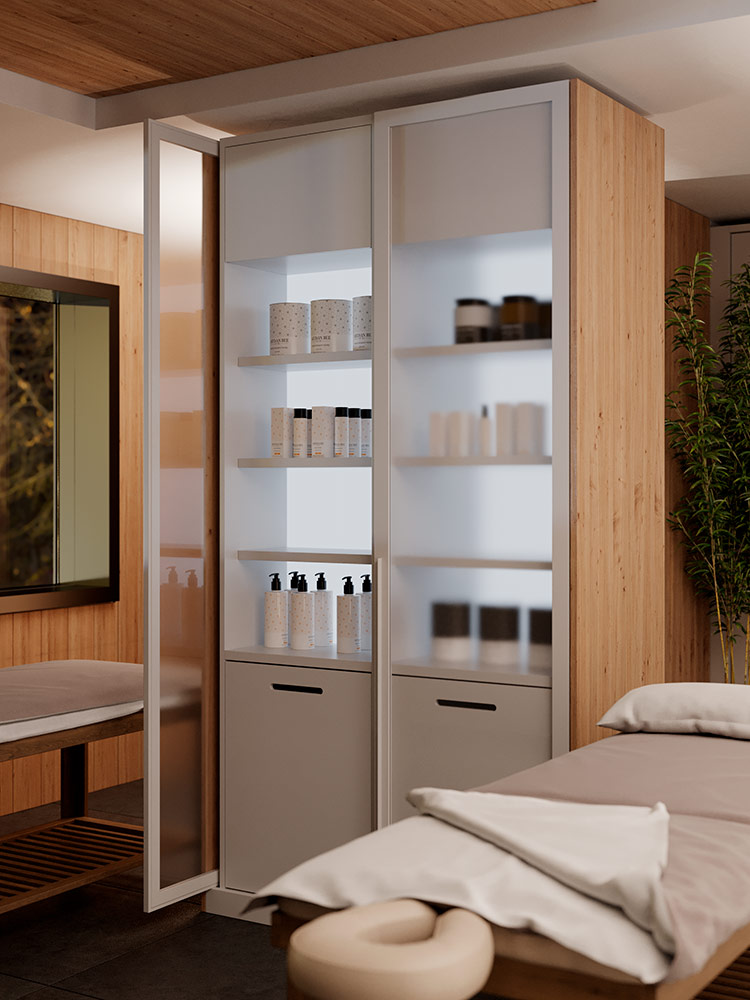

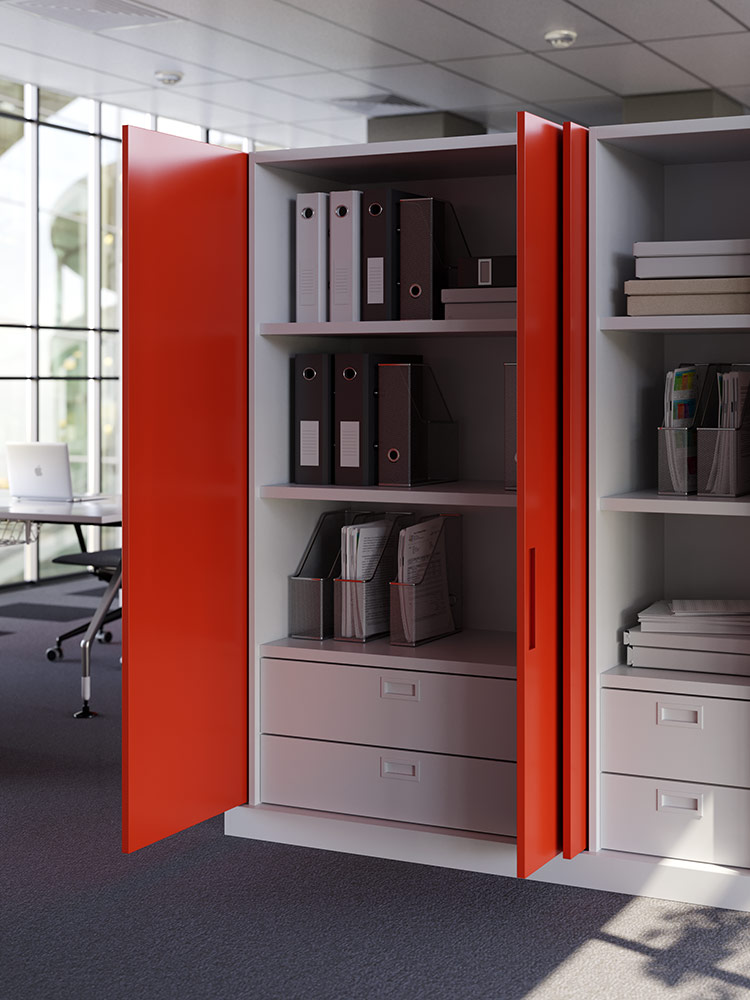

Exedra can be installed on doors of different dimensions up to a maximum weight of 40 kg, ensuring great flexibility and the possibility to use this system in a host of applications, including hidden kitchens, laundry rooms and workspaces
- Max. weight: 40 kg (88 lbs) with 5 hinges.
- Thickness from 19 mm (3/4") to 30 mm (1-3/16").
- Width from 370 mm (14-9/16”) to 900 mm (35-7/16”).
- Height from 1333 mm (52-1/2”) to 2800 mm (110-1/4”).
- The system can be supplied with hinges and Smove, for a decelerated closing, or Push to open hinges for handle-less doors.
- Vertical (+4/-1 mm), horizontal (±2 mm) and front (±4 mm) door adjustment.
- Available in standard version, partially assembled and customised.
Exedra
Slide-in installation to facilitate installation and removal of the mechanism from the front
Exedra Euro 32
Option for direct fixing to the cabinet by euroscrew
SIDE PANEL CONNECTOR KITS
System for single doors, version with milling
YE55KIT0005:
Total external depth of the cabinet from 370 to 650 mm
YE55KIT0006:
Total external depth of the cabinet from 650 to 900 mm
SIDE PANEL CONNECTOR KITS
System for single doors, version to be screw-fixed
YE55KIT0001:
Total external depth of the cabinet from 370 to 650 mm
YE55KIT0002:
Total external depth of the cabinet from 650 to 900 mm
SIDE PANEL CONNECTOR KITS
System for two doors
YE55KIT0003:
Total external depth of the cabinet from 370 to 650 mm
YE55KIT0004:
Total external depth of the cabinet from 650 to 900 mm
FRONT COVER STRIPS
Cut the aluminium cover to length and slide it onto the clips.
YE55KIT0201: length 2,6 m - grey
YE55KIT0202: length 2,6 m - black
YE55KIT0203: length 2,6 m - white
YE55KIT0204: length 3,0 m - grey
YE55KIT0205: length 3,0 m - black
YE55KIT0206: length 3,0 m - white
ROLLER GUIDE
Supplementary roller guide for aluminium-framed glass doors and framed wooden doors.
The fixing of this component requires additional working
YE55KIT0040: 1 (Box with 10 pcs.)
Technical information
Documentation
Video
Technical pamphlet
Check out the functionality and aesthetics of all Salice products
POCKET DOOR SYSTEM
Exedra2 Star
The evolution of the Exedra system, which enables the simultaneous movement of two linked doors. Exedra2 Star is the version where the compartment that houses the mechanism is always hidden by the cover panel fixed to the front of the system
- Maximum weight for single door: 25 Kg (55 lbs)
- Doors thickness: min 18 mm (3/4") - max 25 mm (1")
- Width of single door: min 450 mm (17-11/16") - max 750 mm (29-1/2")
- Doors height: min 1800 mm (70-7/8") - max 2600 mm (102-3/8")
POCKET DOOR SYSTEM
Exedra2 Smart
The evolution of the Exedra system, which enables the simultaneous movement of two linked doors. Exedra2 Smart is the version that requires less depth of the cabinet; the door edges are visible when they are folded into their compartment
- Maximum weight for single door: 25 Kg (55 lbs)
- Doors thickness: min 18 mm (3/4") - max 25 mm (1")
- Width of single door: min 550 mm (21-5/8") - max 850 mm (33-7/16")
- Doors height: min 1800 mm (70-7/8") - max 2600 mm (102-3/8")
