COPLANAR SYSTEM

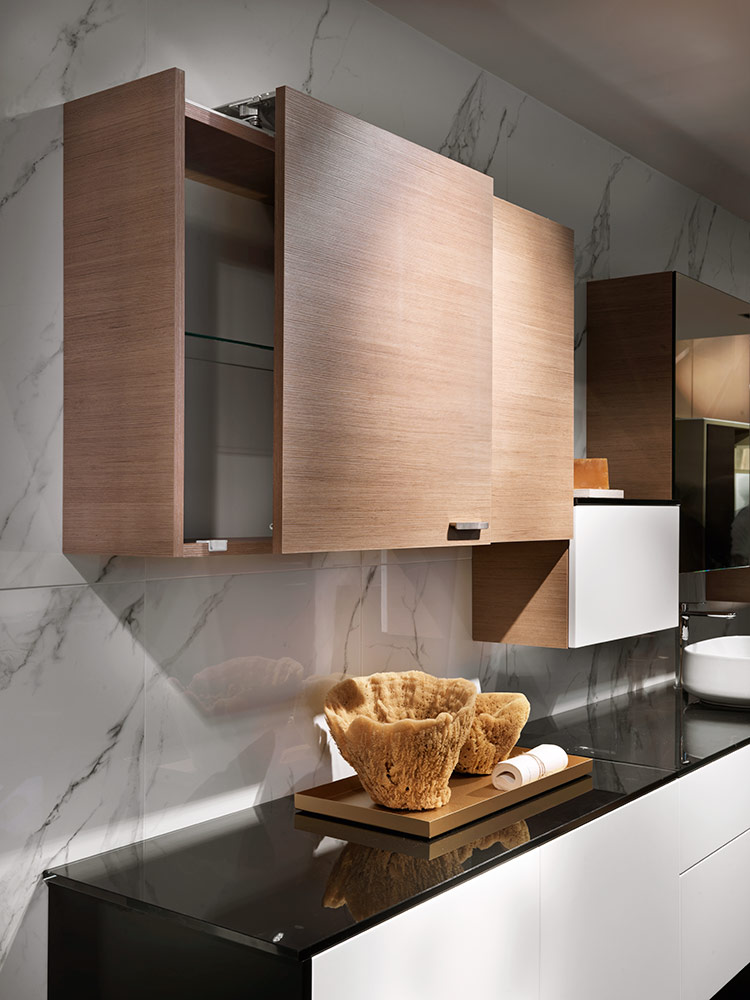

Slider S10Coplanar system for kitchen cabinets and small wall cabinets with doors weighing up to 10 kg (22 lbs)
- Max. weight per door 10 kg (22 lbs)
- Width from 450 (17-11/16”) to 1200 mm (47-1/4”)
- Max. height 800 mm (31-1/2”)
- Thickness from 16 (5/8”) to 30 mm (1-3/16”), max. 40 mm (1-9/16”) with handle
- Soft closing movement while opening and closing

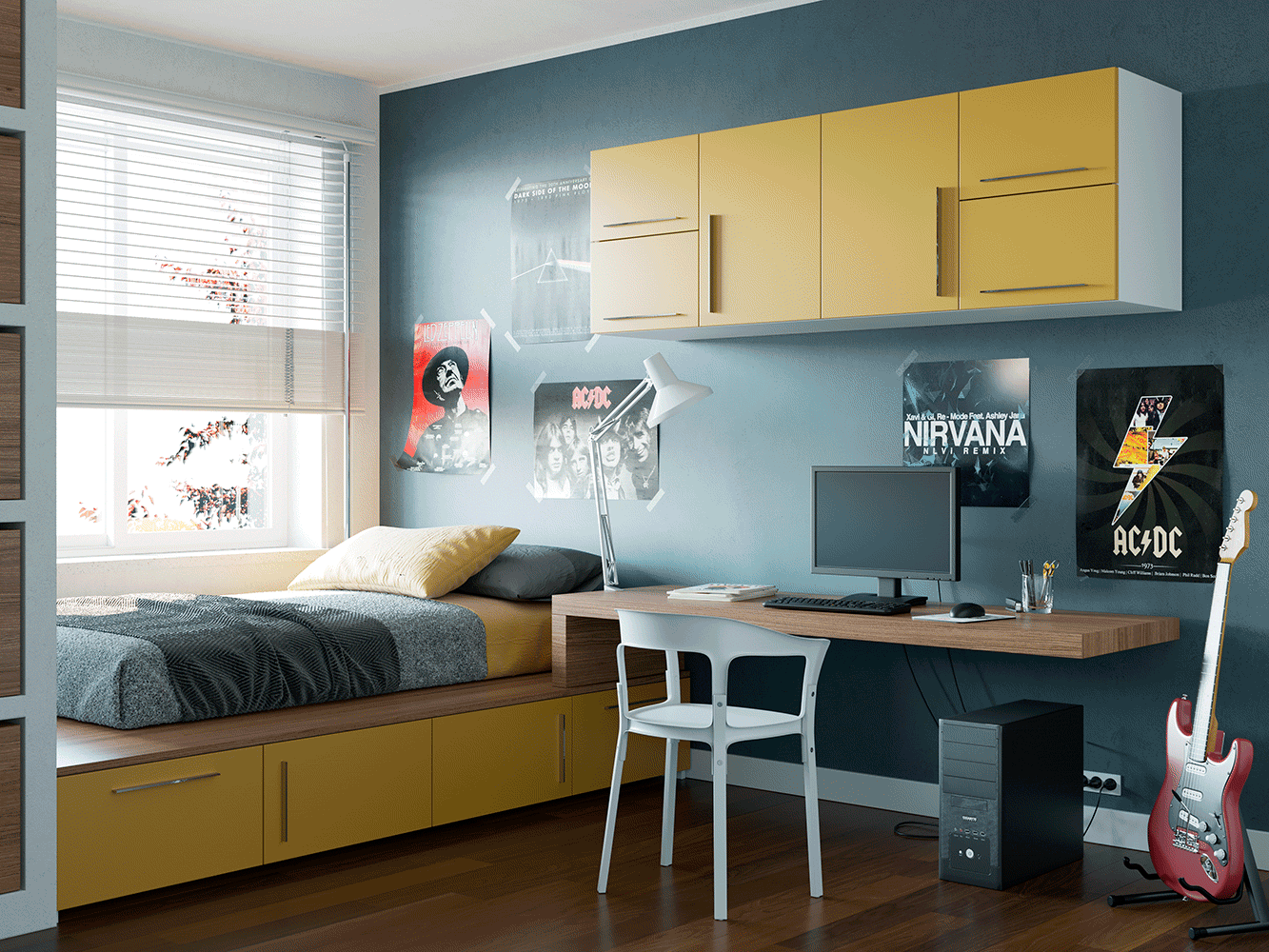

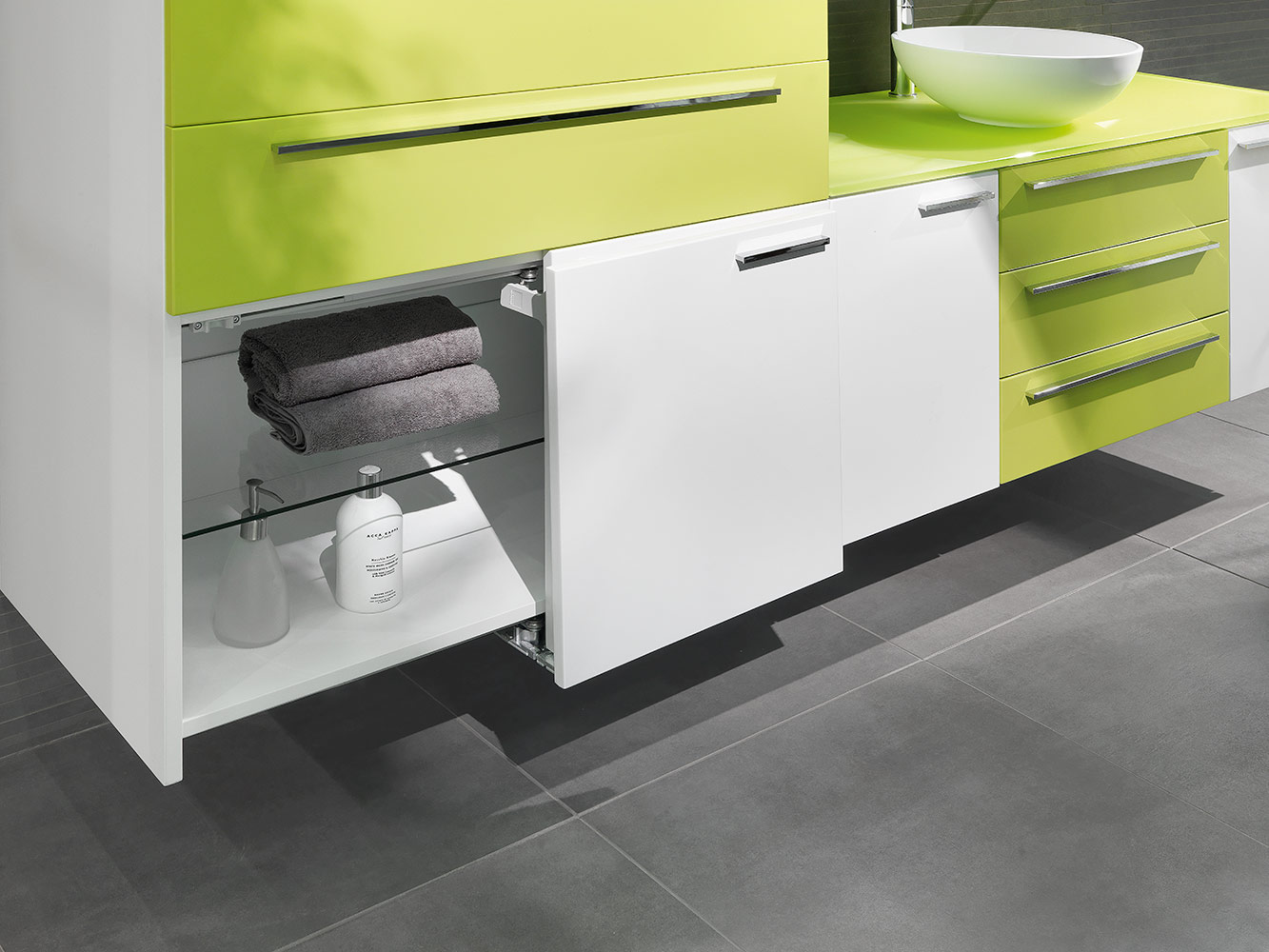

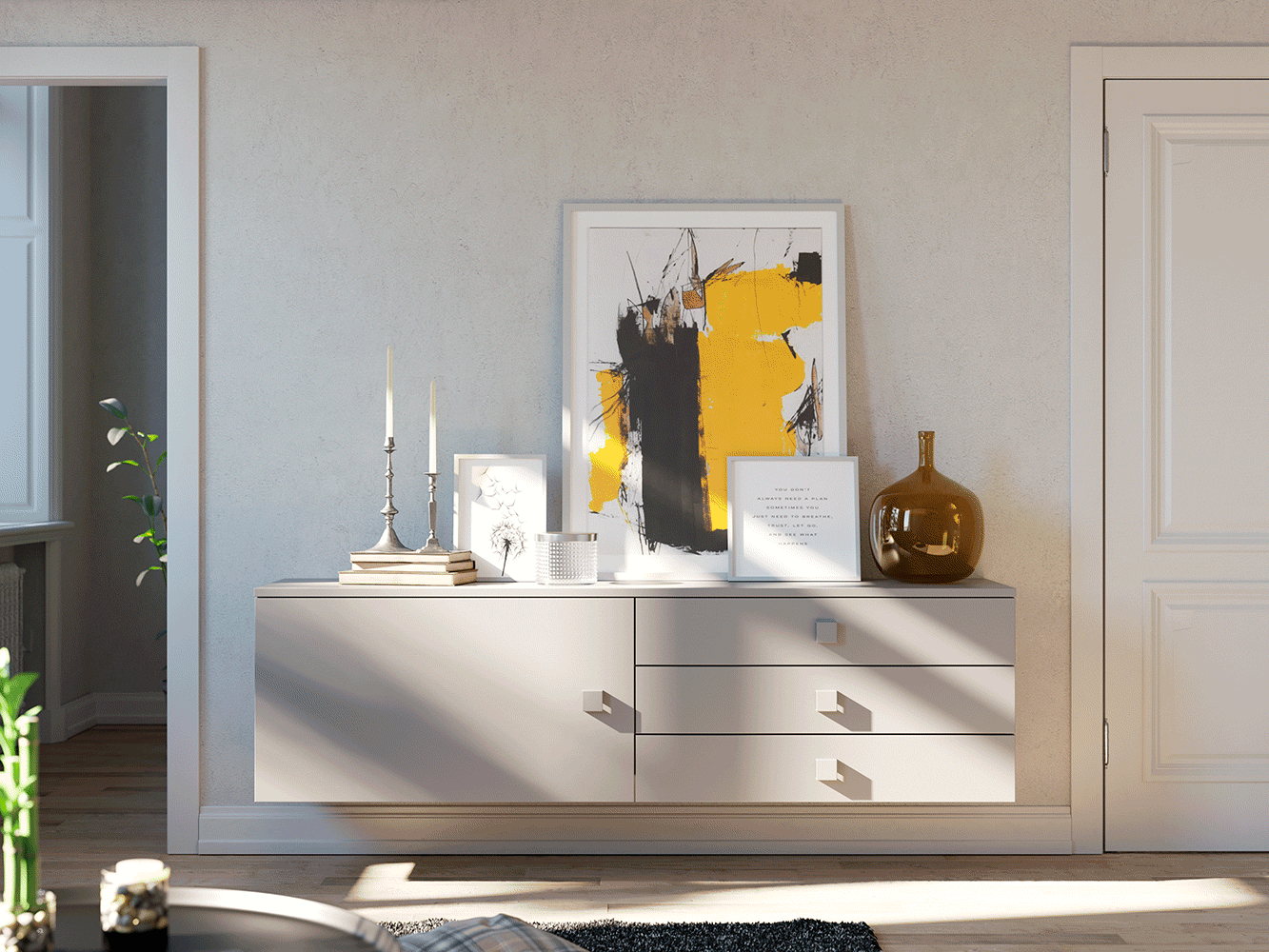

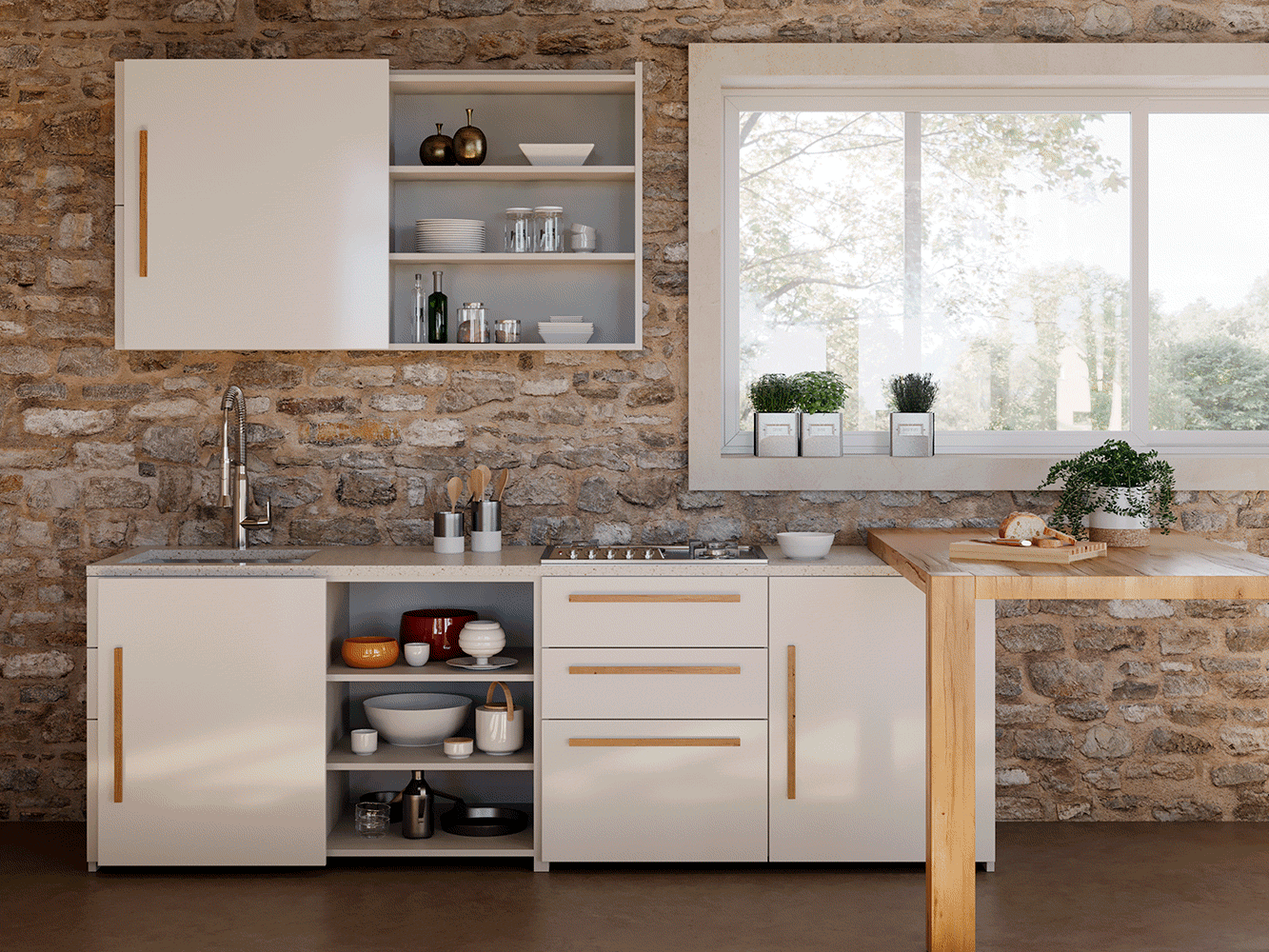

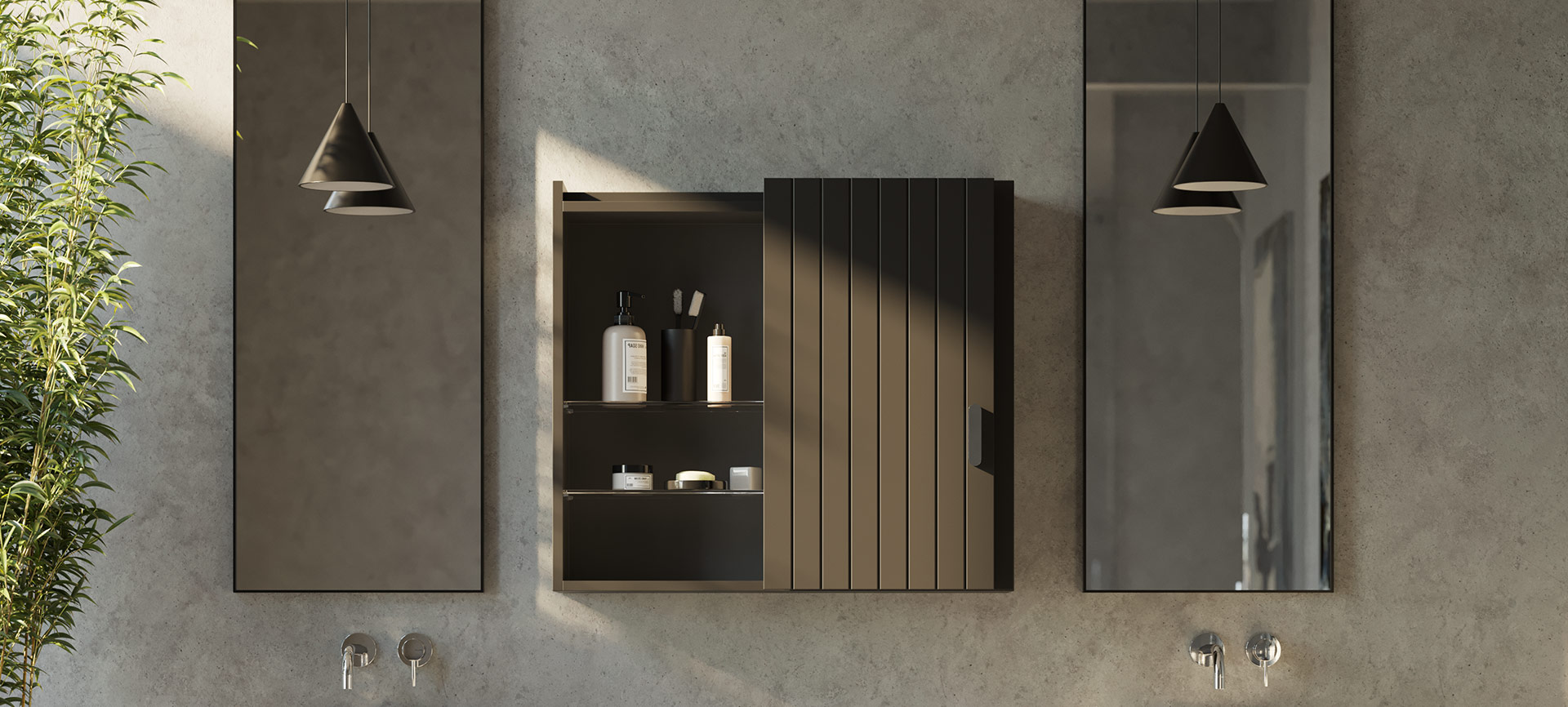

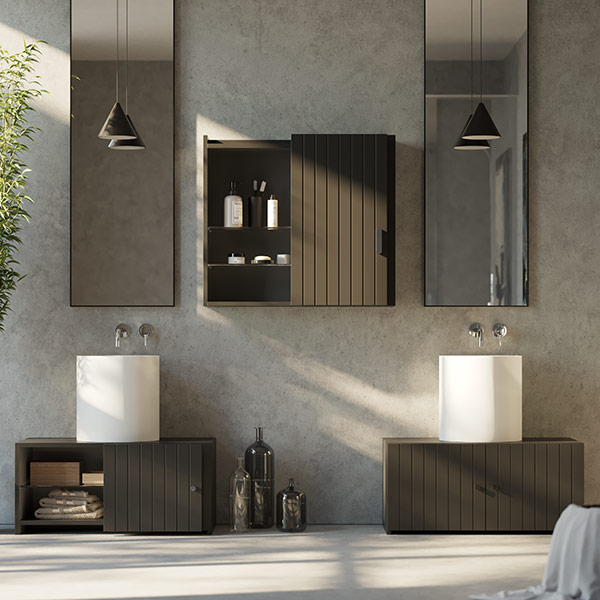

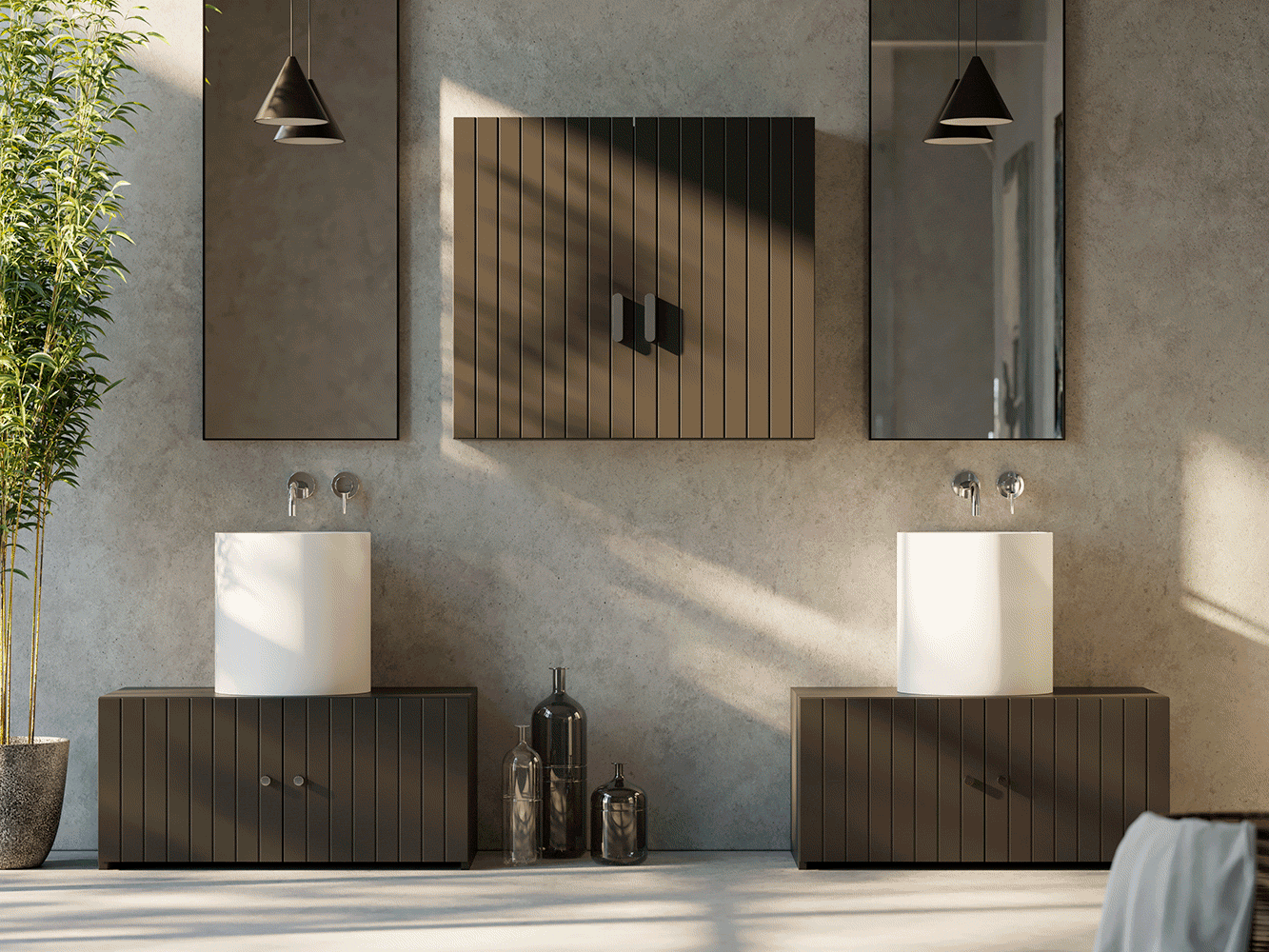

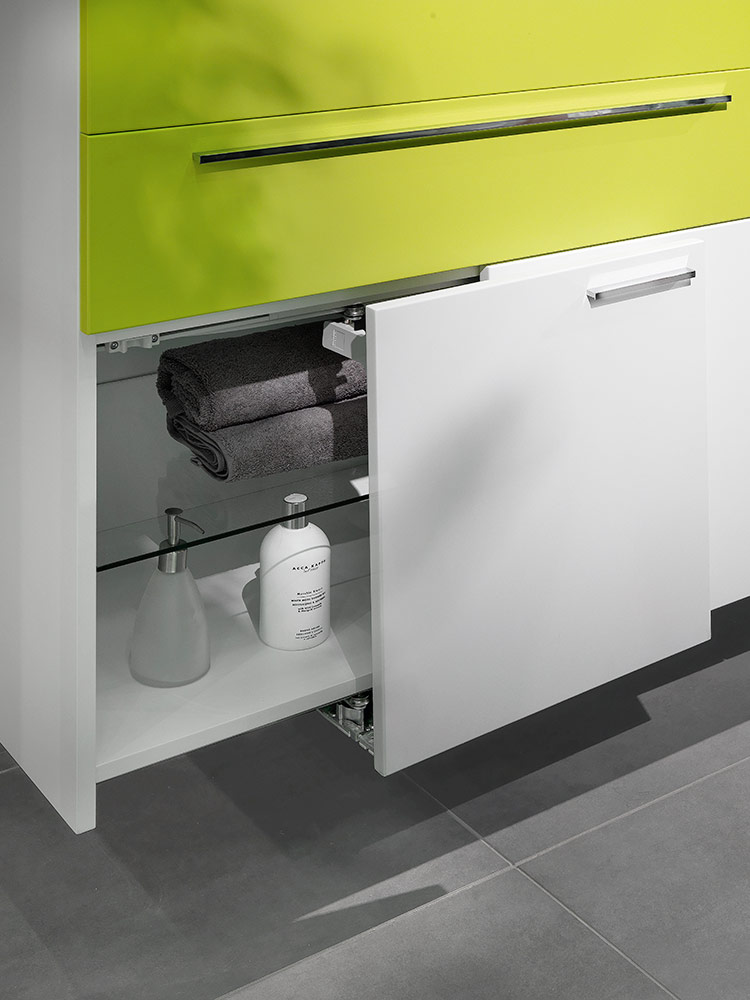

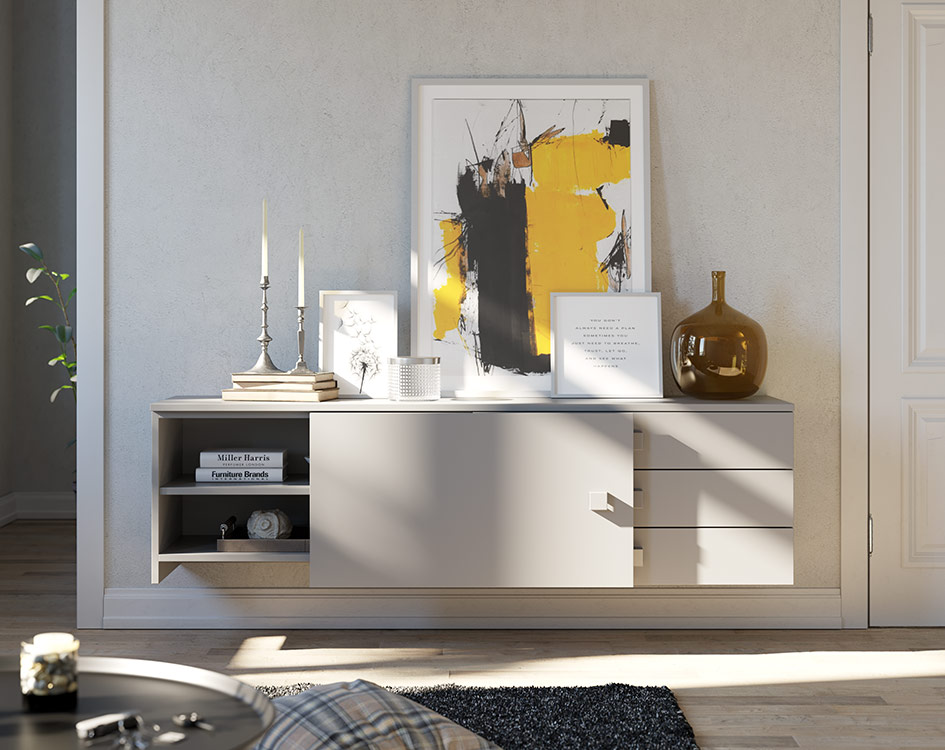

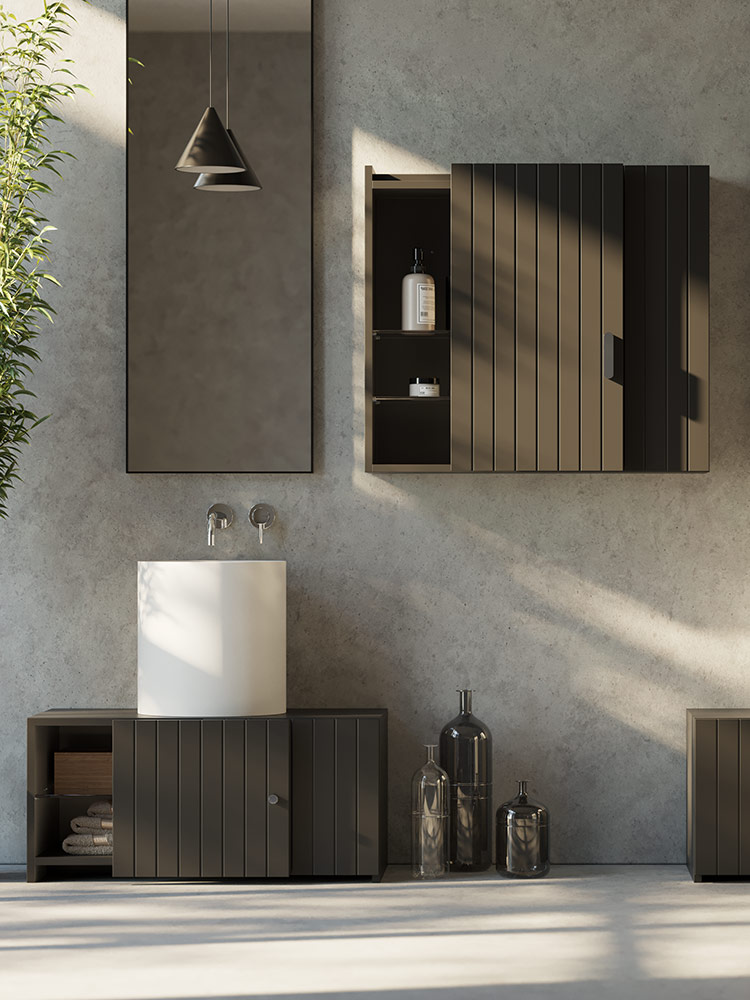

S10 is ideal for small units used in the kitchen and bathroom or for larger furniture intended for the living room, bedroom and offices.
- Available in the Standard, Reverso and One versions.
- Soft closing movement while opening and closing.
- Max. weight per door 10 kg (22 lbs).
- Width from 450 (17-11/16") to 1200 mm (47-1/4").
- Max. height 800 mm (31-1/2").
- Thickness from 16 (5/8") to 30 mm (1-3/16"), max. 40 mm (1-9/16") with handle.
- Material: wood or derived material
- Vertical, horizontal and front door adjustment.

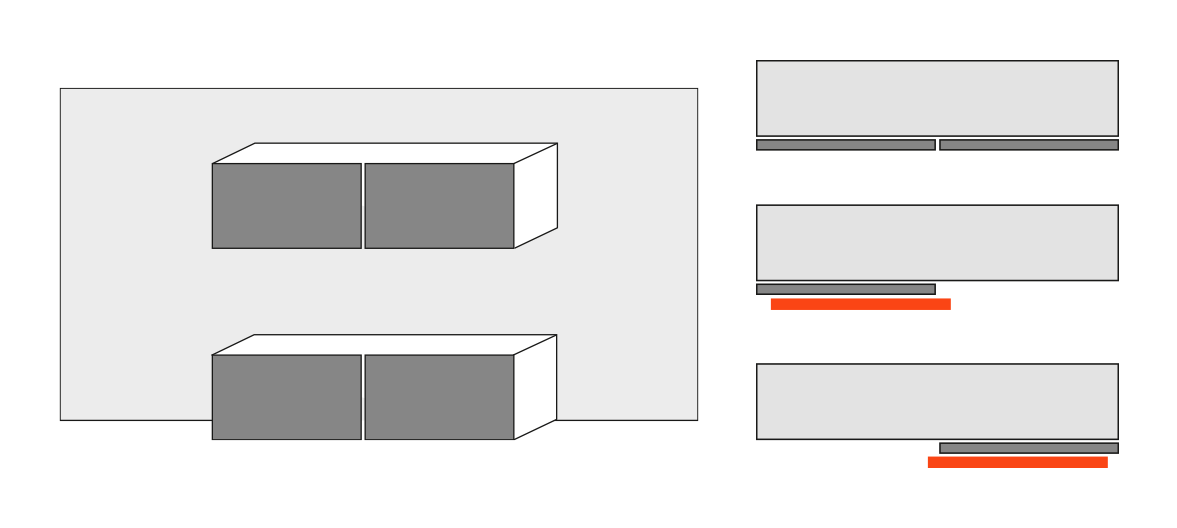

Standard
Sliding soft-closing movement for wardrobes and cabinets with two doors

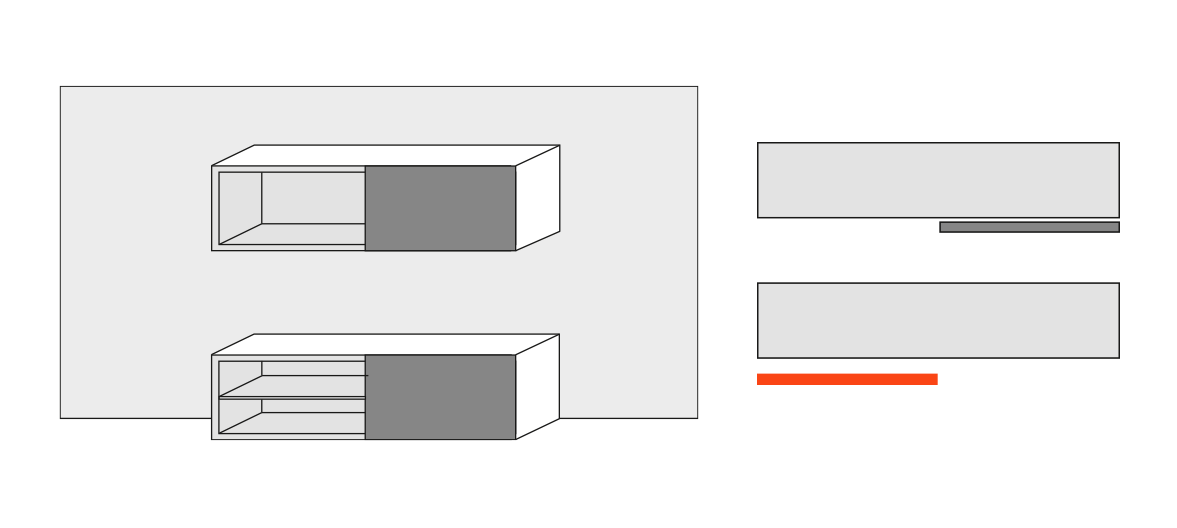

One
For the opening of a single door on the right

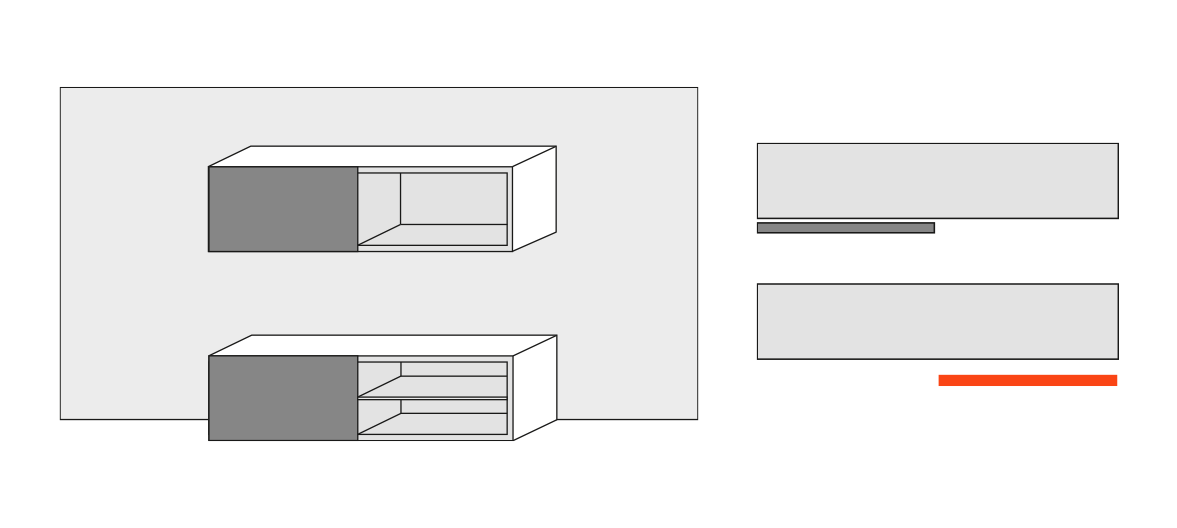

One
For the opening of a single door on the left

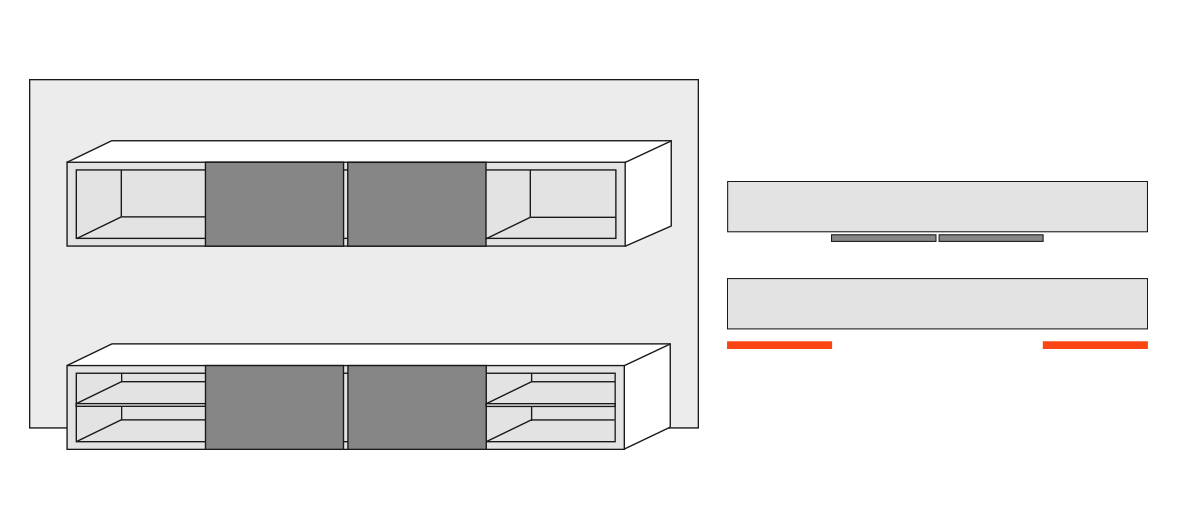

Reverso
System enabling the doors to be opened in the opposite direction
Technical information
Documentation
Video
Technical pamphlet
Check out the functionality and aesthetics of all Salice products
COPLANAR SYSTEM
Slider S20
Coplanar system for kitchen cabinets and wall cabinets with doors weighing up to 20 kg (44 lbs)
- Max. weight per door 20 kg (44 lbs)
- Width from 600 (23-5/8”) to 1500 (59”) mm
- Max. height 1200 mm (47-7/32”)
- Thickness from 19 (3/4”) to 45 mm (1-3/4") with handle
- Push system available
COPLANAR SYSTEM
Slider M35 Top
Coplanar sliding system for medium-height top-hung cabinets with doors weighing up to 35 kg
- Max. weight per door 35 kg
- Width from 600 to 1500 mm
- Height from 1200 to 1800 mm
- Thickness from 18 to 40 mm with handle
- Soft closing movement while opening and closing
COPLANAR SYSTEM
Slider M50+
Coplanar system for full-height cabinets with doors weighing up to 50 kg (110 lbs)
- Max. weight per door 50 kg (110 lbs)
- Width from 600 (23-5/8") to 2000 mm (78-3/4")
- Compatible with Clipper
COPLANAR SYSTEM
Slider L70
System for large doors weighing up to 70 kg (154 lbs)
- Max. weight per door 70 kg (154 lbs)
- Width from 800 (31-1/2”) to 2000 mm (78-3/4”)
- Max. height 3000 mm (118-1/8”)
- Thickness from 19 (3/4") to 45 mm (1-3/4") with handle
- Compatible with Clipper
CONCERTINA DOORS SYSTEM
Sliding system for concertina doors
Designed to open both doors on one side only, giving good access to the interior of the cabinet
- Wooden doors
- Aluminium-frame doors
- Practical system doors
- Track fixing, knock-in
- Track fixing by screws
