COPLANAR SYSTEM
Slider M35 Top
Coplanar sliding system for medium-height top-hung cabinets with doors weighing up to 35 kg
- Max. weight per door 35 kg
- Width from 600 to 1500 mm
- Height from 1200 to 1800 mm
- Thickness from 18 to 40 mm with handle
- Soft closing movement while opening and closing

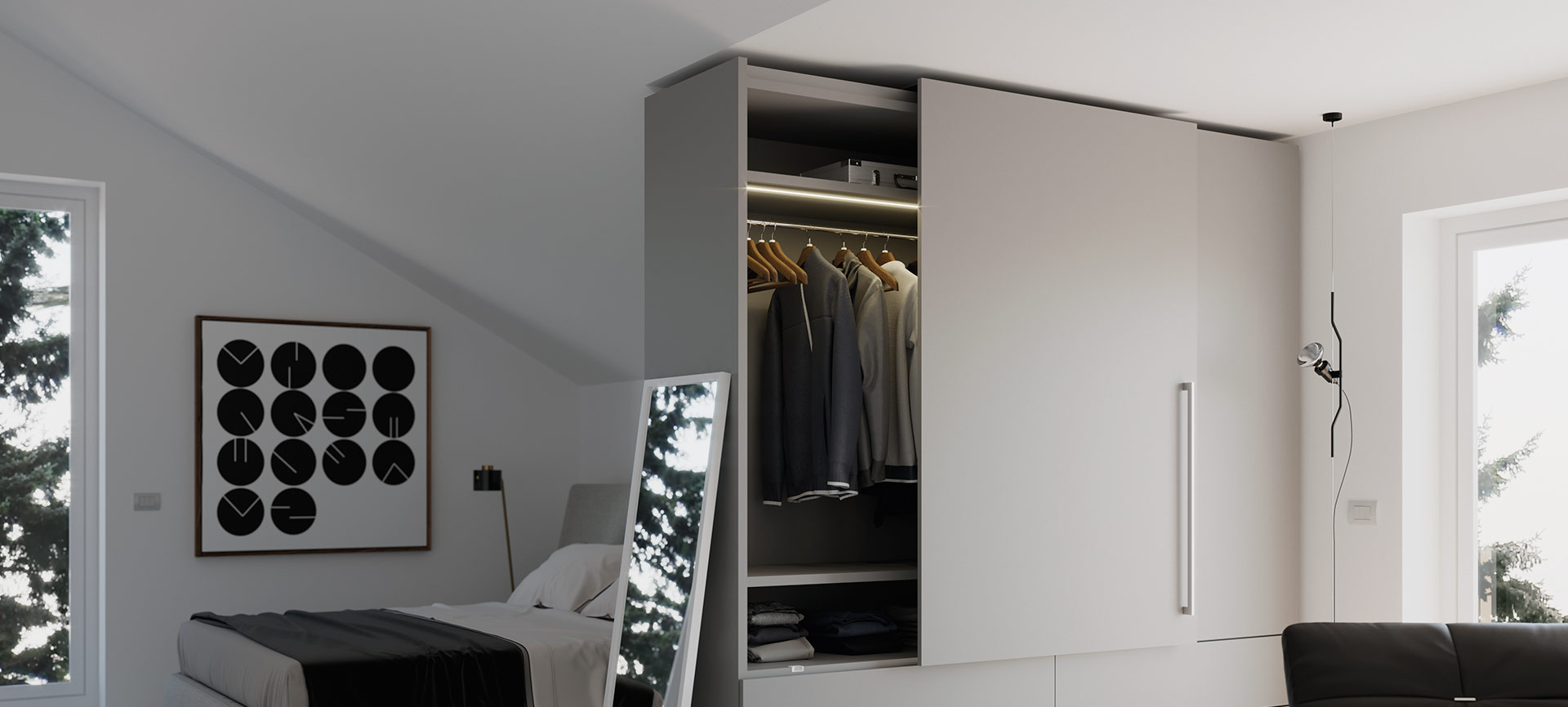

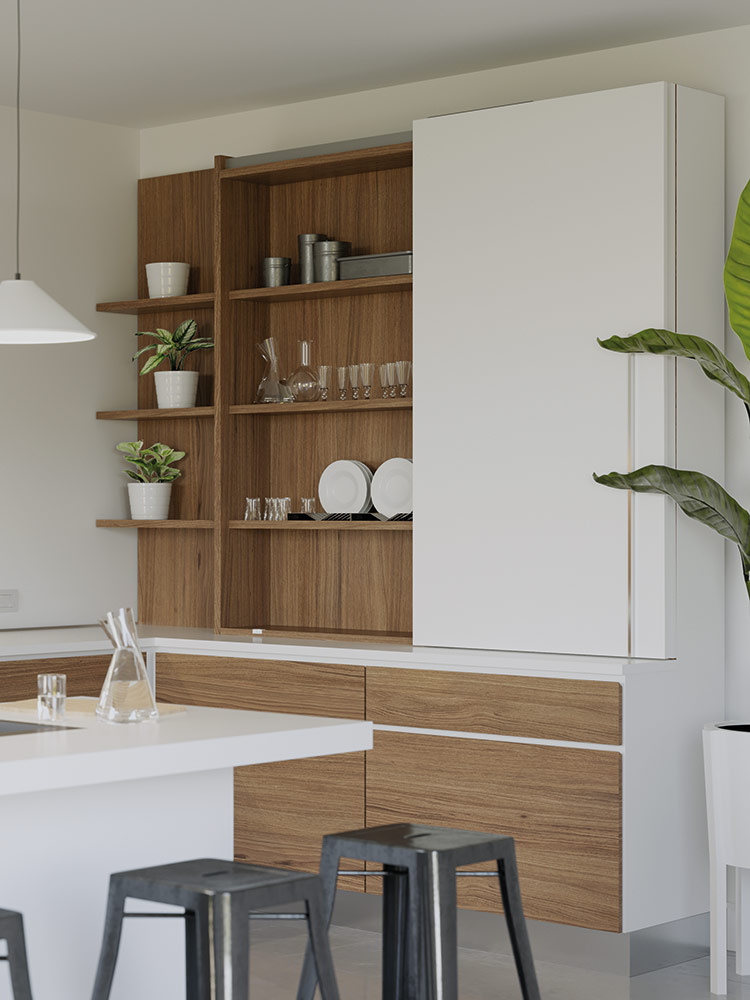

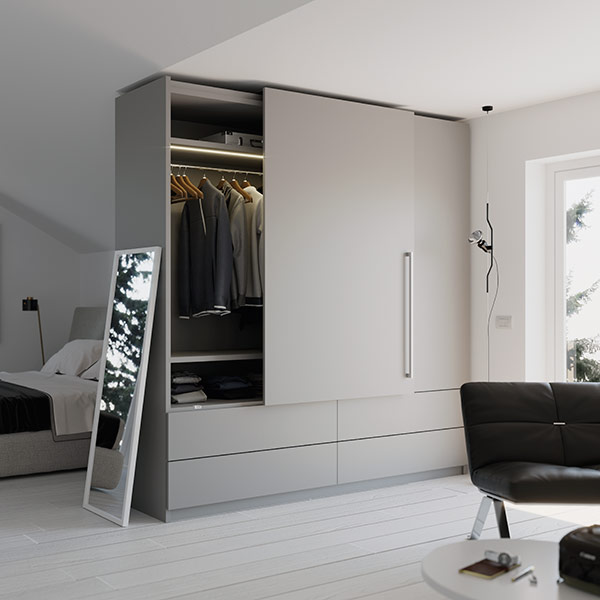

Slider M35 Top can be used to open two identical coplanar doors, or a single sliding door paired with a hinged door or an open compartment.
Design and versatility
The M35 Top mechanism incorporates a sophisticated magnetic damping system that decelerates the opening and closing action and sets a new standard of silent and smooth sliding movement by eliminating the typical noise produced by spring- action dampers.
Available in different options: Reverso enabling the doors to be opened in the opposite direction, Step allowing the doors to be opened when separated by a central compartment and One for the opening of a single door.
Explore the different options for opening doors:
Standard
One
Step
Reverso
Technical features
- Available in the Standard, One, Step and Reverso versions.
- Soft closing with magnetic technology.
- Max. weight per door 35 kg.
- Width from 600 to 1500 mm.
- Height from 1200 to 1800 mm.
- Thickness from 18 to 40 mm with handle.
- Material wood.
- Vertical, horizontal and front door adjustment.
- Very easy to assemble.
Catalogue
Technical pamphlet

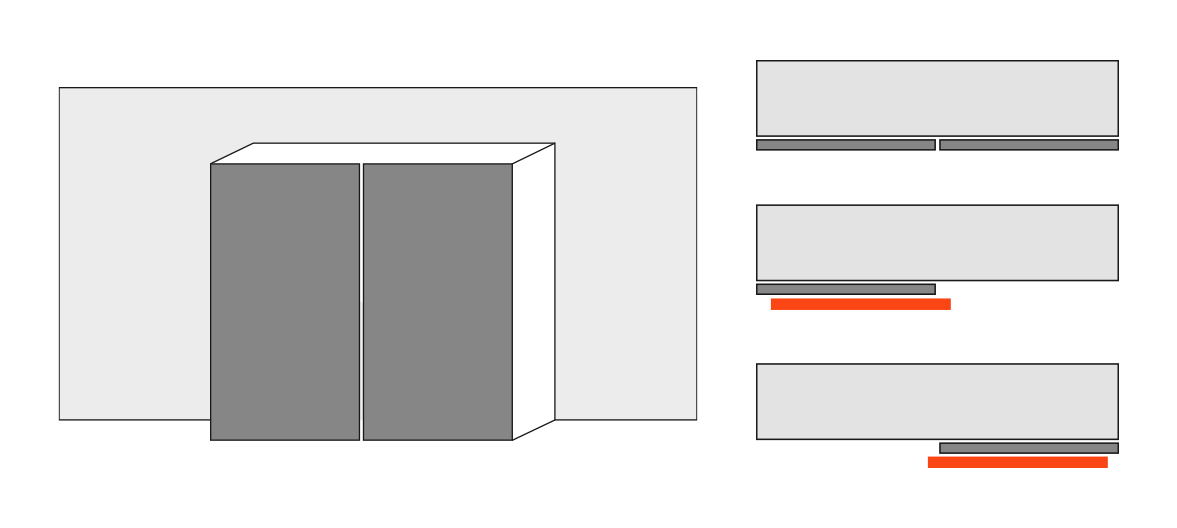

Standard
Sliding soft-closing movement for wardrobes and cabinets with two doors

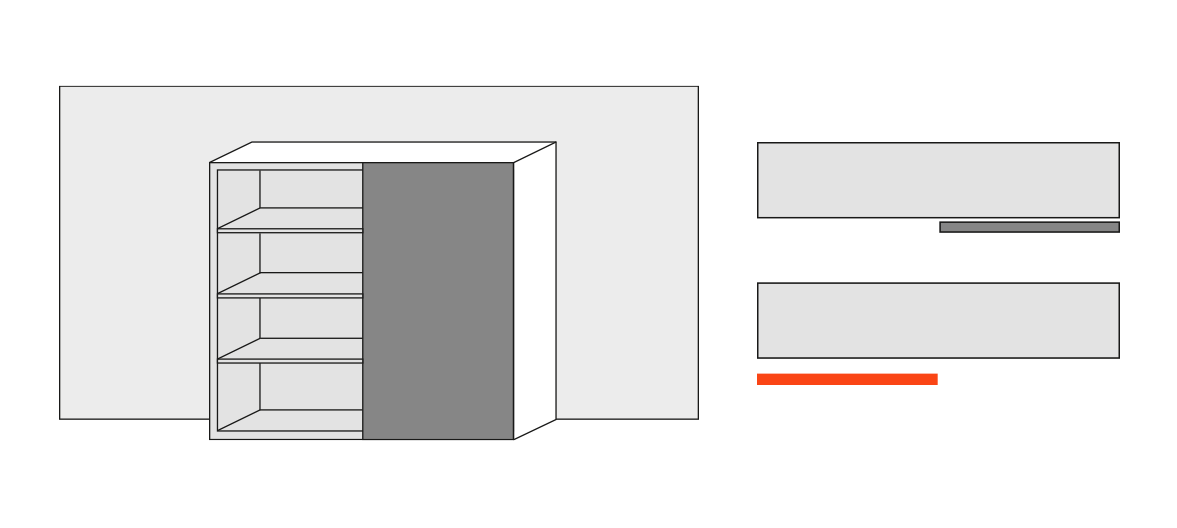

One
For the opening of a single door on the right

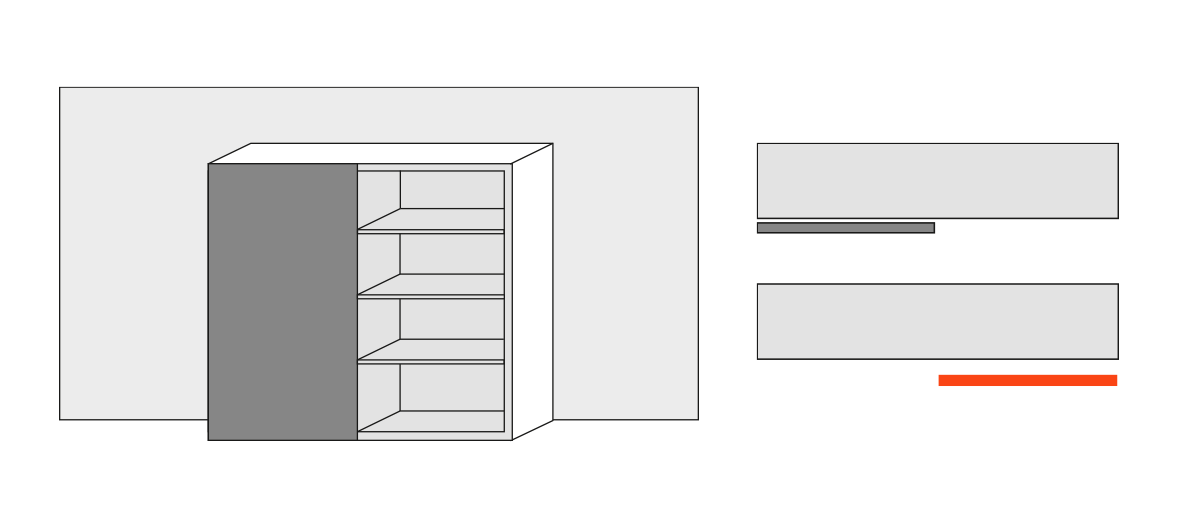

One
For the opening of a single door on the left

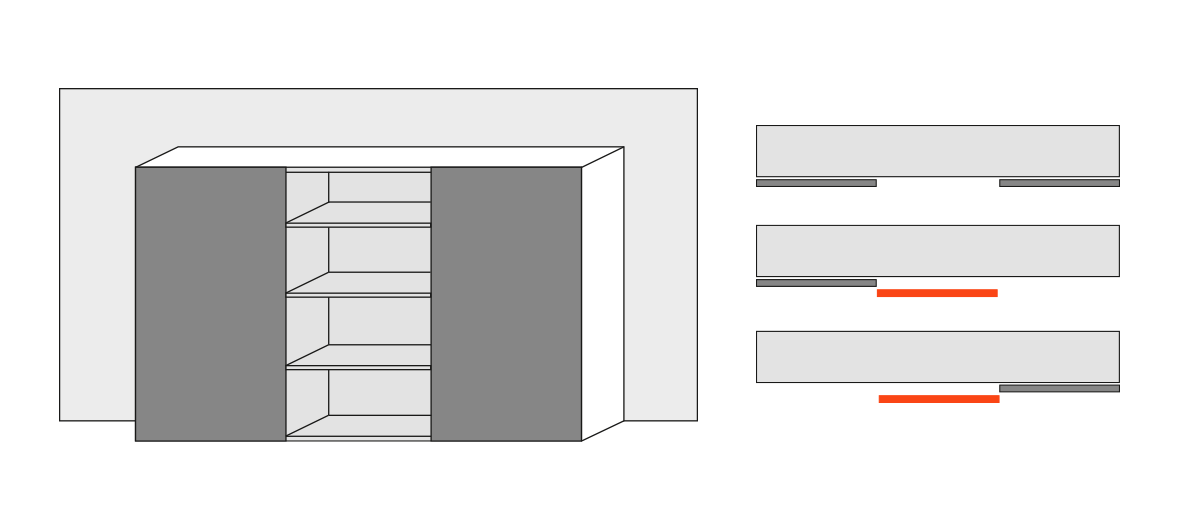

Step
System allowing the doors to be opened when separated by a central compartment

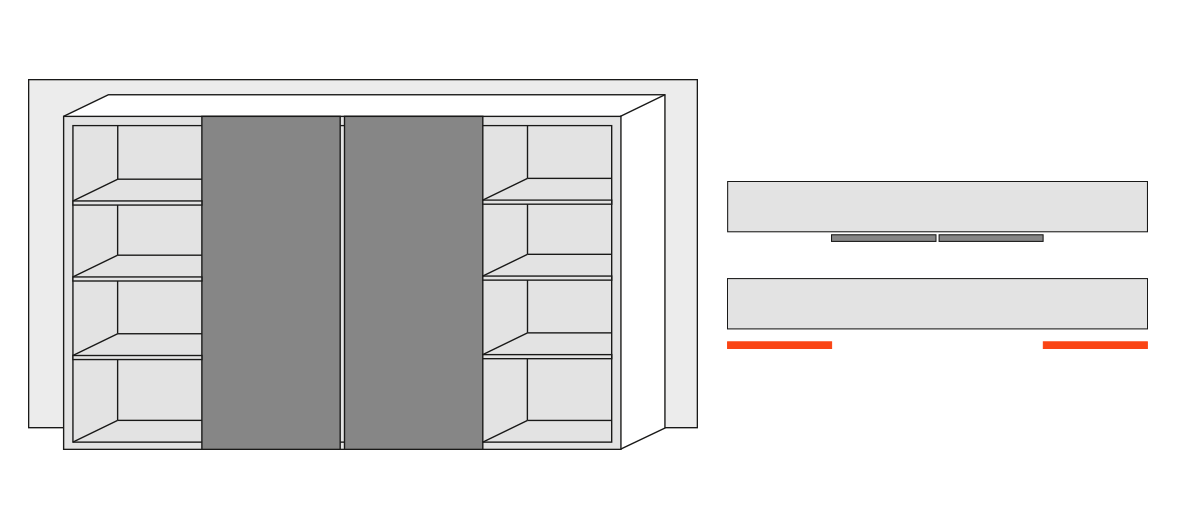

Reverso
System enabling the doors to be opened in the opposite direction
Power 2.0
Kit used to motorize Salice sliding systems
