LINEABOX

4-Sided Internal Drawer - H 75 mm

Metal drawer with a rapid assembly system, with no machinery or templates needed

  • Height of the front 100 mm
  • Height of the side 75 mm
  • Internal height 46 mm
  • Aluminum
Clean, simple lines with minimal wall thickness to maximize internal space

Streamlined aesthetics uncluttered with holes or assembly components. Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machines or templates.

LINEABOX 4-Sided Internal Drawer - H 75 mm-2

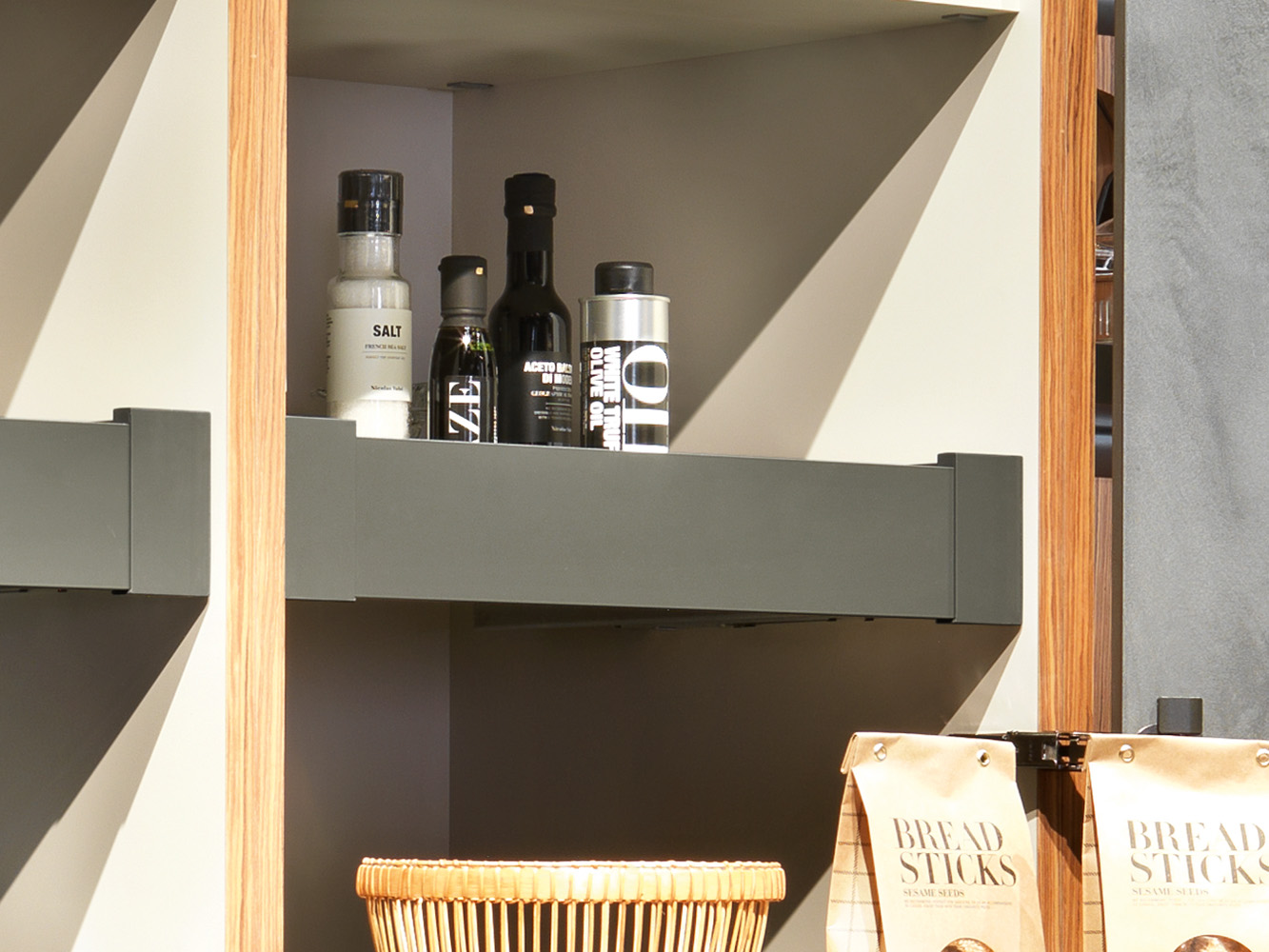

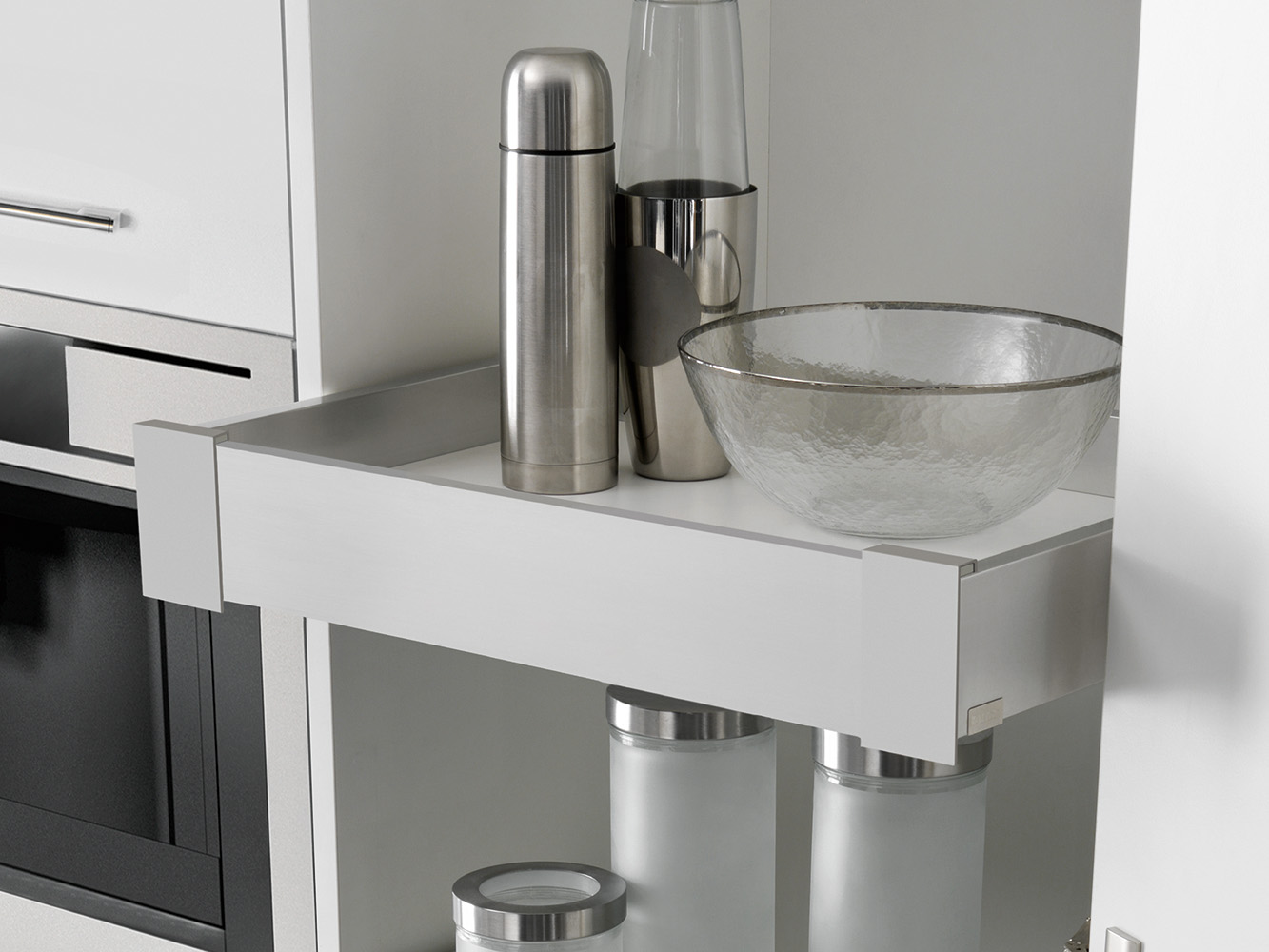

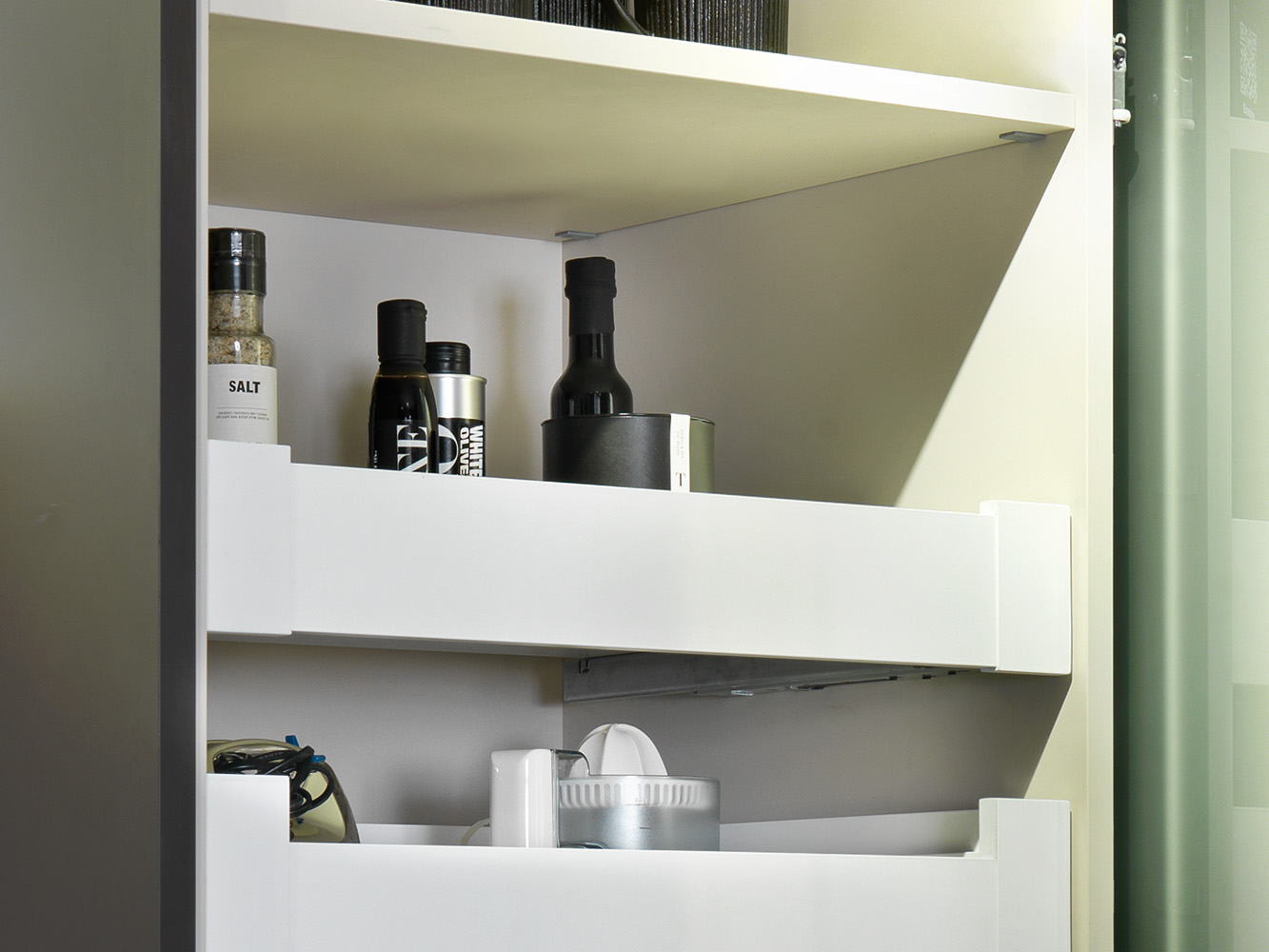

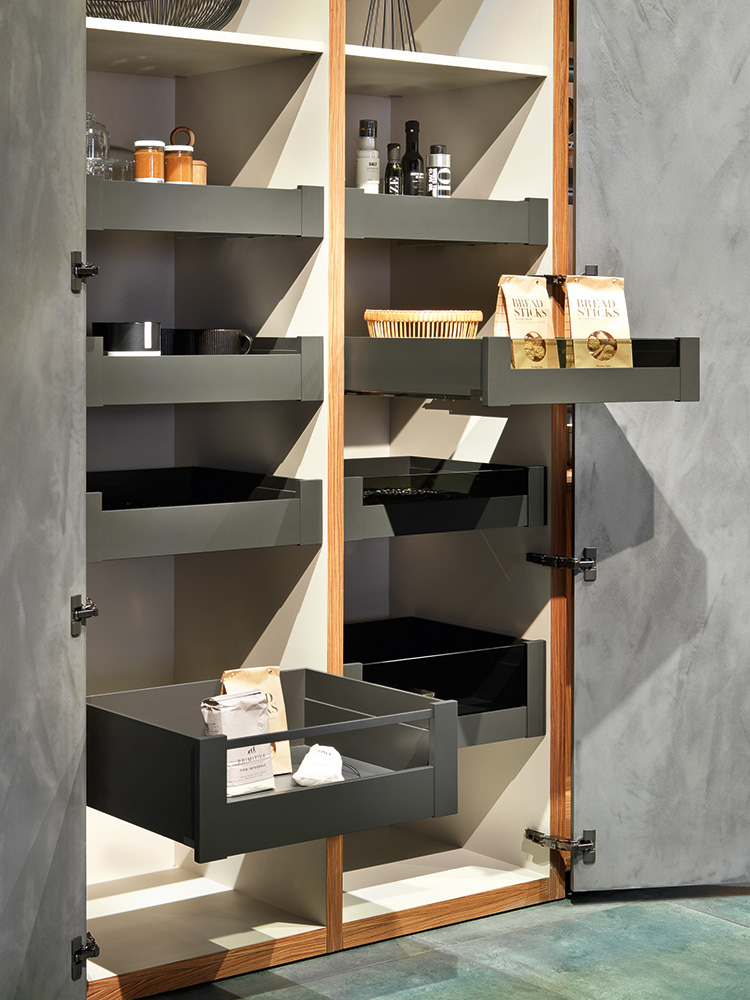

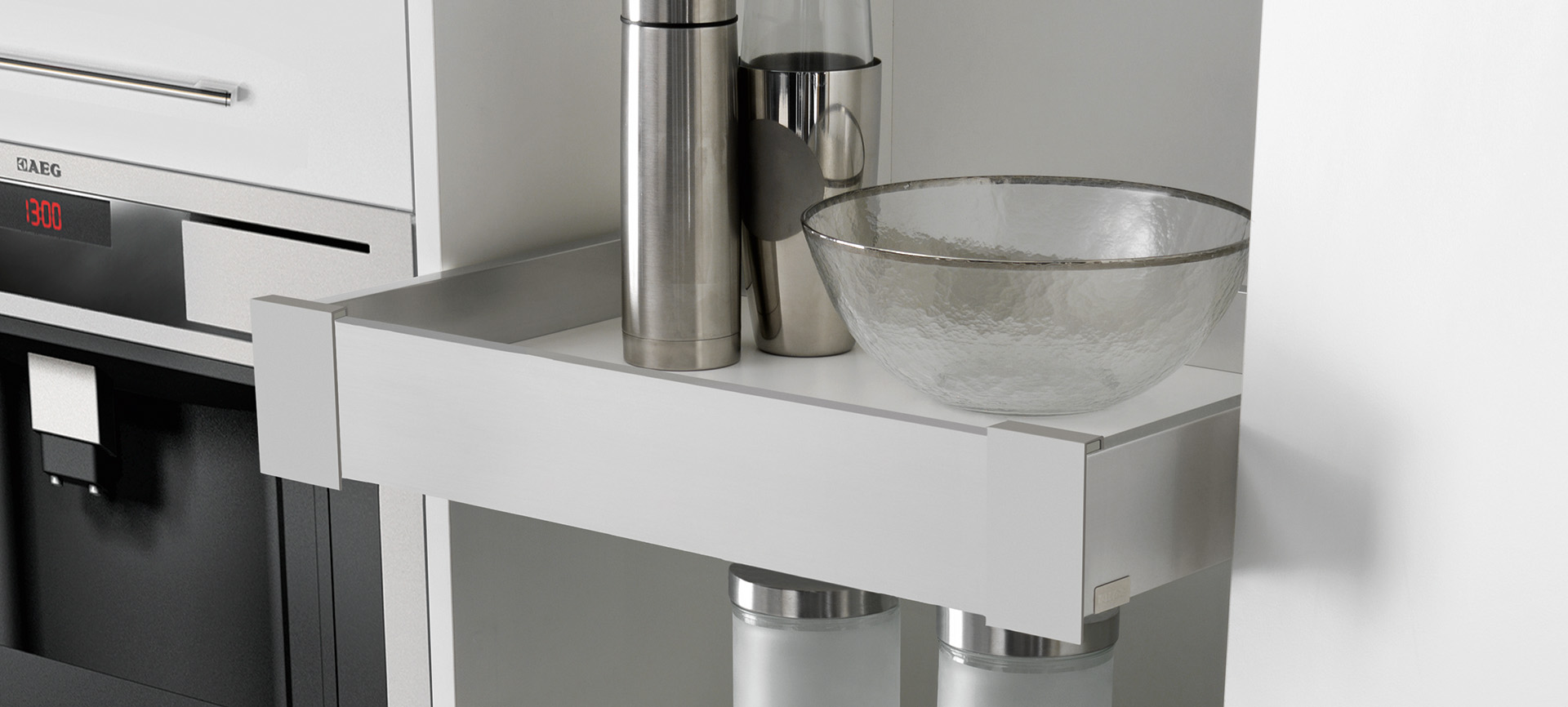

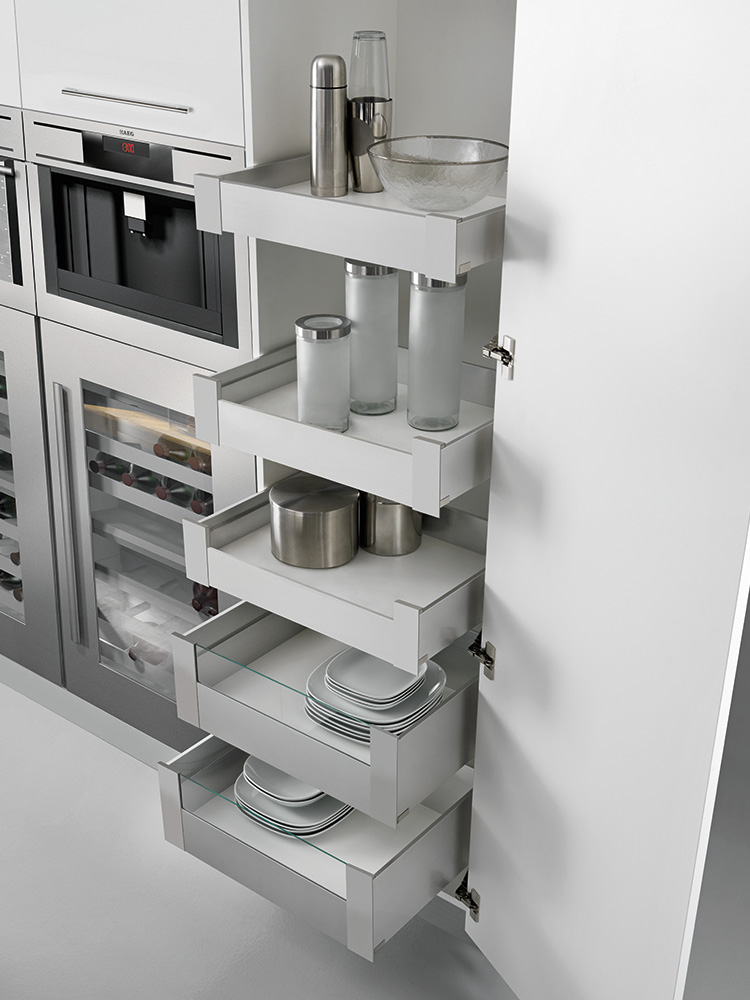

A light and thin drawer, suitable for all applications including: kitchens, living rooms, bathrooms and office furniture. Fluid, silent and progressive sliding movement, thanks to Futura and F70 full-extension runners.

  • Height of the front 100 mm - Height of the side 75 mm
  • Internal height 46 mm
  • For use with Futura and F70 full-extension runners
  • Rapid assembly system, with no machinery or templates needed
  • Rapid mounting and removal of front panel
  • Can be personalized according to the width of the cabinet
  • Height, side and depth adjustment of the drawer incorporated in the runner fixing clips
  • Material:
    - aluminum for Lineabox sides and front panel
    - plastic for front panel adapters
    - metal for covers
  • Finishes: White, Gray, Stainless steel

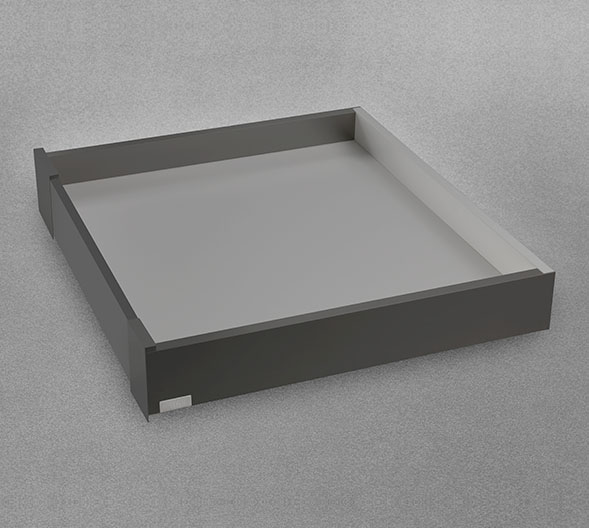

4-Sided Internal Drawer - H 75 mm
Front profile 1062 mm lenght

AMFLP411062F = White
AMFLP4G1062F = Gray
AMFLP4S1062F = Stainless steel

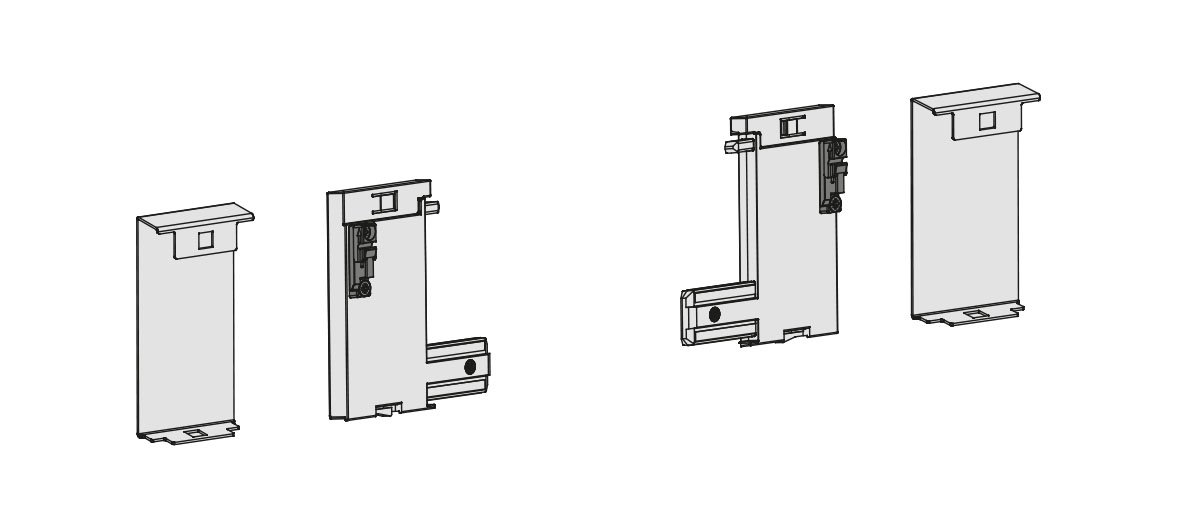

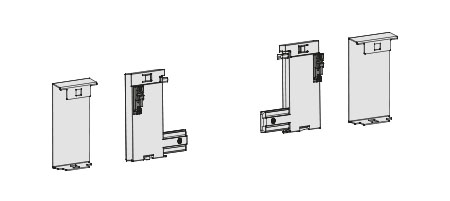

Front H100 mm - Side profile H75 mm

AMABPU1F = White
AMABPUGF = Gray
AMABPUSF = Stainless steel

ASMGP12A3XA
Fixing clip for wood front and back
ASMGP12A3CA
Fixing clip for wood front and back
ASCCX83H9SN
Cover cap with embossed Salice logo
ASCXX83H9SN
Cover cap with silk-screen printed Salice logo
AMDGXAO
Template for frontal connecting fitting
A199800755010
Template for Futura runners
SGD704UGXA
Template for F70 runners
TLLNCLPHLDR
Insertion tool (Knock-In) for ASMGP12A3CA fixing clip for wood front and back
TDB740_R

Drill bit for rear hook

TDB7407R = ø 7 mm for Futura runners
TDB7406R = ø 6 mm for F70 runners

TLKEY332
L wrench to set and adjust
TSC07MM
Stop collar to set the correct depth
