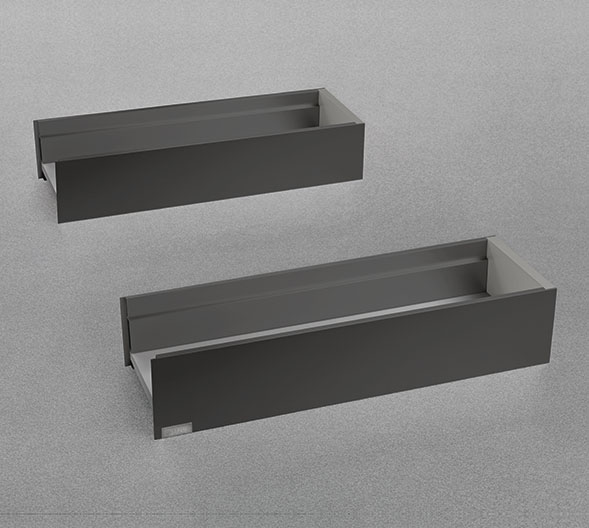

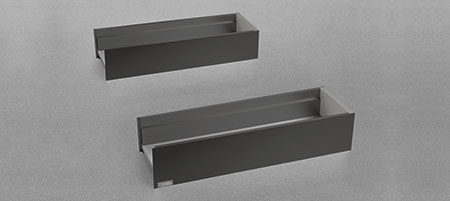

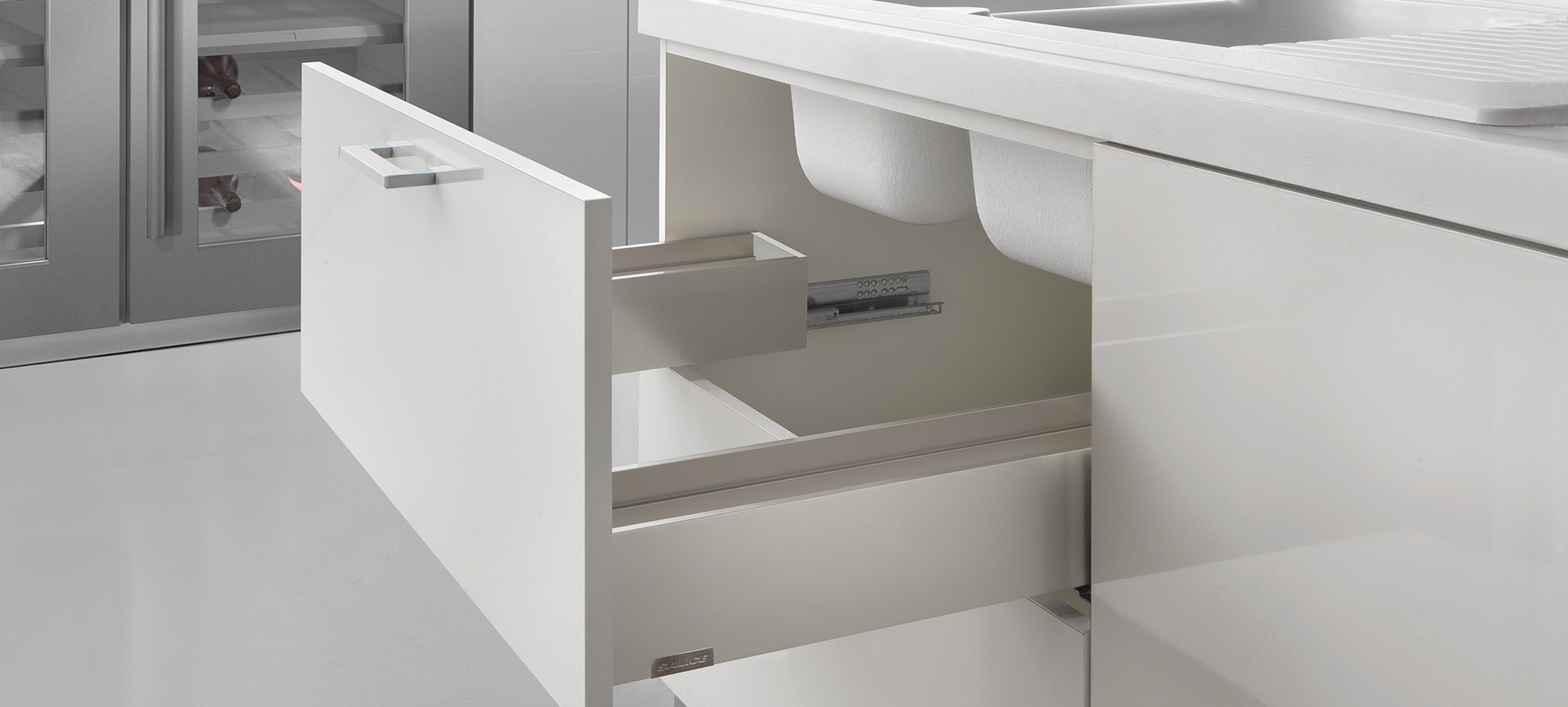

LINEABOX Under-sink - 2-sided drawer - H 101 mm-1

LINEABOX

Under-sink - 2-sided drawer - H 101 mm

Metal sides, wood sub-front and back panel

  • Height of the side 101 mm
  • Internal height 72 mm
  • Bottom thickness 16 mm (5/8")
  • Aluminum
Clean, simple lines with minimal wall thickness to maximize internal space

Streamlined aesthetics uncluttered with holes or assembly components. Lineabox is very versatile and highly customizable. Assembly is rapid without the need for machines or templates.

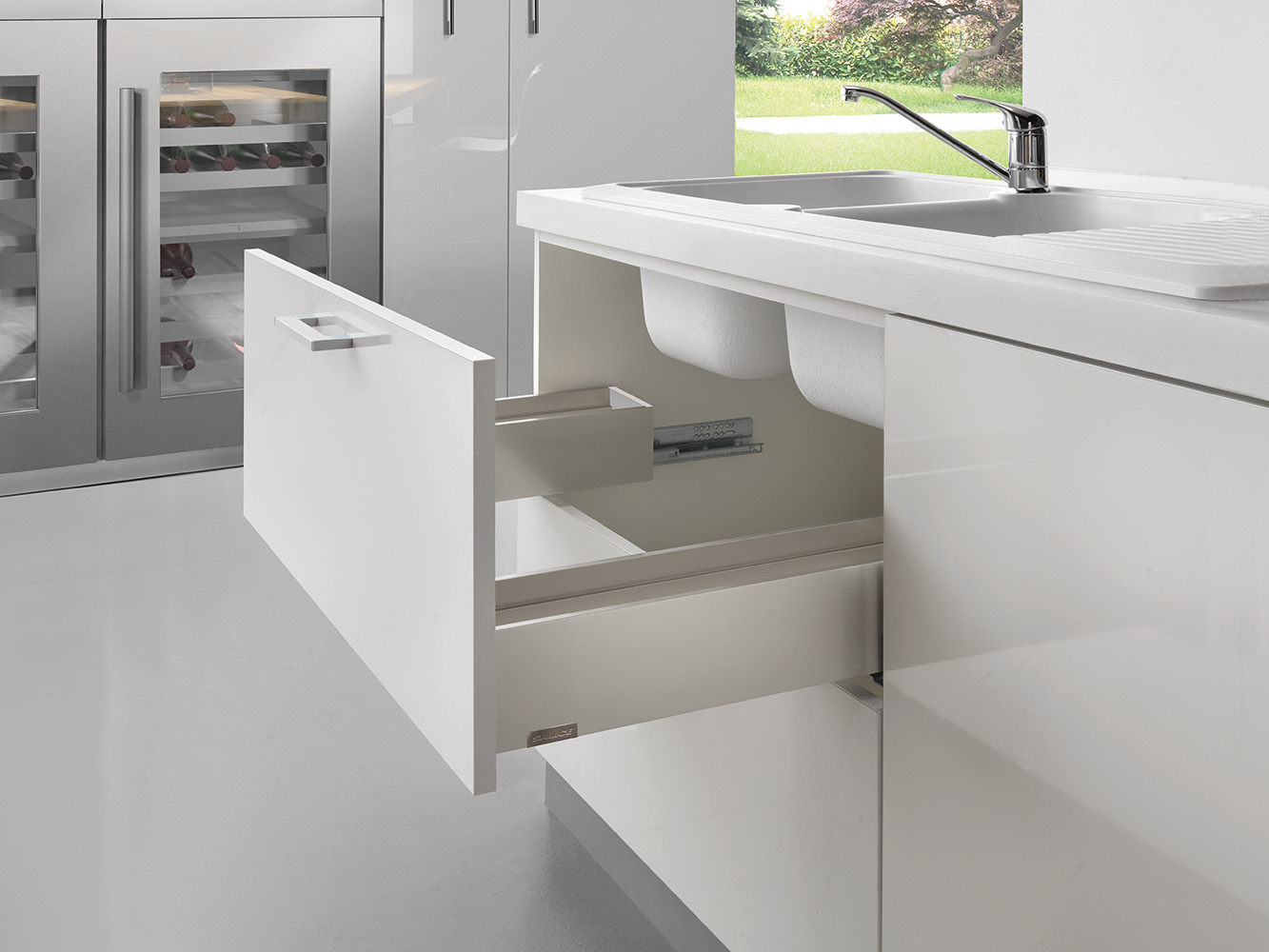

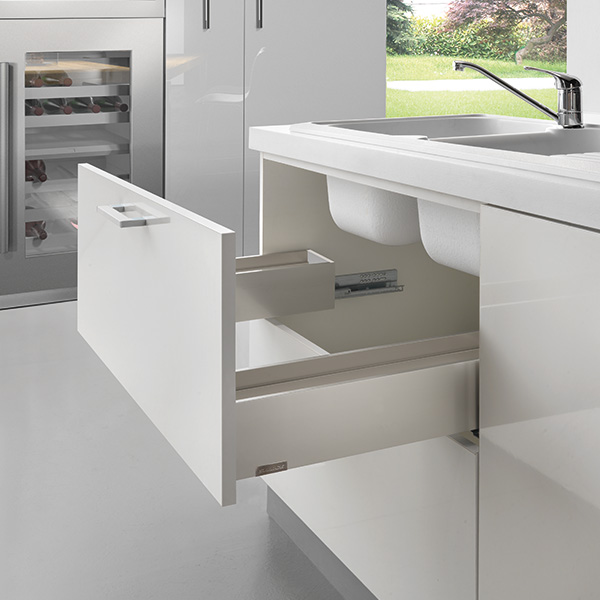

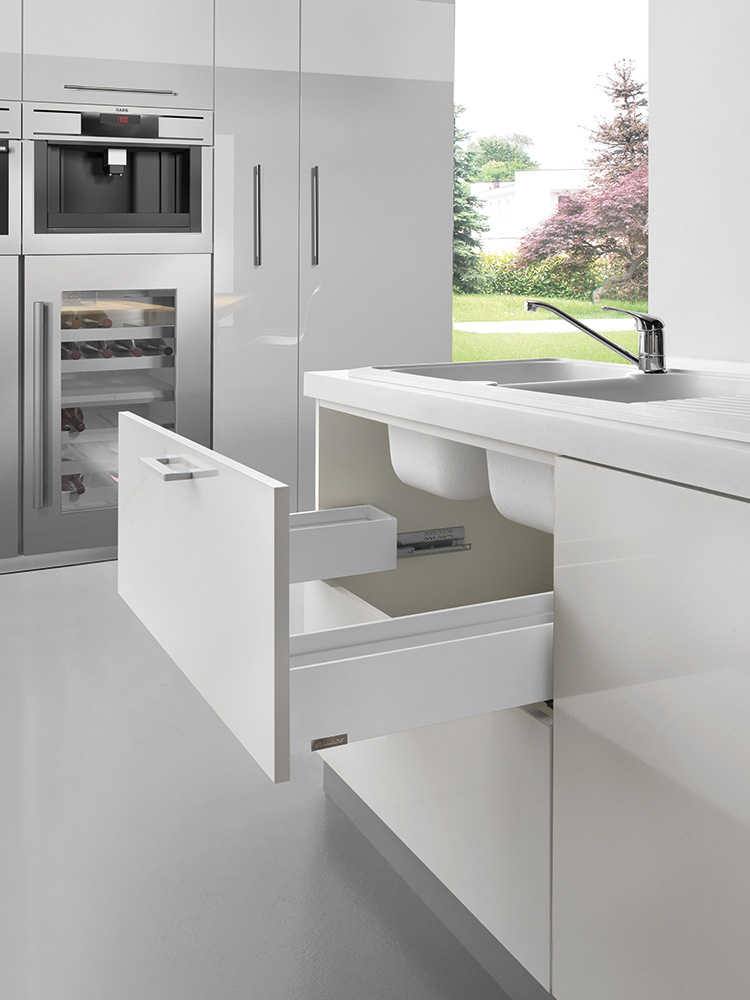

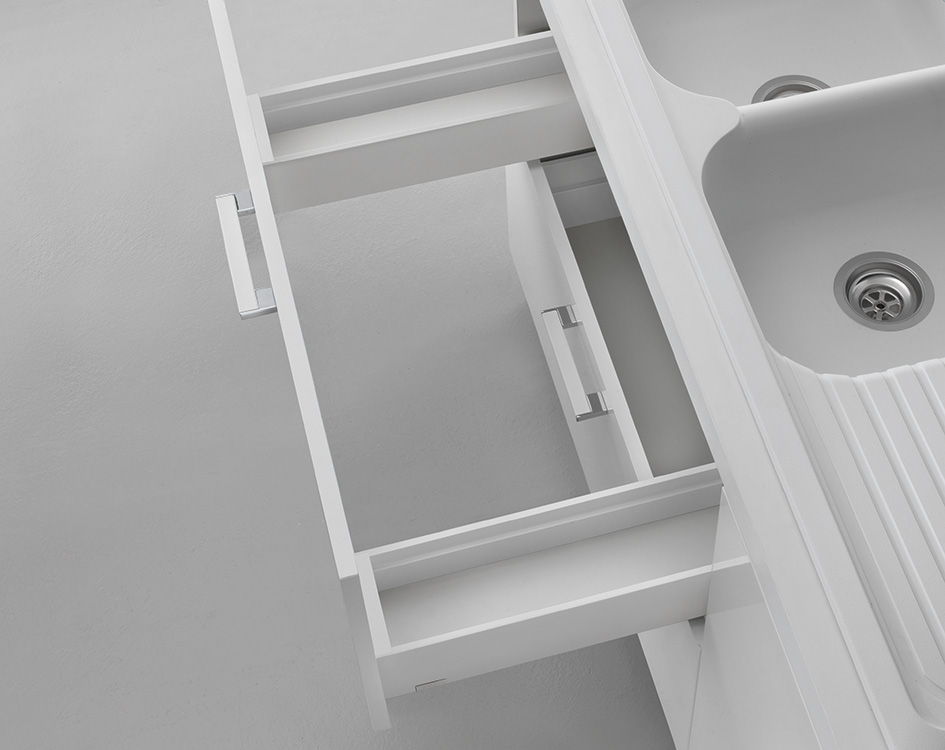

LINEABOX Under-sink - 2-sided drawer - H 101 mm-2

A light and thin drawer, suitable for all applications. Fluid, silent and progressive sliding movement, thanks to Futura and F70 full-extension runners.

  • Lineabox metal sides, wood sub-front and back panel
  • Height of the side 101 mm - Internal height 72 mm
  • For use with Futura and F70 full-extension runners

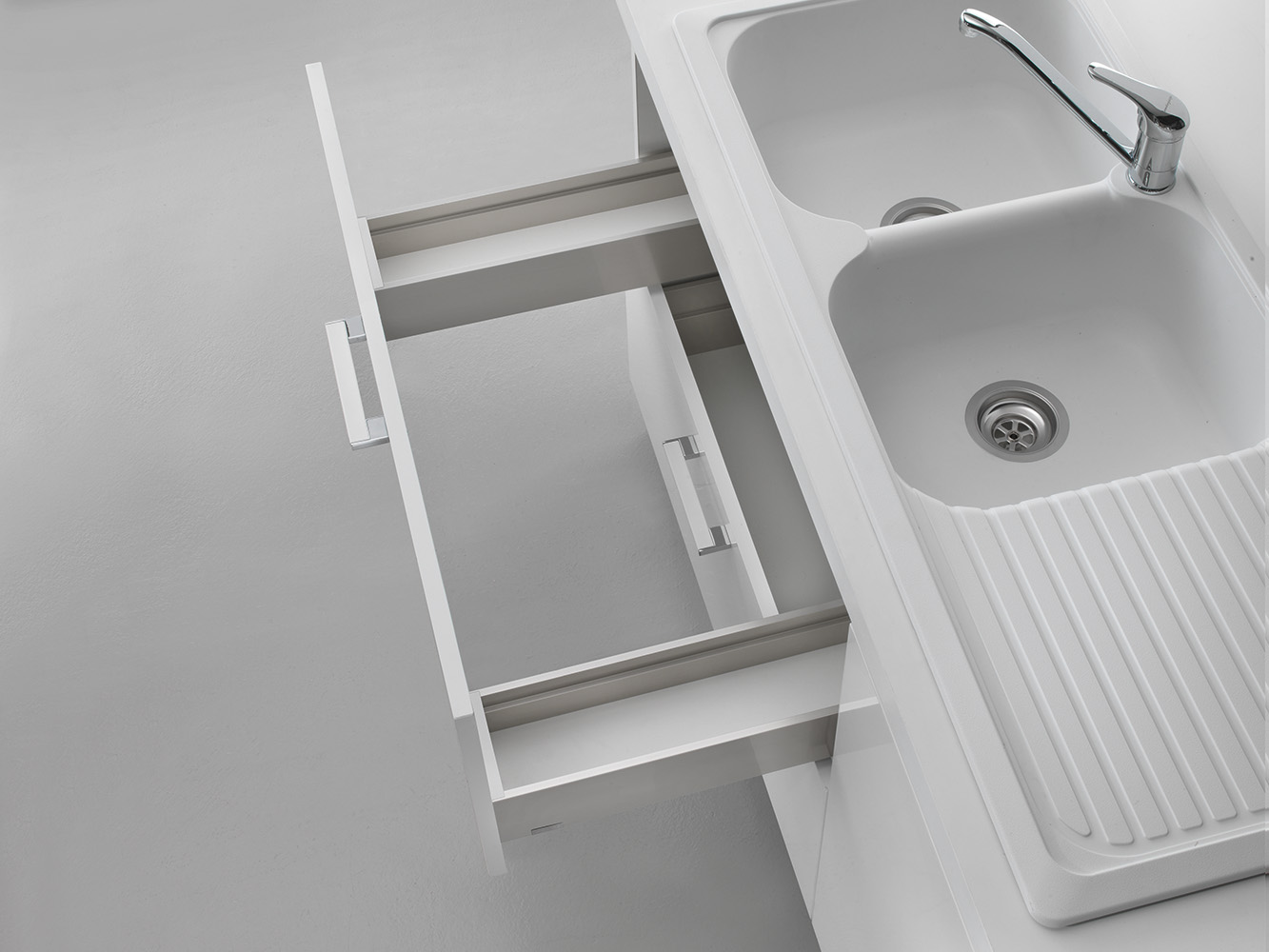

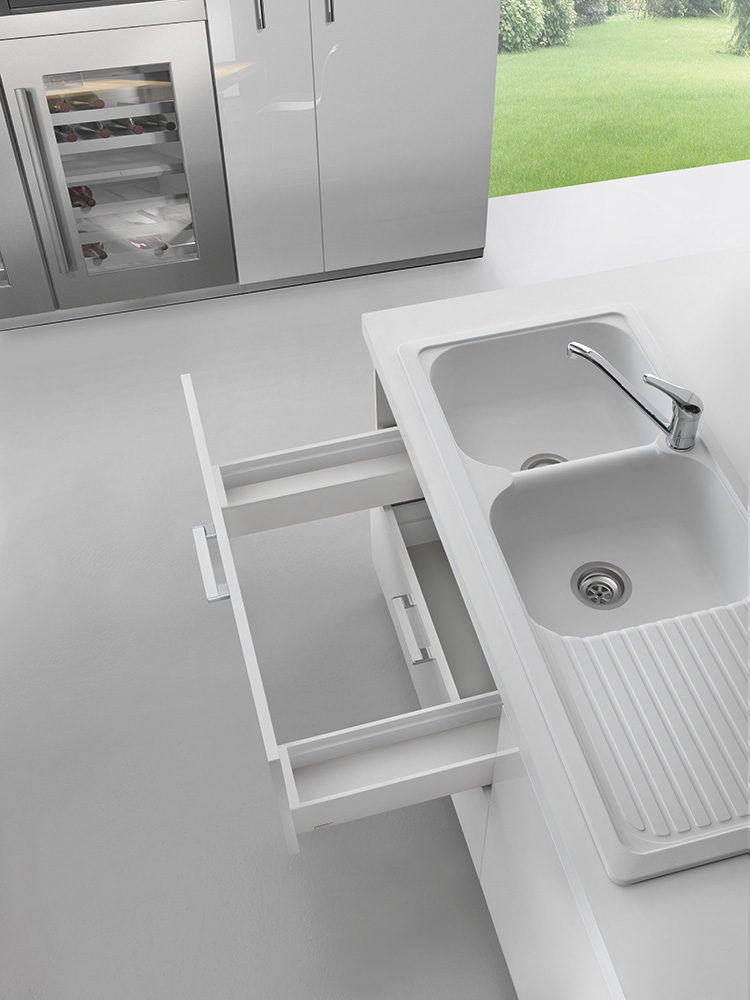

  • Drawers can be custom widths to fit most kitchen and bathroom sink and plumbing configurations
  • No machine or template needed for assembly
  • Rapid assembly and disassembly of the drawer
  • Height, side and depth adjustment of the drawer incorporated in the runner fixing clips
  • Bottom thickness: 16 mm (5/8”) for bottom, sub-front and back panels
  • Sides notched front and back
  • Premounted front/back connector fittings
  • Non-handed sides
  • Sides: 90° cut end
  • Material: Aluminum
  • Finishes: White, Gray, Stainless steel
Under-sink - 2-sided drawer - H 101 mm
ASMGP12A3XA
Fixing clip for wood front and back
ASMGP12A3CA
Fixing clip for wood front and back
ASCCX83H9SN
Cover cap with embossed Salice logo
ASCXX83H9SN
Cover cap with silk-screen printed Salice logo
AMDGXAO
Template for frontal connecting fitting
A199800755010
Template for Futura runners
SGD704UGXA
Template for F70 runners
TLLNCLPHLDR
Insertion tool (Knock-In) for ASMGP12A3CA fixing clip for wood front and back
TDB740_R

Drill bit for rear hook

TDB7407R = ø 7 mm for Futura runners
TDB7406R = ø 6 mm for F70 runners

TLKEY332
L wrench to set and adjust
TSC07MM
Stop collar to set the correct depth
