TOP

Oplà Top

Pull-out top alligned with counter top

Finishing: Inox Bronzino
Load Capacity: 40 kg evenly distributed
Sliding: Aluminium / Aluminium

The surface takes centre stage.

The Top collection highlights the surface as the central element of the design. Transformable systems directly integrated into the worktop allow the space to be extended, raised or reconfigured with a simple, natural movement.

Designed for contemporary kitchens and living spaces, these mechanisms combine technical precision with clean lines, offering aesthetic continuity and maximum functionality.

Oplà Top

Immediacy and simplicity in a single gesture.

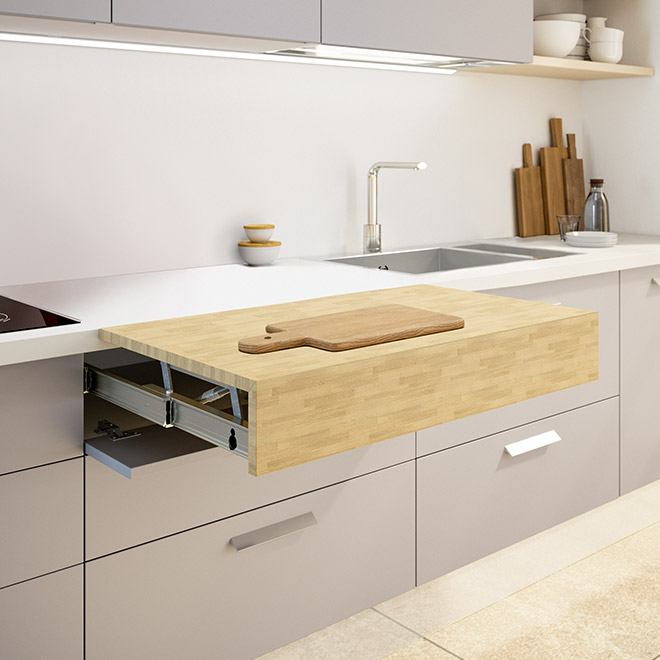

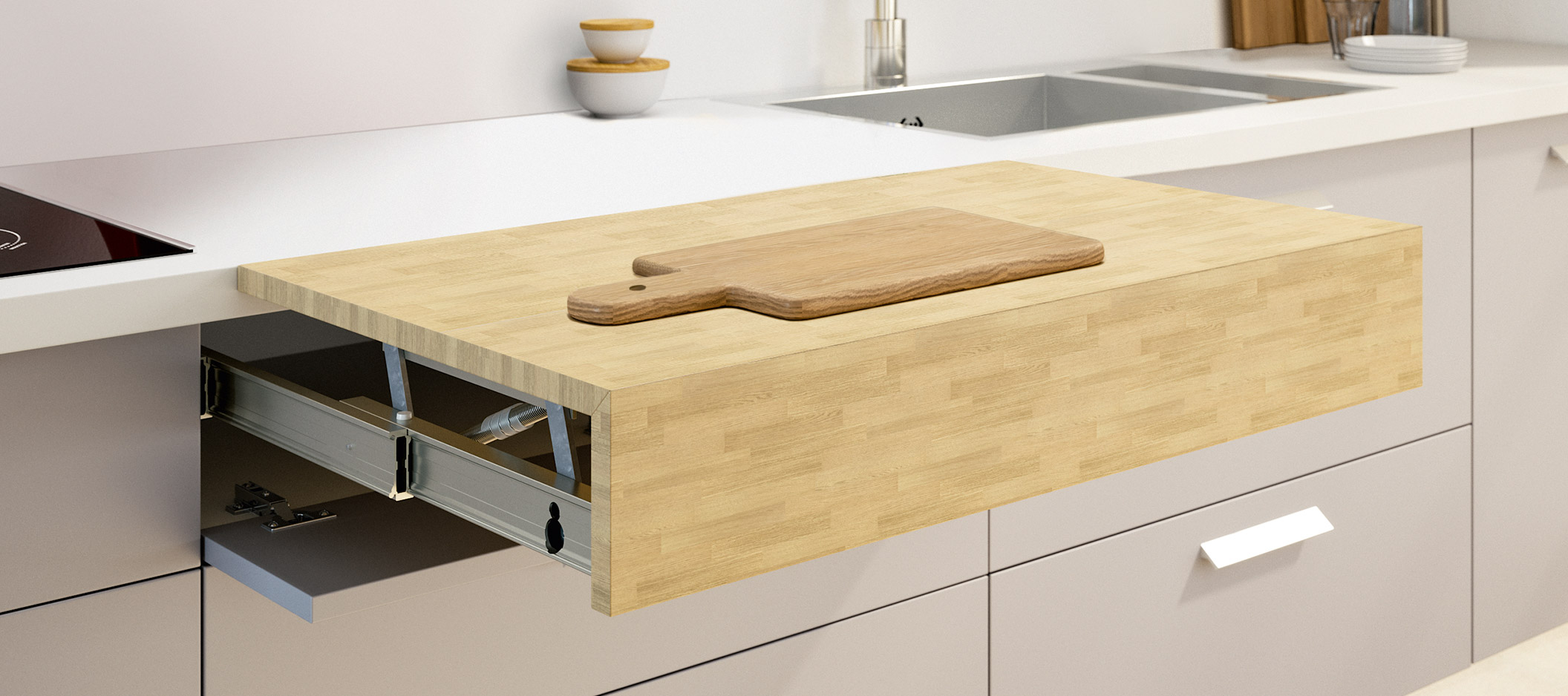

Oplà Top allows the quick extraction of a top concealed beneath the kitchen worktop.

Once opened, the top aligns perfectly with the upper surface with a fluid and intuitive movement, designed for everyday use.

Perfect for obtaining additional workspace in just a few moments, Oplà Top is the discreet solution that expands the kitchen’s operating possibilities.

Need more info about the product?

Technical features

Finishing: Inox Bronzino
Load Capacity: 40 kg evenly distributed
Sliding: Aluminium / Aluminium
Kit caps: 2.9247221.XX
Design: Arch. Giulio Manzoni, ATIM R&D
Packaging:
- 118×18×8 cm
- 4,5 kg
- 0,017 m³
NOTE: The item does not include the supply of wooden parts.

Versions

411/78.1750.22

M - Width: 450 mm
P - Depth: min 540 mm
H - Height: min 150 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 530 mm
Z - Top width: min 405 mm
S - Top thickness: 18/60 mm
ST - Countertop thickness: 18/60 mm
Silent: 78.1750.22

411/78.1760.22

M - Width: 600 mm
P - Depth: min 540 mm
H - Height: min 150 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 530 mm
Z - Top width: min 555 mm
S - Top thickness: 18/60 mm
ST - Countertop thickness: 18/60 mm
Silent: 78.1760.22

411/78.1770.22

M - Width: 900 mm
P - Depth: min 540 mm
H - Height: min 150 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 530 mm
Z - Top width: min 855 mm
S - Top thickness: 18/60 mm
ST - Countertop thickness: 18/60 mm
Silent: 78.1770.22

411/78.1780.22

M - Width: 1200 mm
P - Depth: min 540 mm
H - Height: min 150 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 530 mm
Z - Top width: min 1155 mm
S - Top thickness: 18/60 mm
ST - Countertop thickness: 18/60 mm
Silent: 78.1780.22
