TOP

Flip Top

Pull-out drawer worktop with easybook

Finishing: Inox Bronzino
Load Capacity: 80 kg evenly distributed
Sliding: Aluminium/Aluminium

The surface takes centre stage.

The Top collection highlights the surface as the central element of the design. Transformable systems directly integrated into the worktop allow the space to be extended, raised or reconfigured with a simple, natural movement.

Designed for contemporary kitchens and living spaces, these mechanisms combine technical precision with clean lines, offering aesthetic continuity and maximum functionality.

Flip Top

Compact when needed, functional when opened.

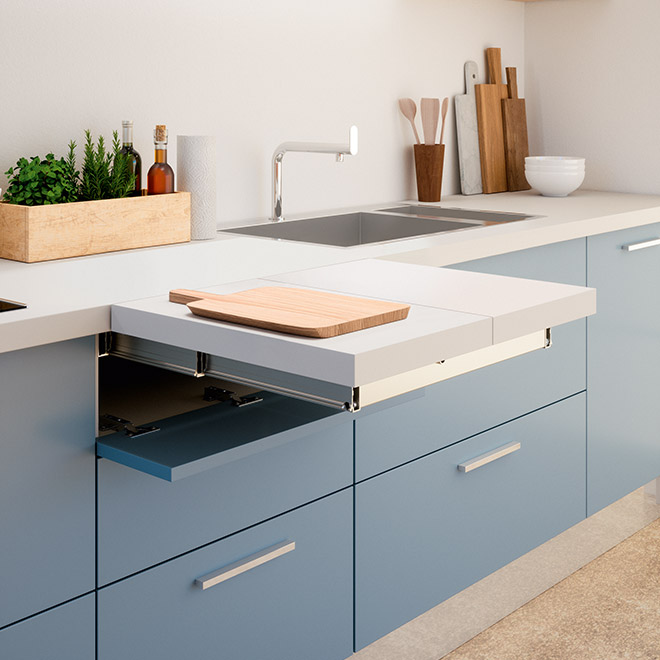

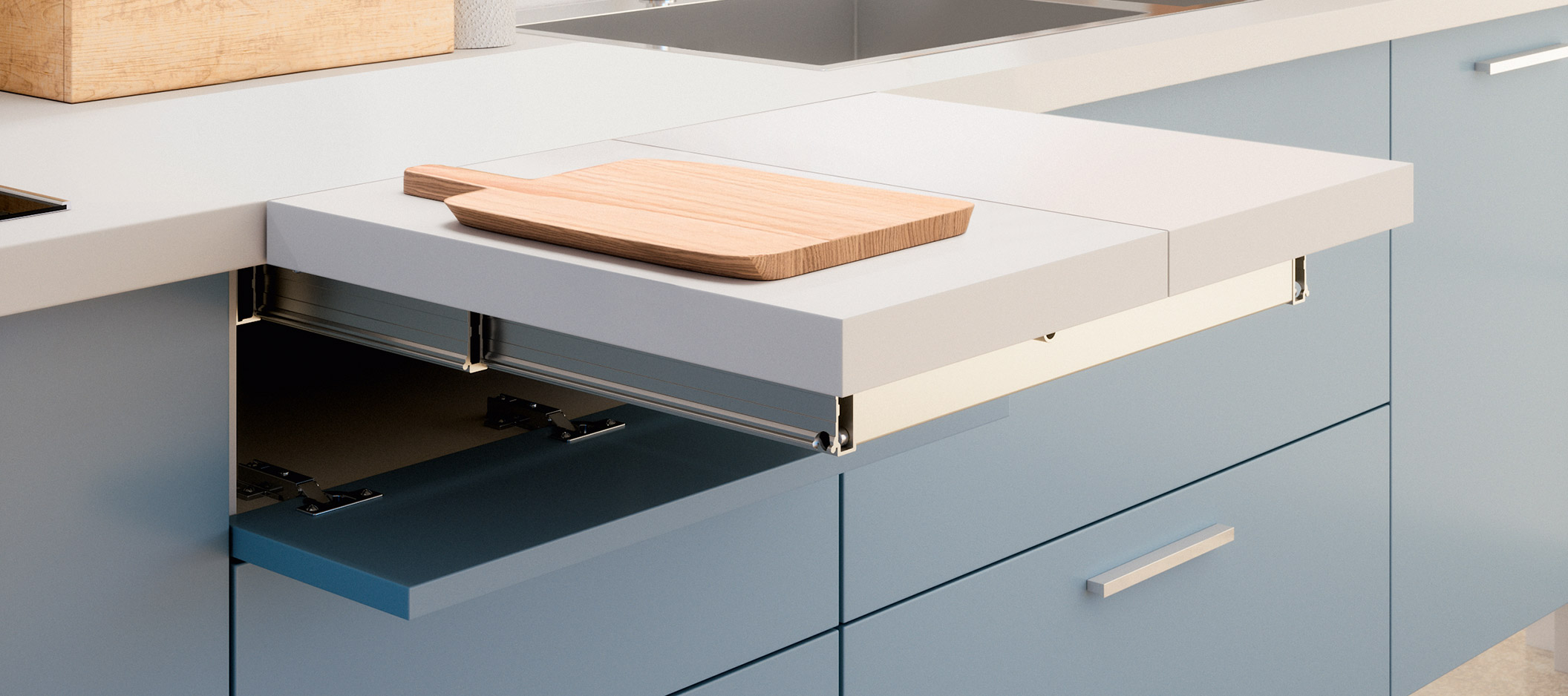

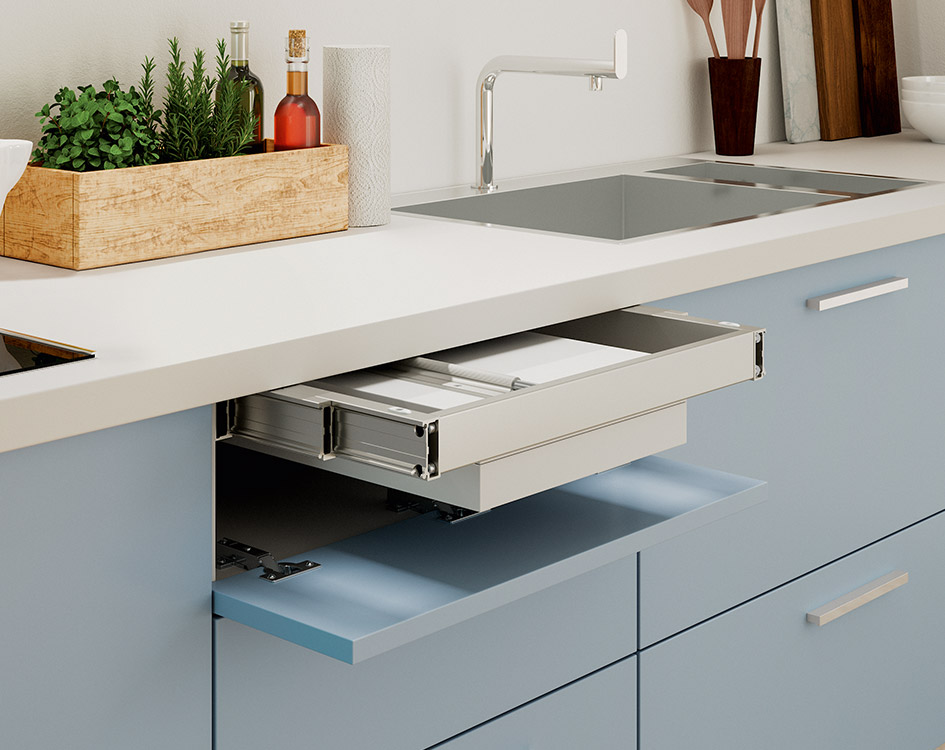

Flip Top allows a folding extension to be pulled out from a drawer and integrated with the kitchen worktop, creating an additional top ideal for breakfasts, quick meals or everyday activities.

Versatility and practicality in an essential solution.

Need more info about the product?

Technical features

Finishing: Inox Bronzino
Load Capacity: 80 kg evenly distributed
Sliding: Aluminium/Aluminium
Kit caps: 2.9247221.XX
Hinges: 2.9250961.XX
Design: Arch. Giulio Manzoni, ATIM R&D
Packaging:
- 118×18×8 cm
- 5kg
- 0,017 m3
NOTE: The item does not include the supply of wooden parts.

Versions

78.1800.22

M - Width: 450 mm
P - Depth: min 540 mm
H - Height: min 120 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 480 mm
Z - Top width: min 450 mm
S - Top thickness: min 16 mm

78.1810.22

M - Width: 600 mm
P - Depth: min 540 mm
H - Height: min 120 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 480 mm
Z - Top width: min 600 mm
S - Top thickness: min 16 mm

78.1820.22

M - Width: 900 mm
P - Depth: min 540 mm
H - Height: min 120 mm
S1 - Side thickness: 15/20 mm
E - Top opening: 480 mm
Z - Top width: min 900 mm
S - Top thickness: min 16 mm
