TOP

Corner

Sliding table top with diagonal opening

Finishing: Inox Bronzino
Load Capacity: 60 kg evenly distributed
Sliding: Aluminium/Aluminium

The surface takes centre stage.

The Top collection highlights the surface as the central element of the design. Transformable systems directly integrated into the worktop allow the space to be extended, raised or reconfigured with a simple, natural movement.

Designed for contemporary kitchens and living spaces, these mechanisms combine technical precision with clean lines, offering aesthetic continuity and maximum functionality.

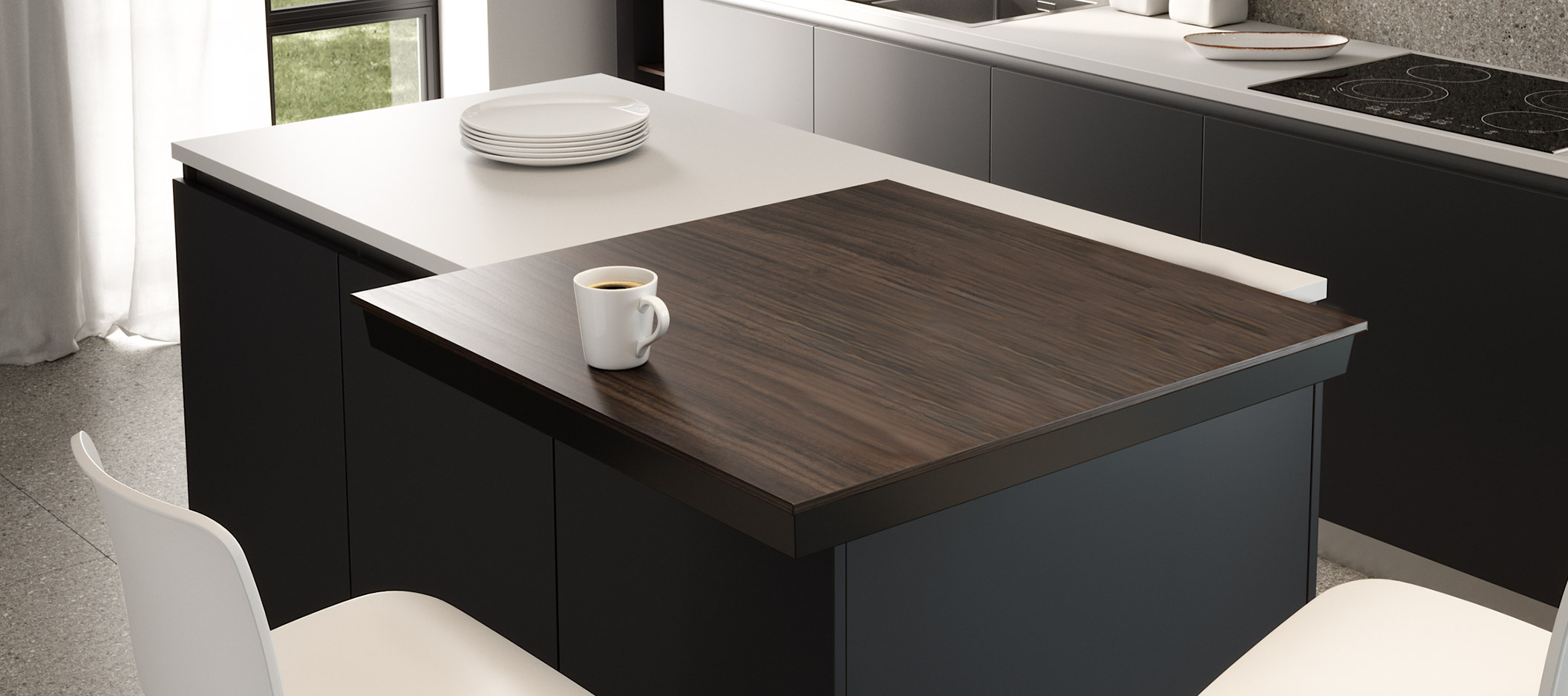

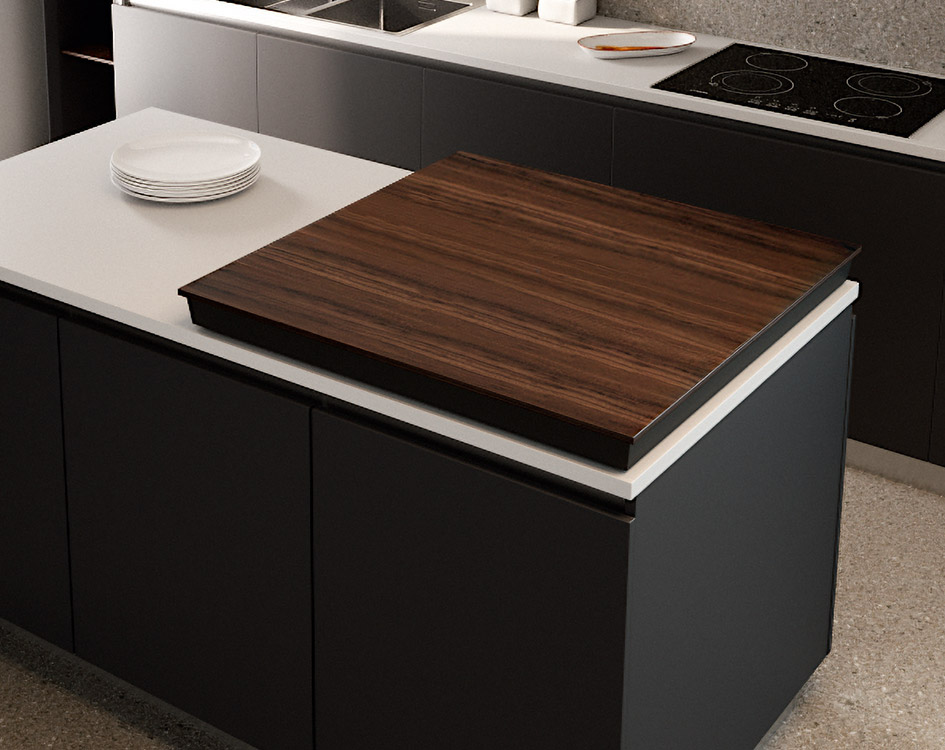

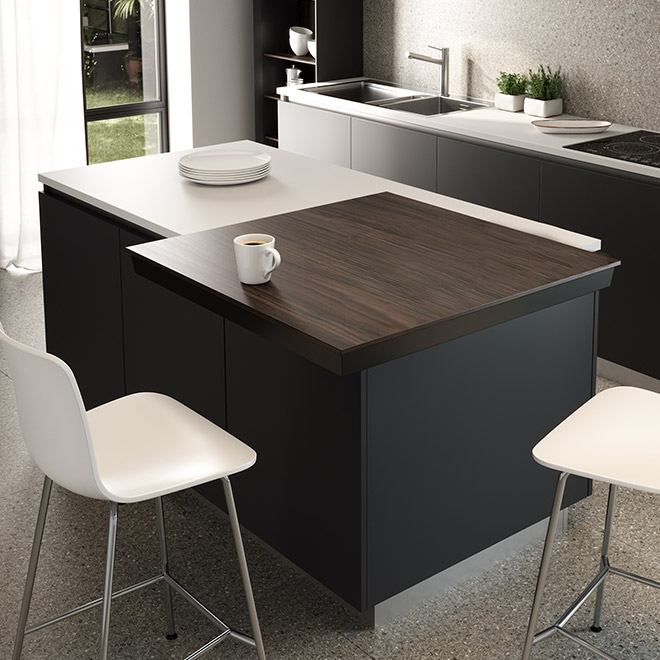

Corner

A diagonal movement that expands the space.

Corner is a sliding top, an alternative to the Slide system, that uses an aluminium guide system to ensure stability and fluidity of movement.

Suitable for both islands and linear kitchens thanks to the wide variety of sizes, it is available with an optional matt black aluminium frame.

Need more info about the product?

Technical features

Finishing: Inox Bronzino
Load Capacity: 60 kg evenly distributed
Sliding: Aluminium/Aluminium
Aluminium frame:
- RAL 9500 Matt black
- 411/78.1430.10: 1200×1200 mm
- 411/78.1431.10: 1200×900 mm
- 411/78.1432.10: 900×900 mm
- 411/78.1433.10: 900×600 mm
Kit caps: 2.9247221.XX
Design: Arch. Giulio Manzoni, ATIM R&D
Packaging:
- 118×46×7 cm
- 9 kg
- 0,039 m²
NOTE: The item does not include the supply of wooden parts.

Versions

78.1230.25

Opening: SX/DX
P - Depth: min 1200 mm
H - Height: min 80 mm
L - Mechanism width: 1200 mm
E - Top opening: 350 mm
Z - Top width: 1200 mm
S - Top thickness: min 18 mm

78.1231.25

Opening: DX
P - Depth: min 900 mm
H - Height: min 80 mm
L - Mechanism width: 900 mm
E - Top opening: 350 mm
Z - Top width: 1200 mm
S - Top thickness: min 18 mm

78.1232.25

Opening: SX
P - Depth: min 900 mm
H - Height: min 80 mm
L - Mechanism width: 900 mm
E - Top opening: 350 mm
Z - Top width: 1200 mm
S - Top thickness: min 18 mm

78.1233.25

Opening: SX/DX
P - Depth: min 900 mm
H - Height: min 80 mm
L - Mechanism width: 900 mm
E - Top opening: 300 mm
Z - Top width: 900 mm
S - Top thickness: min 18 mm

78.1234.25

Opening: DX
P - Depth: min 600 mm
H - Height: min 80 mm
L - Mechanism width: 600 mm
E - Top opening: 300 mm
Z - Top width: 900 mm
S - Top thickness: min 18 mm

78.1235.25

Opening: SX
P - Depth: min 600 mm
H - Height: min 80 mm
L - Mechanism width: 600 mm
E - Top opening: 300 mm
Z - Top width: 900 mm
S - Top thickness: min 18 mm
