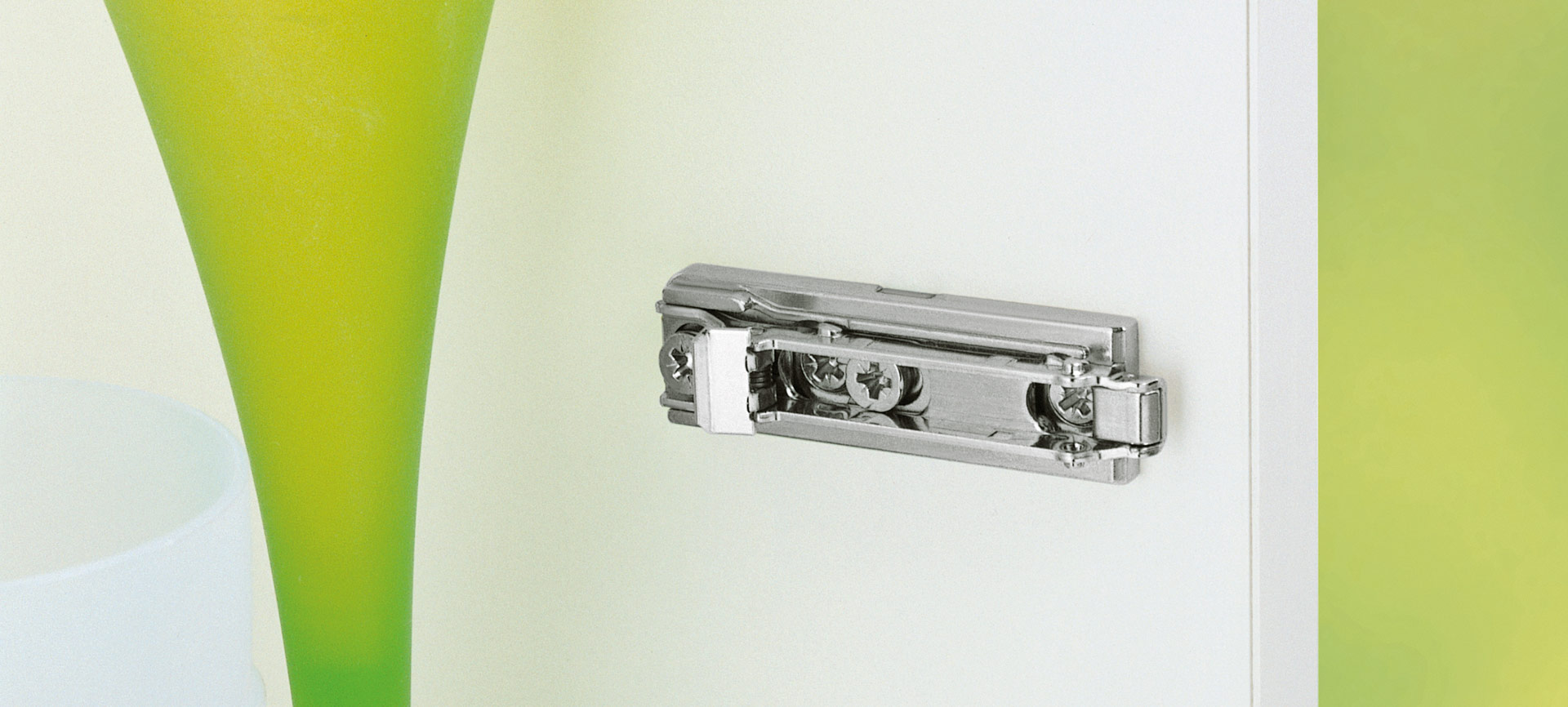

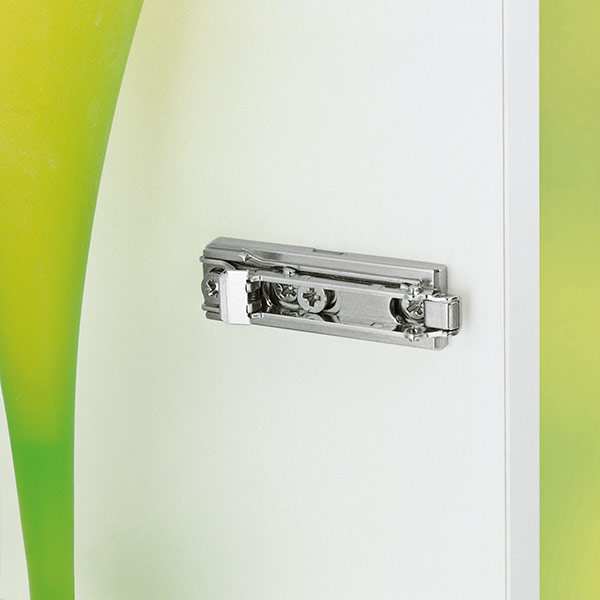

Domi snap-on mounting plates

- Domi snap-on mounting plates. For hinges Series 100, 200, 400, F, B, M, Silentia and Silentia+.
- 21+32 mm drilling.
- Depth and height adjustment by cam.

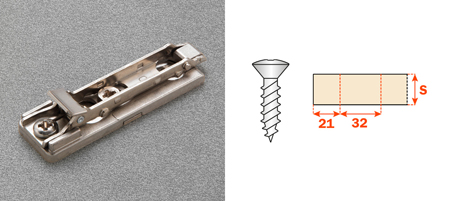

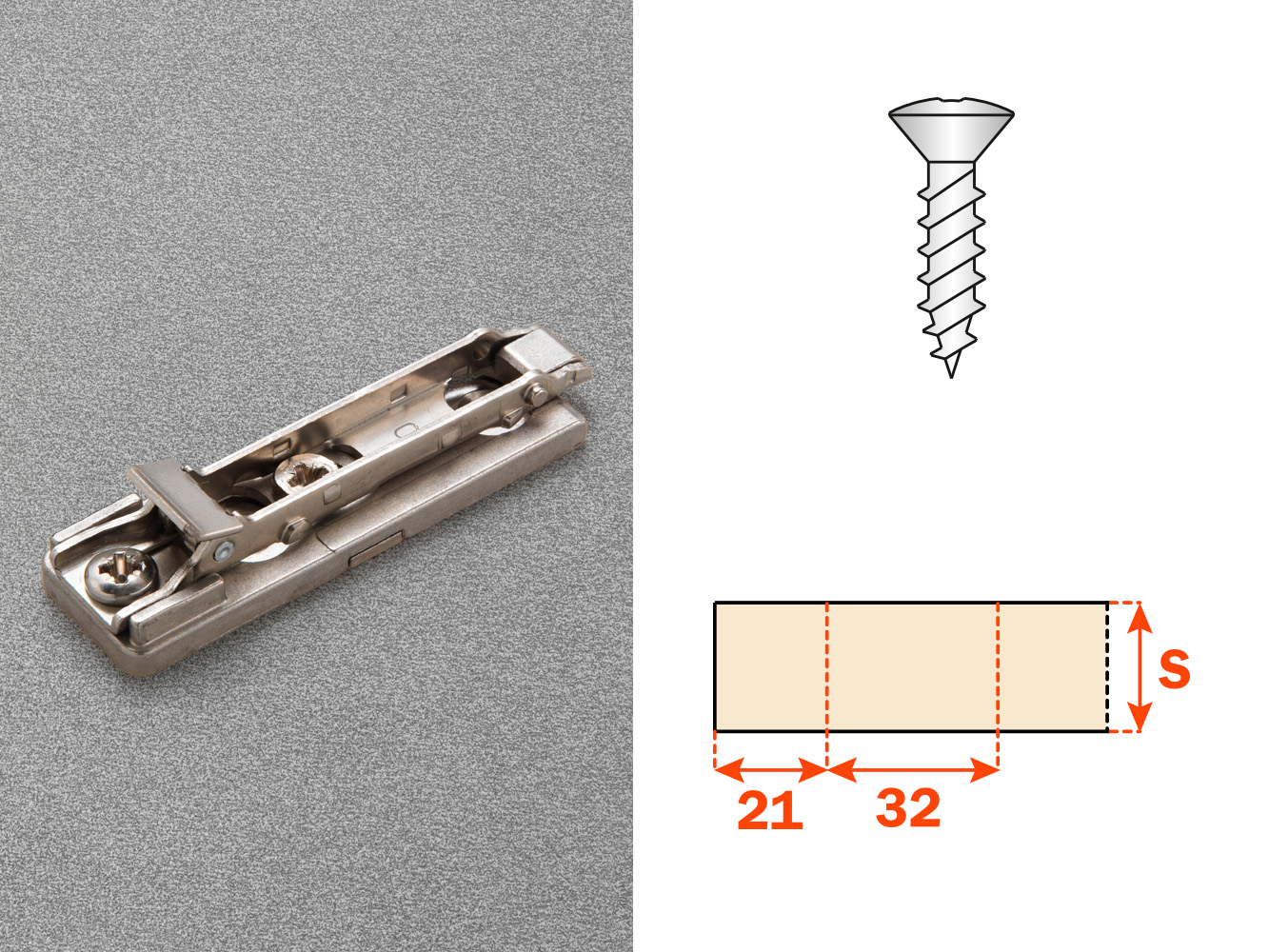

BAP3R

Die-cast mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = 0 1 2 3 4 5 6

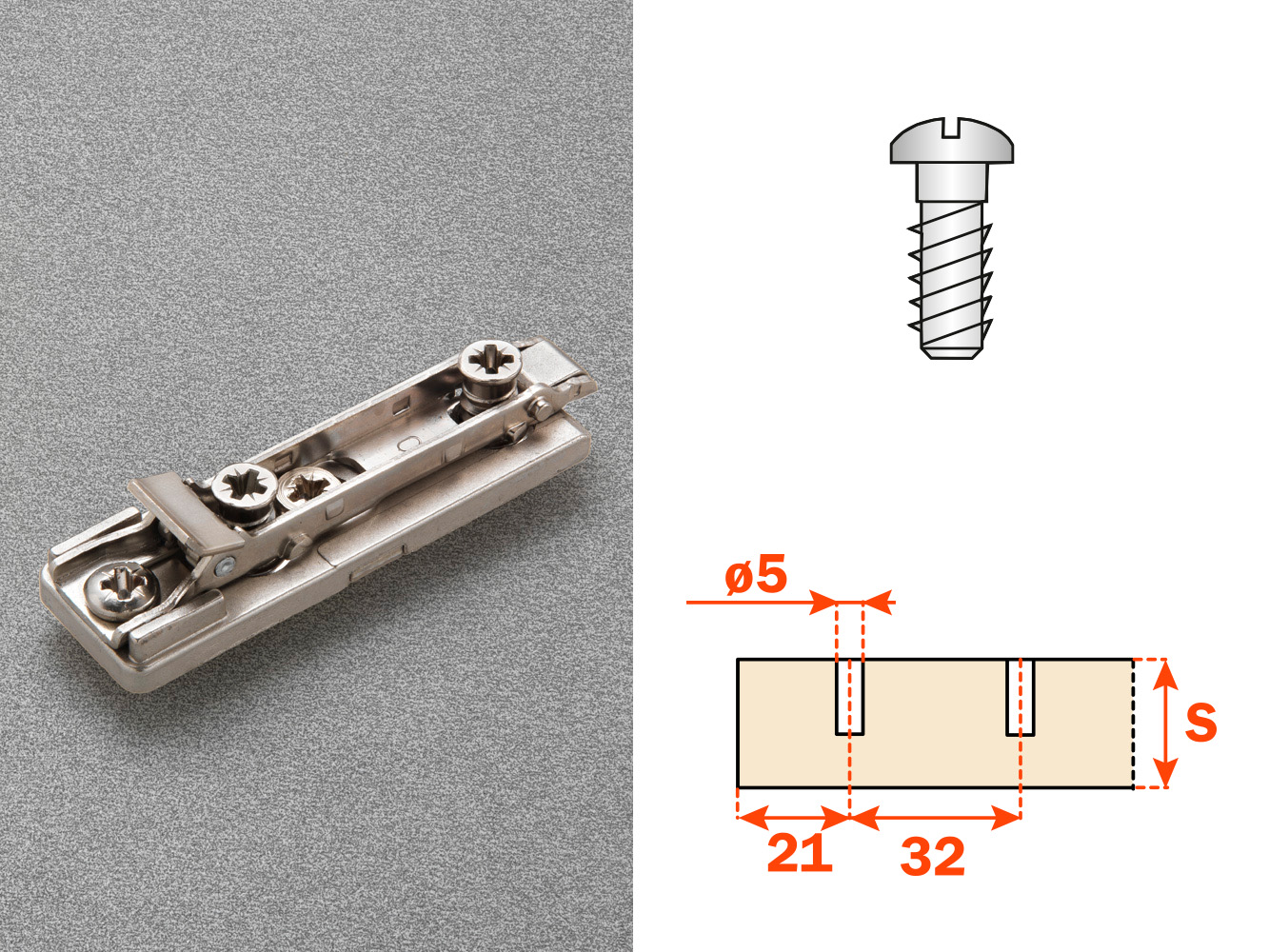

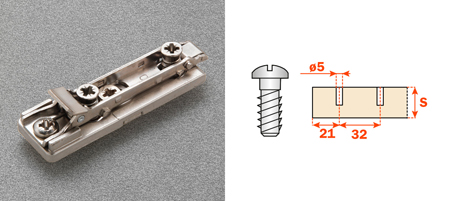

BAPGR

Die-cast mounting plates.
Fixing: Euroscrew.
Drilling ø5x11.

H = 0 1 2 3 4 5 6

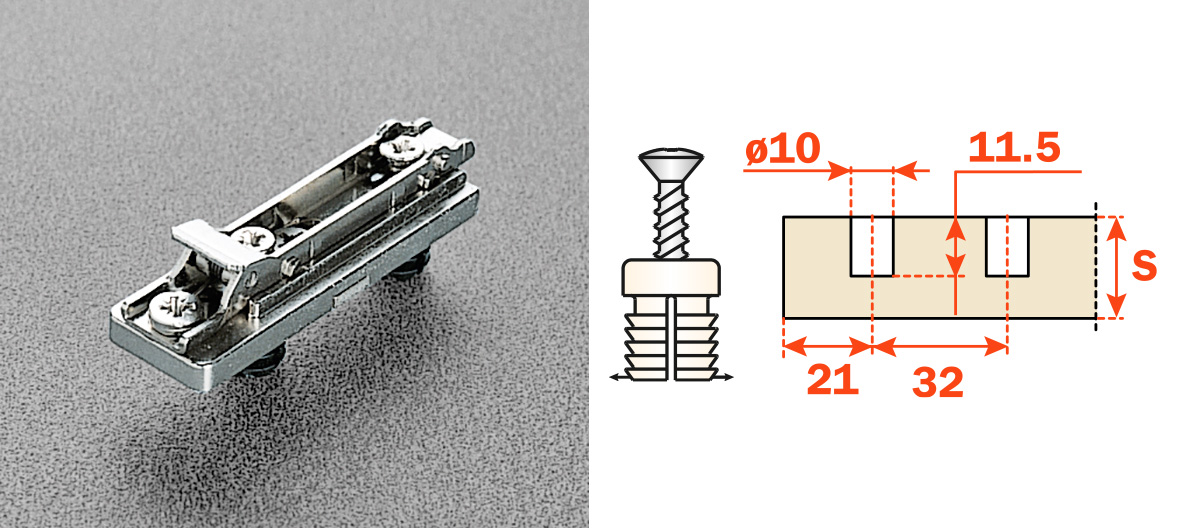

BAPMR

Die-cast mounting plates.
Fixing: expanding dowel.
Drilling ø10x11.5 mm.

H = 0 1 2 3 4 5 6

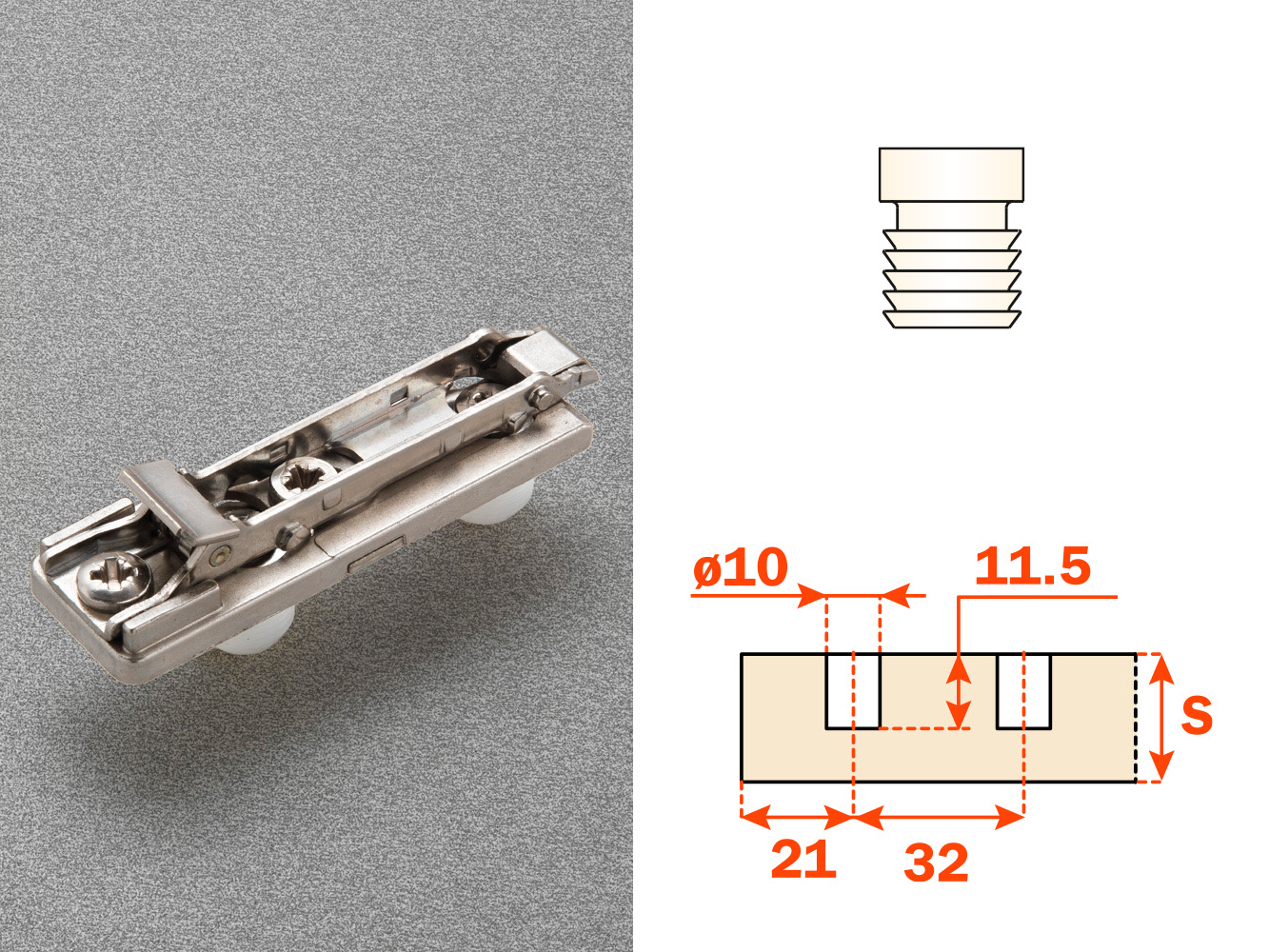

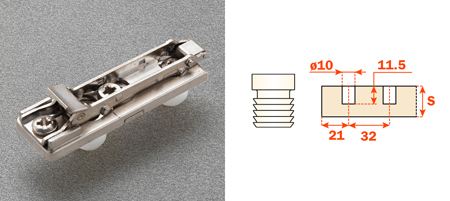

BAP7R

Die-cast mounting plates.
Fixing: knock-in dowel.
Drilling ø10x11.5 mm.

H = 0 1 2 3 4 5 6

BAP3M

Steel mounting plates.
Fixing: wood screw.

B 3.5 DIN 7983.
H = 0 2 3

BAPGM

Steel mounting plates.
Fixing: Euroscrew.
Drilling ø5x11.

H = 0 2 3

BAP7M

Steel mounting plates.
Fixing: knock-in dowel.
Drilling ø10x11.5 mm.

H = 0 2 3
